US-EN Instructions for use and safety notes Page 3
2
US-ES Notas sobre el uso y la seguridad Página 51
870_silv_Blutdruckmessgeraet_Cover_US.indd 3 04.07.19 09:
870_silv_Blutdruckmessgeraet_Cover_US.indd 4 04.07.19 09:
2
PM
9
x
04.07.201
Signs and symbols ...................................................Page 5
Description of signal words ...............................Page 5
Customer service .......................................................Page 6
List of pictograms used .........................................Page 6
Introduction ..................................................................Page 7
Intended use ....................................................................Page 8
Improper use ....................................................................Page 8
Parts description...............................................................Page 9
Scope of delivery .............................................................Page 11
Technical data .................................................................Page 11
LARO
Important safety notes ..........................................Page 14
Safety warnings for batteries ..........................................Page 27
Initial use ................................................................ Page 30
Inserting / Replacing batteries .........................................Page 30
App / web version of “HealthForYou” ...........................Page 31
Configuring the date / time / Bluetooth
®
........................Page 31
Measuring blood pressure .................................Page 33
Attaching the cuff .............................................................Page 33
Adopting the correct posture ..........................................Page 36
Selecting a memory .........................................................Page 37
Carrying out the blood pressure measurement .............Page 38
Transferring measurements via Bluetooth
®
..............................................................Page 39
Evaluating measurements ..................................Page 40
Risk indicator ....................................................................Page 41
3 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 3 04.07.19 09:1
Saving, requesting and deleting measurements
Page ......................................................................................43
Cleaning and care .....................................................Page 44
Storage ............................................................................Page 45
Troubleshooting ......................................................... Page 46
Disposal ........................................................................... Page 47
Three year limited warranty ............................. Page 47
4 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 4 04.07.19 09:1
Signs and symbols
The following signs are used in the safety section and in these instructions for use. CAREFULLY READ THIS ENTIRE MANUAL, THE SAFETY SECTION AND ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. FOLLOW ALL SAFETY NOTES AND WARNINGS TO AVOID HAZARDOUS SITUATIONS AND TO ENSURE CORRECT PRODUCT USE.
The following terms indicate safety and prop­erty damage messages, and the hazard level.
DESCRIPTION OF SIGNAL WORDS
WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE indicates information considered important, but not hazard related (e.g. messages related to property damage).
5 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 5 04.07.19 09:1
CUSTOMER SERVICE
Call customer service at
1 (844) 543-5872
Visit the Website Customer Service Platform at
www.lidl.com/contact-us
Visit a LIDL store for further assistance.
IAN 326870
Please have your IAN number ready.
List of pictograms used
Safety note related to possible damage to the de­vice / components
Safety notes
Instructions
Observe instructions for use
Direct current
Storage / Transport
6 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 6 04.07.19 09:1
Permissable storage and transport temperature and humidity
Operating
Permissible operating temperature and humidity
Permissible storage, transport and operating air pressure
Applied part, type BF
Serial number
Device protected against foreign matter ≥ 0,49 inch /
IP21
12.5 mm and against water falling vertically
Upper Arm Blood Pressure Monitor
Introduction
Congratulations on your purchase. You have se­lected a quality product. The instructions for use
are a part of the product. They contain important information about the safety, use and disposal of the prod­uct. Before using the product, please learn about all the safety information and usage instructions. Only use the product as described and for the specified applications. If you lend the product to someone else, please also give all the instructions.
7 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 7 04.07.19 09:1
Intended use
This upper-arm blood pressure monitor is intended to measure and monitor the arterial blood pressure values and the heart rates of adults with an arm circumference of 8.7 in to 16.5 in (22 cm to 42 cm), in a non-invasive way. Using this device, you can quickly and easily measure your blood pressure, save the measurements and display the progression and average of these measurements. You are warned in cases of pre-existing cardiac arrhythmia. The values determined are classified and evaluated graphically. Any use other than previously mentioned or any product modification is prohibited and may result in injuries and / or product damage. The manufacturer assumes no liability for damage arising out of improper use. The product is only intended for use in private environments (at home).
Improper use
Failure to observe the following
warnings may result in death or serious injuries.
Do not use this product on newborns and preeclampsia
patients. We recommend consulting your doctor before using the product if you are pregnant. The device is not suitable for use by patients with implanted electrical devices such as pacemakers or defibrillators.
The measurements determined by you are only intended
for your information - they do not replace a medical ex­amination. Discuss the measurements with your doctor.
8 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 8 04.07.19 09:1
Do not self-diagnose or self-treat based on the measure­ment results without consulting your attending physician. Do not start new medication without consulting a doctor and do not modify the type and / or dosage of current medications.
The product may not be used in conjunction with a
high-frequency surgical unit.
Failure to observe the following warnings may result in injuries or property damage.
Using the blood pressure monitor outside the domestic
environment or under the influence of movement (e.g. whilst riding in cars, ambulances or helicopters as well as whilst practising physical activities such as sport) can impact the accuracy of the measurement and lead to measurement errors.
Parts description
1
Cuff
2
Cuff tubing
3
Cuff plug
4
Display
5
Memory button M
6
Settings button SET
7
Function button -/+
8
START/STOP button
9
Risk indicator
9 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 9 04.07.19 09:1
10
Connection for cuff plug
11

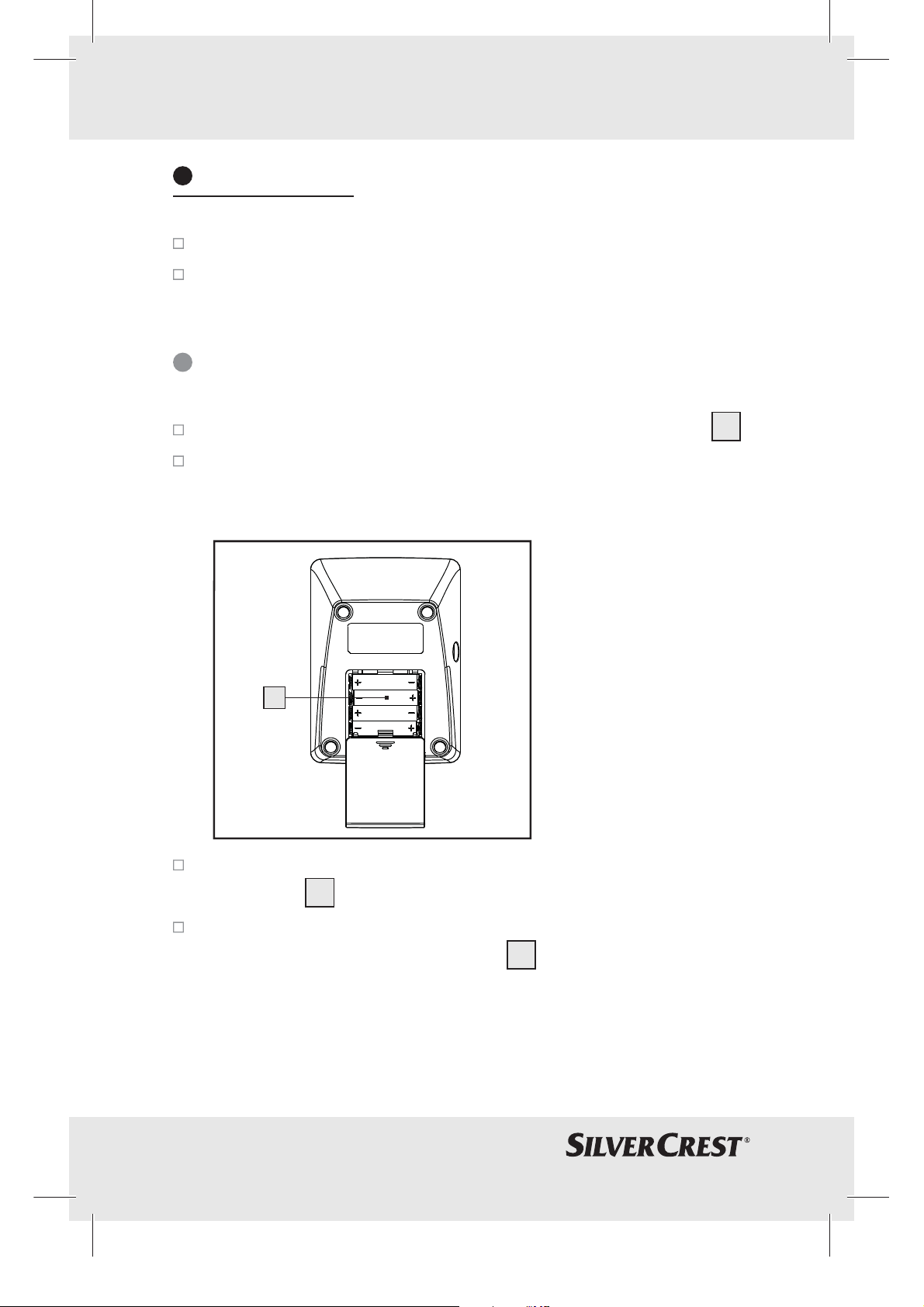

Battery compartment
1 2 3 4
10
9
5
8
11
7
Display indicators
12
Time and date
13
Systolic pressure
14
Diastolic pressure
15
Pulse value determined
16
Symbol for cardiac arrhythmia
17
Symbol for replace battery
18
Memory display: Average value (A), morning (AM),
Symbol for pulse
6
evening (PM), number of the memory space
19
Risk indicator
20
Release air
21
User memory
22
Symbol for Bluetooth® transfer
10 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 10 04.07.19 09:1
22
12
13
21
20
161718 1519
14
Scope of delivery
1 Upper arm blood pressure monitor 1 Upper arm cuff (Material no. 164.137) with cuff tubing 4 Batteries 1.5 V type AAA LR03 1 Instructions for use 1 Quick start guide
Technical data
Type: SBM 69 Measuring method: Oscillometric, non-invasive blood pres-
sure measurement on the upper arm
Measurement range: Cuff pressure 0–299 mmHg,
systolic 60–230 mmHg,
11 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 11 04.07.19 09:1
diastolic 40–130 mmHg, pulse 40–199 beats per minute
Display accuracy: systolic ± 3 mmHg,
diastolic ± 3 mmHg,
pulse ± 5 % of the displayed value Measurement uncertainty: max. permissible standard deviation
according to clinical testing: systolic
8 mmHg / diastolic 8 mmHg Memory: 4 x 30 memory spaces Dimensions: L 5.44 in x W 3.944 in x H 2.01 in /
L 138,2 mm x W 100,2 mm x
H 51,0 mm Cuff: suitable for an arm circumference
between 8.7 in / 22 cm and
16.5 in / 42 cm
Weight: 0.87 lb / 395 g (with cuff, without
batteries) Permissible operating conditions: 41 °F to 104 °F / +5 °C to +40 °C,
15 % to 90 % relative humidity
(non-condensing), 700‒1060 hPa
ambient pressure Permissible storage conditions: - 4 °F to 140 °F / -20 °C to +60 °C,
≤ 93 % relative humidity Power supply: 4 x 1.5 V AAA batteries
12 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 12 04.07.19 09:1
Product expected lifespan: 5 years Battery life: 225 measurements, depending on
blood pressure level and inflation
pressure / Bluetooth
®
transfer
Components: instructions for use, 4 x 1.5 V AAA
LR03 batteries, storage pouch Classification: Internal supply, IP21, no AP or APG,
continuous operation, applied part
Type BF Data transfer via
Bluetooth
wireless technology: The product uses Bluetooth
®
®
low
energy technology, frequency band
2.402‒2.480 GHz, maximum
transmission power radiated in the
frequency band < 4 dBm, compatible
with Bluetooth
®
≥ 4.0 smart
phones / tablets
For a list of compatible smartphones,
information about the “HealthForYou”
app and software, as well as further
details about the devices, please visit:
www.healthforyou.lidl
System requirements of the “HealthForYou“ web version: - MS Internet Explorer
- MS Edge
13 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 13 04.07.19 09:1
- Mozilla Firefox
- Google Chrome
- Apple Safari
(in the respective updated version)
System requirements of the “HealthForYou” app iOS from Version ≥ 10.0, Android
from Version ≥ 5.0, Bluetooth
®
≥ 4.0. Technical specifications subject to change without notice due to updates.
Important safety notes
TM
Failure to observe the following
warnings may result in death or serious injuries.
Consult your physician or pharmacist before starting
to measure your blood pressure.
Read and understand all instructions and warnings
before using this device.
Like any oscillometric blood pressure measurement
devices, certain medical conditions can affect the
measurement accuracy, among others: – disorder of the cardiac rhythm – very low blood pressure – patients in shock – patients with very low blood perfusion – diabetes
14 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 14 04.07.19 09:1
– vessel anomalities – people with electrical implants, such as a cardiac
pacemaker
– women who are pregnant.
Due to their condition the oscillometric measurement
method can produce incorrect readings. This represents
a risk for your health, since values may be interpreted
incorrectly. Always consult your physician to determine
what will be suitable for you.
This product does not and is not intended to provide a
medical diagnosis. Measurements results are for refer-
ence only. Self-diagnosis and treatment, e.g. regarding
medication, using measured results represent a risk for
your health. Always consult with a licensed physician
for determination of appropriate medication and dos-
age thereof. Follow the instructions of your physician or
licensed healthcare provider. If you have or suspect that
you have a medical problem, promptly consult your
physician. If you have an emergency please call 911
immediately.
Only a physician or a trained health care professional
who is familiar with your medical history is able to ac-
curately interpret your blood pressure measurements.
Consult your physician before starting blood pressure
monitoring.
This product is not intended to serve as a substitute for
the advice of a physician or medical professional. This
product is not intended to substitute for regular medical
checkups. Contact your physician for specific informa-
tion about your blood pressure.
15 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 15 04.07.19 09:1
Please note that technically related measuring tolerances
are possible. Please see section “Technical data” for
details. Note: A single measurement does not provide an ac-
curate indication of your true blood pressure. You need
to take and record several readings over a period of
time. Try to measure your blood pressure at the same
time each day for consistency.
Any cuff related blood pressure measurement in high
repetition rates, can lead to severe measurement side
effects, e.g. – any nerv compression with temporary arm
/ hand
paralysis
– the release of an arterial or venous thrombus, which
can cause a life threatening situation.
Please contact your physician about the specific risks of
cuff pressure in your specific case.
The ’irregular heartbeat’ function does not replace a
cardiac examination, but may help to detect potential
pulse irregularities at an early stage. Always consult
your physician to determine what will be suitable for
you.
The ’irregular heartbeat’ function is not designed for di-
agnosing or treating an arrhythmic disorder. Arrhythmia
can only be ascertained by a licensed physician.
The JNC chart is not intended to replace a medical di-
agnosis. This chart is only a reference for different clas-
sifications of blood pressure.
16 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 16 04.07.19 09:1
If you notice abnormal or suspicious variations in blood
pressure measurements, consult your physician immedi-
ately.
Women who underwent a breast or axillar lymph node
removal operation should consult a physician or licensed
healthcare provider before starting blood pressure
measurements.
Prior to use, you have to ensure that the blood pressure
monitor is free of damage. If in doubt, do not use the
unit and contact customer service at 1-800-536-0366.
This device is intended only for personal, non-commer-
cial, adult use in measuring blood pressure and pulse
rate. Do not use the product for any other purpose. This
product is not intended for use in a hospital, physician’s
office, or any other health care facility.
The unit must be used in accordance to the specified
ambient conditions, otherwise the accuracy of readings
might be affected. See section “Cleaning and care”
and section “Technical data” for details.
Do not wrap the cuff around body parts other than your
arm. Misuse represents a risk to your health.
Please do not share the cuff with other persons, to avoid
cross infection.
Use this monitor only on humans. This product is not intended for use by or on children,
toddlers and infants or on persons who cannot express
their consent, e.g. persons with mental disorders or the
like. Consult your physician for alternative methods of
measuring a child’s blood pressure.
17 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 17 04.07.19 09:1
This product is not a toy. Keep it out of reach of children,
toddlers, and infants.
Keep the product out of the reach of pets. Packaging materials are a deadly hazard for children
and can cause suffocation. Remove all packaging ma-
terials immediately and keep them away from children
at all times.
This product contains small parts that may present a
choking hazard to children. Keep the unit and all parts
out of reach of children. NEVER LEAVE CHILDREN OR
THOSE WHO REQUIRE CLOSE SUPERVISION UNAT-
TENDED WITH THIS DEVICE.
The tubing presents a strangulation hazard. Keep this
product away from children and those who require close
supervision, e.g. people with mental disorders. NEVER
LEAVE CHILDREN OR THOSE WHO REQUIRE CLOSE
SUPERVISION UNATTENDED WITH THIS DEVICE.
Do not drape tube around neck. This presents a stran-
gulation hazard.
People with disabilities, activity limitations, or who are
physically frail, should be assisted by another person
when using this unit.
Proper cuff size is important for accurate measurements.
Only use the device on adults who have the right upper
arm circumference for this instrument. See section
“Technical data” for suitable upper arm circumferences.
Do not use any cuffs, tubes, parts and accessories other
than those explicitly recommended by the manufacturer
for use with this product. Parts and accessories not
18 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 18 04.07.19 09:1
approved for use with the device may cause damage
to your health and to the product.
Electromagnetic interference: Avoid strong electrical or
electromagnetic fields in the direct vicinity of the device
(e.g. mobile telephones, microwave ovens) while it is in
operation, as inaccurate measurements may result. To
prevent such interference, use the unit at a sufficient dis-
tance from such devices or turn the devices off.
Do not measure your blood pressure while operating a
vehicle or in any situation which requires your full atten-
tion.
During the blood pressure measurement, blood circula-
tion must not be stopped for an unnecessarily long time.
If the device malfunctions, remove the cuff from the arm.
Avoid any mechanical restriction, compression or bend-
ing of the cuff line.
Do not allow sustained pressure in the cuff or frequent
measurements. The resulting restriction of the blood flow
may cause injury.
Ensure that the cuff is not placed on an arm in which
the arteries or veins are undergoing medical treatment,
e.g. intravascular access or therapy, or an arteriovenous
(AV) shunt.
Do not use the cuff on people who have undergone a
mastectomy.
This device is not intended to be used by persons with
limited physical, sensory or mental abilities or lacking
experience and / or knowledge unless supervised or
instructed on its use by an person responsible for their
19 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 19 04.07.19 09:1
safety. Children should be supervised to ensure they
do not play with the device.
Cardiovascular system diseases may result in incorrect
measurements and/or impairments to the device‘s mea-
surement accuracy. This is also the case when it comes
to low blood pressure, diabetes, circulatory problems
and dysrhythmia, as well as chills and shaking.
Ensure that the cuff is not placed on an arm whose
arteries or veins are undergoing medical treatment, i.e.
intravascular access or intravascular therapy or an
arteriovenous (A-V) shunt.
Only place the cuff on the upper arm. Do not place the
cuff on other body parts. Attention: The device may only be used in conjunction
with the original cuff provided.
Failure to observe the following warnings may result in injuries or property damage.
The device should not be used when your arm has been
wounded/injuried or when a catheter has been inserted. Such use may result in injury.
Remove any kind of arm jewelry or the like before taking
a measurement. This could cause bruises.
Do not place the cuff over heavy clothing (e.g. a jacket
or sweater sleeve) as the blood pressure monitor will not be able to take a proper measurement and there is an elevated danger of acquiring hematoma or skin marks during the course of the measurement.
20 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 20 04.07.19 09:1
In case the cuff does not stop inflating, interrupt the mea-
surement by pressing the start/stop button and open the
cuff at once. Do not disassemble the unit, it may result in injuries. When applying the cuff, make sure there are no wrinkles
in the cuff. This could cause bruises. Do not exert any kind of pressure on the hose during
measurement, e.g. laying your arms or any other object
on the hose. This could cause incorrect measurements. Blood pressure measurements can lead to temporary
marks on the skin at the site of the cuff placement. This is
especially the case in high repetition rates, in hypertonic
patients and in patients with weak pulses. In rare cases a
mark may persist for a couple of days. Please contact your
physician about these specific risks of cuff pressure in your
specific case. For hygienic reasons the cuff is intended only for the use
by one person. Prolonged over-inflation (cuff pressure exceeds 300 mmHg
or maintained above 15 mmHg for longer than 3 minutes)
of the bladder may cause ecchymoma of your arm. Please note that when inflating, the functions of the limb
in question may be impaired. Do not place the cuff over wounds as this may cause
further injury. The accuracy of any blood pressure measurement with
this device can be affected by a multitude of causes.
Some can be avoided some have to be accepted at the
time of measurement. Speak with your physician about
possible causes affecting your blood pressure.
21 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 21 04.07.19 09:1
Do not inflate the cuff unless wrapped around arm. Do not touch the unit, the tube and cuff and/or press
any buttons when measurement is in progress, except
for stopping the measurement. Doing so may cause
incorrect readings. Blood circulation should not be restricted by the blood
pressure measurement for an unnecessary amount of
time. Remove the cuff from the arm if the device mal-
functions. Avoid sustained pressure to the cuff, as well as frequent
measurements. The resulting curtailing of the blood flow
can lead to injuries.
Potential damage to the device! The blood pres­sure monitor is made up of precision components and electronic components. The accuracy of the measurements and the service life of the device depend on the device being used with a due amount of care:
The blood pressure monitor is made up of precision
electronic components. Accuracy of readings and the
instrument’s service life depend on careful handling.
Protect the unit against hard knocks (e.g. dropping the
unit), moisture, water, dirt, dust, chemicals, extreme hot
or cold temperatures, major temperature fluctuations,
direct exposure to sunlight and heat sources which are
too close (e.g. stoves, heating radiators). This may dam-
age the unit. The device must be stored in the specified
22 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 22 04.07.19 09:1
ambient conditions. Please see section “Cleaning and
care” and section “Technical data” for details. Do not use any aggressive solvents, cleaning agents,
detergents or any other strong chemicals to clean the
device. Never immerse and or spill water or any other liquid
onto the monitor or any components, otherwise liquid
will enter it and cause damage. Do not wash the unit in a washing machine, dish washer
or tumble dryer. Observe the local regulations for material disposal.
Dispose of the device, components and optional acces-
sories according to applicable local regulations. Unlaw-
ful disposal may cause environmental pollution. Never attempt to repair, open and/or disassemble the
unit (including cuff and optional accessory) or adjust it
yourself. This may damage the unit and impair the func-
tions. If you need to have the unit repaired, please con-
tact our customer service. Please see warranty for service
contact. Before submitting any complaint, first check the
batteries and replace them if necessary. Changes or modifications to the device will nullify the
user warranty. Do not drop or insert any object into any opening or
hose. This may damage the unit. Do not press the buttons with excessive force or with
pointed objects. To conserve the batteries, the monitor switches off auto-
matically if no buttons are pressed for one minute.
23 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 23 04.07.19 09:1
The device is only intended for the purpose described
in these instructions for use. The manufacturer is not lia-
ble for damage resulting from improper or careless use. If you are using the unit for the first time, please remove
the protective film from the display. The monitor can maintain the safety and performance
characteristics for a minimum of 10.000 measure ments
or 3 years. Further documents which include information for the
Calibration of the device can be asked at the service
address. The device can be tested in case of supposed inaccu-
racy every two years. Please contact the nearest service
address. To keep your digital blood pressure monitor in the best
condition and protect the unit from damage follow the
directions listed below: Clean your device and cuff carefully only with a slightly
moistened soft cloth and dry it immediately with a soft
dry cloth. Do not press. When storing the device, make sure that no heavy ob-
jects are placed on top of it. Do not fold the cuff and tubing tightly. The cuff tube
should not have any sharp kinks and keep it away from
sharp edges. If the unit is stored near freezing, allow it to acclimate
to room temperature before use. Always store the unit in its storage bag after use.
24 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 24 04.07.19 09:1
,))/*ϸ5;9(3(

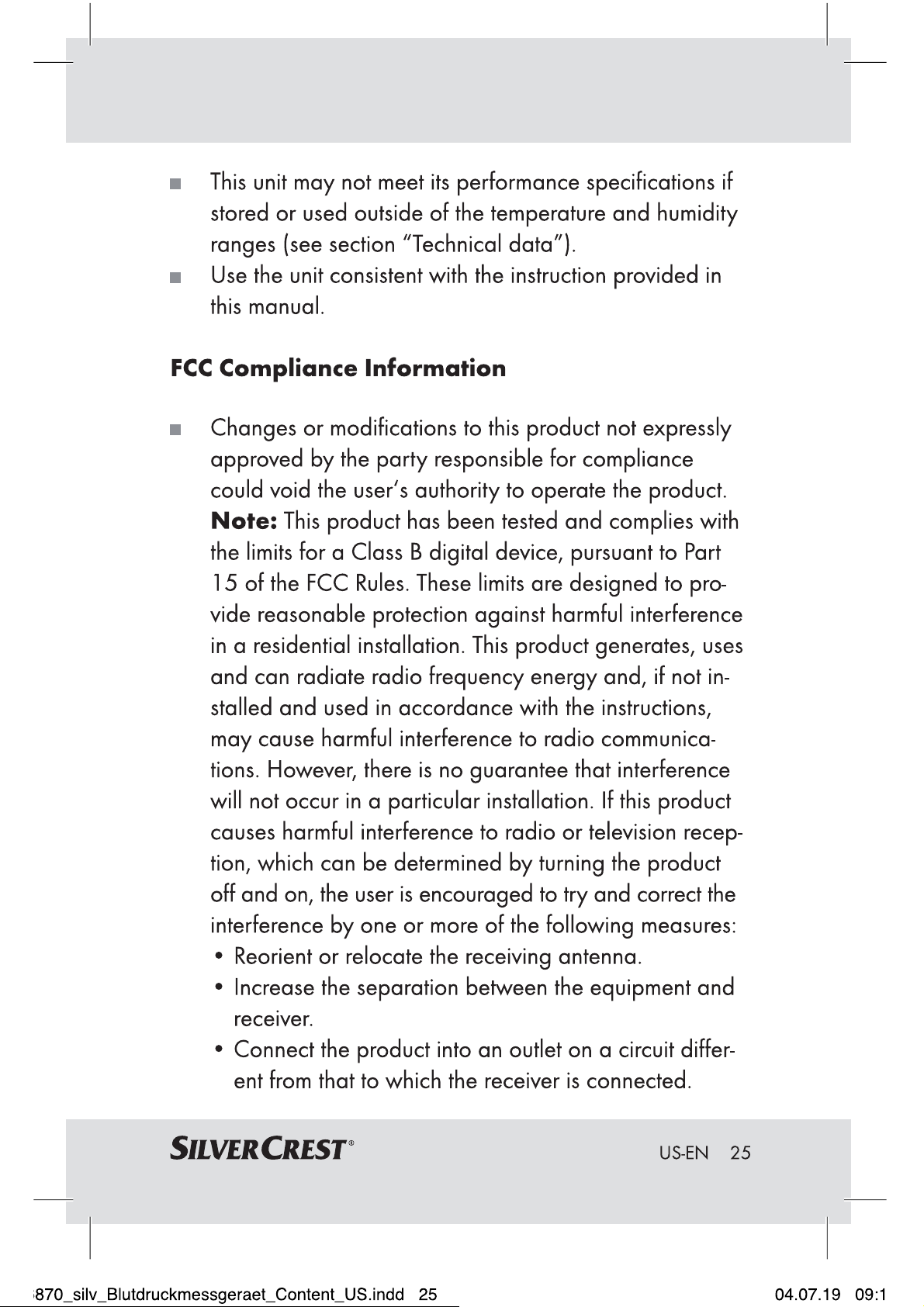

 Consult the dealer or an experienced radio /
TV technician for help.
Advice on use
For consistency, always measure your blood pressure at
the same time each day. Always wait at least 5 minutes before starting the initial
measurement to allow the blood circulation in your arm to
return to normal. You may need to increase the wait time
depending on your individual physiological characteris-
tics. Because of normal physiologic changes and the
many external factorressure, it is
unusual to obtain identical blood pressure measure-
ments, even when taken a few minutes apart. Speak
with your physician to deteryour
blood pressure and which variation may be seen as nor-
mal in your case. When performing multiple measurements on an individ-
ual, wait at least one minute between each measure-
ment. Do not take a measurement within 30 minutes of eating,
drinking, smoking or exercising. You should not be physi-
cally tired or exhausted while taking measurement. Repeat the measurement if you are unsure of the results. Measurements are for your information only – they are
no substitute for a medical examination. Discuss the
measurements with your doctor and never base any
medical decisions on them (e.g. medicines and their
administration). Do not use the blood pressure monitor on newborns,
pregnant women or patients with pre-eclampsia. Con-
sult your doctor before using the blood pressure moni-
tor during pregnancy.
26 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 26 04.07.19 09:1
Cardiovascular diseases may lead to incorrect mea-
surements or have a detrrement
accuracy. The same also applies to very low blood
pressure, diabetes, circulatory disorders and arrhyth-
mias as well as chills or shaking. For reliable monitoring and reference of blood pres-
sure, keeping long-term records is recommended. To minimize measurement variations due to physical
activity, rest at least 5 minutes before measuring your
blood pressure (or 15 minutes after strenuous activity). Stress raises blood pressure. Perform measurements in a quiet and relaxed environ-
ment at room temperature.
i. The device requires no calibration. ii. No modification of this equipment is allowed. iii. The user must check that the equipment functions safely and see that it is
in proper working condition before being used.
iv. The manufacturer does not require such preventive inspections by other
persons.
v. Manufacturer will provide circuit diagrams, component part lists,
descriptions, calibration instructions to assist to SERVICE PERSONNEL in
parts repair.
vi. Don't kink the connection tube during use, otherwise, the cuff pressure
may continuously increase
vii. Pressurization of the CUFF can temporarily cause loss of function of
simultaneously used monitoring ME EQUIPMENT on the same limb
Safety warnings for batteries
When used correctly, cells and batteries provide a safe
and dep
they are misused or abused, this may result in leakage,
burre, or explosion.
Store batteries in a dry place at room temperature.
Batteries are sensitive to high and low temperatures.
Such thermal exposure may lead to leakre, or
explosion.
endable source of portable power. However, if
27 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 27 04.07.19 09:1
Keep cells and batteries out of reach of children, espe-
cially small batteries. Ingestion may lead to choking or
acute and serious personal injury.
Keep cells or batteries clean and dry both during use
and storage. Wipe metal terminals with a soft, dry cloth
if they become dirty.
Immediately seek medical attention if a cell or battery
has been swallowed. Also, contact your local poison
control center.
In the event that the electrolyte comes into contact with
the skin or eyes, immediately flush with fresh water for
at least 15 minutes and seek medical attention.
Store unused batteries in their original packaging or
in safe place and away from metal objects that may
short-circuit them.
Exercise care in handling batteries in order to prevent
shorting with conducting materials, such as rings, coins,
bracelets, and keys. The battery or the conductor can
overheat and cause burns, leakage, fire, or explosion.
Clean the battery contacts and also those of the product
prior to battery installation. Keep the contacts clean.
Remove batteries from the product that will not be used
for an extended period of time (months or longer).
Remove discharged batteries from product promptly to
avoid possible damage from leakage.
Choose the proper battery for the intended application. Always take care to correctly insert batteries observing
(+) and (-)
for which it is int
to avoid damage to either product
polarity marks on the battery and the product
ended.
Proper polarity must be observed
or batteries.
28 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 28 04.07.19 09:1
Always replace the whole set of batteries at one time,
taking care not to mix old and new ones, or batteries of
different types, capacities, or manufacturers.
Never heat batteries in order to revive them.
Never charge a battery unless the battery label specifi-
cally states the battery is rechargeable. Charging a
non-rechargeable battery, may result in leakage, fire,
or explosion.
Do not open or mutilate a battery or cell. Electrolyte from
the cell is corrosive and can cause damage to the eyes
or skin. The cell contents can also be hazardous if in-
gested.
Do not drop or subject the cell or battery to strong me-
chanical shock.
Batteries should not be disassembled, crushed, punc-
tured, or otherwise mutilated. Such abuses may result
in leakage, fire, or explosion.
Do not dispose of the battery in a fire. Failure to observe
this precaution may result in an explosion. Dispose of batteries properly and in accordance with
government regulations.
SAVE THESE INSTRUCTIONS
29 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 29 04.07.19 09:1
Initial use
Verify the parts listed in the scope of delivery are complete. Remove all packaging material.
Inserting / Replacing batteries
Slide the battery cover off the battery compartment 11 Insert the four type 1.5 V AAA (Alkaline type LR03)
batteries (with the correct polarity) into the device.
Please
note the marking inside the battery compartment.
11
Carefully close the battery cover on the battery com-
partment
11
.
Do not use rechargeable batteries.
Note: If the battery indicator
17
is displayed continu­ously, measurement is not possible and you must replace all of the batteries with new batteries. As soon as the batteries have been removed from the device, the date and time will be reset.
30 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 30 04.07.19 09:1
All display elements will be displayed briefly and “12h”
will flash on the display. Configure the date, time and
Bluetooth
®
(see “Configuring date / time / Bluetooth®”).
App / web version of
“HealthForYou”
Download the free app “HealthForYou” from the Apple App Store and Google Play.
Follow the installation instructions on the screen. Alternatively, you can also visit the website
www.healthforyou.lidl. Here you will be able to enter measurements and find guidance for assessment.
Configuring the date /
time / Bluetooth
Configure the date, hour format and time. It is only in
this way that you will be able to correctly save these measurements with the date and time and request them later on.
The settings menu can be accessed in two different
ways:
®
31 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 31 04.07.19 09:1
Before first use and after every battery change:
When you insert batteries into the device, you will auto-
matically arrive at the relevant menu.
If batteries have already been inserted:
On the switched-off device, hold the settings button
SET
6
pressed for 5 seconds.
Now proceed as follows:
The time format will flash. Use the function buttons -/+ 7 to set the format to 12-hour or 24-hour. Press the SET button
6
to confirm. The year will flash.
Use the function buttons - / + 7 to set the year. Press
the SET button
6
to confirm.
The month will flash.
Use the function buttons - / + 7 to set the month. Press
the SET button
6
to confirm.
Configure the day, hour and minute consecutively as
described above. Press the SET
6
button to confirm
each entry.
The Bluetooth
®
symbol will be shown on the display.
“On” or “Off” will flash at the same time.
Using the function buttons “- / +”, choose whether you
want to activate (“On” flashes) or deactivate (“Off” flashes) Bluetooth® data transfer. Press the SET button 6 to confirm.
If Bluetooth
®
is activated (“On”) data transfer will begin
automatically after the measurement has been taken.
Note: The battery life is reduced by transfer via Blue-
tooth
32 US-EN
®
.
870_silv_Blutdruckmessgeraet_Content_US.indd 32 04.07.19 09:1
Measuring blood pressure
Note: To guarantee that you will be able to compare
values adequately, always measure your blood pressure at the same time of day.
You should not eat, drink, smoke or be physically active
in the 30 minutes before each measurement.
Before taking the first blood pressure measurement,
always rest for 5 minutes!
Furthermore, if you wish to take multiple measurements
one after the other, always wait at least 1 minute between each measurement.
Repeat the measurement process if the measured values
seem incorrect.
Bring the device to room temperature before the mea-
surement.
Attaching the cuff
The device may only be used in conjunction nal cuff provided. The cuff is suitable circumference of between 8.7 in and 16.5 in / 22 cm and 42
cm.
with the origi-
for an upper arm
Place the cuff 1 on a bare upper arm. The blood flow of the arm should not be constricted by clothing etc.
which
is too tight.
33 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 33 04.07.19 09:1

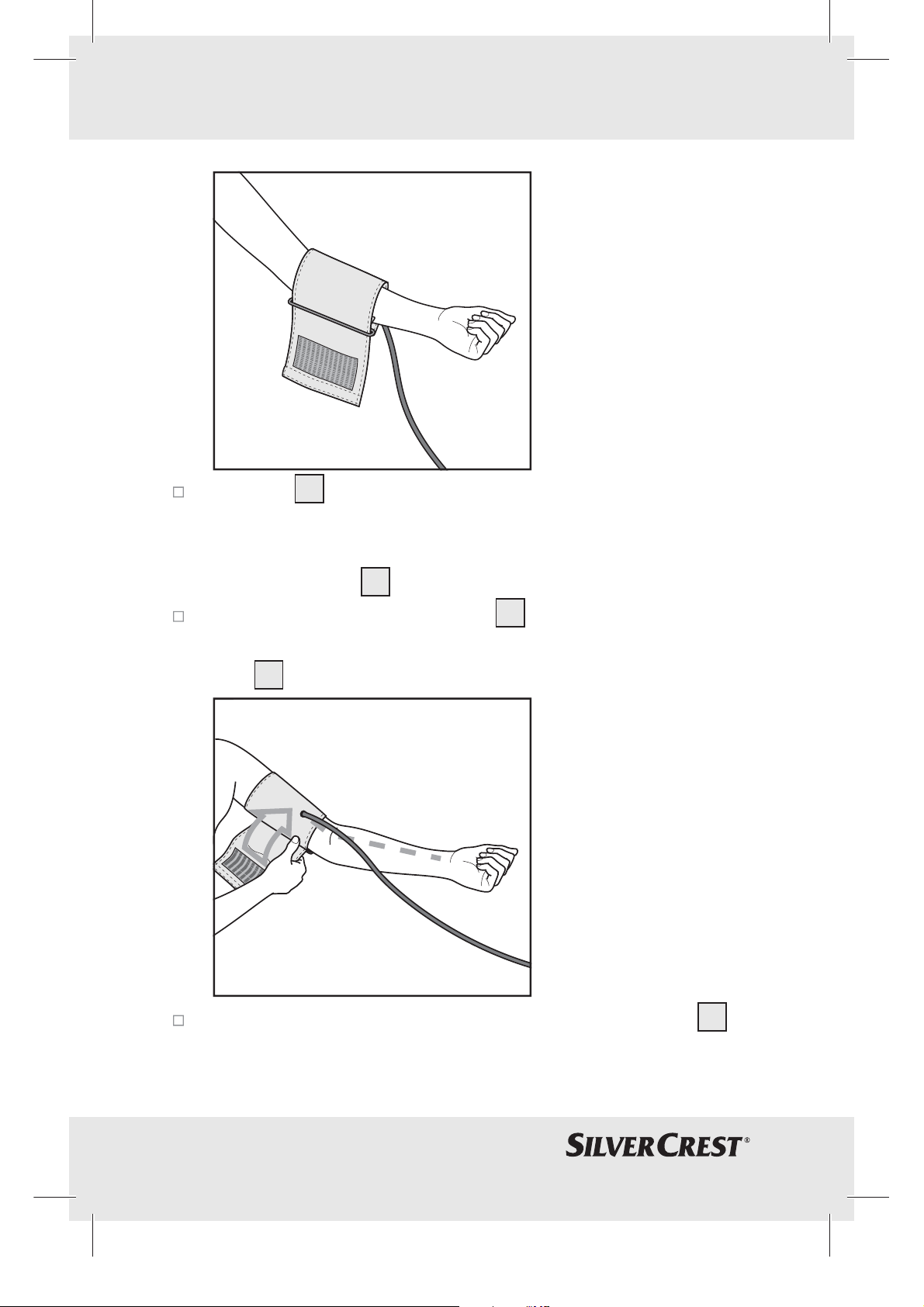

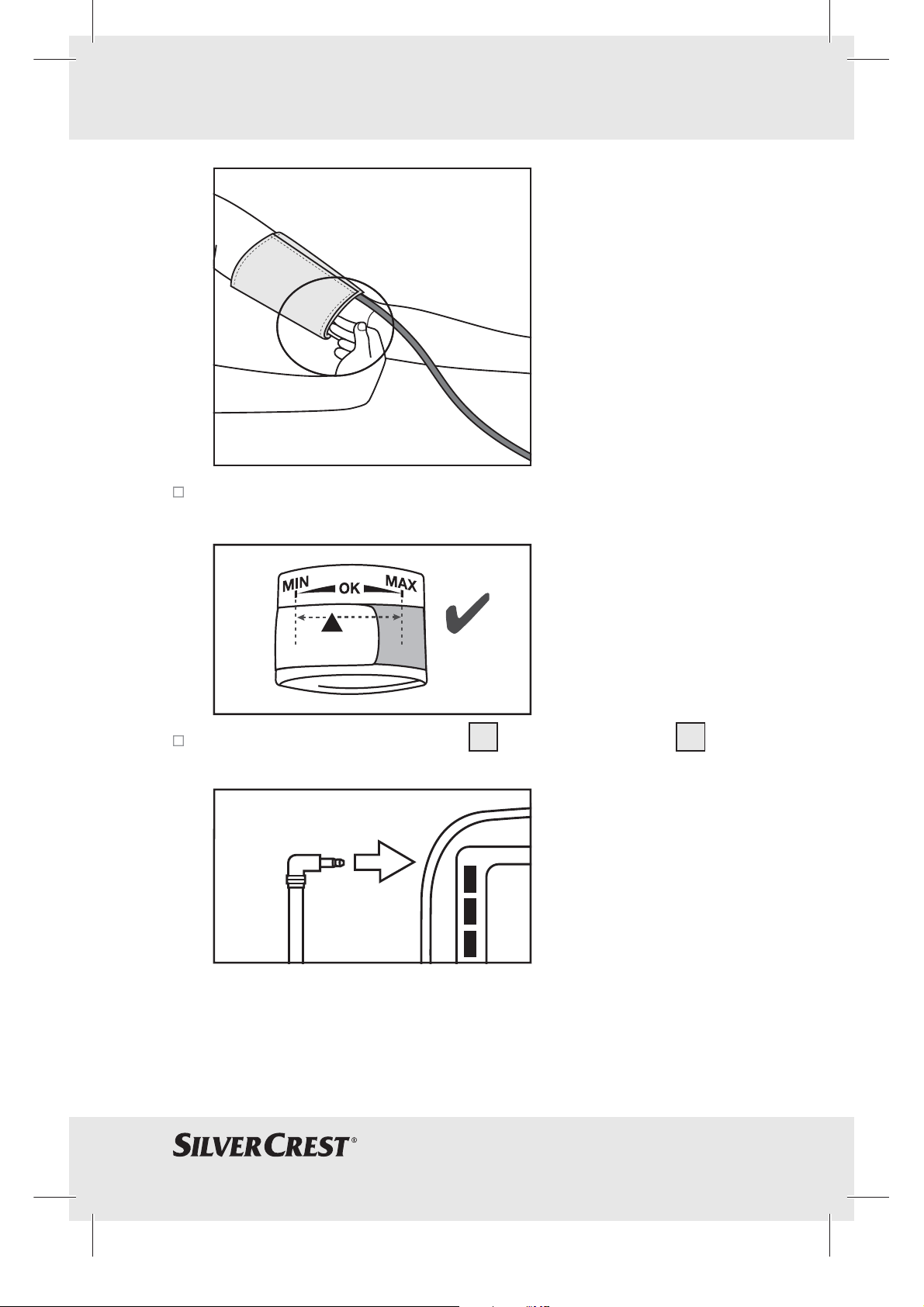

The cuff 1 should be placed on the upper arm in such
a way that the lower edge lies 0.79 in to 1.19 in / 2 cm–3 cm over the crook of the arm and the artery. The cuff tubing
2
points to the centre of the palm.
Place the free end of the cuff 1 closely, but not too
tightly, around the arm and close the Velcro strip. The cuff
1
should not be too tight.
Check that two fingers can still fit beneath the cuff 1.
34 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 34 04.07.19 09:1
This cuff is suitable for you if, after putting it on, the
index marker (▼) falls within the OK area.
Now insert the cuff tubing 2 with the cuff plug 3 into
the connector.
35 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 35 04.07.19 09:1
Adopting the correct posture
Note: Stay still during the measurement process and do not
talk to prevent the measurement result from being falsified.

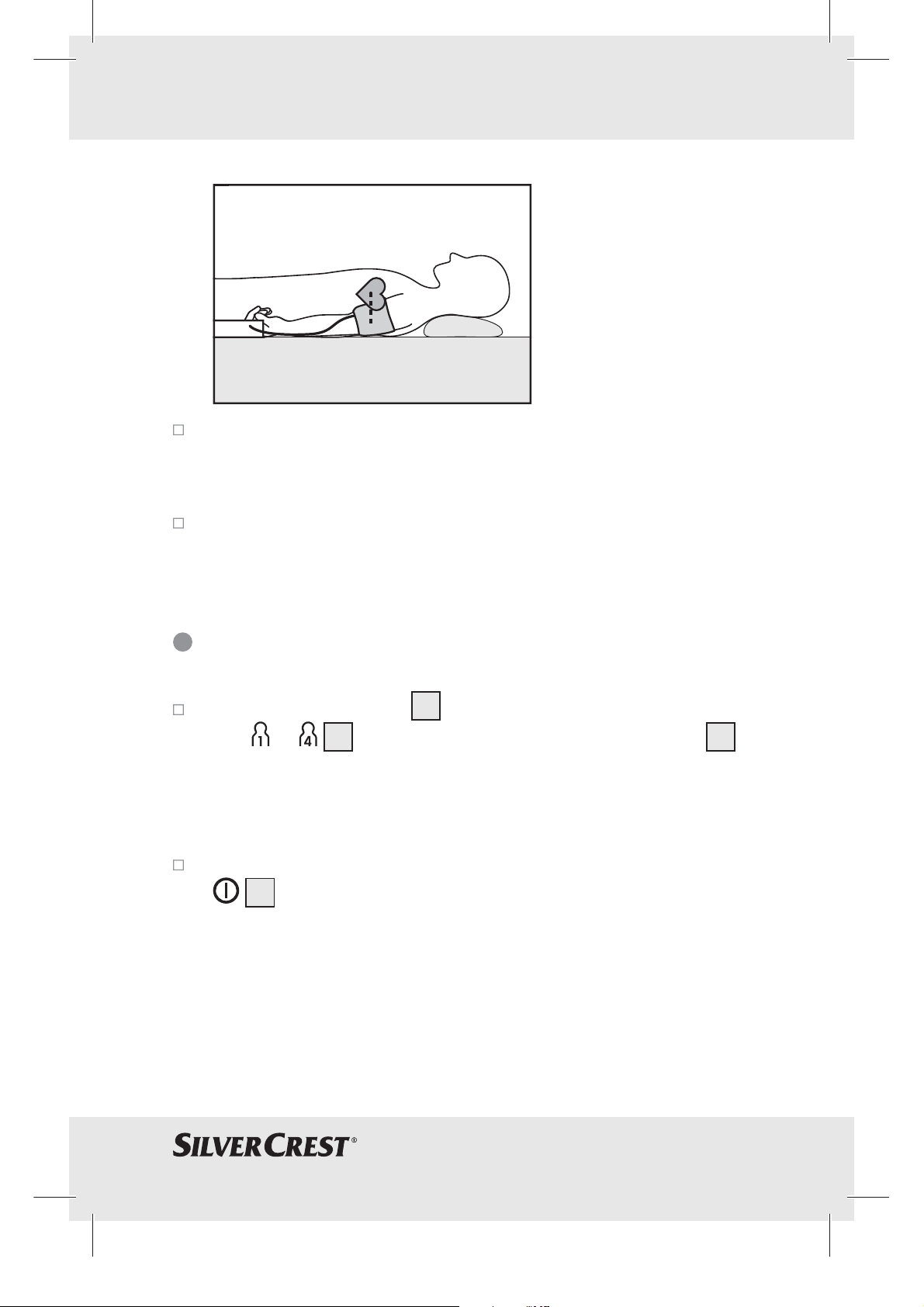

You can carry out the measurement while sitting or lying
down. Always ensure that the cuff level as the heart.
1
is at the same
36 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 36 04.07.19 09:1

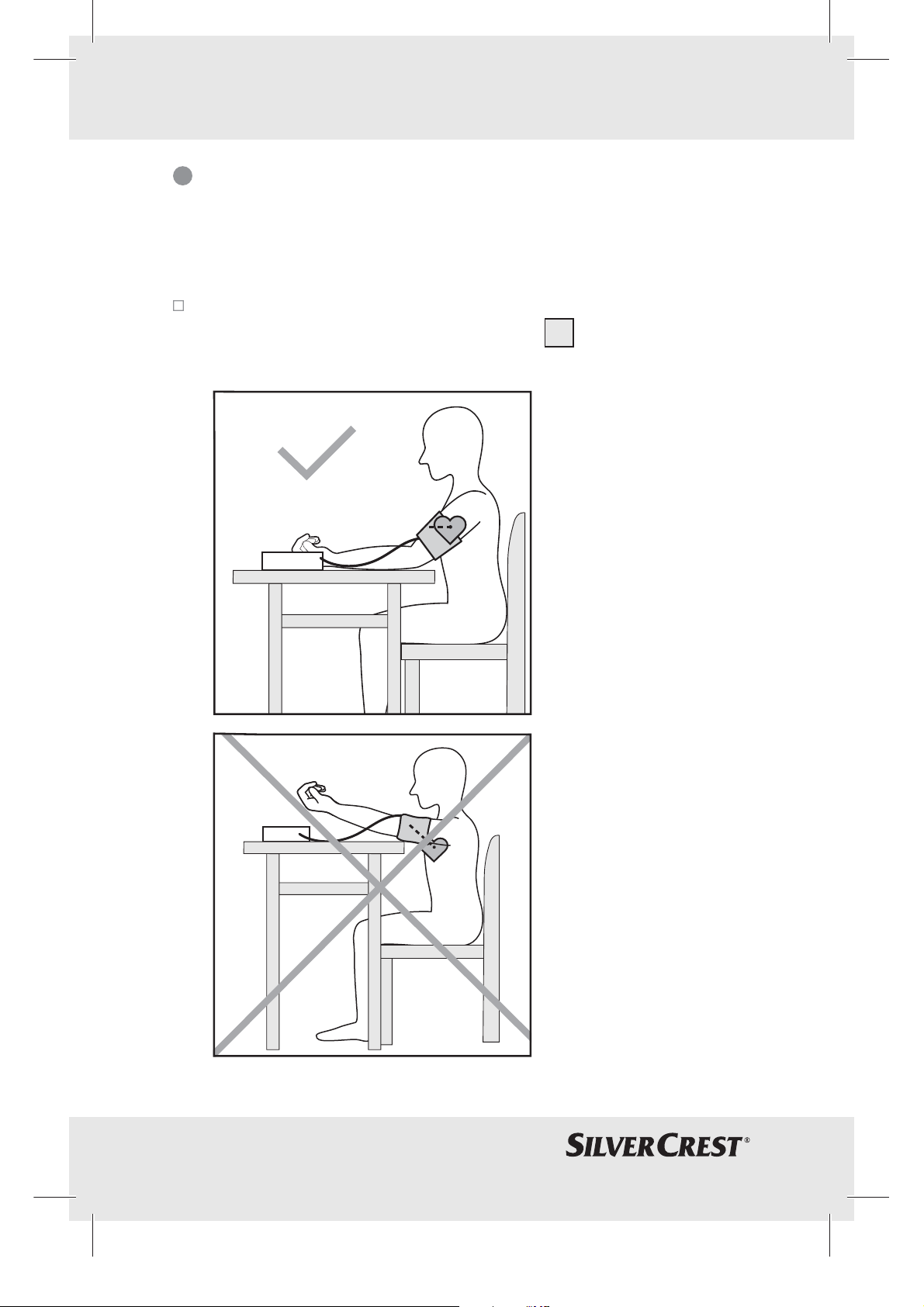

Sit comfortably for the blood pressure measurement.
Recline your back and arms. Do not cross your legs. Put your feet flat on the ground.
In order not to falsify the measurement result, it is im-
portant that you stay still and do not talk.
Selecting a memory
Press the SET button 6. Select the desired user mem-
ory
... 21 by pressing the function buttons -/+ 7.
You have 4 memories with 30 memory spaces for
saving the measurement results of 4 different people separately.
Confirm your choice using the START / STOP button
8 or wait 3 seconds. Your choice will then be
saved automatically.
37 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 37 04.07.19 09:1
Carrying out the blood
pressure measurement
Place the cuff on your arm as previously described and
assume the position in which you wish to carry out the measurement.
Switch on the blood pressure monitor using the START /
STOP button
8. After the full-screen display, the last measurement result saved will be displayed. If no measurement has been saved, the de­vice will display the value of “0”. After 5 seconds, the blood pressure monitor will begin with the measurement by pumping up the cuff. The measurement is taken while the cuff is being pumped up. As soon as a pulse has been detected, the pulse symbol
will be displayed. After this, the cuff air pressure will be released again. The measurement results for systolic pressure, diastolic pres­sure and pulse will be displayed.
You can stop the measurement at any time by pressing
the START / STOP button
8.
If the measurement has not been carried out correctly,
“Er_” will be displayed (see “Troubleshooting” also). Repeat the measurement process in the event that this
happens. The measurement result will be saved automatically. If you have activated Bluetooth
®
data transfer, the data will be transferred. The blood pressure monitor displays the symbol for Bluetooth
®
transfer during transfer. Switch the blood pressure monitor off by pressing the START / STOP button once more.
38 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 38 04.07.19 09:1
To power down press the START / STOP button
.
8
Note: The device switches off automatically after one minute if no button has been pressed. Wait for at least one minute before taking another measurement!
Transferring measurements
via Bluetooth
You have the option of transferring the measured values and values saved on your device to your smartphone using
Bluetooth
Activate Bluetooth® in your smartphone settings and
open the “HealthForYou” app.
®
low energy technology.
®
Note: The “HealthForYou” app must be open for trans-
fer to occur.
Add “SBM69” in the app.
When connecting for the first time, a randomly generated six-digit PIN code will be displayed on the device over two lines. At the same time, an entry field will appear on your smartphone where you should enter this six digit code. When you have entered it correctly, the device is connected with your smartphone and you can begin to transfer your measurement values.
The displayed values are intended
merely as a visualisation and may not be used as the basis for therapeutic measures. The software is not part of a diag­nostic medical system.
39 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 39 04.07.19 09:1
Note: During data transfer, button functions cannot be executed. To transfer measurements to your smartphone via Bluetooth proceed as follows:
Manual transfer
Go to save mode (see “Saving, requesting and deleting measurements”). As soon as the average value of all mea­surements is displayed, a Bluetooth
®
connection will auto­matically be established. The data will be transferred and the Bluetooth
®
symbol will be shown on the display.
Switch the blood pressure monitor off by pressing the
®
START / STOP button
8.
Automatic transfer
If you forget to switch off the blood pressure monitor, it will automatically switch off after one minute. In this case, the value will be saved in the selected user memory and the data will be transferred if Bluetooth activated. The Bluetooth
®
symbol will be shown on the
®
data transfer has been
display during transfer.
Evaluating measurements
Cardiac arrhythmia
This device can identify any potential cardiac arrhythmia disorders and, if necessary, indicates this after the measure­ment process with the symbol
. This can be an indicator
for arrhythmia.
40 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 40 04.07.19 09:1
Arrhythmia is an illness in which the heart rhythm is abnor­mal due to errors in the bioelectric system, which controls the heartbeat. The symptoms (skipped or premature heart­beats, slow or rapid pulse) can stem from heart conditions, age, physical predispositions, an excess of luxury foods, stress or a lack of sleep. Arrhythmia can only be diagnosed by a doctor after a physical examination.
Repeat the measurement process if the symbol is
shown on the display after the measurement. Please make sure that you rest for a minute before the measurement and do not talk or move during it.
If the symbol is displayed repeat-
edly, contact your doctor. Self-diagnosis and self-treat-
ment on the basis of measurement results can be dan­gerous. Follow your doctor‘s instructions.
Risk indicator
In accordance with the guidelines / definitions provided by the Joint National Committee (JNC) and the latest findings, the measurement results can be classified and evaluated ac­cording to the following table:
41 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 41 04.07.19 09:1
Stages of
Systolic
Diastole
Color Measure blood pressure levels
Stage 2 Hypertension
Stage 1 Hypertension
Pre-hyperten­sion
(mmHg)
>=180 >=110 Red Seek medical
160–179 100–109 Red Seek medical
140–159 90–99 Red Have it
130–139 85–89 Yellow Have it
(mmHg)
advice
advice
checked regularly by doctor
checked regularly by doctor
120‒129 80‒84 Green Check it
yourself
Normal <120 <80 Green Check it
yourself
Source: U.S. Department of Health and Human Service, JNC7
(2004), adapted
The JNC chart is not intended to replace a medical diagnosis. This chart is only a reference for different classifications of blood pressure.
Note: These standard values merely serve as a general guideline as blood pressure deviates depending on the individual, different age groups, etc.
42 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 42 04.07.19 09:1
It is important that you consult your doctor at regular intervals. Your doctor will give you your particular values for normal blood pressure as well as the value for when your blood pressure is classified as dangerous. The bar chart on the display and the scale on the device state which range the blood pressure measured is in. If the values for systolic and diastolic pressure are in two different JNC ranges (e.g. systolic in the Stage 1 Hyperten­sion range and diastolic pressure in the normal range) the graphic JNC classification on the unit indicates the higher range (Stage 1 Hypertension in the example described).
Saving, requesting and deleting
measurements
The results of each successful measurement are saved together with the date and time. If there are over 30 measurement values, the oldest measurement value will be overwritten.
Press the SET button 6. Press the function buttons -/+
7
to select the desired user memory ... . Confirm
your choice using the START / STOP button
8.
Press the memory button M 5 to display the average
value “A” of all saved measurements pertaining to the user memory. Press the memory button M
5
again to display the average value of the last 7 days for the morning measurement. (Morning: 5.00 am – 9.00 am, display “AM”). Press the memory button M
5
again to display the average value of the last 7 days for the evening measurement. (Evening: 6 pm – 8 pm, display
43 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 43 04.07.19 09:1
“PM”). By pressing the memory button M again, the last individual measurement will be displayed with the date and time.
Press the START / STOP button 8 to switch off the
device.
Note: The device switches off automatically after one
minute when no button has been pressed.
Deleting data
To delete the memory of the selected user, press the
memory button M
5
when the device is switched off.
The average value of all measurements will appear on
the display. Next to this, “A” and the Bluetooth fer symbol
22
will flash.
®
trans-
Keep the function buttons - / + 7 pressed simultaneously
for 5 seconds.
After successful deletion, “CL 00” will appear in the
display.
The data has been deleted.
Cleaning and care
Possible property damage! Never hold the product under water as liquid could enter the product and damage it.
Clean the device and cuff 1 carefully using a slightly
damp cloth.
Do not use cleaners or solvents.
44 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 44 04.07.19 09:1
Storage
Possible property damage! Do not place
any heavy objects on the device and cuff
1
.
If the product will not be used for more than one month,
remove both batteries from the device to prevent possible battery leakage.
Do not kink the cuff tubing 2. Store the product in a dry location (relative humidity
≤ 93 %). High humidity can shorten the service life or damage the product. Store the product in a location with ambient temperatures between - 4 °F and 140 °F / -20 °C and +60 °C.
45 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 45 04.07.19 09:1
Troubleshooting
Trouble-
Problem Solution
shooting
Er1 The pulse cannot be
measured correctly.
Er2 You have been talking
or moving during the measurement process.
Er3 The cuff was attached
too tightly or too loo­sely.
Er4 An error occurred du-
ring the measurement process.
Er5 The pump-up pressure
is higher than
Repeat the measurement process. Be sure not to move or talk.
300 mmHg or the blood pressure mea­surement falls outside
the measuring range.
of
Er6
The batteries are almost dead.
Er7 Data cannot
be sent via
®
Bluetooth
.
Er8 A device error has
occurred.
46 US-EN
Reinsert the batteries or replace them with new batteries.
®
Activate Bluetooth
on your smartphone and start the "HealthForYou" app.
Repeat the measurement process. Be sure not to move or talk.
870_silv_Blutdruckmessgeraet_Content_US.indd 46 04.07.19 09:1
Disposal
Observe the local regulations for material disposal. Dispose of the device in accordance with local regulations. If you have any questions, please contact the local authorities re­sponsible for waste disposal.
Three year limited warranty
What does this warranty cover?
The warranty covers:
· Damage, breakage or inoperability due to defect.
· Damage not caused by normal wear and tear or failure to follow the safety and maintenance instructions provided in the user manual.
What is not covered by the warranty?
The warranty does not cover damage caused by:
· Normal wear and tear of the product, including fragile parts (such as switches, glass, etc.);
· Improper use or transport;
· Disregarding safety and maintenance instructions;
· Accidents or acts of nature (e.g. lightning, fire, water, etc.);
· Tampering with the product (such as removing cover, un­screwing screws etc.).
Consequential and incidental damages are also not covered under this warranty. However, some states do not allow the
47 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 47 04.07.19 09:1
exclusion or limitation of incidental or consequential dam­ages, so this limitation or exclusion may not apply to you.
What is the period of coverage and warranty resolution?
The warranty is for 3 years from the date of purchase. At our discretion, product will either be refunded or replaced.
What will we not do?
We will not:
· Start a new warranty period upon product exchange;
· Repair product.
How to process the warranty?
To initiate, please:
· Call customer service at 1 (844) 543-5872
· Visit the Website Customer Service Platform at www.lidl.com/contact-us or
· Visit a LIDL store for further assistance
To ensure the quickest warranty return process, please have the following available:
· The original sales receipt that includes the date purchased;
· The product and manual in the original package;
· A statement of the problem.
48 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 48 04.07.19 09:1
What must you do to keep the warranty in effect?
· Retain the original receipt;
· Follow all product instructions;
· Do not repair or modify the product.
How does state law relate to this warranty?
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. All im­plied warranties are limited by the duration and terms of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
49 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 49 04.07.19 09:1
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hans Dinslage GmbH is under license. Other trademarks and trade names are those of their respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC.
50 US-EN
870_silv_Blutdruckmessgeraet_Content_US.indd 50 04.07.19 09:1
51 US-ES
870_silv_Blutdruckmessgeraet_Content_US.indd 51 04.07.19 09:1
52 US-ES
870_silv_Blutdruckmessgeraet_Content_US.indd 52 04.07.19 09:1
53 US-ES
870_silv_Blutdruckmessgeraet_Content_US.indd 53 04.07.19 09:1

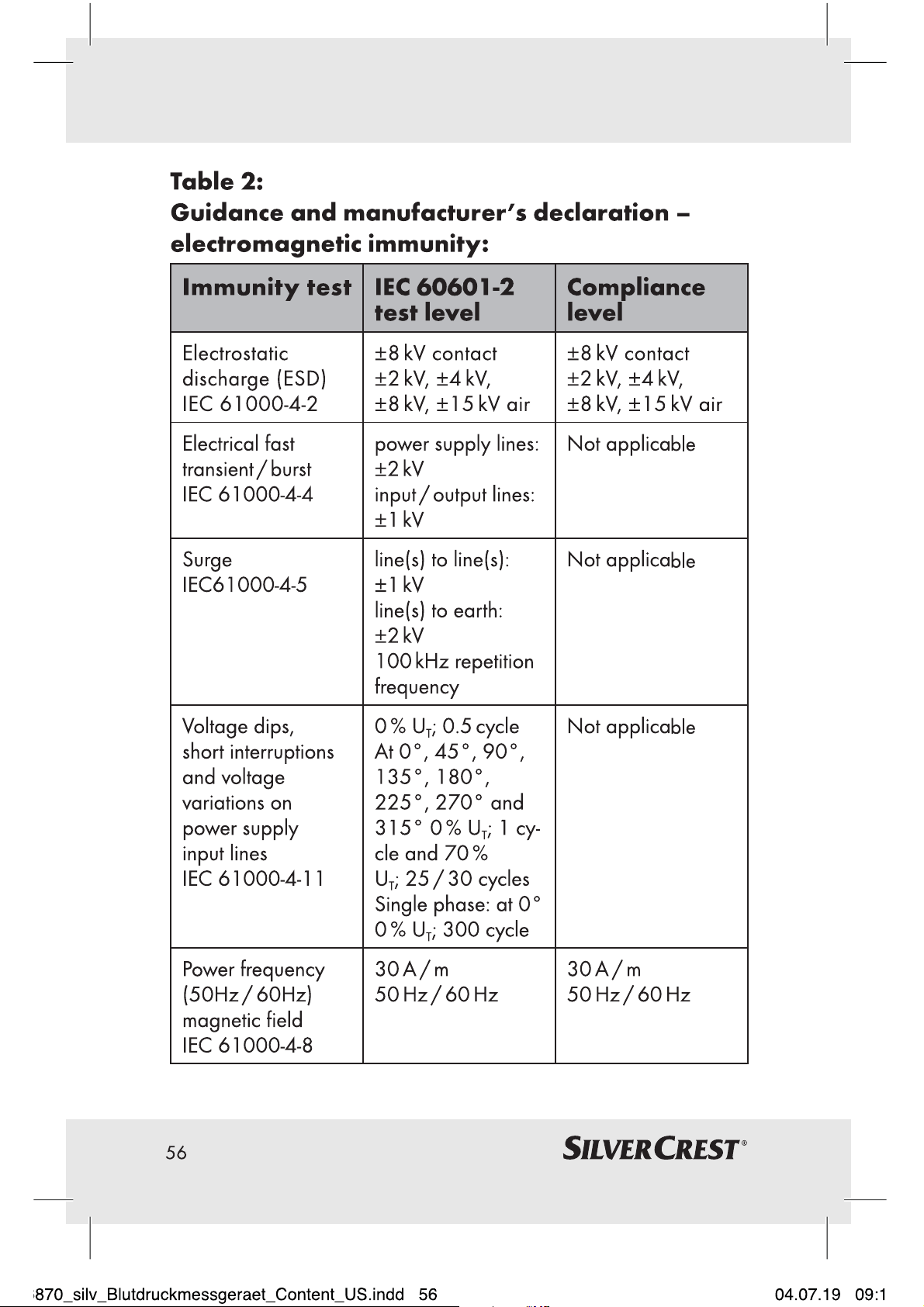

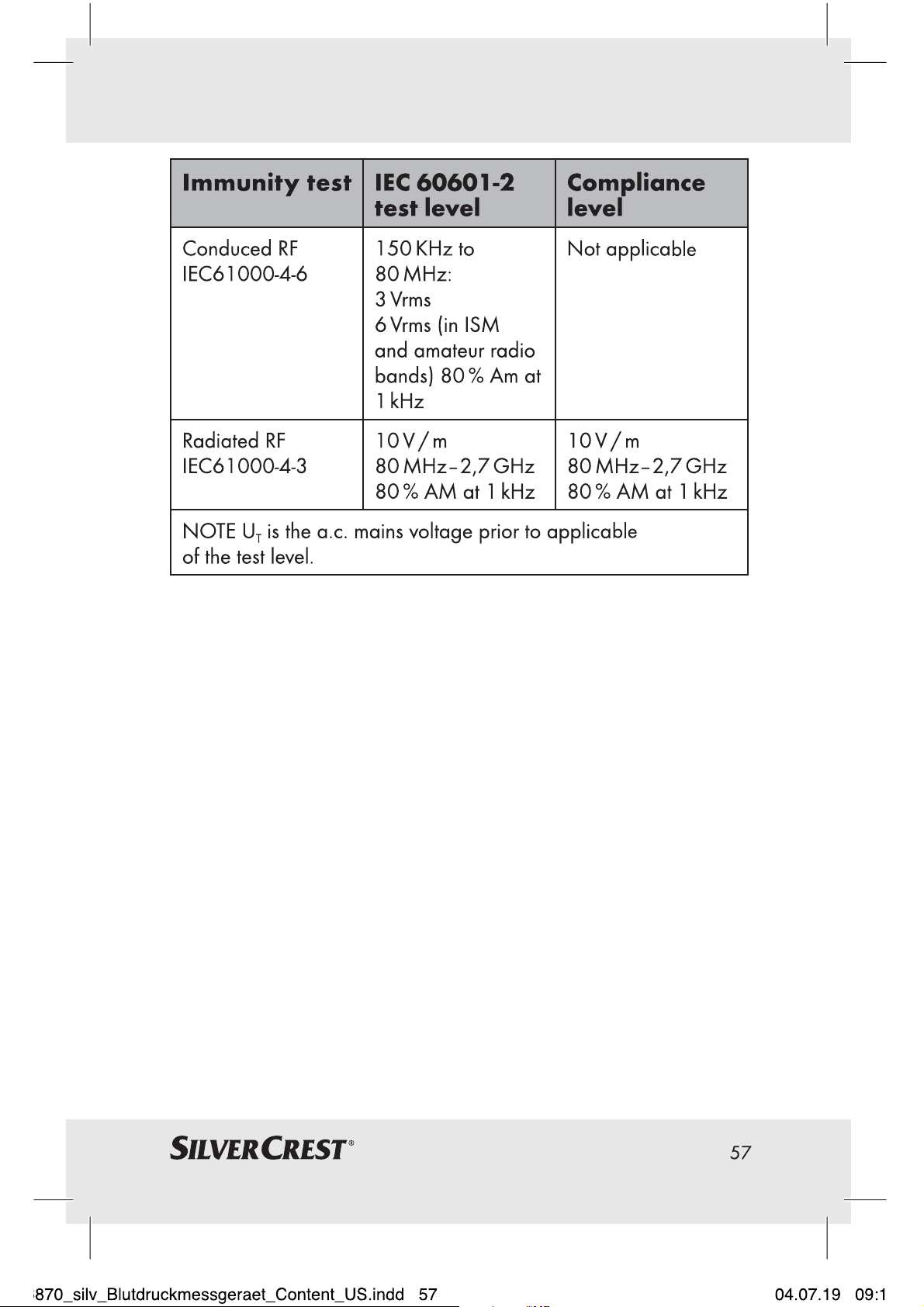

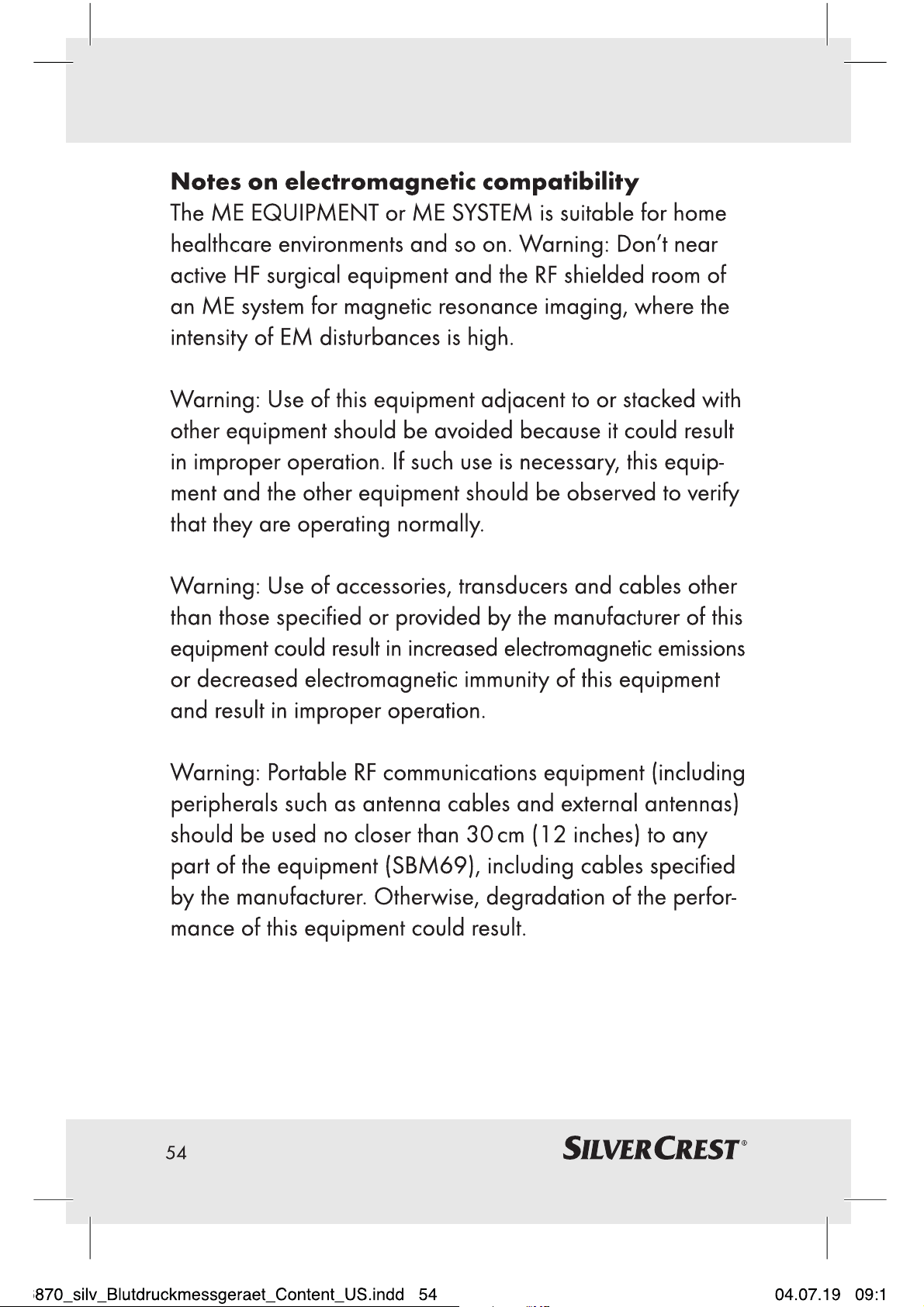

Table 3: Guidance and manufacturer’s declaration - electromagnetic immunity:
Radiated RF IEC61000­4-3 (Test specifica­tions for ENCLOSURE PORT IMMU­NITY to RF wireless communica­tions equip­ment)
Test Fre-
Band (MHz)
Service
quency
385 380‒390 TETRA
400
450 430‒470 GMRS 460:
FRS 460
710 704‒787 LTE Band
13, 17
745
58
780
810 800‒960 GSM
800 / 900,
870
930
TETRA 800, iDEN 820, CDMA 850, LTE Band 5
870_silv_Blutdruckmessgeraet_Content_US.indd 58 04.07.19 09:1
Radiated RF IEC61000­4-3 (Test specifica­tions for ENCLOSURE PORT IMMU­NITY to RF wireless communica­tions equip­ment)
Test Fre-
Band (MHz)
Service
quency
1720 1700‒1990 GSM 1800;
CDMA
1845
1970
1900; GSM 1900; DECT; LTE Band 1, 3, 4, 25; UMTS
2450 2400‒2570 Bluetooth,
WLAN,
802.11 b / g / n, RFID 2450, LTE Band 7
5240 5100‒5800 WLAN
802.11 a / n
5500
5785
59
870_silv_Blutdruckmessgeraet_Content_US.indd 59 04.07.19 09:1
Table 3: Guidance and manufacturer’s declaration - electromagnetic immunity:
Radiated RF IEC61000­4-3 (Test specifica­tions for ENCLOSURE PORT IMMU­NITY to RF wireless communica­tions equip­ment)
Modu­lation
Pulse modula­tion b) 18 Hz
FM c) ± 5kHz de­viation 1 kHz sine
Modu­lation (W)
Dis­tance (m)
IMMU­NITY TEST LEVEL (V/m)
1.8 0.3 27
2 0.3 28
60
Pulse modula­tion b) 217 Hz
Pulse modula­tion b) 18 Hz
0.2 0.3 9
2 0.3 28
870_silv_Blutdruckmessgeraet_Content_US.indd 60 04.07.19 09:1
Radiated RF IEC61000­4-3 (Test specifica­tions for ENCLOSURE PORT IMMU­NITY to RF wireless communica­tions equip­ment)
Modu­lation
Modu­lation (W)
Dis­tance (m)
IMMU­NITY TEST LEVEL (V/m)
Pulse modula­tion b) 217 Hz
Pulse modula­tion b) 217 Hz
Pulse modula­tion b) 217 Hz
2 0.3 28
2 0.3 28
0.2 0.3 9
61
870_silv_Blutdruckmessgeraet_Content_US.indd 61 04.07.19 09:1
62
870_silv_Blutdruckmessgeraet_Content_US.indd 62 04.07.19 09:1
Loading...
