TRANSTEK GBF-1319-B User Manual

User Manual

Body Fat Analyzer

GBF-1319-B

version:1.0

Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems.

Thank you very much for selecting the Transtek Body Fat Analyzer GBF-1319-B.

GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD

Zone A, 5/F., Investment Building, No. 12, Huizhan East Rd., Torch Development District, Zhongshan, Guangdong, 528437, China

TEL:86-760-88282982 www.transtek.cn

Contains FCC ID:OU9AW2540-LS

Table of Contents

Safety Information

Safety and Usage Information

Your Scale and Its Environment

Efficient Use of Your Scale

Overview

Device Components

LCD Display

Initial Start-Up

General Instructions

Insert the Batteries

Select Measurement Unit

Pair-up

Set Up Your Profile

Initialising Your Scale

Weight Only Operation

Start Measuring

First Measurement

Daily Measurement

Data Transmission

Troubleshooting

Error Prompt

When Measuring ...

When Data Transmitting

Specifications

Maintenance

Warranty

FCC Regulations

Appendix

Table of Body Fat Level

Table of Body Water Level

Muscle Mass Percentage

Bone Mass percentage

Health Tips – About Body Fat

EMC Guidance

10-12

15-16

19-20

27-30

...............................................................................................

......................................................................................................

.................................................................................................................

..........................................................................................................

........................................................................................................

...................................................................................................................

............................................................................................................................

.............................................................................................................................

............................................................................................................

..................................................................................................................

....................................................................................................................

............................................................................................................................

...............................................................................................................................

......................................................................................................................................

......................................................................................................

.................................................................................................

.........................................................................................................................

..........................................................................................................

Table of Contents

..............................................................................................................................

...................................................................................................................

...................................................................................................

..........................................................................................................

.................................................................................................................

..............................................................................................................................

.........................................................................................................................

2 3

The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows:

To ensure your safety as well as the service life of your scale, please avoid using

the scale under the following circumstances:

Concurrent use of this device and implantable medical electronic instruments, e.g. Cardiac Pacemaker

Concurrent use of this device and wearable medical electronic instruments, e.g. electrocardiograph

Concurrent use of this device and other medical electronic instruments for life support, e.g. mechanical heart

Slippery floor such as tile floor

Jumping onto the platform immediately after bath or with wet hands

Near a cell phone or microwave oven

Avoid storage in the following locations:

Where there is water

Where the device may be exposed to extreme temperatures, humidity, moisture, direct sunlight, dust, or salt air

Where there is risk of shock or drop

Where you store chemicals or full of corrosive gases

Where in reach of the infants or children

Safety and Usage Information

Your Scale and Its Environment

Safety InformationSafety Information

INDICATIONS FOR USE

The Transtek Body Fat Analyzer measures weight and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy adults 18 years of age or older. It is intended for use in the home / domestic setting only.

CONTRAINDICATIONS

1. This device is contraindicated for any female subject who may be suspected of, or is pregnant. Besides provided inaccurate readings, the affects of this device on the fetus are unknown.

2. This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument such as a pacemaker or defibrillator.

CAUTION

Symbol for “THE OPERATION GUIDE MUST BE READ”

Symbol for “MANUFACTURER”

Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”

Symbol for “TYPE BF APPLIED PARTS”

The Bluetooth Combination Mark

Symbol for “SERIAL NUMBER”

Symbol for “DIRECT CURRENT”

Symbol for “INDOOR USE ONLY”

Symbol for “COMPLIES WITH FCC RULES”

Transtek’s Body Fat Analyzer GBF-1319-B offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self-measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician.

GBF-1319-B is equipped with data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF communications equipment can affect the performance of GBF-1319-B.

Portable and mobile RF communications equipment can affect the measuring accuracy of GBF-1319-B.

Kindly note that the use of accessories, transducers or cables other than those specified, with the exception of transducers and cables sold by the manufacturer as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of GBF-1319-B.

Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other hazards.

Warning that the GBF-1319-B should not be used adjacent to or stacked with other equipment.

Manufacturer will make available on request circuit diagrams, component parts list,etc.

WARNING:No modifications of this equipment is allowed.

During using the Analyzer, the patient will contact with the surface and the electrode of the Analyzer.

The device doesn’t need to be calibrated in two years lifetime.

4 5

Efficient Use of Your Scale

List

1. Body Fat Analyzer GBF-1319-B

2. 3xAAA Batteries (1.5V each)

3. User Manual

Up Button

Set Button

Down Button

LCD Display

Electrode

Battery Compartment

UNIT Button

Electrode

To ensure the accuracy of measurement, please follow below instructions when

you start measurement.

Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale.

Step onto the platform with bare feet. Stand still and keep full contact with the electrodes until the measurement is complete.

Start measurement at least two hours after Getting up or Dinning.

Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning.

Always start measurement in the same time slot and on the same scale located on the same flat, hard surface.

Overview

Device Components

Safety Information

Transtek Body Fat Analyzer GBF-1319-B applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate body fat, body water, muscle mass and CAL-MAX. The electrical current is small and may not be felt.

This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also possesses the characteristics of simple operation and abundant information.

The current mentioned above is less than 1mA. However, please be aware that anyone with an wearable or implantable medical electronic instrument, such as a pacemaker, must avoid using this device.

The intended use of this device is for adult’s indoor use only.

Body Fat Analysis Result

Total Body Water Analysis Result

Muscle Mass Analysis Result

Calorie Analysis Result

Stone

Pound

Kilogram

Percentage

Foot

Centimeter

Age

Male

Male Athlete

Female

Female Athlete

User ID (Range from P1 to P8)

LCD Display

General Instructions

Initial Start-Up

Insert the Batteries

Open the battery door in the back of the scale.

Insert the batteries (3 x AAA) into the battery compartment according to the polarity indications marked inside the compartment.

* The digits “8888” will be shown on the LCD.

Close the battery door and wait until the digits “0.0” are shown on the LCD.

CAUTION

When the symbol “Lo ” appears, the device will power off in four seconds. Then you shall replace with a new set of batteries. Please replace all three batteries at the same time. Do NOT mix the old batteries with the new one. Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage. Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries.

Less than target weight

More than target weight

Bluetooth icon

Data hasn’t been sent out

Target Weight

Difference compare with target weight

Overview

With batteries correctly installed, press “UNIT” button in the back of the scale to select measurement unit. The default measurement unit is “pound”. You may press “UNIT” button to choose among pound, kilogram, stone.

Initial Start-Up

Select Measurement Unit

Initial Start-Up

Note: If there is no operation in the weighing mode, the scale will turn off after a few seconds.

If SUCCEED, symbol will be shown on the LCD.

If FAIL, symbol “E1” will be shown on the LCD.

Pair-Up

With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments, which are equipped with Bluetooth function in line with BLE Technical Specifications established by global organization Bluetooth SIG, are capable to receive your personal health data.

Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding.

Press and hold “UNIT” button in the back of the scale to start pair-up.

Symbol and symbol will be shown on the LCD alternatively, indicating pair-up is proceeding.

Bluetooth Module No. :AW2540MV1

Frequency Range

Output Power Range

Supply Voltage

2402MHz - 2480MHz

-1 dBm

2-3.6 V

Transmitting Distance

10 meters

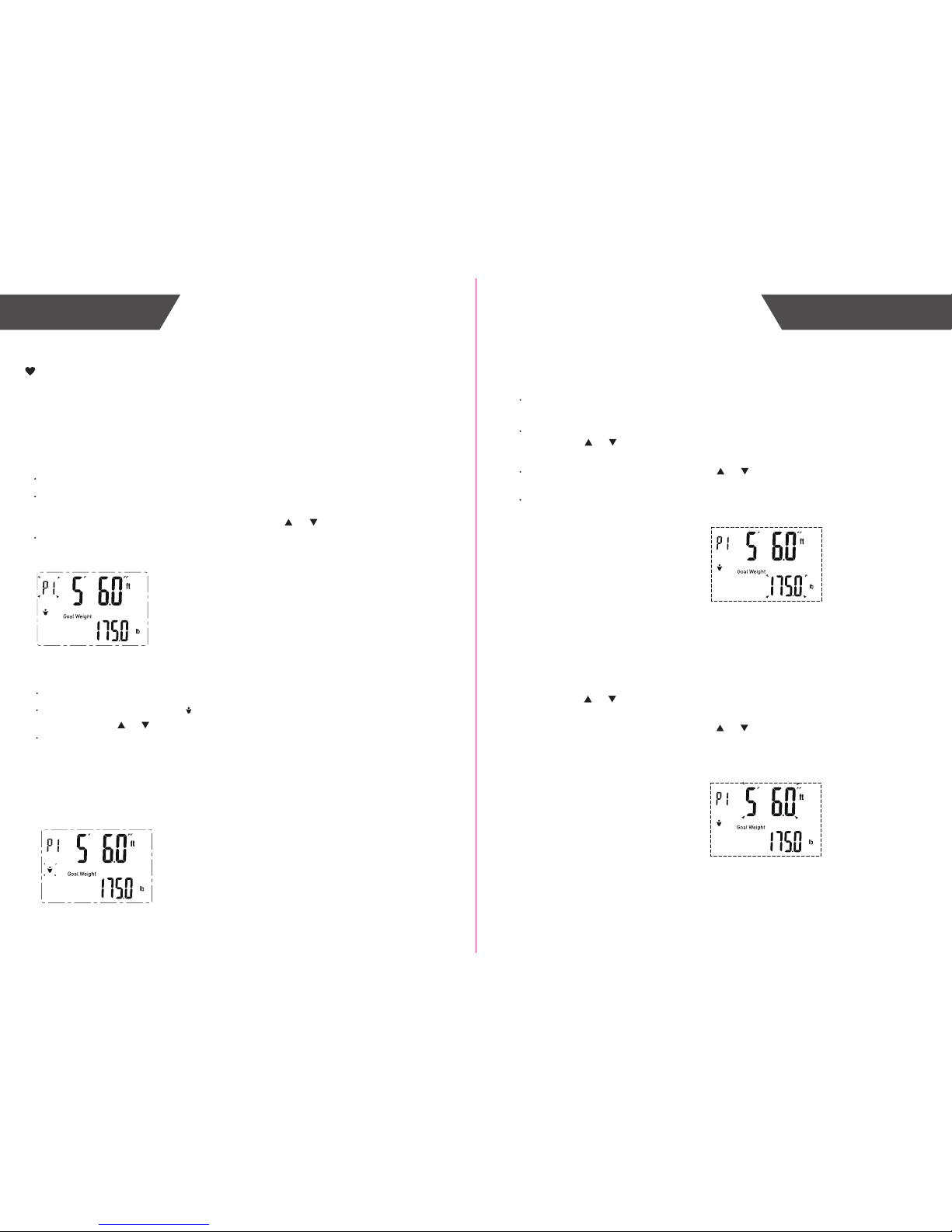

The body fat analyzer GBF-1319-B supports multiple users (Up to Eight). You may follow below instructions to assign User ID and set up your own profile, including Gender, Goal Weight, , Stature, Age and Athletic Level.

With batteries correctly installed, press “SET” button to enter setting when the scale is off.

The system will request User ID selection first. As pictured below, “P1” blinks. The operator may press the function key or to select User ID among P1 to P8.

Press “SET” button to confirm User ID.

1.Assigning User ID

2.Setting Gender

Set Up Your Profile

After confirming User ID, the system will divert to Gender setting.

As pictured below, the portrait blinks. The operator may press the function key or to select Gender( Male/Female/Male Athlete/ Female Athlete).

Press “SET” button to confirm Gender. Athlete Mode: An athlete is defined as an adult who is involved in intense physial activity of approximate 12 hours per week and who has a resting heart rate of approximately 60 beats per minute or less.

4.Setting Stature

3.Setting Goal Weight

After confirming Gender, the system will divert to Goal Weight setting automatically.

As pictured below, the digits blinks. The operator may press the function key or to increase or decrease the numeral. (Range: 20 kg to 180 kg /44.0 lb to 396.8lb)

You may press and hold the function key or for fast changing the numeral.

Press “SET” button to confirm.

After confirming Goal Weight, the system will divert to Stature setting automatically.

As pictured below, the digits blinks. The operator may press the function key or to increase or decrease the numeral. (Range: 100 cm to 220 cm / 3’3.5”~7’2.5” ft)

You may press and hold the function key or for fast changing the numeral.

Press “SET” button to confirm.

Initial Start-UpInitial Start-Up

6.Setting Athletic Level

After confirming Age, the system will divert to Athletic Level setting.

As pictured below, the digit “1” blinks. The operator may press the function key or to increase or decrease the numeral. (Range: AC 1 to AC 5 )

You may press and hold the function key or for fast changing the numeral.

Press “SET” button to confirm Athletic Level.

Weight Only Operation

Your TRANSTEK Body Fat Analyzer will operate as a conventional weight - reading scale. No special programming steps are required.

Once the scale is initialized, as previously described, you may simply step on the scale to measure your current weight. For only weight reading.

1. Position the scale on a flat, hard surface. Carpeted or uneven floors may affect accuracy.

2. Step onto the scale platform and remain still while the scale computes your weight.

3. The scale will display your weight value.

4. The scale will automatically turn off after a few seconds.



Note: The weight value won’t be saved in the scale, and won’t be transmitted to the APP.

1. Press the platform centre and remove your foot.

2. “0.0” will be displayed.

3. The scale will switch off and is now ready for use. This initialisation process must be repeated if the scale is moved. At all other times step straight on the scale.

Initialising Your Scale

5.Setting Age

After confirming Stature, the system will divert to Age setting.

As pictured below, the digits “30” blinks. The operator may press the function key or to increase or decrease the numeral. (Age Setting Range for Normal Mode: 10 to 85 years old, Age Setting Range for Athlete Mode: 15-85years old)

You may press and hold the function key or for fast changing the numeral.

Press “SET” button to confirm Age.

7. The display will show your settings once, then display “0.0”, you can start measuring.

8. Repeat procedure for a second user, or to change user details. Note: To update or overwrite the memorised data, follow the same procedure, making changes as required.

Initial Start-Up

With original SENSE ON patent technology, GBF-1319-B will automatically switch on as you step on the platform barefooted.

Stand still and keep full contact with the electrodes until the LCD stops displaying moving “o”.

According to the analysis results, the system will automatically identify the possible User ID with most similar history records. Then the measuring results will be displayed sequentially three times .

STEP 2: Stand still and keep full contact with the

electrodes until the LCD stops displaying moving “o”.

STEP 3: Your weight will be displayed followed by Body Fat, Total Body Water,

Muscle Mass , CAL-MAX and the weight difference value. The data will be displayed three times.

* If it fails to complete the analysis, the LCD will only display

the weight data.

(To find out the solutions, please refer to Troubleshooting for more details.)

STEP 1: Step on the platform barefooted when the LCD displays “0.0”.

First Measurement

Daily Measurement

Start Measuring

When your scale is successfully paired with your iPhone and the Bluetooth is ON, GBF-1319-B will process data transmission automatically.

(Please refer to Data Transmission for more details.)

• Position scale on a firm flat surface.

• Press SET button.

• While the user number of the latest measurement is flashing, select your user number by

pressing or button. After 3s, the selected number is locked, the user’s personal data will be shown once, and then the scale shows zero reading. (Note: When the user number is flashing, if you press SET button again, it will enter the setting mode, after all the settings are finished, the settings will be shown once, and then display zero reading. )

Start Measuring

When the system finds out two or more users with similar history records, it will notify you to choose between, for example, P1 and P2. You may press key for P1 and or key for P2. The measuring results will then be sorted into the User ID you selected and displayed sequentially three times.

Start Measuring Data Transmission

If it fails to identify the possible User ID, the LCD will only display the weight data.

(To find out the solutions, please refer to Troubleshooting for more details.)

When your scale is successfully paired with your iPhone and the Bluetooth is ON, GBF-1319-B will process data transmission instead.

(Please refer to Data Transmission for more details.)

With GBF-1319-B successfully pair-up with your iPhone, the measurement data will be transmitted to your mobile via Bluetooth.

ONLY when the measuring results are attached to a specific User ID will it be transmitted to your mobile after measurement.

The symbol will disappear after successful data transmission, and you may check your personal health data stored in your iPhone.

If the data transmission fails, the symbol will remain. The pending measurement data will be temporarily kept in the scale and transmitted to your iPhone when next measurement is complete.

Successful Bluetooth Connection

Data transmitting to wireless wellness system:

-If SUCCEED, the symbol disappears;

-If FAIL, the symbol remains.

Data Transmission

CAUTION

Interference may occur in the vicinity of equipment marked with the following symbol . And the Analyzer may interfere vicinity electrical equipment.

To enable the data transmission function, this product should be paired to a Bluetooth end at

2.4 GHz.

How to mitigate possible interference?

1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1 meter to 10 meters. Please ensure no obstacles between the Analyzer and the Bluetooth end so as to obtain quality connection.

2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission / Transmitter) should be kept at least 1 meter away from the Analyzer.

Error Prompt

Error Description Solution

Overload. The device will

power off in four seconds.

Stop using this scale for

measurement.

Low Battery. The device will power off in four seconds.

Replace all three batteries at the same time. Please purchase the authorized batteries for replacement.

Measuring error.

Stand still, and measure again.

Failure of pairing up your scale with your smartphone.

Please check below items:

-Bluetooth is ON.

-App Collector is ON.

-Both devices are within the

transmission distance of Bluetooth.

Problem Root Cause Solution

Incorrect posture

Abnormal

measuring results:

- Too high; OR

- Too low; OR

- Huge difference between two recent measurement.

Please step on the platform

barefooted and stand still.

The device is located on the soft ground such as a carpet OR on a rugged surface.

Please place the device on a

flat, hard surface.

When Measuring ...

Either your hands or your

feet are too dry.

No display on LCD when the device powers on.

Wipe your feet with a damp cloth, keeping them slightly damp when starting measurement.

Batteries not yet installed.

Worn batteries.

Install the batteries. (Please refer to Insert the

Batteries)

Replace all three batteries at the same time. Please purchase the authorized batteries for replacement.

Troubleshooting Troubleshooting

Problem

Root Cause

Solution

CANNOT proceed to analyze body fat, total body water, muscle mass and CAL-MAX.

The device powers off.

Low battery.

Step onto the platform

wearing socks or shoes.

Please keep barefooted during the measurement, and keep full contact with the electrodes as well.

Replace all three batteries at the same time. Please purchase the authorized batteries for replacement.

The system cannot identify the possible User ID with most similar data.

Please assign a User ID following the instruction in Set Up Your Profile.

The user fails to select the User ID from what the system found.

Please assign a User ID following the instruction in Set Up Your Profile.

Problem Root Cause Solution

Bluetooth is OFF.

Data transmission

failed.

Turn ON the Bluetooth via

“Setting >> General >> Bluetooth”.

The App is OFF.

Press the icon to turn ON your

app.

Place your iPhone closer to the

scale.

Please assign a User ID following the instruction in Set Up Your Profile.

Out of range of Bluetooth

transmission.

None of the user ID is

assigned.

When Data Transmitting ...

Troubleshooting Troubleshooting

When carrying out usual maintenance, please ensure practice of the following Do’s and

Don’ts:

Transtek warrants its products free of defects in materials and workmanship in normal use for a period of TWO years from the date of retail purchase. This warranty does NOT cover damages caused by misuse or abuse, including but not limited to:

Failure caused by unauthorized repairs or modifications; Damage caused by shock or drop during transportation; Failure caused by improper operation inconsistent with the instructions stated in this user manual; Malfunction or damage from failure to provide the recommended maintenance; Damage caused by improper use of power supply.

Should this device require maintenance (or replacement at our option) under warranty, please deliver the original package to GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail purchase date) and a note with reasons to return on it as well.

Specifications

Maintenance

Warranty

Product Name

Dimension

Body Fat Analyzer (GBF-1319-B)

Scale: 300x300x23mm

Panel: 300x300x6mm

Net Weight

Approximately 1.85 kg

Display

Digital LCD V.A.: 76x51mm

Measurement Unit

Kilogram / Stone/ Pound

Measurement Range

5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb

Division

0.1kg / 0.2lb

Accuracy

5-50kg: ±0.3kg; 100-150kg: ±0.5kg;

Working Environment

Temperature: 10℃ to 40℃

Humidity: ≤90% RHStorage Environment

Temperature: -20℃ to 55℃

Power Source

4.5V (3xAAA Batteries)

Turn on Method

SENSE ON technology

Auto-OFF

The scale will turn off after about 10s if there is no operation.

Accessories

1. 3xAAA batteries

2. User Manual

About the Accuracy of This Product

This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.

Please refer to the above table for the descriptions on accuracy.

This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by

anyone during the process of transaction for verification of goods’ weight.

GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District, Zhongshan, 528437, Guangdong, China Tel: 86-760-88282982 Website: http://www.transtek.cn

50-100kg: ±0.4kg; 150-180kg: ±0.7kg

Humidity: 15%RH to 90% RH

Mode of Operation

Continuous Operation

Protection Against

Ingress of Water

IPX0

Software Version

1.0

Specifications

DO use a dry soft cloth to wipe the dust.

DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device.

DON’T wash the device with water or immerse it in water.

DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or malfunction.

DON’T disassemble this device. If you have any problems, please contact Transtek. (Please refer to Warranty for contact information)

Maintenance

Table of Body Fat Level (Unit: %)

Table of Body Water Level (Unit: %)

FCC Regulations Appendix

FCC User Guide Information

Radio Frequency Interface Requirements - FCC

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver; Connect the equipment into an outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an experienced radio / TV technician for help.

Radio Transmitters (Part 15)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Exposure Guidelines

Safety Information

Reducing RF Exposure - Use Properly

Only operate the device in accordance with the instructions supplied. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possiblity of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

FCC Regulations

Standard for Men

Rating

low

Normal

Moderately High

High

Age

20-29

<13 <14 <16 <17 <18

14-20 15-21 17-23 18-24 19-25

21-23 22-24 24-26 25-27 26-28

>23 >24 >26 >27 >28

30-39 40-49 50-59 60+

Standard for Women

Rating

low

Normal

Moderately High

High

Age

20-29

<19 <20 <21 <22 <23

20-28 21-29 22-30 23-31 24-32

29-31 30-32 31-33 32-33 33-35

>31 >32 >33 >34 >35

30-39 40-49 50-59 60+

a) The body fat percentage (%): 5%-60%/0.1%

Source: University of Illinois Department of Food Science and Human Nutrition. Body Fat Percentage Calculator.

www.ag.uiuc.edu/~food-lab/ai/bfc.html

b) The body water percentage (%): 43%-73%/0.1%

Men

Women

BF % RANGE

4 to 14%

15 to 21%

22 to 24%

25 and over

4 to 20%

21 to 29%

30 to 32%

33 and over

70 to 63%

63 to 57%

57 to 55%

55 to 37%

70 to 58%

58 to 52%

52 to 49%

49 to 37%

OPTIMAL TBW % RANGE

Source: Derived from Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal

Clin Nutr 1999,69833-841.

Fat is essential for human body. It can not only store energy and protect viscera, but also regulate body temperature and maintain normal physiological function of human body. However, too much body fat is harmful to human body. It is always accompanied by Fatty Liver, diabetes, coronary heart disease, etc.

Therefore self-measuring and self-monitoring body fat level are beneficial to your health. Since we can’t judge body fat level simply by our weight, this body fat analyzer GBF-1319-B, with BIA (Bio-impedance Analysis) technology applied, is an accurate device that offers a quick and comfortable way to obtain your body fat level.

Health Tips - About Body Fat

Muscle Mass Percentage

(Source: International Commission on Radiological Protection,1975)

Men

Women

Approximately 40% of total body weight

Approximately 30% of total body weight

Bone Mass Percentage

(Source: Rico et al.1993)

The average bone mass percentage for both men and women is between 4 to 5%.

EMC Guidance

Tabl e 1 – G uidanc e and

MANU FACTUR ER’S

de clar ation –

ELE CTROMAG NETIC EMISSION S

for all

ME EQUIP MENT

and

ME SYSTE MS

Guid ance a nd m anufactu rer’s d eclarat ion – el ectrom agn etic emissions

The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.

Emissions test Compliance Electromagnetic environment-guidance

RF emi ssions

CISPR 11

RF emi ssions

CISPR 11

Harmonic emissions

IEC 61000-3-2

Volt age fluct uations/ flicker emissions

IEC 61000-3-3

Group 2

Class B

Not a pplicabl e

The device must emit electromagnetic energy in order to perform its intended function. Nearby electronic equipment may be affected.

Appendix

Not a pplicabl e

Tabl e 2 – G uidanc e and

MANUF ACTURE R’S

dec laratio n – ele ctroma gnetic

IMMUNI TY

–

for all

ME EQUIPM ENT

and

ME SYSTEMS

Compliance l evel

Electroma gnetic envi ronment

–

guidance

± 6 k V contac t

± 8 k V air

ro etercnoc ,doow eb dluohs sroolF ceramic tile. If floors a re cov ered wit h synt hetic ma terial, the relative humidit y should be at leas t 30 %.

a fo taht eb dluohs ytilauq rewop sniaM typic al commerc ial or hospit al environm en

± 1 k V line(s) to line(s )

± 2 k V line(s) to earth

a fo taht eb dluohs ytilauq rewop sniaM typic al commerc ial or hospit al environm ent.

<5 % U

(>95 % dip in UT) for 0, 5 cycl e

40 % U

(60 % di p in UT) for 5 cycles

70 % U

(30 % di p in UT) for 25 c ycles

<5 % U

(>95 % dip in U

)

for 5 s

sdleif citengam ycneuqerf rewoP

m/A 3 m/A 3

should be at lev els c haracteris tic of a typic al lo cation in a typica l commercia l or hos pital environm ent.

NOTE U

is t he a.c. ma ins volt age pr ior to a pplication of the test l evel.

Mains power quality should be that of a typical commercial or hospital environment. If the user of the device requires continued operation during power mains interruptions, it is recommended that the device be powered from an uninterruptible power supply or a battery.

Guid ance an d manufa cturer’ s decl aration – elec tromagn etic i mmunity

The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.

MMUNIT Y

tes t

Electros tatic discharge (ESD)

IEC 61000-4-2

Elec trical fa st transie nt/burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Volt age dips, short inter rupti ons and volta ge vari ations on power suppl y input li nes

IEC 61000-4-11

Powe r frequ ency (50/60 Hz ) magnetic field

IEC 61000-4-8

IEC 60601

test le vel

± 6 k V contac t

± 8 k V air

± 2 kV for p ower

supply lines

± 1 k V for input/ output lines

Not a pplicabl e

Table 4 – G uidance and

MANUF ACTURE R’S

dec laratio n – ele ctromag netic

IMMUNI TY

–

for

ME EQUIPMEN T

and

ME SYSTEMS

that are n ot

LIFE-SUPPORT ING

Guid ance an d manufa cturer’ s decla ration – elec tromagn etic im munity

MMUNIT Y

tes t

IEC 606 01

TEST

LEVEL

Complian ce

level

Electromag netic envi ronment

–

guidance

Conducted RF

IEC 610 00-4-6

Radiate d RF

IEC 610 00-4-3

3 Vrm s

150 kHz t o 80 MH z

3 V/m

80 MHz t o 2,5 G Hz

3 V/m

Recommended sep aration d istance

PV=d ]

5,3

[

P=d 2.333

800 MHz t o 2,5 GHz

where P is the ma ximum output p ower r ating of the transmi tter in watts (W) accordi ng to the t ransmitter manufac turer an d d is the recom mended sep aration distanc e in m etres ( m).

Field strengt hs from fi xed RF tr ansmitter s, as det ermined by an ele ctrom agnetic si te survey,

sho uld be less than the complia nce le vel in eac h fre quency range.

Interfe rence may occur i n the vi cinity of equip ment marked w ith the followin g symbol :

NOTE 1 At 80 MHz a nd 800 MHz , the highe r frequ ency ra nge applies .

NOTE 2 T hese gui delines may not ap ply in all s ituatio ns. Ele ctromagnet ic prop agation is affec ted by absorpti on and refle ction fro m struc tures, objec ts an d people .

Field stre ngths from fixe d t ransmitt ers, such as base stati ons for radio (cellu lar/co rdless) telep hones and land

mobile radio s, amateur rad io, AM and FM radio bro adcast and TV broadcas t c annot b e pr edicted theor etical ly with accuracy.

To a ssess the elect romagnetic envi ronment due to fixed RF trans mitters, an e lectromagn etic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.

Over the freq uency range 1 50 kHz to 80 MH z, field strengths should be less than [ V1] V/m.

The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.

Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

P=d

80 MHz to 80 0 MHz

1.167

Appendix

Tabl e 6 – Reco mmende d s epar ation d istanc es betw een porta ble and mobile

RF c ommunicati ons eq uipm ent an d t he

ME EQUIPMEN T or M E SY STEM –

for

ME EQUIP MENT a nd ME SYSTE MS tha t are n ot LIF E-SUPPOR TING

Reco mmende d s epa ration d istance s betw een

portab le and mob ile RF co mmuni cati ons equi pme nt and the device

The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.

Separation distance a ccording to frequenc y of tr ansmitter

Rate d maximum output pow er

of t ransmitter

150 kHz to 80 MH z

=d ]

5,3

[

80 MHz to 800 MH z 800 MHz to 2,5 GHz

10,0

1,0

001

For tr ansmitters rat ed at a m aximum output power not listed a bove, t he recommended separatio n dist ance d i n metres (m) can be est imated using the equation applica ble to the freq uency of the t ransmitter, where P is t he maxi mum output power rating of the t ransmi tter in watts (W) according to th e trans mitter manuf actur er.

NOTE 1 At 80 MHz and 8 00 MHz , the separat ion dis tance for the hi gher fr equency range appli es.

NOTE 2 Thes e gui delines may n ot appl y in all situati ons. E lectrom agnetic p rop

agation is affected by abs orption and

reflec tion fr om st ructures, obje cts and people.

0.2330.117

0.7380.369

2.3331.167

7.3783.690

23.3311.67

Not a pplicab le

P=d

2.333

P=d

1.167

Appendix

TRANSTEK GBF-1319-B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
