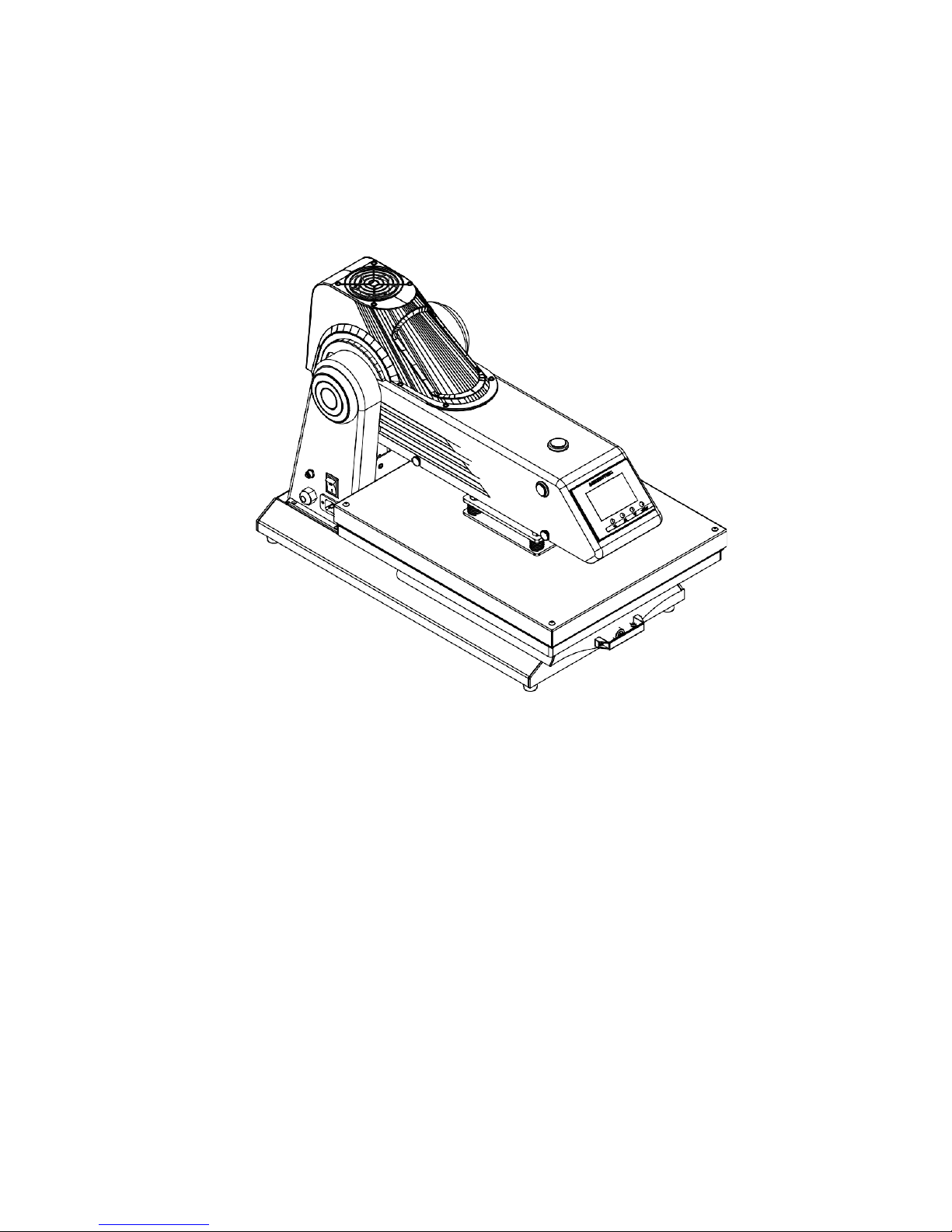

TransPro Select Auto Plus
MP888 & MP883 - OPERATORS MANUAL
CONTENTS
I. Technical Parameters -------------------------------------------2
II. Assembly Drawing -----------------------------------------------3
III. Operating Instructions ------------------------------------------4-5
IV. Maintenance-------------------------------------------------------6
V. Exploded View----------------------------------------------------8
VI. Circuit Diagram--------------------------------------------------9
Page 2
2
I. Technical Parameters
Model No. : MP888
Description: Electric powered fully automatic heat press
Heat Platen Sizes: 15”x15” / 16”x20”
Voltage: 110V
Power: 1600W/1800W
Temperature Range: 0-450F
Time Range: 0-999S
Pressure Range: 0-10
Printable Articles Thickness: 0-20mm
Main Features:
! Fully electric control: no noisy air compressor.
! Auto press down & auto open with safe start button.
! Easy pressure adjustment according to the thickness of items.
Program up to 10 different pressure.
! Controller with different pressure and dual time setting. It also
stores frequently used settings, production cycle counter.
! Perfect for high volume commercial use, specialty decorators,
direct-to-garment printing, and embossing, etc.
Page 3
3

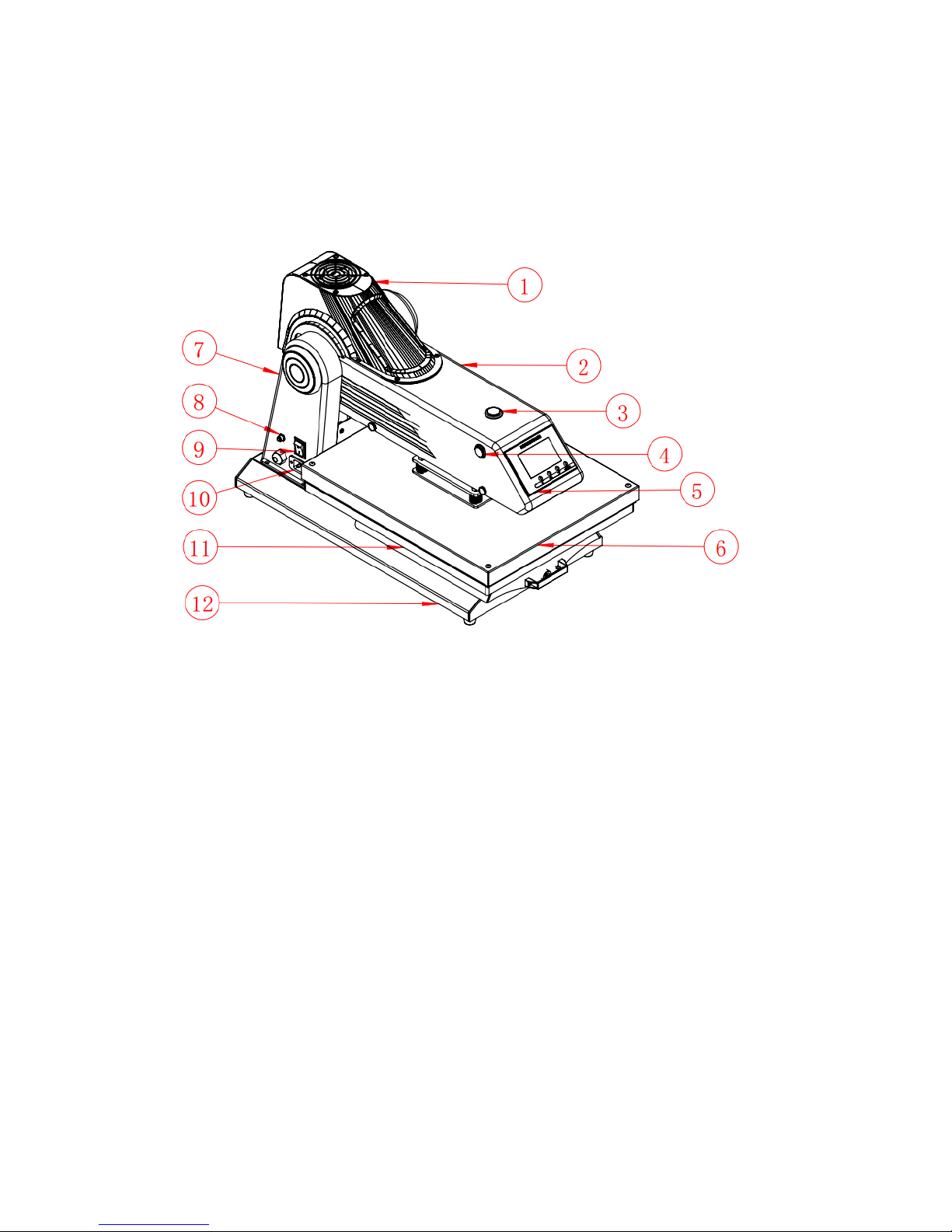

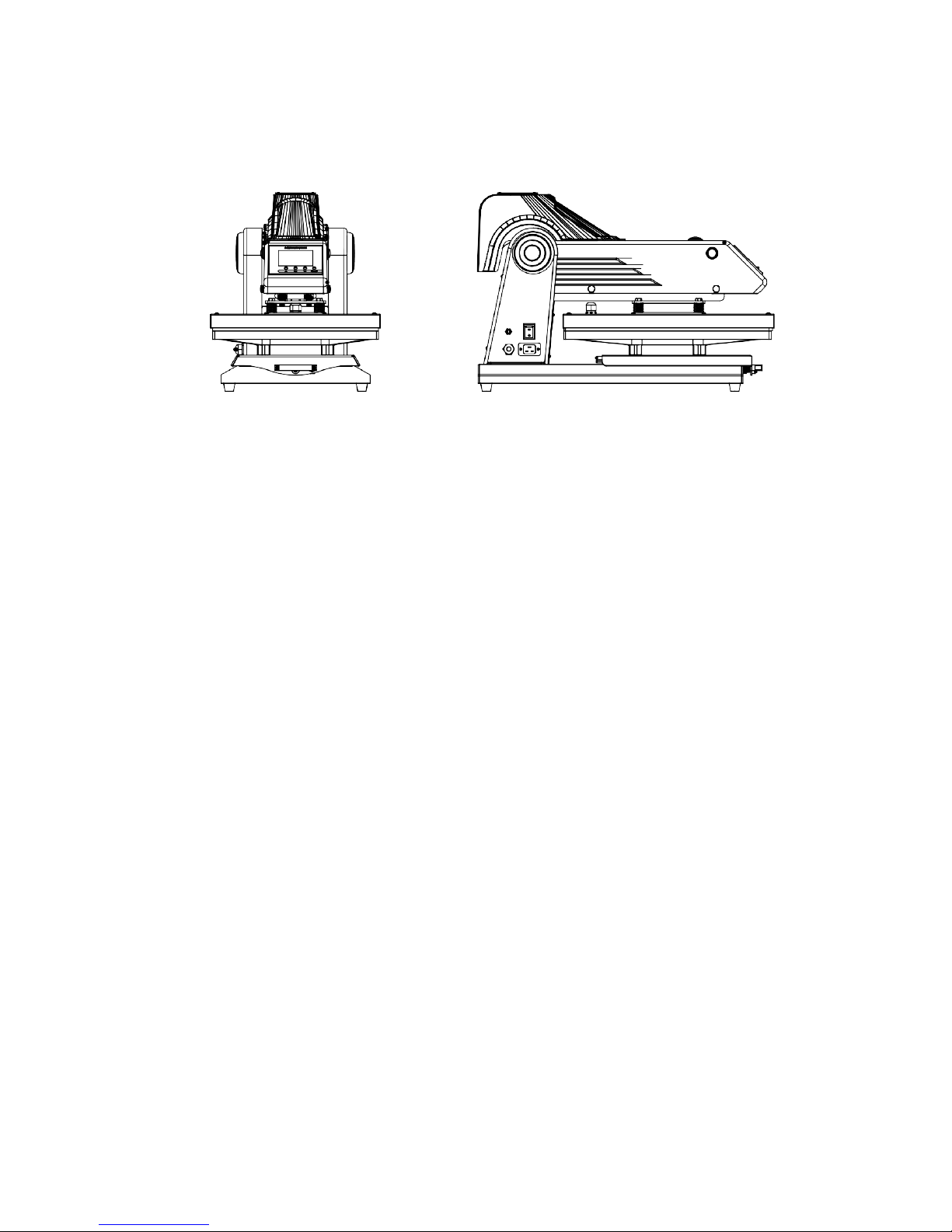

II. Assembly Drawing
1.
Machine Cover
2
2. Davit Arm Cover
3.
Emergency Stop Button
4
4. Start Buttons
5.
Controller
6
6. Heat Platen
7.
Electric Box
8
8. Circuit Breaker
9.
Power Switch
1
10. C19 Cable
11.
Under Plate
1
12. Machine Base
Page 4
4
III. Operating Instructions
1. Plug the power cord into a standard 110V outlet and turn on the heat press
by pressing the power switch located on the side of machine. Be sure your
heat press is positioned evenly on a steady and level surface. If using an
extension cord, be sure it is industrial grade.
2. Heat transfer parameters settings.
A. Press “OK” button to enter TEMPERATURE setting
When the TEMP indicator blinks, use Up/Down buttons “ ” “ ” to set the
required temperature and then press “OK” button again to complete the
temperature setting.
B. Press “OK” button to enter PREHEAT TIME setting
When the TIME1 indicator blinks, use Up/Down buttons “ ” “ ” to set the
required time for preheating and then press “OK” button again to complete
the setting.
C. Press “OK” button to enter TRANSFER TIME setting
When the TIME2 indicator blinks, use Up/Down buttons “ ” “ ” to set the
required time for transferring and then press “OK” button again to complete
the setting. If you don’t need to preheat the transfer material, TIME1 and
TIME2 can be set in same values, and then the machine will be operating in
same transfer parameters in cycle.
D. Press OK button to enter into PRESSURE setting
The machine comes with segmented pressure mode, which can be adjusted
according to different thickness of transfer materials in bulk transfer.
Pressure value range: 0-10. (Pressure will be higher if you increase the
setting value; the suggested pressure value for textile transfer is 7. )
E. After finishing the above-mentioned settings, your machine is ready for
pressing.
3. When the temperature reaches the set value, you can start the transfer
printing by following below steps:
A. Pull out the under plate, and place the transfer material flat onto the
silicon pad.
B. Push the under plate back into its original position.
Page 5
5
C. Press the start buttons with BOTH hands at the same time. The heat
platen will press down automatically. The TIME1 indicator will blink and the
preheat timer start to countdown.
E. When the timer counts down to 3, the buzzer will sound. The heat platen
will open automatically when the timer counts down to zero.
F. Pull out the under plate, lay the transfer paper over the transfer material,
then push the under plate back into its original position.
G. Press the start buttons with BOTH hands at the same time. The heat
platen will press down automatically. The TIME2 indicator will blink and the
preheat timer start to countdown.
I. When the timer counts down to 3, the buzzer will sound. The heat platen
will open automatically when the timer counts down to zero.
J. Pull out the under plate, and remove the transferred material. The
pressing is now finished.
Note: If you don’t need to preheat the transfer material, set the TIME1 and
TIME2 to the same value, then the machine will be operated in transfer
parameters in cycle.
4. During the operation, if there is an unexpected emergency press the
emergency stop switch to stop this operation.
5. While operating the heat press, the operator should pay close attention to
safety precautions. Avoid touching hot spots, crush injuries, and burn risks.
6. This machine helps to minimize the physical labor of operator; it has self-
intermittent function to make it possible to work long hours. One operator can
do multi-machine pressing at same time to increase the efficiency of work.
Page 6
6
IV. Maintenance
1. It’s necessary to service the machine regularly for maintaining its
performance, prolong service life, and to ensure the transfer process goes
smoothly.
2. Apply lubricants on main active friction parts regularly.
3. Check the main parts frequently to make sure the screws are well fastened
all the time.
4. Please set suitable transfer parameters (pressure/temperature/time)
according to the transfer materials. It could cause the machine to be
overloaded and damage the heat platen by setting excess values.
5. Please follow above mentioned operating instructions correctly to prevent
accidents from happening during the operation.
Page 7
7

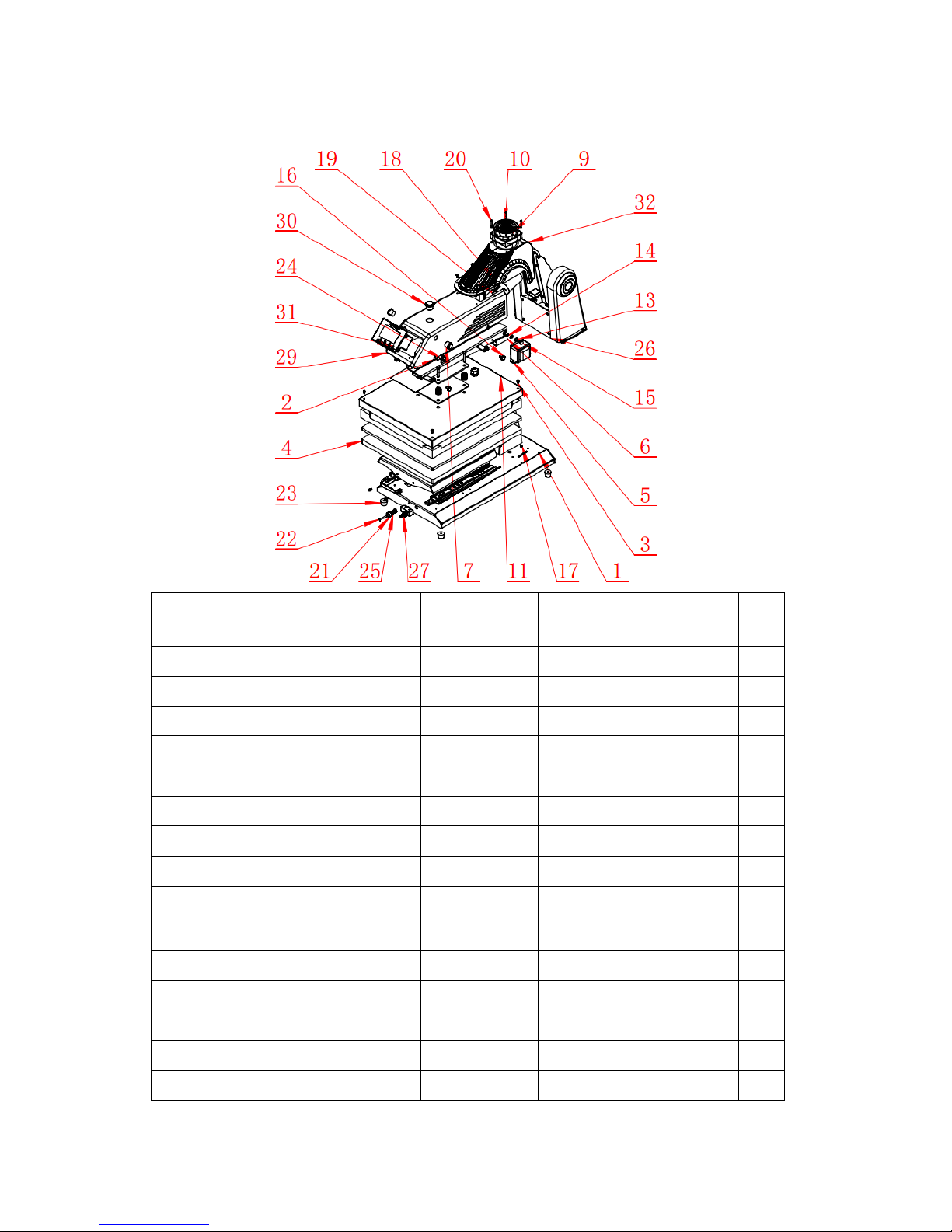

VI. Explosive View
Item No.
Part name
Qty
Item No.
Part name
Qty
1
Iron base
1
17
M5x12 screw
1
2
Davit arm
1
18
M4x10 cushioned screw
5
3
Heat platen
1
19
Push rod set
1 4 Under plate
1
20
M4x20 cushioned screw
4 5 Transformer
1
21
Strong electromagnet
1 6 Relay 1 22
M5 screw
1
7
Start buttons
2
23
Machine feet
4 8 Electric box
1
24
Connecting shaft
1
9
Fan 1 25
12x20 mold spring
1
10
Fan cover
1
26
Back electric box set
1
11
Damping rubber jacket
2
27
Limit switch
1
12
M10x20 screw
2
28
Terminal block
1
13
10.0 washer
7
29
Davit arm cover
1
14
Davit arm shaft
1
30
Emergency stop button
1
15
M10 ball screw nut
2
31
Digital controller
1
16
M5x12 hand wheel screw
4
32
Back electric box cover
1
Page 8
8

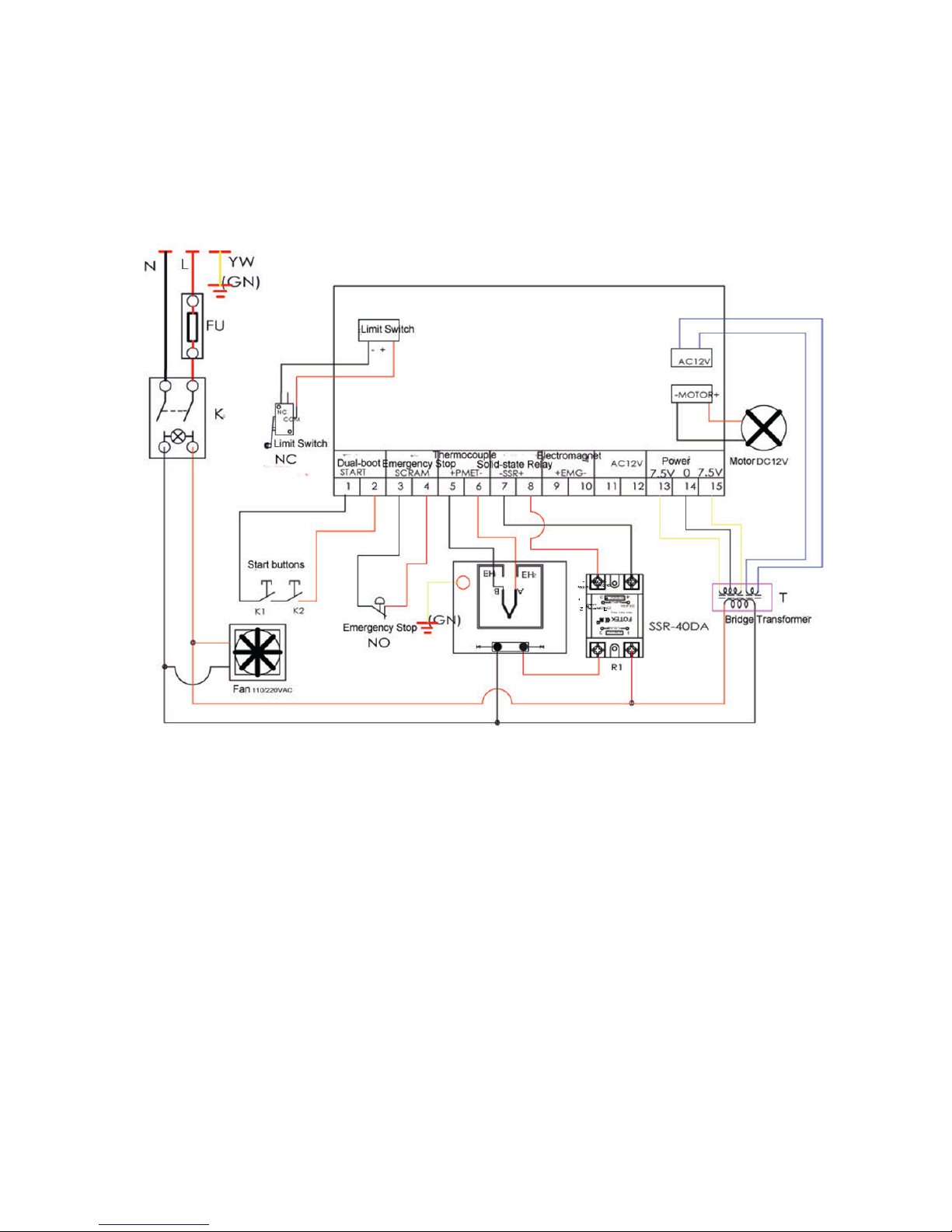

VII. Circuit Diagram
K.: Power Switch NC: Limit Switch NO: Emergency Stop
T: Bridge Transformer FU: Circuit Breaker R1: Solid-state Relay
EH1 EH2: Heating Pipe K1 K2: Start Buttons
