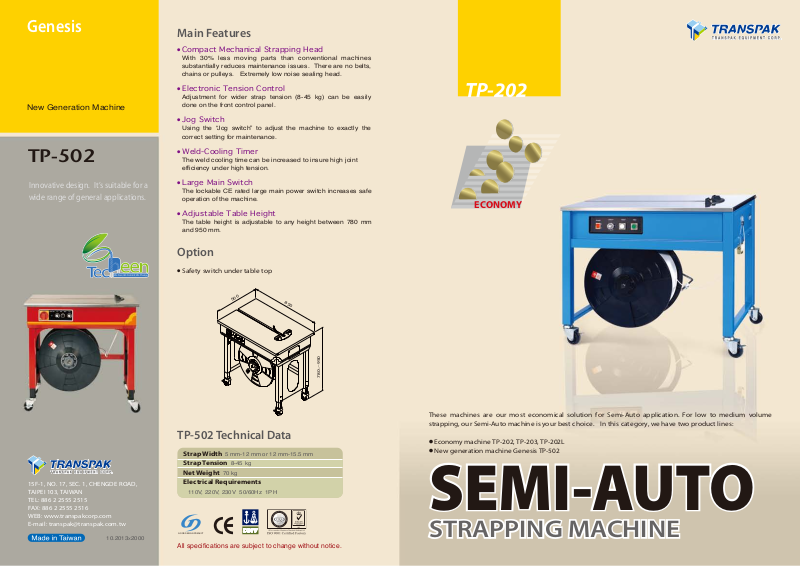

TP-202
ECONOMY
These machines are our most economical solution for Semi-Auto application. For low to medium volume
strapping, our Semi-Auto machine is your best choice. In this category, we have two product lines:
●
Economy machine TP-202, TP-203, TP-202L
●
New generation machine Genesis TP-502
SEMI-AUTOSEMI-AUTO
STRAPPING MACHINESTRAPPING MACHINE
Page 2
Economy
Main Features
Machine
Mr. Reliable
TP-202
TP-202 is an aordable, portable,
and compact semi-auto strapping
machine. It is designed for general
purpose and can meet your various
applications. With thousands of
machines exported to the world
●
High engineering standard and simple design
●
Easy operation, simple maintenance
●
Hinged stainless steel top plate
●
Mechanical outside tension control
●
Rigid castors with brake
●
Energy efficient, motor only runs as needed
●
Reliable P.C. Board control
●
Affordable for every budget
●
Offer maximum total value among competing brands
●
Proven quality
every year, the quality of TP-202 is
highly proven. That’s why we call
this machine Mr. Reliable.
Made in Taiwan with pride. The
best sales in the world.
Options
●
Adjustable table height from 760 mm to 930 mm
●
Safety switch under table top
●
Adjustable cooling time (0-2 sec.)
●
Stainless steel frame SUS 304 (TP-201CES)
586
760
902
TP-202 Technical Data
Strap Width 6 mm-15.5 mm
Strap Tension 15-45 kg
Net Weight 85 kg
Electrical Requirements
110V, 220V, 230V 50/60Hz 1PH
Page 3
TP-203
Mini-type model
●
Designed specifically for the use in office, bank,
post office, book and department store, etc.
●
Equipped with Smoke exhaust system
●
Other features are the same as TP-202
422
805
632
TP-202L
Low-table model
●
Designed to accommodate bulky or heavy
packages
●
Other features are the same as TP-202
372
586
902
1476
590
Options
●
Safety switch under table top
●
Adjustable cooling time (0-2 sec.)
TP-203 / TP-202L Technical Data
Strap Width 6 mm-15.5 mm
Strap Tension TP-203
Net Weight 80 kg
Electrical Requirements
110V, 220V, 230V 50/60Hz 1PH
:
9-30 kg
TP-202L: 15-45
kg
Page 4
Genesis
New Generation Machine
TP-502
Innovative design. It’s suitable for a
wide range of general applications.
Main Features
●
Compact Mechanical Strapping Head
With 30% less moving parts than conventional machines
substantially reduces maintenance issues. There are no belts,
chains or pulleys. Extremely low noise sealing head.
●
Electronic Tension Control
Adjustment for wider strap tension (8-45 kg) can be easily
done on the front control panel.
●
Jog Switch
Using the “Jog switch” to adjust the machine to exactly the
correct setting for maintenance.
●
Weld-Cooling Timer
The weld cooling time can be increased to insure high joint
efficiency under high tension.
●
Large Main Switch
The lockable CE rated large main power switch increases safe
operation of the machine.
●
Adjustable Table Height
The table height is adjustable to any height between 780 mm
and 950 mm.
Option
●
Safety switch under table top
560
850
TP-502 Technical Data
950
780
15F-1, NO. 17, SEC. 1, CHENGDE ROAD,
TAIPEI 103, TAIWAN
TEL: 886 2 2555 2515
FAX: 886 2 2555 2516
WEB: www.transpakcorp.com
E-mail: [email protected]
10.2013X2000
Strap Width 5 mm-12 mm or 12 mm-15.5 mm
Strap Tension 8-45 kg
Net Weight 70 kg
Electrical Requirements
110V, 220V, 230V 50/60Hz 1PH
GOOD DESIGN PR0DUCT
All specifications are subject to change without notice.
