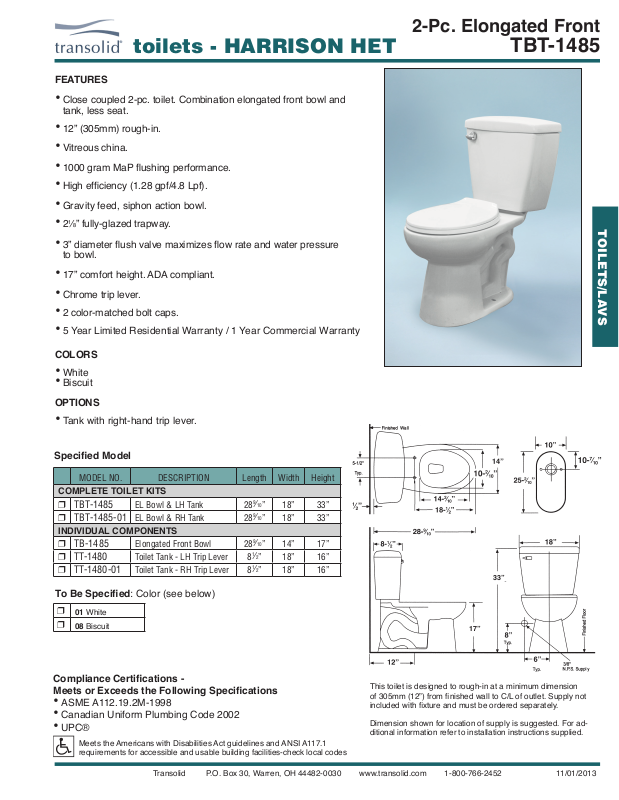

Page 1
2-Pc. Elongated Front
toilets - HARRISON HET
FEATURES
• Close coupled 2-pc. toilet. Combination elongated front bowl and
tank, less seat.
• 12” (305mm) rough-in.
• Vitreous china.
• 1000 gram MaP ushing performance.
• High efciency (1.28 gpf/4.8 Lpf).
• Gravity feed, siphon action bowl.
1
• 2
⁄8” fully-glazed trapway.
• 3” diameter ush valve maximizes ow rate and water pressure
to bowl.
• 17” comfort height. ADA compliant.
• Chrome trip lever.
• 2 color-matched bolt caps.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
TBT-1485
TOILETS/LAVS
COLORS
• White
• Biscuit
OPTIONS
• Tank with right-hand trip lever.
Specied Model
MODEL NO. DESCRIPTION Length Width Height
COMPLETE TOILET KITS
r TBT-1485 EL Bowl & LH Tank 28
r TBT-1485-01 EL Bowl & RH Tank 28
INDIVIDUAL COMPONENTS
r TB-1485 Elongated Front Bowl 28
r TT-1480 Toilet Tank - LH Trip Lever 8
r TT-1480-01 Toilet Tank - RH Trip Lever 8
To Be Specied: Color (see below)
r
01 White
r
08 Biscuit
9
⁄10
” 18” 33”
9
⁄10
” 18” 33”
9
⁄10
” 14” 17”
1
⁄2
” 18” 16”
1
⁄2
” 18” 16”
33”
17”
Compliance Certications Meets or Exceeds the Following Specications
• ASME A112.19.2M-1998
• Canadian Uniform Plumbing Code 2002
• UPC®
Meets the Americans with Disabilities Act guidelines and ANSI A117.1
requirements for accessible and usable building facilities-check local codes
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
This toilet is designed to rough-in at a minimum dimension
of 305mm (12”) from nished wall to C/L of outlet. Supply not
included with xture and must be ordered separately.
Dimension shown for location of supply is suggested. For additional information refer to installation instructions supplied.
11/01/2013
