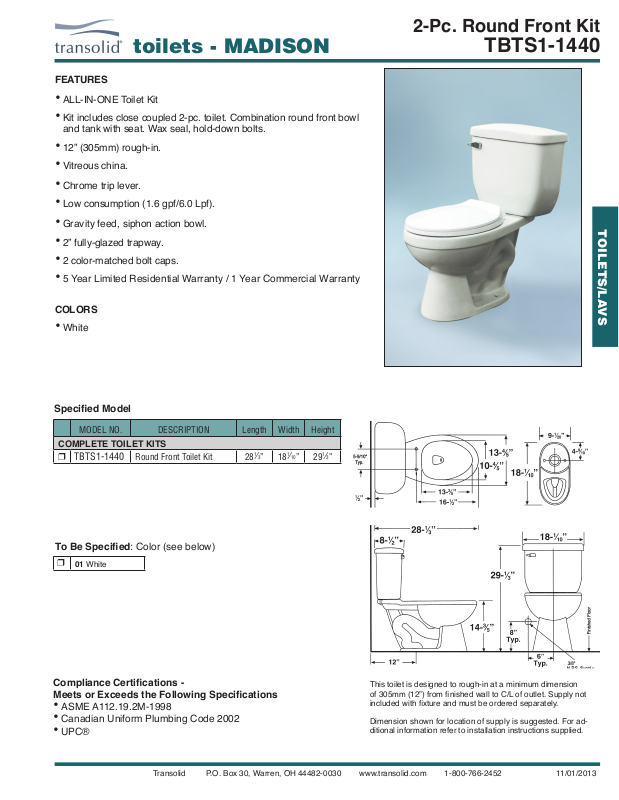

2-Pc. Round Front Kit
toilets - MADISON
FEATURES
• ALL-IN-ONE Toilet Kit
• Kit includes close coupled 2-pc. toilet. Combination round front bowl
and tank with seat. Wax seal, hold-down bolts.
• 12” (305mm) rough-in.
• Vitreous china.
• Chrome trip lever.
• Low consumption (1.6 gpf/6.0 Lpf).
• Gravity feed, siphon action bowl.
• 2” fully-glazed trapway.
• 2 color-matched bolt caps.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
COLORS
• White
TBTS1-1440
TOILETS/LAVS
Specied Model
MODEL NO. DESCRIPTION Length Width Height
COMPLETE TOILET KITS
r TBTS1-1440 Round Front Toilet Kit 28
To Be Specied: Color (see below)
r
01 White
Compliance Certications Meets or Exceeds the Following Specications
1
⁄3
” 18
• ASME A112.19.2M-1998
• Canadian Uniform Plumbing Code 2002
• UPC®
1
⁄10
” 29
1
⁄3
”
This toilet is designed to rough-in at a minimum dimension
of 305mm (12”) from nished wall to C/L of outlet. Supply not
included with xture and must be ordered separately.
Dimension shown for location of supply is suggested. For additional information refer to installation instructions supplied.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
11/01/2013
