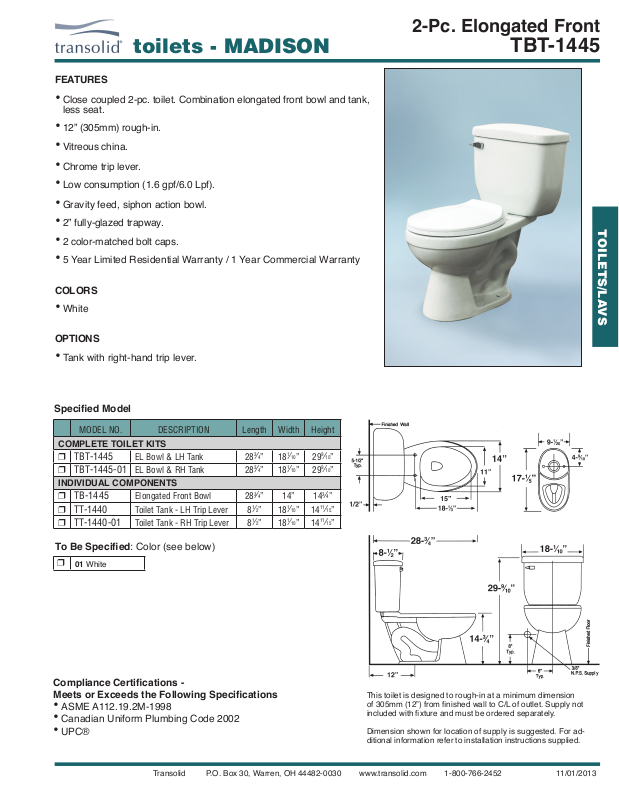

Page 1
2-Pc. Elongated Front
toilets - MADISON
FEATURES
• Close coupled 2-pc. toilet. Combination elongated front bowl and tank,
less seat.
• 12” (305mm) rough-in.
• Vitreous china.
• Chrome trip lever.
• Low consumption (1.6 gpf/6.0 Lpf).
• Gravity feed, siphon action bowl.
• 2” fully-glazed trapway.
• 2 color-matched bolt caps.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
COLORS
• White
OPTIONS
TBT-1445
TOILETS/LAVS
• Tank with right-hand trip lever.
Specied Model
MODEL NO. DESCRIPTION Length Width Height
COMPLETE TOILET KITS
r TBT-1445 EL Bowl & LH Tank 28
r TBT-1445-01 EL Bowl & RH Tank 28
INDIVIDUAL COMPONENTS
r TB-1445 Elongated Front Bowl 28
r TT-1440 Toilet Tank - LH Trip Lever 8
r TT-1440-01 Toilet Tank - RH Trip Lever 8
To Be Specied: Color (see below)
r
01 White
3
⁄4
” 18
3
⁄4
” 18
3
⁄4
” 14” 14
1
⁄2
” 18
1
⁄2
” 18
1
⁄10
1
⁄10
1
⁄10
1
⁄10
” 29
” 29
” 14
” 14
9
⁄10
”
9
⁄10
”
3
⁄4
”
11
⁄15
”
11
⁄15
”
Compliance Certications Meets or Exceeds the Following Specications
• ASME A112.19.2M-1998
• Canadian Uniform Plumbing Code 2002
• UPC®
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
This toilet is designed to rough-in at a minimum dimension
of 305mm (12”) from nished wall to C/L of outlet. Supply not
included with xture and must be ordered separately.
Dimension shown for location of supply is suggested. For additional information refer to installation instructions supplied.
11/01/2013
