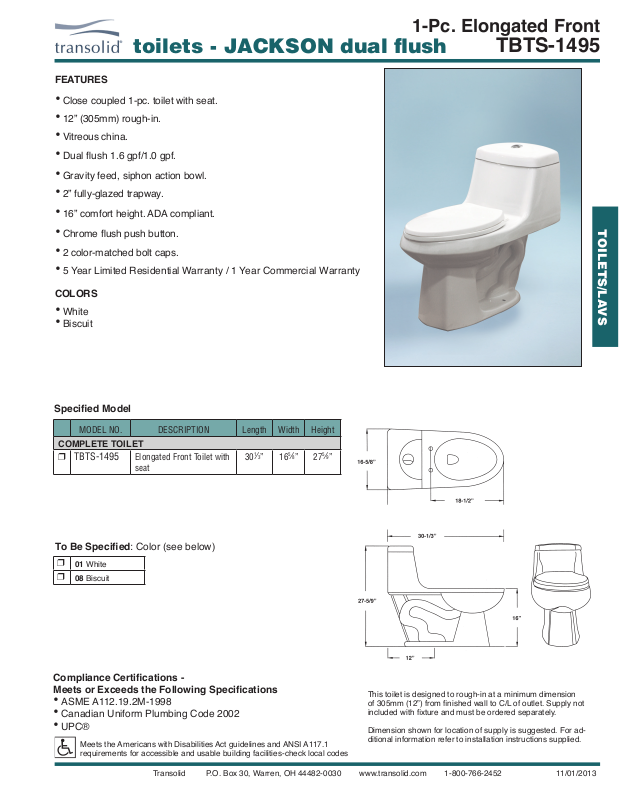

Page 1
1-Pc. Elongated Front
toilets - JACKSON dual flush
FEATURES
• Close coupled 1-pc. toilet with seat.
• 12” (305mm) rough-in.
• Vitreous china.
• Dual ush 1.6 gpf/1.0 gpf.
• Gravity feed, siphon action bowl.
• 2” fully-glazed trapway.
• 16” comfort height. ADA compliant.
• Chrome ush push button.
• 2 color-matched bolt caps.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
COLORS
• White
• Biscuit
TBTS-1495
TOILETS/LAVS
Specied Model
MODEL NO. DESCRIPTION Length Width Height
COMPLETE TOILET
r TBTS-1495 Elongated Front Toilet with
seat
To Be Specied: Color (see below)
r
01 White
r
08 Biscuit
Compliance Certications Meets or Exceeds the Following Specications
30
1
⁄3
” 16
• ASME A112.19.2M-1998
• Canadian Uniform Plumbing Code 2002
• UPC®
Meets the Americans with Disabilities Act guidelines and ANSI A117.1
requirements for accessible and usable building facilities-check local codes
5
⁄8
” 27
5
⁄9
”
This toilet is designed to rough-in at a minimum dimension
of 305mm (12”) from nished wall to C/L of outlet. Supply not
included with xture and must be ordered separately.
Dimension shown for location of supply is suggested. For additional information refer to installation instructions supplied.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
11/01/2013
