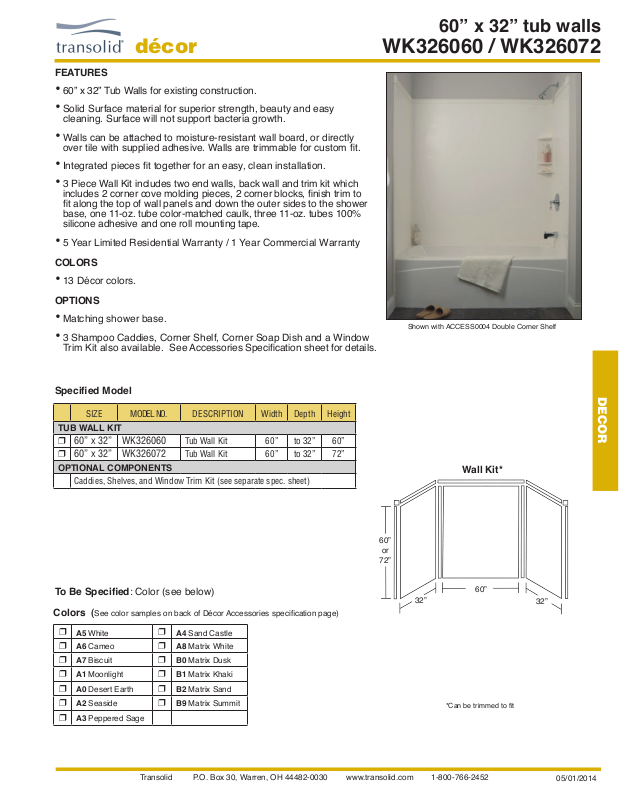

Page 1
60” x 32” tub walls
décor
FEATURES
• 60” x 32” Tub Walls for existing construction.
• Solid Surface material for superior strength, beauty and easy
cleaning. Surface will not support bacteria growth.
• Walls can be attached to moisture-resistant wall board, or directly
over tile with supplied adhesive. Walls are trimmable for custom t.
• Integrated pieces t together for an easy, clean installation.
• 3 Piece Wall Kit includes two end walls, back wall and trim kit which
includes 2 corner cove molding pieces, 2 corner blocks, nish trim to
t along the top of wall panels and down the outer sides to the shower
base, one 11-oz. tube color-matched caulk, three 11-oz. tubes 100%
silicone adhesive and one roll mounting tape.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
COLORS
• 13 Décor colors.
OPTIONS
• Matching shower base.
• 3 Shampoo Caddies, Corner Shelf, Corner Soap Dish and a Window
Trim Kit also available. See Accessories Specication sheet for details.
WK326060 / WK326072
Shown with ACCESS0004 Double Corner Shelf
Specied Model
SIZE MODEL NO. DESCRIPTION Width Depth Height
TUB WALL KIT
r 60” x 32” WK326060 Tub Wall Kit 60” to 32” 60”
r 60” x 32” WK326072 Tub Wall Kit 60” to 32” 72”
OPTIONAL COMPONENTS
Caddies, Shelves, and Window Trim Kit (see separate spec. sheet)
To Be Specied: Color (see below)
Colors (See color samples on back of Décor Accessories specication page)
r
A5 White
r A6 Cameo r A8 Matrix White
r A7 Biscuit r B0 Matrix Dusk
r A1 Moonlight r B1 Matrix Khaki
r A0 Desert Earth r B2 Matrix Sand
r A2 Seaside r B9 Matrix Summit
r A3 Peppered Sage
r
A4 Sand Castle
60”
or
72”
32”
*Can be trimmed to t
DECOR
Wall Kit*
60”
32”
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
05/01/2014
Page 2
60” x 32” tub walls
WK3260
INSTALLATION NOTES:
This product is to be installed according to the installation guide supplied with shower walls.
This product designed to be installed over clean, smooth tile, waterproof drywall or cement board.
If installing directly over tile, remove all loose pieces and ll for a consistent, smooth substrate.
G
E
F
E. Outside Finish
Edge Trim
F. Corner Block
Trim
2-1/2”
G. Inside Corner
Cove Molding
AB C
2-1/2”
E
MODEL # DESCRIPTION
WK326060 3-piece Wall Kit - 60” H
WK326072 3-piece Wall Kit - 72” H
A Back Wall (1 panel)
B Left End Wall (1 panel)
C Right End Wall (1 panel)
E
Outside Finish Edge
Trim ts along the top
of the wall panels and
down the outer edge
of the wall panel sides
to the shower base.
The solid surface
corner blocks (set of 2)
used at the top outside
corners of the walls for
a decorative nished
appearance.
DECOR
OPTIONS: ACCESSORIES
Available for on-site installation. Must be ordered separately. See Accessories Specication for further information.
Inside Corner Cove
Molding (2 pieces)
included for out of
square installation.
Corner
Soap Dish
SOAPDISH03
Recessed
Shampoo Caddy
ACCESS0001
Recessed
Shampoo Caddy
ACCESS0002
Product Information
SHOWER DOOR
MODEL NO. MAXIMUM WIDTH MAXIMUM HEIGHT
WK326060 58” 57-1/2”
WK326072 58” 69-1/2”
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
Recessed
Shampoo Caddy
ACCESS0003
Double Corner
Shelf
ACCESS0004
Window Trim Kit
WTK03636
05/01/2014
