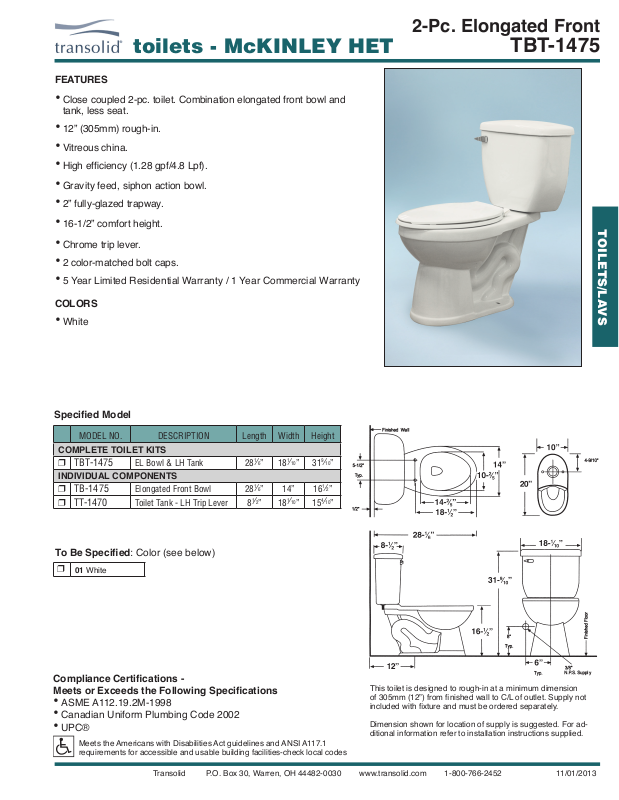

2-Pc. Elongated Front
toilets - McKINLEY HET
FEATURES
• Close coupled 2-pc. toilet. Combination elongated front bowl and
tank, less seat.
• 12” (305mm) rough-in.
• Vitreous china.
• High efciency (1.28 gpf/4.8 Lpf).
• Gravity feed, siphon action bowl.
• 2” fully-glazed trapway.
• 16-1/2” comfort height.
• Chrome trip lever.
• 2 color-matched bolt caps.
• 5 Year Limited Residential Warranty / 1 Year Commercial Warranty
COLORS
• White
TBT-1475
TOILETS/LAVS
Specied Model
MODEL NO. DESCRIPTION Length Width Height
COMPLETE TOILET KITS
r TBT-1475 EL Bowl & LH Tank 28
INDIVIDUAL COMPONENTS
r TB-1475 Elongated Front Bowl 28
r TT-1470 Toilet Tank - LH Trip Lever 8
To Be Specied: Color (see below)
r
01 White
Compliance Certications Meets or Exceeds the Following Specications
1
⁄6
1
⁄6
1
⁄2
1
” 18
” 14” 16
1
” 18
• ASME A112.19.2M-1998
• Canadian Uniform Plumbing Code 2002
• UPC®
Meets the Americans with Disabilities Act guidelines and ANSI A117.1
requirements for accessible and usable building facilities-check local codes
⁄10
” 31
⁄10
” 15
9
⁄10
”
1
⁄2
”
4
⁄10
”
This toilet is designed to rough-in at a minimum dimension
of 305mm (12”) from nished wall to C/L of outlet. Supply not
included with xture and must be ordered separately.
Dimension shown for location of supply is suggested. For additional information refer to installation instructions supplied.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
11/01/2013
