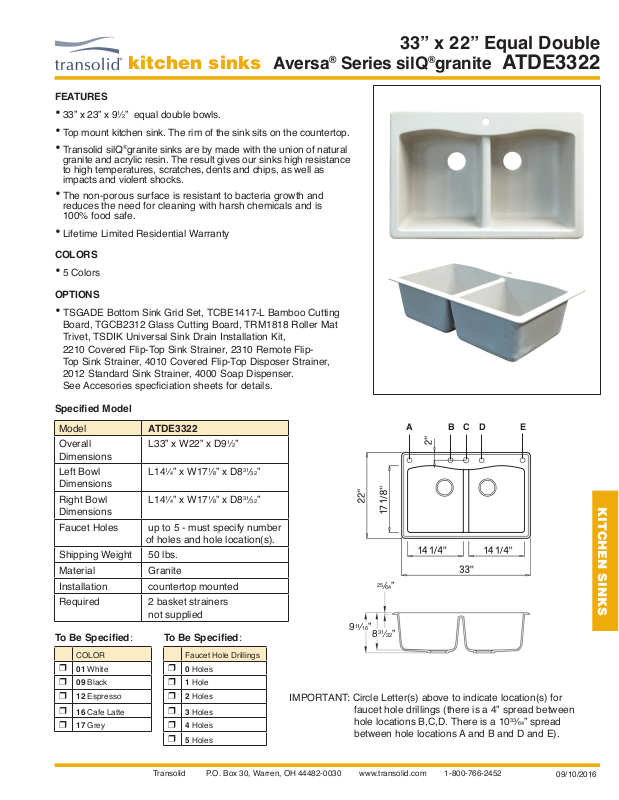

33” x 22” Equal Double
Aversa® Series silQ®granite ATDE3322
FEATURES
• 33” x 23” x 9
kitchen sinks
1
⁄2” equal double bowls.
• Top mount kitchen sink. The rim of the sink sits on the countertop.
• Transolid silQ
granite and acrylic resin. The result gives our sinks high resistance
to high temperatures, scratches, dents and chips, as well as
impacts and violent shocks.
®
granite sinks are by made with the union of natural
• The non-porous surface is resistant to bacteria growth and
reduces the need for cleaning with harsh chemicals and is
100% food safe.
• Lifetime Limited Residential Warranty
COLORS
• 5 Colors
OPTIONS
• TSGADE Bottom Sink Grid Set, TCBE1417-L Bamboo Cutting
Board, TGCB2312 Glass Cutting Board, TRM1818 Roller Mat
Trivet, TSDIK Universal Sink Drain Installation Kit,
2210 Covered Flip-Top Sink Strainer, 2310 Remote Flip-
Top Sink Strainer, 4010 Covered Flip-Top Disposer Strainer,
2012 Standard Sink Strainer, 4000 Soap Dispenser.
SeeAccesoriesspecciationsheetsfordetails.
Specied Model
Model ATDE3322
Overall
Dimensions
Left Bowl
Dimensions
Right Bowl
Dimensions
Faucet Holes up to 5 - must specify number
Shipping Weight 50 lbs.
Material Granite
Installation countertop mounted
Required 2 basket strainers
To Be Specied:
COLOR
r
01 White
r 09 Black
r 12 Espresso
r
16 Cafe Latte
r 17 Grey
L33” x W22” x D91⁄2”
L141⁄4” x W171⁄8” x D831⁄32”
L141⁄4” x W171⁄8” x D831⁄32”
of holes and hole location(s).
not supplied
To Be Specied:
Faucet Hole Drillings
r
0 Holes
r 1 Hole
r 2 Holes
r
3 Holes
r 4 Holes
r
5 Holes
A B C D E
25
⁄64”
911⁄16”
831⁄32”
IMPORTANT: Circle Letter(s) above to indicate location(s) for
faucet hole drillings (there is a 4” spread between
hole locations B,C,D. There is a 1033⁄64” spread
between hole locations A and B and D and E).
KITCHEN SINKS
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
09/10/2016
