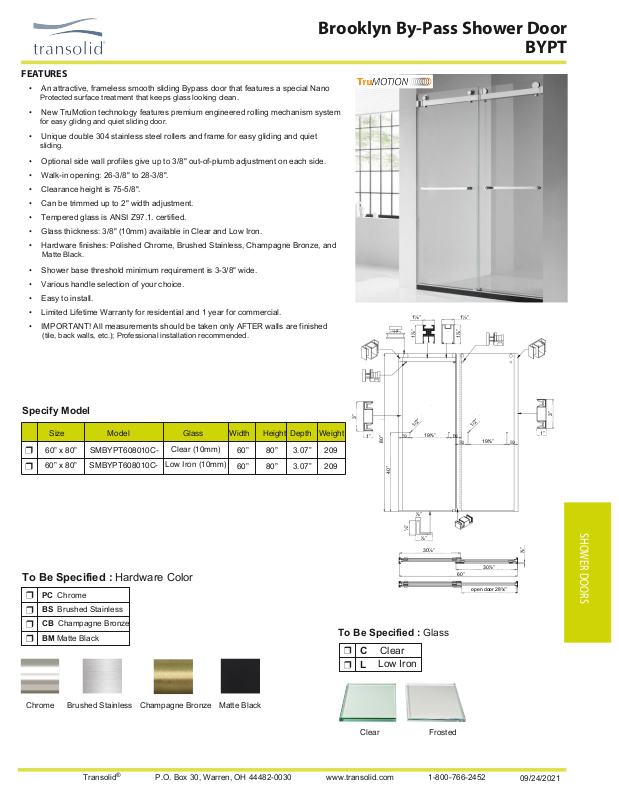

Page 1
FEATURES
• An attractive, frameless smooth sliding Bypass door that features a special Nano
Protected surface treatment that keeps glass looking clean.
• New TruMotion technology features premium engineered rolling mechanism system
for easy gliding and quiet sliding door.
• Unique double 304 stainless steel rollers and frame for easy gliding and quiet
sliding.
• Optional side wall profiles give up to 3/8" out-of-plumb adjustment on each side.
• Walk-in opening: 26-3/8" to 28-3/8".
• Clearance height is 75-5/8".
• Can be trimmed up to 2" width adjustment.
• Tempered glass is ANSI Z97.1. certified.
• Glass thickness: 3/8" (10mm) available in Clear and Low Iron.
• Hardware finishes: Polished Chrome, Brushed Stainless, Champagne Bronze, and
Matte Black.
• Shower base threshold minimum requirement is 3-3/8" wide.
• Various handle selection of your choice.
• Easy to install.
• Limited Lifetime Warranty for residential and 1 year for commercial.
• IMPORTANT! All measurements should be taken only AFTER walls are finished
(tile, back walls, etc.); Professional installation recommended.
Brooklyn By-Pass Shower Door
BYPT
1¹⁄8”
1⁷⁄8”
1¹⁄4”
1⁷⁄8”
Specify Model
Size Model Glass
60” x 80”
SMBYPT608010C-
60” x 80” SMBYPT608010C-
Clear (10mm)
Low Iron (10mm)
To Be Specified : Hardware Color
PC Chrome
BS Brushed Stainless
CB Champagne Bronze
BM Matte Black
60”
60”
80”
80”
DepthWidth Height
3.07”
3.07”
3”
Weight
1”
80”
209
209
40”
To Be Specified : Glass
C Clear
Low Iron
L
3”
60”
1/2”
1”
19⁵⁄8”
SHOWER DOORS
³⁄8”
30⁷⁄8”
open door 28³⁄8”
1/2”
19⁵⁄8”
¹⁄8”
¹⁄2”
¹⁄2”
30⁷⁄8”
Chrome
Brushed Stainless Champagne Bronze Matte Black
®
P.O. Box 30, Warren, OH 44482-0030
Clear Frosted
1-800-766-2452www.transolid.comTransolid
09/24/2021
Page 2
FEATURES
• Handles are available in 3 distinctive series.
• Handle size is 19.69” (500mm) center hole to center hole.
• Finish: Polished Chrome (PC), Brushed Stainless (BS), Matte Black (MB) and Champagne Bronze (CB).
• Limited Lifetime Warranty for residential use and 1 year when used commercially.
Pinnacle, Diamond & Meridian Series Shower Door Handles
Our extensive collection of high end handles add a distinctive look to your shower door and bathroom.
Pinnacle Series
Diamond Series
Shower Door
Handle Selections
Meridian Series
Niles
(N)
* Matching grab bar available in different sizes.
Specify Model
1. : Series & Style
PINNACLE SERIES
PH-BND-D-
PH-BND-K-
DIAMOND SERIES
DH-BPD-
DH-BND-D-
DH-BND-K-
MERIDIAN SERIES
MH-BPD-
MH-BND-D-
MH-BND-K-
JUSTIN
(J)
Pinnacle Bypass Handles (Pair)PH-BPD- 6 lbs.
Pinnacle Barn Door Double Sided
Pinnacle Barn Door Handle & Knob
Diamond Bypass Handles (Pair)
Diamond Barn Door Double Sided
Diamond Barn Door Handle & Knob
Meridian Bypass Handles (Pair)
Meridian Barn Door Double Sided
Meridian Barn Door Handle & Knob
PLAIN (BP)
*BELLA
Style
*BELLA
KNURLED (BK)
6 lbs.
4 lbs.
4 lbs.
3 lbs.
2 lbs.
4 lbs.
3 lbs.
2 lbs.
*TURIN
(T)
Bella Knurled
Barn Door Double Sided
DH-BND-D-BK-CB
SABRINA
(S)
Justin Bypass Handles (Pair)
DH-BPD-J-PC
CATHERINE
(C)
Bella Knurled
Barn Door Handle & Knob
DH-BND-K-BK-CB
RILEY
(R)
2. To Be Specified
PINNACLE SERIES
N Niles
DIAMOND SERIES
J Justin
BP *Bella Plain
BK *Bella Knurled
MERIDIAN SERIES
T Turin
abrina
S
C Catherine
R Riley
®
Handle Name
* Bella Plain handles are only available in Chrome finish.
Bella Knurled handles are available in Brushed Nickel, Matte Black and Champagne Bronze.
P.O. Box 30, Warren, OH 44482-0030
3. To Be Specified : Color
PC Polished Chrome
BS Brushed Stainless
CB Champagne Bronze
MB Matte Black
Chrome Matte Black
Brushed Stainless Champagne Bronze
1-800-766-2452www.transolid.comTransolid
08/02/2021
