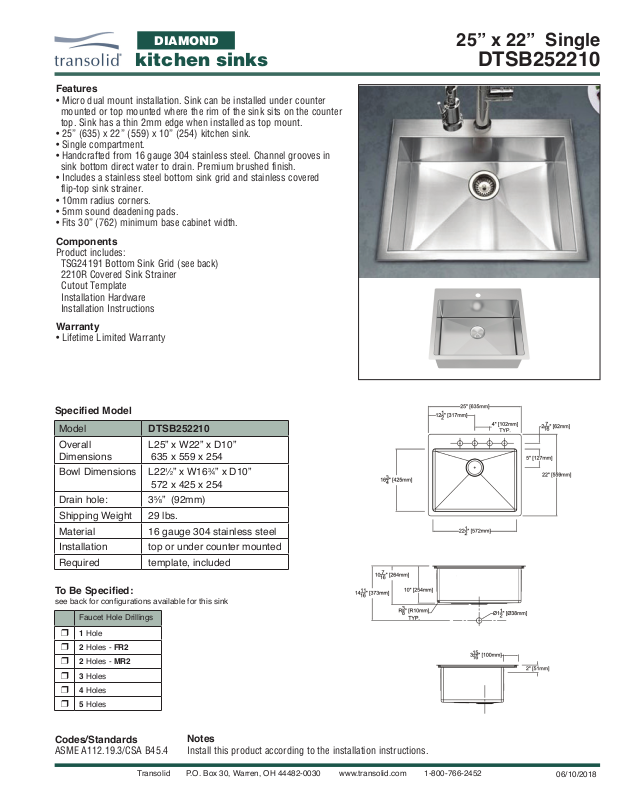

Page 1
DIAMOND
25” x 22” Single
kitchen sinks
Features
• Micro dual mount installation. Sink can be installed under counter
mounted or top mounted where the rim of the sink sits on the counter
top. Sink has a thin 2mm edge when installed as top mount.
• 25” (635) x 22” (559) x 10” (254) kitchen sink.
• Single compartment.
• Handcrafted from 16 gauge 304 stainless steel. Channel grooves in
sink bottom direct water to drain. Premium brushed finish.
• Includes a stainless steel bottom sink grid and stainless covered
flip-top sink strainer.
• 10mm radius corners.
• 5mm sound deadening pads.
• Fits 30” (762) minimum base cabinet width.
Components
Product includes:
TSG24191 Bottom Sink Grid (see back)
2210R Covered Sink Strainer
Cutout Template
Installation Hardware
Installation Instructions
Warranty
• Lifetime Limited Warranty
DTSB252210
Specied Model
Model DTSB252210
Overall
Dimensions
Bowl Dimensions L221⁄2” x W163⁄4” x D10”
Drain hole: 35⁄8” (92mm)
Shipping Weight 29 lbs.
Material 16 gauge 304 stainless steel
Installation top or under counter mounted
Required template, included
To Be Specied:
see back for congurations available for this sink
Faucet Hole Drillings
r 1 Hole
r 2 Holes - FR2
r 2 Holes - MR2
r 3 Holes
r 4 Holes
r 5 Holes
L25” x W22” x D10”
635 x 559 x 254
572 x 425 x 254
Codes/Standards
ASME A112.19.3/CSA B45.4
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
Notes
Install this product according to the installation instructions.
06/10/2018
Page 2
DIAMOND
25” x 22” Single
kitchen sinks
Faucet Hole Congurations available for this sink model
8”
(204)
One faucet hole
4”
4”
(102)
(102)
Three faucet holes Five faucet holes
Components
Product includes:
TSG24191 Bottom Sink Grid
FR2 Two faucet holes
4”
(102)4”(102)4”(102)
Four faucet holes
4”
(102)
MR2 Two faucet holes
4”
4”
(102)4”(102)4”(102)
(102)
DTSB252210
2210R Covered Flip Top Sink Strainer.
410⁄16”
Water drains easily when cover is
in place. Cover flips up with easy
touch. Polypropylene housing. Fits
1
standard 3
21⁄2”
1
1
⁄2”
⁄2” opening.
Optional 2310 Remote Covered Flip Top Sink Strainer
is available.
Optional 4010 Covered Flip Top Disposer Strainer is
available.
See Accessories to order.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
06/10/2018
