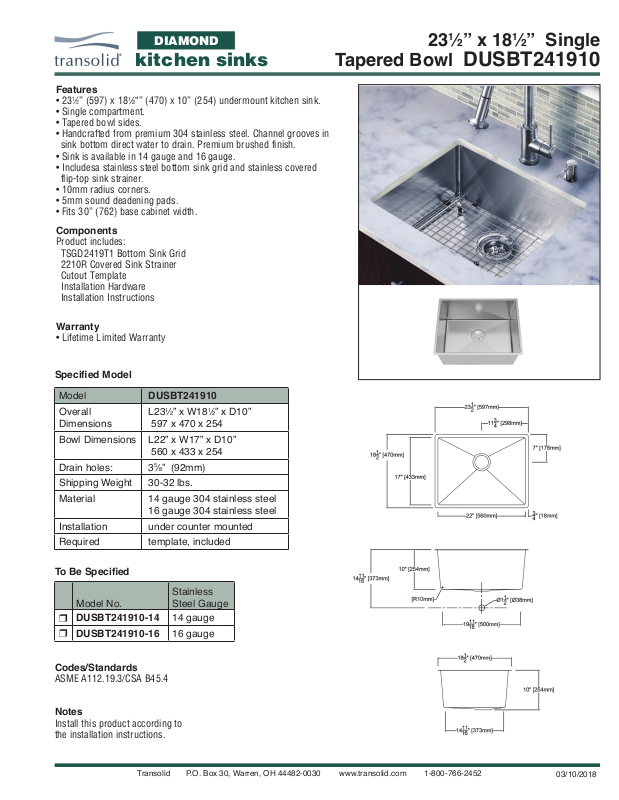

Page 1
DIAMOND
231⁄2” x 181⁄2” Single
kitchen sinks
Features
• 231⁄2” (597) x 181⁄2”” (470) x 10” (254) undermount kitchen sink.
• Single compartment.
• Tapered bowl sides.
• Handcrafted from premium 304 stainless steel. Channel grooves in
sink bottom direct water to drain. Premium brushed finish.
• Sink is available in 14 gauge and 16 gauge.
• Includesa stainless steel bottom sink grid and stainless covered
flip-top sink strainer.
• 10mm radius corners.
• 5mm sound deadening pads.
• Fits 30” (762) base cabinet width.
Components
Product includes:
TSGD2419T1 Bottom Sink Grid
2210R Covered Sink Strainer
Cutout Template
Installation Hardware
Installation Instructions
Warranty
• Lifetime Limited Warranty
Tapered Bowl DUSBT241910
Specied Model
Model DUSBT241910
Overall
Dimensions
Bowl Dimensions L22” x W17” x D10”
Drain holes: 35⁄8” (92mm)
Shipping Weight 30-32 lbs.
Material 14 gauge 304 stainless steel
Installation under counter mounted
Required template, included
To Be Specied
Model No.
DUSBT241910-14 14 gauge
r
DUSBT241910-16 16 gauge
r
Codes/Standards
ASME A112.19.3/CSA B45.4
L231⁄2” x W181⁄2” x D10”
597 x 470 x 254
560 x 433 x 254
16 gauge 304 stainless steel
Stainless
Steel Gauge
0
Notes
Install this product according to
the installation instructions.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
03/10/2018
Page 2
DIAMOND
231⁄2” x 181⁄2” Single
kitchen sinks
Components
Product includes:
TSGD2419T1 Bottom Sink Grid
2210R Covered Flip Top Sink Strainer.
410⁄16”
Water drains easily when cover is
in place. Cover flips up with easy
touch. Polypropylene housing. Fits
standard 31⁄2” opening.
Tapered Bowl DUSBT241910
21⁄2”
1
1
⁄2”
Optional 2310 Remote Covered Flip Top Sink Strainer
is available.
Optional 4010 Covered Flip Top Disposer Strainer is
available.
See Accessories to order.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
03/10/2018
