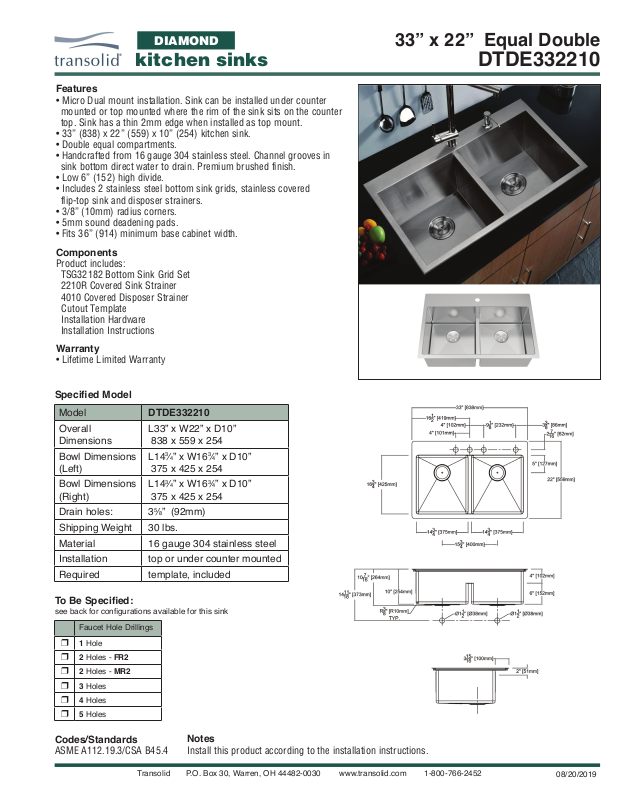

Page 1
DIAMOND
33” x 22” Equal Double
kitchen sinks
Features
• Micro Dual mount installation. Sink can be installed under counter
mounted or top mounted where the rim of the sink sits on the counter
top. Sink has a thin 2mm edge when installed as top mount.
• 33” (838) x 22” (559) x 10” (254) kitchen sink.
• Double equal compartments.
• Handcrafted from 16 gauge 304 stainless steel. Channel grooves in
sink bottom direct water to drain. Premium brushed finish.
• Low 6” (152) high divide.
• Includes 2 stainless steel bottom sink grids, stainless covered
flip-top sink and disposer strainers.
• 3/8” (10mm) radius corners.
• 5mm sound deadening pads.
• Fits 36” (914) minimum base cabinet width.
Components
Product includes:
TSG32182 Bottom Sink Grid Set
2210R Covered Sink Strainer
4010 Covered Disposer Strainer
Cutout Template
Installation Hardware
Installation Instructions
Warranty
• Lifetime Limited Warranty
DTDE332210
Specied Model
Model DTDE332210
Overall
Dimensions
Bowl Dimensions
(Left)
Bowl Dimensions
(Right)
Drain holes: 35⁄8” (92mm)
Shipping Weight 30 lbs.
Material 16 gauge 304 stainless steel
Installation top or under counter mounted
Required template, included
To Be Specied:
see back for congurations available for this sink
Faucet Hole Drillings
r 1 Hole
r 2 Holes - FR2
r 2 Holes - MR2
r 3 Holes
r 4 Holes
r 5 Holes
L33” x W22” x D10”
838 x 559 x 254
L143⁄4” x W163⁄4” x D10”
375 x 425 x 254
L143⁄4” x W163⁄4” x D10”
375 x 425 x 254
Codes/Standards
ASME A112.19.3/CSA B45.4
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
Notes
Install this product according to the installation instructions.
08/20/2019
Page 2
DIAMOND
33” x 22” Equal Double
kitchen sinks
Faucet Hole Congurations available for this sink model
One faucet hole
4”
4”
(102)
(102)
Three faucet holes Five faucet holes
Components
Product includes:
TSG32182 Bottom Sink Grid Set
FR2 Two faucet holes
4”
(102)4”(102)4”(102)
Four faucet holes
12”
(306)
DTDE332210
4”
(102)
MR2 Two faucet holes
4”
4”
(102)4”(102)4”(102)
(102)
2210R Covered Flip Top Sink Strainer.
410⁄16”
Water drains easily when cover is
in place. Cover flips up with easy
touch. Polypropylene housing. Fits
standard 31⁄2” opening.
Optional Remote Covered Strainer
2310 is available.
See Accessories to order.
21⁄2”
1
1
⁄2”
4010 Covered Flip Top Disposer Strainer.
31⁄4”
Water drains easily when cover is
in place. Cover flips up with easy
touch. Polypropylene housing.
Top mount installation for 3
opening.
21⁄4”
31⁄2”
1
⁄2”
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
08/20/2019
