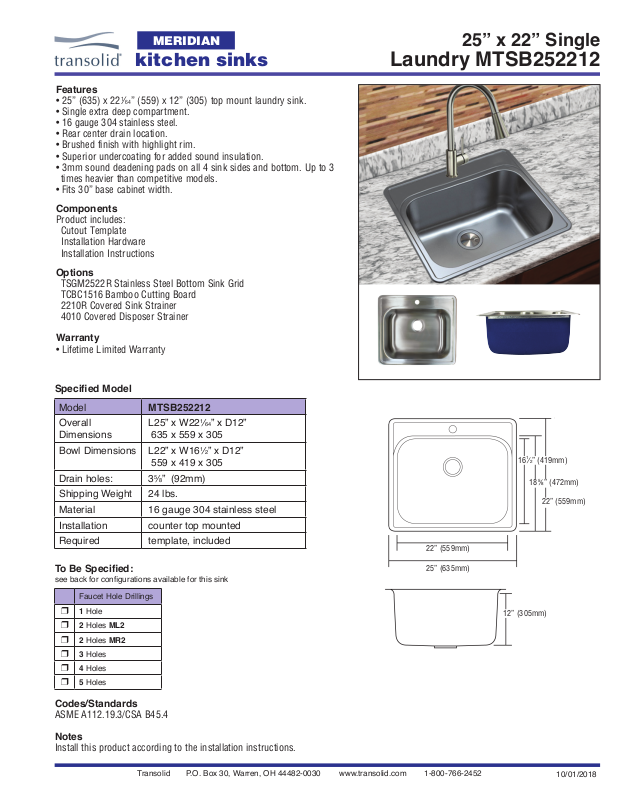

Page 1
MERIDIAN
25” x 22” Single
kitchen sinks
Features
• 25” (635) x 221⁄64” (559) x 12” (305) top mount laundry sink.
• Single extra deep compartment.
• 16 gauge 304 stainless steel.
• Rear center drain location.
• Brushed finish with highlight rim.
• Superior undercoating for added sound insulation.
• 3mm sound deadening pads on all 4 sink sides and bottom. Up to 3
times heavier than competitive models.
• Fits 30” base cabinet width.
Components
Product includes:
Cutout Template
Installation Hardware
Installation Instructions
Options
TSGM2522R Stainless Steel Bottom Sink Grid
TCBC1516 Bamboo Cutting Board
2210R Covered Sink Strainer
4010 Covered Disposer Strainer
Warranty
• Lifetime Limited Warranty
Laundry MTSB252212
Specied Model
Model MTSB252212
Overall
Dimensions
Bowl Dimensions L22” x W161⁄2” x D12”
Drain holes: 35⁄8” (92mm)
Shipping Weight 24 lbs.
Material 16 gauge 304 stainless steel
Installation counter top mounted
Required template, included
To Be Specied:
see back for congurations available for this sink
Faucet Hole Drillings
r 1 Hole
r 2 Holes ML2
r 2 Holes MR2
r 3 Holes
r 4 Holes
r 5 Holes
L25” x W221⁄64” x D12”
635 x 559 x 305
559 x 419 x 305
161⁄2” (419mm)
185⁄8” (472mm)
22” (559mm)
22” (559mm)
25” (635mm)
12” (305mm)
Codes/Standards
ASME A112.19.3/CSA B45.4
Notes
Install this product according to the installation instructions.
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
10/01/2018
Page 2
MERIDIAN
25” x 22” Single
kitchen sinks
Faucet Hole Congurations available for this sink model
4”
(102)
One faucet hole
4”
4”
(102)
(102)
Three faucet holes
Optional Accessories
TSGM2522R Bottom Sink Grid
149⁄64”
ML2 Two faucet holes
4”
4”
(102)
(102)
Four faucet holes
4”
(102)
Laundry MTSB252212
4”
(102)
MR2 Two faucet holes
4”
(102)
(102)
Five faucet holes
4”
4”
4”
(102)
(102)
195⁄8”
1”
2210R Covered Flip Top Sink Strainer.
410⁄16”
Water drains easily when cover is in
place. Cover flips up with easy touch.
Cover makes a flat surface at the
sink bottom that prevents food waste
from getting into the strainer basket
21⁄2”
for easy sink clean up. Polypropylene
1
⁄2”
1
housing. Fits standard 31⁄2” opening.
4010 Covered Flip Top Disposer Strainer.
31⁄4”
Water drains easily when
cover is in place. Cover
flips up with easy touch.
Polypropylene housing.
Top mount installation
for 31⁄2” opening.
21⁄4”
2310 Remote Covered Flip Top Sink Strainer.
410⁄16”
Turn the remote knob to open and
close drain. Water drains easily when
cover is in place. Cover flips up with
easy touch.
13⁄4”
Cover makes a flat surface at the sink
bottom that prevents food waste from
getting into the strainer basket for
43⁄4”
11⁄2”
easy sink clean up.
Polypropylene housing. Fits standard
43⁄4”
31⁄2” opening. 13⁄8” hole required in
countertop for remote installation.
Remote cable 251⁄2” L.
31⁄2”
Transolid P.O. Box 30, Warren, OH 44482-0030 www.transolid.com 1-800-766-2452
10/01/2018
