1 FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the unit on when use of wireless phone is prohibited or when it may
cause interference or danger.
INTERFERENCE
All wireless phones and units may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the unit off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the unit at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the unit where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do not
touch the antenna unnecessarily.
Page 6
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%6%
2 INTRODUCTION
ICE-LOCK is a universal remote controller based on GSM technology. It is designed
as unlimited range, wire free, low cost, and highly robust remote control system.
As all other devices from portfolio, ICE-LOCK supports alarm detection, stay-alive
messages, credit checking etc…
The ICE-LOCK is a GSM remote control unit with CodeLock keypad which can open
automated electric gates. You can dial the number of the ICE-LOCK unit free of
charge (Caller ID) or type your unique entry code into CodeLock keypad. When the
call is received or the correct code is recognized, the ICE-LOCK unit opens the
gates.
Changing the phone numbers, setting the codes can be programmed by sending
simple SMS to the unit or via WEB (Option on special request).
Typical use of the ICE-LOCK: rental apartments, holiday houses, restricted access
areas, storages, laboratories, etc.
ICE-LOCK is equipped with relay output.
Page 7
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%7%
3 FEATURES AND APPLICATIONS
Features:
⇒ Built-in 2 or 4 band GSM module
⇒ Up to 50 PIN access codes (4 digit)
⇒ 1 alarm input
⇒ 1 output (relay supported)
⇒ Up to 50 telephone numbers for CLIP support
⇒ Programming by USB on the ICE-LOCK
⇒ Programming by SMS command – all parameters including the PIN access codes
⇒ Anti-tampering input
Applications:
⇒ Free of charge access control by typing 4 digit PIN access code on the keypad
⇒ Free of charge remote control (CLIP)
⇒ Simple alarm support
Page 8
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%8%
4 START UP
⇒ Insert SIM card to be used for ICE-LOCK in your personal mobile phone.
IMPORTANT
ERASE THE PIN CODE ON THE SIM CARD!
⇒ Insert SIM card in ICE-LOCK device.
The unit must be switched OFF when you insert the SIM!
⇒ Connect the external antenna to antenna connector.
⇒ Connect input and output to ICE-LOCK.
⇒ Connect power cable to ICE-LOCK device
⇒ Connect device to source power supply voltage.
⇒ Wait until LED1 (green) starts flashing. This is set in around 30 seconds.
⇒ ICE-LOCK unit is now ready to operate.
IMPORTANT
Before sending any SMS commands to ICE-LOCK device,
device must be powered ON and in normal operation!
Page 9
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%9%
5 LED DISPLAY
Green LED (LED1)
- Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak
signal, 5 is excellent signal)
Yellow LED (LED2)
- Short flashing indicates that the GSM module is ON, but it is not yet
connected on the GSM network. After connection, yellow led is flashing with
short pulse (0,5s) ON and a long pulse OFF (5s).
Page 10
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%10%
6 CLEAR ALL PROGRAMMED DATA FROM SIM
This is highly recommended when a SIM card you are going to use for the ICELOCK is not new and it already has some data stored in the phone book memory.
By sending this SMS to ICE-LOCK all programmed parameters and numbers are
cleared:
;SDCLR;
After the command is received by the device all configuration parameters on the
SIM card including the SMS are deleted. The procedure can take up-to 2 minutes,
depends on the version of the SIM card.
The ICE-LOCK will restart after the configuration is deleted.
NOTE
By sending this command to the ICE-LOCK ALL DATA are erased from
the SIM card, including SMS!
Page 11
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%11%

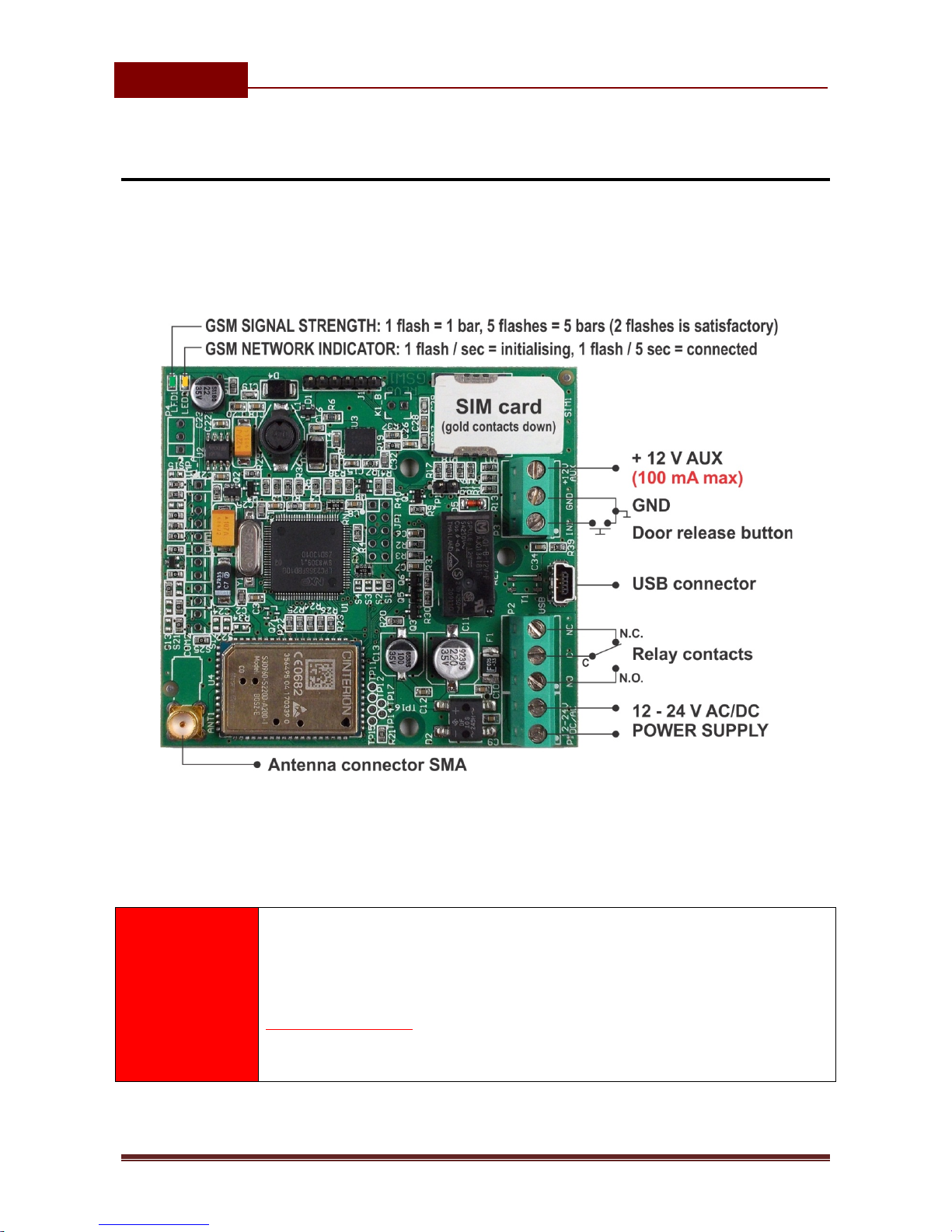

7 CONNECTION DIAGRAM
Before connecting the ICE-LOCK please take a look at connection diagram very
carefully.
Figure 1: ICE-LOCK Connection diagram
VERY
IMPORTANT
Do not use the +12V AUX power output for electric
lock driving!
You can use it to power external sensors only
(100mA max)!
Use separate power source for door electric lock!
Page 12
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%12%
8 PROGRAMMING ICE-LOCK
ICE-LOCK device supports different types of programming:
⇒ You can program ICE-LOCK remotely by SMS command. You can program all
parameters including the PIN access codes (PINx parameters).
⇒ You can program ICE-LOCK directly with the use of USB connection on the
device. You can program all parameters except PIN access codes.
Programming of PIN access codes is not supported yet on EasySet SW, you
can program them by sending simple SMS message to the unit.
If there is no CD with the program and drivers in your package, please
contact your reseller to receive the application running on PC for
management of the ICE-LOCK and the appropriate USB drivers.
Page 13
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%13%
9 THE ICE-LOCK PARAMETERS
To support versatile functionality of ICE-LOCK different parameters are used. The
parameters are divided in logical sections and are described in the following
chapters.
9.1 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is
used to define the relations needed for alarm to be trigged. The second section is
used to report alarm.
9.1.1 ALARM TRIGGERING
Parameters are used to control (filter) the triggering of the alarm inputs.
9.1.1.1 IN parameters

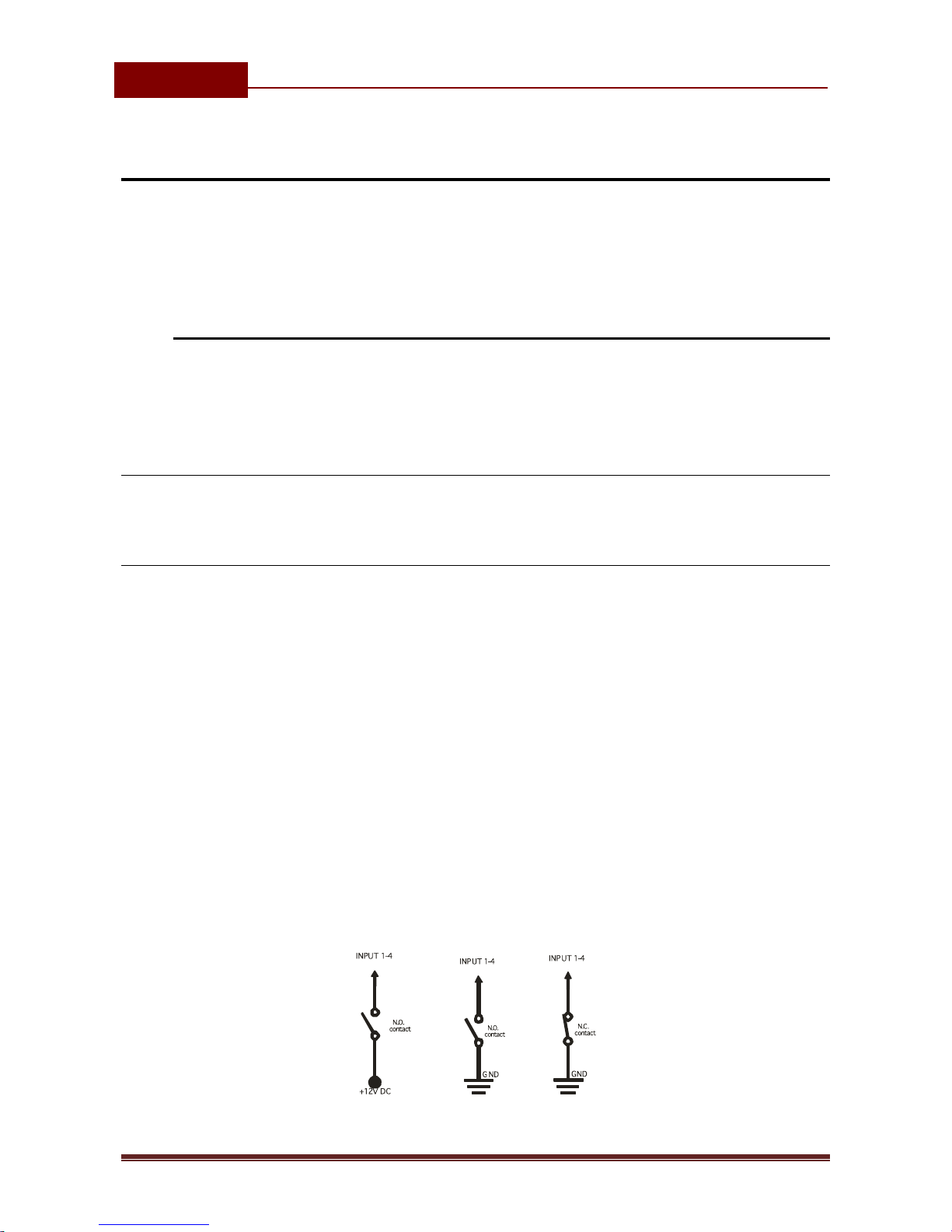

Alarm and reset input can be triggered in 4 different ways. The status of the input
can either be normal closed (N.C) or normal open (N.O.) with positive (+ 12V) or
negative (GND) voltage.
Activation of the input/alarm is reported by IN1 values 0 to 2. It the user needs to
receive information of the input/alarm restores use IN1 values 4 to 6. IN1 value 3
disables the input/alarm reporting.
⇒ IN = 0 – Normal Open – triggered with negative voltage (GND)
⇒ IN = 1 – Normal Close – breaking negative or positive voltage loop
⇒ IN = 2 – Normal Open – triggered with positive voltage (+ 12VCC)
⇒ IN = 3 – Not in use
⇒ IN = 4 => IN = 0 + input reset SMS
⇒ IN = 5 => IN = 1 + input reset SMS
⇒ IN = 6 => IN = 2 + input reset SMS
Page 14
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%14%
Figure 2: Input Connection diagram
9.1.1.2 ID parameters
ID parameter determines time period of the pulse length to trigger the alarm. The
pulse time can be from 0,5 seconds to 9999 seconds. The default time is 0,5
seconds when the parameter value is 0.
Parameter is in seconds.
9.1.1.3 DD parameters
This parameter is used to define the delay between the time that alarm input is
trigged and the time that alarm is reported.
Parameter is in seconds.
9.1.1.4 Table of parameters
Name
Comment
IN1
Mode of operation for input 1
ID1
Input time integration delay on input 1
DD1
Time delay for alarm reporting on input 1
Table 1: IN, ID and DD parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
IN1
0
Alarm activated by connecting to GND
ID1
10
Input 1 has to be valid for 10 second to trigger
the alarm
DD1
15
Reporting of the alarm on input 1 is delayed by
15s
Table 2: IN, ID, DD parameters example
♦ Remote programming by SMS
;IN1=0;ID1=10;DD1=15;
Page 15
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%15%
9.1.2 REMOTE REPORTING ALARM EVENTS
Parameters used to define the way to report the alarm event.
NOTE
ICE-LOCK device send SMS messages for reporting alarm events.
9.1.2.1 TN parameters
Telephone numbers for remote alarm reporting are listed as TN parameters.
Remote alarm reporting on ICE-LOCK is done via SMS messages.
9.1.2.2 LN parameters
This parameter is used to link alarm event from inputs or any other source to the
telephone numbers on TN list.
9.1.2.3 Table of parameters
Name
Comment
TN1
1st telephone number
TN2
2nd telephone number
TN3
3rd telephone number
TN4
4th telephone number
TN5
5th telephone number
LN1
Input & telephone No. linking for 1st alarm input (TN1 –
TN5)
LN3
Periodic test SMS. No. linking (TN1 – TN5)
LN4
SIM card refill. No. linking (TN1 – TN5)
LN5
NAC list. No. linking (TN1 – TN5) (see note)
LN6
Log status. No. linking (TN1 – TN5)
Table 3: Remote alarm reporting parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
TN1
042376678
1st telephone number
LN1
13
Input 1 reports alarm to TN1 & TN3
LN5
1
NAC event sent to TN1
Page 16
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%16%
Table 4: Remote alarm reporting example
♦ Remote programming by SMS
;TN1=042376678;LN1=13;LN5=1;
NOTE
When telephone number (calling or messaging ICE-LOCK) is not
authorized, not acknowledge event occurs (NAC). The telephone
number responsible for this event can be send to TN user for
notification.
9.2 OUTPUT MANAGEMENT
ICE-LOCK supports the possibility to report alarms from inputs and any other
events locally via 1 output. The behavior is defined using next parameters
9.2.1 OS parameter
ICE-LOCK device has 1 dedicated relay supported outputs. Outputs can be
configured to different behavior:
⇒ OSx = 0 – Disabled
⇒ OSx = 1 – Bi-stable toggle mode
⇒ OSx = yyy – Mono-stable pulse mode (duration in seconds)
Typical connection for the output:
Figure 3: Output Connection diagram
9.2.2 OD parameter
OD parameter is used to link the alarm event directly to output. Direct linking can
be done on input alarm events and some other internal events.
Page 17
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%17%
9.2.3 OP parameter
OP parameter is used to invert the polarity of the outputs.
⇒ 0 – normal
⇒ 1 – inverted
9.2.4 Table of parameters
Name
Comment
OS1
Mode of operation for output 1
OD1
Input 1 direct link to outputs
OD3
GSM network problem direct link to outputs
OD4
NAC direct link to outputs
OP1
Invert control for output 1
Table 5: Output management parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
OS1
14
Mono-stable pulse mode (14s pulse)
OD1
1
Input 1 activates output 1
OP1
1
Output 1 inverted
Table 6: Output management parameters example
♦ Remote programming by SMS
;OS1=14;OD1=1;OP1=1;
9.3 DIRECT ACCESS BY ENTERING PIN ACCESS CODES
VIA ILLUMINATED KEYPAD
The user may control the predefined output by entering the PIN access codes. PIN
access code from 1 to 50 (PIN1 to PIN50) will activate the Output.
9.3.1 PIN1 to PIN50
PINx parameters are the PIN access codes for controlling the output.
Page 18
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%18%
9.3.2 Table of parameters
Name
Comment
PIN1
PIN access code 1.
PIN2
PIN access code 2.
PIN3
PIN access code 3.
…
PIN48
PIN access code 48.
PIN49
PIN access code 49.
PIN50
PIN access code 50.
Table 7: Entering PIN access code parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
PIN1
3369
PIN access code 1.
PIN12
1234
PIN access code 12.
Table 8: Entering PIN access codes example
♦ Remote programming by SMS
;PIN1=3369;PIN12=1234;
NOTE
PINx access codes must be 4 digits long, and must start with number
greater or equal 1.
9.3.3 Using the keypad for activating the Output – opening the doors
The user presses the 4 digit PIN access code and then presses the ’# ’
key on the keypad to confirm the entry. If the code is correct, the output relay is
activated which triggers the electric lock, ramp, bollard, sliding doors, etc…
Example:
♦ Typing the PIN access code on the keypad
For PIN1 type 3369 and press ’#’. If the code is correct you will
hear long beep confirmation, if the PIN access code is incorrect you
will hear 3 short beeps.
Page 19
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%19%
9.4 SECURITY LEVEL - SL
SL parameter from 0 to 5 defines which telephone number stored in the phone
book from TN1 – TN5 can enter into programming and remote control of the ICELOCK (dialing the ICE-LOCK phone number or sending the SMS).
NOTE
When the SL level is 0, an access to the ICE-LOCK is possible from any
phone!
IMPORTANT
Before any SL number is programmed the ICE-LOCK can accept
ALL CALLS. Remote SMS programming and remote controlling is
possible from any phone!
Name /
value
Comment
SL = 0
All calls and SMS are accepted
SL = 1
Only number stored under parameter TN1 has access
to unit
SL = 2
Numbers stored under parameters TN1 to TN2 have
access to unit
SL = 3
Numbers stored under parameters TN1 to TN3 have
access to unit
SL = 4
Numbers stored under parameters TN1 to TN4 have
access to unit
SL = 5
Numbers stored under parameters TN1 to TN5 have
access to unit
Table 9: SL parameter
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
SL
3
No. stored under parameters TN1 to TN3 have
access to unit
Table 10: SL example
Page 20
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%20%
♦ Remote programming by SMS
;SL=3;
9.5 PREPAID CARD CREDIT AND VALIDITY INFORMATION
ICE-LOCK can be used with prepaid SIM cards and its limitations. To be able to
overcome this limitation of the prepaid SIM cards, ICE-LOCK offers the possibility
of automatic checking mechanism for credit and time expiration.
NOTE
ICE-LOCK automatically sends warning SMS when the credit reaches low
level defined by LCV parameter or SIM card validity is near to expiration.
NOTE
For support of different GSM providers contact support.
9.5.1 Programming prepaid card credit and validity string
To be able to support credit and time validity checking different parameters are
used.
9.5.1.1 LCV and SCV parameter
LCV is used to set the limit for low credit event. If the credit on prepaid SIM cards
falls below this limit SMS is send.
SCV the period of valid operating time varies with different GSM network
providers. The value can be programmed from 1 to 360 days. The default value
does not presume any kind of expiry warning.
For example in Slovenia SCV are 90 and in Italy 360 days
Page 21
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%21%
9.5.1.2 CC1, CC2 and CC3 parameters
Number used to check low credit value. They are provided from the GSM
providers.
⇒ CC1 - This method can be used by any GSM provider that supports
Unstructured
Supplementary Service Data
⇒ CC2 - This method is dedicated to Italian TIM mobile provider
⇒ CC3 - This method is dedicated to Italian Vodafone mobile provider
9.5.1.3 CREF, CTIM, CVODA parameters
Parameters are used to find the credit value of the prepaid SIM card. Strings under
these parameters are used to pars the replay message from the GSM provider.
⇒ CREF - Pars string for the replays received from CC1 number
⇒ CVODA - Pars string for the replays received from CC2 number
⇒ CTIM - Pars string for the replays received from CC3 number
9.5.1.4 Table of parameters
Name
Comment
LCV
Low credit value, bottom limit for low credit event.
SCV
SIM card validity time (in days)
CC1
Credit number for credit check universally used
CC2
Credit number for credit check dedicated for Italian
TIM mobile provider
CC3
Credit number for credit check dedicated for Italian
Vodafone mobile provider
CREF
String for parsing replay message from CC1 number
CVODA
String for parsing replay message from CC2 number
CTIM
String for parsing replay message from CC3 number
Table 11: Prepaid card validity parameters
Example:
Page 22
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%22%
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
CC1
*448#
Si.mobil
CC2
4916
TIM Italy
CC3
404
Vodafone Italy
LCV
4
Low credit message will be send bellow 4
Table 12: Credit example
♦ Remote programming by SMS
;CC1=*448#;CC2=4916;CC3=404;LCV=4;
9.6 SET-UP PARAMETERS
Different parameters are used to support versatile functionality of ICE-LOCK.
9.6.1 UDC parameter
Parameter is used to synchronise ICE-LOCK clock to GSM network clock. User must
enter the number of the ICE-LOCK SIM card (telephone number of ICE-LOCK
device).
9.6.2 TST parameter
A test SMS is sent periodically. ICE-LOCK can send the test message in the interval
ranging from 1 hour to 8760 hours.
Example:
To send test SMS TST value is set to 12, the numbers linked to “LN5”
receive a test message every 12 hours.
Page 23
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%23%
9.6.3 MNF parameter
When it is necessary to fix the GSM network to one provider the user can use the
MNF parameter. The MNF parameter switches automatic network searching to
manual.
Example:
MCC/MNC code for Simobil is 29340, Mobitel is 29341, TIM is 22201, and
Vodafone
Italy is 22210.
More information about national MCC/MNC codes can be acquired at:
http://en.wikipedia.org/wiki/Mobile_Network_Code
9.6.4 ARST parameter
ARST parameter defines periodic of auto restart time (in hours) of the ICE-LOCK
device.
9.6.5 ADF parameter
Parameter is used to define voice refresh function, to prevent blocking of SIM in
some GSM networks.
NOTE
If this function is enabled ICE-LOCK device will make voice call to TN1
number.
9.6.6 LNG parameter
LNG parameter switches between the preprogrammed languages:
⇒ 0 - English
⇒ 1 - Italian
⇒ 2 - Slovenian
⇒ 3 - Croatian
⇒ 4 - Dutch
⇒ 5 - German
⇒ 6 - Spanish
Page 24
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%24%
9.6.7 BUZ parameter
Parameter is used to control buzzer functionality on ICE-LOCK. Buzzer is used to
audio support some events on ICE-LOCK like pressing the keypad buttons,
confirmation of correct PIN access code, warning beeps when incorrect PIN access
code is entered, etc.
9.6.8 Table of parameters
Name
Comment
UDC
Tel. number of ICE-LOCK device
RAN
Auto answer ring number
TST
SMS test time out
MNF
Manual GSM provider selection
ARST
Time out control for automatic system restart
ADF
Auto dial functionality (Call TN1)
LNG
Language selection
BUZ
Buzzer control
Table 13: Set-up parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
MNF
29340
Manual fixing of the GSM provider (Simobil)
LNG
1
Switch on Italian language
ADF
90
Make voice call every 90 days
TST
24
24 hours periodic test SMS
BUZ
0
Mute buzzer
Table 14: Set-up parameters example
♦ Remote programming by SMS
;MFN=29340;LNG=1;ADF=90;TST=24;BUZ=0;
Page 25
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%25%
9.7 SMS MESSAGES EDITOR
You can write and send a short SMS message for each alarm input. The default
message is English, but it is possible to change language with LNG parameter. Each
message is built from 3 parts and user can write the first (User Location) and the
second (alarm event) part of the message. Unit adds the third part (alarm event
description) automatically. Language of the 3rd part may be changed by LNG
parameter. The message is stored in the SIM phone book so you should add any
number for correct operation.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
# 0 U S E R L O C A T I O N
# 1 I N P U T 1
NOTE
Message should not be longer than 14 characters! Space is also
counted as one character!
9.7.1 Table of parameters
Name
Comment
#0
User location, same for all alarm messages
#1
Input 1, second part of message
Table 15: Message parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
#0House
1
Location definition
#1Kitchen
1
Alarm input is from the kitchen
Table 16: Message parameters example
Page 26
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%26%
♦ Remote programming by SMS
;#0HOUSE=1;#1KITCHEN=1;
9.8 CLIP
CLIP is used to provide the “free of charge” options to control the outputs.
9.8.1 CLPEN parameter
Parameter used to enable CLIP functionality.
9.8.2 CLPOU parameter
Parameter used to choose which output will be controlled by the CLIP
functionality.
9.8.3 CLPI parameter
This parameter, if set, is a precondition for CLIP function to control the output.
The input define by the CLPI parameter must be active for CLIP function to control
the output.
9.8.4 CLP1 … CLP50 parameter
Set of telephone number, which can control the output. The number not on CLP
list is not able to control the output using clip functionality.
9.8.5 Table of parameters
Name
Comment
CLPEN
Enable CLIP functionality
CLPOU
Control output pin when CLIP event
Page 27
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%27%
CLPI
CLIP input activation condition
CLP1
CLIP number 1
.
.
.
.
.
.
CLP50
CLIP number 50
Table 17: CLIP parameters
Example:
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
CLPEN
1
Enable CLIP functionality
CLPOU
2
CLIP control output 2
CLPI
0
No input activation condition
CLP1
040414414
CLIP number 1
CLP2
042340880
CLIP number 2
Table 18: CLIP parameters example
♦ Remote programming by SMS
;CLPEN=1;CLPOU=2;CLPI=0;CLP1=040414414;CLP2=042340880;
9.8.6 Table of parameters
Name
Comment
LOGN
Number of log events for printing out
LOGI
Log interface
ALC
Automatic log clear
Table 19: LOG parameters
Example:
Page 28
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%28%
♦ Direct programming on the SIM card
ICE-LOCK PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
LOGN
5
5 log events will be printed out on PLOG command
LOGI
0
Nonvolatile memory on ICE-LOCK
ALC
1
Log is auto cleared when full
Table 20: LOG parameters example
♦ Remote programming by SMS
;LOGN=5;LOGI=0;ALC=1;
9.9 SPECIAL SMS COMMANDS
These commands can only be issued only over SMS message, and are used to
control some special functions of ICE-LOCK device.
9.9.1 ORC command
Command is used to control outputs directly via SMS message
9.9.2 SDCLR command
To clear all data on SIM card SDCLR command is used.
9.9.3 LCRL command
Command clears log on ICE-LOCK device.
9.9.4 CLPCLR command
Command is used to delete all CLP numbers.
Page 29
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%29%
9.9.5 MRES command
Command is used to manually restart GSM module on ICE-LOCK device.
9.9.6 SSRES command
Command is used to manually restart ICE-LOCK device.
9.9.7 Table of parameters
Name
Comment
ORC1
Control of output 1
SDCLR
Delete all SIM content
LCRL
Delete log on ICE-LOCK device
MRES
Manual reset of GSM module
SSRES
Manual reset of ICE-LOCK device
Table 21: SMS commands.
Example:
♦ Remote programming by SMS
SMS command
Description
;ORC1=1; or
;ORC1=ON;
Activate output 1
;ORC1=0; or
;ORC1=OFF;
Deactivate output 1
;SDCLR;
Clear all data on SIM
;LCLR;
Delete log on ICE-LOCK device
;MRES;
Manual reset of GSM module
;SSRES;
Manual reset of ICE-LOCK device
Table 22: SMS commands example.
Page 30
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%30%
10 PRINT-OUT OF THE PARAMETERS
The user can check the settings of ALL parameters on the ICE-LOCK.
10.1 RECEIVE ALL PARAMETERS (PALL)
By sending this command to ICE-LOCK you receive SMS messages with all
parameters that are currently programmed in the unit:
;PALL;
10.2 CHECK SW REVISION (PSW)
By sending this command to ICE-LOCK you receive SMS messages with current SW
version running on ICE-LOCK device:
;PSW;
10.3 CHECK SIGNAL QUALITY (PSQ)
By sending this command to ICE-LOCK you receive SMS messages with signal
quality when ICE-LOCK device is connected to network:
;PSQ;
10.4 RECEIVE TELEPHONE NUMBERS (PTN)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed telephone numbers:
;PTN;
10.5 RECEIVE LINKS (PLN)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed links:
;PLN;
Page 31
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%31%
10.6 RECEIVE INPUT PARAMETERS (PIN)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed Input parameters:
;PIN;
10.7 RECEIVE INPUT FILTER VALUE (PID)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed Input filters:
;PID;
10.8 RECEIVE OUTPUT FILTER VALUE (POD)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed direct output links:
;POD;
10.9 RECEIVE DELAY BEFORE DIAL VALUE (PDD)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed Input filters:
;PDD;
10.10 RECEIVE ACCESS TELEPHONE NUMBERS (PSL)
By sending this command to ICE-LOCK you receive SMS message with programmed
SL level:
;PSL;
10.11 RECEIVE OUTPUT PARAMETERS (POS)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed Outputs parameters:
;POS;
Page 32
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%32%
10.12 RECEIVE ALL PROGRAMMED SMS MESSAGES
(P#)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed alarm SMS messages:
;P#;
10.13 RECEIVE SET UP PARAMETERS VALUE (PPA)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed Setup parameters:
;PPA;
10.14 RECEIVE CREDIT PARS PARAMETERS (PCREF)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed credit parse parameters:
;PCREF;
10.15 RECEIVE CREDIT CHECK TELEPHONE NUMBERS
(PCN)
By sending this command to ICE-LOCK you receive SMS message with programmed
numbers for credit checking:
;PCN;
10.16 RECEIVE ALL CLIP PARAMETERS (PCLP)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed CLIP functionality related parameters:
;PCLP;
NOTE
User can use ;PCLP=x,y; to limit the number of CLIP numbers to be
printed.
x = start number
y = end number
Example
;PCLP=1,30; Prints first 30 CLIP numbers
Page 33
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%33%
10.17 RECEIVE STATE OF THE CREDIT FOR THE
PREPAID CARD
By sending this command to ICE-LOCK you receive SMS message with Credit
amount on your prepaid SIM card:
;PCCX;
Where X is the number of programmed prepaid card provider.
10.18 RECEIVE STATE OF THE OUTPUTS (PORC)
By sending this command to ICE-LOCK you receive SMS message with current
outputs state.
;PORC;
10.19 MANUAL GSM MODULE RESTART (MRES)
By sending this command to ICE-LOCK shuts down GSM module and after a few
second it switches the power of the GSM module ON again. The unit reboots all
parameters from the SIM card.
;MRES;
10.20 RECEIVE STATUS OF INPUTS (INS)
By sending this command to ICE-LOCK you receive SMS message with current
input state.
;INS;
10.21 RECEIVE PIN ACCESS CODES PARAMETERS
(PPIN)
By sending this command to ICE-LOCK you receive SMS message with all currently
programmed PIN access codes:
;PPIN;
Request a block of PIN codes: ;PPIN=1,5; (access codes 1 – 5)
Page 34
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%34%
10.22 RECEIVE ICE- LOCK LOG
By sending this command to ICE-LOCK you receive SMS message with log on ICELOCK device.
;PLOG;
Page 35
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%35%
11 CHANGING PARAMETERS USING THE SMS
COMMANDS
All programming parameters for ICE-LOCK can be changed by sending SMS
commands.
Each SMS command should start and stop with semicolon (;).
If the confirmation SMS is needed, put “+” at the beginning of the SMS command:
ex.: ;+CLP1=09012345678;
The first SMS is SMS with telephone numbers (TN1 – TN5). If you would like to
check which telephone numbers are programmed in ICE-LOCK please use the
following command:
;PTN;
Return SMS is (example):
;TN1=0;TN2=0;
If you would like to enter telephone numbers in to ICE-LOCK you can use the
following example:
;TN1=040713470;TN2=+38643364850;
If you would like to receive confirmation SMS write “+” before SMS command:
;+TN1=040713470;TN2=+38643364850;
Return SMS from ICE-LOCK is:
;TN1=040713470;TN2=+38643364850;
NOTE
You can use the same programming procedure for all
parameters.
It is also possible to change different parameters with one SMS. Consider that the
SMS message should not be longer than 160 characters (included space
characters).
If you would like to change the following parameters TN1, IN1, OS1, ID1, LN1
and would like to receive confirmation SMS, try next example:
;+TN1=+38640713470;IN1=1;OS1=15;ID1=120;LN1=1;
Page 36
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%36%
Send SMS command to the ICE-LOCK and in a few seconds you will receive SMS
message from it.
The sentence of the SMS must be the same as the one you have sent to the ICELOCK before.
Page 37
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%37%
12 DEFAULT SETTINGS ON ICE-LOCK
ICE-LOCK PROGRAMMING TABLE
Name
Default Value
Short Description
TN1
Empty
Telephone number 1
TN2
Empty
Telephone number 2
TN3
Empty
Telephone number 3
TN4
Empty
Telephone number 4
TN5
Empty
Telephone number 5
IN1
0
Input 1 control
OS1
5
Output 1 mode
OD1
0
Input 1 direct output link
OD3
0
GSM network failure direct output link
OD4
0
NAC direct output link
LN1
Empty
Input 1, link to tel. numbers
LN3
Empty
Periodic SMS, link to tel. numbers
LN4
Empty
SIM card validity and credits status, link to tel.
numbers
LN5
Empty
NAC, link to tel. numbers
LN6
Empty
LOG status, link to tel. numbers
ID1
0
Input 1 delay filter on input
DD1
0
Input 1 delay before dialing
RAN
0
Auto answer ring number
SL
0
Security level
#0
“User Location”
SMS main head text
#1
“Input1”
SMS input 1 text
CC1
Empty
Check credit Num 1
CC2
Empty
Check credit, TIM Italy
CC3
Empty
Check credit, Vodafone Italy
UDC
Empty
Tel. number of ZEUS4 device
SCV
0
SIM card time validity
TST
24
Periodic test SMS timeout
MNF
0
Network connection type
LCV
4
Low credit value
LNG
0
Language selection
LOT
60
Connection time out value
LOGN
5
Number of log events for printing out
LOGI
0
Log interface
ALC
1
Automatic log clear
ADF
90
Auto dial
ARST
0
Automatic reset timeout
OP1
0
Output 1 invert
BUZ
1
Buzzer function
Page 38
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%38%
ICE-LOCK PROGRAMMING TABLE
Name
Default Value
Short Description
SPO
1
SIM card starting position
CREF
“EUR”
Parse text (contact support)
CTIM
“EURO”
Parse text (contact support)
CVODA
“DISPON. E.”
Parse text (contact support)
CLPEN
1
Enable CLIP functionality
CLPOU
1
Control output pin when CLIP event
CLPI
0
Clip input condition
CLPRI
0
Clip restore function
CLPRT
25
Clip restore function time out
CLP1
Empty
CLIP number 1
…
…
…
CLP50
Empty
CLIP number 50
PIN1
Empty
PIN access code 1
…
…
…
PIN50
Empty
PIN access code 50
Table 23 ICE-LOCK default settings
Page 39
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%39%
13 PARAMETERS PRINT-OUT COMMANDS
ICE-LOCK PRINT-OUT TABLE
Name
Short Description
PALL
Prints all parameters available on ICE-LOCK.
PSW
Prints SW version of ICE-LOCK.
PSQ
Prints GSM network signal quality of ICE-LOCK.
PTN
Prints TNx numbers
PLN
Prints LNx links.
PIN
Prints INx parameters.
PID
Prints IDx parameters.
POD
Prints ODx parameters.
PDD
Prints DDx parameters
PSL
Prints SL parameter.
POS
Prints OSx parameters.
P#
Prints #x parameters.
PPA
Prints various setup parameters.
PCLP
Prints CLIP parameters.
PLOG
Prints log of the ICE-LOCK.
PCREF
Prints credit pars parameters.
PCN
Prints credit request numbers.
PCC1
Prints credit for ICE-LOCK (universal request).
PCC2
Prints credit for ICE-LOCK. (TIM Italy).
PCC3
Prints credit for ICE-LOCK. (VODAFONE Italy).
INS
Prints status of the inputs.
PORC
Prints (controls) the status of outputs.
PPIN
Prints PIN access codes.
Table 24: ICE-LOCK parameters print out commands
Page 40
ICE6LOCK$
INSTALLATION$M A N U A L(
Page%40%
14 TECHNICAL SPECIFICATIONS
Description
Value
Power Supply
12 - 24V AC/DC
Current consumption - peak
2A
Current consumption - transmitting
mode
300mA
Current consumption - idle mode
with illuminated keypad
180mA
Quad band GSM module
850/900/1800/1900
MHz
PCB dimensions
82 × 75 mm
Unit dimensions
156 × 116 × 61 mm
External Patch Antenna SMA
1
Weight
500 g
Alarm inputs
1
Alarm relay outputs
1
12V DC Power Supply output (100mA
max.)
Yes
12-24V AC/DC Power Supply input
Yes
Page 41
TRANSMITTER SOLUTIONS WARRANTY
The warranty period of this Transmitter Solutions product is twenty-four (24) months. This warranty shall
begin on the date the product is manufactured. During the warranty period, the product will be repaired or
replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a
defective component. This warranty does not extend to (a) the product case, which can be damaged by
conditions outside the control of Transmitter Solutions, or (b) battery life of the product. This warranty is
further limited by the following disclaimer of warranty and liability:
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES REGARDING THE GOODS, EXPRESS OR
IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. BUYER
MAKES NO RELIANCE ON ANY REPRESENTATION OF TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO
THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON
CONDITION THAT TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER
AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR DAMAGES OF ANY KIND, WHETHER DIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS
EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD TRANSMITTER SOLUTIONS
HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S USE OR DISPOSAL OF
THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN CONSIDERATION OF RECEIVING THE
GOODS.
Loading...
