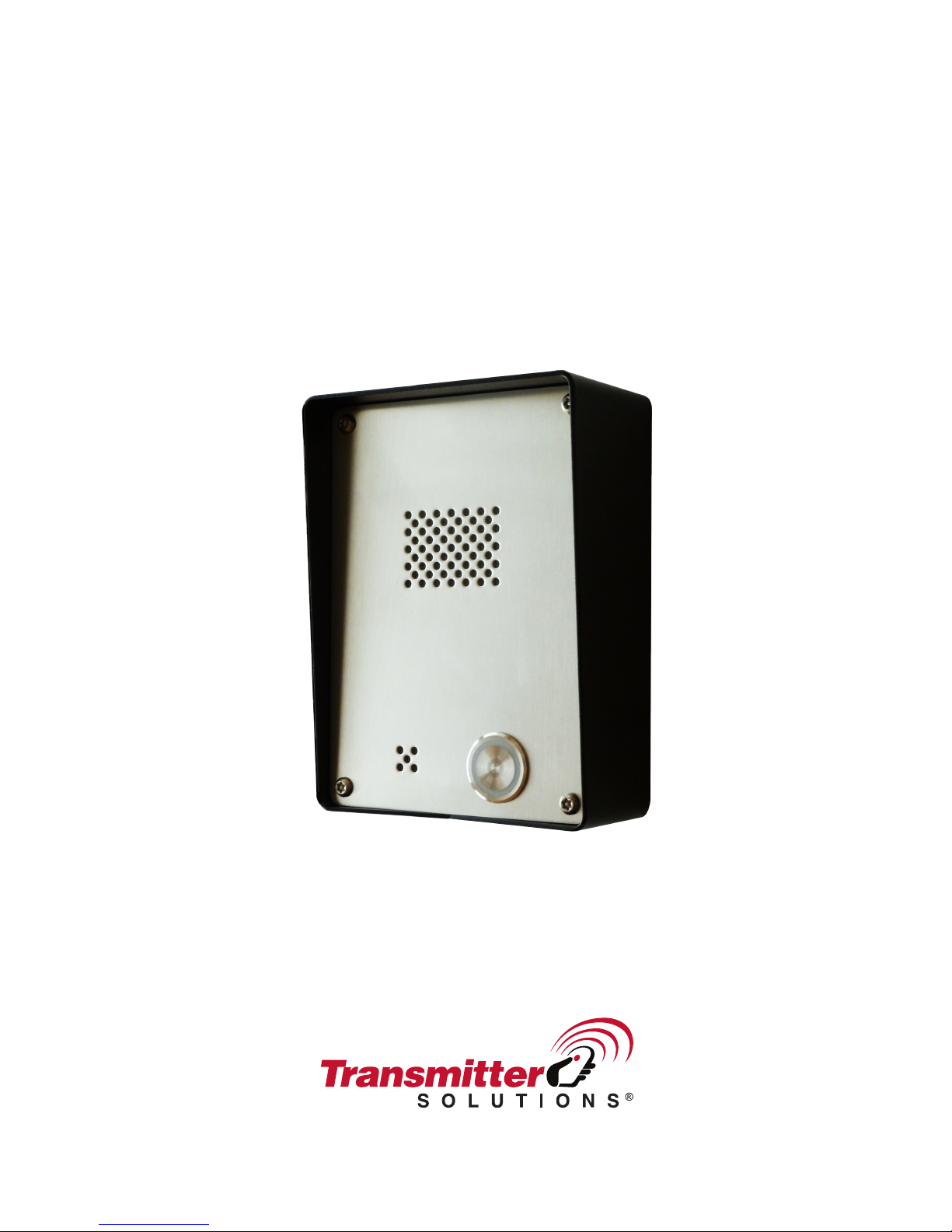

COMPACT'GSM'DOOR'ENTRY'UNIT'
'
!
!
!
INSTALLATION!MA NUAL!
Page 2
Page 3
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%2%
Contents
1% FOR YOUR SAFETY.......................................................................................... 6%
2% INTRODUCTION............................................................................................... 7%
3% FEATURES AND APPLICATIONS ........................................................................ 8%
4% START UP...................................................................................................... 9%
5% LED DISPLAY ................................................................................................10%
6% CLEAR ALL PROGRAMMED DATA FROM SIM ......................................................11%
7% CONNECTION DIAGRAM ..................................................................................12%
8% PROGRAMMING ICE-ENTRY-R ...........................................................................13%
9% THE ICE-ENTRY-R PARAMETERS .......................................................................14%
9.1% ALARM SUPPORT.................................................................................................................................. 14%
9.2% OUTPUT MANAGEMENT ........................................................................................................................ 19%
9.3% SECURITY LEVEL - SL ........................................................................................................................... 21%
9.4% PREPAID CARD CREDIT AND VALIDITY INFORMATION .......................................................................... 22%
9.5% SET-UP PARAMETERS ...........................................................................................................................25%
9.6% SMS MESSAGES EDITOR........................................................................................................................ 30%
9.7% INTERCOM............................................................................................................................................. 31%
9.8% CLIP ......................................................................................................................................................33%
9.9% EVENT LOGING ..................................................................................................................................... 35%
9.10% SPECIAL SMS COMMANDS .................................................................................................................. 36%
10% PRINT-OUT OF THE PARAMETERS ..................................................................38%
10.1% RECEIVE ALL PARAMETERS (PALL).................................................................................................... 38%
10.2% CHECK SW REVISION (PSW)............................................................................................................... 38%
10.3% CHECK SIGNAL QUALITY (PSQ).......................................................................................................... 38%
10.4% RECEIVE TELEPHONE NUMBERS (PTN) ...............................................................................................38%
10.5% RECEIVE LINKS (PLN) ......................................................................................................................... 38%
10.6% RECEIVE INPUT PARAMETERS (PIN).................................................................................................... 39%
10.7% RECEIVE INPUT FILTER VALUE (PID)...................................................................................................39%
10.8% RECEIVE OUTPUT FILTER VALUE (POD) ............................................................................................. 39%
10.9% RECEIVE DELAY BEFORE DIAL VALUE (PDD)...................................................................................... 39%
10.10% RECEIVE ACCESS TELEPHONE NUMBERS (PSL) ..................................................................................39%
10.11% RECEIVE OUTPUT PARAMETERS (POS) ............................................................................................... 39%
10.12% RECEIVE ALL PROGRAMMED SMS MESSAGES (P#) .............................................................................40%
10.13% RECEIVE SET UP PARAMETERS VALUE (PPA) ..................................................................................... 40%
10.14% RECEIVE CREDIT PARS PARAMETERS (PCREF) ....................................................................................40%
10.15% RECEIVE ALL CLIP PARAMETERS (PCLP) ............................................................................................40%
10.16% RECEIVE INTERCOM BUTTON 1 PARAMATERS (PDEA) ....................................................................... 41%
Page 4
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%3%
10.17% STATE OF THE CREDIT FOR THE PREPAID CARD ................................................................................41%
10.18% STATE OF THE OUTPUTS (PORC) .......................................................................................................41%
10.19% MANUAL GSM MODULE RETARD (MRES) ............................................................................................41%
10.20% RECEIVE STATUS OF INPUTS (INS) .....................................................................................................41%
10.21% RECEIVE ICE-ENTRY-R LOG ................................................................................................................. 42%
11% CHANGING PARAMETERS USING THE SMS COMMANDS......................................43%
12% DEFAULT SETTINGS ON ICE-ENTRY- R .............................................................45%
13% PARAMETERS PRINT-OUT COMMANDS ............................................................47%
14% TECHNICAL SPECIFICATIONS.........................................................................48%
Page 5
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%4%
Figures
Figure 1: ICE-ENTRY-R Connection diagram............................................................ 12!
Figure 2: Input Connection diagram. ......................................................................14!

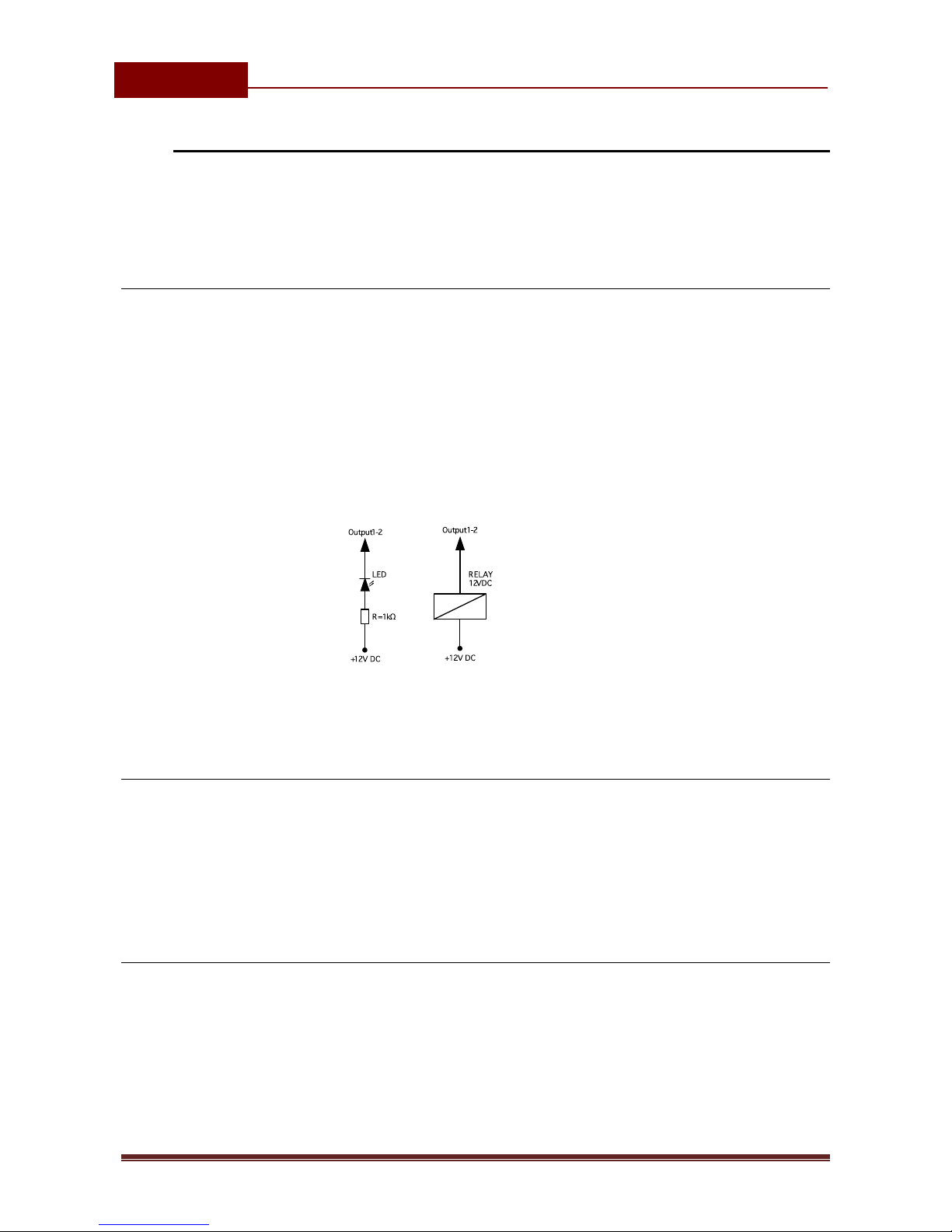

Figure 3: Output Connection diagram .................................................................... 19!
Page 6
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%5%
Tables
Table 1: IN, ID and DD parameters .........................................................................15!
Table 2: IN, ID, DD parameters example.................................................................16!
Table 3: Remote alarm reporting parameters.........................................................17!
Table 4: Remote alarm reporting example ............................................................ 18!
Table 5: DTMF control example..............................................................................18!
Table 6: Output management parameters .............................................................20!
Table 7: Output management parameters example ...............................................20!
Table 8: SL parameter............................................................................................21!
Table 9: SL example ...............................................................................................21!
Table 10: Prepaid card validity parameters............................................................23!
Table 11: Credit example .......................................................................................24!
Table 12: Set-up parameters. ................................................................................28!
Table 13: Set-up parameters example. ..................................................................28!
Table 14: Message parameters. .............................................................................30!
Table 15: Message parameters example. ............................................................... 31!
Table 16: Intercom parameters..............................................................................32!
Table 17: Intercom parameters example................................................................33!
Table 18: CLIP parameters. ....................................................................................34!
Table 19: CLIP parameters example.......................................................................34!
Table 20: LOG parameters. .................................................................................... 35!
Table 21: LOG parameters example. ......................................................................36!
Table 22: SMS commands. .....................................................................................37!
Table 23: SMS commands example. .......................................................................37!
Table 24: ICE-ENTRY-R default settings. ................................................................46!
Table 25: ICE-ENTRY-R parameters print out commands....................................... 47!
Page 7
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%6%
1 FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the unit on when use of wireless phone is prohibited or when it may
cause interference or danger.
INTERFERENCE
All wireless phones and units may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the unit off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the unit at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the unit where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do not
touch the antenna unnecessarily.
Page 8
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%7%
2 INTRODUCTION
ICE-ENTRY-R is a simple GSM intercom communication system that is designed to
ensure low-cost, reliable and single box solution for intercom application. It is
designed for unlimited range, wire free GSM intercom and CLIP support.
In addition ICE-ENTRY-R supports alarm detection, stay-alive messages, credit
detection etc…
Page 9
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%8%
3 FEATURES AND APPLICATIONS
Features:
⇒ Built-in 4 band GSM module
⇒ Up-to 4 buttons call support
⇒ 2 alarm inputs, 2 additional on extension connector
⇒ 2 outputs (relay supported)
⇒ Up to 100 telephone numbers for CLIP support
⇒ Programming by USB cable
⇒ Programming by SMS commands
⇒ Anti-tampering input
Applications:
⇒ Single box, wire free intercom solution
⇒ Remote gate opener (CLIP)
⇒ Simple alarm support
Page 10
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%9%
4 START UP
VERY
IMPORTANT
USE A MICRO SIM CARD (micro-SIM, see the picture)
WITH MEMORY FOR UP TO 250 CONTACTS!
⇒ Insert SIM card to be used for ICE-ENTRY-R in your personal mobile phone.
IMPORTANT
ERASE THE PIN CODE!
⇒ Insert SIM card in ICE-ENTRY-R device. The unit must be switched OFF when
you insert the SIM!
⇒ Connect inputs and outputs to ICE-ENTRY-R.
⇒ Connect the antenna to antenna connector.
⇒ Connect power cable to ICE-ENTRY-R device
⇒ Connect device to source power supply voltage.
⇒ Wait until LED3 display is turned ON (green) and LED1 (blue) starts flashing.
This is set in around 1 minute.
⇒ ICE-ENTRY-R unit is now ready to operate.
IMPORTANT
Before sending any SMS commands to ICE-ENTRY-R device,
ICE-ENTRY-R must be in normal operation!
NOTE
ICE-ENTRY-R device will “beep” in 15s interval until the device is not in
normal operation.
Page 11
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%10%
5 LED DISPLAY
GREEN LED (LED1)
- Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak
signal, 5 is excellent signal)
Red LED (LED2)
- When LED 2 is ON the unit has a problem with a GSM network connection or
the GSM part of the unit is out of order. In this case immediately call the
service!
Yellow LED (LED3)
- Short flashing indicates that the GSM module is ON, but it is not yet
connected on the GSM network. After connection, yellow led is flashing with
short pulse ON and a long pulse OFF.
Page 12
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%11%
6 CLEAR ALL PROGRAMMED DATA FROM SIM
This is highly recommended when a SIM card you are going to use for the ICEENTRY-R is not new and it already has some data stored in the phone book
memory.
By sending this SMS to ICE-ENTRY-R all programmed parameters and numbers are
cleared:
;SDCLR;
After sending SMS you should wait at least 60 second for the command to be
executed!
NOTE
By sending this command to the ICE-ENTRY-R all programmed data are
erased from the SIM card, including SMS messages! After the device will
start it will be configured with factory defaults.
Page 13
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%12%
7 CONNECTION DIAGRAM
Before connection the ICE-ENTRY-R please take a look at connection diagram.

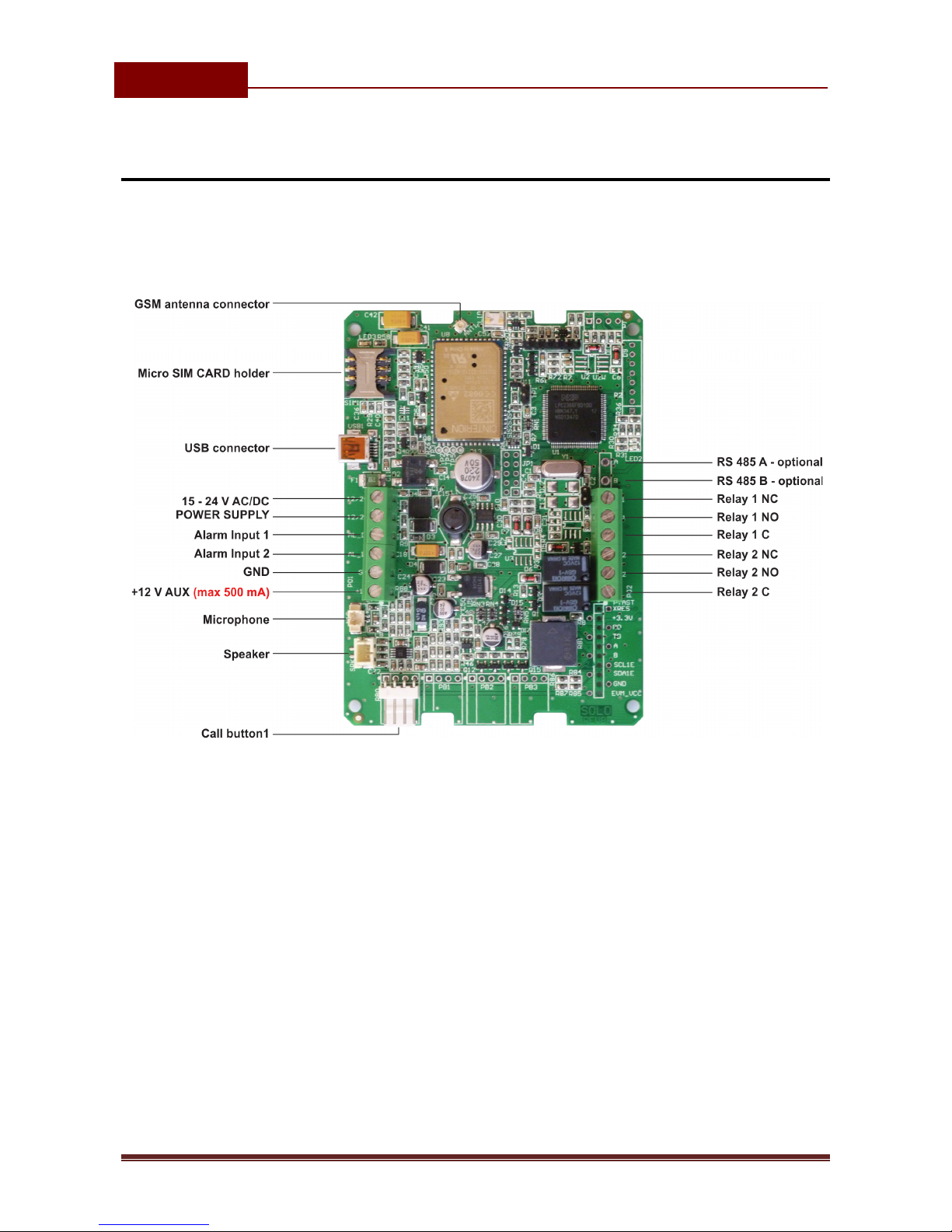

Figure 1: ICE-ENTRY-R Connection diagram
Page 14
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%13%
8 PROGRAMMING ICE-ENTRY-R
ICE-ENTRY-R device supports different types of programming:
⇒ To program ICE-ENTRY-R parameters put the SIM card into your personal
GSM phone. Add programming parameters in SIM Card “Phone Book”.
⇒ You can program ICE-ENTRY-R remotely by SMS command.
⇒ You can program ICE-ENTRY-R with USB key and SIM manager.
⇒ You can program ICE-ENTRY-R with direct USB connection, with the use of
configuration software running on PC
NOTE
To receive configuration software for PC please contact your local
distributor.
Page 15
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%14%
9 THE ICE-ENTRY-R PARAMETERS
To support versatile functionality of ICE-ENTRY-R different parameters are used.
The parameters are divided in logical sections and are described in the following
chapters.
9.1 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is
used to define the relations needed for alarm to be trigged. The second section is
used to report alarm.
9.1.1 ALARM TRIGGERING
Parameters are used to control (filter) the triggering of the alarm inputs.
9.1.1.1 IN parameter
Alarm input can be on only used as normal open (N.O.) triggered with GND. When
you need the input feedback information it is possible to receive SMS when input
returns from alarm to normal position. To receive the return SMS use IN setting 4.
⇒ IN = 0 – Normal Open – triggered with negative voltage (GND)
⇒ IN = 4 = IN = 0 + input reset SMS

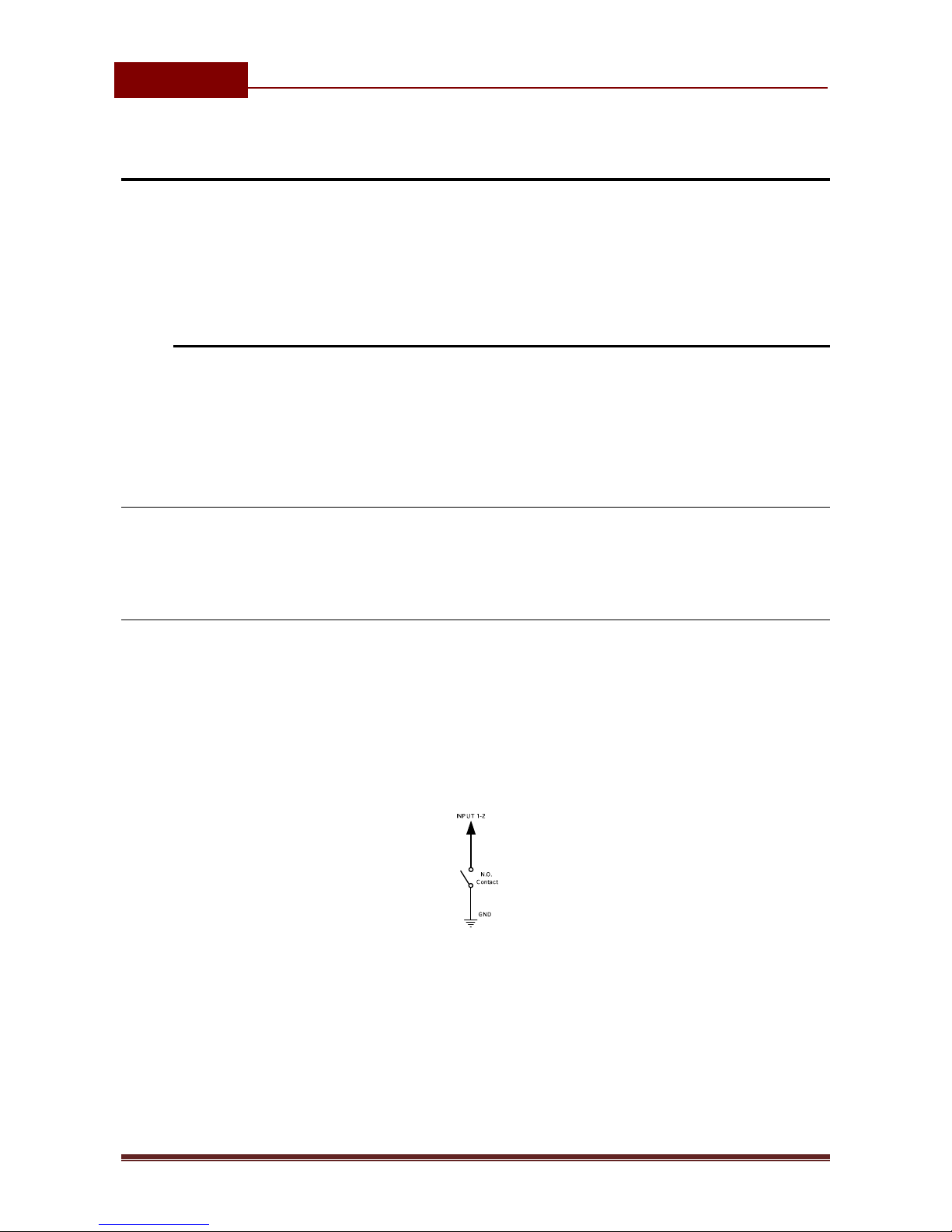

Figure 2: Input Connection diagram.
Page 16
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%15%
9.1.1.2 ID parameter
ID parameter determines time period of the pulse length to trigger the alarm. The
pulse time can be from 0,5 seconds to 9999 seconds. The default time is 0,5
seconds when the parameter value is 0.
9.1.1.3 DD parameter
This parameter is used to define the delay between the time that alarm input is
trigged and the time that alarm is reported.
9.1.1.4 Table of parameters
Name
Comment
IN1
Mode of operation for input 1
IN2
Mode of operation for input 2
IN3
Mode of operation for input 3
IN4
Mode of operation for input 4
ID1
Input time integration delay on input 1
ID2
Input time integration delay on input 2
ID3
Input time integration delay on input 3
ID4
Input time integration delay on input 4
DD1
Time delay for alarm reporting on input 1
DD2
Time delay for alarm reporting on input 2
DD3
Time delay for alarm reporting on input 3
DD4
Time delay for alarm reporting on input 4
Table 1: IN, ID and DD parameters
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
IN1
0
Alarm activated by connecting to GND
IN2
4
Alarm activated by connecting to GND + RST
SMS
ID1
10
Input 1 has to be valid for 10 second to trigger
the alarm
ID2
0
Input 2 has to be valid for 0,5 second to trigger
the alarm
Page 17
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%16%
DD1
0
Reporting of the alarm on input 1 is delayed by
0s
DD2
15
Reporting of the alarm on input 1 is delayed by
15s
Table 2: IN, ID, DD parameters example
♦ Remote programming by SMS
;IN1=0;IN2=4;ID1=10;ID2=0;DD1=0;DD2=15;
9.1.2 REMOTE REPORTING ALARM EVENTS
Parameters used to define the way to report the alarm event.
NOTE
ICE-ENTRY-R device send SMS messages for reporting alarm events.
9.1.2.1 TN parameter
Telephone numbers for remote alarm reporting are listed as TN parameters.
Remote alarm reporting on ICE-ENTRY-R is done via SMS messages.
9.1.2.2 LN parameter
This parameter is used to link alarm event from inputs or any other source to the
telephone numbers from TN list.
9.1.2.3 LOT parameter
LOT parameter is used to define the time control for voice calls. The start of voice
connection starts the LOT timer. If the voice connection is still ON when the LOT
timer expires ICE-ENTRY-R disconnects voice connection.
9.1.2.4 Table of parameters
Name
Comment
Page 18
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%17%
TN1
1st telephone number
TN2
2nd telephone number
TN3
3rd telephone number
TN4
4th telephone number
TN5
5th telephone number
LN1
Input & telephone No. linking for 1st alarm input (TN1 –
TN5)
LN2
Input & telephone No. linking for 2nd alarm input (TN1
– TN5)
LN3
Input & telephone No. linking for 3nd alarm input (TN1
– TN5)
LN4
Input & telephone No. linking for 3nd alarm input (TN1
– TN5)
LN5
Periodic test SMS. No. linking (TN1 – TN5)
LN6
SIM card refill. No. linking (TN1 – TN5)
LN7
NAC list. No. linking (TN1 – TN5) (see note)
LN8
Log status. No. linking (TN1 – TN5)
LOT
Time out for GSM connection.
Table 3: Remote alarm reporting parameters
NOTE
When telephone number (calling or messaging ICE-ENTRY-R) is not on
the CLIP list, not acknowledge event occurs (NAC). The telephone
number responsible for this event can be send to TN user for
notification.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
TN1
042376678
1st telephone number
LN1
13
Input 1 reports alarm to TN1 & TN3
LN2
1234
Input 2 reports alarm to TN1 & TN2 & TN3 &
TN4
LN7
1
NAC event sent to TN1
LOT
60
Voice connection stay valid for max of 60s,
Page 19
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%18%
after this time
Voice connection breaks
Table 4: Remote alarm reporting example
♦ Remote programming by SMS
;TN1=042376678;LN1=13;LN2=1234;LN7=1;LOT=60;
9.1.3 CONTROLING OUTPUTS WITH DTMF
ICE-ENTRY-R can control the outputs with the use of DTMF. This is very useful
function in the intercom application.
To control the outputs the user must press the combination of 2 digits. First digit
is used to select the output (1 to 2), the second digit is used to activate (1) or
deactivate (0) the output. There is a special case when the user can select for
first digit (output selection) number 0. In this case all outputs control by the same
time.
Combination must be pressed in 2s interval, and must be 3s apart to be valid.
NOTE
ICE-ENTRY-R must be in voice connection to support DTMF output
control!
Example:
DTMF combination
Description
00
Deactivate ALL outputs
01
Activate ALL outputs
11
Activate output 1
20
Deactivate output 2
Table 5: DTMF control example
Page 20
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%19%
9.2 OUTPUT MANAGEMENT
ICE-ENTRY-R supports the possibility to report alarms from inputs and any other
events locally via 2 outputs. The behavior is defined using next parameters
9.2.1 OS parameter
ICE-ENTRY-R device has 2 dedicated relay supported outputs. Outputs can be
configured to different behavior:
⇒ OS = 0 – Disabled
⇒ OS = 1 – Bi-stable toggle mode
⇒ OS = xxx – Mono-stable pulse mode (duration in seconds)
Typical connection for the output:
Figure 3: Output Connection diagram
9.2.2 OD parameter
OD parameter is used to link the alarm event directly to output.
9.2.3 OP1, OP2 parameters
Parameters are used to invert the polarity of the outputs.
⇒ 0 – normal
⇒ 1 – inverted
Page 21
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%20%
9.2.4 Table of parameters
Name
Comment
OS1
Mode of operation for output 1
OS2
Mode of operation for output 2
OD1
Input 1 direct link to outputs
OD2
Input 2 direct link to outputs
OD3
Input 3 direct link to outputs
OD4
Input 4 direct link to outputs
OD5
NAC direct link to outputs
OP1
Invert control for output 1
OP2
Invert control for output 2
Table 6: Output management parameters
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
OS1
1
Bistable toggle mode
OS2
14
Monostable pulse mode (14s pusle)
OD1
1
Input 1 activates output 1
OD4
2
Input 2 activates output 2
OP1
1
Output 1 inverted
Table 7: Output management parameters example
♦ Remote programming by SMS
;OS1=1;OS2=14;OD1=1;OD4=2;OP1=1;
Page 22
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%21%
9.3 SECURITY LEVEL - SL
SL parameter from 0 to 5 defines which telephone number stored in the phone
book from TN1 – TN5 can enter into programming and remote control of the ICEENTRY-R (dialing the ICE-ENTRY-R phone number or sending the SMS).
NOTE
When the SL level is 0, an access to the ICE-ENTRY-R is possible from
any phone!
IMPORTANT
Before any SL number is programmed the ICE-ENTRY-R can
accept ALL CALLS. Remote SMS programming and remote
controlling is possible from any phone!
Name /
value
Comment
SL = 0
All calls and SMS are accepted
SL = 1
Only number stored under parameter TN1 has access
to unit
SL = 2
Numbers stored under parameters TN1 to TN2 have
access to unit
SL = 3
Numbers stored under parameters TN1 to TN3 have
access to unit
SL = 4
Numbers stored under parameters TN1 to TN4 have
access to unit
SL = 5
Numbers stored under parameters TN1 to TN5 have
access to unit
Table 8: SL parameter
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
SL
3
Numbers stored under parameters TN1 to TN3 have
access to unit
Table 9: SL example
Page 23
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%22%
♦ Remote programming by SMS
;SL=3;
9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION
ICE-ENTRY-R can be used with prepaid SIM cards and its limitations. To be able to
overcome this limitation of the prepaid SIM cards, ICE-ENTRY-R offers the
possibility of automatic checking mechanism for credit and time expiration.
NOTE
ICE-ENTRY-R automatically sends warning SMS when the credit reaches
low level defined by LCV parameter or SIM card validity is near to
expiration.
NOTE
For support of different GSM providers contact support.
9.4.1 Programming prepaid card credit and validity string
To be able to support credit and time validity checking different parameters are
used.
9.4.1.1 LCV and SCV parameter
LCV is used to set the limit for low credit event. If the credit on prepaid SIM cards
falls below this limit SMS is send.
SCV the period of valid operating time varies with different GSM network
providers. The value can be programmed from 1 to 360 days. The default value
does not presume any kind of expiry warning.
For example in Slovenia SCV are 90 and in Italy 360 days
9.4.1.2 CC1, CC2 and CC3 parameters
Number used to check low credit value. They are provided from the GSM
providers.
Page 24
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%23%
⇒ CC1 - This method can be used by any GSM provider that supports
Unstructured Supplementary Service Data
⇒ CC2 - This method is dedicated to Italian TIM mobile provider
⇒ CC3 - This method is dedicated to Italian Vodafone mobile provider
9.4.1.3 CREF, CTIM, CVODA parameters
Parameters are used to find the credit value of the prepaid SIM card. Strings under
these parameters are used to pars the replay message from the GSM provider.
⇒ CREF - Pars string for the replays received from CC1 number
⇒ CVODA - Pars string for the replays received from CC2 number
⇒ CTIM - Pars string for the replays received from CC3 number
9.4.1.4 Table of parameters
Name
Comment
LCV
Low credit value, bottom limit for low credit event.
SCV
Sim card validity time (in days)
CC1
Credit number for credit check universally used
CC2
Credit number for credit check dedicated for Italian
TIM mobile provider
CC3
Credit number for credit check dedicated for Italian
Vodafone mobile provider
CREF
String for parsing replay message from CC1 number
CVODA
String for parsing replay message from CC2 number
CTIM
String for parsing replay message from CC3 number
Table 10: Prepaid card validity parameters
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
CC1
*448#
Simobil
CC2
4916
TIM Italy
CC3
404
Vodafone Italy
LCV
4
Low credit message will be send bellow 4
Page 25
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%24%
Table 11: Credit example
♦ Remote programming by SMS
;CC1=*448#;CC2=4916;CC3=404;LCV=4;
Page 26
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%25%
9.5 SET-UP PARAMETERS
Different parameters are used to support versatile functionality of ICE-ENTRY-R.
9.5.1 HTN parameter
Hidden telephone number is a parameter used in order to conceal the telephone
number of the ICE-ENTRY-R device. The default value is set to “1” which means
that the number is displayed.
9.5.2 ESC parameter
Parameter is used to define the input used to cancle the outgoing call from the
ICE-ENTRY-R device.
9.5.3 UDC parameter
Parameter is used to synchronise ICE-ENTRY-R clock to GSM network clock. User
must enter here the number of the ICE-ENTRY-R SIM card (Telephone number of
ICE-ENTRY-R device).
9.5.4 RAN parameter
Parameter is used to provide support for auto-answer options for ICE-ENTRY-R
device. The number defines the numbers of rings needed for ICE-ENTRY-R device
to answer the incoming call. The incoming number must be on the TN list for ICEENTRY-R device to answer.
9.5.5 TST parameter
A test SMS is sent periodically. ICE-ENTRY-R can send the test message in the
interval ranging from 1 hour to 240 hours.
Example:
To send test SMS TST value is set to 12, the numbers linked to “LN5”
receive a test message every 12 hours.
Page 27
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%26%
9.5.6 TSTT parameter
TSTT parameter is used to define reference point for sending test message. If this
parameter is set than after restart of the SOLO NX first test SMS will be send out
at time defined with TSTT parameter.
Parameter value is defined in hours.
Example:
To receive first test SMS at 20.00h TSTT value must be set to 20
NOTE
By setting TSTT=0 this function is disabled
9.5.7 MNF parameter
When it is necessary to fix the GSM network to one provider the user can use the
MNF parameter. The MNF parameter switches automatic network searching to
manual.
Example:
MCC/MNC code for Simobil is 29340, Mobitel is 29341, TIM is 22201, and
Vodafone
Italy is 22210.
More information about national MCC/MNC codes can be acquired at:
http://www.activexperts.com/activsms/networkcodes/
9.5.8 MIC parameter
MIC parameter enables you to change the sound level on microphone
9.5.9 SPK parameter
SPK parameter enables you to change the speaker sound level.
Page 28
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%27%
9.5.10 MUT parameter
MUT parameter enables you mutate the speaker sound while initiating voice
connection.
9.5.11 ARST parameter
ARST parameter defines periodic of auto restart time (in hours) of the ICE-ENTRYR device.
9.5.12 ADF parameter
Parameter is used to define voice refresh function, to prevent blocking of SIM in
some networks.
9.5.13 LNG parameter
LNG parameter switches between the preprogrammed languages:
⇒ 0 - English
⇒ 1 - Italian
⇒ 2 - Slovenian
⇒ 3 - Croatian
⇒ 4 - Dutch
⇒ 5 - German
⇒ 6 - Spanish
9.5.14 BUZ parameter
Parameter is used to control buzzer functionality on ICE-ENTRY-R. Buzzer is used
to audio support some events on ICE-ENTRY-R device.
9.5.15 Table of parameters
Name
Comment
Page 29
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%28%
UDC
Tel. number of ICE-ENTRY-R device
ESC
Input used as cancle button
RAN
Auto answer ring number
HTN
Hidden telephone number
TST
SMS test time out
TSTT
Periodic test SMS start time
MNF
Manual GSM provider selection
MIC
Microphone volume control
SPK
Speaker volume control
ARST
Time out control for automatic system restart
ADF
Auto dial functionality (Call TN1)
LNG
Language selection
BUZ
Buzzer control
Table 12: Set-up parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
HTN
0
Hidden telephone number of the ICE-ENTRY-R device
MNF
29340
Manual fixing of the GSM provider (Simobil)
LNG
1
Switch on Italian language
MIC
2
Microphone volume level
SPK
20
Speaker volume level
TST
24
24 hours periodic test SMS
BUZ
0
Mute buzzer
ESC
2
Input 2 is used as cancel button
Table 13: Set-up parameters example.
Page 30
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%29%
♦ Remote programming by SMS
;HTN=0;MFN=29340;LNG=1;MIC=2;SPK=20;TST=24; BUZ=0;ESC=2;
Page 31
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%30%
9.6 SMS MESSAGES EDITOR
You can write and send a short SMS message for each alarm input. The default
message is English, but it is possible to change language with LNG parameter. Each
message is built from 3 parts and user can write the first (User Location) and the
second (alarm event) part of the message. Unit adds the third part (alarm event
description) automatically. Language of the 3rd part may be changed by LNG
parameter. The message is stored in the SIM phone book so you should add any
number for correct operation.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
# 0 U S E R L O C A T I O N
# 1 I N P U T 1
# 2 I N P U T 2
# 3 I N P U T 3
# 4 I N P U T 4
NOTE
Message should not be longer than 14 characters! Space is also
counted as one character!
9.6.1 Table of parameters
Name
Comment
#0
User location, same for all alarm messages
#1
Input 1, second part of message
#2
Input 2, second part of message
#3
Input 3, second part of message
#4
Input 4, second part of message
Table 14: Message parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
Page 32
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%31%
#0House
1
Location definition
#1Kitchen
1
Alarm input is from the kitchen
Table 15: Message parameters example.
♦ Remote programming by SMS
;#0HOUSE=1;#1KITCHEN=1;
9.7 INTERCOM
Intercom functionality is supported by a set of parameters, used to tweak the
functionality to each user needs.
For each button ICE-ENTRY-R incorporates a group of parameters. There are up to
8 groups of parameters.
IMPORTANT
ICE-ENTRY-R is capable of supporting up-to 8 call buttons.
The current version equipped with only 1 call button so only E
GROUP is used and described in this manual.
9.7.1 xTN1 to xTN5 parameters
Parameters are the call numbers for intercom application.
9.7.2 RTNx parameter
Parameter defines the ring time time-out. RTNx timer is started when the call
button is pressed. If the RTNx timer expires before the GSM voice connection is
established then ICE-ENTRY-R device calls the next number in XTN1-XTN5 call list.
9.7.3 DTMF auto dial functionality
This function is used to provide a support for ICE-ENTRY-R device to be able select
extended numbers via DTMF command.
9.7.3.1 SDNx parameter
Parameter is used to set the DTMF number in auto self-select function.
Page 33
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%32%
9.7.3.2 SDDx parameter
Parameter is used to set the delay (in sec.) for sending DTMF number in auto selfselect function.
9.7.4 Time zone
Time zone support. When both time limits are sets (TZSx and TZEx) time zone
functionality is ON. When the current time is in the limits of the time zone
parameters the button event calls the number from xTN1 to xTN4, else button
event calls xTN5.
9.7.4.1 TZSx parameter
Parameter is used to configure the start time for the time zone functionality - 24h
time format.
9.7.4.2 TZEx parameter
Parameter is used to configure the end time for the time zone functionality - 24h
time format.
9.7.5 Table of parameters
Name
Comment
ATN1
Button 1, Telephone number 1.
ATN2
Button 1, Telephone number 2.
ATN3
Button 1, Telephone number 3.
ATN4
Button 1, Telephone number 4.
ATN5
Button 1, Telephone number 5.
RTNA
Button 1, time out control for voice connection.
SDNA
Button 1, DTMF number to send.
SDDA
Button 1, delay for DTMF number to send.
TZSA
Button 1, time zone start period.
TZEA
Button 1, time zone end period.
Table 16: Intercom parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
Page 34
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%33%
SIM CARD PHONE BOOK
Name
Number
Description
ATN1
040713470
Button 1, Telephone number 1.
ATN2
+38643364850
Button 1, Telephone number 2.
RTNA
30
Button 1, time out control for voice connection.
Table 17: Intercom parameters example.
♦ Remote programming by SMS
;ATN1=040713470;ATN2=+38643364850;RTNA=30;
9.8 CLIP
CLIP is used to provide the “free of charge” options to control the outputs.
9.8.1 CLPEN parameter
Parameter used to enable CLIP functionality.
9.8.2 CLPOU parameter
Parameter used to choose which output will be controlled by the CLIP
functionality.
9.8.3 CLPI parameter
This parameter, if set, is a precondition for CLIP function to control the output.
9.8.4 CLP1 … CLP100 parameter
Set of telephone number, which can control the output. The number not on CLP
list is not able to control the output using clip functionality.
Page 35
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%34%
9.8.5 Table of parameters
Name
Comment
CLPEN
Enable CLIP functionality
CLPOU
Control output pin when CLIP event
CLPI
CLIP input activation condition
CLP1
CLIP number 1
.
.
.
.
.
.
CLP100
CLIP number 100
Table 18: CLIP parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
CLPEN
1
Enable CLIP functionality
CLPOU
2
CLIP control output 2
CLPI
0
No input activation condition
CLP1
040414414
CLIP number 1
CLP2
042340880
CLIP number 2
Table 19: CLIP parameters example.
♦ Remote programming by SMS
;CLPEN=1;CLPOU=2;CLPI=0;CLP1=040414414;CLP2=042340880;
Page 36
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%35%
9.9 EVENT LOGING
ICE-ENTRY-R device support logging of specific events. ICE-ENTRY-R logs CLIP
event and alarm input events.
Log event consist of event type, time and telephone number or input number.
9.9.1 LOGN parameter
Parameter is used for defining the number of events printed out on PLOG request.
9.9.2 LOGI parameter
Parameter is used to define the media used for logging of events on ICE-ENTRY-R.
User can select between nonvolatile memory on ICE-ENTRY-R or select USB to
transfer events directly via USB to PC.
⇒ LOGI=0 Logging is OFF
⇒ LOGI=1 Logging in internal memory
⇒ LOGI=2 Logging to USB interface
9.9.3 ALC parameter
Parameter is used to control behavior when log on ICE-ENTRY-R is full. User can
select between auto log clear or manual clear of log.
⇒ ALC=0 Automatically delete buffer when memory is FULL
⇒ ALC=1 Memory buffer must be deleted manually when it is FULL
9.9.4 Table of parameters
Name
Comment
LOGN
Number of log events for printing out
LOGI
Log interface
ALC
Automatic log clear
Table 20: LOG parameters.
Page 37
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%36%
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-R PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
LOGN
5
5 log events will be printed out on PLOG command
LOGI
0
Nonvolatile memory on ICE-ENTRY-R
ALC
1
Log is auto cleared when full
Table 21: LOG parameters example.
♦ Remote programming by SMS
;LOGN=5;LOGI=0;ALC=1;
9.10 SPECIAL SMS COMMANDS
These commands can only be issued only over SMS message, and are used to
control some special functions of ICE-ENTRY-R device.
9.10.1 ORC command
Command is used to control outputs directly via SMS message
9.10.2 SDCLR command
To clear all data on SIM card SDCLR command is used.
9.10.3 LCRL command
Command clears log on ICE-ENTRY-R device.
Page 38
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%37%
9.10.4 CLPCLR command
Command is used to delete all CLP numbers.
9.10.5 MRES command
Command is used to manually restart GSM module on ICE-ENTRY-R device.
9.10.6 SSRES command
Command is used to manually restart ICE-ENTRY-R device.
9.10.7 Table of parameters
Name
Comment
ORC1
Control of output 1
ORC2
Control of output 2
SDCLR
Delete all SIM content
LCRL
Delete log on ICE-ENTRY-R device
MRES
Manual reset of GSM module
SSRES
Manual reset of ICE-ENTRY-R device
Table 22: SMS commands.
Example:
♦ Remote programming by SMS
SMS commad
Description
;ORC1=1;
Activate output 1
;ORC2=0;
Deactivate output 2
;SDCLR;
Clear all data on SIM
;LCLR;
Delete log on ICE-ENTRY-R device
;MRES;
Manual reset of GSM module
;SSRES;
Manual reset of ICE-ENTRY-R device
Table 23: SMS commands example.
Page 39
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%38%
10 PRINT-OUT OF THE PARAMETERS
The user can check the settings of ALL parameters on the ICE-ENTRY-R.
10.1 RECEIVE ALL PARAMETERS (PALL)
By sending this command to ICE-ENTRY-R you receive SMS messages with all
parameters that are currently programmed in the unit:
;PALL;
10.2 CHECK SW REVISION (PSW)
By sending this command to ICE-ENTRY-R you receive SMS messages with current
SW version running on ICE-ENTRY-R device:
;PSW;
10.3 CHECK SIGNAL QUALITY (PSQ)
By sending this command to ICE-ENTRY-R you receive SMS messages with signal
quality ICE-ENTRY-R device is connected to network:
;PSQ;
10.4 RECEIVE TELEPHONE NUMBERS (PTN)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed telephone numbers (TN1 – TN5):
;PTN;
10.5 RECEIVE LINKS (PLN)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed links (LN1 –LN8):
;PLN;
Page 40
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%39%
10.6 RECEIVE INPUT PARAMETERS (PIN)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed Input parameters (IN1 – IN4):
;PIN;
10.7 RECEIVE INPUT FILTER VALUE (PID)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed Input filters (ID1 – ID4):
;PID;
10.8 RECEIVE OUTPUT FILTER VALUE (POD)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed direct output links (OD1 – OD5):
;POD;
10.9 RECEIVE DELAY BEFORE DIAL VALUE (PDD)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed Input filters (DD1 – DD4):
;PDD;
10.10 RECEIVE ACCESS TELEPHONE NUMBERS (PSL)
By sending this command to ICE-ENTRY-R you receive SMS message with
programmed SL level:
;PSL;
10.11 RECEIVE OUTPUT PARAMETERS (POS)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed Outputs parameters (OS1 – OS2):
;POS;
Page 41
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%40%
10.12 RECEIVE ALL PROGRAMMED SMS MESSAGES
(P#)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed alarm SMS messages (#0 - #4):
;P#;
10.13 RECEIVE SET UP PARAMETERS VALUE (PPA)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed Setup parameters (TST, MNF…):
;PPA;
10.14 RECEIVE CREDIT PARS PARAMETERS (PCREF)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed credit parse parameters (CREF, CVODA…):
;PCREF;
10.15 RECEIVE ALL CLIP PARAMETERS (PCLP)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed CLIP functionality related parameters (CLPEN, CLPOU, CLPI,
CLPx):
;PCLP;
NOTE
User can use ;PCLP=x,y; to limit the number of CLIP numbers to be
printed.
x = start number
y = end number
Example
;PCLP=1,30; Prints first 30 CLIP numbers
Page 42
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%41%
10.16 RECEIVE INTERCOM BUTTON 1 PARAMATERS
(PDEA)
By sending this command to ICE-ENTRY-R you receive SMS message with all
currently programmed button 1 group parameters (ATN1, ATN2, ATN3, ATN4,
ATN5, RTNA, SDNA, SDDA, TZSA, TZEA):
;PDEA;
10.17 STATE OF THE CREDIT FOR THE PREPAID CARD
By sending this command to ICE-ENTRY-R you receive SMS message with Credit
amount on your prepaid SIM card:
;PCCX;
Where X is the number of programmed prepaid card provider.
10.18 STATE OF THE OUTPUTS (PORC)
By sending this command to ICE-ENTRY-R you receive SMS message with current
outputs state.
;PORC;
10.19 MANUAL GSM MODULE RETARD (MRES)
By sending this command to ICE-ENTRY-R shuts down GSM module and after a few
second it switches the power of the GSM module ON again. The unit reboots all
parameters from the SIM card.
;MRES;
10.20 RECEIVE STATUS OF INPUTS (INS)
By sending this command to ICE-ENTRY-R you receive SMS message with current
input state.
;INS;
Page 43
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%42%
10.21 RECEIVE ICE-ENTRY-R LOG
By sending this command to ICE-ENTRY-R you receive SMS message with log on
ICE-ENTRY-R device.
;PLOG;
NOTE
User can use ;PLOG=x,y; to define the number of logs to be printed.
x = start event
y = end event
Example
;PLOG=1, 30; Prints first 30 log events
Page 44
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%43%
11 CHANGING PARAMETERS USING THE SMS
COMMANDS
All programming parameters for ICE-ENTRY-R can also be sent by SMS command.
Each SMS command should start and stop with semicolon. If the confirmation SMS
is needed, put “+” at the beginning of the command SMS.
The first SMS is SMS with telephone numbers (TN1 – TN4). If you would like to
check which telephone numbers are programmed in ICE-ENTRY-R please use the
following command:
;PTN;
Return SMS is (example):
;TN1=0;TN2=0;
If you would like to enter telephone numbers in to ICE-ENTRY-R you can use the
following example:
;TN1=040713470;TN2=+38643364850;
If you would like to receive confirmation SMS write “+” before SMS command:
;+TN1=040713470;TN2=+38643364850;
Return SMS from ICE-ENTRY-R is:
;TN1=040713470;TN2=+38643364850;
NOTE
You can use the same programming procedure for all
parameters.
It is also possible to change different parameters with one SMS. Consider that the
SMS message should not be longer than 160 characters (included space
characters).
If you would like to change the following parameters TN1, IN1, IN2, OS1, OS2;
ID1, LN1 and CRE and would like to receive confirmation SMS, try next example:
;+TN1=+38640713470;IN1=1;IN2=1;OS1=15;OS2=1;ID1=120;LN1=1;
Page 45
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%44%
Send SMS message to ICE-ENTRY-R telephone number and in a few seconds you
receive SMS message from ICE-ENTRY-R. The sentence of the SMS must be the
same as the one you have sent to ICE-ENTRY-R before.
Page 46
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%45%
12 DEFAULT SETTINGS ON ICE-ENTRY-R
ICE-ENTRY-R PROGRAMMING TABLE
Name
Default Value
Short Description
TN1
Empty
Telephone number 1
TN2
Empty
Telephone number 1
TN3
Empty
Telephone number 2
TN4
Empty
Telephone number 3
TN5
Empty
Telephone number 4
IN1
0
Input 1 control
IN2
0
Input 2 control
IN3
0
Input 3 control
IN4
0
Input 4 control
OS1
5
Output 1 mode
OS2
5
Output 2 mode
OD1
1
Input 1 direct output link
OD2
0
Input 2 direct output link
OD3
0
Input 3 direct output link
OD4
0
Input 4 direct output link
OD5
0
NAC direct output link
LN1
Empty
Input 1, link to tel. numbers
LN2
1
Input 2, link to tel. numbers
LN3
Empty
Input 3, link to tel. numbers
LN4
1
Input 4, link to tel. numbers
LN5
Empty
Periodic SMS text, link to tel. numbers
LN6
Empty
SIM card refill, link to tel. numbers
LN7
Empty
NAC, link to tel. numbers
LN8
Empty
LOG full, link to tel. numbers
ID1
1
Input 1 delay filter on input
ID2
120
Input 2 delay filter on input
ID3
1
Input 3 delay filter on input
ID4
1
Input 4 delay filter on input
DD1
0
Input 1 delay before dialing
DD2
0
Input 2 delay before dialing
DD3
0
Input 3 delay before dialing
DD4
0
Input 4 delay before dialing
SL
0
Security level
#0
“User Location”
SMS main head text
#1
“Input1”
SMS input 1 text
#2
“Input2”
SMS input 2 text
#3
“Input3”
SMS input 3 text
#4
“Input4”
SMS input 4 text
CC1
Empty
Check credit Num 1
Page 47
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%46%
ICE-ENTRY-R PROGRAMMING TABLE
Name
Default Value
Short Description
CC2
Empty
Check credit, TIM Italy
CC3
Empty
Check credit, Vodafone Italy
ESC
0
Input used as cancel button
UDC
Empty
Tel. number of ICE-ENTRY-R device
HTN
1
Hidden telephone number
RAN
0
Auto answer ring number
SCV
0
SIM card time validity
TST
24
Periodic test SMS timeout
TSTT
0
Periodic test SMS start time
MNF
0
Network connection type
MIC
15
Microphone volume setting (0 - 40)
MUT
0
Mute functionality
SPK
10
Speaker volume setting (0 - 20)
LCV
4
Low credit value
LNG
0
Language selection
LOT
90
Connection time out value
LOGN
5
Number of log events for printing out
LOGI
0
Log interface
ALC
1
Automatic log clear
ADF
90
Auto dial functionality (Call TN1)
ARST
0
Automatic reset timeout
CREF
“EUR”
Parse text (contact support)
CTIM
“EURO”
Parse text (contact support)
CVODA
“DISPON. E.”
Parse text (contact support)
OP1
1
Output invert 1
OP2
1
Output invert 2
BUZ
1
Buzzer control
SPO
1
SIM card starting position
CLPEN
1
Enable CLIP functionality
CLPOU
1
Control output pin when CLIP event
CLPI
0
CLIP input activation condition
CLP1
Empty
CLIP number 1
.
.
CLP100
Empty
CLIP number 100
ATN1
Empty
Button 1, Telephone number 1
ATN2
Empty
Button 1, Telephone number 2
ATN3
Empty
Button 1, Telephone number 3
ATN4
Empty
Button 1, Telephone number 4
ATN5
Empty
Button 1, Telephone number 5
RTNA
25
Ring time, Button 1
SDNA
0
DTMF number to send
SDDA
0
Delay for DTMF to send
TZSA
0
Time zone start interval
TZEA
0
Time zone end interval
Table 24: ICE-ENTRY-R default settings.
Page 48
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%47%
13 PARAMETERS PRINT-OUT COMMANDS
ICE-ENTRY-R PROGRAMMING TABLE
Name
Short Description
PALL
Prints all parameters available on ICE-ENTRY-R.
PSW
Prints SW version of ICE-ENTRY-R.
PSQ
Prints GSM network signal quality of ICE-ENTRY-R.
PTN
Prints TNx numbers.
PLN
Prints LNx links.
PIN
Prints INx parameters.
PID
Prints IDx parameters.
POD
Prints ODx parameters.
PDD
Prints DDx parameters
PSL
Prints SL parameter.
POS
Prints OSx parameters.
P#
Prints #x parameters.
PPA
Prints various setup parameters.
PCLP
Prints CLIP parameters.
PLOG
Prints log of the ICE-ENTRY-R.
PCREF
Prints credit pars parameters.
PCN
Prints credit request numbers.
PCC1
Prints credit for ICE-ENTRY-R (universal request).
PCC2
Prints credit for ICE-ENTRY-R. (TIM Italy).
PCC3
Prints credit for ICE-ENTRY-R. (VODAFONE Italy).
PWG
Prints Wiegand parameters.
INS
Prints status of the inputs.
PORC
Prints (controls) the status of outputs.
PDEA
Prints intercom button 1 parameters.
Table 25: ICE-ENTRY-R parameters print out commands.
Page 49
ICE1ENTRY1R'
INSTALLATION'M A N U A L!
Page%48%
14 TECHNICAL SPECIFICATIONS
Description
Value
Power Supply
15 - 24V AC/DC
Current consumption - peak
2A
Current consumption - transmitting
mode
250mA
Current consumption - idle mode
40mA
Quad band GSM module
850/900/1800/1900
MHz
PCB dimensions
106 × 89 mm
Unit dimensions (1 button)
156 x 116 x 61 (51) mm
Call buttons
Up to 4 (in larger
enclosure: 290 × 116 ×
56 mm)
External Antenna
1
Weight
945 gr.
Alarm inputs
2
Alarm outputs (relay)
2
12V DC Aux. Power Supply output
Y (max. 500 mA)
15-24V AC/DC Power Supply input
Y
Anti-tamper protection
optional
Page 50
TRANSMITTER SOLUTIONS WARRANTY
The warranty period of this Transmitter Solutions product is twenty-four (24) months. This warranty shall
begin on the date the product is manufactured. During the warranty period, the product will be repaired or
replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a
defective component. This warranty does not extend to (a) the product case, which can be damaged by
conditions outside the control of Transmitter Solutions, or (b) battery life of the product. This warranty is
further limited by the following disclaimer of warranty and liability:
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES REGARDING THE GOODS, EXPRESS OR
IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. BUYER
MAKES NO RELIANCE ON ANY REPRESENTATION OF TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO
THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON
CONDITION THAT TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER
AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR DAMAGES OF ANY KIND, WHETHER DIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS
EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD TRANSMITTER SOLUTIONS
HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S USE OR DISPOSAL OF
THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN CONSIDERATION OF RECEIVING THE
GOODS.
Loading...
