Page 1
iCE$Entry$100+

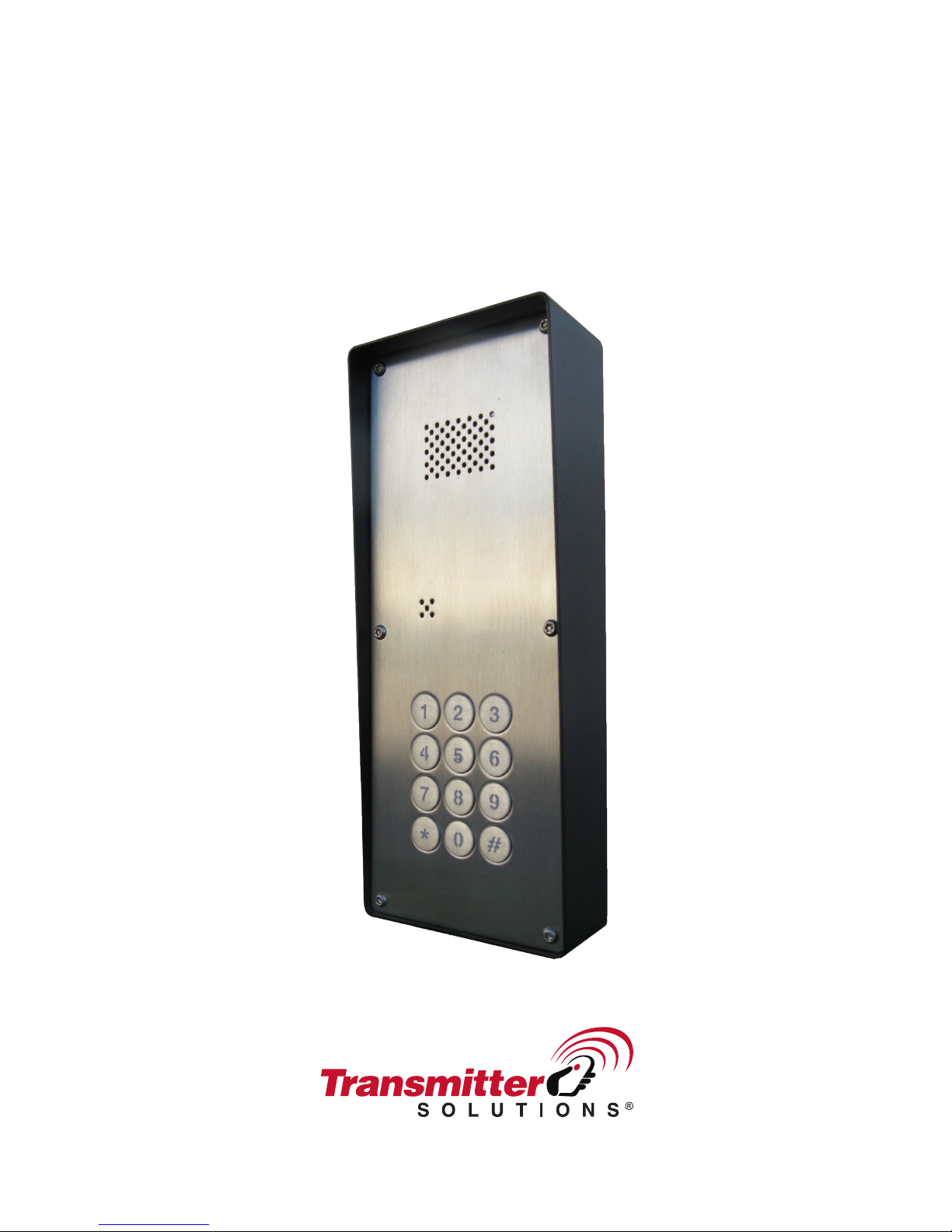

COMPACT'MULTI+APARTMENT'GSM'DOOR'ENTRY'UNIT'
'
+
INSTALLATION+M ANUAL+
+
Page 2
Page 3
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%2%
Contents
1% FOR YOUR SAFETY.......................................................................................... 6%
2% INTRODUCTION............................................................................................... 7%
3% FEATURES AND APPLICATIONS ........................................................................ 8%
4% START UP...................................................................................................... 9%
5% LED DISPLAY ................................................................................................10%
6% CLEAR ALL PROGRAMMED DATA FROM SIM ......................................................11%
7% CONNECTING DIAGRAM ..................................................................................12%
8% PROGRAMMING ICE-ENTRY-100 .......................................................................13%
9% THE ICE-ENTRY-100 PARAMETERS...................................................................14%
9.1% ALARM SUPPORT.................................................................................................................................. 14%
9.2% OUTPUT MANAGEMENT ........................................................................................................................ 18%
9.3% SECURITY LEVEL - SL ........................................................................................................................... 20%
9.4% PREPAID CARD CREDIT AND VALIDITY INFORMATION .......................................................................... 22%
9.5% SET-UP PARAMETERS ........................................................................................................................... 24%
9.6% SMS MESSAGES EDITOR........................................................................................................................ 28%
9.7% INTERCOM............................................................................................................................................. 29%
9.8% TRADE BUTTON (OPTION).................................................................................................................... 31%
9.9% DIRECT ACCESS BY ENTERING PIN CODE.............................................................................................. 32%
9.10% CLIP.................................................................................................................................................... 33%
9.11% EVENT LOGING ................................................................................................................................... 36%
9.12% SPECIAL SMS COMMANDS .................................................................................................................. 37%
10% PRINT-OUT OF THE PARAMETERS ..................................................................39%
10.1% RECEIVE ALL PARAMETERS (PALL).................................................................................................... 39%
10.2% CHECK SW REVISION (PSW)............................................................................................................... 39%
10.3% CHECK SIGNAL QUALITY (PSQ).......................................................................................................... 39%
10.4% RECEIVE TELEPHONE NUMBERS (PTN) ............................................................................................... 39%
10.5% RECEIVE LINKS (PLN) ......................................................................................................................... 39%
10.6% RECEIVE INPUT PARAMETERS (PIN).................................................................................................... 40%
10.7% RECEIVE INPUT FILTER VALUE (PID)...................................................................................................40%
10.8% RECEIVE OUTPUT FILTER VALUE (POD) ............................................................................................. 40%
10.9% RECEIVE DELAY BEFORE DIAL VALUE (PDD)...................................................................................... 40%
10.10% RECEIVE ACCESS TELEPHONE NUMBERS (PSL) .................................................................................. 40%
10.11% RECEIVE OUTPUT PARAMETERS (POS) ............................................................................................... 40%
10.12% RECEIVE ALL PROGRAMMED SMS MESSAGES (P#) ............................................................................. 41%
Page 4
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%3%
10.13% RECEIVE SET UP PARAMETERS VALUE (PPA) ..................................................................................... 41%
10.14% RECEIVE CREDIT PARS PARAMETERS (PCREF).................................................................................... 41%
10.15% RECEIVE ALL CLIP PARAMETERS (PCLP) ............................................................................................ 41%
10.16% RECEIVE INTERCOM CALL GROUPS PARAMATERS ............................................................................42%
10.17% RECEIVE TRADE BUTTON PARAMETERS .............................................................................................42%
10.18% STATE OF THE CREDIT FOR THE PREPAID CARD ................................................................................ 42%
10.19% STATE OF THE OUTPUTS (PORC) ....................................................................................................... 42%
10.20% MANUAL GSM MODULE RETARD (MRES) ............................................................................................ 43%
10.21% RECEIVE STATUS OF INPUTS (INS)..................................................................................................... 43%
10.22% RECEIVE ICE-ENTRY-100 LOG............................................................................................................. 43%
11% CHANGING PARAMETERS USING THE SMS COMMANDS......................................44%
12% DEFAULT SETTINGS ON ICE-ENTRY- 100 .........................................................46%
13% PARAMETERS PRINT-OUT COMMANDS ............................................................48%
14% TECHNICAL SPECIFICATIONS.........................................................................49%
Page 5
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%4%
Figures
Figure 1: ICE-ENTRY-100 Connection diagram .......................................................12%
Figure 2: Input Connection diagram. ......................................................................14%

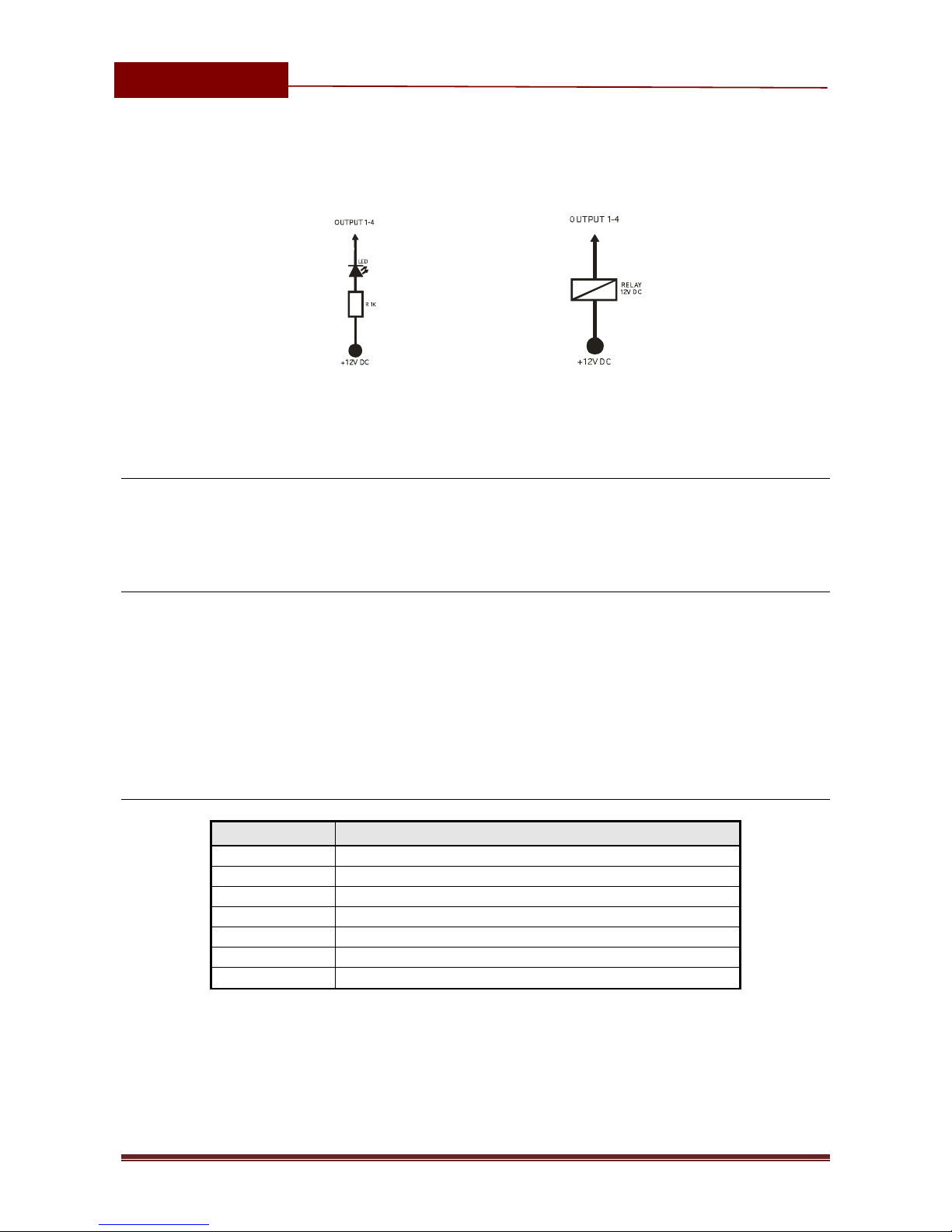

Figure 3: Output Connection diagram ....................................................................19%
Page 6
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%5%
Tables
Table 1: IN, ID and DD parameters .........................................................................15!
Table 2: IN, ID, DD parameters example.................................................................15!
Table 3: Remote alarm reporting parameters.........................................................17!
Table 4: Remote alarm reporting example ............................................................17!
Table 5: DTMF control example..............................................................................18!
Table 6: Output management parameters .............................................................19!
Table 7: Output management parameters example ...............................................20!
Table 8: SL parameter............................................................................................21!
Table 9: SL example ...............................................................................................21!
Table 10: Prepaid card validity parameters............................................................23!
Table 11: Credit example .......................................................................................23!
Table 12: Set-up parameters. ................................................................................26!
Table 13: Set-up parameters example. ..................................................................27!
Table 14: Message parameters. .............................................................................28!
Table 15: Message parameters example. ...............................................................29!
Table 16: Intercom parameters..............................................................................30!
Table 17: Intercom parameters example................................................................30!
Table 18: Trade button parameters.......................................................................31!
Table 19: Trade button example............................................................................32!
Table 20: Entering PIN code parameters................................................................33!
Table 21: Entering PIN code example..................................................................... 33!
Table 22: CLIP parameters. ....................................................................................34!
Table 23: CLIP parameters example.......................................................................35!
Table 24: LOG parameters. ....................................................................................36!
Table 25: LOG parameters example. ......................................................................37!
Table 26: SMS commands. ..................................................................................... 38!
Table 27: SMS commands example. .......................................................................38!
Table 28: ICE-ENTRY-100 default settings.............................................................47!
Table 29: ICE-ENTRY-100 parameters print out commands. .................................48!
Page 7
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%6%
1 FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the unit on when use of wireless phone is prohibited or when it may
cause interference or danger.
INTERFERENCE
All wireless phones and units may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the unit off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the unit at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the unit where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do not
touch the antenna unnecessarily.
Page 8
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%7%
2 INTRODUCTION
ICE-ENTRY-100 is a simple GSM intercom communication system that is designed
to ensure low-cost, reliable and single box solution for intercom application. It is
designed for unlimited range, wire free GSM intercom and CLIP support.
In addition ICE-ENTRY-100 supports alarm detection, stay-alive messages, credit
detection etc…
Page 9
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%8%
3 FEATURES AND APPLICATIONS
Features:
⇒ Built-in 2 or 4 band GSM module
⇒ Keypad call support
⇒ Keypad PIN enter support
⇒ 2 alarm inputs
⇒ 2 outputs ( relay supported )
⇒ Up to 100 telephone numbers for CLIP support
⇒ Programming by USB SIM Key editor
⇒ Download programming by SMS command
⇒ Anti-tampering input
Applications:
⇒ Single box, wire free intercom solution
⇒ Remote gate opener (CLIP)
⇒ Simple alarm support
Page 10
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%9%
4 START UP
VERY
IMPORTANT
USE A MICRO SIM CARD (micro-SIM, see the picture)
WITH MEMORY FOR UP TO 250 CONTACTS!
⇒ Insert SIM card to be used for ICE-ENTRY-100 in your personal mobile phone.
IMPORTANT
ERASE THE PIN CODE!
⇒ Insert SIM card in ICE-ENTRY-100 device. The unit must be switched OFF
when you insert the SIM!
⇒ Connect inputs and outputs to ICE-ENTRY-100.
⇒ Connect the antenna to antenna connector.
⇒ Connect power cable to ICE-ENTRY-100 device
⇒ Connect device to source power supply voltage.
⇒ Wait until LED3 display is turned ON (green) and LED1 (blue) starts flashing.
This is set in around 1 minute.
⇒ ICE-ENTRY-100 unit is now ready to operate.
IMPORTANT
Before sending any SMS commands to ICE-ENTRY-100 device,
ICE-ENTRY-100 must be in normal operation!
NOTE
ICE-ENTRY-100 device will “beep” in 15s interval until the device is not
in normal operation.
Page 11
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%10%
5 LED DISPLAY
GREEN LED (LED1)
- Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak
signal, 5 is excellent signal)
Red LED (LED2)
- When LED 2 is ON the unit has a problem with a GSM network connection or
the GSM part of the unit is out of order. In this case immediately call the
service!
Yellow LED (LED3)
- Short flashing indicates that the GSM module is ON, but it is not yet
connected on the GSM network. After connection, yellow led is flashing with
short pulse ON and a long pulse OFF.
Page 12
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%11%
6 CLEAR ALL PROGRAMMED DATA FROM SIM
This is highly recommended when a SIM card you are going to use for the ICEENTRY-100 is not new and it already has some data stored in the phone book
memory.
By sending this SMS to ICE-ENTRY-100 all programmed parameters and numbers
are cleared:
;SDCLR;
After sending SMS you should wait at least 30 second for the command to be
executed!
NOTE
By sending this command to the ICE-ENTRY-100 all programmed data
are erased from the SIM card!
Page 13
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%12%

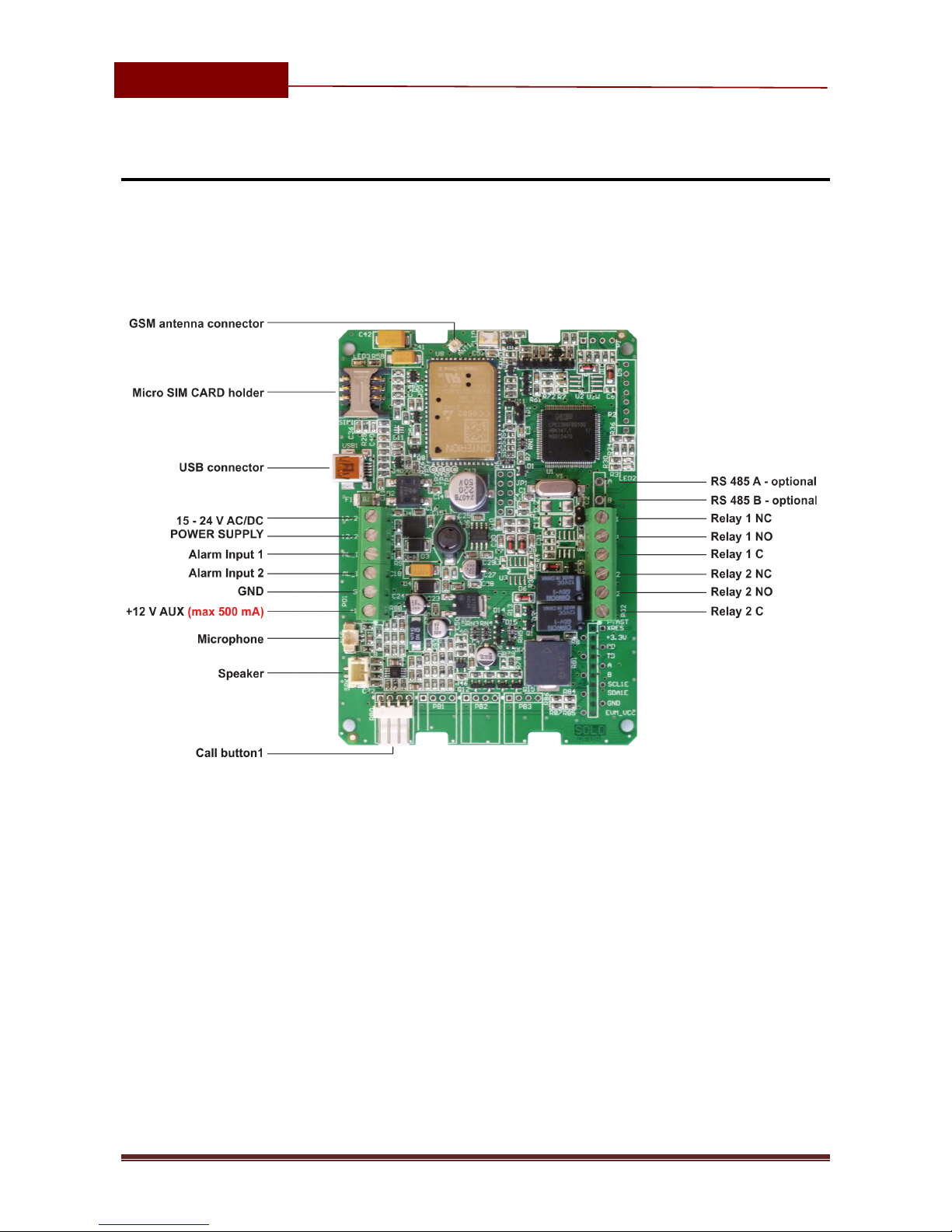

7 CONNECTING DIAGRAM
Before connection the ICE-ENTRY-100 please take a look at connection diagram.
Figure 1: ICE-ENTRY-100 Connection diagram
Page 14
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%13%
8 PROGRAMMING ICE-ENTRY-100
ICE-ENTRY-100 device supports different types of programming:
⇒ To program ICE-ENTRY-100 parameters put the SIM card into your personal
GSM phone. Add programming parameters in SIM Card “Phone Book”.
⇒ You can program ICE-ENTRY-100 remotely by SMS command.
⇒ You can program ICE-ENTRY-100 with USB key and SIM manager.
Page 15
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%14%
9 THE ICE-ENTRY-100 PARAMETERS
To support versatile functionality of ICE-ENTRY-100 different parameters are used.
The parameters are divided in logical sections and are described in the following
chapters.
9.1 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is
used to define the relations needed for alarm to be trigged. The second section is
used to report alarm.
9.1.1 ALARM TRIGGERING
Parameters are used to control (filter) the triggering of the alarm inputs.
9.1.1.1 IN parameter
Alarm input can be on only used as normal open (N.O.) triggered with GND. When
you need the input feedback information it is possible to receive SMS when input
returns from alarm to normal position. To receive the return SMS use IN setting 4.
⇒ IN = 0 – Normal Open – triggered with negative voltage (GND)
⇒ IN = 4 = IN = 0 + input reset SMS
Figure 2: Input Connection diagram.
Page 16
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%15%
9.1.1.2 ID parameter
ID parameter determines time period of the pulse length to trigger the alarm. The
pulse time can be from 0,5 seconds to 9999 seconds. The default time is 0,5
seconds when the parameter value is 0.
9.1.1.3 DD parameter
This parameter is used to define the delay between the time that alarm input is
trigged and the time that alarm is reported.
9.1.1.4 Table of parameters
Name
Comment
IN1
Mode of operation for input 1
IN2
Mode of operation for input 2
ID1
Input time integration delay on input 1
ID2
Input time integration delay on input 2
DD1
Time delay for alarm reporting on input 1
DD2
Time delay for alarm reporting on input 2
Table 1: IN, ID and DD parameters
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
IN1
0
Alarm activated by connecting to GND
IN2
4
Alarm activated by connecting to GND + RST
SMS
ID1
10
Input 1 has to be valid for 10 second to trigger
the alarm
ID2
0
Input 2 has to be valid for 0,5 second to trigger
the alarm
DD1
0
Reporting of the alarm on input 1 is delayed by
0s
DD2
15
Reporting of the alarm on input 1 is delayed by
15s
Table 2: IN, ID, DD parameters example
Page 17
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%16%
♦ Remote programming by SMS
;IN1=0;IN2=4;ID1=10;ID2=0;DD1=0;DD2=15;
9.1.2 REMOTE REPORTING ALARM EVENTS
Parameters used to define the way to report the alarm event.
NOTE
ICE-ENTRY-100 device send SMS messages for reporting alarm events.
9.1.2.1 TN parameter
Telephone numbers for remote alarm reporting are listed as TN parameters.
Remote alarm reporting on ICE-ENTRY-100 is done via SMS messages.
9.1.2.2 LN parameter
This parameter is used to link alarm event from inputs or any other source to the
telephone numbers from TN list.
9.1.2.3 LOT parameter
LOT parameter is used to define the time control for voice calls. The start of voice
connection starts the LOT timer. If the voice connection is still ON when the LOT
timer expires ICE-ENTRY-100 disconnects voice connection.
9.1.2.4 Table of parameters
Name
Comment
TN1
1st telephone number
TN2
2nd telephone number
TN3
3rd telephone number
TN4
4th telephone number
TN5
5th telephone number
LN1
Input & telephone No. linking for 1st alarm input (TN1 –
Page 18
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%17%
TN5)
LN2
Input & telephone No. linking for 2nd alarm input (TN1
– TN5)
LN3
Periodic test SMS. No. linking (TN1 – TN5)
LN4
SIM card refill. No. linking (TN1 – TN5)
LN5
NAC list. No. linking (TN1 – TN5) ( see note)
LN6
Log status. No. linking (TN1 – TN5)
LOT
Time out for GSM connection.
Table 3: Remote alarm reporting parameters
Note:
When telephone number (calling or messaging ICE-ENTRY-100) is not on the CLIP
list, not acknowledge event occurs (NAC). The telephone number responsible for
this event can be send to TN user for notification.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
TN1
042376678
1st telephone number
LN1
13
Input 1 reports alarm to TN1 & TN3
LN2
1234
Input 2 reports alarm to TN1 & TN2 & TN3 &
TN4
LN5
1
NAC event sent to TN1
LOT
60
Voice connection stay valid for max of 60s,
after this time
Voice connection breaks
Table 4: Remote alarm reporting example
♦ Remote programming by SMS
;TN1=042376678;LN1=13;LN2=1234;LN5=1;LOT=60;
Page 19
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%18%
9.1.3 CONTROLING OUTPUTS WITH DTMF
ICE-ENTRY-100 can control the outputs with the use of DTMF. This is very useful
function in the intercom application.
To control the outputs the user must press the combination of 2 digits. First digit
is used to select the output (1 to 2), the second digit is used to activate (1) or
deactivate (0) the output. There is a special case when the user can select for
first digit (output selection) number 0. In this case all outputs control by the same
time.
Combination must be pressed in 2s interval, and must be 3s apart to be valid.
NOTE
ICE-ENTRY-100 must be in voice connection to support DTMF output
control!
Example:
DTMF combination
Description
00
Deactivate ALL outputs
01
Activate ALL outputs
11
Activate output 1
20
Deactivate output 2
Table 5: DTMF control example
9.2 OUTPUT MANAGEMENT
ICE-ENTRY-100 supports the possibility to report alarms from inputs and any other
events locally via 4 outputs. The behavior is defined using next parameters
9.2.1 OS parameter
ICE-ENTRY-100 device has 2 dedicated relay supported outputs. Outputs can be
configured to different behavior:
⇒ OS = 0 – Disabled
⇒ OS = 1 – Bi-stable toggle mode
⇒ OS = xxx – Mono-stable pulse mode ( duration in seconds )
Page 20
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%19%
Typical connection for the output:
Figure 3: Output Connection diagram
9.2.2 OD parameter
OD parameter is used to link the alarm event directly to output.
9.2.3 OP1, OP2 parameters
Parameters are used to invert the polarity of the outputs.
⇒ 0 – normal
⇒ 1 – inverted
9.2.4 Table of parameters
Name
Comment
OS1
Mode of operation for output 1
OS2
Mode of operation for output 2
OD1
Input 1 direct link to outputs
OD2
Input 2 direct link to outputs
OD3
NAC direct link to outputs
OP1
Invert control for output 1
OP2
Invert control for output 2
Table 6: Output management parameters
Example:
♦ Direct programming on the SIM card
Page 21
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%20%
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
OS1
1
Bistable toggle mode
OS2
14
Monostable pulse mode ( 14s pusle )
OD1
1
Input 1 activates output 1
OD2
2
Input 2 activates output 2
OP1
1
Output 1 inverted
Table 7: Output management parameters example
♦ Remote programming by SMS
;OS1=1;OS2=14;OD1=1;OD2=2;OP1=1;
9.3 SECURITY LEVEL - SL
SL parameter from 0 to 5 defines which telephone number stored in the phone
book from TN1 – TN5 can enter into programming and remote control of the ICEENTRY-100 (dialing the ICE-ENTRY-100 phone number or sending the SMS).
NOTE
When the SL level is 0, an access to the ICE-ENTRY-100 is possible from
any phone!
IMPORTANT
Before any SL number is programmed the ICE-ENTRY-100 can
accept ALL CALLS. Remote SMS programming and remote
controlling is possible from any phone!
Page 22
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%21%
Name /
value
Comment
SL = 0
All calls and SMS are accepted
SL = 1
Only number stored under parameter TN1 has access
to unit
SL = 2
Numbers stored under parameters TN1 to TN2 have
access to unit
SL = 3
Numbers stored under parameters TN1 to TN3 have
access to unit
SL = 4
Numbers stored under parameters TN1 to TN4 have
access to unit
SL = 5
Numbers stored under parameters TN1 to TN5 have
access to unit
Table 8: SL parameter
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
SL
3
Numbers stored under parameters TN1 to TN3 have
access to unit
Table 9: SL example
♦ Remote programming by SMS
;SL=3;
Page 23
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%22%
9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION
ICE-ENTRY-100 can be used with prepaid SIM cards and its limitations. To be able
to overcome this limitation of the prepaid SIM cards, ICE-ENTRY-100 offers the
possibility of automatic checking mechanism for credit and time expiration.
NOTE
ICE-ENTRY-100 automatically sends warning SMS when the credit
reaches low level defined by LCV parameter or SIM card validity is near
to expiration.
NOTE
For support of different GSM providers contact support.
9.4.1 Programming prepaid card credit and validity string
To be able to support credit and time validity checking different parameters are
used.
9.4.1.1 LCV and SCV parameter
LCV is used to set the limit for low credit event. If the credit on prepaid SIM cards
falls below this limit SMS is send.
SCV the period of valid operating time varies with different GSM network
providers. The value can be programmed from 1 to 360 days. The default value
does not presume any kind of expiry warning.
For example in Slovenia SCV are 90 and in Italy 360 days
9.4.1.2 CC1, CC2 and CC3 parameters
Number used to check low credit value. They are provided from the GSM
providers.
⇒ CC1 - This method can be used by any GSM provider that supports
Unstructured Supplementary Service Data
⇒ CC2 - This method is dedicated to Italian TIM mobile provider
⇒ CC3 - This method is dedicated to Italian Vodafone mobile provider
Page 24
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%23%
9.4.1.3 CREF, CTIM, CVODA parameters
Parameters are used to find the credit value of the prepaid SIM card. Strings under
these parameters are used to pars the replay message from the GSM provider.
⇒ CREF - Pars string for the replays received from CC1 number
⇒ CVODA - Pars string for the replays received from CC2 number
⇒ CTIM - Pars string for the replays received from CC3 number
9.4.1.4 Table of parameters
Name
Comment
LCV
Low credit value, bottom limit for low credit event.
SCV
Sim card validity time ( in days)
CC1
Credit number for credit check universally used
CC2
Credit number for credit check dedicated for Italian
TIM mobile provider
CC3
Credit number for credit check dedicated for Italian
Vodafone mobile provider
CREF
String for parsing replay message from CC1 number
CVODA
String for parsing replay message from CC2 number
CTIM
String for parsing replay message from CC3 number
Table 10: Prepaid card validity parameters
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
CC1
*448#
Si.mobil
CC2
4916
TIM Italy
CC3
404
Vodafone Italy
LCV
4
Low credit message will be send bellow 4
Table 11: Credit example
Page 25
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%24%
♦ Remote programming by SMS
;CC1=*448#;CC2=4916;CC3=404;LCV=4;
9.5 SET-UP PARAMETERS
Different parameters are used to support versatile functionality of ICE-ENTRY-100.
9.5.1 HTN parameter
Hidden telephone number is a parameter used in order to conceal the telephone
number of the ICE-ENTRY-100 device. The default value is set to “1” which means
that the number is displayed.
9.5.2 UDC parameter
Parameter is used to synchronise ICE-ENTRY-100 clock to GSM network clock. User
must enter here the number of the ICE-ENTRY-100 SIM card ( Telephone number
of ICE-ENTRY-100 device ).
9.5.3 RAN parameter
Parameter is used to provide support for auto-answer options for ICE-ENTRY-100
device. The number defines the numbers of rings needed for ICE-ENTRY-100
device to answer the incoming call. The incoming number must be on the TN list
for ICE-ENTRY-100 device to answer.
9.5.4 TST parameter
A test SMS is sent periodically. ICE-ENTRY-100 can send the test message in the
interval ranging from 1 hour to 240 hours.
Example:
To send test SMS TST value is set to 12, the numbers linked to “LN5”
receive a test message every 12 hours.
Page 26
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%25%
9.5.5 MNF parameter
When it is necessary to fix the GSM network to one provider the user can use the
MNF parameter. The MNF parameter switches automatic network searching to
manual.
Example:
MCC/MNC code for Simobil is 29340, Mobitel is 29341, TIM is 22201, and
Vodafone
Italy is 22210.
More information about national MCC/MNC codes can be acquired at:
http://www.activexperts.com/activsms/networkcodes/
9.5.6 MIC parameter
MIC parameter enables you to change the sound level on microphone input.
9.5.7 SPK parameter
SPK parameter enables you to change the speaker sound level.
9.5.8 ARST parameter
ARST parameter defines periodic of auto restart time (in hours) of the ICE-ENTRY100 device.
9.5.9 MUT parameter
MUT parameter enables you mutate the speaker sound while initiating voice
connection.
9.5.10 ADF parameter
Parameter is used to define voice refresh function, to prevent blocking of SIM in
some networks.
Page 27
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%26%
9.5.11 LNG parameter
LNG parameter switches between the preprogrammed languages:
⇒ 0 - English
⇒ 1 - Italian
⇒ 2 - Slovenian
⇒ 3 - Croatian
⇒ 4 - Dutch
⇒ 6 - Spanish
⇒ 7 - German
9.5.12 BUZ parameter
Parameter is used to control buzzer functionality on ICE-ENTRY-100. Buzzer is
used to audio support some events on ICE-ENTRY-100 device
9.5.13 Table of parameters
Name
Comment
UDC
Tel. number of ICE-ENTRY-100 device
RAN
Auto answer ring number
HTN
Hidden telephone number
TST
SMS test time out
MNF
Manual GSM provider selection
MIC
Microphone volume control
SPK
Speaker volume control
ARST
Time out control for automatic system restart
ADF
Auto dial functionality ( Call TN1 )
LNG
Language selection
BUZ
Buzzer control
Table 12: Set-up parameters.
Example:
♦ Direct programming on the SIM card
Page 28
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%27%
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
HTN
0
Hidden telephone number of the ICE-ENTRY-100
device
MNF
29340
Manual fixing of the GSM provider (Simobil)
LNG
1
Switch on Italian language
MIC
2
Microphone volume level
SPK
20
Speaker volume level
TST
24
24 hours periodic test SMS
BUZ
0
Mute buzzer
Table 13: Set-up parameters example.
♦ Remote programming by SMS
;HTN=0;MFN=29340;LNG=1;MIC=2;SPK=20;TST=24; BUZ=0;
Page 29
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%28%
9.6 SMS MESSAGES EDITOR
You can write and send a short SMS message for each alarm input. The default
message is English, but it is possible to change language with LNG parameter. Each
message is built from 3 parts and user can write the first (User Location) and the
second (alarm event) part of the message. Unit adds the third part (alarm event
description) automatically. Language of the 3rd part may be changed by LNG
parameter. The message is stored in the SIM phone book so you should add any
number for correct operation.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
# 0 U S E R L O C A T I O N
# 1 I N P U T 1
# 2 I N P U T 2
NOTE
Message should not be longer than 14 characters! Space is also
counted as one character!
9.6.1 Table of parameters
Name
Comment
#0
User location, same for all alarm messages
#1
Input 1, second part of message
#2
Input 2, second part of message
Table 14: Message parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
#0House
1
Location definition
#1Kitchen
1
Alarm input is from the kitchen
Page 30
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%29%
Table 15: Message parameters example.
♦ Remote programming by SMS
;#0HOUSE=1;#1KITCHEN=1;
9.7 INTERCOM
Intercom functionality is supported by a set of parameters, used to tweak the
functionality to each user needs.
For each keypad entry ICE-ENTRY-100 incorporates a group of parameters. ICEEntry-100 support up to 100 call groups.
9.7.1 KPAx and KPB1 parameters
Parameters are the call numbers for intercom application.
9.7.2 KPTx parameter
Parameter defines the ring time time-out (is seconds). KPTx timer is started when
the dialed telephone starts to ring. If the KPRx timer expires before the GSM voice
connection is established then ICE-ENTRY-100 device calls the next number
(KPBx).
9.7.3 KPOx parameter
Parameter is used to define the output for the selected call group.
9.7.4 KPNx parameter
Parameter is used to redefine the keypad dial number for each call group.
9.7.5 Table of parameters
Name
Comment
KPA1
Call group 1, Telephone number 1.
KPB1
Call group 1, Telephone number 2.
KPN1
Call group 1, keypad dial number .
Page 31
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%30%
KPT1
Call group 1, time out control for voice connection.
KPO1
Call group 1, output .
.
.
.
.
KPA100
Call group 100, Telephone number 1.
KPB100
Call group 100, Telephone number 2.
KPN100
Call group 1, time out control for voice connection.
KPT100
Call group 100, time out control for voice connection.
KPO100
Call group 100, output .
Table 16: Intercom parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
KPA1
040713470
Call group 1, Telephone number 1.
KPB1
+38643364850
Call group 1, Telephone number 2.
KPT1
30
Call group 1, time out control for voice
connection.
KPO1
1
Call group 1, output
Table 17: Intercom parameters example.
♦ Remote programming by SMS
;KPA1=040713470;KPB1=+38643364850;KPT1=30;KPO1=1;
NOTE
All KPAx and KPBx numbers are at the same time used as intercom
numbers and as CLIP numbers.
Example: The users under parameters KPA1 and KPB1 can call ICEENTRY-100 device and activate the output defined by the KPO1
parameter.
Page 32
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%31%
9.8 TRADE BUTTON (OPTION)
Trade button support is a user option to add an additional button to provide direct
(button pressed), time supported, activating of the selected output. With the use
of the TBZS and TBZE the user can define the time interval when the trade button
is active.
IMPORTANT
Trade button function will operate correctly ONLY if UDC
parameter is set.
9.8.1 TBE parameter
Parameter is used to enable the trade button functionality and to define the input
where the button is connected.
9.8.2 TBZS
Parameter is used to define the start point of the active time interval.
9.8.3 TBZE
Parameter is used to define the end point of the active time interval.
9.8.4 Table of parameters
Name
Comment
TBE
Trade button enable/define input.
TBZS
Trade button interval start.
TBZE
Trade button interval end.
Table 18: Trade button parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Page 33
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%32%
Name
Number
Description
TBE
1
Enable Trade button in input 1
TBZS
6
Trade button interval, start at 6.
TBZE
15
Trade button interval, ends at 15.
Table 19: Trade button example.
♦ Remote programming by SMS
; TBE =1; TBZS =6; TBZE =15;
9.9 DIRECT ACCESS BY ENTERING PIN CODE
The user may control the predefined outputs by entering the PIN codes. PIN code
from 1 to 10 (PIN1 to PIN10) will activate output 1, pin codes from 11 to 20
(PIN11 to PIN20) will activate output 2.
9.9.1 PIN1 to PIN20
PINx parameters are the PIN codes for controlling the outputs.
9.9.2 Table of parameters
Name
Comment
PIN1
Pin code 1.
PIN2
Pin code 2.
PIN3
Pin code 3.
PIN4
Pin code 4.
Page 34
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%33%
PIN5
Pin code 5.
PIN6
Pin code 6.
PIN7
Pin code 7.
PIN8
Pin code 8.
PIN9
Pin code 9.
PIN10
Pin code 10.
PIN11
Pin code 11.
PIN12
Pin code 12.
PIN13
Pin code 13.
PIN14
Pin code 14.
PIN15
Pin code 15.
PIN16
Pin code 16.
PIN17
Pin code 17.
PIN18
Pin code 18.
PIN19
Pin code 19.
PIN20
Pin code 20.
Table 20: Entering PIN code parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
PIN1
3369
Pin code 1.
PIN12
1234
Pin code 2.
Table 21: Entering PIN code example.
♦ Remote programming by SMS
; PIN1 =3369; PIN12 =1234;
NOTE
PINx codes must be 4 digits long, and must start with number greater
or equal 1.
9.10 CLIP
CLIP is used to provide the “free of charge” options to control the outputs.
Page 35
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%34%
9.10.1 CLPEN parameter
Parameter used to enable CLIP functionality.
9.10.2 CLPOU parameter
Parameter used to choose which output will be controlled by the CLIP
functionality.
9.10.3 CLPI parameter
This parameter, if set, is a precondition for CLIP function to control the output.
9.10.4 CLP1 … CLP20 parameter
Set of telephone number, which can control the output. The number not on CLP
list is not able to control the output using clip functionality.
9.10.5 Table of parameters
Name
Comment
CLPEN
Enable CLIP functionality
CLPOU
Control output pin when CLIP event
CLPI
CLIP input activation condition
CLP1
CLIP number 1
.
.
.
.
.
.
CLP20
CLIP number 20
Table 22: CLIP parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
Page 36
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%35%
SIM CARD PHONE BOOK
Name
Number
Description
CLPEN
1
Enable CLIP functionality
CLPOU
2
CLIP control output 2
CLPI
0
No input activation condition
CLP1
040414414
CLIP number 1
CLP2
042340880
CLIP number 2
Table 23: CLIP parameters example.
♦ Remote programming by SMS
;CLPEN=1;CLPOU=2;CLPI=0;CLP1=040414414;CLP2=042340880;
Page 37
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%36%
9.11 EVENT LOGING
ICE-ENTRY-100 device support loging of specific events. ICE-Entry-100 logs CLIP
event and alarm input events.
Log event consist of event type, time and telephone number or input number.
9.11.1 LOGN parameter
Parameter is used for defining the number of events printed out on PLOG request.
9.11.2 LOGI parameter
Parameter is used to define the media used for loging of events on ICE-ENTRY-
100. User can select between nonvolatile memory on ICE-ENTRY-100 or select
USB to transfer events directly via USB to PC.
9.11.3 ALC parameter
Parameter is used to control behavior when log on ICE-ENTRY-100 is full. User can
select between auto log clear or manual clear of log.
9.11.4 Table of parameters
Name
Comment
LOGN
Number of log events for printing out
LOGI
Log interface
ALC
Automatic log clear
Table 24: LOG parameters.
Example:
♦ Direct programming on the SIM card
ICE-ENTRY-100 PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
LOGN
5
5 log events will be printed out on PLOG command
Page 38
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%37%
LOGI
0
Nonvolatile memory on ICE-ENTRY-100
ALC
1
Log is auto cleared when full
Table 25: LOG parameters example.
♦ Remote programming by SMS
;LOGN=5;LOGI=0;ALC=1;
9.12 SPECIAL SMS COMMANDS
These commands can only be issued only over SMS message, and are used to
control some special functions of ICE-ENTRY-100 device.
9.12.1 ORC command
Command is used to control outputs directly via SMS message
9.12.2 SDCLR command
To clear all data on SIM card SDCLR command is used.
9.12.3 LCRL command
Command clears log on ICE-ENTRY-100 device.
9.12.4 CLPCLR command
Command is used to delete all CLP numbers.
9.12.5 MRES command
Command is used to manually restart GSM module on ICE-ENTRY-100 device.
9.12.6 SSRES command
Command is used to manually restart ICE-ENTRY-100 device.
Page 39
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%38%
9.12.7 Table of parameters
Name
Comment
ORC1
Control of output 1
ORC2
Control of output 2
SDCLR
Delete all SIM content
LCRL
Delete log on ICE-ENTRY-100 device
MRES
Manual reset of GSM module
SSRES
Manual reset of ICE-ENTRY-100 device
Table 26: SMS commands.
Example:
♦ Remote programming by SMS
SMS commad
Description
;ORC1=1;
Activate output 1
;ORC2=0;
Deactivate output 2
;SDCLR;
Clear all data on SIM
;LCLR;
Delete log on ICE-ENTRY-100 device
;MRES;
Manual reset of GSM module
;SSRES;
Manual reset of ICE-ENTRY-100 device
Table 27: SMS commands example.
Page 40
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%39%
10 PRINT-OUT OF THE PARAMETERS
The user can check the settings of ALL parameters on the ICE-ENTRY-100.
10.1 RECEIVE ALL PARAMETERS (PALL)
By sending this command to ICE-ENTRY-100 you receive SMS messages with all
parameters that are currently programmed in the unit:
;PALL;
10.2 CHECK SW REVISION (PSW)
By sending this command to ICE-ENTRY-100 you receive SMS messages with
current SW version running on ICE-ENTRY-100 device:
;PSW;
10.3 CHECK SIGNAL QUALITY (PSQ)
By sending this command to ICE-ENTRY-100 you receive SMS messages with signal
quality ICE-ENTRY-100 device is connected to network:
;PSQ;
10.4 RECEIVE TELEPHONE NUMBERS (PTN)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed telephone numbers (TN1 – TN5):
;PTN;
10.5 RECEIVE LINKS (PLN)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed links (LN1 –LN6):
;PLN;
Page 41
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%40%
10.6 RECEIVE INPUT PARAMETERS (PIN)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed Input parameters (IN1 – IN4):
;PIN;
10.7 RECEIVE INPUT FILTER VALUE (PID)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed Input filters (ID1 – ID2):
;PID;
10.8 RECEIVE OUTPUT FILTER VALUE (POD)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed direct output links (OD1 – OD3):
;POD;
10.9 RECEIVE DELAY BEFORE DIAL VALUE (PDD)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed Input filters (DD1 – DD2):
;PDD;
10.10 RECEIVE ACCESS TELEPHONE NUMBERS (PSL)
By sending this command to ICE-ENTRY-100 you receive SMS message with
programmed SL level:
;PSL;
10.11 RECEIVE OUTPUT PARAMETERS (POS)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed Outputs parameters (OS1 – OS2):
;POS;
Page 42
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%41%
10.12 RECEIVE ALL PROGRAMMED SMS MESSAGES
(P#)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed alarm SMS messages (#0 - #4):
;P#;
10.13 RECEIVE SET UP PARAMETERS VALUE (PPA)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed Setup parameters (TST, MNF…):
;PPA;
10.14 RECEIVE CREDIT PARS PARAMETERS (PCREF)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed credit parse parameters (CREF, CVODA…):
;PCREF;
10.15 RECEIVE ALL CLIP PARAMETERS (PCLP)
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed CLIP functionality related parameters ( CLPEN, CLPOU, CLPI,
CLPx):
;PCLP;
NOTE
User can use ;PCLP=x,y; to limit the number of CLIP numbers to be
printed.
x = start number
y = end number
Example
;PCLP=1,10; Prints first 10 CLIP numbers
Page 43
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%42%
10.16 RECEIVE INTERCOM CALL GROUPS
PARAMATERS
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed button 1 group parameters ( KPAx, KPBx, KPNx, KP0x,
KPTx):
;PKP;
NOTE
User can use ;PKP=x,y; to limit the number of call groups to be printed.
x = start group
y = end group
Example
;Pkp=1, 10; Prints first 10 call groups settings
10.17 RECEIVE TRADE BUTTON PARAMETERS
By sending this command to ICE-ENTRY-100 you receive SMS message with all
currently programmed trade button settings:
;PTB;
10.18 STATE OF THE CREDIT FOR THE PREPAID CARD
By sending this command to ICE-ENTRY-100 you receive SMS message with Credit
amount on your prepaid SIM card:
;PCCX;
Where X is the number of programmed prepaid card provider.
10.19 STATE OF THE OUTPUTS (PORC)
By sending this command to ICE-ENTRY-100 you receive SMS message with
current outputs state.
;PORC;
Page 44
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%43%
10.20 MANUAL GSM MODULE RETARD (MRES)
By sending this command to ICE-ENTRY-100 shuts down GSM module and after a
few second it switches the power of the GSM module ON again. The unit reboots
all parameters from the SIM card.
;MRES;
10.21 RECEIVE STATUS OF INPUTS (INS)
By sending this command to ICE-ENTRY-100 you receive SMS message with
current input state.
;INS;
10.22 RECEIVE ICE- ENTRY-100 LOG
By sending this command to ICE-ENTRY-100 you receive SMS message with log on
ICE-ENTRY-100 device.
;PLOG;
Page 45
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%44%
11 CHANGING PARAMETERS USING THE SMS
COMMANDS
All programming parameters for ICE-ENTRY-100 can also be sent by SMS
command. Each SMS command should start and stop with semicolon. If the
confirmation SMS is needed, put “+” at the beginning of the command SMS.
The first SMS is SMS with telephone numbers (TN1 – TN4). If you would like to
check which telephone numbers are programmed in ICE-ENTRY-100 please use the
following command:
;PTN;
Return SMS is (example):
;TN1=0;TN2=0;
If you would like to enter telephone numbers in to ICE-ENTRY-100 you can use the
following example:
;TN1=040713470;TN2=+38643364850;
If you would like to receive confirmation SMS write “+” before SMS command:
;+TN1=040713470;TN2=+38643364850;
Return SMS from ICE-ENTRY-100 is:
;TN1=040713470;TN2=+38643364850;
NOTE
You can use the same programming procedure for all
parameters.
It is also possible to change different parameters with one SMS. Consider that the
SMS message should not be longer than 160 characters (included space
characters).
If you would like to change the following parameters TN1, IN1, IN2, OS1, OS2;
ID1, LN1 and CRE and would like to receive confirmation SMS, try next example:
;+TN1=+38640713470;IN1=1;IN2=1;OS1=15;OS2=1;ID1=120;LN1=1;
Page 46
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%45%
Send SMS message to ICE-ENTRY-100 telephone number and in a few seconds you
receive SMS message from ICE-ENTRY-100. The sentence of the SMS must be the
same as the one you have sent to ICE-ENTRY-100 before.
Page 47
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%46%
12 DEFAULT SETTINGS ON ICE-ENTRY-100
ICE-ENTRY-100 PROGRAMMING TABLE
Name
Default Value
Short Description
TN1
Empty
Telephone number 1
TN2
Empty
Telephone number 1
TN3
Empty
Telephone number 2
TN4
Empty
Telephone number 3
TN5
Empty
Telephone number 4
IN1
0
Input 1 control
IN2
0
Input 2 control
OS1
5
Output 1 mode
OS2
5
Output 2 mode
OD1
1
Input 1 direct output link
OD2
0
Input 2 direct output link
OD5
0
NAC direct output link
LN1
Empty
Input 1, link to tel. numbers
LN2
1
Input 2, link to tel. numbers
LN3
Empty
Periodic SMS text, link to tel. numbers
LN4
Empty
SIM card refill, link to tel. numbers
LN5
Empty
NAC, link to tel. numbers
LN6
Empty
LOG full, link to tel. numbers
ID1
1
Input 1 delay filter on input
ID2
120
Input 2 delay filter on input
DD1
0
Input 1 delay before dialing
DD2
0
Input 2 delay before dialing
SL
0
Security level
#0
“User Location”
SMS main head text
#1
“Input1”
SMS input 1 text
#2
“Input2”
SMS input 2 text
CC1
Empty
Check credit Num 1
CC2
Empty
Check credit, TIM Italy
CC3
Empty
Check credit, Vodafone Italy
UDC
Empty
Tel. number of ICE-ENTRY-100 device
HTN
1
Hidden telephone number
RAN
0
Auto answer ring number
SCV
0
SIM card time validity
TST
24
Periodic test SMS timeout
MNF
0
Network connection type
MIC
15
Microphone volume setting ( 0 - 40 )
MUT
0
Mute functionality
SPK
10
Speaker volume setting ( 0 - 20 )
LCV
4
Low credit value
Page 48
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%47%
ICE-ENTRY-100 PROGRAMMING TABLE
Name
Default Value
Short Description
LNG
0
Language selection
LOT
90
Connection time out value
LOGN
5
Number of log events for printing out
LOGI
0
Log interface
ALC
1
Automatic log clear
ADF
90
Auto dial functionality ( Call TN1 )
ARST
0
Automatic reset timeout
CREF
“EUR”
Parse text( contact support )
CTIM
“EURO”
Parse text( contact support )
CVODA
“DISPON. E.”
Parse text( contact support )
OP1
1
Output invert 1
OP2
1
Output invert 2
BUZ
1
Buzzer control
SPO
1
SIM card starting position
CLPEN
1
Enable CLIP functionality
CLPOU
1
Control output pin when CLIP event
CLPI
0
CLIP input activation condition
CLP1
Empty
CLIP number 1
.
.
.
.
.
.
CLP20
Empty
CLIP number 20
KPA1
Empty
Call group 1, Telephone number 1.
KPB1
Empty
Call group 1, Telephone number 2.
KPN1
1
Call group 1, keypad dial number .
KPT1
25
Call group 1, time out control for voice
connection.
KPO1
1
Call group 1, output .
.
.
.
.
.
.
KPA100
Empty
Call group 100, Telephone number 1.
KPB100
Empty
Call group 100, Telephone number 2.
KPN100
100
Call group 100, keypad dial number .
KPT100
25
Call group 100, time out control for voice
connection.
KPO100
1
Call group 100, output .
TBE
0
Trade button enable/disable.
TBZS
0
Trade button zone interval start.
TBZE
0
Trade button zone interval end.
Table 28: ICE-ENTRY-100 default settings.
Page 49
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%48%
13 PARAMETERS PRINT-OUT COMMANDS
ICE-ENTRY-100 PROGRAMMING TABLE
Name
Short Description
PALL
Prints all parameters available on ICE-ENTRY-100.
PSW
Prints SW version of ICE-ENTRY-100.
PSQ
Prints GSM network signal quality of ICE-ENTRY-
100.
PTN
Prints TNx numbers.
PLN
Prints LNx links.
PIN
Prints INx parameters.
PID
Prints IDx parameters.
POD
Prints ODx parameters.
PDD
Prints DDx parameters
PSL
Prints SL parameter.
POS
Prints OSx parameters.
P#
Prints #x parameters.
PPA
Prints various setup parameters.
PCLP
Prints CLIP parameters.
PLOG
Prints log of the ICE-ENTRY-100.
PCREF
Prints credit pars parameters.
PCN
Prints credit request numbers.
PCC1
Prints credit for ICE-ENTRY-100 (universal
request).
PCC2
Prints credit for ICE-ENTRY-100. (TIM Italy).
PCC3
Prints credit for ICE-ENTRY-100. (VODAFONE
Italy).
PWG
Prints Wiegand parameters.
INS
Prints status of the inputs.
PORC
Prints (controls) the status of outputs.
PKP
Prints call groups parameters.
PPIN
Prints PINx parameters.
PTB
Prints trade button parameters.
PERR
Special debug command, contact supplier for
details.
Table 29: ICE-ENTRY-100 parameters print out commands.
Page 50
ICE+ENTRY+100'
INSTALLATION'M A N U A L+
Page%49%
14 TECHNICAL SPECIFICATIONS
Description
Value
Power Supply
15 - 24V AC/DC
Current consumption - peak
2A
Current consumption - transmitting
mode
250mA
Current consumption - idle mode
80mA
Quad band GSM module
850/900/1800/1900
MHz
PCB dimensions
106 × 89 mm
Unit dimensions
290 × 113 × 56 mm
External Antenna SMA
1
Weight approx..
1500 gr.
Alarm inputs
2
Alarm outputs (relay)
2
Wiegand 26 Output
Yes
12V DC Aux. Power Supply output
Yes (500 mA max)
52/24V AC/DC Power Supply input
Yes
Anti-tamper protection
optional
Page 51
Page 52
TRANSMITTER SOLUTIONS WARRANTY
The warranty period of this Transmitter Solutions product is twenty-four (24) months. This warranty shall
begin on the date the product is manufactured. During the warranty period, the product will be repaired or
replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a
defective component. This warranty does not extend to (a) the product case, which can be damaged by
conditions outside the control of Transmitter Solutions, or (b) battery life of the product. This warranty is
further limited by the following disclaimer of warranty and liability:
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES REGARDING THE GOODS, EXPRESS OR
IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. BUYER
MAKES NO RELIANCE ON ANY REPRESENTATION OF TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO
THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON
CONDITION THAT TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER
AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR DAMAGES OF ANY KIND, WHETHER DIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS
EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD TRANSMITTER SOLUTIONS
HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S USE OR DISPOSAL OF
THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN CONSIDERATION OF RECEIVING THE
GOODS.
Loading...
