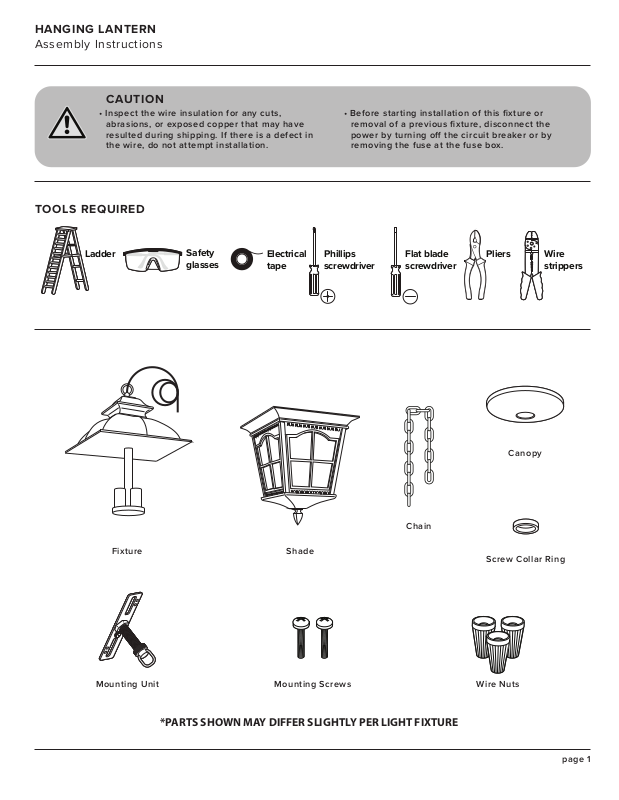

HANGING LANTERN
Assembly Instructions
CAUTION
• Inspect the wire insulation for any cuts,
abrasions, or exposed copper that may have
resulted during shipping. If there is a defect in
the wire, do not attempt installation.
TOOLS REQUIRED
• Before starting installation of this fixture or
removal of a previous fixture, disconnect the
power by turning o the circuit breaker or by
removing the fuse at the fuse box.
Ladder
Safety
glasses
Electrical
tape
Phillips
screwdriver
screwdriver
Chain
PliersFlat blade
Wire
strippers
Canopy
Fixture Shade
Mounting Unit Mounting Screws Wire Nuts
Screw Collar Ring
*PARTS SHOWN MAY DIFFER SLIGHTLY PER LIGHT FIXTURE
page 1
HANGING LANTERN
Assembly Instructions
STEP 1
Attach the end of the chain to the loop on the
fixture.
STEP 2
Use the mounting screws to attach the mounting
unit to the junction box
STEP 3
Pass the chain and the branchwires through the
screw collar ring and canopy. Feed the branchwires
through the pipe nipple on the mounting unit and
attach the end of the chain to the mounting unit.
page 2
HANGING LANTERN
Assembly Instructions
STEP 4
Make the electrical connection from the junction
box to the fixture. Connect the ground wire to the
mounting unit using the preinstalled green ground
screw. Then, connect the positive, negative and
ground wires with the supplied wire nuts. Secure
with electrical tape
Connect Clear, Brown, Gold or
Black Parallel Wire without tracer
(round & smooth) or Black Fixture
Wire to:
Black or Red Supply Wire or
Insulated Wire (other than green)
with copper conductor.
Connect Clear, Brown, Gold or
Black *Parallel Wire with tracer
(square & ridged) or White Fixture
Wire to:
White Supply Wire or Insulated
Wire (other than green) with silver
conductor
STEP 5
Secure the canopy to the mounting unit with the
screw collar ring.
Copper
Silver
Smooth
Ridged
STEP 6
Install bulbs (not included). Secure the shade to the
fixture.
page 3
