Page 1
HLE-4K
HDMI Extender System
Installation Manual
HLE-4K Manual English 030117.indd 1
3/1/17 9:00AM
Page 2
2
Introduction ............................................ . 3
Kit Contents ............................................ . 4
Feature Set ............................................ . 5
.......................................... . 6
Transmitter Connections .................................. . 7
Reciever Connections .................................... . 8
Transmitter Functions .................................... . 9
Receiver Functions ..................................... . 10
IR Connection Diagrams ................................. . 11
Troubleshooting ........................................ . 12
Warranty ............................................. . 12
HLE-4K Installation Manual
Table of Contents
HLE-4K Manual English 030117.indd 2 3/1/17 9:00AM
Specications
Page 3
HLE-4K Installation Manual
3
Introduction
INTRODUCTION
Thank you for purchasing Transformative Engineering’s HLE-4K HDMI Extender Kit.
This product incorporates many advanced technologies to accomplish 2.0 HDMI
compliant extension of the High Definition MultiMedia Interface protocol over one length
of Category 5e/6/7 wire. Among these is certified HDBase-T technology, licensed here.
This unique conversion of HDMI signals provides for the most reliable, stable and
predictable method to transfer all HDMI requirements. More information on this
technology may be found at the HDBase-T website, www.hdbaset.org . We are proud
to be an early Adopter Member of the Alliance.
Proper connection and attention to limitations of this product will provide secure,
reliable, and predictable results. The most important variable to success will depend on
wire chosen as the interconnection between our Transmitter and Receiver. All Category
wire is not created equal. It is vital that care is taken at all times to avoid kinks, crimps,
nicks, and other abuse of the wire and jacket. Also, we highly recommend that all wire
be sweep tested before and after installation to insure full bandwidth is not impaired. A
sweep-test generator
tion Tester, or its equivalent,
is suggested. Please be sure to specify Category 5e, or better, cable that meets a
minimum of 400MHz bandwidth. Typical high-quality Category 6 cable performs from
550-850 MHz, and Category 7 cable should pass 1GHz or more.
will also perform with STP (shielded twisted pair) cable as well. MOST FAILURES OR
INCONSISTENT PERFORMANCE ARE THE RESULT OF INFERIOR WIRE OR IMPROPER
TERMINATIONS.
on the connection and choice of the wire used.
Please follow the instructions and diagrams shown in this Manual. Any questions
should be directed to your Dealer, Distributor, or to our Technical Department. Our
Contact information is:
Transformative Engineering, Inc.
194 Vanderbilt Ave.
Norwood, MA 02062-5000
Telephone: 781-769-6410
Fax: 781-255-0975
Email: sales@transformativeengineering.com
HLE-4K Manual English 030117.indd 3 3/1/17 9:00AM
Page 4
4
Kit Contents
KIT CONTENTS
(1) HLE-4K Transmitter Unit (HLE-4K TX)
(1) HLE-4K Receiving Unit (HLE-4K RX)
(1) 24V 18Watt Power Supply
(1) SMA-1 Adapter Cable
(1) User Manual
HLE-4K Manual English 030117.indd 4 3/1/17 9:00AM
Page 5
HLE-4K Installation Manual
5
Features
FEATURE SET
• HDMI 2.0 Extender
• Full HDCP 2.2 Security
• EDID Protocol Integrity
• Bi-Directional IR Power for Pickup and Pass-Thru
• 24V Power Supply for Robust Performance
• Single Power Supply for Head-End Powering of Both Units
• Steel Construction with integrated cooling
• Full 4K/60Hz/4:4:4 with HDR10
• 18.2 Gbps Compatible
HLE-4K Manual English 030117.indd 5
3/1/17 9:00AM
Page 6
6
Specifications
SPECIFICATIONS
Input Signal:
Video Formats Supported:
Audio Formats Supported:
Output Signal:
HDMI Version 1.0 thru 2.0
IR Signal Powered Input for Xantech –Compatible Pickup,
Pass-Thru using SMA-1 Adapter
480i/480p/720p/1080i/1080p/2160p/3840x2160/
4K60Hz4:4:4 with HDR10
All HDMI Supported Formats, including DTS-HD, Dolby-HD,
DVD-A, Dolby TrueHD, DTS-X, 8-CH LPCM
HDMI Version 1.0 thru 2.0
IR Signal – Pass Thru (Xantech Compatible)
(See page 8)
Maximum Distance (with CAT6): 70m @1080p/ 40m @UHD4K/ 30m @Full4K (18.2Gbps )
Power Supply X1 (supplied):
Dimensions (Each)
Weight:
24 VDC, 14 Watts, Each
5.5 ” W x 1” H x 2.76 ” D
1.3 Lbs (Kit)
HLE-4K Manual English 030117.indd 6 3/1/17 9:00AM
Page 7
HLE-4K Installation Manual
7

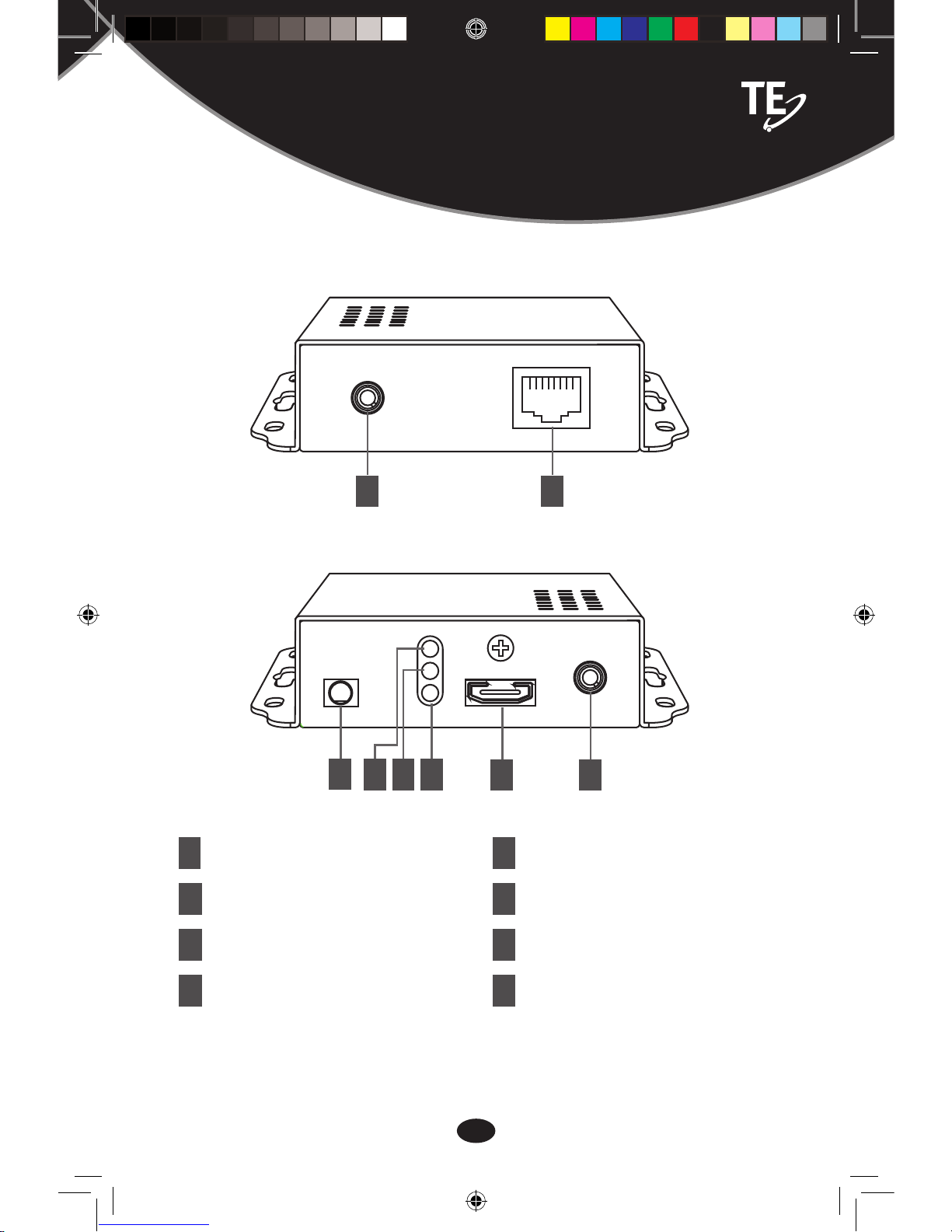

Transmitter Connections
1 IR Out
2 HDBaseT
3 Power Input
4 IR In
5 HDMI In
6 Power Indicator
7 HDMI/HDCP Indicator
8 HDBaseT Link Indicator
TRANSMITTER
HLE-4K Manual English 030117.indd 7 3/1/17 9:00AM
8 7 6
4
5
3
1 2
Page 8
8

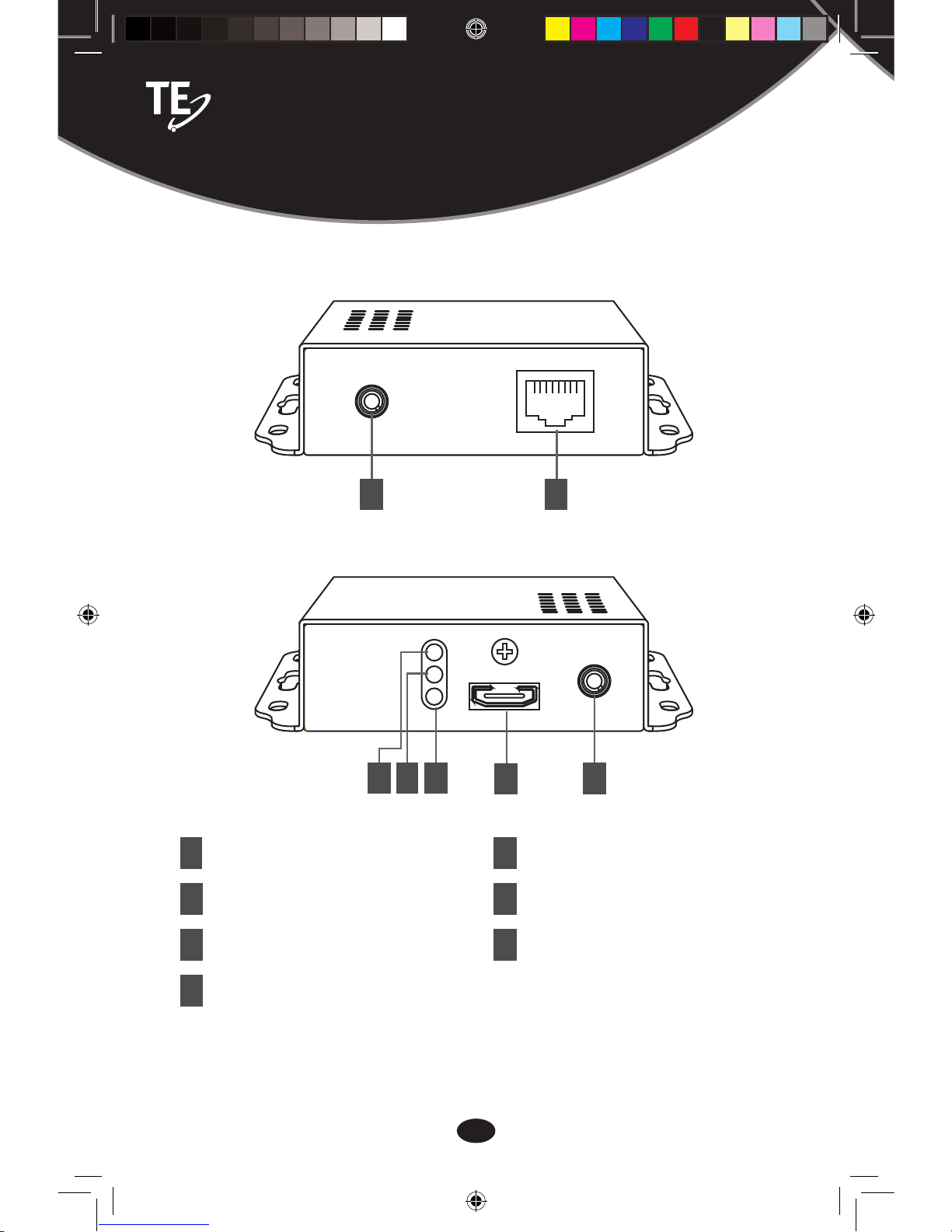

Receiver Connections
RECEIVER
1 IR Out
2 HDBaseT
4 IR In
5 HDMI Out
6 Power Indicator
7 HDMI/HDCP Indicator
8 HDBaseT Link Indicator
HLE-4K Manual English 030117.indd 8
3/1/17 9:00AM
8 7 6
4
5
1 2
Page 9
HLE-4K Installation Manual
9
Transmitter Functions
TRANSMITTER FUNCTIONS - See pg 7
1 IRDA Out – Used for connecting to an Infra-Red Emitter for controlling a device
at this end. The IR Signal would originate from the Receiver end either from a
Powered Pickup or an IR Pass-Thru.
2 HDBase-T Link Connection – Connect via Category 5e/6/7 cable .
Recommended minimum length is 4 Meters up to our maximum rated specification
of 70 Meters.
3 Power Input – Utilizing the supplied 24V 1A supply, connect at the
Transmitter side where indicated. No Power Supply is then necessary at the
Receiver side.
4 IRDA In – Used for connecting to a 12V Powered Infra-Red Pickup device via
3-conductor mini-plug, or for Pass thru using SMA-1 Adapter cable (included). See
Diagram on Page 11 for details.
5 HDMI Input – Connect this to your HDMI Source – Cable Box, Disc Player, etc.
6
Power Indicator – This light indicates that power is being supplied to the unit.
Connection of the (included) Power Supply should illuminate this light on both
Transmitter and Receiver Units.If the “POWER” light is not on, you should
check that the power supply is properly connected.
7 HDMI/HDCP Indicator – This light shows that a valid HDMI connection has
been made, “handshake” has taken place, and there is a High Definition Copy
Protect flag in operation. Attempts to copy Digital content will not be allowed. Any
connection to a non-compliant Digital copy device will cause this light to go off, and
will result in the loss of sign
al.
HLE-4K Manual English 030117.indd 9 3/1/17 9:00AM
Page 10
10
Recievers Functions
A solid HDMI light indicates the unit is processing an HDCP-Encoded signal and
ther
second) HDMI light
indicates the signal is non-copyright encoded, and you should have a picture on
screen. No HDMI light indicates lack of signal being applied. A fast (2x second)
HDMI light indicates an improper copyright attempt and will result in no picture.
8 HDBaseT Link Indicator – These lights show that communication has been
properly established with the HDBase-T Receiver. No other connections need be
made for these lights to indicate your connection is secure. A blinking HDBT link
light indic ates the units are in standby mode. This results from no signal
bei
ng applied to the transmitter. Upon application of the HDMI signal, both
units should wake up (within 1 second) and carry your HDMI signal as
desired.
RECEIVER FUNCTIONS - See Page 8
1 IRDA Out – Used for connecting to an Infra-Red Emitter for controlling a device
at this end. The IR Signal would originate from the Transmitter end either from a
Powered Pickup or an IR Pass-Thru.
2
HDBase-T Link Connection – Refer to Item 2 above.
4
IRDA In – Used for connecting to a 12V Powered Infra-Red Pickup device via 3-
conductor mini-plug, or for Pass thru using SMA-1 Adapter cable (included). See
Diagram on Page 11 for details.
5
HDMI Output – Connect this to your Display device – TV, Projector, etc. All video
signals input to the HDMI Input on the Transmitter will appear here.
6 Power Indicator – Refer to Item 6 above.
7 HDMI/HDCP Indicator – Refer to Item 7 above.
8
HDBaseT Link Indicator – Refer to Item 8 above.
HLE-4K Manual English 030117.indd 10 3/1/17 9:00AM
Page 11
HLE-4K Installation Manual
11

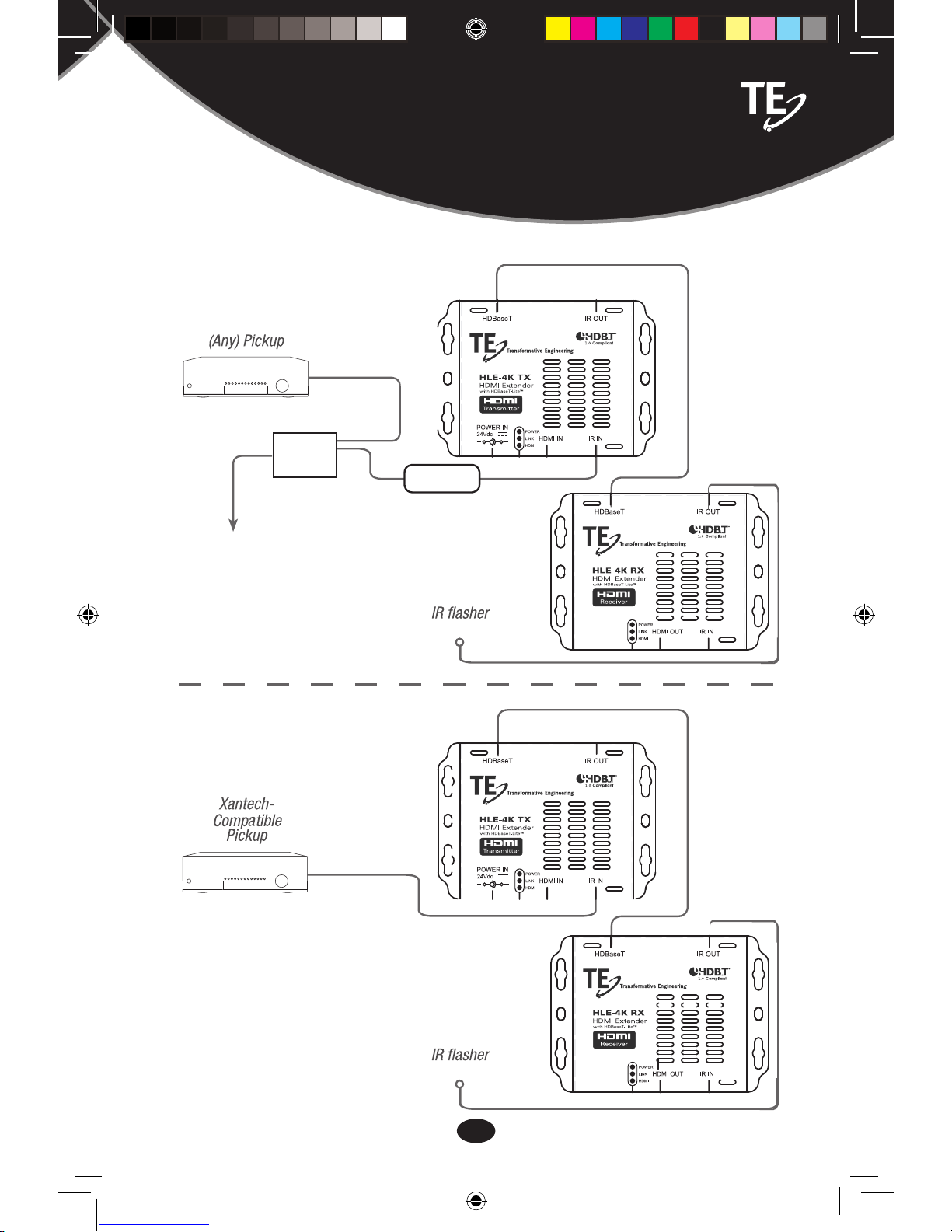

IR Connection Diagrams
IR Pass Thru IR Connection Diagram
Powered Pickup IR Connection Diagram
IR Signal
IR Signal
UTP Cable
UTP Cable
Connecting
Block
Power
Supply
for P/U
(emitter)
(emitter)
Transmitter
SMA-1
Adapter
HLE-4K Manual English 030117.indd 11 3/1/17 9:00AM
Page 12
12
Warranty
TROUBLESHOOTING
As mentioned previously, most malfunctions can be addressed by careful examination
of the Category cable terminations and suitability of the UTP cable itself. Once the
“Link” lights are on, this system is operating normally. Lack of function should be
traced to a failure in HDMI interconnection cables or device settings. If all this has been
examined with no resolution of your problem, please contact our Technical Support
Department at 781-769-6410 or via email at: [email protected].
WARRANTY
Transformative Engineering, Inc. guarantees this product for Three Years from your
original purchase. We guarantee performance and operation to published specifications
including all parts and labor. We do not warranty against mis-use or abuse. To obtain
warranty service, please contact our Technical Support Department at 781-769-6410
or via email at: [email protected].
T
ransformative Engineering, Inc.
194 Vanderbilt Ave.
Norwood, MA 02062-5000
Telephone: 781-769-6410
Fax: 781-255-0975
Email: [email protected]
