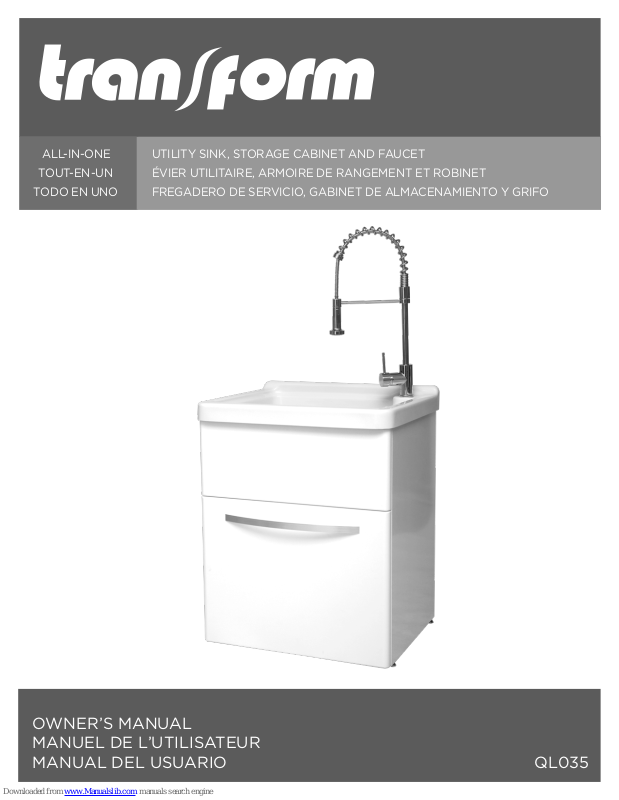

Transform QL035 Owner's Manual

ALL-IN-ONE

UTILITY SINK, STORAGE CABINET AND FAUCET

TOUT-EN-UN

TODO EN UNO

ÉVIER UTILITAIRE, ARMOIRE DE RANGEMENT ET ROBINET
FREGADERO DE SERVICIO, GABINET DE ALMACENAMIENTO Y GRIFO

OWNER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO

QL035

Table of Contents

Safety Information ..................................2

Warranty

One Year Limited Warranty ...........................3

Warranty Claim Procedure ...........................3

Pre-Installation

ENGLISH

Tools/Materials Required ............................4

Parts Required ....................................4

Package Contents .................................5

Installation

Installing the Leveling Legs ..........................6

Installing the Handles ..............................6

Installing the Faucet ...............................7

Installing the Strainer ..............................8

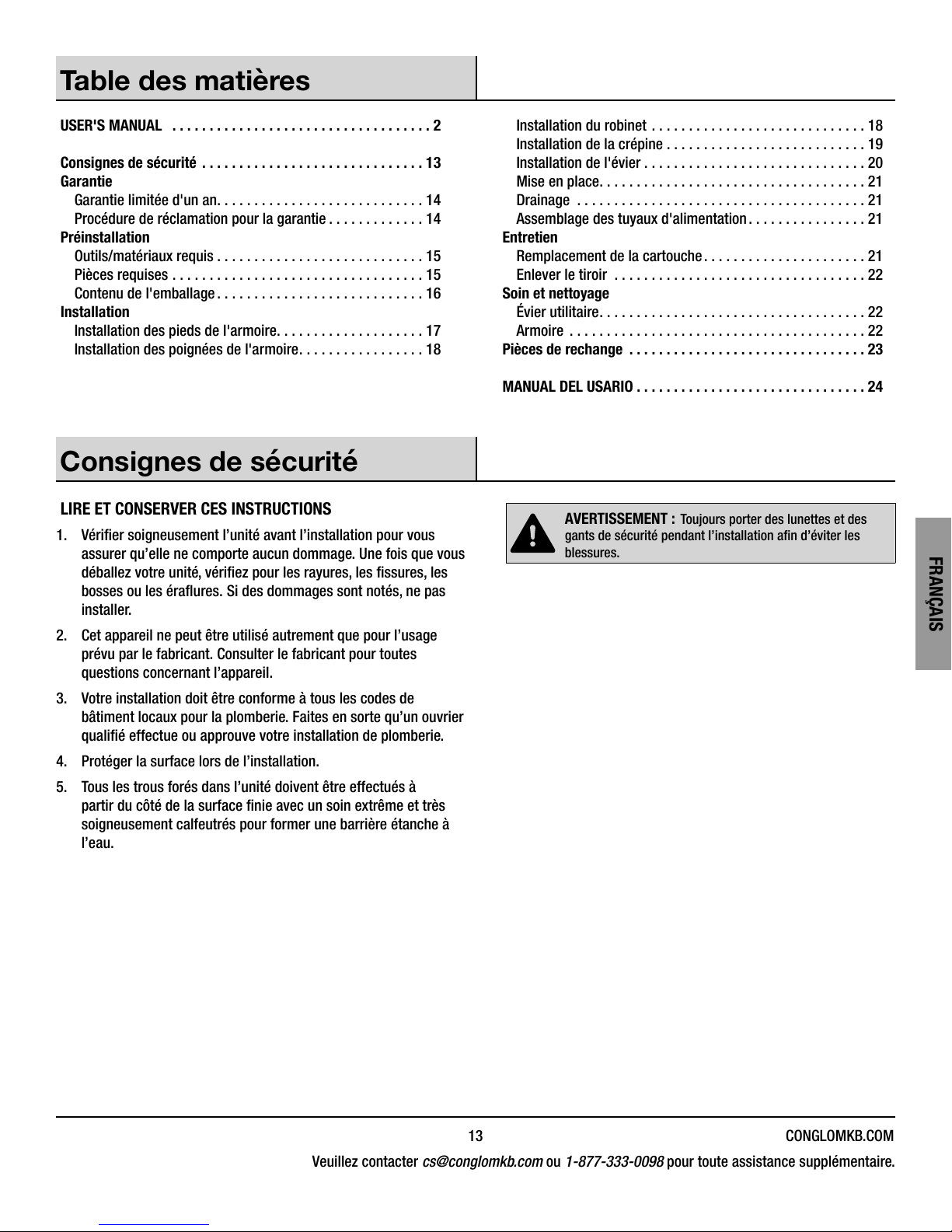

Safety Information

READ AND SAVE THESE INSTRUCTIONS

1. Inspect your unit before proceeding. Once you unpack your unit,
check for chips, scratches, cracks, dents or scuff marks. If any
damage is noticed, do not install.

2. Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the manufacturer.

3. Installation work and plumbing must be done by qualied
person(s) in accordance with all applicable codes and standards.

4. Protect the entire surface during installation.

5. All holes drilled into the unit must be done from the nished
surface side with extreme care and caulked very carefully to
form a watertight barrier.

Mounting the Utility Sink ............................9

Placement ......................................10

Drainage .......................................10

Supply Line .....................................10

Maintenance

Cartridge Replacement ............................10

Drawer Removal .................................11

Care and Cleaning

Utility Sink ......................................11

Cabinet .........................................11

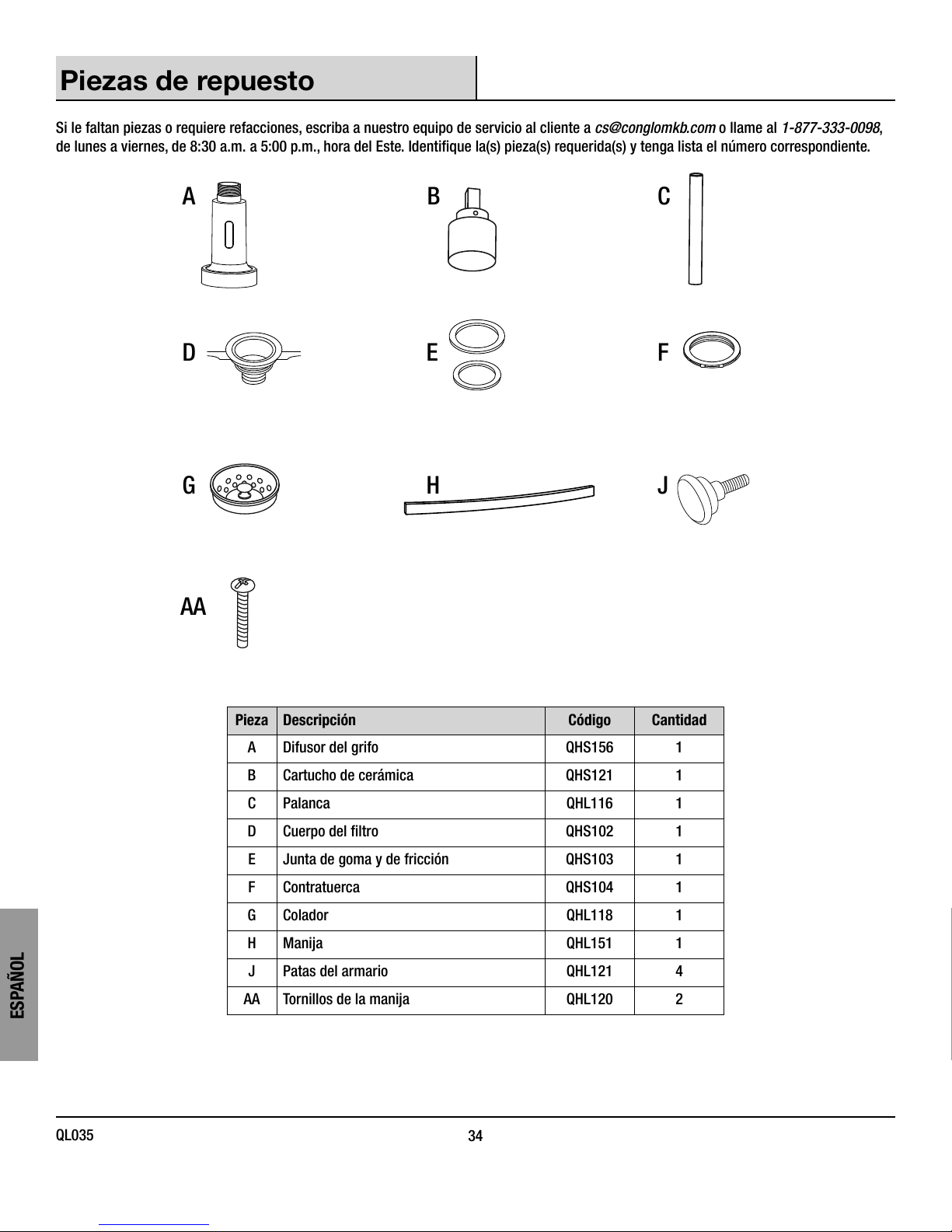

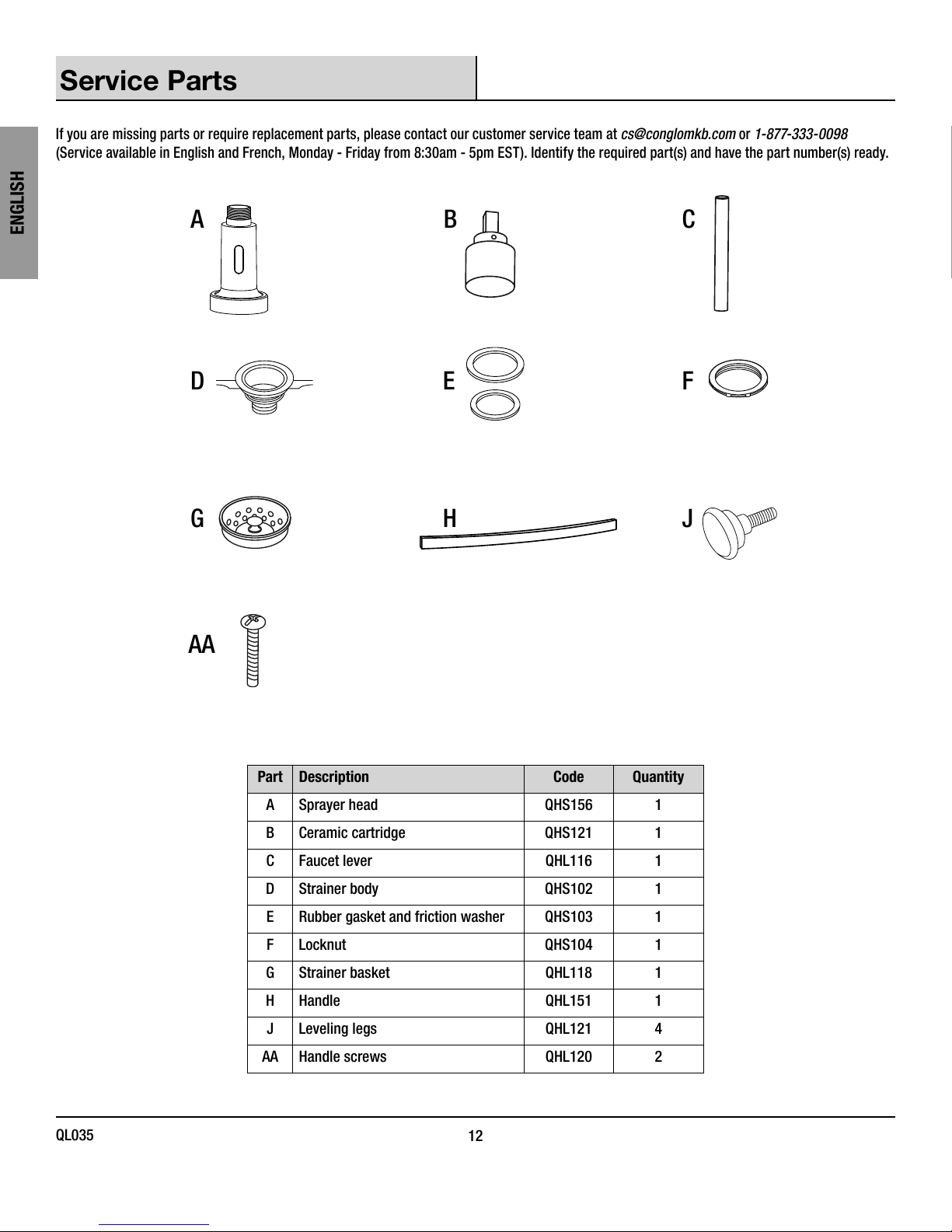

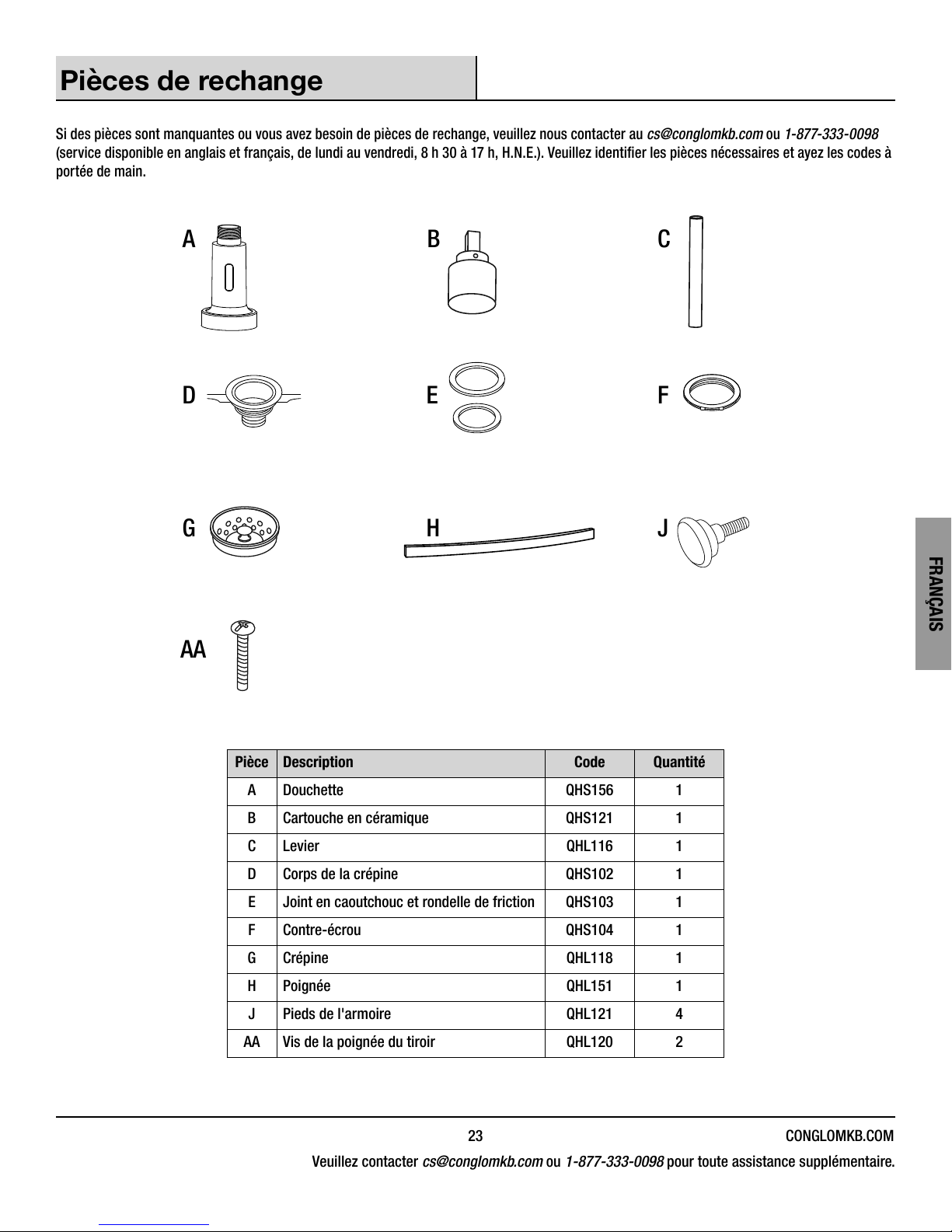

Service Parts ......................................12

MANUEL DE L'UTILISATEUR ..........................13

MANUAL DEL USARIO ...............................24

DANGER: Always wear safety goggles and gloves in order

to avoid personal injury.

QL035

2

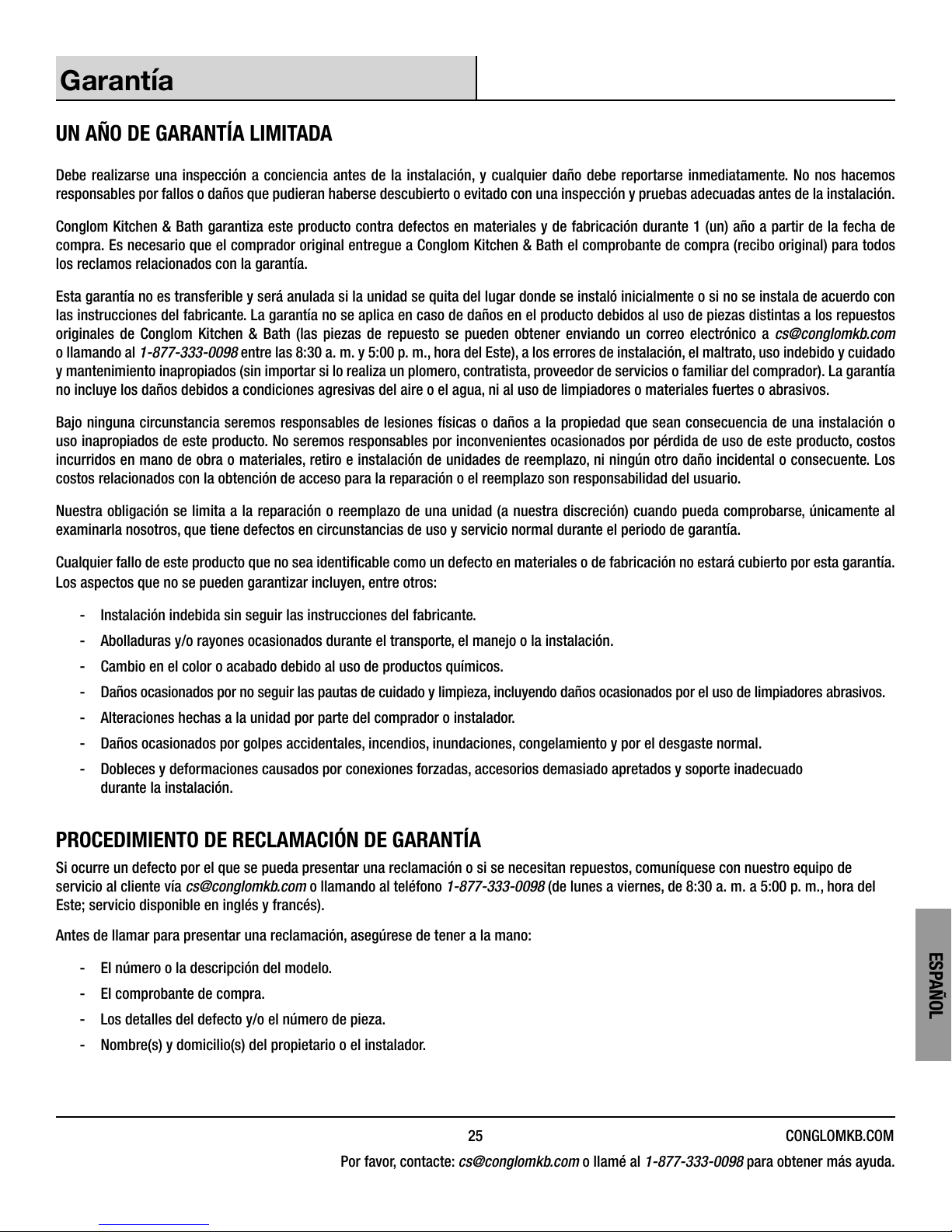

Warranty

ONE YEAR LIMITED WARRANTY

A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.

Conglom Kitchen & Bath warrants this product to be free from defects in materials or workmanship for one (1) year from the date of purchase.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to Conglom Kitchen & Bath for all
warranty claims.

This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following
the manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than genuine Conglom Kitchen
& Bath replacement parts (replacement parts may be obtained by e-mail at [e-mail] or by calling 1-877-333-0098 between
8:30 am - 5:00 pm EST), installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor,
service provider or member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh
or abrasive cleaners and/or materials.

Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.

Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.

Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:

ENGLISH

- Improper installation not in accordance with manufacturer’s instructions.

- Dents and/or scratches incurred during shipping, handling, or installation.

- Change in colour or nish due to chemical usage.

- Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.

- Alterations made to the unit by the purchaser or installer.

- Damage caused by accidental impact, re, ood, freezing, and normal wear.

- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.

WARRANTY CLAIM PROCEDURE

If a claimable defect occurs or replacement parts are needed,
(Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm EST).

Before you make your call, please ensure that you have:

- Model number or description.

- Proof of sale.

- Details regarding the defect and/or part number.

- Name(s) and address(es) of the owner and/or installer.

please contact our customer service team at [e-mail] or 1-877-333-0098

3 CONGLOMKB.COM

Please contact [e-mail] or 1-877-333-0098 for further assistance.

Pre-Installation

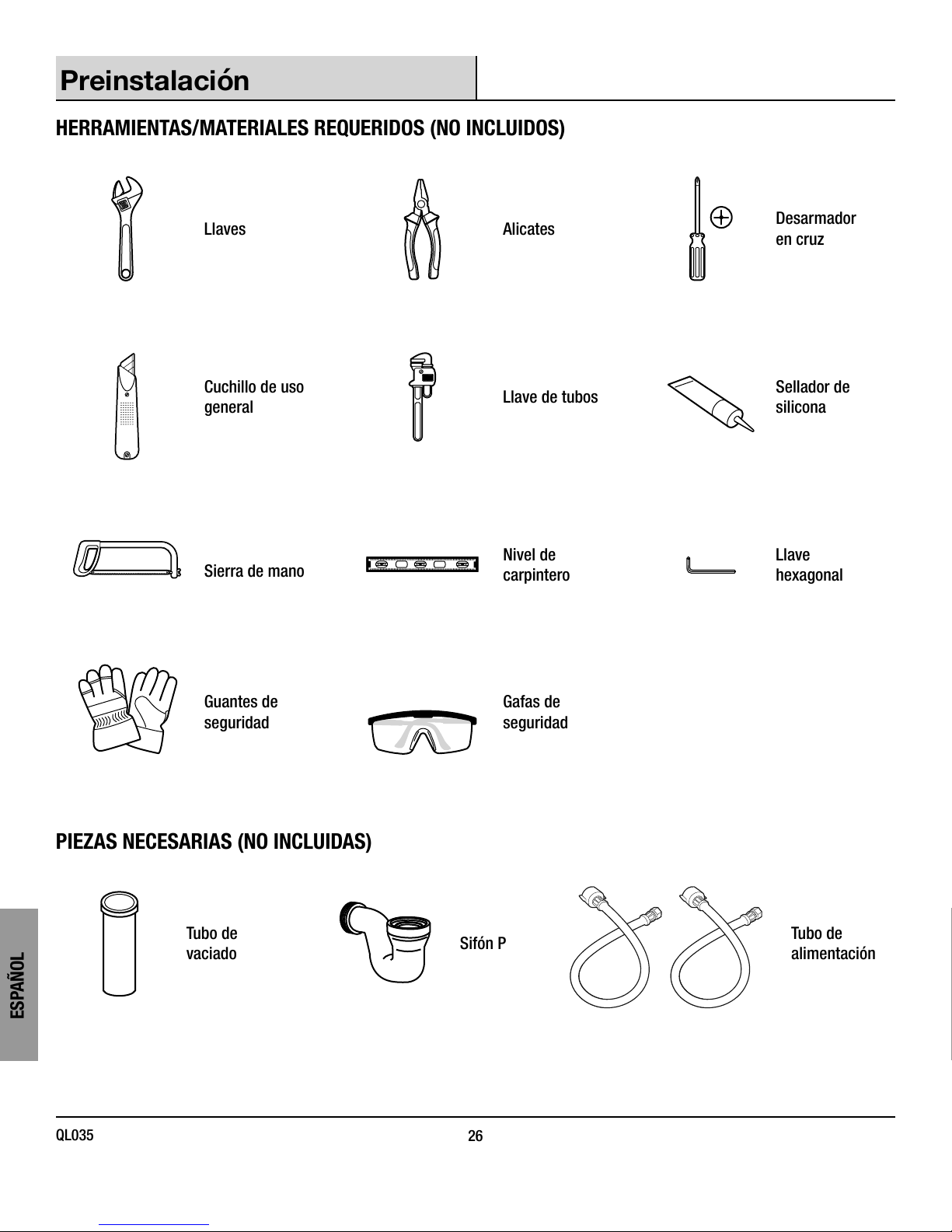

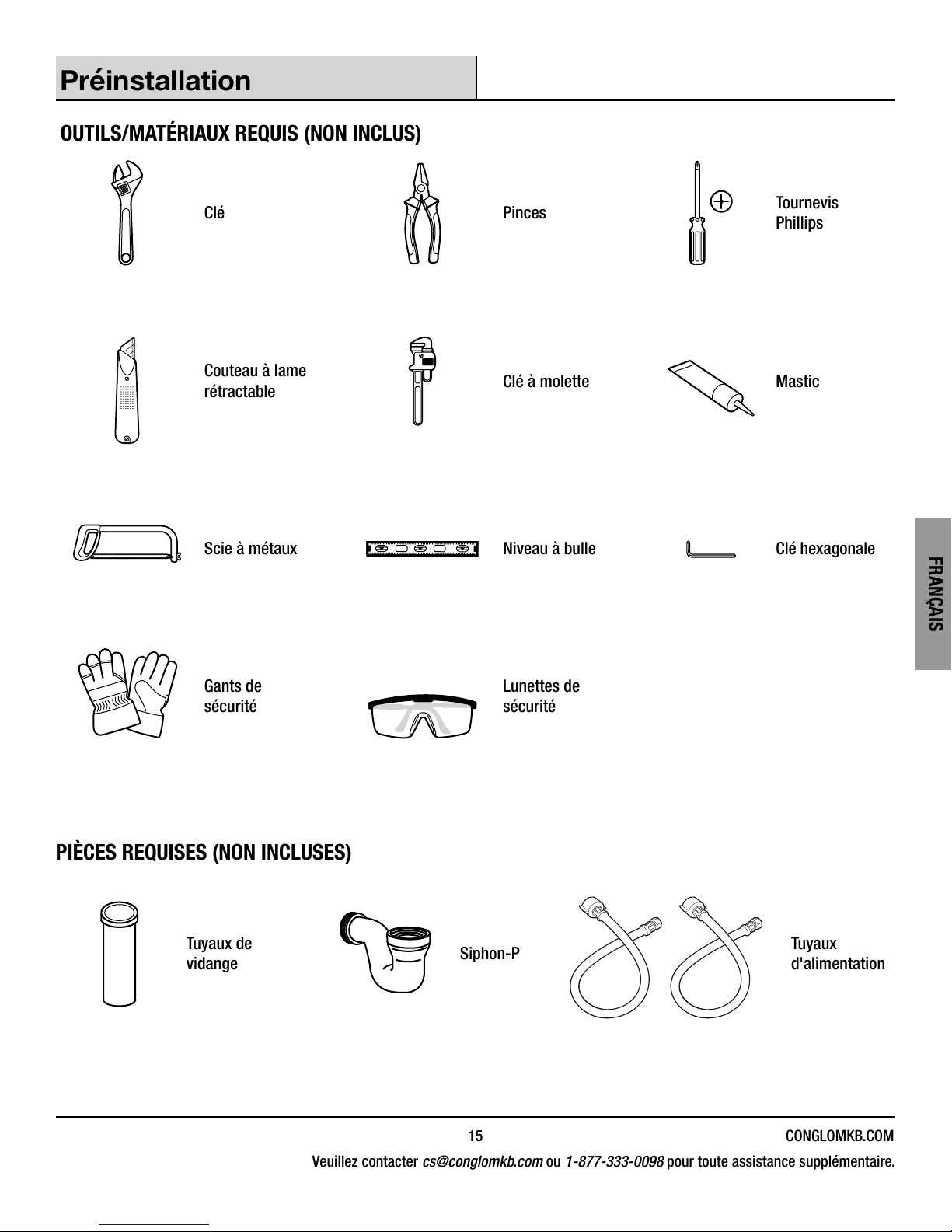

TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)

ENGLISH

Adjustable
wrench

Utility knife Pipe wrench Sealant

Hacksaw Carpenter’s level Hex wrench

Needle nose
pliers

Phillips
screwdriver

Safety gloves Safety goggles

PARTS REQUIRED (NOT SUPPLIED)

Tail Pipe P-Trap Supply Lines

QL035

4

Pre-Installation (continued)

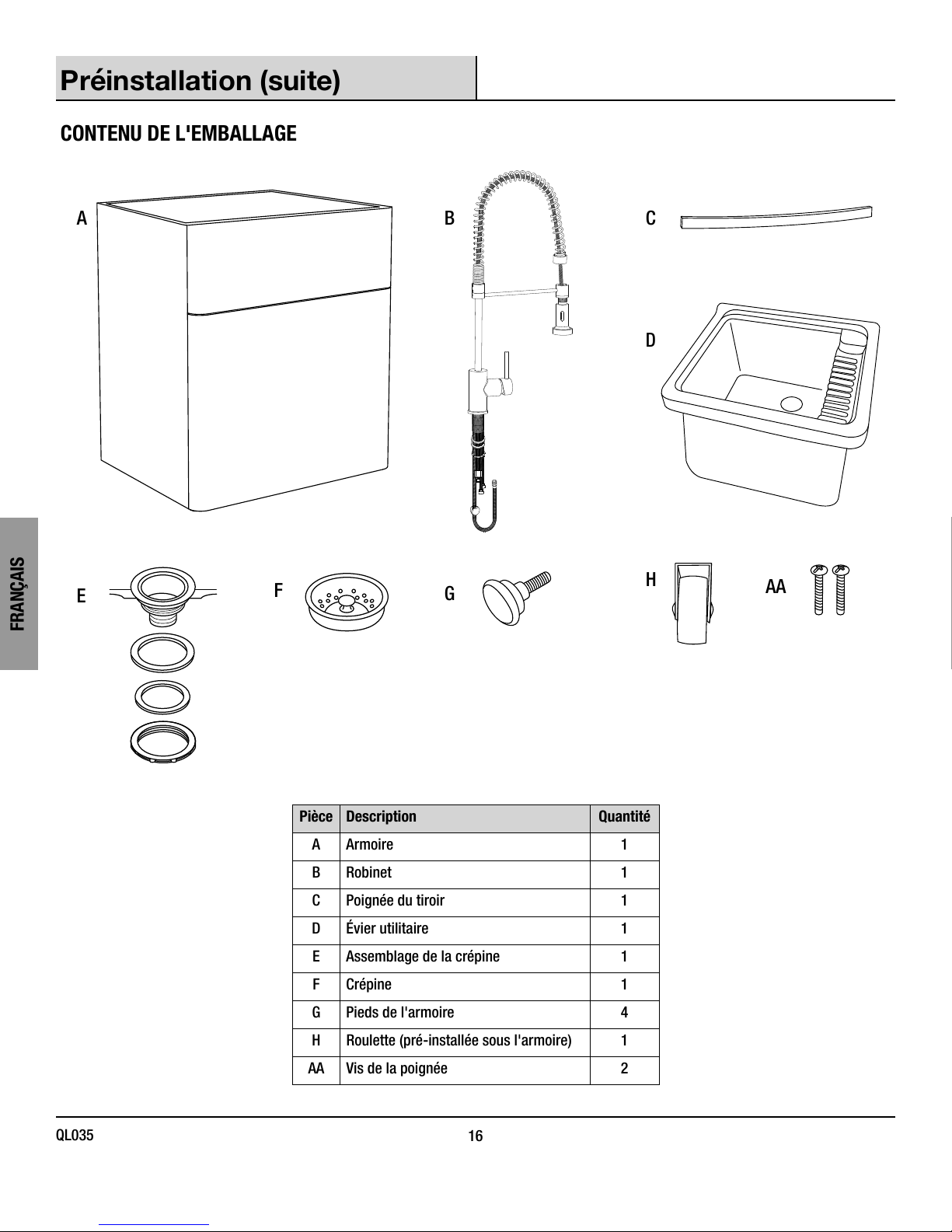

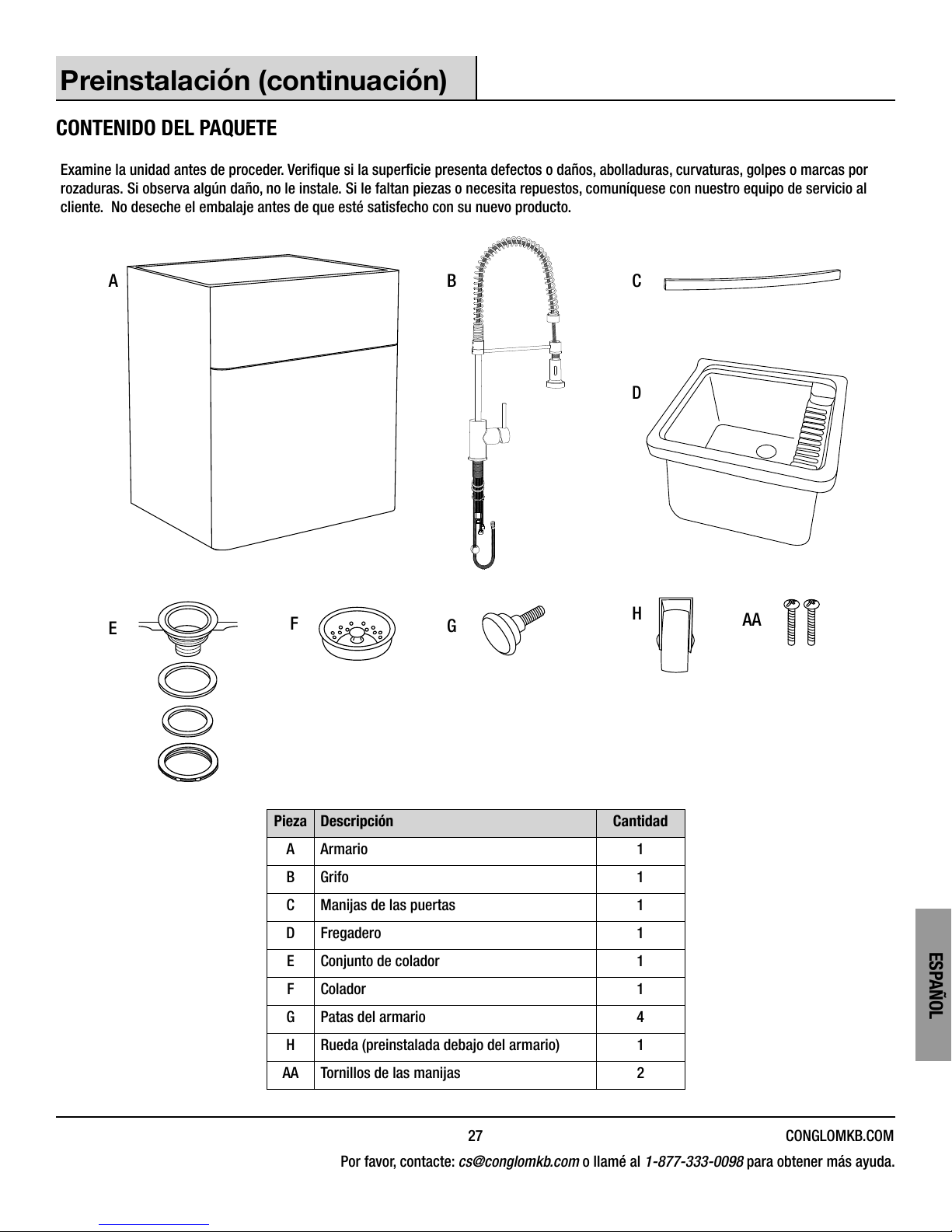

PACKAGE CONTENTS

Carefully check the utility cabinet for damage and/or missing parts prior to installation. If there is any damage or if you are missing parts,
do not proceed with the installation. Report damage and/or missing parts immediately to our customer service team at [e-mail]
or 1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm EST). Please do not dispose of

packaging before you are satised with your new utility cabinet.

A B C

D

ENGLISH

E

F

Part Description Quantity

A Cabinet 1
B Faucet 1
C Drawer Handle 1
D Utility sink 1
E Strainer assembly 1
F Strainer basket 1
G Leveling legs 4
H Caster (pre-installed on cabinet) 1

AA Handle screws 2

G

H

AA

5 CONGLOMKB.COM

Please contact [e-mail] or 1-877-333-0098 for further assistance.

Installation

Fig. 2

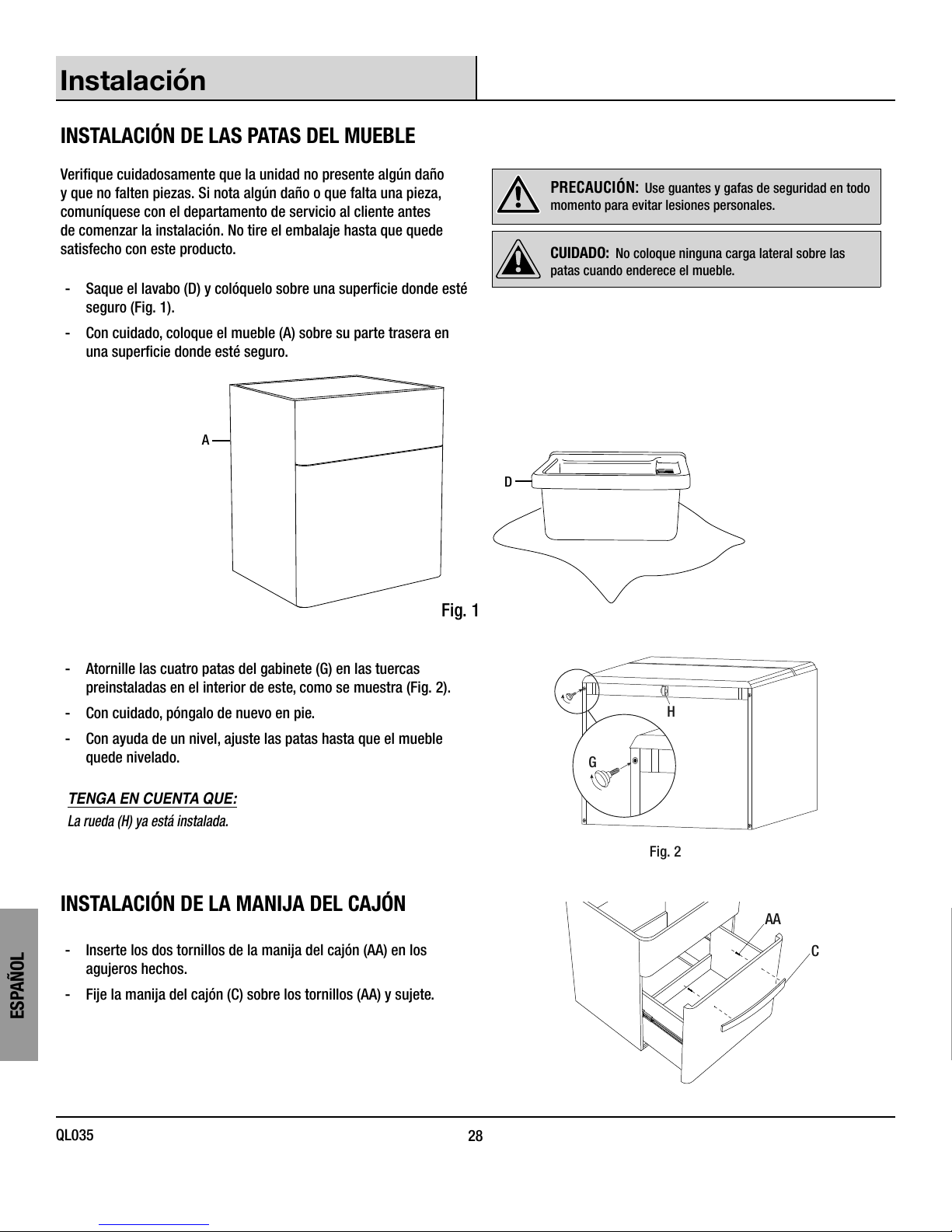

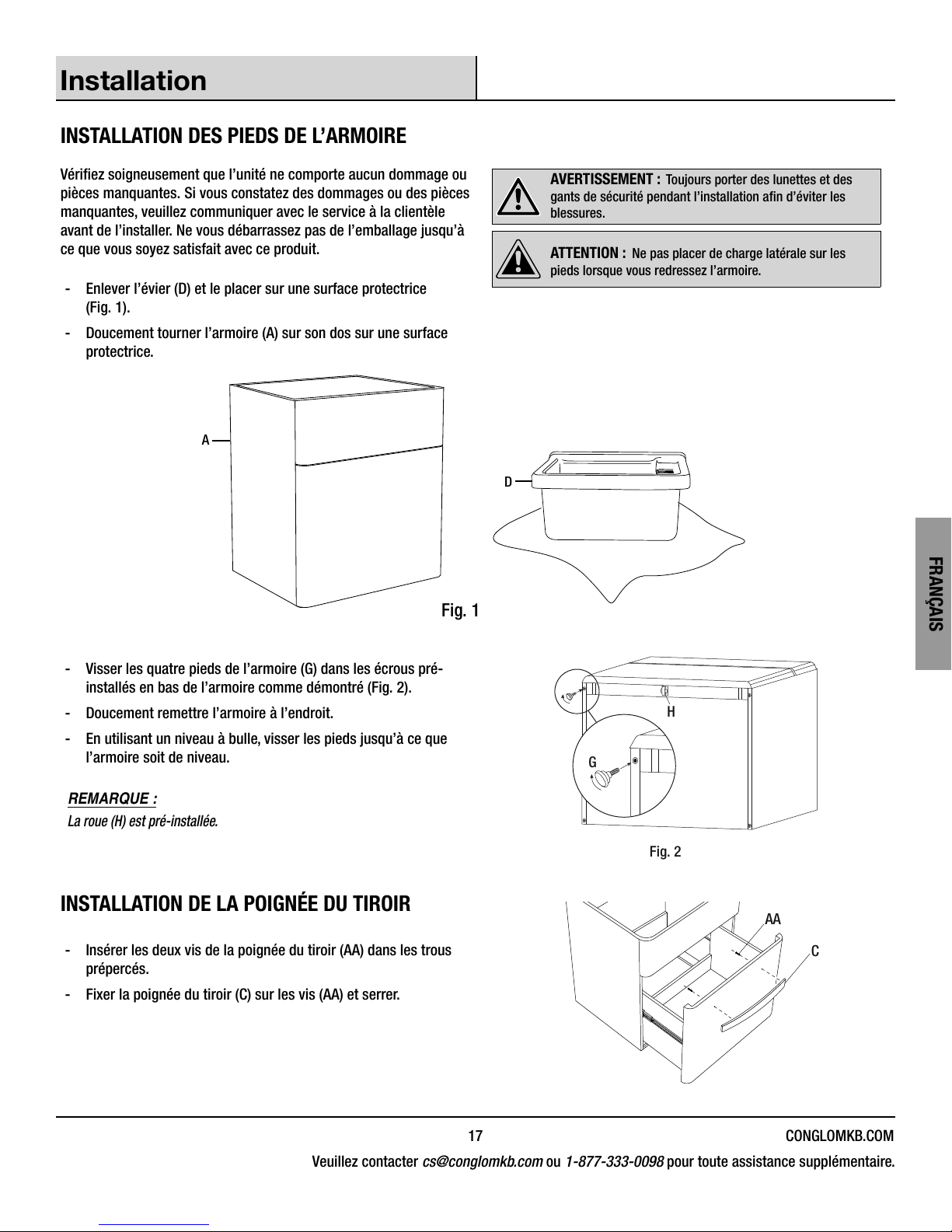

INSTALLING THE LEVELING LEGS

Carefully check the utility sink for damage and/or missing parts prior
to installation. If there is any damage or if you are missing parts,
do not proceed with the installation. Report damage and/or missing

ENGLISH

parts immediately to the manufacturer. Do not dispose of packaging

before you are satised with your new utility sink.

- Remove the utility sink (D) and place it on a soft, protective
surface (Fig. 1).

- Gently place the cabinet (A) onto its back on a soft, protective
surface.

A

WARNING: Always wear safety goggles and gloves during

installation.

CAUTION: Do not place side load on the leveling legs when

righting the cabinet as they may break.

D

- Screw the four leveling legs (G) into the pre-installed nuts on
the bottom of the cabinet (Fig. 2).

- Gently right the cabinet.

- Using a carpenter’s level, turn the base of each leg until the
cabinet is level.

NOTE:

The caster (H) is pre-installed.

INSTALLING THE HANDLE

- Insert two handle screws (AA) into the pre-drilled holes.

- Attach the handle (C) and tighten the handle screws (AA).

Fig. 1

H

G

AA

C

QL035

6

Installation (continued)

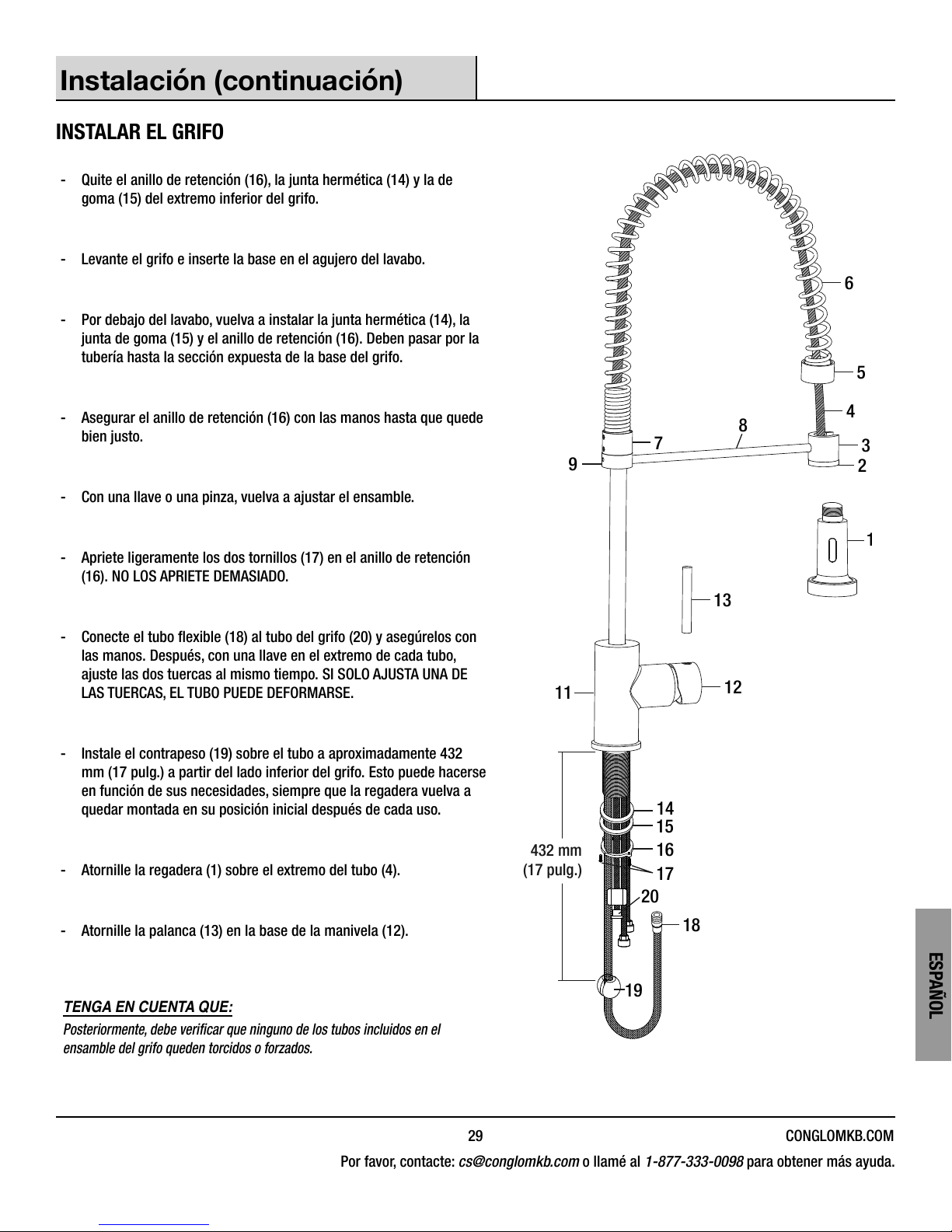

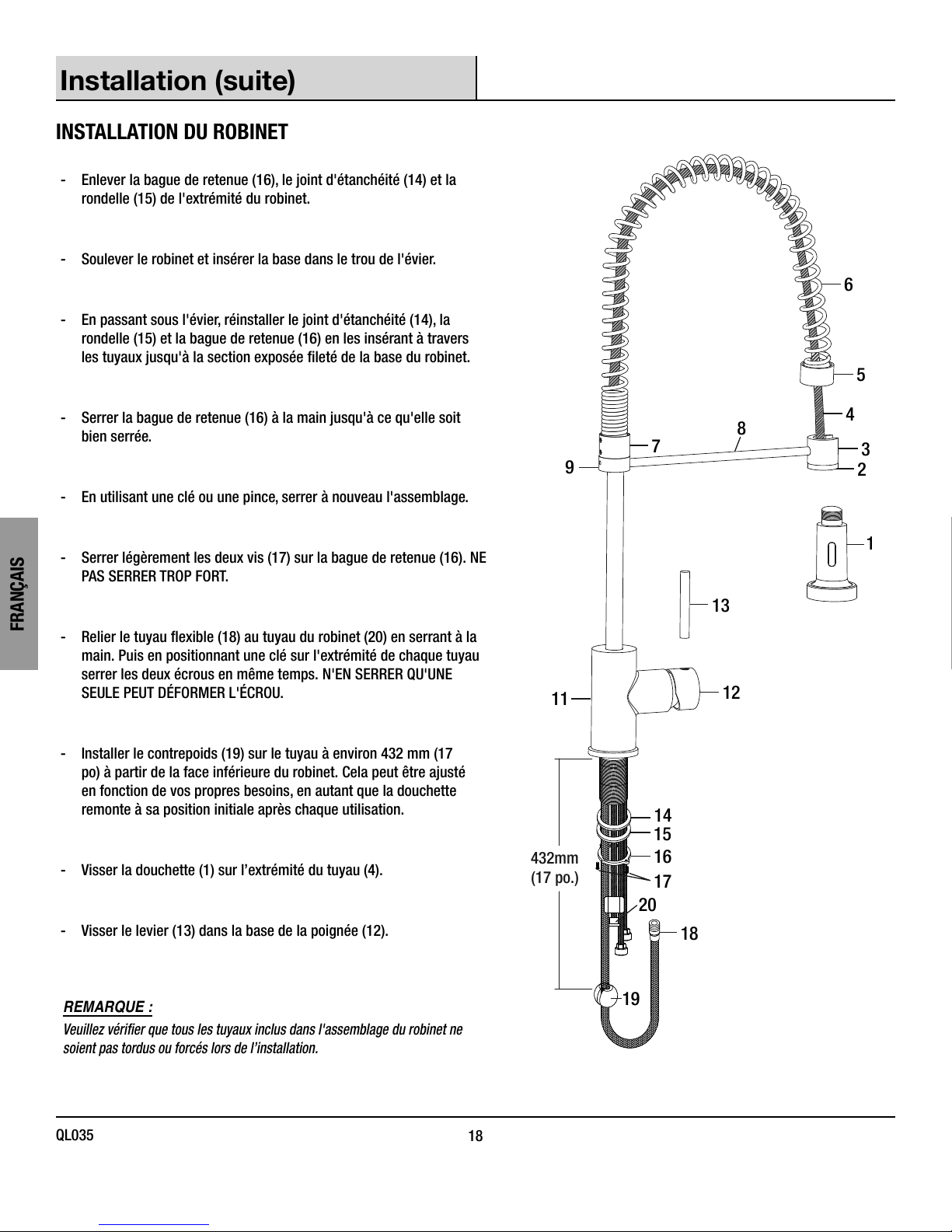

INSTALLING THE FAUCET

- Unscrew the retaining ring (16) from the bottom of the body base
(11), ensuring that the gasket (14) and washer (15) are removed
with the retaining ring.

- Place the lower part of the body base (11) through the hole in the
sink.

- From underneath, slide the gasket (14), washer (15), and the
retaining ring (16) until in correct position.

- Tighten the retaining ring (16) by hand, until it is snug.

- Using a wrench or pliers, tighten the entire assembly.

- Gently tighten the two screws (17) on the retaining ring. DO NOT
OVERTIGHTEN.

ENGLISH

6

5

4

8

7

9

3

2

1

13

- Attach the end of the hose with the small tting (18) onto the
faucet outlet (20) and hand tighten. Then, using one wrench on
the hexagonal nut of the faucet outlet and another on the hose
nut, tighten the two ends together. Tightening with just a single
wrench may deform the nut on the hose.

- Install the counterweight (19) on the hose about 432 mm (17 in.)
from the underside of the faucet. This can be adjusted based on
your own requirements.

- Screw the sprayer head (1) onto the end of the hose (4).

- Attach the lever (13) to the handle base (12).

NOTE:

Please ensure that the exible risers included in the faucet are not kinked or
forced during installation.

11

432mm

(17 in.)

12

14
15

16
17

20

18

19

7 CONGLOMKB.COM

Please contact [e-mail] or 1-877-333-0098 for further assistance.

Installation (continued)

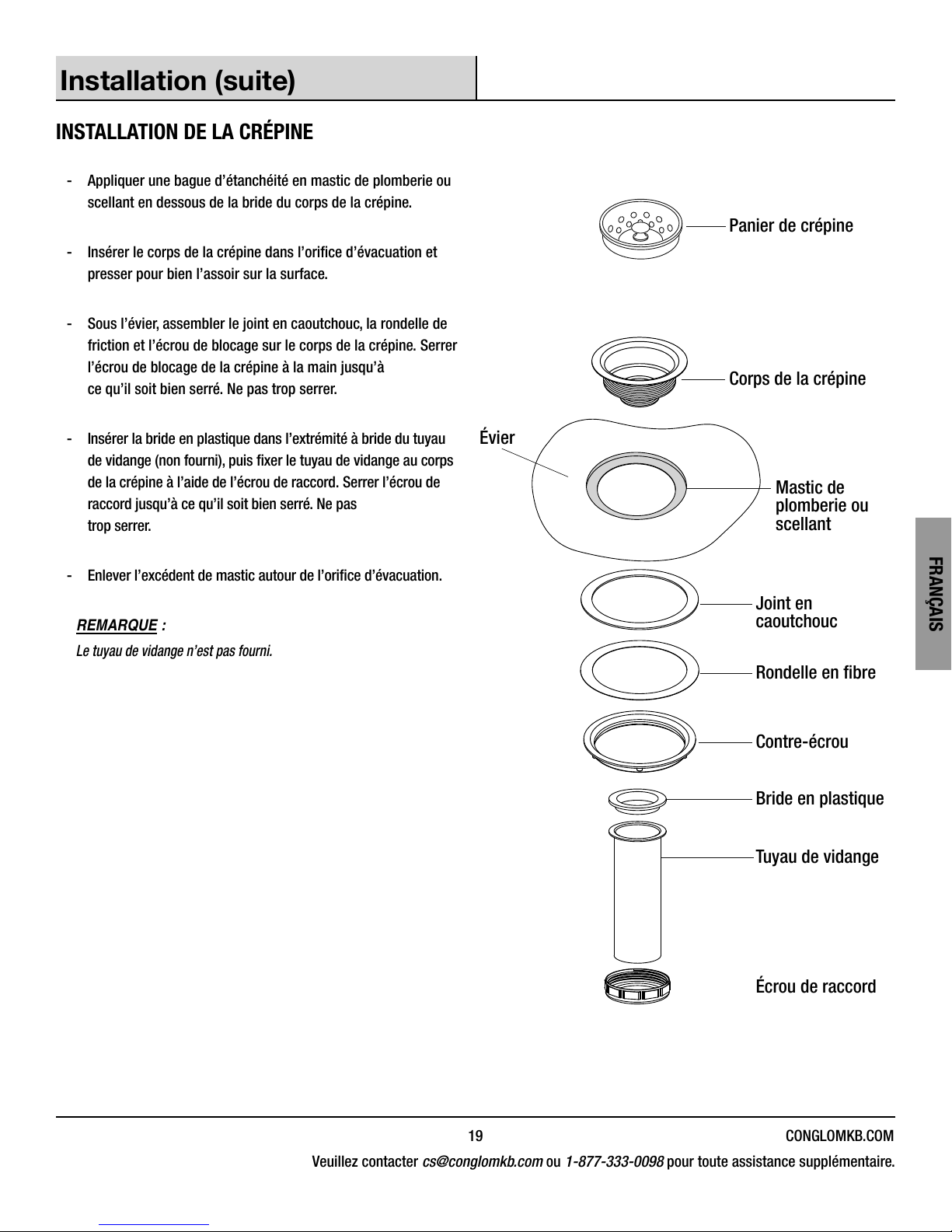

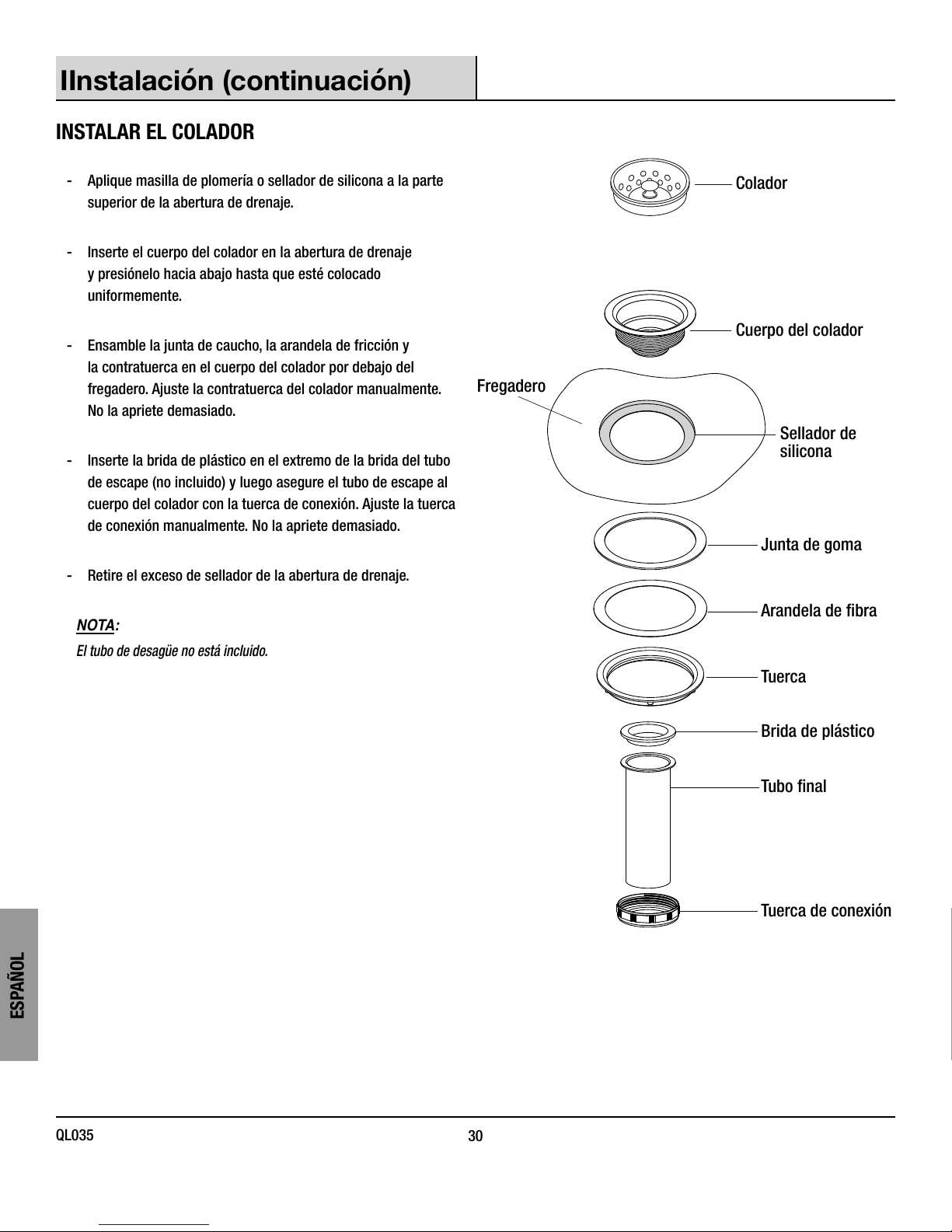

INSTALLING THE STRAINER

- Apply plumbing putty or silicone sealant to the top side of the

ENGLISH

drain opening.

- Insert the strainer body into the drain opening and press it down
until it is evenly seated.

- Assemble the rubber gasket, friction washer and strainer locknut
onto the strainer body from underneath the sink. Hand tighten
the strainer locknut until it is snug.
Do not overtighten.

Strainer Basket

Strainer Body

- Insert the plastic ange into the ange-end of the tailpipe (not
supplied) then secure the tailpipe to the strainer body using the
connecting nut. Tighten the connecting nut until it is snug. Do
not overtighten.

- Remove excess sealant from around the drain opening.

NOTE:

The tail pipe is not supplied.

Sink

Sealant

Rubber Gasket

Fiber Washer

Strainer Locknut

Plastic Flange

Tailpipe

QL035

8

Connecting Nut

Installation (continued)

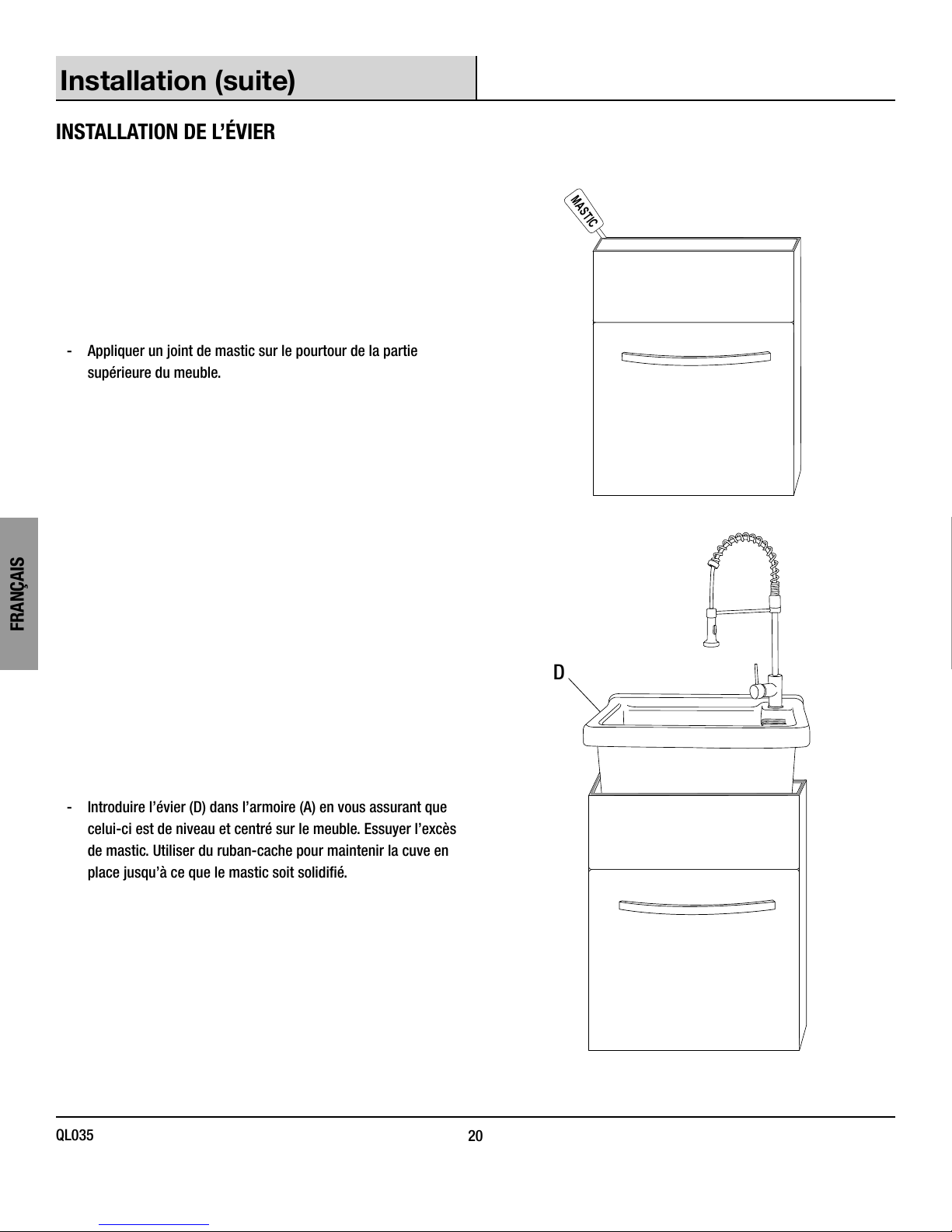

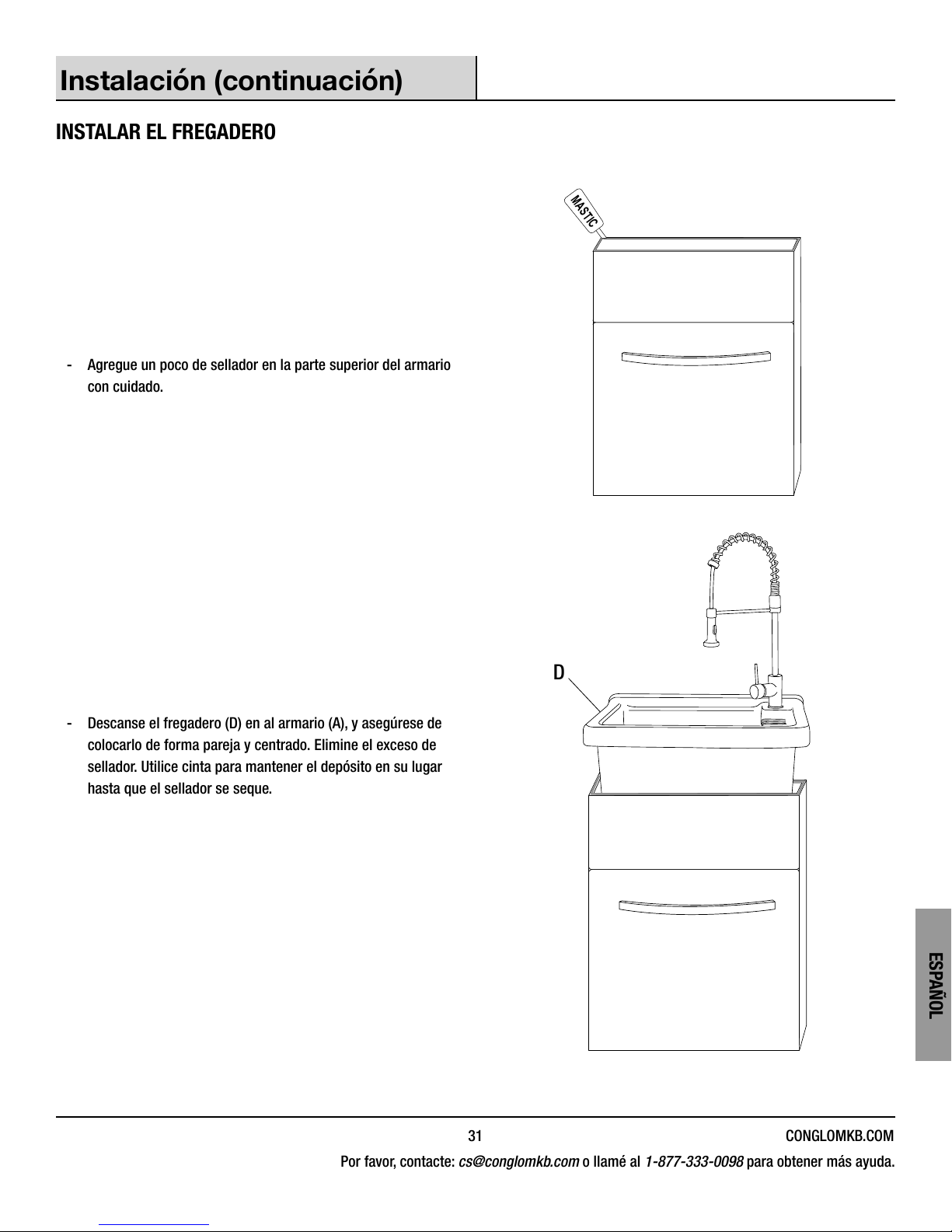

MOUNTING THE UTILITY SINK

- Carefully place a bead of sealant all around the top of the
cabinet (A).

ENGLISH

SEALANT

D

- Ease the utility sink (D) into the cabinet (A). Ensure that it is
placed evenly and is centered on the cabinet. Wipe off any
excess sealant. Use masking tape to hold the basin in place
until the sealant dries.

9 CONGLOMKB.COM

Please contact [e-mail] or 1-877-333-0098 for further assistance.

Installation (continued)

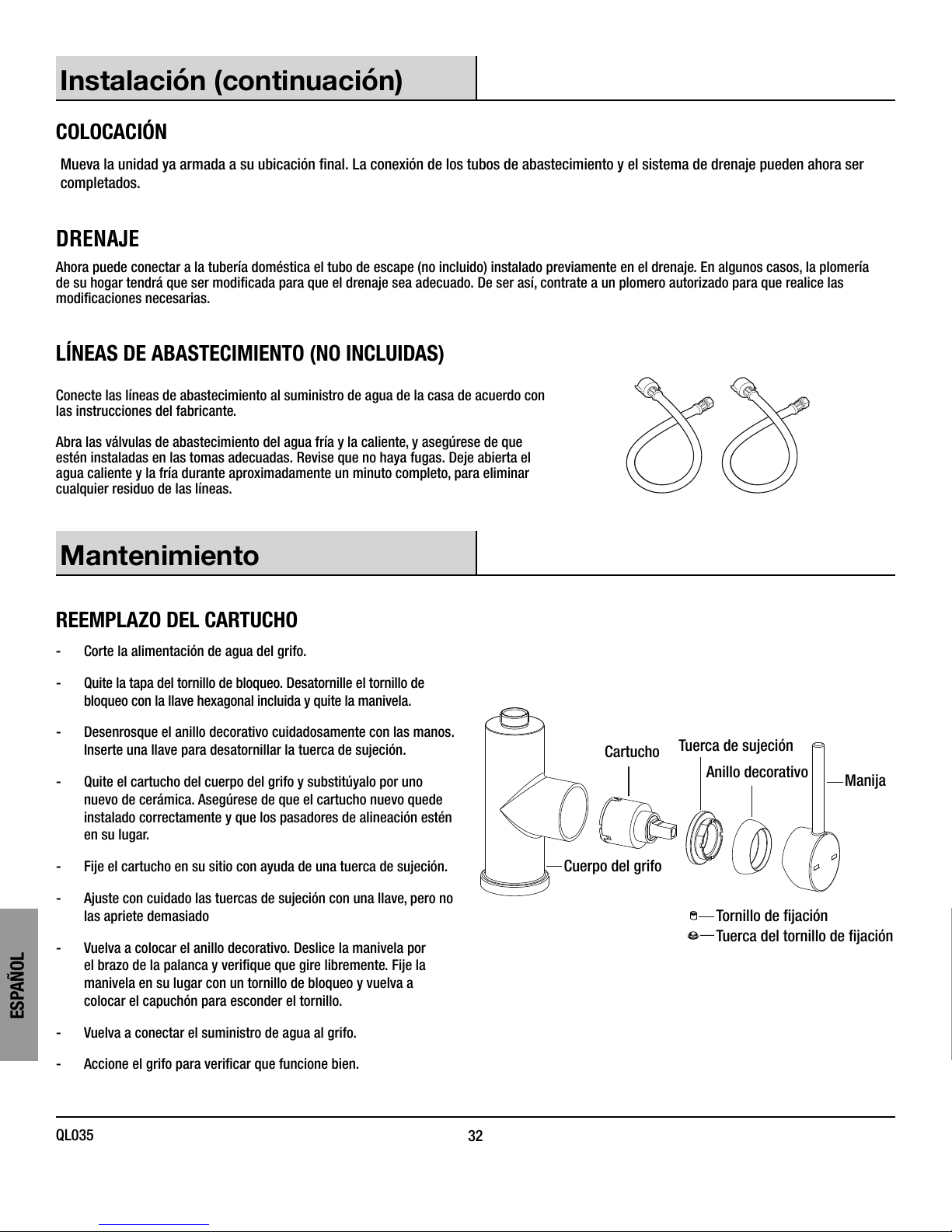

PLACEMENT

Move the assembled unit to its nal location. If required, level the unit by adjusting the four leveling legs. Ensure that no rocking is exhibited.

ENGLISH

DRAINAGE

The tailpipe (not supplied) previously installed to the drain can now be connected to your household plumbing. In some cases, your household

plumbing will have to be modied to ensure proper drainage. If so, please consult a licensed plumber to complete
needed modications.

SUPPLY LINES (NOT INCLUDED)

Connect the supply lines to your home’s water supply as per manufacturer’s instructions.

Open the hot and cold water supply valves and check to make sure they have
been installed to appropriate inlet ports. Check for leaks. Run hot and cold water

uninterrupted for about one minute to remove any residue from the lines.

Maintenance

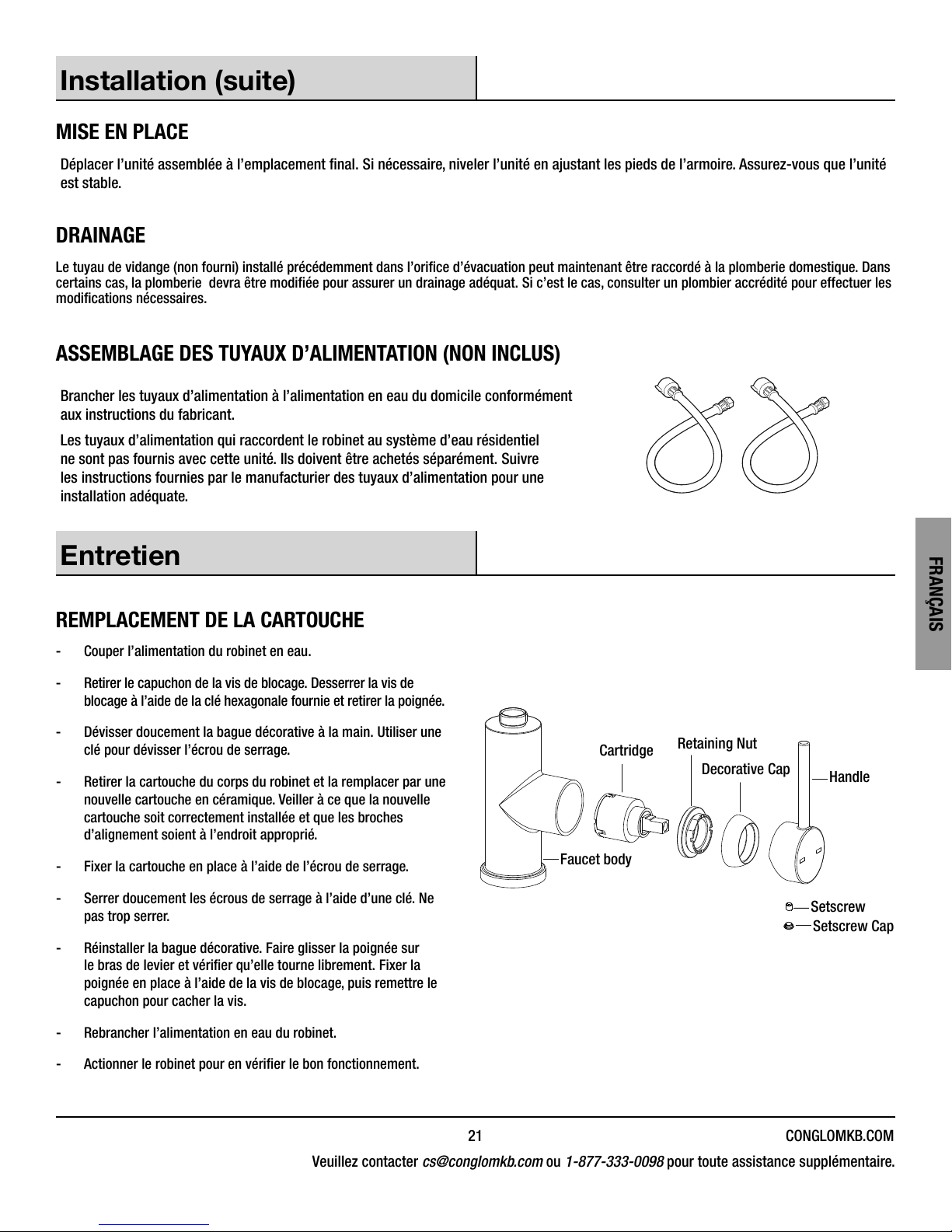

CARTRIDGE REPLACEMENT

- Turn off the water supply to the faucet.

- Remove the setscrew cap. Loosen the setscrew with the hex
key provided and remove the handle.

- Gently unscrew the decorative cap by hand. Use a wrench to
unscrew the retaining nut.

- Pull the cartridge out of the faucet body and replace it with a
new ceramic cartridge. Ensure new cartridge is seated properly
with the locating pins in appropriate place.

- Secure the cartridge in place using the retaining nut.

- Gently tighten the retaining nut using a wrench.
Do not overtighten.

- Reinstall the decorative cap. Slide the handle back onto the
lever arm and make sure it rotates freely. Secure the handle in
place using the setscrew and cover it with the setscrew cap.

- Turn the water supply to the faucet back on.

Cartridge

Faucet body

Retaining Nut

Decorative Cap

Handle

Setscrew

Setscrew Cap

- Operate the faucet to make sure everything works correctly.

QL035

10

Maintenance (continued)

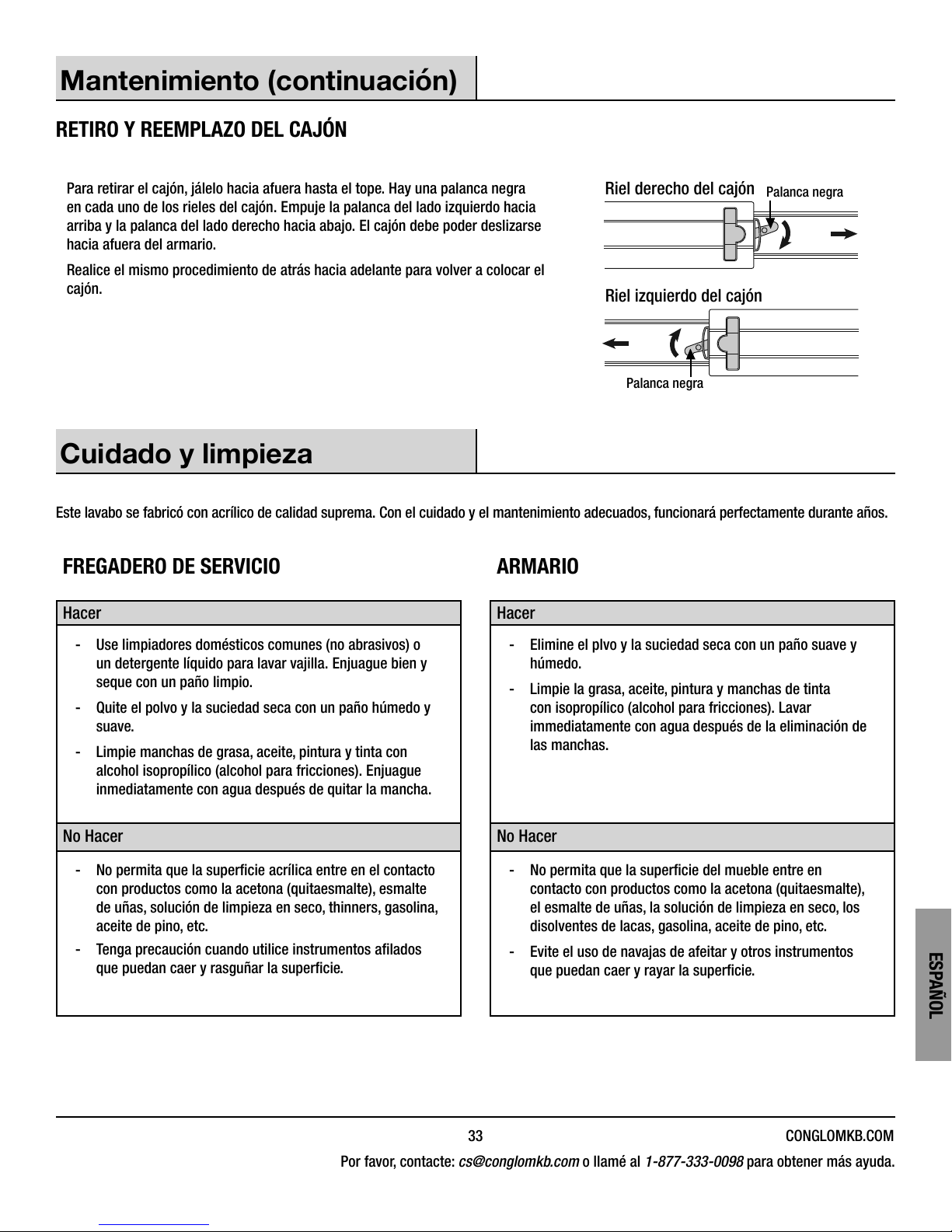

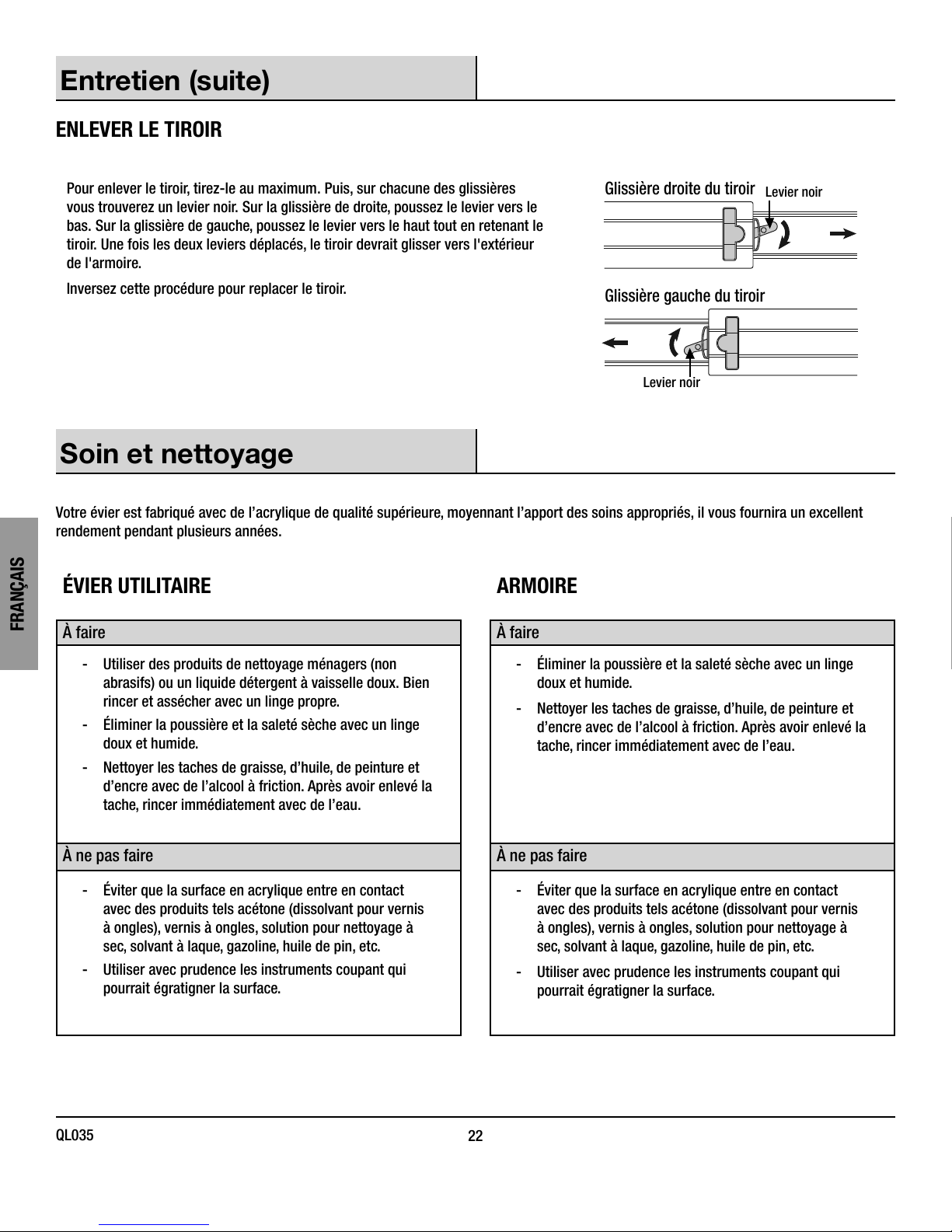

DRAWER REMOVAL AND REPLACEMENT

To remove the drawer, pull it out to its fullest extension. On each of the drawer
slides there is a black lever. Push the lever on the left slide up and the lever on
the right slide down. The drawer should now slide away from the cabinet.

Reverse this procedure to replace the drawer.

Right drawer slide

Left drawer slide

Black lever

Black lever

Care and Cleaning

This utility sink is manufactured with premium acrylic. With the proper care and maintenance it will provide you with many years of
enjoyment.

SINK CABINET

Do Do

ENGLISH

- Use common household cleaners (non-abrasive) or a
mild liquid dish washing detergent. Rinse well and dry
with a clean cloth.

- Remove dust and dry dirt with a soft, damp cloth.

- Clean grease, oil, paint and ink stains with isopropyl
(rubbing alcohol). Immediately rinse with water after
removal of stain.

- Remove dust and dry dirt with a soft, damp cloth.

- Clean grease, oil, paint and ink stains with isopropyl

Do not Do not

- Do not allow your acrylic surface to come into contact
with products such as acetone (nail polish remover), nail
polish, dry cleaning solution, lacquer thinners, gasoline,
pine oil, etc.

- Use caution when using sharp instruments that may fall
and scratch the surface.

- Do not allow your cabinet surface to come into contact

- Use caution when using sharp instruments that may fall

(rubbing alcohol). Immediately rinse with water after
stain removal.

with products such as acetone (nail polish remover), nail
polish, dry cleaning solution, lacquer thinners, gasoline,
pine oil, etc.

and scratch the surface.

11 CONGLOMKB.COM

Please contact [e-mail] or 1-877-333-0098 for further assistance.
