Transform QL029 Owner's Manual

DE SIMPLE À REMARQUABLE

Ulity Sink
Évier ulitaire

Model/Modèle No. QL029

Owner’s Manual
Manuel de l’ulisateur

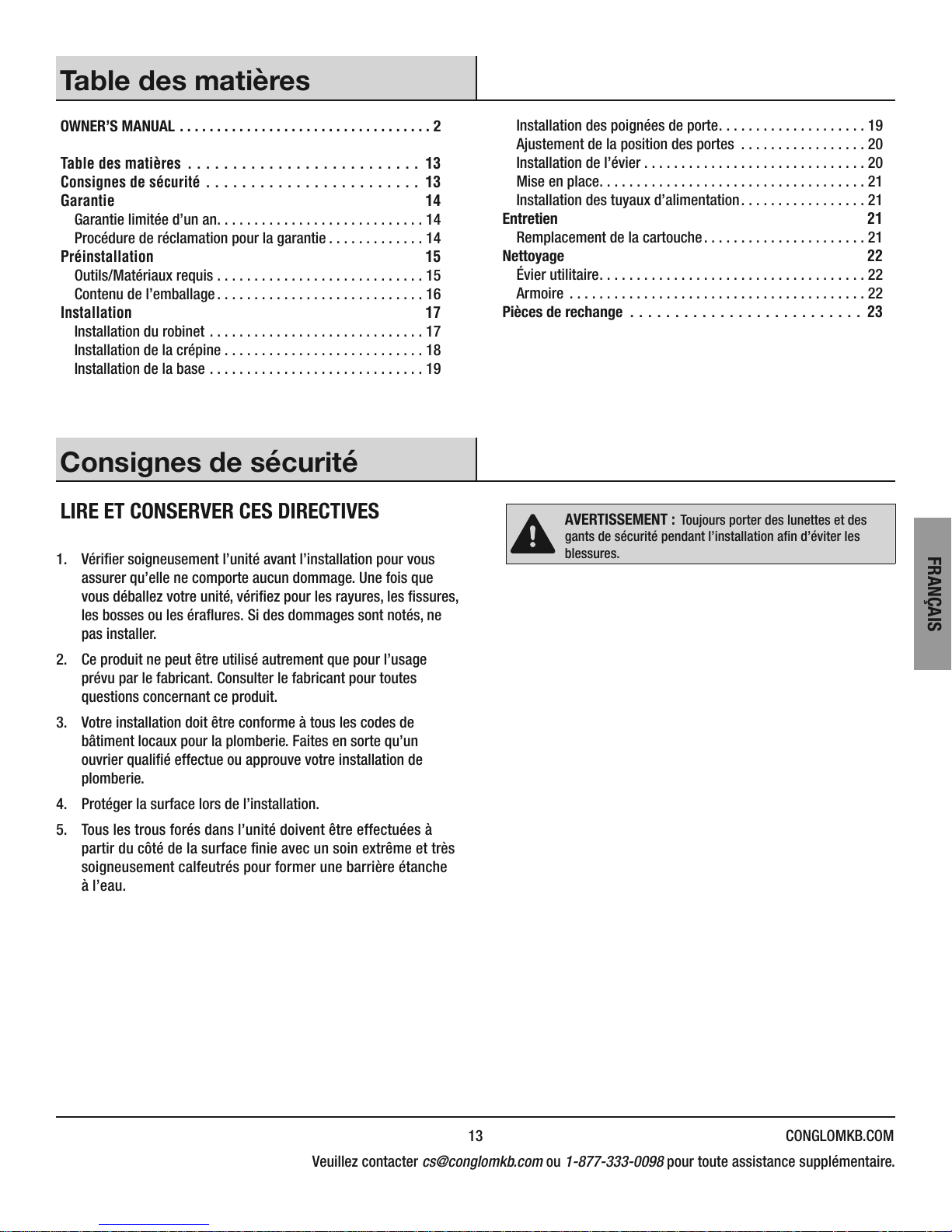

Table of Contents

Table of Contents ............................2

Safety Information ............................ 2

Warranty ..................................3

One Year Limited Warranty ...........................3

Warranty Claim Procedure ...........................3

Pre-Installation .............................. 4

ENGLISH

Tools/Materials Required ............................4

Package Contents .................................5

Installation ................................. 6

Faucet Assembly/Installation .........................6

Strainer Installation ................................7

Base Installation ..................................8

Safety Information

READ AND SAVE THESE INSTRUCTIONS

1. Inspect your unit before proceeding. Once you unpack your unit,
check for chips, scratches, cracks, dents or scuff marks. If any
damage is noticed, do not install.

2. Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the manufacturer.

3. Installation work and plumbing must be done by qualied
person(s) in accordance with all applicable codes and standards.

4. Protect the entire surface during installation.

5. All holes drilled into the unit must be done from the nished
surface side with extreme care and caulked very carefully to
form a watertight barrier.

Door Handle Installation .............................8

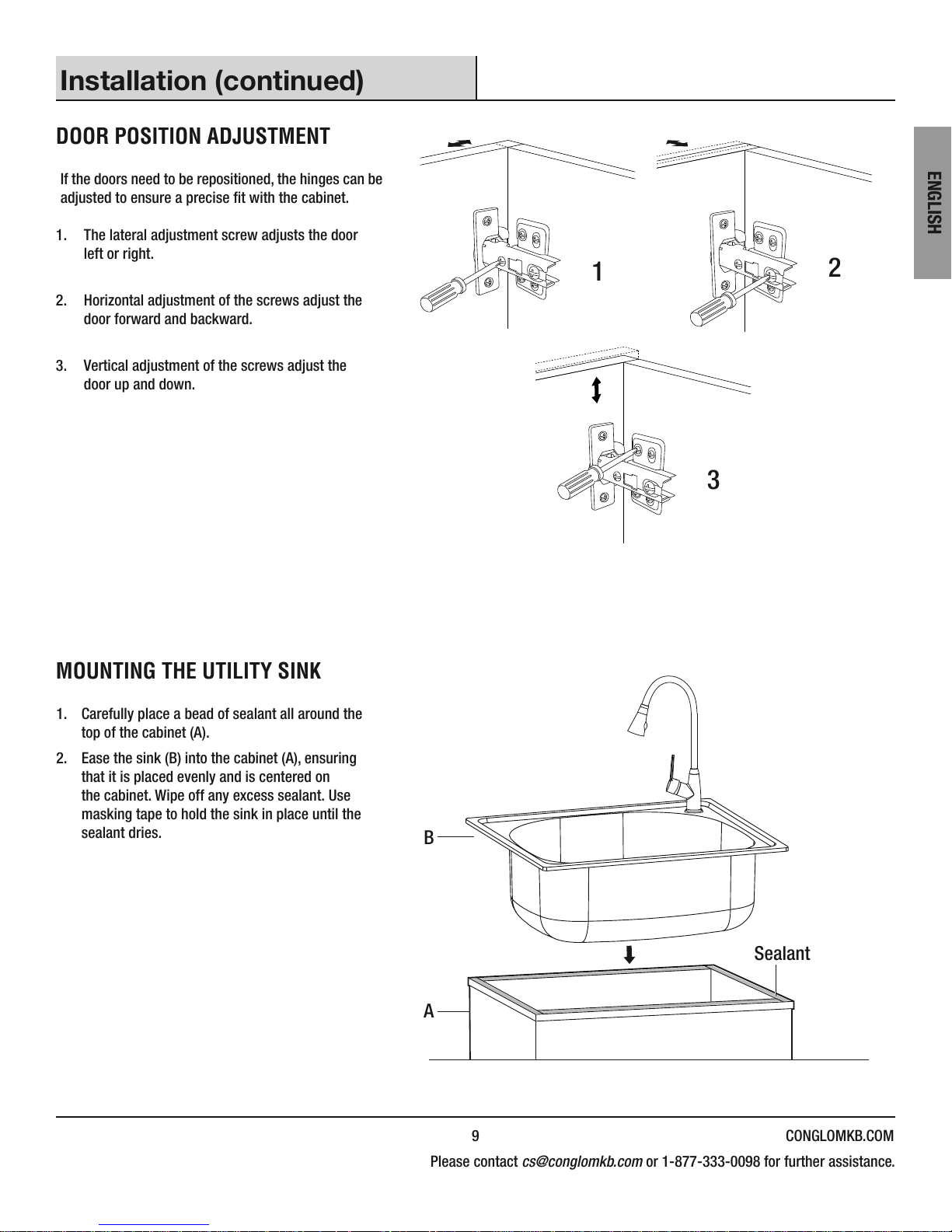

Door Position Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mounting the Utility Sink ............................9

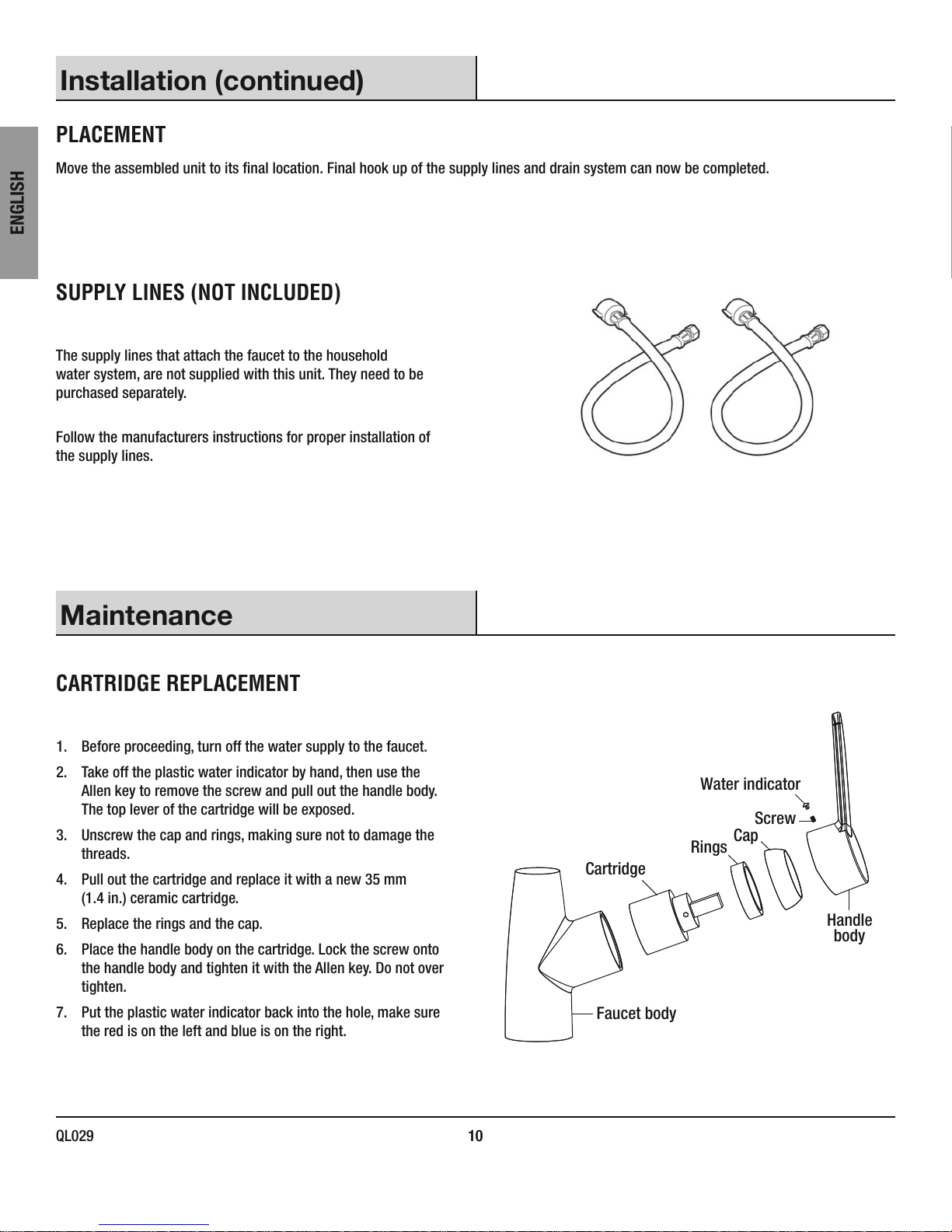

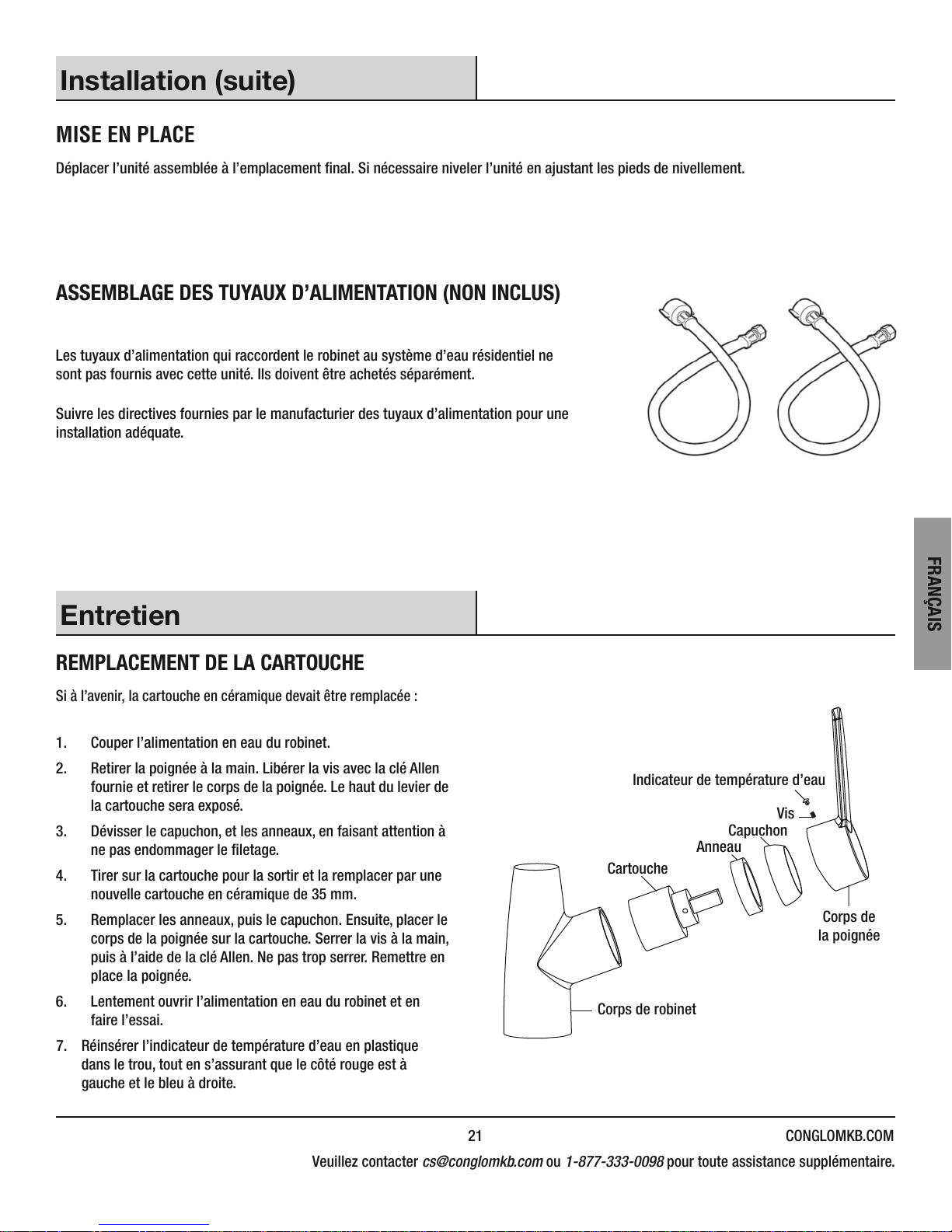

Placement ......................................10

Supply Line Assembly .............................10

Maintenance .............................. 10

Cartridge Replacement ............................10

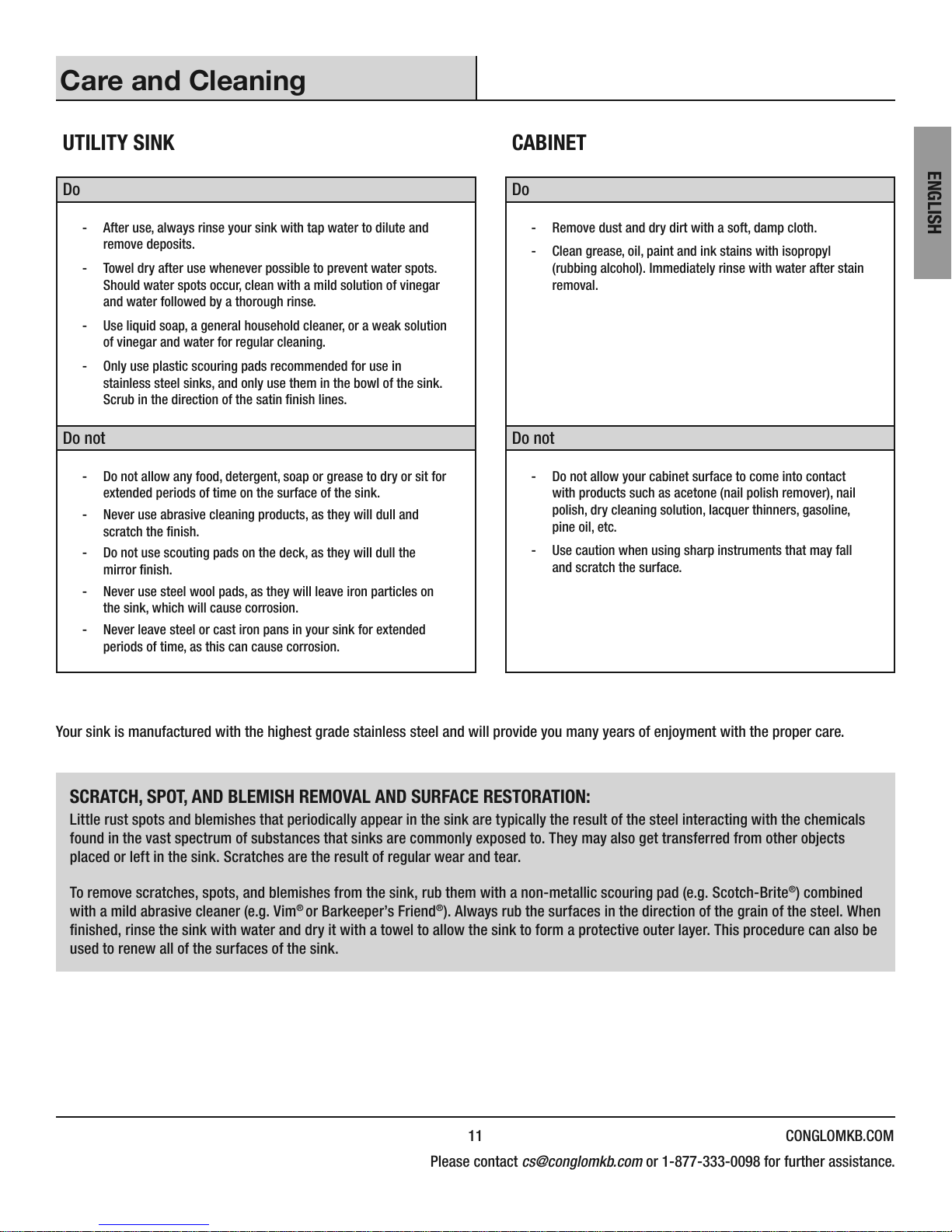

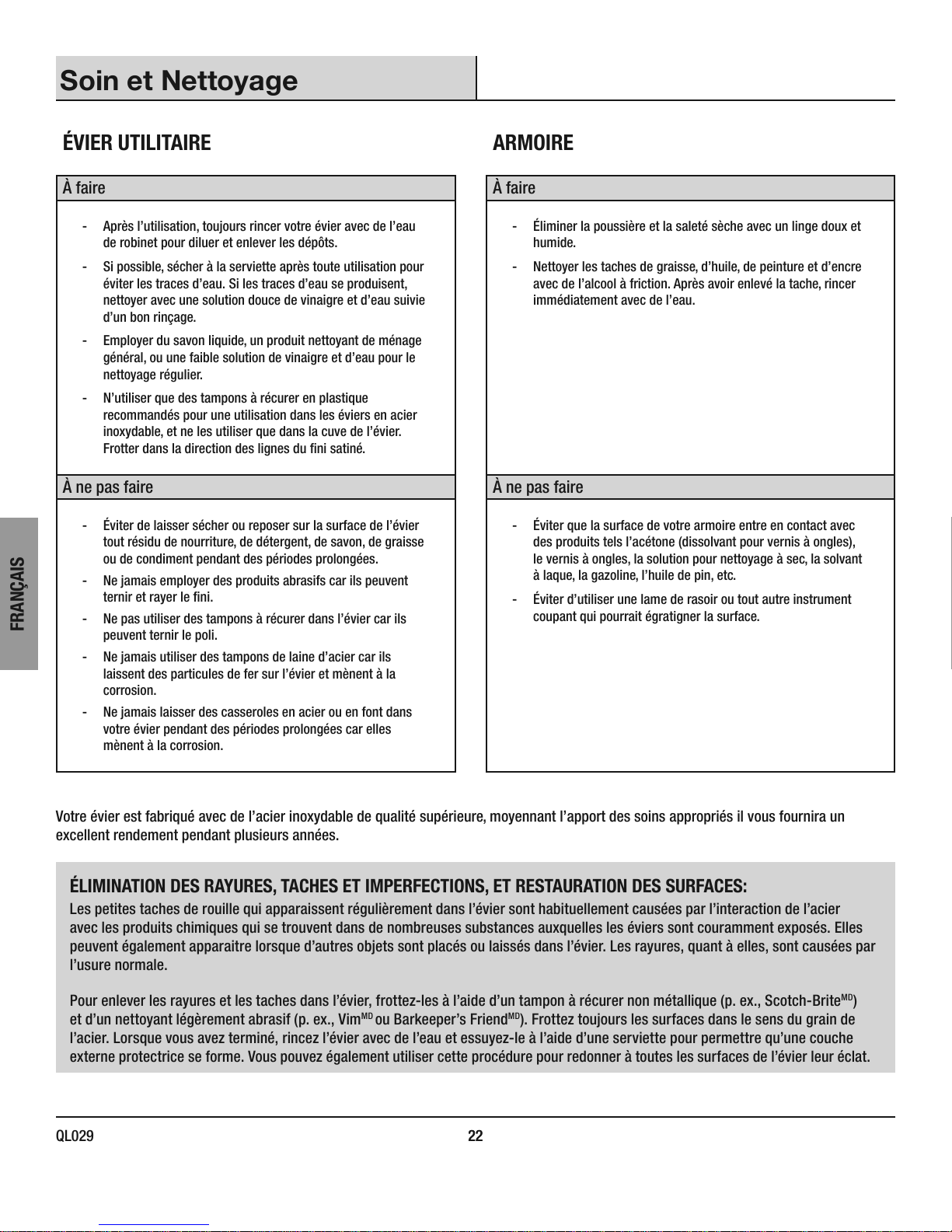

Care and Cleaning ........................... 11

Utility Sink ......................................11

Cabinet .........................................11

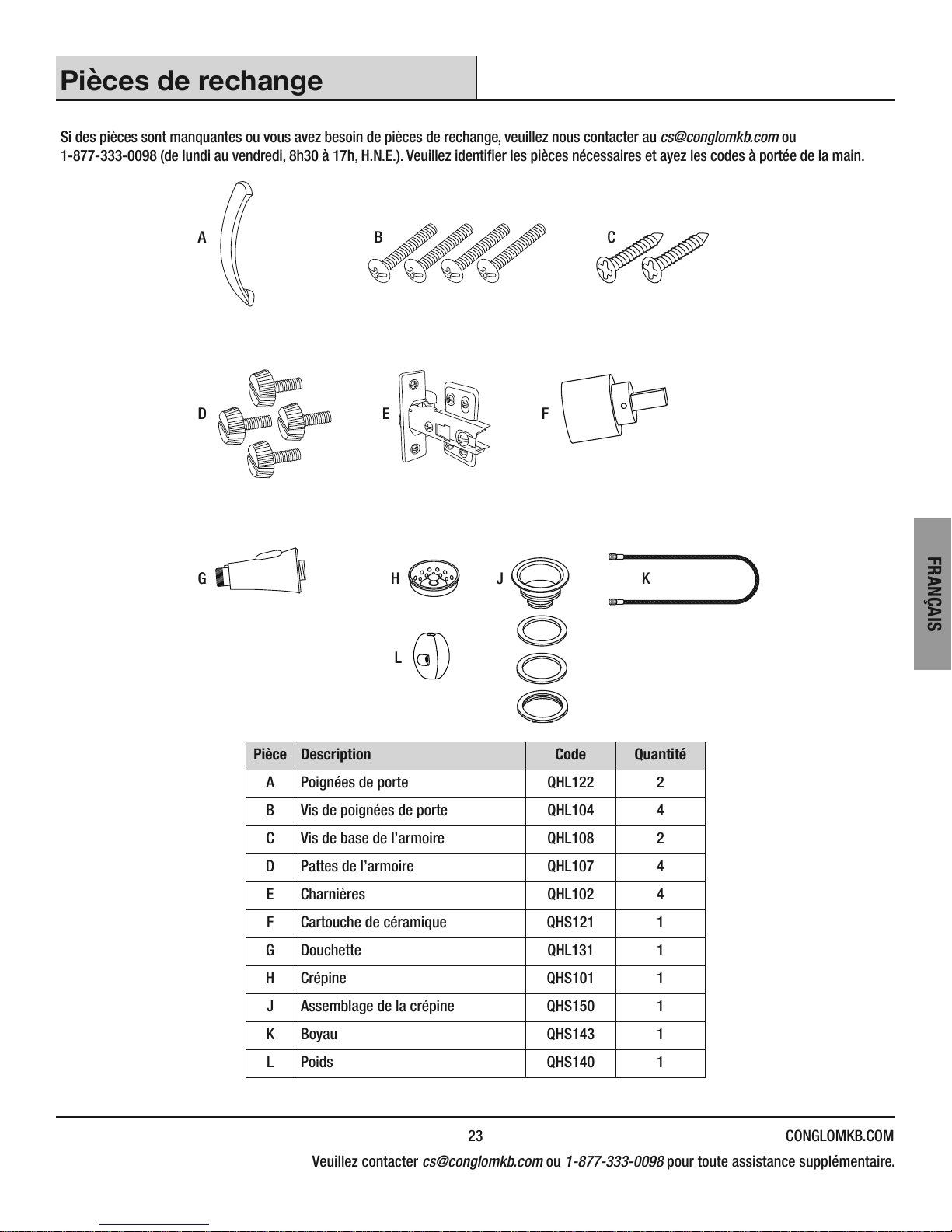

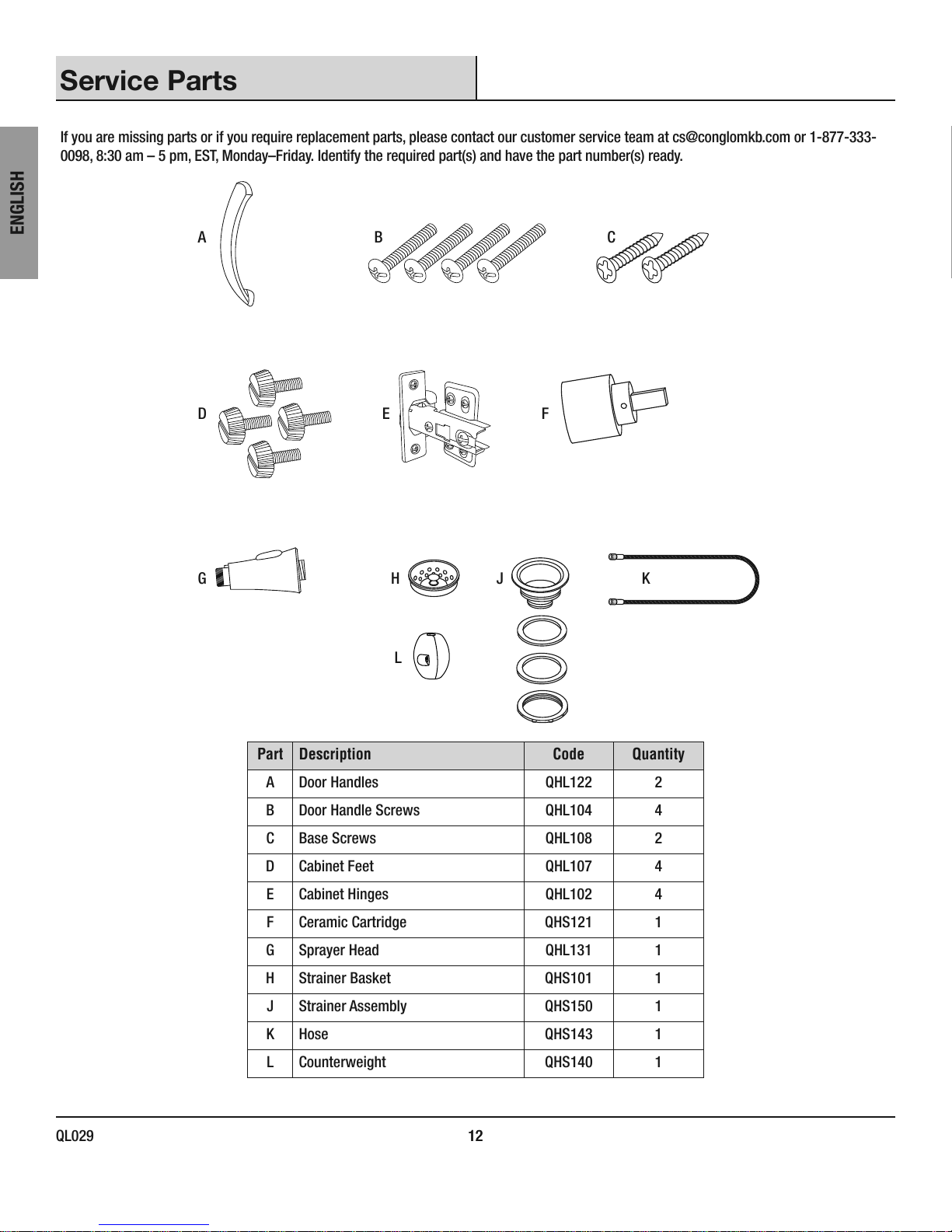

Service Parts .............................. 12

MANUEL DE L’UTILISATEUR ..........................13

DANGER: Always wear safety goggles and gloves in order

to avoid personal injury.

2

QL029 2

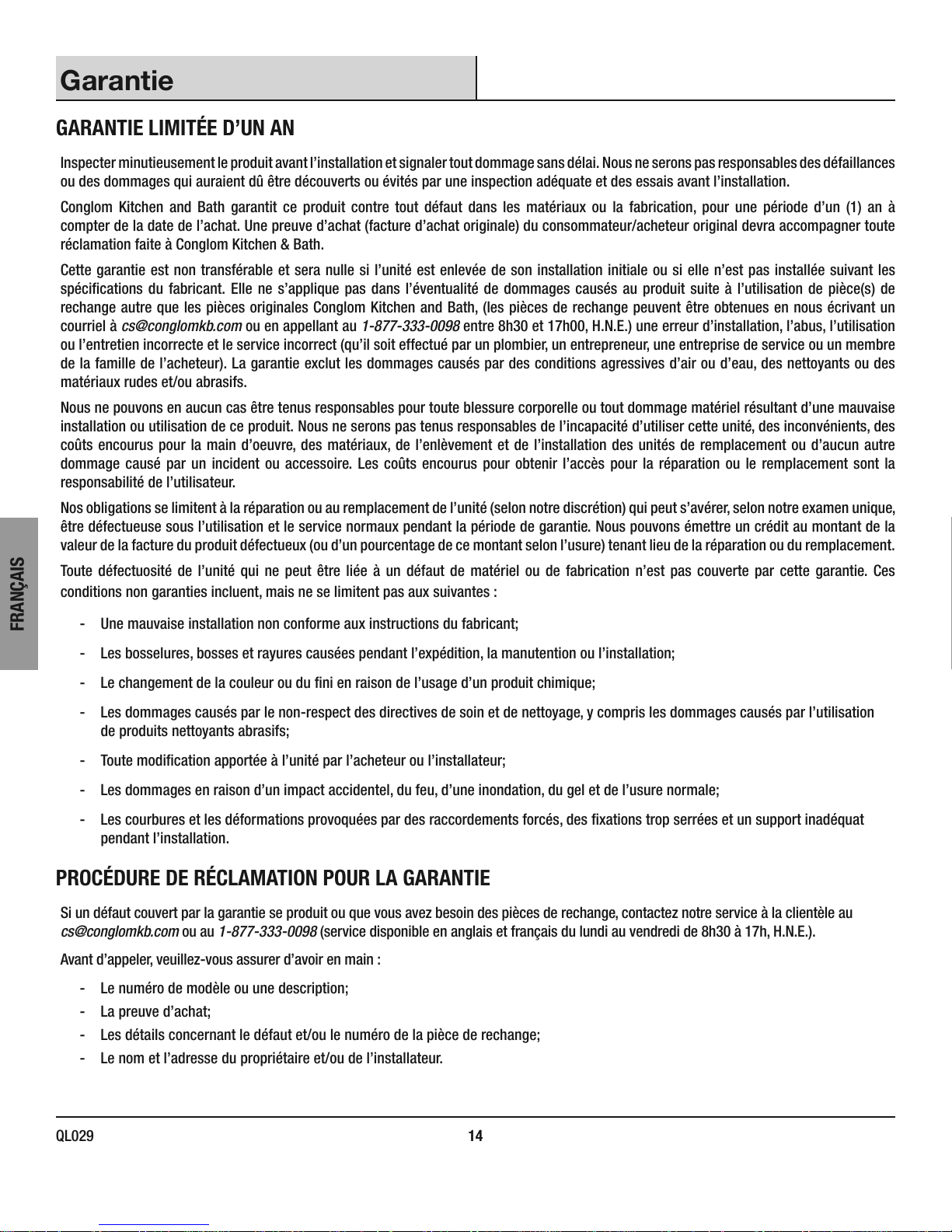

Warranty

ONE YEAR LIMITED WARRANTY

A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.

Conglom Kitchen & Bath warrants this product to be free from defects in materials or workmanship for one (1) year from the date of purchase.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to Conglom Kitchen & Bath for all
warranty claims.

This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than genuine Conglom Kitchen & Bath
replacement parts, (Replacement parts may be obtained by e-mail at [e-mail] or by calling 1-877-333-0098 between 8:30 am

- 5:00 pm EST) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor, service

provider or member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh or abrasive
cleaners and/or materials.

Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.

Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.

ENGLISH

Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:

- Improper installation not in accordance with manufacturer’s instructions.

- Dents and/or scratches incurred during shipping, handling, or installation.

- Change in colour or nish due to chemical usage.

- Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.

- Alterations made to the unit by the purchaser or installer.

- Damage caused by accidental impact, re, ood, freezing, and normal wear.

- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.

- This warranty does not extend to commercial and institutional installation or use.

WARRANTY CLAIM PROCEDURE

If a claimable defect occurs or replacement parts are needed,
0098 (Service available in English and French, Monday - Friday from 8:30am - 5pm EST).

Before you make your call, please ensure that you have:

- Model number or description.

- Proof of sale.

- Details regarding the defect and/or part number.

- Name(s) and address(es) of the owner and/or installer.

please contact our customer service team at [e-mail]

or 1-877-333-

3 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.

Pre-Installation

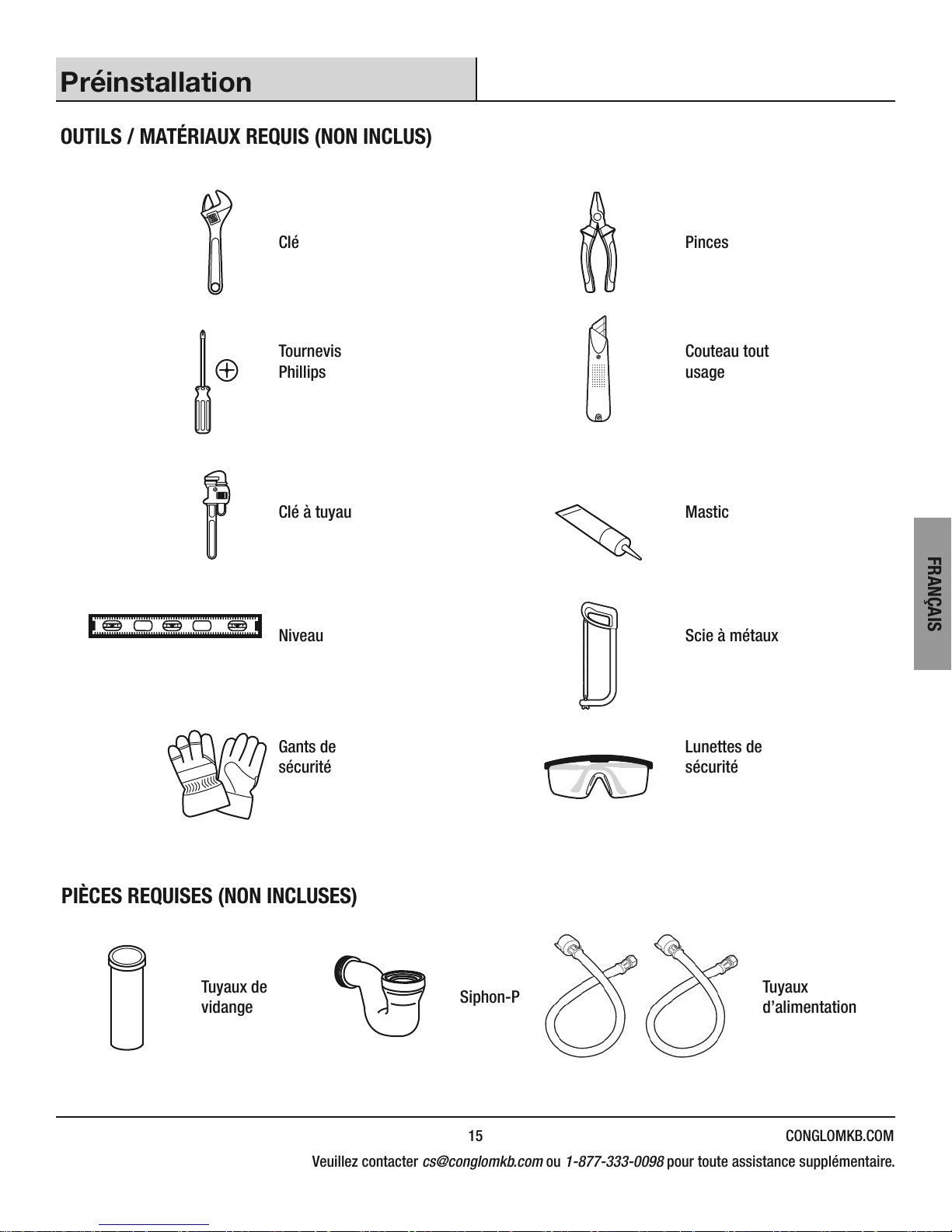

TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)

ENGLISH

Adjustable
wrench

Phillips
screwdriver

Needle nose
pliers

Utility knife

Pipe wrench Sealant

Carpenter’s level

Hacksaw

Safety gloves Safety goggles

PARTS REQUIRED (NOT SUPPLIED)

Tail Pipe P-Trap Supply lines

4

QL029 4

Pre-Installation (continued)

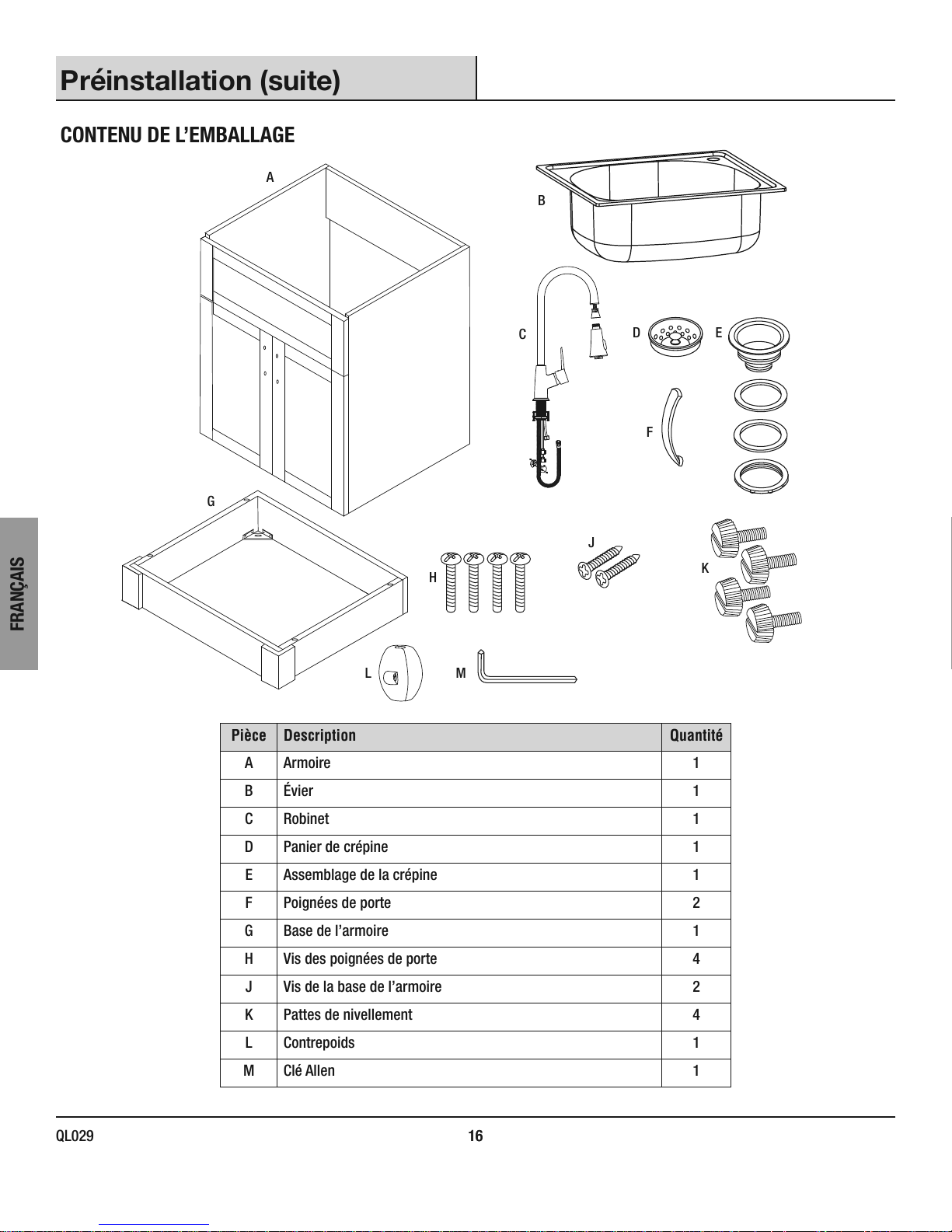

PACKAGE CONTENTS

A

ENGLISH

B

C

G

H

L

Part Description Quantity

A Cabinet 1

M

D E

F

J

K

B Utility Sink 1
C Faucet 1
D Strainer Basket 1
E Strainer Assembly 1
F Door Handles 2
G Cabinet Base 1
H Door Handle Screws 4
J Cabinet Base Screws 2
K Cabinet Feet 4
L Counterweight 1

M Allen Key 1

5 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.

Installation

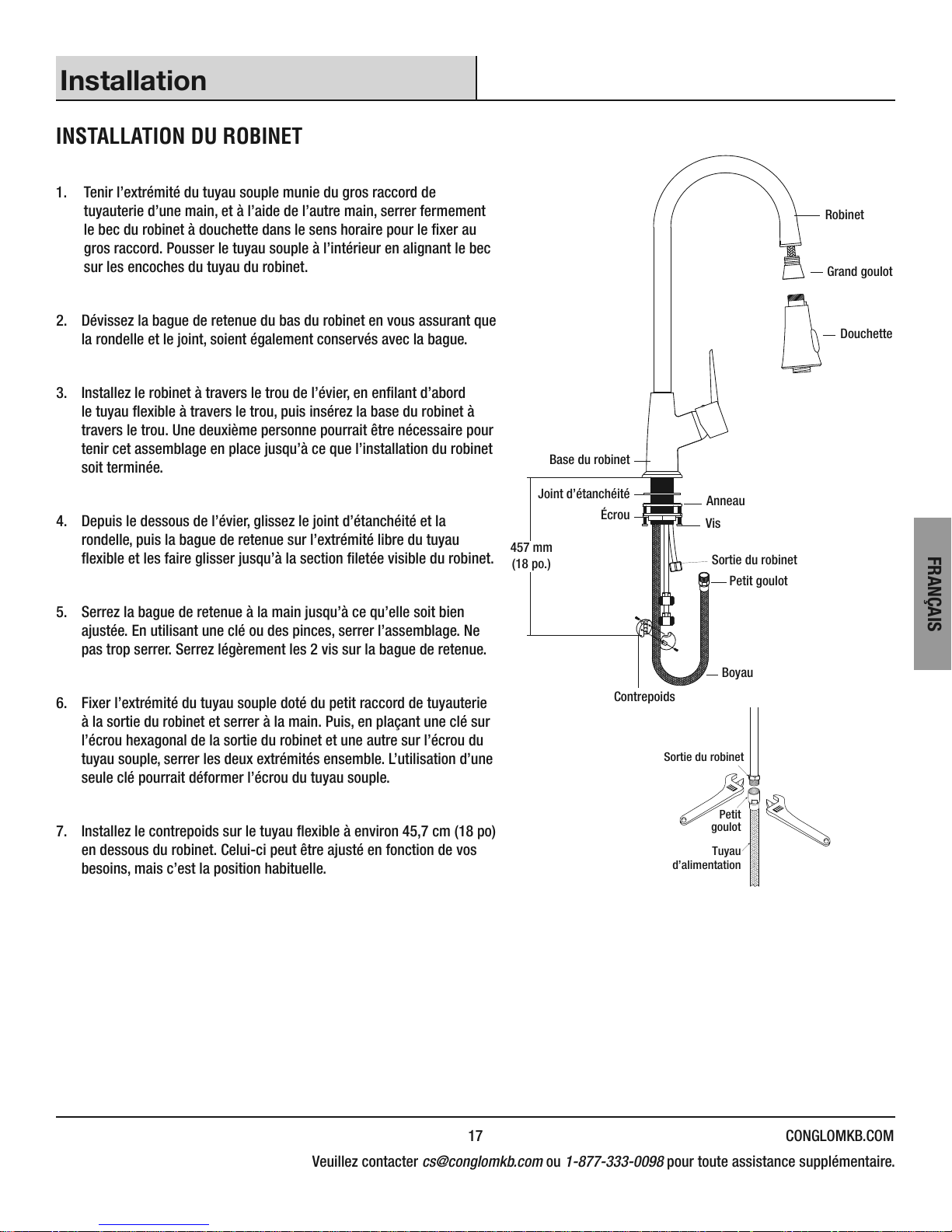

FAUCET ASSEMBLY/INSTALLATION

1. Hold the end of the hose with large tting with one hand and, with
the other hand, hand tighten the spray faucet head clockwise onto

ENGLISH

the large tting. Push the hose in so that the head aligns properly

with the notches on the faucet pipe.

2. Unscrew the retaining ring from the bottom of the faucet body,
ensuring that the washer and gasket are removed with the
retaining ring.

3. Install the faucet through the hole in the sink, by rst threading the
hose through the hole, then placing the base of the faucet through
the hole. A second person may be required to hold this in place
until the faucet installation is complete.

Faucet
pipe

Large
fitting

Spray
faucet
head

Faucet body

4. From underneath, slide the washer and gasket, then the retaining
ring, over the free end of the hose. Slide them up to the exposed
threaded section of the faucet.

5. Tighten the retaining ring by hand until it is snug. Using a wrench
or pliers, tighten the assembly. Gently tighten the two screws on
the retaining ring. Do not over tighten.

6. Attach the end of the hose with the small tting onto the faucet
outlet and hand tighten. Then, using one wrench on the hexagonal
nut of the faucet outlet and another on the hose nut, tighten the
two ends together. Tightening with just a single wrench may
deform the hose nut.

7. Install the counterweight on the hose about 457 mm (18 in.) from
the underside of the faucet. This can beadjusted based on your
own requirements, but this is the normal location.

Retaining ring

457 mm

(18 in.)

Gasket

Counterweight

Faucet outlet

Washer

Screws

Faucet
outlet

Small fitting

Hose

Small

fitting

Hose

6

QL029 6

Installation (continued)

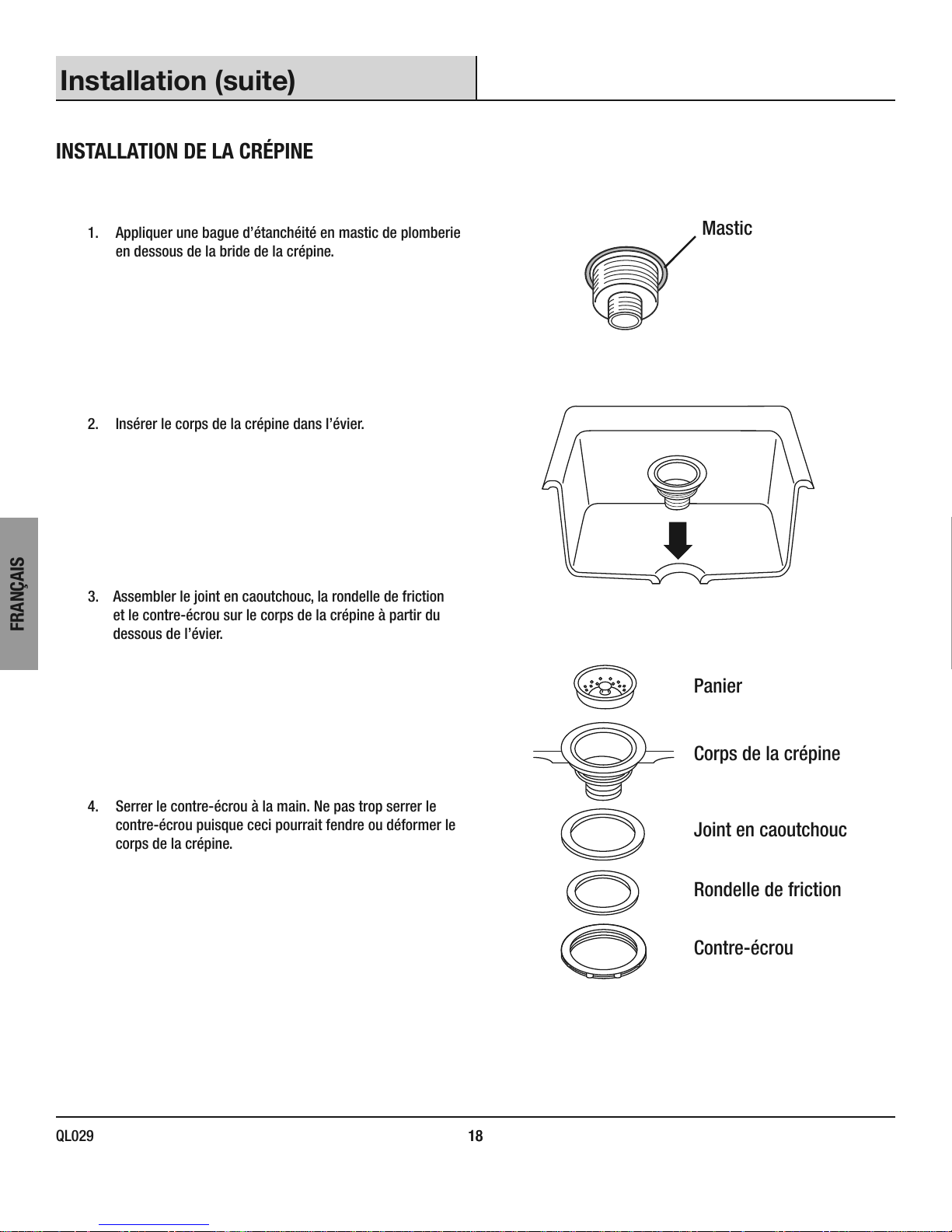

STRAINER INSTALLATION

1. Apply a ring of sealant to the underside of the strainer ange.

2. Insert the strainer body into the sink.

ENGLISH

Sealant

3. Assemble the rubber gasket, friction washer and locknut onto
the strainer body from under the sink.

4. Hand tighten the locknut. Do not over tighten the locknut as it
may split or deform the strainer body.

Basket

Strainer body

Rubber gasket

Friction washer

Locknut

7 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.

Installation (continued)

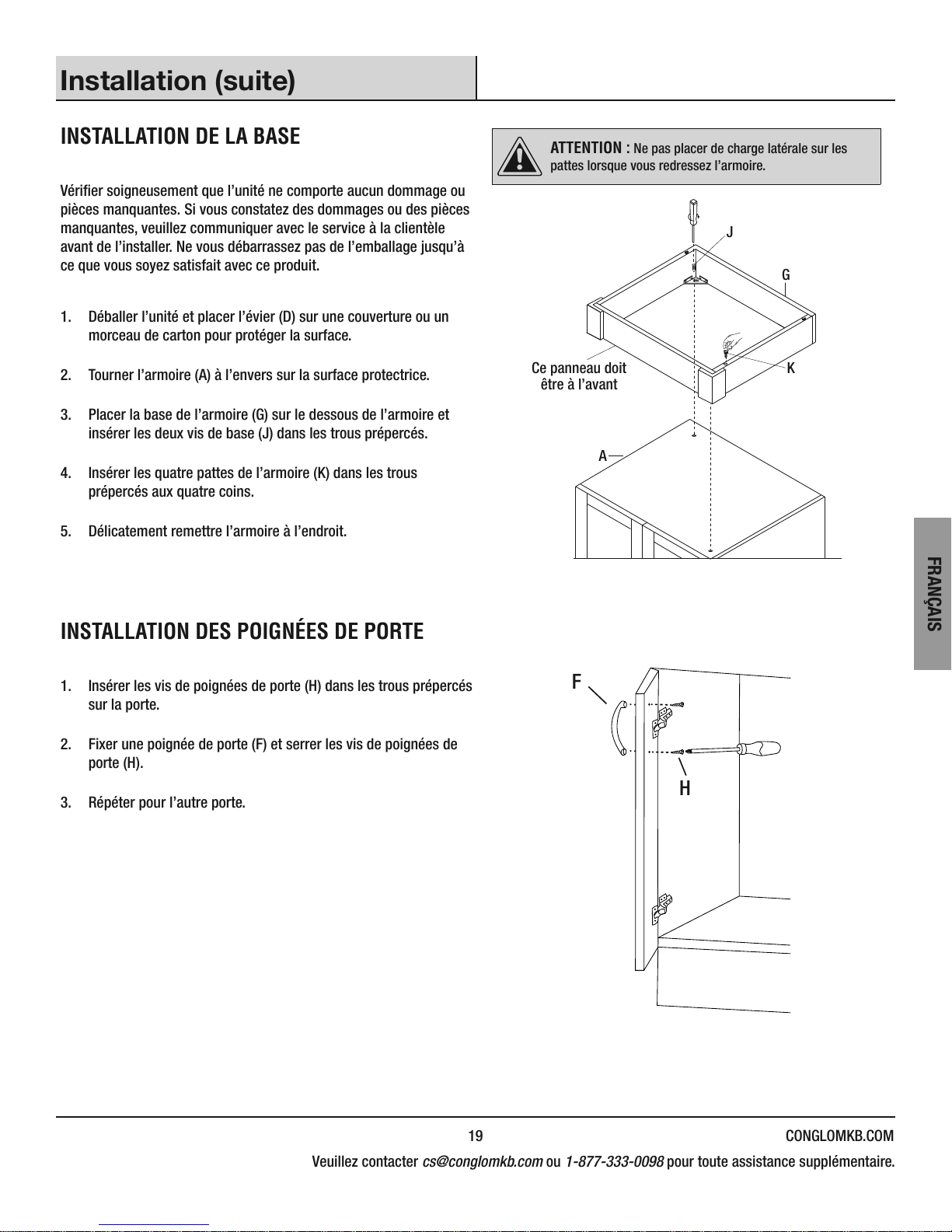

BASE INSTALLATION

A thorough inspection must be made before installation and any
damages or missing parts must be promptly reported. Do not proceed
with the installation. Do not dispose of packaging before you are

ENGLISH

satised with your new utility sink.

1. Unpack the unit and place the sink (B) on a blanket or cardboard
to protect the surface.

2. Turn the cabinet (A) upside down onto the protective surface.

3. Gently attach the cabinet base (G) onto its proper location. Using
the supplied base screws (J), attach the base to the cabinet.

4. Attach cabinet feet (K) to the base.

5. Gently place the cabinet upright.

CAUTION: Do not place side load onto feet when righting

the cabinet.

J

This panel should
be front panel

A

G

K

DOOR HANDLE INSTALLATION

1. Insert the door hand screws (H) into the pre-drilled holes on
each door.

2. Attach the door handles (F) and hand tighten the door handle
screws (H).

3. Repeat on other door.

F

H

8

QL029 8
