Trans Electric WTR1000 User Manual

HDMI Wireless

Incorporates HDMI® technology

Model: WTR-1000

1080P Wireless HDMI Transmission
Receiver side support Miracast function

Thank you for purchasing WTR-1000 HDMI Wireless sender. Your satisfaction is very important to

us. WTR-1000 is designed to make the use of your HDTV equipment more comfortable.

WTR-1000 is the ideal product for HD wireless application. Sometime you will find cable connection

is not suitable, long HDMI cable is not available, or cable connection is not an option. You can use

WTR-1000 for you HD wireless application. For example, Home Theater, cross room HD wireless,

meeting room, or game room application.

WTR-1000 now supports Miracast™ Wireless Display. You can launch the wireless display

application on a Miracast™-compatible Smartphone, tablet. allows you to send image or video on your

Smartphone to a HDTV. Anything shows on the Smartphone will also show on the HDTV.

Features:

 Support HDMI 1080p wireless transmission.

 Transmitter side with HDMI loopthrough output.

 Less than 500ms low latency.

 Receiver side support Miracast function.

 HDCP compliant.

 Room to room HD wireless transmission.

 Up to 30M L.O.S long distance transmission.

 Low power consumption.

Contents of Package

 WTR-1000 Transmitter main unit *1

 WTR-1000 Receiver main unit *1

 DC 5V/1A power adaptor *1 , MicroUSB Power cable *1

 User’s Manual *1

INTRODUCTION

FEATURES AND CONTENTS

1

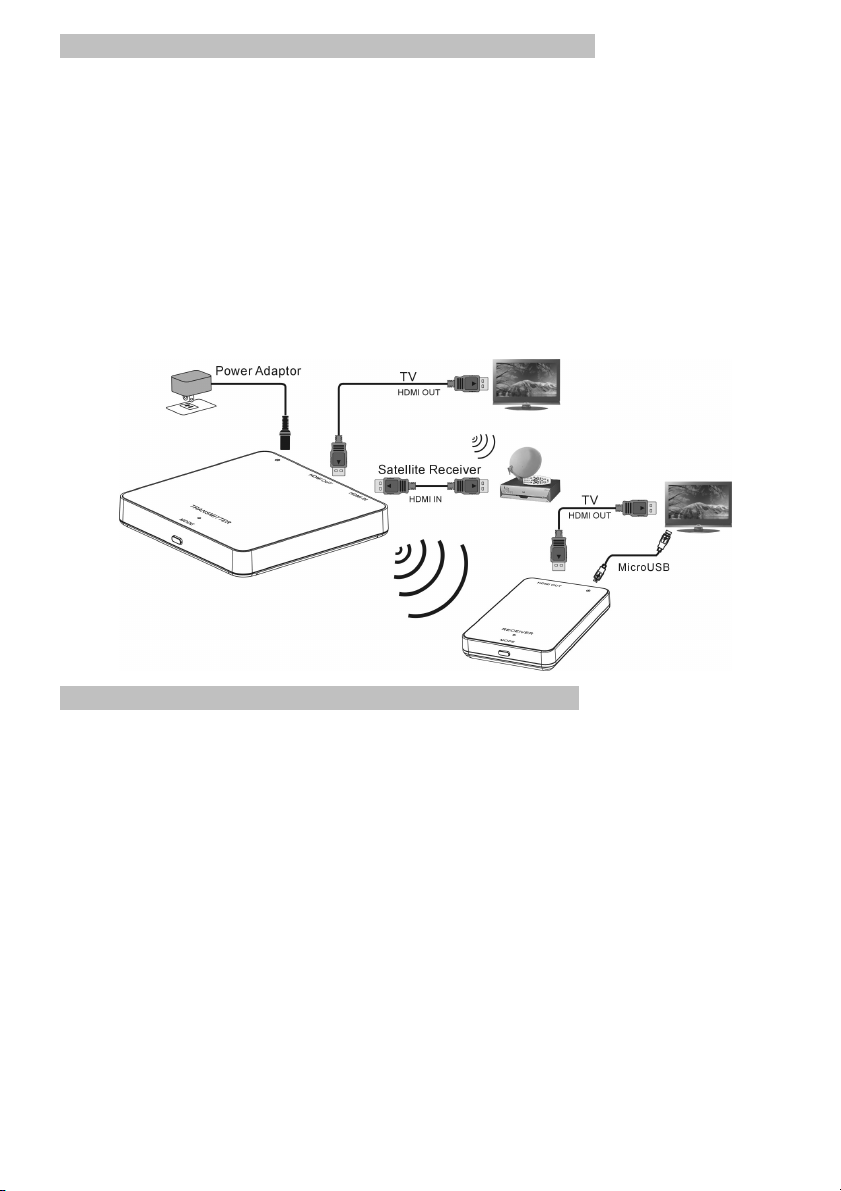

CONNECTION ILLUSTRATION

CONNECTION & OPERATION

Transmitter Box

TOP Front

Back

Receiver Box

TOP Front

Back

2

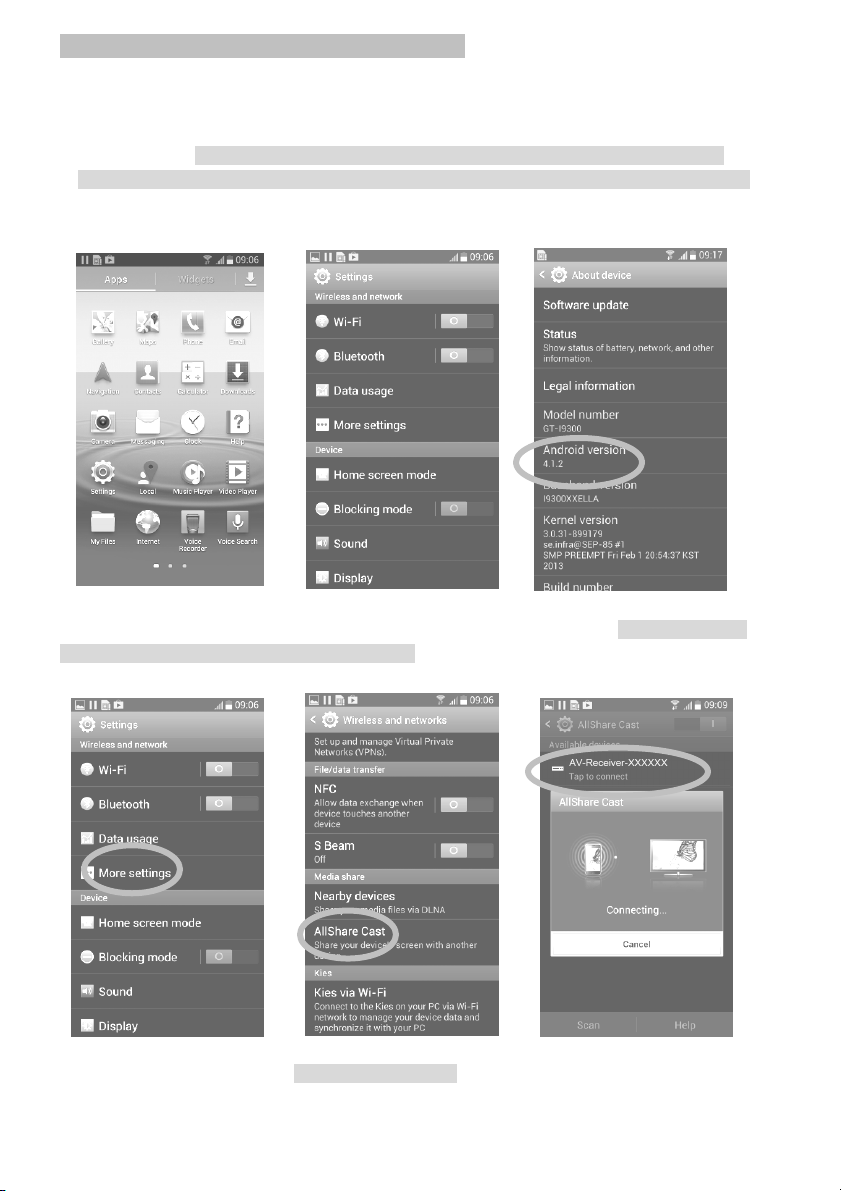

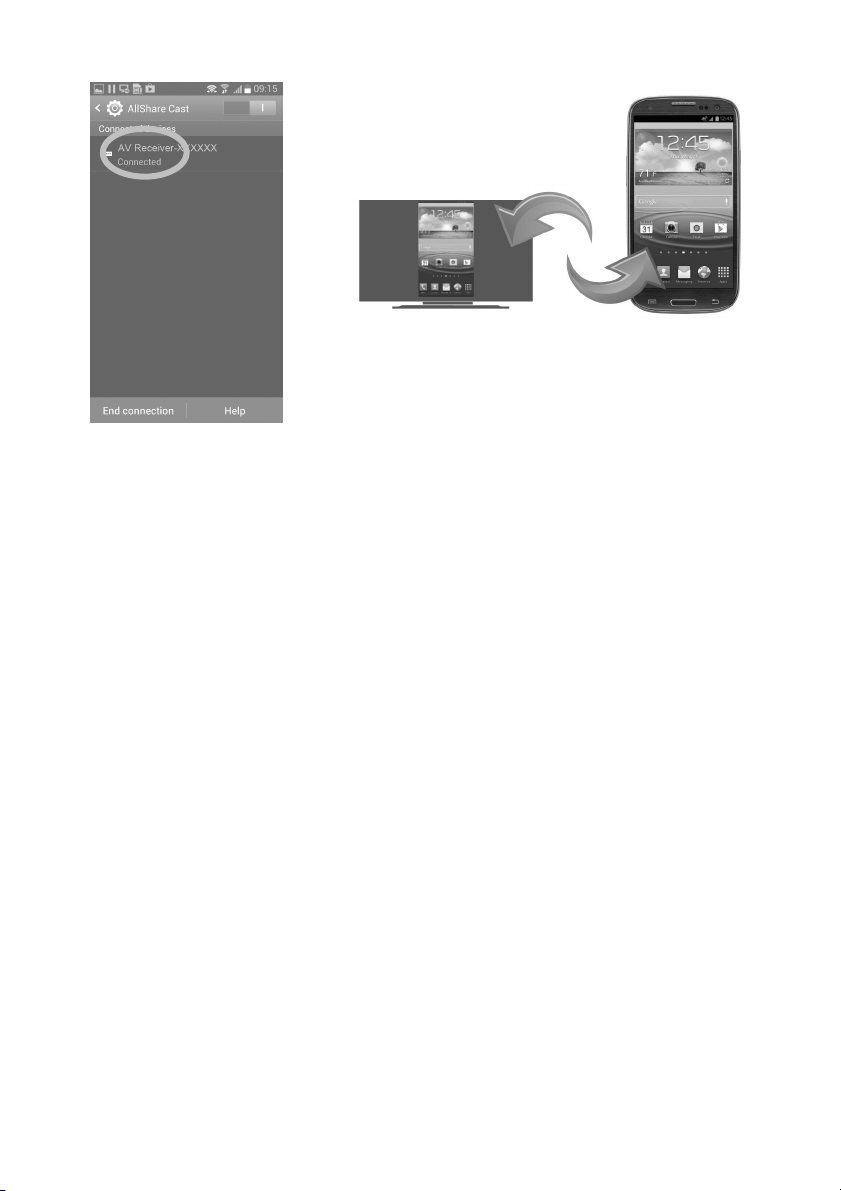

Connection : Miracast Mode for Smartphone

USB Cable

Step 1: Connect HDMI cable from HDMI output to HDTV.

Step 2: Connect USB Power cable (attached) the micro USB end to the power port of WTR-1000

Receiver Box and the USB A to the USB port of TV, Set Top Box or power adapter with USB A

port.

The LED of WTR-1000 Receiver Box will light on and state into Miracast Mode but at this moment

WTR-1000 Receiver Box is not connected to your Smartphone yet.

WTR-1000 Receiver Box

HDMI Cable

30 feet

Step 3: Turn on your HDTV TV and select the correct HDMI input.

HDTV

Note:

(1) When you power on the receiver box, the priority is scan transmitter source in 12 seconds. If not

found any source , it will into “Miracast Mode”.

(2) Push the button of “MODE” will change into “Wireless AV Mode”, If you do not power on the

transmitter source to connected in 2 minutes, after state will auto into “Miracast Mode”.
