Trans Electric LFIRX Users Manual

Limited Warranty

For Customer Service

Visit Our Website At

www.terk.com

Product Information, Photos,

FAQ’s, Owner’s Manuals

Audiovox Corporation (Audiovox) warrants this product against defects in
materials or workmanship for one (1) year from the date of purchase. During
this period, this product will be replaced without charge. This warranty does
not cover any damage due to acts of nature, commercial use, accident, misuse,
abuse or negligence. This warranty is only valid in the USA. Replacement as
provided under this warranty is the exclusive remedy of the consumer.
Audiovox shall not be liable for any incidental or consequential damages
for breach of any express or implied warranty on this product, except to the
extent that limitations of this sort are prohibited by applicable law.
THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURCHASE EXCEPT TO THE EXTENT THAT IMPLIED
WARRANTIES OR EITHER SORT ARE REQUIRED BY APPLICABLE LAW, AND IN
SUCH CASE, EACH WARRANTY IS LIMITED IN DURATION TO THE ONE YEAR.

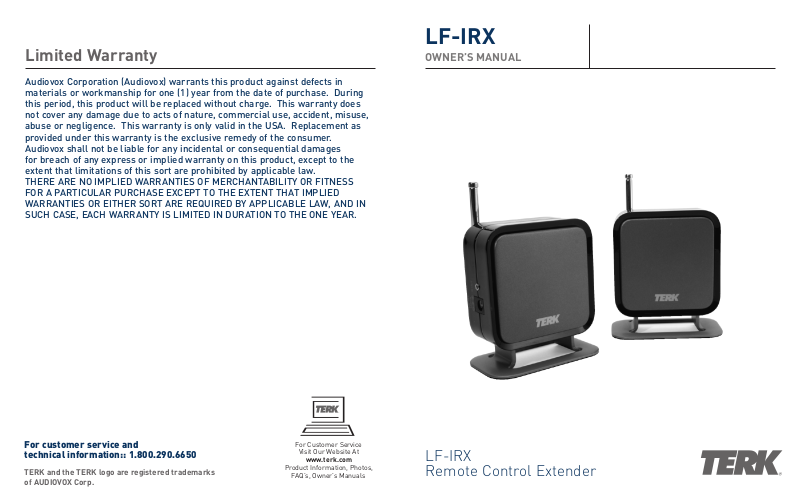

LF-IRX

OWNER’S MANUAL

For customer service and
technical information:: 1.800.290.6650

TERK and the TERK logo are registered trademarks
of AUDIOVOX Corp.

LF-IRX
Remote Control Extender

0perating Precautions

LF-IRX

Precautions: To ensure safe and effective operation,
please be sure to read and understand the following
precautions before operating your TERK Remote Control
Extender.

The following basic safety precautions should always be
followed to reduce the risk of fire,

electric shock and personal injury:

1. Read and understand all of the instructions in this
manual.

2. Follow all warnings and instructions indicated in the
manual and on the product itself.

3. Do not use your LF-IRX in or near any body of water,
such as
a bath tub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or in or near a swimming pool.

4. Be sure to place your LF-IRX on a stable, level surface.
Placing the product on any unstable surface may cause
the product to fall.

5. Do not attempt to clean your LF-IRX while it is plugged
in. Unplug the product from the wall outlet before
cleaning.

6. Do not use liquid cleaners or aerosol cleaners to clean
your
LF-IRX. Clean only with a damp cloth.

7. This product should be operated only from the type of
power source indicated on the marking label.

1

LF-IRX

8. To reduce the risk of electric shock, do not
disassemble this product, but take it to a qualified
serviceperson if service or repair work is required.
Opening or removing covers may expose you to
dangerous voltages or other risks and will void the
warranty. Incorrect reassembly can cause electric
shock when the product is subsequently used.

9. Unplug your LF-IRX from the wall outlet and
contact a qualified electronic service technician if
any of the following should occur:
A. The plug is damaged or the cord has been

B. Liquid has been spilled into the product.
C. The product has been exposed to rain or water.
D. The product does not operate normally by

E. The product has been dropped or otherwise

F. The product exhibits a distinct change in

2

broken or frayed.

following the operating instructions.

damaged and will not work.

performance.

• No repairs to the unit(s) should be attempted
by the customer.

0perating Precautions (continued)

LF-IRX

• NOTE: This equipment has been tested and found to
comply with the limits for remote control security
devices in accordance with the specifications in sub
parts C and E of part 15 of FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that Radio Frequency Energy does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on.

We recommend the following steps to correct signal
transmission problems:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the
Receiver.

• If the Receiver and the component that is being operated
are plugged into the same electrical outlet, plug the
Receiver into a different outlet.

Call Terk Tech Support 1- 800-942-TERK (8375) with any
product or application questions.

3

4

System Contents

Your TERK LF-IRX Remote Control Extender consists of two
units (Transmitter(TX) Receiver (RX)), a triple infrared
extension, and two AC adapters.

Transmitter (TX): The Transmitter converts the infrared
signals from your remote control into long-range RF
signals that are sent to the Receiver. The LED lamp
indicates that incoming signals are being detected. The
unit contains an antenna and power cord.

Receiver (RX): The Receiver converts the RF signals from
the Transmitter back to the infrared signals used to control
your components. The unit contains an antenna, power
cord, and a jack for the Infrared Extension. The LED light
indicates that a signal is being received. The Receiver Unit
can be placed up to 100 feet away from the Transmitter Unit.

Infrared Extension: The Infrared Extension can be used in
situations where the Receiver can not be placed in front of
the component(s) it is controlling. This device consists of 3
Infrared diodes connected to a 4 ft. extension wire and plug.
It can be placed on up to 3 different components.

Compatible Components

The LF-IRX can control virtually any household device
that is operated via infrared remote control, including:

• Satellite Receivers

• Personal Video
Recorders (TiVo,
UltimateTV)

• Cable Converter
Boxes

• VCRs

• CD Players

• Stereo Receivers

• Tape Decks

• DVD Players

• TV Sets
