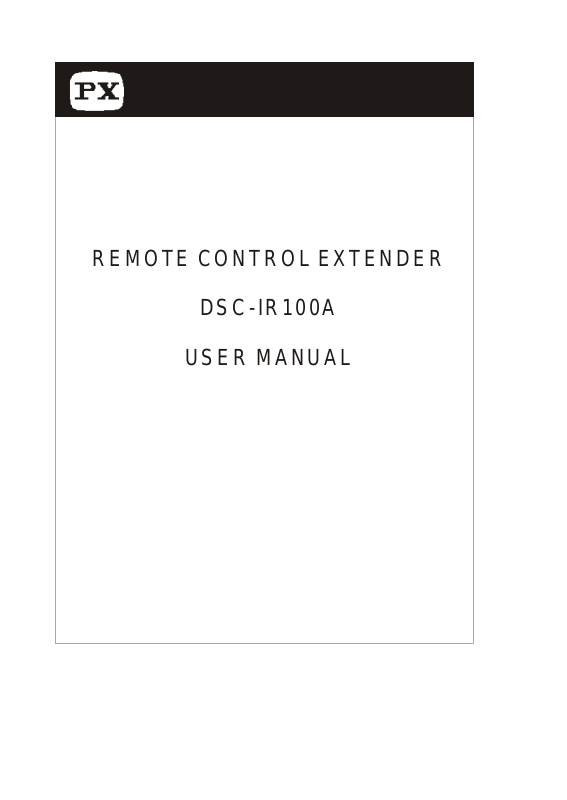

REMOTE CONTROL EXTENDER
DSC-IR100A
USER MANUAL
Product Description
The DSC-IR100A Wireless Infrared Remote Control Extender enables
you to extend their range of your present Infrared IR Remote Control so
that you can operate VCRs, stereos, Cable Converter, Satellite receivers,
etc. Virtually any where within your home.
Unlike ordinary remote controls which are only effective in close range.
" line of sight" use, The DSC-IR100A uses radio frequencies and can
operate through walls, doors, around corners, etc.
Applications
The Remote operation of electronics products that utilize IR
(Infrared) remote control technology such as:
Television
VCR's (Video Cassette Recorders)
CDs (Compact Disc)
DVD's (Digital Video Disc)
LDP's (Laser Disc Players)
Cable Converter Boxes
Satellite Receivers
Audio / Hi-Fi Stereo Systems
Wireless Video Sender Systems
Any (IR) Remote Controlled Devices
Installation
Transmitter:
You will be using your normal IR remote control and "aiming" it at DSCIR100A IR extender transmitter.
1. Plug the supplied AC adapter into any standard electrical wall outlet.
2. Connect the other end of the AC adapter cable in the"power in" socket
located on the side of your transmitter unit.
3. Place the transmitter in the remote location so that it is in the line of
sight of the position where you are located (couch, chair, bed, etc.) so
that you can "aim" your remote control at the transmitter.
Receiver / Probe:
1. Plug the supplied AC adapter into any standard electrical wall outlet.
2. Connect the other end of the AC adapter cable into the "power in"
socket located on the side of the receiver unit.
3. Place the DSC-IR100A receiver in a high, line-of-sight position
facing in front of the electronic device you are going to control.
Be certain that there are no obstructions between the DSC-IR100A
receiver and the infrared
4. In situation where it is not possible or convenient to place the DSC-IR
100A
remote probe is supplied. The remote probe enables you to place the
DSC-IR100A receiver in
controlled, and have the
receiving window of the
Plug one end of the probe cable into the jack located on the side of the
DSC-IR100A receiver. Attach the other end of the probe to the IR
receiving
stick tape
receiver in line-of-sight of the controlled equipment, a
window of the equipment being controlled using to double
attached to the probe.
receiving window of the equipment.
a high location, or near the equipment being
probe transmit the IR data directly to the IR
equipment.
INSTALLATION DIAGRAM
A. Stereo System:
B. Stereo System with remote Probe:
C. VCR / TV /Wireless Video System:
D. VCR / TV /Wireless Video System with remote Probe:
Care and Maintenance
Keep the DSC-IR100A Remote Extender dry. If it gets wet, wipe it dry
immediately.
Use and store the DSC-IR100A only in normal temperature environm
ents.Extreme temperature can shorten the life of electronic devices
Handle the DSC-IR100A gently and carefully. Dropping it can damage
the circuit board anc can cause it to work improperly.
Keep the DSC-IR100A away from dust and dirt, which can cause
wear of parts.
premature
Wipe the DSC-IR100A with a damp cloth occasionally to keep it
Do not use harsh chemicals, cleaning solvents, or strong
looking new.
detergents.
Specifications
Operating Voltage .......................................105-130 VAC, 60Hz
Power Consumption (pair)............................4 Watts Max
Transmission Frequency...............................418 MHz + / - 1 MHz
User Informaton
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Caution:
The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
