Transducer Techniques SSI Operator's Manual

SSI

R

SMART SENSOR INDICATOR

PLUG & PLAY IEEE 1451.4 COMPLIANT

OPERATOR MANUAL (USB)

- 2 -

1. TABLE OF CONTENTS

REVISED 07/2017

1. TABLE OF CONTENTS ............................................................................................... 2

2. TEDS IEEE 1451.4 INTRODUCTION .......................................................................... 3

3. SSI PRODUCT INTRODUCTION ................................................................................ 4

4. RECEIVING & UNPACKING ....................................................................................... 6

5. SAFETY CONSIDERATIONS & CARE OF YOUR METER ......................................... 8

6. CONNECTOR WIRING INFORMATION ..................................................................... 10

7. KEYPAD OPERATION ................................................................................................ 12

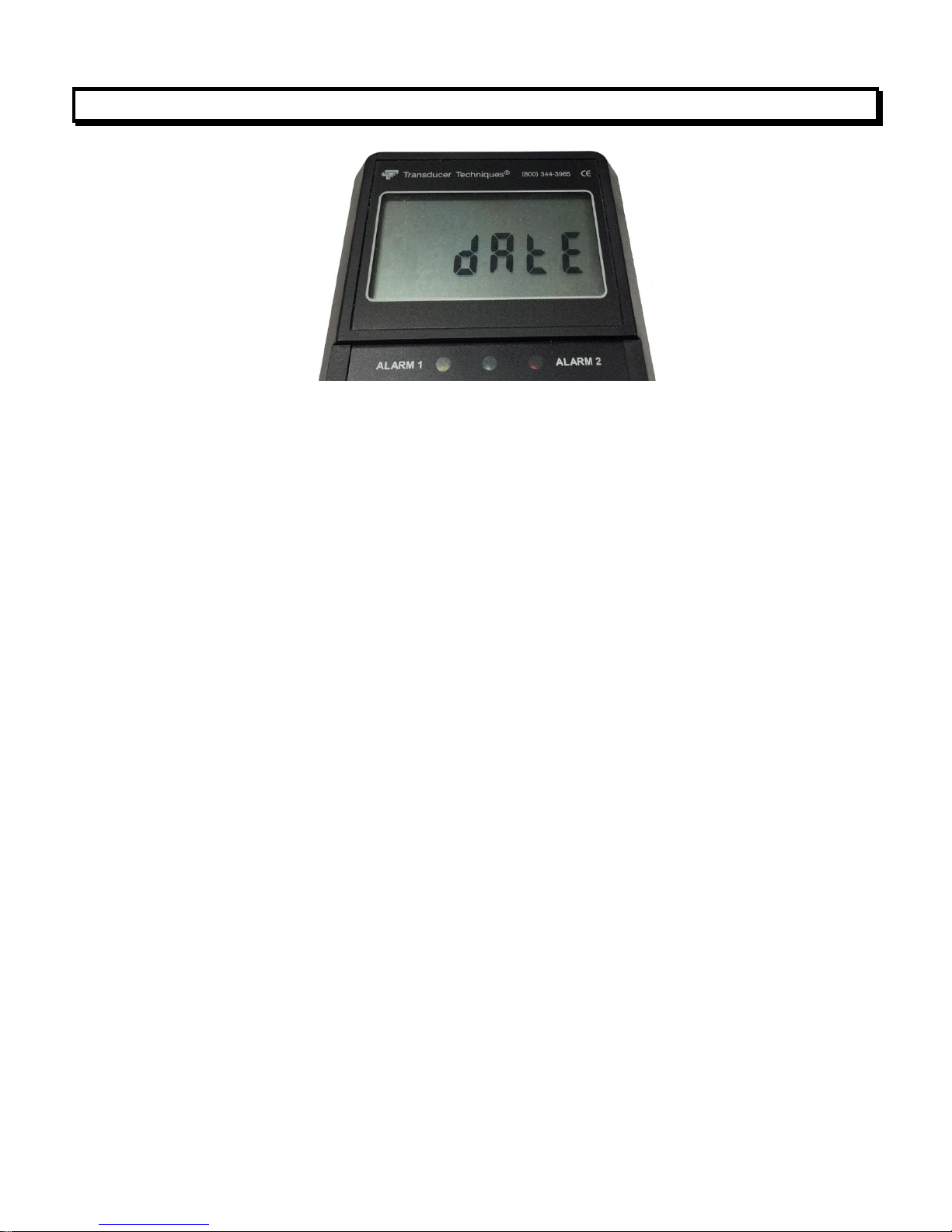

8. “dAtE” ERROR MESSAGE .......................................................................................... 16

9. DATA LOGGING & RECALL OPERATION ................................................................. 17

10. MENU MODE PROGRAMMING FUNDAMENTALS .................................................... 23

11. MENU MODE PROGRAMMING KEYSTROKES ......................................................... 28

12. INSTRUMENT SETUP & DATA DISPLAY VIA PC ...................................................... 36

13. CUSTOM CURVE LINEARIZATION ............................................................................ 38

14. METER CALIBRATION ............................................................................................... 40

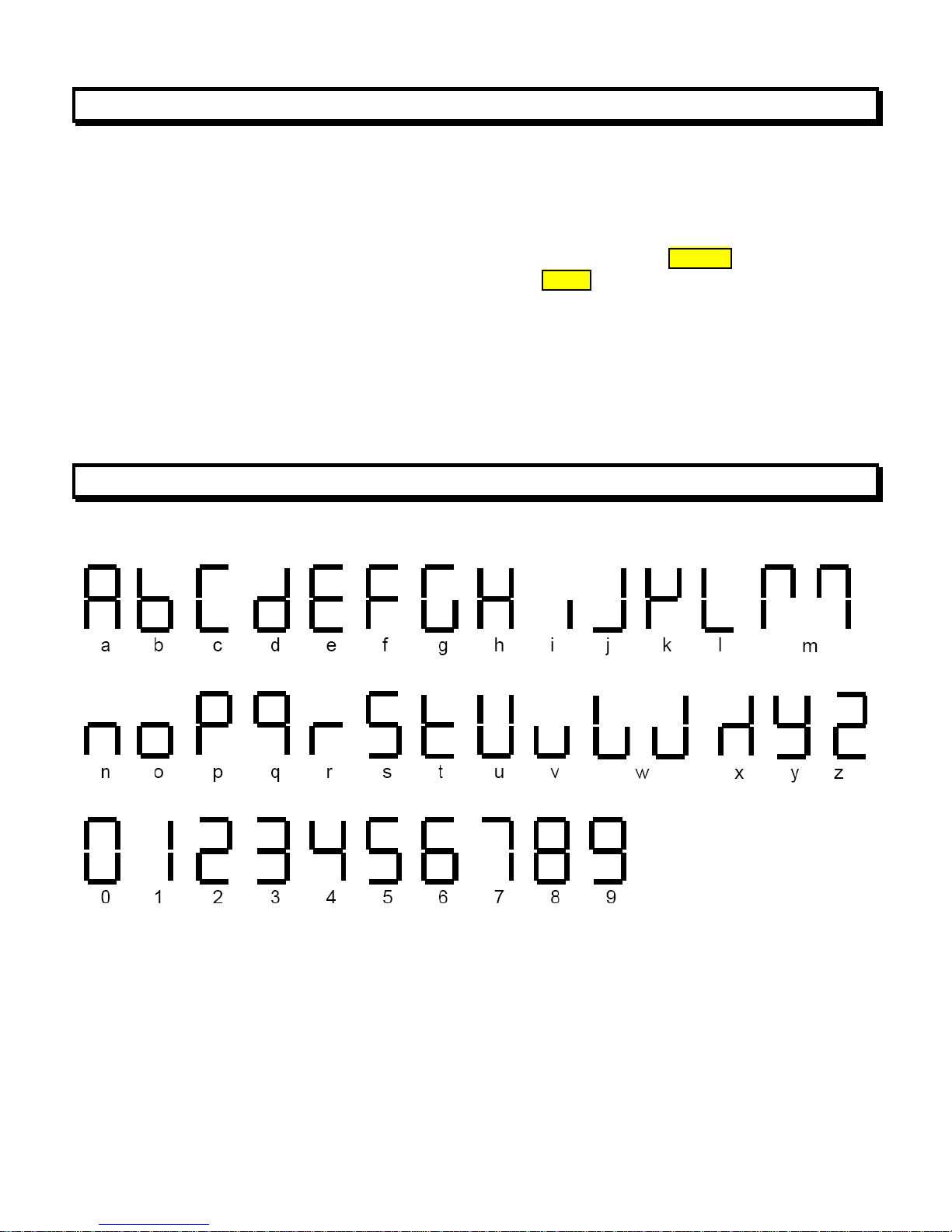

15. 7-SEGMENT ALPHABET ............................................................................................ 40

16. SPECIFICATIONS ....................................................................................................... 41

17. GLOSSARY OF TERMS .............................................................................................. 44

18. WARRANTY & REPAIR POLICY ................................................................................. 47

- 3 -

2. TEDS IEEE 1451.4 INTRODUCTION

The SSI Smart Sensor Indicator is a TEDS IEEE 1451.4 Plug and Play Smart Load Cell

Meter.
TEDS, or Transducer Electronic Data Sheet, is a set of electronic data in a standardized

format defined within the IEEE 1451.4 standard. The data is stored in an EEPROM with the
sensor. It specifies what type of sensor is present, describes its interface, and gives tech­nical information such as sensitivity, bridge type, and excitation.

The SSI automatically detects when a TEDS IEEE 1451.4 compliant Load Cell, Torque
Sensor or Pressure Transducer is connected. Once a TEDS sensor is detected, the SSI

displays “TEDS”, reads the EEPROM, stores the information in memory, and performs an

automatic configuration.
The built-in sensor-related EEPROM may be any of the following types: DS1973/DS2433,

DS2431 or DS1971/DS2430A. The automatic system configuration function performs all
steps needed to calibrate the TEDS IEEE 1451.4 compliant sensor and SSI as a system.
This includes the configured precision of either 32 bits, 19 bits or 11 bits.

Using the SSI with a TEDS IEEE 1451.4 compliant Load Cell, Torque Sensor or Pressure
Transducer is as easy as plugging a mouse into a computer, making it a true plug-and-play
experience.

The SSI may also be used with a non-TEDS sensor requiring manual configuration and
calibration.

- 4 -

3. SSI PRODUCT INTRODUCTION

The SSI Smart Sensor Indicator is a hand-held, programmable meter and datalogger for

load, torque or pressure applications. Advanced capabilities include:

1. “Plug and Play” operation with automatic scaling at power-up with TEDS IEEE 1451.4
compliant load cells.

2. Instrument Calibration indicator (CAL INSTRUMENT) to show when the meter is due
for calibration. Flashing indicates either that the instrument is due for calibration or will
be due in less than 30 days. Steady indicates that the instrument is now due for
calibration.

3. Sensor Calibration indicator (CAL SENSOR) to show when an actively attached TEDS
sensor is due for calibration. Flashing indicates either that the sensor is due for
calibration or will be due in less than 30 days. Steady indicates that the sensor is now
due for calibration.

4. Calibration Indicators can be enabled or disabled.

5. Menu-driven scaling of non-TEDS-compliant load cells via keypad with a choice of two

scaling methods: manually entered coordinates of two points, or reading coordinates
of two points using input signals.

6. PC-based scaling of non-TEDS-compliant load cells using Instrument Setup software,
again with a choice of two scaling methods.

7. Keypad selectable units of measure for load, torque or pressure, with automatic con­version of readings between units.

8. Lockout feature to simplify meter operations and prevent inadvertent changes.

9. Ultra-fast signal sampling rate of 15,360 samples/second (when set for 60 Hz noise

rejection) or 12,800 samples/second (when set for 50 Hz noise rejection).

10. Normal conversion rate of 60/second (when set for 60 Hz noise rejection) or
50/second (when set for 50 Hz noise rejection), with digital averaging of every 256
samples. Allows display of filtered or unfiltered readings, capture of Peak, First Peak
or Valley.

11. Selectable Fast conversion rates up to 7,680/second (when set for 60 Hz noise
rejection) or 6,400/second (when set for 50 Hz noise rejection). Always unfiltered,
allows capture of Peak or First Peak.

12. Display update rate at 3.75/second (when set for 60 Hz noise rejection) or

3.125/second (when set for 50 Hz noise rejection). Display batch averages of 16
conversions or moving averages of conversions.

13. USB port for direct connection to a PC at baud rates from 300/second to 38.4k/
second.

14. Data logging to internal memory of up to 16,000 time and date stamped displayed
readings at up to 60 or 50 captures/second. Data logging may be single or continuous.

15. Selectable memory protection to prevent overwriting previously stored data.

- 5 -

16. Recall of internally stored readings to the meter display, a PC, or a printer with a
USB interface. Recall may be single or continuous (standard capability).

17. Recall of last meter calibration dates.

18. Data logging of time and date stamped values in real time via USB to a PC or printer.

The values may be the current reading, Peak, Valley, or any combination thereof.

19. Optional PC Data Logging Software, P/N SSI-DLS. Collects real-time or stored data
via USB. Lists, plots or stores meter data in PC memory.

20. Two built-in, solid state alarm relays, with LED and audible indications. Selectable
relay latching or non-latching, setpoint hysteresis or band deviation modes.

21. Two control inputs assignable to Meter Reset, Peak & Valley Reset, Peak & Valley
Display, Tare, Tare Reset, and Log Trigger.

22. Built-in load cell excitation voltage.

23. Powered by a rechargeable 2400 mAh lithium-ion battery for up to 65 hours of oper-

ation. Battery charge monitor circuit with 4-element bar graph charge monitor.

24. Selectable automatic meter shutoff after interval of inactivity (15, 30 or 60 minutes).

25. Wall plug type, UL-rated AC adapter / battery charger unit with removable A-B USB

cable.

26. Carrying case (optional).

- 6 -

4. RECEIVING & UNPACKING

Six mounting holes in the
top plate of the mounting
bracket allow meter attach­ment in two orientations.

The base of the meter has
three inserts with 8-32 UNC

threads, 3/8” deep, for

attachment to the mounting
bracket. The inserts are in
a triangle pattern with a

1.500” base and 1.750”
height.

SSI-USB/ACA

AC adapter with removable

A-B USB cable

SSI-AMB Adjustable mounting bracket

Your SSI was carefully tested and inspected prior to shipment. Should your unit be
damaged in shipment, keep the shipping materials and notify the freight carrier immediately.

Verify that your SSI shipment includes the following items:

1. SSI Smart Sensor Indicator

2. SSI-USB/ACA AC adapter / battery charging unit with removable A-B USB cable.

3. SSI-SCC (2 ea.) Detachable 3-pin screw-clamp connectors for relay outputs and

external controls.

4. SSI Operator Manual (USB)

User manual. Also download from www.transducertechniques.com

Your shipment should also include the following accessories or options if ordered:

1. SSI-DLS Data Logging Software

2. SSI-TRES TEDS Reader Editor Software

3. SSI-AMB Adjustable Mounting Bracket

In the event that your unit is undamaged but is inoperable, return it to your place of
purchase for warranty repair or replacement. Please include a detailed description of the
problem. See the warranty instructions at the back of this manual.

- 7 -

SSI-DLS Data Logging Software

SSI-TRES TEDS Reader Editor Software

Available for download from www.transducertechniques.com at no charge:

1. SSI-IS Instrument Setup Software.

2. SSI Operator Manual (USB) This manual in pdf format.

- 8 -

5. SAFETY CONSIDERATIONS & CARE OF YOUR METER

The SSI is housed in a tough ABS case and is mechanically rugged. The LCD display is
protected by a clear Lexan cover. The unit is powered by a rechargeable lithium-ion battery.
There are no internal voltages higher than 5V. AC mains power is limited to the input side of a
sealed, UL-rated, wall plug AC adapter / battery charger unit.

Warning: Use of this equipment in a manner other than specified may impair the pro­tection of the device and subject the user to a hazard. Visually inspect the unit for signs of
damage. If the unit is damaged, do not attempt to operate.

Safety Considerations

IMPORTANT: For AC operation or charging, use ONLY the designated AC adapter,

(P/N: SSI-USB/ ACA), or the supplied A-B USB cable connected to a USB port of a PC.

Do not plug the AC adapter into an electrical outlet other than 100-240V ac, 50/60 Hz.
Do not plug the AC adapter into an electrical outlet if the unit is wet or has been damaged,

as this could lead to electrical shock and/or equipment damage.

Do not operate the instrument in the presence of flammable gases or fumes, as such an

environment constitutes an explosion hazard.
Do not operate the instrument if water can get inside the case.
Do not apply signals to the inputs and outputs other than those specified in this manual.
Do not operate this equipment without having studied this manual.

Equipment Care

To maximize battery life, store your meter at room temperature. Avoid storage tempe-

ratures below -20°C or above +55°C, as could be found in a parked vehicle.
Do not drop the instrument. Avoid excessive shock or vibration, which could cause mecha-

nical damage.
Do not clean the meter with solvents. Instead, use a soft, damp cloth.
Do not allow water or other fluid into the meter.
Store the meter in its carrying case when not in use.
For greatest accuracy, operate the meter at around 25°C, not at temperature extremes.

Operating environment:

The meter is Class II (double insulated) equipment designed for use in Pollution degree 2.

- 9 -

Symbols used

Caution (refer to accompanying documents)

Caution, risk of electric shock.

Earth (ground) terminal.

Equipment protected throughout by double insulation or reinforced insulation.

Both direct and alternating current.

CE Mark. Indicates that product meets EU safety, health and environmental
requirements.

RoHS Symbol. Indicates that product is free from hazardous substances defined in
EC directive 2002/95/EC.

WEEE Symbol. Indicates that product should be recycled and not disposed of as
general waste.

- 10 -

6. CONNECTOR WIRING INFORMATION

Type B USB connector
Detachable screw-clamp plug for

digital control inputs A & B:

External B
Ground
External A

Detachable screw-clamp plug for
dual relay outputs 1 & 2:

Normally Open 2
Common
Normally Open 1

DB9 connector for excitation output, signal input, and TEDS interface

- 11 -

Pin

Name

Description

1

VBUS

+5V

2

D-

Data -

3

D+

Data +

4

GND

Ground

Industry Standard USB Pinout

Relay Jack Pinout (looking into jack)

- 12 -

7. KEYPAD OPERATION

GENERAL

The SSI operator panel consists of an LCD display, an 8-key
membrane keypad, and 5 LED indicator lights, as explained
below.

LCD DISPLAY

8.8.8.8.8.8.

Main reading. This can be the current reading, recalled read­ing, first peak, peak, or valley, as selected via the keypad.
The numerical reading utilizes 5 digits with leading zero
blanking and a selectable decimal point. The 6th left-most
digit is used for special applications, such as setting time and date.

Pa psi bar oz lb ton Mton g N kgf KN
in-oz in-lb ft-lb kgf-m kgf N-m kgf-cm N-cm

Unit of measure associated with the main reading. When changed, readings are automatic­ally converted within the same family (load, torque or pressure). In TEDS operation, a
default unit of measure is read from EEPROM memory in the TEDS unit at power-up, but
can be changed via the keypad.

CAL INSTRUMENT

Flashing indicates either that the instrument is due for calibration or will be
due in less than 30 days. Steady indicates that the instrument is past due for
calibration. See Section 10, Item 10 for a more detailed explanation.

CAL SENSOR

Flashing indicates either that the sensor is due for calibration or will be due in
less than 30 days. Steady indicates that the sensor is past due for calibra­tion. See Section 10, Item 10 for a more detailed explanation.

- 13 -

TEDS Indicates that a TEDS sensor is present, as detected by a jumper across

pins 3 and 4 of the DB9 connector, and that plug & play has been selected.

FIRST PEAK Indicates that main reading is First Peak (or first maximum) since last reset.
PEAK Indicates that main reading is the Peak (or maximum) since last reset.
VALLEY Indicates that main reading is the Valley (or minimum) since last reset.
USB Indicates that serial data is being transmitted.
RECALL Indicates that main reading is recalled logged data.

Battery charge indicator with 4 bars to show percent of full charge. 4 bars =

80% to 100%, 3 bars = 60% to 80%, 2 bars = 40% to 60%, 1 bar = 20% to
40%, flashing battery symbol = 0% to 20%.

8 8 8 8 8 Memory location # from 0 to 15999. Used for data logging or data recall,

when these functions are in effect. Indicates FAST for FAST Mode, when a
conversion rate faster than the normal 60/second has been selected. When
not in the FAST mode, indicates a 10 multiplier when the reading is divided
by 10 for a TEDS sensor having a Max Physical Value greater than 100,000.

INDICATOR LIGHTS

Top left (amber): Alarm 1 activated.
Top middle (green): Go (no alarm). Light may be deactivated to conserve power.
Top right (red): Alarm 2 activated.

 POWER key (amber): ON when battery is charging, otherwise OFF.
 LOG key (green): ON when meter is logging or recalling data, otherwise OFF.

KEYPAD KEYS

POWER Press POWER to turn on the meter. The LCD will come on, and the meter will

be in the RUN mode. Press POWER again to turn off. Automatic power shut-off
may also occur after a pre-selected fixed interval of non-use (no switches
pushed), or this feature may be disabled. Three time intervals are menu­selectable (15, 30 or 60 minutes), as is an optional audible warning 20 seconds
prior to shut-off.

UNITS Press UNITS repeatedly in the Run mode to step from one unit of measure to

the next within the same family of units. These are available for load (oz, lb,
ton, Mton, g, N, kgf, kN), torque (in-oz, in-lb, ft-lb, kgf-m, N-m, kgf-cm, N-cm), or
pressure (Pa, psi, bar). Readings are automatically converted within each
family as units of measure change. In TEDS operation, a default unit of
measure is always read from the transducer at power-up. In non-TEDS
operation, units are selected during meter setup, and the last menu-selected
unit of measure is recalled at power-up.

Press UNITS in the Recall mode to display the last meter calibration date. Press

RECALL to display the previous Recall value.

- 14 -

LOG From the RUN mode, press LOG momentarily to log the current reading into the

next available Memory location # (from 0 to 15999). Press LOG for longer than
2 seconds to place the meter in the Continuous Logging mode, which will log
multiple readings at a programmable data collection rate. Press LOG momen­tarily again to exit the Continuous Logging mode.

The action of the LOG key is menu-selectable. Logging can be disabled, to

internal memory only, to USB only, or to both internal memory and USB.
Please see Section 9, “Data Logging & Recall Operation.”

RECALL From the RUN mode, press RECALL for longer than 2 seconds to change to the

RECALL mode, where previously logged readings can be recalled, as opposed
to taking new readings. Press LOG momentarily to recall single logged
readings. Press LOG for longer than 2 seconds to recall successive readings
continuously. The Memory location # of each recalled reading will be shown in
the 88888 field. Press LOG momentarily to terminate the Continuous RECALL
mode. Press UNITS in the Recall mode to display the last meter calibration
date. Press RECALL to display the previous Recall value. Press RECALL for
longer than 2 seconds to return to the RUN mode. Please see Section 9, “Data
Logging & Recall Operation.”

> MENU From the RUN mode, Press > MENU to change to the Menu mode, which allows

setting up the meter from the keypad. Press > MENU to step through menu
items. Press > PEAK to select digits or sub-items within the selected menu item,
and press TARE ^ RESET to modify the selected flashing digit or sub-item. The

UNITS, RECALL and LOG keys are disabled in the Menu mode. Please see

Section 11, “Menu Mode Programming Keystrokes.”
The > MENU and < ALARMS keys are also used in the RECALL mode to incre-

ment or decrement Memory location #’s (from 0 to 15999) for displaying logged
readings.

> PEAK The action of the > PEAK key is programmable to 4 operating modes, so that

pressing it from the RUN mode will display 1) Peak, 2) First Peak, 3) Valley, 4)
Peak (1st push) and Valley (2nd push). When Peak, Valley or First Peak is being
displayed, the appropriate LCD indicator caption will be displayed (PEAK,

VALLEY or FIRST PEAK). Pressing the > PEAK key one more time returns to the

RUN mode.

The > PEAK key is also used in the Menu mode to advance the flashing

indicator of the menu value, and in the RECALL mode to advance the next
flashing digit of the logging Memory location # (0 to 15999).

TARE ^ RESET

To zero the display from the RUN mode, press TARE ^ RESET (selectable Tare

function). With no load applied, this action will zero the system. If the meter is
used in a weighing application with an empty container, this will subtract the
weight of the empty container to display net weight.

- 15 -

To reset the meter, hold the TARE ^ RESET key depressed while you press and
release the > MENU key.

To reset a Peak, Valley or First Peak, hold the TARE ^ RESET key depressed

while you press and release the > PEAK key.

To reset latched Alarms, hold the TARE ^ RESET key depressed while you press

and release the < ALARMS key.

The TARE ^ RESET key is also used in the Menu mode and in the RECALL

mode to increment the flashing selection.

< ALARMS From the RUN mode, press < ALARMS to change to the Alarms mode, which

allows viewing and changing setpoints from the keypad. Press once to view
Setpoint 1. The Alarm 1 indicator (amber LED) will light. Press again to view
Setpoint 2. The Alarm 2 indicator (red LED) will light. Press again to exit the
Alarms mode and return to the RUN mode. While the Alarm 1 indicator is lit,
you can change Setpoint 1 by pressing > PEAK to select a digit, which will flash,
then pressing TARE ^ RESET to increment that digit. Same for Setpoint 2.

In the Menu mode, the > ALARMS key steps backward through the menu. In the
RECALL mode, it is used to decrement Memory location #’s from 15999 to 0.

TEDS ERROR MESSAGES

If there is a problem with the TEDS connection between the meter and TEDS transducer,
one of the following error messages is displayed at power on:

Err 1 - TEDS data line shorted.
Err 2 - No Presence pulse from TEDS.
Err 3 - Improper Presence pulse width.
Err 4 - Error in TEDS family code in ROM.
Err 5 - TEDS checksum error in the first or second 32 bytes.

Correct the problem and then press the Menu key.
