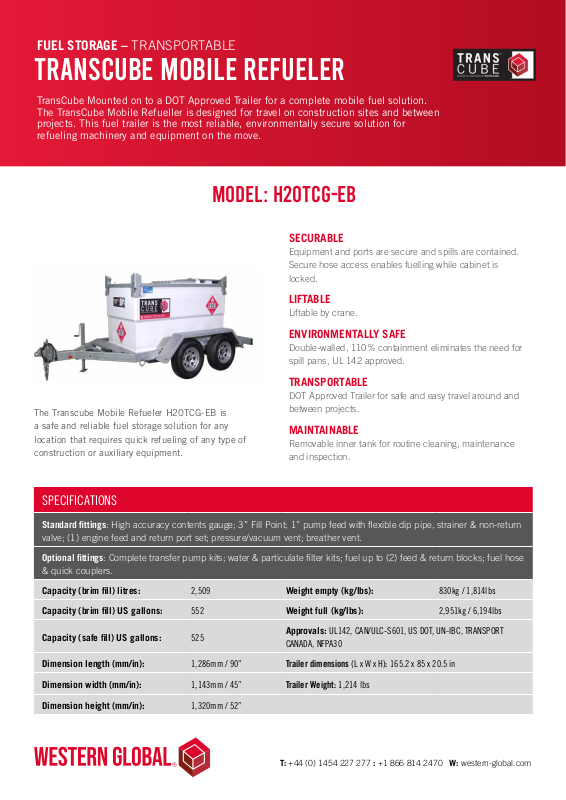

FUEL STORAGE – TRANSPORTABLE
Transcube mobile refueler
TransCube Mounted on to a DOT Approved Trailer for a complete mobile fuel solution.
The TransCube Mobile Refueller is designed for travel on construction sites and between
projects. This fuel trailer is the most reliable, environmentally secure solution for
refueling machinery and equipment on the move.
model: H20TcG-eb
SECURABLE
Equipment and ports are secure and spills are contained.
Secure hose access enables fuelling while cabinet is
locked.
LIFTABLE
Liftable by crane.
ENVIRONMENTALLY SAFE
Double-walled, 110% containment eliminates the need for
spill pans, UL 142 approved.
TRANSPORTABLE
DOT Approved Trailer for safe and easy travel around and
The Transcube Mobile Refueler H20TCG-EB is
a safe and reliable fuel storage solution for any
location that requires quick refueling of any type of
construction or auxiliary equipment.
between projects.
MAINTAINABLE
Removable inner tank for routine cleaning, maintenance
and inspection.
SPECIFICATIONS
Standard ttings: High accuracy contents gauge; 3” Fill Point; 1” pump feed with exible dip pipe, strainer & non-return
valve; (1) engine feed and return port set; pressure/vacuum vent; breather vent.
Optional ttings: Complete transfer pump kits; water & particulate lter kits; fuel up to (2) feed & return blocks; fuel hose
& quick couplers.
Capacity (brim ll) litres:
2,509
Weight empty (kg/lbs):
830kg / 1,814lbs
Capacity (brim ll) US gallons:
Capacity (safe ll) US gallons:
Dimension length (mm/in):
Dimension width (mm/in):
Dimension height (mm/in):
552
525
1,286mm / 90” Trailer dimensions (L x W x H): 165.2 x 85 x 20.5 in
1,143mm / 45” Trailer Weight: 1,214 lbs
1,320mm / 52”
Weight full (kg/lbs):
Approvals: UL142, CAN/ULC-S601, US DOT, UN-IBC, TRANSPORT
CANADA, NFPA30
T: +44 (0) 1454 227 277 : +1 866 814 2470 W: western-global.com
2,951kg / 6,194lbs
