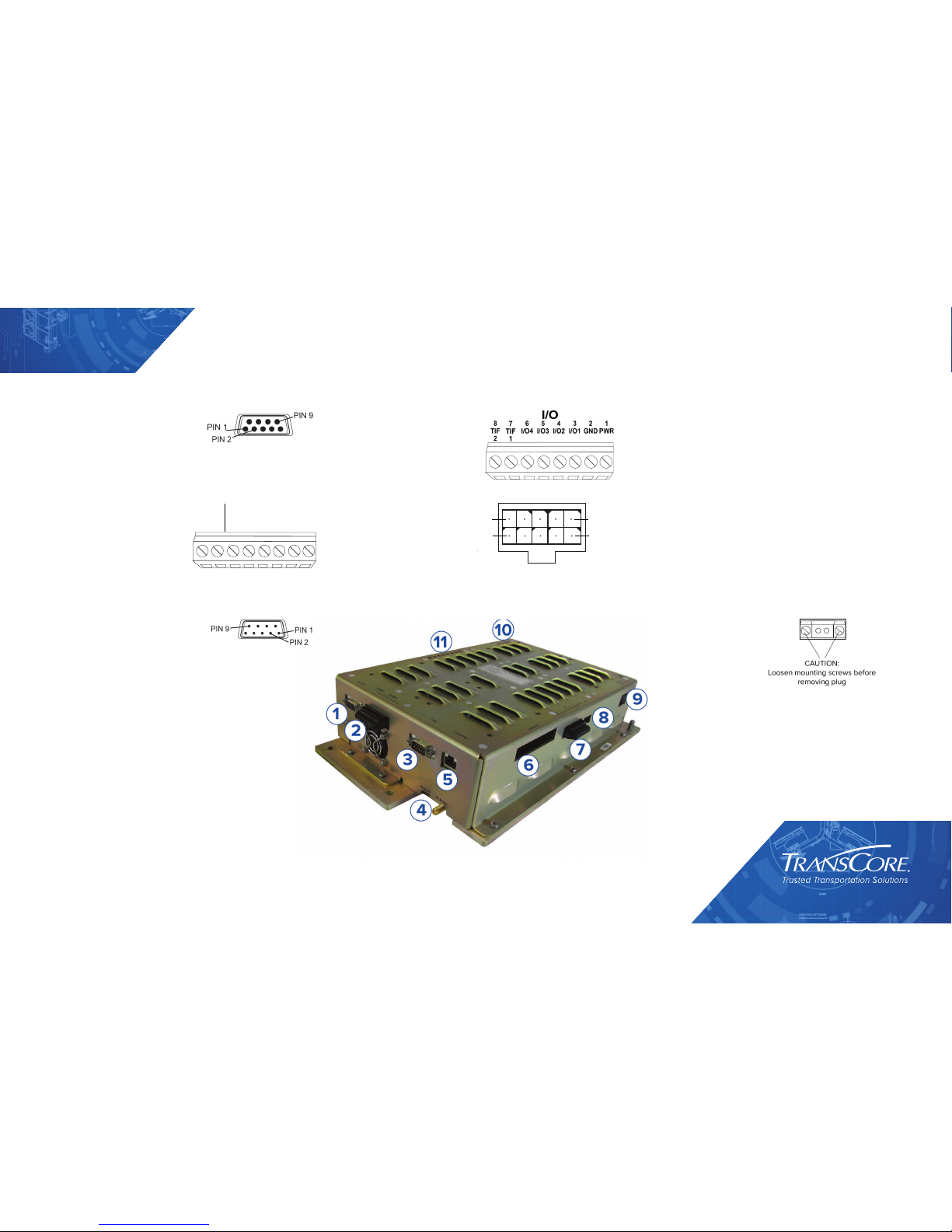

1 ANTENNA MULTIPLEXING/CHECK TAG PORT
Recommended Data Cable:
9-pin ribbon cable
Recommended Check Tag Antenna Cable:
50-ohm coaxial cable (≤3 dB loss in
cable)
2 TDM/COM1 PORT
Recommended COM1 Port Data Cable:
20 AWG cable
Recommended TDM Cable:
Belden 89182 (outdoor-rated)
Recommended TDM Cable:
Belden 8132 (not outdoor-rated)
Mating connector:
TransCore P/N 33357-01
3 COM2 PORT
Recommended Cable:
20 AWG cable
4 ANTENNA PORT
Recommended Cable:
50-ohm coaxial cable
Recommended Antenna:
AA3152 Universal Toll Antenna
NOTE: Use the RF MONO port for single-antenna installation
CAUTION: Tighten antenna SMA connector to 10 in/lb only.
Do not cross-thread the connector when tightening.
5 ETHERNET PORT
Recommended Data Cable:
Belden 7929A Paired Category 5e (outdoor-rated)
Maximum Length:
330 feet (100 m)
Encompass jack is RJ-45
6 DIAGNOSTIC TEST PORT
Used for factory diagnostic testing only
7 EXTERNAL DIGITAL INPUT/OUTPUT PORT
Data Cable:
20 AWG wire
Mating Connector:
TransCore P/N 33357-01
8 GPS TIMING PORT
Data Cable:
20 AWG wire
Antenna Cable:
50-ohm coaxial cable
≤12 dB @1.575 GHz
9 POWER REQUIREMENTS
Input Supply Voltages:
19V DC to 30V DC or 19V AC to 27V AC RMS @47 to 63 Hz
Input Power:
DC or AC: 40 watts maximum
In-rush Current:
8 amps (A) maximum, ≤25 milliseconds (ms)
Transformer:
(TransCore P/N 76-6000-001) 110V AC or 220V AC input,
24V AC output
Power Cable:
12-22 AWG cable
Mating Connector:
TransCore P/N 33356-01 (1 each ) and P/N 33358-01 (2 each)
CAUTION: Wire gauge depends on wire resistance
versus overall wire length with respect to the Encompass
6 reader’s specified voltage range and power rating.
(See Page 2 for AC power supply wiring.)
10 Power LEDs
See Page 2 for descriptions.
11 FAULT/OPERATIONAL LEDs
See Page 2 for descriptions.

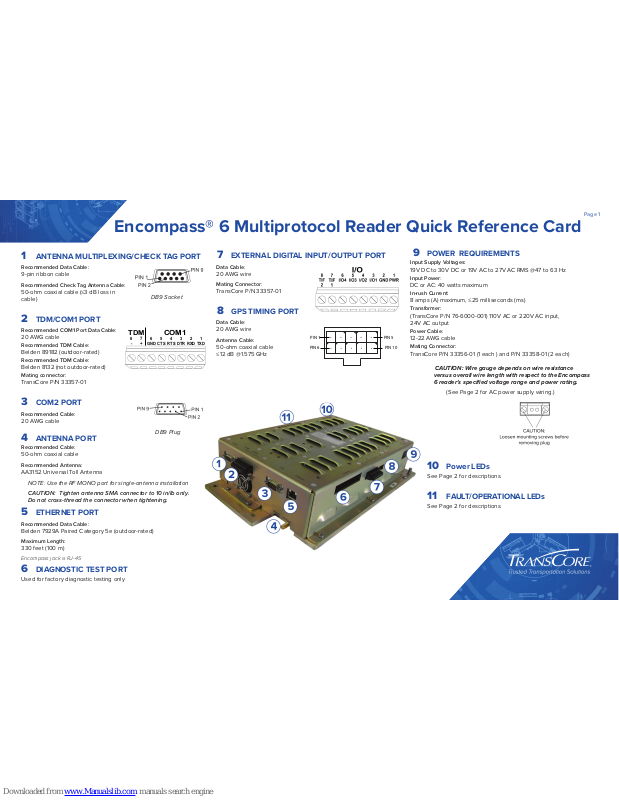

Encompass® 6 Multiprotocol Reader Quick Reference Card
PIN 1
PIN 5
PIN 6 PIN 10
TDM
COM1
6
GND5CTS4RTS2RXD1TXD
3
DTR
7
+
8
-
DB9 Socket
DB9 Plug
Page 2
Page 2
© 2007-2017 TransCore L.P. All rights reserved. TRANSCORE and TRANSSUITE are registered
trademarks, and are used under license. All other trademarks listed are the property of their
respective owners. Contents subject to change. Printed in the U.S.A.
For more information:
Sales Support 800.923.4824
Technical Support 505.856.8007
transcore.com
Choosing a Power Supply
Consider these factors when choosing a power supply:
1. Input voltage: 19V to 30V DC or 19V to 27V AC RMS @47 to 63 Hz
In-rush current: 8A maximum, ≤25 ms.
(See Power Requirements on Page 1 for additional Encompass 6
requirements)
2. Operating temperature of power supply and power cable
3. Power cable gauge and length: 12 to 22 AWG cable, depending on
length of cable route
Power Supply Accessory Kit
Part Number Description
76-6000-001 110V AC or 220V AC to 24V AC transformer
CAUTION: Wire gauge depends on wire resistance
versus overall wire length with respect to the Encompass
6 reader’s specified voltage range and power rating.

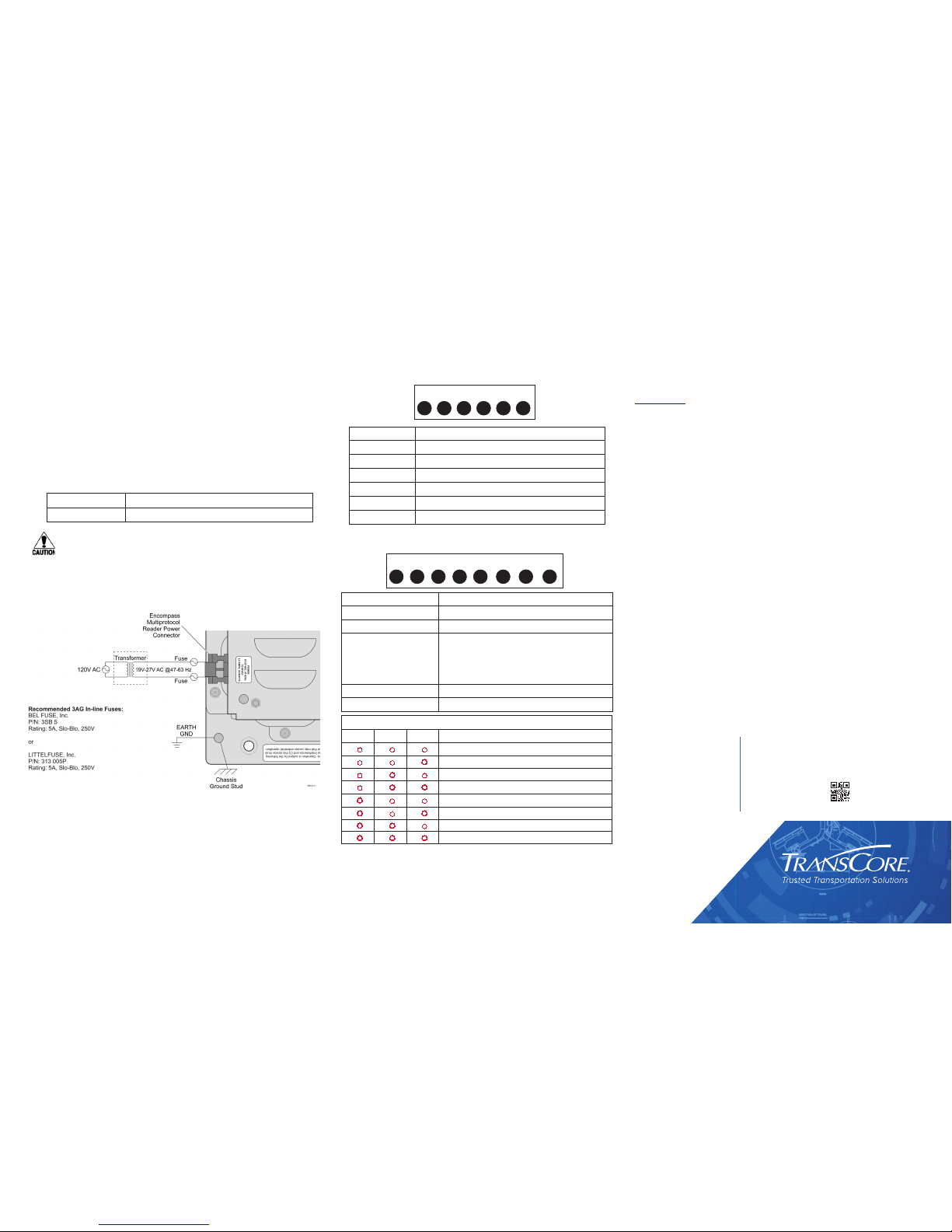

AC Power Wiring Diagram
Refer to Encompass Reader System Guide for DC Power Wiring
Diagram.
Power LEDs (Item 10 on Page 1)
POWER LED INDICATION
-5.5 -5.5 volt power supply functioning
+7 +7 volt power supply functioning
+5.5 +5.5 volt power supply functioning
+10.5 +10.5 volt power supply functioning
+5 +5 volt power supply functioning
PWR 19V to 30V DC or 19V to 27V AC supplied
Fault/Operational LEDs (Item 11 on Page 1)
OPERATIONAL LEDs INDICATION
DL
RF downlink signal on
UL
RF uplink signal on
TIF
Encompass 6 transacting with tag. LED lit when
Encompass 6 receives correctly decoded tag
message including correct cyclic redundancy
check for message. The LED is lit for 250 ms
following a tag transaction.
LC
Host communicating with Encompass 6
RDR
Encompass 6 communicating with host
THREE FAULT INDICATION LEDs*
ERR3 ERR2 ERR1 FAILURE MODE
● ● ●
Microprocessor resetting
● ●
Power supply failure
●
● Transceiver failure
●
TDM/GPS failure
● ●
No communication with lane controller/host
●
Other failure
● Data in buer
No failure
*If multiple faults occur, the highest priority fault displays. For example, if the
microprocessor is resetting (highest priority) and the power supply fails (second
highest priority), the microprocessor fault indication displays until is it cleared.
Encompass 6 Quick Reference Card
Equipment Licensing
The user is required to obtain a Part 90 site license from the FCC to
operate the unit in the United States. Access the FCC Web site at
www.fcc.gov for more information.
FCC ID: FIHMPI6000 A
Users in all countries should check with the appropriate local
authorities for licensing requirements.
Start Up
Perform the following startup procedures:
1. Connect antenna to Encompass 6 at RF MONO port.
2. Connect COM1 or Ethernet cable depending on communication
configuration.
3. Connect other options as needed.
4. Connect AC or DC power to Encompass 6. Power LEDs should light.
5. Encompass 6 starts up in Mode 0 (Stop).
6. Set commands as required for your configuration.
7. Send Set Mode command to Encompass 6 from host.
Troubleshooting
Perform these troubleshooting procedures:
1. Make sure all connectors are secure.
2. Make sure Encompass 6 is powered up by checking Power LEDs.
3. Make sure Encompass 6 is communicating with host.
If system does not respond to troubleshooting, contact TransCore
Customer Service at transcore.com/rfidsupport.
16-0097-001 Rev A 8/17
-5.5
+10.5
+5+5.5+7 PWR
DL LC RDRTIFUL ERR3
ERR2 ERR1
