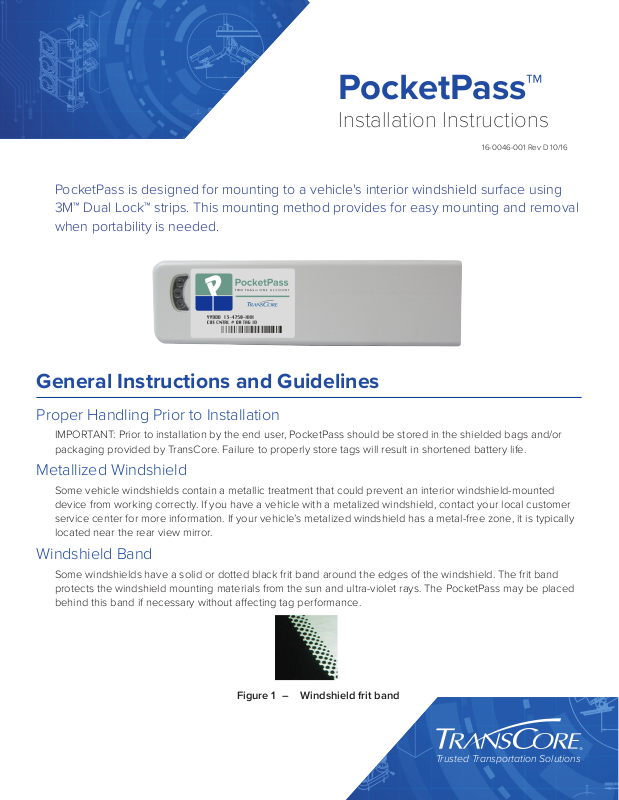

PocketPass™
Installation Instructions
16-0046-001 Rev D 10/16
PocketPass is designed for mounting to a vehicle's interior windshield surface using
3M™ Dual Lock™ strips. This mounting method provides for easy mounting and removal
when portability is needed.
General Instructions and Guidelines
Proper Handling Prior to Installation
IMPORTANT: Prior to installation by the end user, PocketPass should be stored in the shielded bags and/or
packaging provided by TransCore. Failure to properly store tags will result in shortened battery life.
Metallized Windshield
Some vehicle windshields contain a metallic treatment that could prevent an interior windshield-mounted
device from working correctly. If you have a vehicle with a metalized windshield, contact your local customer
service center for more information. If your vehicle’s metalized windshield has a metal-free zone, it is typically
located near the rear view mirror.
Windshield Band
Some windshields have a solid or dotted black frit band around the edges of the windshield. The frit band
protects the windshield mounting materials from the sun and ultra-violet rays. The PocketPass may be placed
behind this band if necessary without aecting tag performance.
Figure 1 – Windshield frit band
Trusted Transportation Solutions
Installation Instructions
PocketPass Activation
Activating the PocketPass
1. Remove PocketPass from the shielded bag
2. Locate the battery door and find the battery protection tab (Figure 2).
Figure 2 – Remove Battery Protection Tab
3. Keep the battery door closed while you pull and remove the battery protection tab.
4. Immediately after you remove the battery protection tab, a brief audio/visual sequence will occur as the
PocketPass powers up. Refer to the Ready to Go section in Table 1 for a description of the audio/visual
signals.
5. If the Ready to Go sequence does not occur, remove and reinstall the batteries as described in the
PocketPass Battery Replacement section of these instructions.
PocketPass Installation and Removal
Required Supplies
• PocketPass
• Commercial glass cleaner and paper towels
Installation Locations for PocketPass
PocketPass should be mounted on the interior windshield, with the longest side parallel to the bottom of the
windshield. Other tags should be kept at least 3 inches away from the PocketPass. The area on the dashboard
beneath the PocketPass must be kept clear of paperwork and metallic items.
1. If the vehicle has a one-piece windshield, the PocketPass should be mounted as close to the bottom
center of the windshield as possible; at least 3 inches away from the windshield frame or dashboard, and
above the windshield wipers (Figure 3).
Page 2
PocketPass
TA-0443
Windshield
Wipers
TA-0442
PocketPass
4”
3”
Centered, 3” from
bottom of windshield
PocketPass
should be
placed above
the windshield
wipers
Figure 3 – Placement of PocketPass on one-piece windshield
2. If the vehicle has a two piece windshield, the PocketPass should be mounted on the passenger side,
3 inches away from the center dividing bar, above the windshield wipers and 4 inches above the bottom of
the windshield (Figure 4).
Figure 4 – Placement of PocketPass on two-piece windshield
Page 3
Installation Instructions
Back View of Tag
Peel backing from Dual Lock Strips to
expose adhesive.
Installation with Dual Lock Strips
1. Clean and dry the interior windshield surface completely before axing the Dual Lock strips. The
windshield temperature must be at least 68ºF (20ºC) for optimum bonding.
2. Peel the backing o the Dual Lock strips to expose adhesive (Figure 5). Leave both sides of the Dual Lock
strips pressed together to ensure the strips will align between the PocketPass and windshield. Apply the
PocketPass to the windshield using moderate pressure.
Note: When installing the PocketPass using Dual Lock strips for the first time, leave it in place for at
least 24 hours to allow the adhesive to cure.
Figure 5 – Mounting PocketPass to the interior windshield
3. To remove a PocketPass mounted with Dual Lock strips from the windshield, grip the case at the top and
bottom sides. Pull the PocketPass away from the windshield, starting on one end and working until the
PocketPass is free from the windshield (Figure 6).
Figure 6 – Removing PocketPass from windshield
Page 4
PocketPass
Replaceable batteries
PocketPass Battery Replacement
Two lithium AAA batteries are pre-installed in your PocketPass.
NOTE: For proper operation, the PocketPass requires lithium batteries. TransCore recommends
Energizer® Advanced Lithium AAA batteries.
To replace the batteries, remove the PocketPass from the windshield as described in Step 3 on page 4.
1. Hold the PocketPass with the LED side facing down. Locate the battery door. Press the indentation located
under the arrow and slide the door in the direction of the arrow to open the door.
2. Remove the old batteries and replace them with lithium AAA batteries according to the diagram on the
inside of the battery compartment (Figure 7).
Figure 7 – Replaceable batteries
3. Close the cover and slide it back into place. You should hear a soft snap when the cover is in the correct
position.
4. Immediately after you install fresh batteries, a brief audio/visual sequence will occur as the PocketPass
powers up. Refer to the Ready to Go section in Table 1 for a description of the audio/visual signals. If there
is an ASTM V6 AV code stored, the sequence may take up to 15 minutes to complete.
5. Reinstall the PocketPass on the windshield by pressing it back onto the Dual Lock strips.
Page 5
Installation Instructions
Audio/Visual Signals
Your PocketPass is equipped with audio/visual signals that will alert you about certain conditions relevant to
your tag. Refer to Table 1 for a list of audio and visual signals for your tag.
Table 1 – PockePass Audio/Visual Signals
Notifi cation Indication Audio/Visual Signals
Ready to Go
Low Battery Warning
Title 21 Acknowledge
(T21 Protocol Only)
Weigh Station Bypass
(ASTM V6 Protocol Only)
Weigh Station Pull-in
(ASTM V6 Protocol Only
Indicates tag is ready for
operation
Occurs after fresh batteries
are installed
Indicates low power
Occurs when batteries need
to be replaced
Indicates a successful
transaction
Ocurs as the vehicle passes
through a Title-21 toll
installation
Indicates that driver may
bypass the weigh station
Occurs just prior to a weigh
station off -ramp
Indicates that the driver
must pull into the weigh
station
Occurs just prior to a weigh
station off -ramp
x 4
----
x 2
x 9
x 18
Four quick beeps accompanied by visual signals
LEDs fl ash once in sequence, once together
Short beeps accompanied by visual signals occur until
batteries are replaced or expended
LEDs fl ash together
Two short beeps accompanied by visual signals
LED fl ashes 5 times
Nine 2-second beeps, accompanied by visual signals
LED stays constant for 6 seconds, then displays 2 two
short fl ashes at 3 second intervals for 15 seconds. The LED
fl ashes every 10 seconds for 15 minutes
Eighteen half-second beeps, accompanied by visual signals
LED stays constant for 6 seconds, then displays 2 two
short fl ashes at 3 second intervals for 15 seconds. The LED
fl ashes every 10 seconds for 15 minutes
Page 6
PocketPass
NO UNAUTHORIZED MODIFICATIONS STATEMENT
Caution: This equipment may not be modied, altered, or changed in any way without permission from
TransCore, LP. Unauthorized modication may void the equipment authorization from the FCC and will
void the TransCore warranty.
RADIO FREQUENCY INTERFERENCE STATEMENTS
Note: This device complies with Part 15 of the FCC Rules and the Industry Canada Licence-Exempt RSS
Standards. Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
this device.
Note: Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur del’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
