Encompass® 4 Reader System Guide

TransCore

8600 Jefferson Street NE

Albuquerque, New Mexico 87113

September 2016

P/N 412066-012

Encompass 4 Reader System Guide

For comments or questions about this document, e-mail tech.pubs@transcore.com.

Information in this document is subject to change and does not represent a commitment on the part of  TransCore LP.

© 2009-2016 TransCore LP. All rights reserved. TRANSCORE, AMTECH, EGO, and ENCOMPASS are registered trademarks and are used under license. All other trademarks listed are the property of their respective owners. Contents are subject to change. Printed in the U.S.A.

For further information, contact:

Sales Support: Phone: (800) 923-4824

Technical Support Phone: (505) 856-8007

www.transcore.com

Encompass 4 Reader System Guide

WARNING TO USERS IN THE UNITED STATES

FEDERAL COMMUNICATIONS COMMISSION (FCC)

LOCA TION AND MONITORING SERVICE STATEMENT

47 CFR §90.351

NOTE: The user is required to obtain a Part 90 site license from the FCC to operate this radio frequency

identification (RFID) device in the United States. The FCC ID number is FIH05964-65-PT90. Access the FCC W eb site at www.fcc.gov

to obtain additional information concerning licensing requirements.

NOTE:

Users in all countries should check with the appropriate local authorities for licensing

requirements.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

47 CFR §15.105(a)

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate RF energy and may cause harmful interference to radio communications if not installed and used in accordance with the instruction manual. Operating this equipment in a residential area is likely to cause harmful interference, in which case, depending on the laws in effect, the user may be required to correct the interference at their own expense.

NO UNAUTHORIZED MODIFICATIONS

47 CFR §15.21

CAUTION: This equipment may not be modified, altered, or changed in any way without permission

from TransCore, LP. Unauthorized modification may void the equipment authorization from the FCC and will void the TransCore warranty.

USE OF SHIELDED CABLES IS REQUIRED

47 CFR §15.27(a)

NOTE: Shielded cables must be used with this equipment to comply with FCC regulations.

TransCore, LP

USA

iii

Encompass 4 Reader System Guide

AVERTISSEMENT À L’ATTENTION DES

UTILISATEURS AUX ÉTATS-UNIS

DÉCLARATION 47 CFR §90.351 (CODE DES

RÈGLEMENTS FÉDÉRAUX) DE LA FEDERAL

COMMUNICATIONS COMMISSION (FCC) SUR LES

SERVICES DE LOCALISATION ET DE CONTRÔLE

REMARQUE : L’utilisateur est tenu d’obtenir une licence d’utilisation sur site Partie 90 auprès de la

Federal Communications Commission (FCC) afin de pouvoir utiliser ce dispositif RFID (radioidentification) aux États-Unis ou au Canada. Le numéro d’identification de la FCC est FIH05964-65. Pour obtenir de plus amples informations concernant les exigences relatives aux licences, prière de consulter le site web de la FCC à www.fcc.gov

REMARQUE : Il est recommandé à tous les utilisateurs, quel que soit leur pays, de consulter les autorités locales compétentes sur les exigences de licence.

DÉCLARATION 47 CFR §15.105(A) DE LA FCC SUR

LES INTERFÉRENCES DES FRÉQUENCES RADIO

REMARQUE : Cet appareil a été testé et déclaré conforme à la catégorie d’un appareil numérique de

classe A en accord avec la partie 15 des directives de la FCC. Ces normes visent à assurer une protection raisonnable contre les interférences nuisibles lorsque l’appareil est utilisé dans un environnement commercial. Cet appareil génère, utilise et peut émettre de l’énergie RF et peut être à l’origine d’interférences nuisibles aux communications radio s’il n’est pas installé et utilisé en suivant les directives du manuel d’instructions. Si cet appareil est utilisé dans une zone résidentielle, il est probable qu’il cause des interférences nuisibles. Dans ce cas, l’utilisateur pourrait être amené à remédier aux interférences à ses propres frais, selon les lois du pays en vigueur.

AUCUNE MODIFICATION NON AUTORISÉE

47 CFR §15.21

MISE EN GARDE : Il est interdit de modifier, d’altérer ou d’apporter des changements à cet appareil de

quelque manière que ce soit sans autorisation. T oute modification non autorisée peut annuler l’autorisation d’utilisation accordée par la FCC et annulera la garantie.

UTILISATION DE CÂBLES BLINDÉS ET MISE À LA TERRE

47 CFR §15.27(A)

REMARQUE : Il est recommandé d’utiliser des câbles blindés et une mise à la terre avec cet appareil afin

de répondre aux réglementations de la FCC

TRANSCORE, LP

ÉTATS-UNIS

Encompass 4 Reader System Guide

WARNING TO USERS IN CANADA

INDUSTRY CANADA (IC) INDUSTRY CANADA’S RADIO STANDARD SPECIFICATIONS (RSS-

137) LOCATION AND

NOTE:

The user is required to obtain a license from Industry Canada (IC), to operate this radio frequency iden-

MONITORING SERVICE IN THE BAND

902-928 MHZ SECTION 2.1

tification (RFID) device in Canada. The IC ID number is 1584A-0596465PT90, access the IC website at

www.ic.gc.ca

to obtain additional information concerning licensing requirements.

Industry Canada (IC) Industry Canada’s Radio Standard Specifications General

Requirements (RSS-GEN) for Compliance of Radio Apparatus Statement Section 8.4

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:

1. This device may not cause interference; an This device must accept any interference, including interference that may cause undesire

peration of the devi

AVERT

ce.

ISSEMENT AUX UTILISATEURS AU CANADA

INDUSTRIE CANADA (IC) INDUSTRIE CANADA RADIO STANDARD SPECIFICATIONS (CNR-

137) EMPLACEMENT

ET SERVICE DE SURVEILLANCE DANS LA BA

ION 2.1

SECT

NDE 902-928 MHZ,

Remarque : L’utilisateur est tenu d’obtenir une licence d’Industrie Canada (IC), afin d’exploiter

ce dispositif d’identification par radiofréquence au Canada. Le numéro d’identification d’IC est

1584A-0596465PT90. Pour obtenir de plus amples informations concernant les exigences

relatives aux licences, prière de consulter le site web de d’IC à www.ic.gc.ca .

Radio Standard Spécifications exigences générales Industrie Canada (IC) Industrie

Canada (CNR-GEN) pour s’acquitter du Radio appareil déclaration article 8.4

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

1. l'appareil ne doit pas produire de brouillage, et

l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si

lage est susceptible d'en compromettre le fonctionnement.

brouil

Encompass 4 Reader System Guide

RADIO FREQUENCY HEALTH LIMITS FOR ENCOMPASS 4 READER USING AN EXTERNAL

ANTENNA IN FREQUENCY BAND OF 902.25 TO 903.75 AND 910.00 TO 921.50 MHZ

Several agencies (OSHA, FCC, IC) have environmental guidelines regulating maximum permissible exposure (MPE) or “safe” exposure levels that this product falls under. To ensure that proper safety guideline for the end users of this product, i.e. Occupational (Controlled) and General Population/ Public (Uncontrolled), the recommended levels for each of the agencies are presented in the next sections with TransCore’s recommendations for safety in the last section.

OSHA (Occupational Safety and Health Administration)

OSHA (an agency of The United States of America) legislates in the Code of Federal Regulations (CFR) Title 29 Part 1910 Subpart G 1910.97 titled “Nonionizing radiation”, a maximum safe exposure limit of 10 milliwatts per square centimeter (mW/cm

2) during any 0.1-

hour period (i.e. 6 minutes). Using the frequency (in the middle of the band of operation of this equipment) of 915 MHz and the highest antenna gain that this equipment is certified for use in a final installation, the minimum safe distance was calculated to be 8in (20cm).

FCC (Federal Communication Commission)

FCC (an agency of The United States of America) legislates in the Code of Federal Regulations (CFR) Title 47 Chapter I Subchapter A Part 1 Subpart I Section 1.1310 titled “Radiofrequency radiation exposure limits” that the maximum permissible exposure (MPE) is the following:

Occupational/Controlled Exposure

Power density = frequency(in MHz)/300 mW/cm

with an Averaging time of 6 Min

General Population/Uncontrolled Exposure

Power density = frequency(in MHz)/1500 mW/cm

with an Averaging time of 30 Min

Using the frequency (in the middle of the band of operation of this equipment) of 915MHz and the highest antenna gain that this equipment is certified for use in a final installation, the minimum safe distance was calculated. The MPE minimum distances are 14in (36cm) for the Occupational/Controlled environment, and 31.5in (80.5cm) for the General Population/ Uncontrolled environment.

Industry Canada (Innovation, Science and Economic Development Canada)

Industry Canada (a Department of the Government of Canada) sets out the requirements in Radio Standards Specification RSS-102, Issue 5 guidelines, recommending a maximum safe power density in W/m

2. Thus, the

Encompass 4 Reader System Guide

maximum permissible exposure for general population/ uncontrolled exposure at 915MHz is 2.77 W/m2. The average time is 6 minutes. The maximum permissible exposure (MPE) is the following:

Controlled Environment

Power density = 0.6455*frequency(in MHz)

0.5

W/m2 with a Reference Period time of 6 Min

General Public/Uncontrolled Environment

Power density = 0.02619*frequency(in MHz)

0.6834

W/m2 with a Reference Period time of 6 Min

Using the frequency (in the middle of the band of operation of this equipment) of 915MHz and the highest antenna gain that this equipment is certified for use in a final installation, the minimum safe distance was calculated. The MPE minimum distances are 18in (45cm) for the Controlled environment and 47in (120cm) for the General Public/Uncontrolled environment.

TransCore Recommendation on MPE (Maximum Permissible Exposure)

The calculated power densities and MPE distance for each of the agencies respective to the

environment is shown below.

Occupational/Controlled Environment

Agency

Power Density (mW/cm

)

MPE minimum distance

Time ( min)

in cm

OSHA 10 8 20 6

FCC 3.05 14 36 6

IC 1.95 18 45 6

General Population/Public/Uncontrolled Environment

Agency

Power Density (mW/cm

)

MPE minimum distance

Time (min)

In cm

OSHA 10 8 20 6

FCC 0.61 31.5 80 30

IC 0.28 47 120 6

vii

Encompass 4 Reader System Guide

With the equipment installed and running at the maximum transmit power of 2.0W (33dBm), 0 dB transmit attenuation, recommendation for each of the operation environments is as follows:

using the highest gain antenna that the equipment is certified for, the

1. The antenna should be installed at least 47in (120cm) from the General Population/ Pu i.e. Uncontrolled Environment.

Maintenance personnel (i.e. Occupational/Con 18in (45cm) from

the antenna and limit their time in the environment

trolled Environment) must remain at least

to 6 minutes when

the system is operating.

blic

viii

Encompass 4 Reader System Guide

LIMITES D’EXPOSITION AUX RADIOFRÉQUENCES POUR LE LECTEUR ENCOMPASS 4

UTILISANT UNE ANTENNE EXTERNE SUR LA BANDE DE FRÉQUENCES DE 902.25 À 903.75

ET DE 910.00 À 921.50 MHZ

Plusieurs organismes (OSHA, FCC, IC) publient des directives environnementales qui recommandent des limites d’exposition maximale autorisée (normes MPE) ou des niveaux d’exposition « sûrs » auxquels cet appareil se conforme. Pour faire en sorte que chaque utilisateur final ait connaissance des directives de sécurité qui le concerne, que ce soit dans son travail (accès contrôlé) ou pour la population générale/le grand public (accès non contrôlé), TransCore présente les niveaux recommandés par chaque organisme dans ses recommandations sécuritaires détaillées dans la dernière section.

OSHA (Occupational Safety and Health Administration)

Dans le Code des réglementations fédérales (CFR), Titre 29, Partie 1910, Sous-partie G

1910.97, intitulée « Nonionizing radiation » (Rayonnements non ionisants), l’OSHA (organisme américain) recommande un plafond d’exposition maximale de 10 milliwatts par centimètre carré (mW/cm

2) pendant une période de 0,1 heure (soit 6 minutes). En utilisant la

fréquence de 915 MHz (milieu de la bande de fréquences d e cet appareil) et le gain d’antenne maximal pour lequel cet appareil a reçu une certification d’utilisation dans une installation finale, la distance minimale sécuritaire est de 20 cm (8 po).

FCC (Federal Communication Commission)

Dans le Code des réglementations fédérales (CFR), Titre 47, Chapitre I, Sous-chapitre A, Partie 1, Sous-partie I, Section 1.1310 intitulée « Radiofrequency radiation exposure limits » (Limites d’exposition aux rayonnements de radiofréquence), la FCC (organisme américain) établit les limites d’exposition maximale autorisée (normes MPE) comme suit :

Exposition professionnelle/contrôlée

Densité de puissance = fréquence (en MHz)/300 mW/cm

avec une durée moyenne de 6 min.

Exposition de la population générale/non contrôlée

Densité de puissance = fréquence (en MHz)/1500 mW/cm

avec une durée moyenne de 30 min.

En utilisant la fréquence de 915 MHz (milieu de la bande de fréquences de cet appareil) et le gain d’antenne maximal pour lequel cet appareil a reçu une certification d’utilisation dans une installation finale, la distance minimale sécuritaire est la suivante : les distances MPE minimales sont de 36 cm (14 po) pour l’environnement professionnel/contrôlé et de 80,5 cm (31,5 po) pour la population générale/environnement non contrôlé.

Encompass 4 Reader System Guide

Industrie Canada (Innovation, Sciences et Développement économique Canada)

Le Cahier des charges sur les normes radioélectriques 102, 5

e édition, d’Industrie Canada (un

ministère du Gouvernement du Canada) établit des recommandations pour une densité de

puissance maximale sécuritaire en W/m population générale/non contrôlée à 915 MHz est calculée à 2,77 W/m

2. Ainsi, l’exposition maximale admissible pour la

2. La durée moyenne est

de 6 minutes. Les limites d’exposition maximale autorisée (normes MPE) sont les suivantes :

Environnement contrôlé

Densité de puissance = 0,6455*fréquence (en MHz)

0,5

W/m2 avec une durée de référence de 6

min.

Grand public/environnement non contrôlé

0,6834

Densité de puissance = 0,02619*fréquence (en MHz)

W/m2 avec une durée de référence de 6

min.

En utilisant la fréquence de 915 MHz (milieu de la bande de fréquences de cet appareil) et le gain d’antenne maximal pour lequel cet appareil a reçu une certification d’utilisation dans une installation finale, la distance minimale sécuritaire est la suivante : les distances MPE minimales sont de 45 cm (18 po) pour l’environnement professionnel/co ntrôlé et de 120 cm (4 7 po) pour le grand public/environnement non contrôlé.

Recommandations de TransCore sur les limites d’exposition maximale autorisée (normes MPE)

Les densités de puissance et la distance MPE calculées par chaque organisme pour un environnement donné sont présentées ci-dessous.

Exposition professionnelle/environnement contrôlé

Organisme

Densité de puissance

(mW/cm

)

Distance MPE minimale

Durée (en min.)

po cm

OSHA 10 8 20 6

FCC 3,05 14 36 6

IC 1,95 18 45 6

Population générale/environnement non contrôlé

Organisme Densité de puissance (mW/cm

)

Distance MPE minimale

Durée (en min.)

po cm

OSHA 10 8 20 6

FCC 0,61 31,5 80 30

IC 0,28 47 120 6

Encompass 4 Reader System Guide

xi Avec l’appareil installé et fonctionnant à la puissance de

transmission maximale de 2,0 W (33 dBm), 0 dB d’atténuation de transmission, et en utilisant le gain d’antenne maximal pour lequel l’appareil a reçu une certification, les recommandations pour chaque environnement d’exploitation sont les suivantes :

1. L’antenne devrait être installée à au moins 120 cm (47 po) de la population générale/du gran pu

blic, c’est-à-dire d’un environnement non contrô

Le personnel d’entretien (c’est-à-dire dans un environnement professionnel/contrôlé) do

rester à au moi

ns 45 cm (18 po) de l’antenne et limiter son temps

lé.

d’exposition à 6 minutes

lorsque l’appareil est en fonctionnement.

Encompass 4 Reader System Guide

xii

Encompass 4 Reader System Guide

Summary of Revisions to Encompass 4 Reader System Guide

Version

Number

N/A 10/08 Entry for baseline

-002 03/09 Corrected Command #524, technical support phone number, and added grounding

-003 04/09 Revised Chapter 4 graphics, procedure steps, and caution statements to show

-004 09/09 Added multiple commands to reader guide. Added instructions for discharging

-005 06/10 Updated patent statement and copyright boilerplate

-006 07/10 Minor updates and cover page changed to June 2010. No other changes.

-007 02/11 Added notes regarding power cycling and #00 command. Deleted #06, #43, #6160,

-008 04/11 Corrected RS-232 interface signal wiring references in Table 4-4 and Table 4-6.

Date

Revised

Summary of Changes

text and graphic to chapter 4.

grounding wire (12-14 AWG) and earth ground. Deleted references to command #6402 because it is factory use only.

voltage from antenna before connecting it to the reader

and #6161 commands per engineer request. Upd ated Sales Support and Technical Support phone and fax numbers

Chapter 6, added Data Inquiry Protocol information. Change to Host Transmission section, page 6-8, “Upon receiving a host command, the E4 Reader replies using the command’s sequence number in its response.” Original E4 text was “Upon receiving a host command, the E4 Reader echoes the command’s sequence number in its response.” Multiple changes to Chapter 7, Commands:

#410N: deleted “(different from Item …)” text, deleted note regarding firmware version

#524: deleted note that discussed appending time and date to ID codes, etc. #525: added P2 field indicating data inquiry protocol enabled #535: deleted #536: deleted #570: added TMM0 field Appendix D updated to reflect command changes

-009 01/12 Updated TransCore Technical Support phone number

-010 04/12 Added 35- and 45-foot connector cable harness information to Table 2-2. Revised Table 2-3 Power Requirements to match material presented by TransCore Technical Support in Web seminar. Update d Table 2-4 to show additional connector cable harnesses

xiii

Encompass 4 Reader System Guide

-011 12/13 Added two cable extension notes on pages 2-19, 2-20. Added notes and diagrams on page 4-29, 4-31. Added info about E4 Sense Output description in Chapter 4.

-012 9/16 Update Health and Safety Information

xiv

Summary of Revisions to Encompass 4 Reader System Guide . . . . . . . . . . . . 1-xiii

1 Introduction

Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

System Guide Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

How It Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Licensing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Encompass 4 Reader System Guide

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

2 Developing the Site Plan

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Reading of Mixed Population Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Reader and Tag Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Polarization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Unobstructed Line of Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Antenna Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

AA3100 Yagi (without radome) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

AA3101 Yagi (with radome) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

AA3110 Parapanel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

AA3140 PCB Log Periodic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

AA3152 Universal Toll Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

AA3153 Toll Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Antenna and Tag Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Polarization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Unobstructed Line of Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Site Layout and Traffic Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

The Encompass 4 Reader Read Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Other Encompass 4 Readers in the Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Lane Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

vii

Encompass 4 Reader System Guide

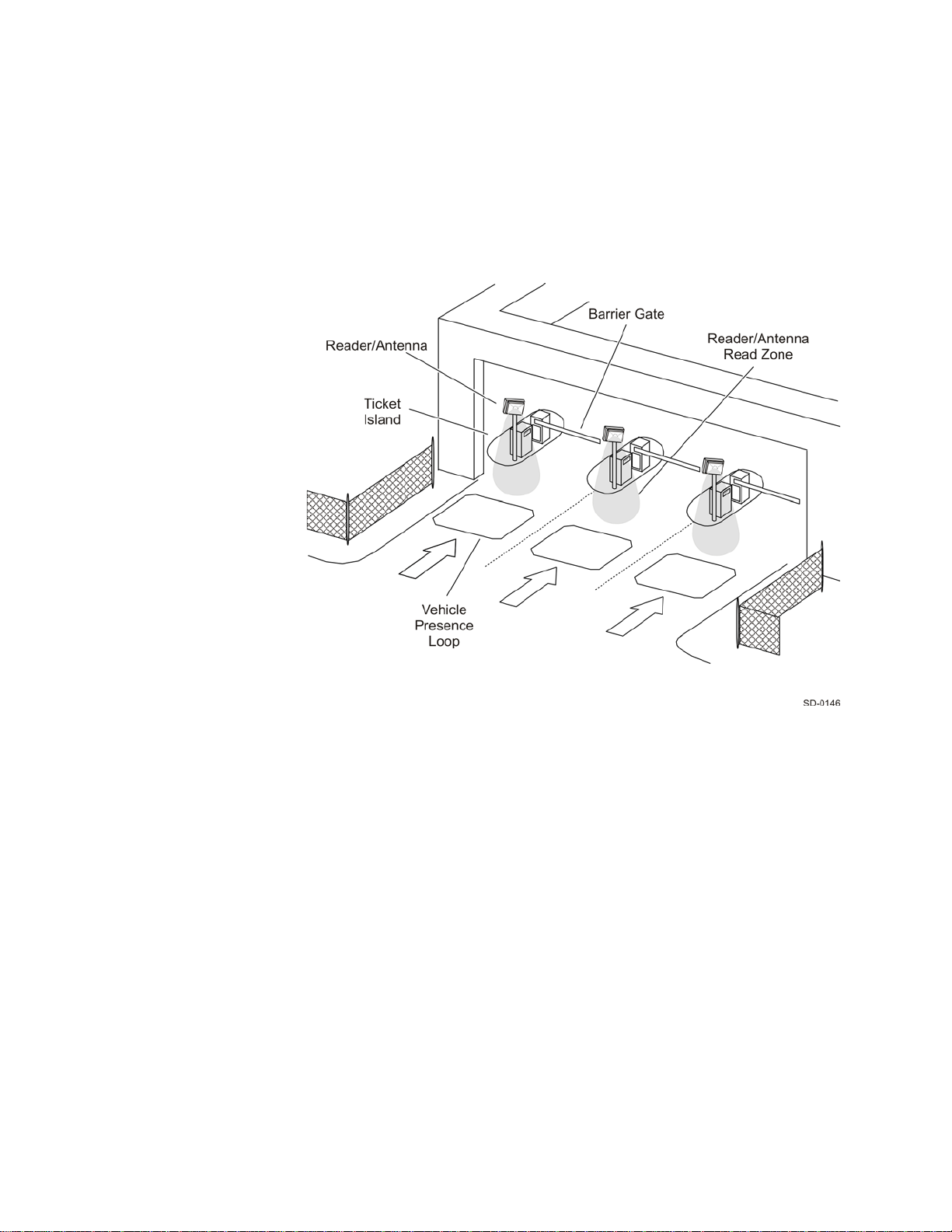

Gate with Center Island Configuration 2-14 Parking Garage with Ticket Island Configuration 2-15

Overhead Reader Installation Configuration 2-15 Lane Configurations for Encompass 4 Readers Using an External Antenna . . . 2-16

Reflection, Refraction, and Diffraction of RF Signals . . . . . . . . . . . . . . . . . . . . . 2-16

Existing Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Electrical and Communications Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Junction Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Power and Communications Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Electrical Power 2-18

Host Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

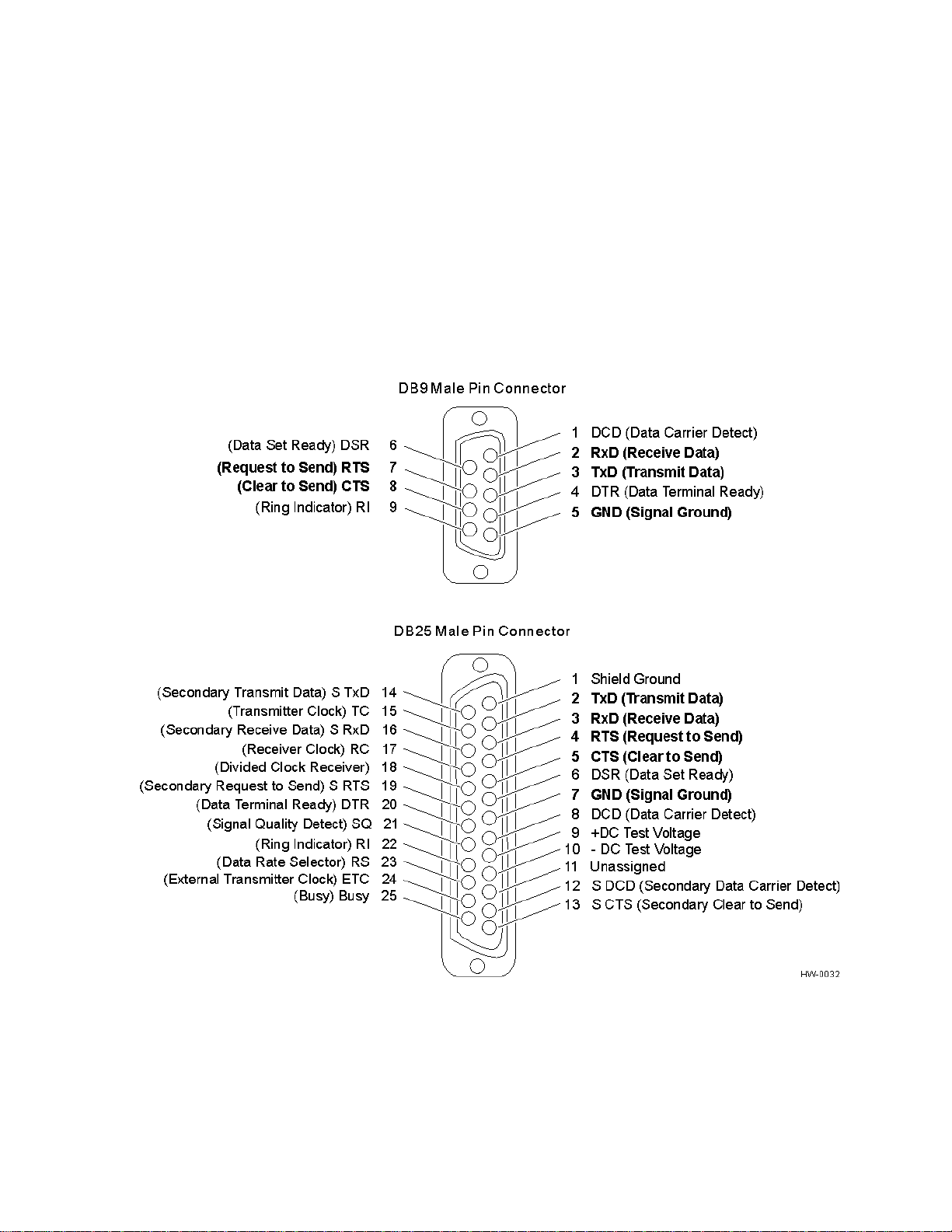

RS–232 Interface 2-21

RS–422 Interface 2-21

Wiegand Interface 2-21

Input/Output Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

External Antenna Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

3 Choosing, Installing, and Removing Tags

Compatible Tag Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Reader and Tag Model Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

TransCore’s eGo Plus Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

eGo Plus Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

eGo Plus Security Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

eGo Plus License Plate Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

TransCore’s eGo Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

eGo Windshield Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

eGo License Plate Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Installing eGo Plus Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Positioning eGo Plus Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Mirror Post Attached on Windshield 3-8

Mirror Post Attached on Header 3-8

Large Truck with No Inside Mirror 3-9

eGo Plus Sticker Tag Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Removing eGo Plus Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Installing eGo Plus Security Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

eGo Plus Security Sticker Tag Installation Procedures . . . . . . . . . . . . . . . . . . . 3-11

viii

Removing eGo Plus Security Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Installing eGo Plus License Plate Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Encompass 4 Reader System Guide

Positioning eGo Plus License Plate Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

eGo Plus LPT Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Installing eGo Windshield Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

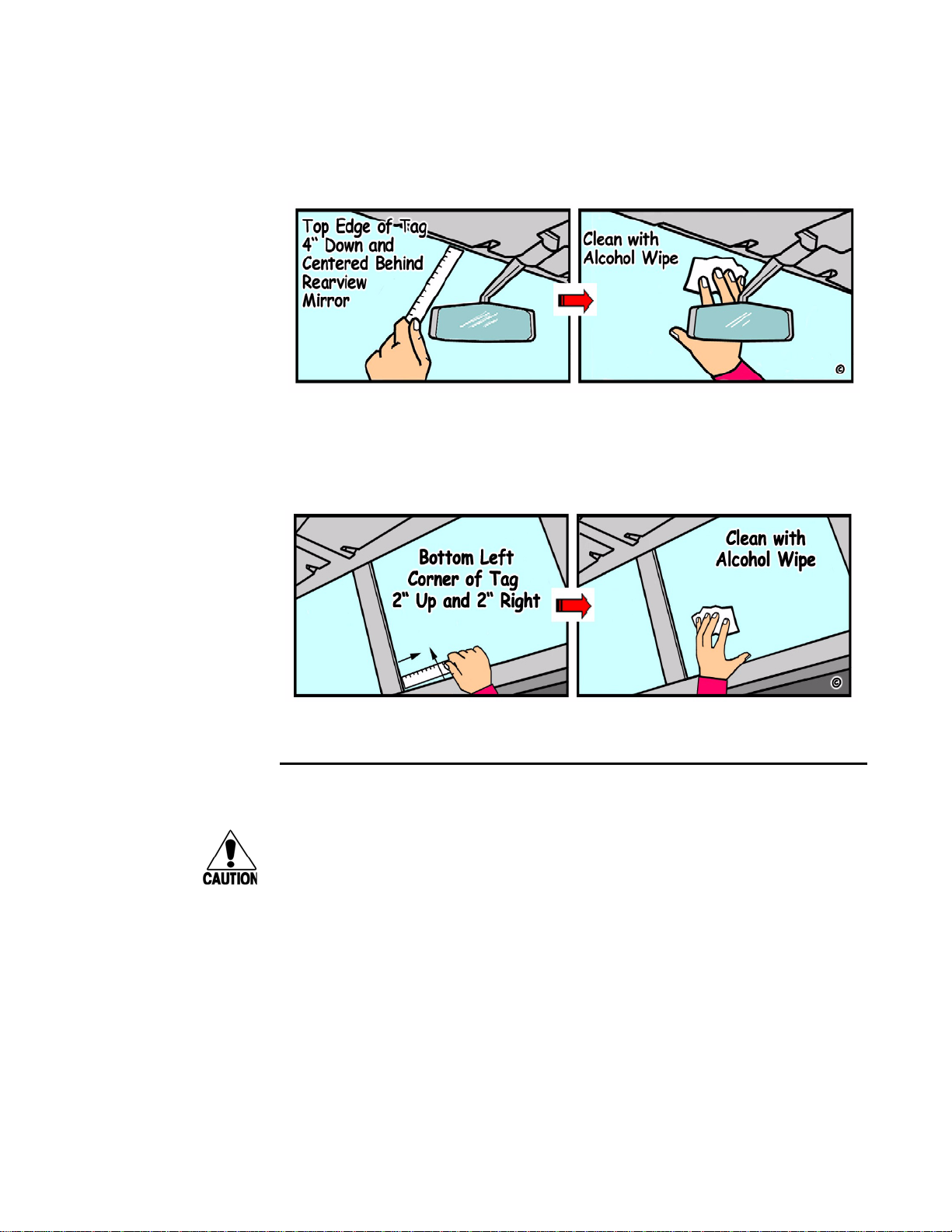

Positioning eGo Windshield Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

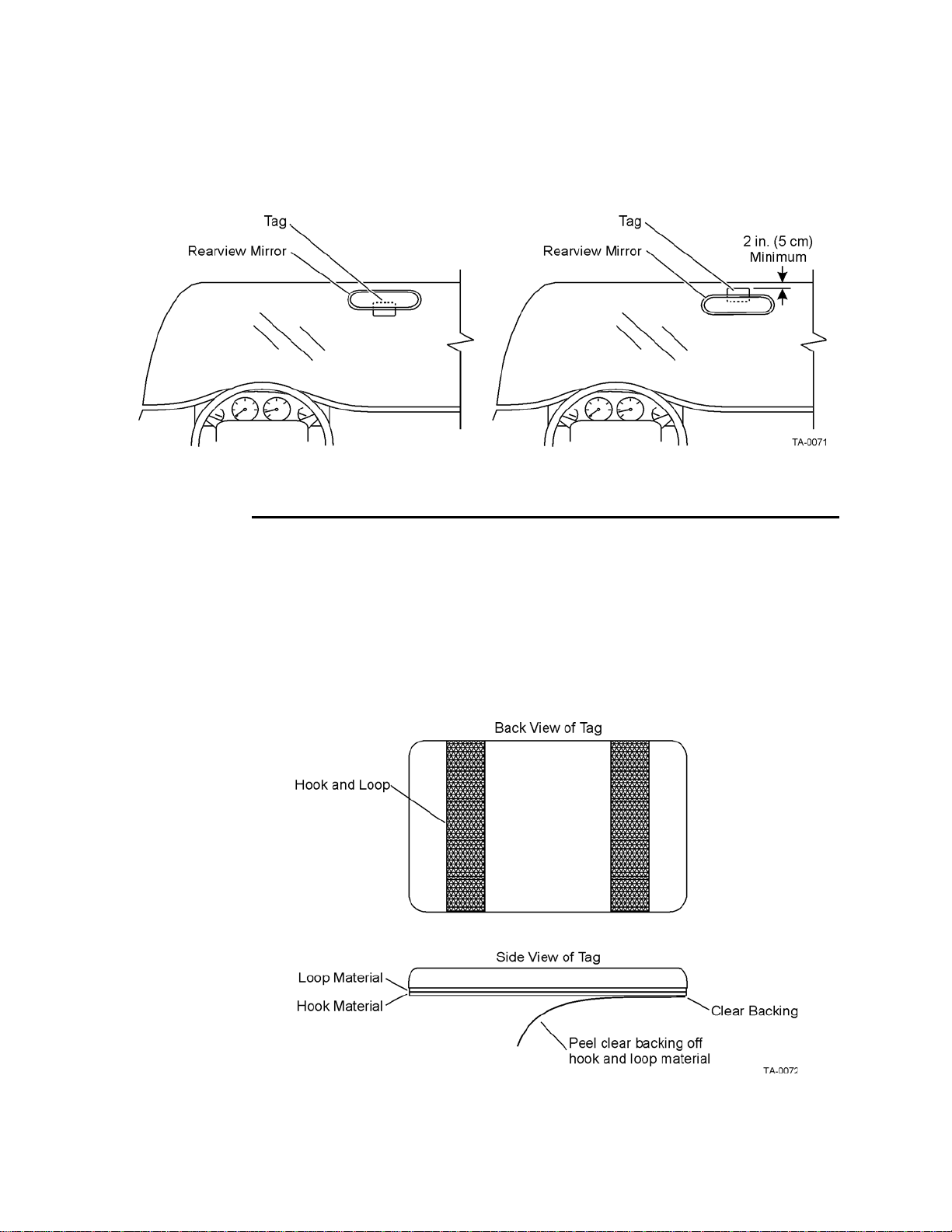

Mirror Post Attached Low On Windshield 3-16 Mirror Post Attached High on Windshield 3-16 Mirror Post Attached to Headliner 3-17

Mounting the eGo Windshield Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Removing eGo Windshield Sticker Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Installing eGo LPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Installing Interior ATA Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Positioning ATA Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Interior Driver’s or Passenger’s Side 3-19 Interior Center Windshield 3-19

ATA Interior Tag Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Removing Interior ATA Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Installing ATA License Plate Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Positioning ATA License Plate Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22

ATA License Plate Tag Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 3-22

Types of Bumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Alternate Mounting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Installation Procedures Using Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26

Installation Procedures Using Blind Rivets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26

Removing Exterior Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26

4 Installing the Encompass 4 Reader

Installation Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Materials Supplied by TransCore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Contents of Shipping Carton 4-3 Installation Accessory Options 4-4

Additional Materials Needed for Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Pre-installation Testing of the Encompass 4 Reader . . . . . . . . . . . . . . . . . . . . . 4-5

Testing the Encompass 4 Reader Using an Audible Circuit Tester . . . . . . . . . . . 4-5

Discharging Voltage from the External Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Encompass 4 Reader System Guide

Required Equipment 4-6

Discharging the Voltage 4-6

Connecting the External Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Connecting the AC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Connecting the DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Connecting Communications for Bench Testing . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Required Materials 4-10

Connecting for Bench Testing with RS–232 Interface 4-11

Connecting for Bench Testing with RS–422 Interface 4-13

Bench Testing the Encompass 4 Reader Before Installation . . . . . . . . . . . . . . . 4-13

Mounting the Encompass 4 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Mounting the Encompass 4 Reader on a Round Pole . . . . . . . . . . . . . . . . . . . . 4-15

Required Materials To Be Supplied by Customer 4-15

Procedures 4-15

Mounting the Encompass 4 Reader to a Wall or Flat Surface . . . . . . . . . . . . . . 4-19

Required Materials 4-19

Procedures 4-19

Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Discharging Voltage from the External Antenna . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Required Equipment 4-23

Discharging the Voltage 4-23

Mounting the Antenna Curb-Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Procedures 4-25

Mounting the Antenna Overhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Procedures 4-27

Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Reader Cable Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Connecting Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

Connecting the Encompass 4 Reader to the PC . . . . . . . . . . . . . . . . . . . . . . . . 4-29

RS–232 Interface 4-29

RS–422 Interface 4-32

Wiegand Interface 4-33

Connecting Sense Input and Sense Output Circuits . . . . . . . . . . . . . . . . . . . . . 4-34

Sense Input Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

Sense Output Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36

Marking the Read Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38

Required Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

5 General Software Information

Command Entry Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Command Response Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Power Fail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Program Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Download Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Download Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Sign-On Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Boot Failure Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Encompass 4 Reader System Guide

Tag/Message Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

6 Communications Protocols

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Basic Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Error Correcting Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Data Inquiry Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Basic Protocol and ECP Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Reader Transmissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

ECP Host ACK/NAK Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Switch to Command Mode Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Host Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Reader Command Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Sample Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Reader Transmissions 6-10

Host Command Transmissions 6-11

Timing and Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Reader-Addressed Failure Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Illegal Sequence Number (not in the range 0–9, A–F) 6-13

Wrong Sequence Number 6-13

Incorrect CRC 6-13

Illegal Command 6-13

Transmission Timeout 6-15

Receive Timeout 6-15

Encompass 4 Reader System Guide

Asynchronous Message/Command Message Collision 6-15

Host-Addressed Failure Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Illegal or Wrong Sequence Number 6-15 Incorrect CRC 6-15 Transmission Timeout 6-15 Receive Timeout 6-15 Asynchronous Message/Command Message Collision 6-15

ECP Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

CRC Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Manually Disabling ECP for Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19

7 Commands

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Data Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Command Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Download Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Command List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Reader Mode Control — Command Group 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

00 Switch to Data Mode (Factory Default) 7-5 01 Switch to Command Mode 7-5

Communications Port Control — Command Group 1 . . . . . . . . . . . . . . . . . . . . . 7-5

100N Select Baud Rate 7-6 101N Select Stop Bits 7-6 102N Select Parity 7-7

Command Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

20 Set Time 7-7 21 Set Date 7-8 22 Display Time and Date 7-8

Append Information — Command Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

30N Append Time and Date Selection 7-8 31N Append Auxiliary Information Selection 7-9 #320 Disable EAC Page Append (Factory Default) 7-10 #321 Enable EAC Page Append 7-10

ID Filtering — Command Group 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

40 Transmit All ID Codes 7-11 410N Select Unique ID Code Criteria (Anti-passback Feature) 7-11 420N Select Valid ID Code Criteria 7-12 440 Reset Uniqueness 7-12 44N Set Uniqueness Timeout 7-12 450 Disable Wiegand Mode (Factory Default) 7-13

xii

Encompass 4 Reader System Guide

451 Enable Wiegand Mode 7-13

452 Disable Tag Translation Mode (Factory Default) 7-13

453 Enable Tag Translation Mode 7-13

454 Disable Multi-tag Sort (Factory Default) 7-14

455 Enable Multi-tag Sort 7-14

456 Enable eGo Plus Tag Initialization During Multi-tag Sort (Factory Default) 7-14

457 Disable eGo Plus Tag Initialization During Multi-tag Sort 7-14

458 Disable Second Alternate Group Select (Factory Default) 7-15

459 Enable Second Alternate Group Select 7-15

46NN Set Wiegand Retransmit Interval 7-16

480 Disable ATA 7-16

481 Enable ATA 7-16

482 Disable eGo 7-16

483 Enable eGo 7-16

484 Disable SeGo 7-16

485 Enable SeGo 7-16

486 Disable IAG 7-16

487 Enable IAG 7-16

488 Disable eATA 7-16

489 Enable eATA 7-17

490 Disable Third Alternate Group Select (Factory Default) 7-17

491 Enable Third Alternate Group Select 7-17

492 Disable Fourth Alternate Group Select (Factory Default) 7-17

493 Enable Fourth Alternate Group Select 7-17

494 Disable Fifth Alternate Group Select (Factory Default) 7-17

495 Enable Fifth Alternate Group Select 7-18

496 Disable Alternate Group Select (Factory Default) 7-18

497 Enable Alternate Group Select 7-18

Reader Status — Command Group 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

505 Display Software Version 7-18

506 Display Hardware Configuration Information 7-19

510 Display RF Transceiver FPGA Version 7-19

511 Display RF Transceiver I Filter Chip Version 7-19

512 Display RF Transceiver Q Filter Chip Version 7-19

513 Display DSP Board Actel Version 7-19

520 Display Power Fail Bit 7-19

521 Display Reader ID Number 7-19

522 Display Communications Port Parameters 7-20

524 Display Appended Information Status 7-20

525 Display Communications Protocol Status 7-21

526 Display I/O Status 7-22

527 Display RF Status 7-24

529 Display Presence Input Status 7-25

530 Display RF0 Filter Status 7-27

532 Display Wiegand Mode Status 7-28

533 Display Wiegand Retransmit Interval 7-28

534 Display Tag Translation Mode Status 7-28

537 Display Echo Status 7-28

xiii

Encompass 4 Reader System Guide

540 Display Flash Checksum 7-29 543 Display Boot Checksum 7-29 549 Display User-Programmable Group Select Equals (GSE) Filter Data 7-29 560 Request Sensor Status Change 7-29 570 Display Tag Protocols 7-30 577 Report Buffered Handshakes 7-30 #582 Display Synchronization Values 7-30

Reader Control Functions — Command Group 6 . . . . . . . . . . . . . . . . . . . . . . . 7-31

60NN Set Reader ID Number 7-31 610 Select Basic Communication Protocol (Factory Default) 7-31 611 Select Error Correcting Protocol 7-31 612NN Select Error Correcting Protocol Timeout 7-31 613 Enable Data Inquiry Protocol 7-32 614N Select Flow Control Option 7-32 6170 Disable Echo Mode 7-33 6171 Enable Echo Mode (Factory Default) 7-33 620N Set Output Control 7-33 621 Select Predefined Output Control (Factory Default) 7-34 63 Reset Reader 7-34 640N RF Control 7-34 641 Select RF-by-Input Control (Factory Default) 7-35 642NN Select RF Operating Frequency 7-35 643NN Select ATA Operating Range (Distance) 7-38 644NN Set RF Attenuation 7-38 645NN Set eGo and eGo Plus Operating Range (Distance) 7-38 646XX Set IAG RF Attenuation 7-39 647XXX Select RF Operating Frequency 7-39 #648NN Set Synchronization Output Delay Time 7-40 #649NN Set Synchronization Hold Off Time 7-41 65 Reset Power Fail Bit 7-42 66F Load Default Operating Parameters 7-42 67N Set Output Pulse Duration 7-42 690N Select Presence Without Tag Report Option 7-44 692N Select RF Control Algorithm 7-45 693N Select RF Timeout Period 7-45 694N Select Input Inversion Option 7-46 695S...S Set Serial Number 7-47 696S...S Store Hardware Configuration String 7-47 697 Set User-Programmable Group Select Equals (GSE) Filter 7-49

Auxiliary Reader Control — Command Group 8 . . . . . . . . . . . . . . . . . . . . . . . . 7-50

82N Select Input Status Change Report Option 7-50 830 Disable Automatic Periodic RF Status Report (Factory Default) 7-50 831 Enable Automatic Periodic RF Status Report 7-50

8 Configuring the Encompass 4 Reader

Configuring the Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

xiv

Encompass 4 Reader System Guide

General Configuration Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Default Operating Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Configuring Parameters with Terminal Emulation Software . . . . . . . . . . . . . . . . 8-5

Starting the Terminal Emulation Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Verifying Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Verifying Tag Read Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Configuring Encompass 4 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Appended Tag Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

ID Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Reset Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Radio Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

RF Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Vehicle Detector Controlling RF Transmission 8-16

Host Controlling RF Transmission 8-16

Continuous RF Transmission 8-16

Sense Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Sense Output Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Serial Port Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

Port Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

Communications Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19

Software Flow Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19

Fine-Tuning and Verifying the Read Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19

Physically Orienting the Encompass 4 Reader 8-20

Physically Orienting the Encompass 4 Reader Antenna 8-20

Fine-Tuning the Read Zone by Lowering Output Power 8-20

Fine-tuning the Read Zone by Adjusting Sensitivity Range 8-21

9 Troubleshooting and Maintenance

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Encompass 4 Reader Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Marketing Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Find a Problem with the Encompass 4 Reader or Have Suggestions? . . . . . . . 9-7

Encompass 4 Reader System Guide

A Glossary

B Technical Specifications

Reader Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Communications B-3 Hardware Features B-3 Power Requirements B-3 Physical Attributes B-3 Environmental Parameters B-4 Options B-4

C Wiring Tables

Communications Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Cable Supplied with the Encompass 4 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

RS–232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

RS–422 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Wiegand Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

Power Supply Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

AC Power C-7 Low-Voltage DC Power C-9

Input/Output Cabling Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-10

Summary Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-14

D Command Quick Reference

Command Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3

Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3

Numerical Command List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5

Alphabetical Command List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-17

E Compatible Tag Information

xvi

Tag Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3

Tag Data Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-6

Encompass 4 Reader System Guide

Figure 1-1 Encompass 4 Reader System Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . 1-6

Figure 2-1 Tag and Reader Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Figure 2-2 Encompass 4 Reader Location Relative to Tag Position . . . . . . . . . . . . . . . . . . . . . 2-6

Figure 2-3 Typical Tag Positions for U.S. Driver’s Side Reader . . . . . . . . . . . . . . . . . . . . . . . .2-7

Figure 2-4 Typical Tag Positions for U.S. Passenger’s Side Reader . . . . . . . . . . . . . . . . . . . . .2-7

Figure 2-5 Typical Tag Positions Used with Overhead Reader . . . . . . . . . . . . . . . . . . . . . . . . .2-8

Figure 2-6 Gate Application with Center Island . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Figure 2-7 Parking Garage Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Figure 2-8 Overhead Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16

Figure 3-1 eGo Plus Windshield Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Figure 3-2 eGo Plus Security Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Figure 3-3 eGo Plus License Plate Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Figure 3-4 eGo Windshield Sticker Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Figure 3-5 eGo License Plate Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

Figure 3-6 eGo Plus Sticker Tag Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

Figure 3-7 eGo Plus Sticker Tag Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Figure 3-8 eGo Plus Sticker Tag Placement in Large Truck . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9

Figure 3-9 Applying eGo Plus Sticker Tag to Windshield . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10

Figure 3-10 Second Step of eGo Plus Sticker Tag Application . . . . . . . . . . . . . . . . . . . . . . . .3-10

Figure 3-11 Applying eGo Plus Security Sticker Tag to Windshield . . . . . . . . . . . . . . . . . . . .3-12

Figure 3-12 Second Step of eGo Plus Security Sticker Tag Application . . . . . . . . . . . . . . . . .3-12

Figure 3-13 Correct Mounting Location for LPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-14

Figure 3-14 Correct Tag Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Figure 3-15 Upper Placement Over the Top Area of the License Plate . . . . . . . . . . . . . . . . . .3-15

Figure 3-16 eGo Windshield Sticker Tag Placement Option A . . . . . . . . . . . . . . . . . . . . . . . .3-16

Figure 3-17 eGo Windshield Sticker Tag Placement Option B . . . . . . . . . . . . . . . . . . . . . . . .3-17

Figure 3-18 eGo Windshield Sticker Tag Placement Option C . . . . . . . . . . . . . . . . . . . . . . . .3-17

Figure 3-19 Driver’s or Passenger’s Side (U.S.) Interior Windshield Tag Location . . . . . . . . . 3-19

Figure 3-20 Upper Center Interior Windshield Tag Location . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Figure 3-21 Hook-and-Loop Material on Interior Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-20

Figure 3-22 Proper Tag Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22

Figure 3-23 Correct Exterior Tag Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

Figure 3-24 Upper Placement In License Plate Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

Figure 3-25 Obstruction-Free Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-24

Figure 3-26 Spacer Positioned Behind Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25

Figure 3-27 Exterior Tag with Double-Sided Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-26

Figure 4-1 Wiring for Audible Circuit Tester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Figure 4-2 Connect RF N-type Load or Attenuator to Reader Cable End . . . . . . . . . . . . . . . . . 4-7

Figure 4-3 Short Load to Earth Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Figure 4-4 Back of Encompass 4 Reader Showing Antenna Connector . . . . . . . . . . . . . . . . . . 4-9

Figure 4-5 Pin Assignments for Signal to Host Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

Figure 4-6 Back of the Encompass 4 Reader (reader shown has integrated antenna) . . . . . .4-16

Figure 4-7 Factory-Mounted Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Figure 4-8 Pole-Mount Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Figure 4-9 The Encompass 4 Reader Attached to the Pole Mount Bracket . . . . . . . . . . . . . . 4-17

Figure 4-10 Front and Top Views of the Encompass 4 Reader Position . . . . . . . . . . . . . . . . . 4-18

Figure 4-11 Wall Mount Bracket Accessory (part number 54-1620-001) . . . . . . . . . . . . . . . . . 4-19

Figure 4-12 Wall Mount Bracket Attached to the Encompass 4 Reader . . . . . . . . . . . . . . . . .4-20

Figure 4-13 Factory-Mounted Bracket Attached to Wall Mount Bracket . . . . . . . . . . . . . . . . . 4-21

Figure 4-14 Pole Mount Bracket Attached to Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Figure 4-15 Connecting the Encompass 4 Assembly to Pole Mount Bracket . . . . . . . . . . . . .4-22

xix

Encompass 4 Reader System Guide

Figure 4-16 Connect RF N-type Load or Attenuator to Reader Cable End . . . . . . . . . . . . . . .4-24

Figure 4-17 Short Load to Earth Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-24

Figure 4-18 Front and Top Views of the Curb-Side Antenna Position . . . . . . . . . . . . . . . . . . .4-26

Figure 4-19 Encompass 4 Reader Installation with Overhead Antenna . . . . . . . . . . . . . . . . . .4-27

Figure 4-20 Recommended Reader Cable Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-28

Figure 4-21 RS-232 Cable Extension Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-32

Figure 4-22 Wiegand Cable Extension Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34

Figure 4-23 Sample Circuit Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-35

Figure 4-24 Sample Circuit Connections for IAG Installations . . . . . . . . . . . . . . . . . . . . . . . . .4-36

Figure 4-25 Sample Read Zone Marking Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-41

Figure 7-1 Example of Synchronization Bus Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-41

Figure 8-1 Connection Description Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Figure 8-2 Phone Number Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-7

Figure 8-3 COM 1 Properties Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-7

Figure 8-4 Hyper Terminal Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-8

Figure 8-5 Sign-on Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Figure 8-6 Successful Tag Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11

Figure 8-7 Second Successful Tag Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-12

Figure 8-8 Encompass 4 Reader RF Control Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-16

Figure C-1 DB9 and DB25 Connector Pin Assignments for Signal to Host. . . . . . . . . . . . . . . . . . 4

Encompass 4 Reader System Guide

Table 1-1 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

Table 2-1 Examples of Staggered Reader Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13

Table 2-2 Connector Cabling Accessory Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Table 2-3 Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Table 2-4 Recommended Cable Length from Transformer to the Encompass 4 Reader . . . . 2-19

Table 2-5 Communications Interfaces an d Co nd uc to r Re quirements . . . . . . . . . . . . . . . . . . . 2-19

Table 2-6 Reader to Antenna Cable Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Table 3-1 Tags Read by the Encompass 4 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Table 3-2 eGo Plus Tag Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Table 3-3 eGo Tag Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Table 4-1 Installation Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

Table 4-2 AC Transformer Connections for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . . . . . 4-9

Table 4-3 Low Voltage DC Cable Connections for the Colored-Wire Pair Cable . . . . . . . . . .4-10

Table 4-4 RS–232 Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . .4-12

Table 4-5 Commands for Bench Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14

Table 4-6 RS–232 Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . .4-31

Table 4-7 RS–422 Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . .4-32

Table 4-8 Wiegand Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . 4-33

Table 4-9 Sense Input/Output Cabling Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-37

Table 5-1 Four-Character Command Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3

Table 5-2 Sample Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Table 7-1 Select Baud Rate Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Table 7-2 Select Stop Bits Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-6

Table 7-3 Select Parity Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-7

Table 7-4 Append Time and Date Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

Table 7-5 Append Auxiliary Information Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9

Table 7-6 Unique ID Code Criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Table 7-7 Select Valid Code Commands and Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12

Table 7-8 Open/Closed Conditions for Output Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-23

Table 7-9 Open/Closed Conditions for Output Status (IAG Applications) . . . . . . . . . . . . . . . .7-24

Table 7-10 Open/Closed Conditions for Input Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-24

Table 7-11 Flow Control Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-32

Table 7-12 Output Control Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-33

Table 7-13 RF Control Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-34

Table 7-14 RF Frequency Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-35

Table 7-15 RF Attenuation Command Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38

Table 7-16 Select RF Operating Frequency Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39

Table 7-17 Example of Encompass 4 Reader Plaza Synchronization Bus Settings . . . . . . . .7-42

Table 7-18 Output Pulse Duration Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-43

Table 7-19 Presence Without Tag Report Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-45

Table 7-20 RF Control Algorithm Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-45

Table 7-21 Timeout Period Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-46

Table 7-22 Input Inversion Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47

Table 7-23 Input Status Change Report Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50

Table 8-1 Encompass 4 Reader Configuration Label Fields . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3

Table 8-2 Encompass 4 Reader Default Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . .8-4

Table 8-3 Command Sequence to Verify Communications . . . . . . . . . . . . . . . . . . . . . . . . . .8-10

Table 9-1 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Table 9-2 Symptoms and Remedies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Table C-1 Communications Interfaces and Conductor Requirements. . . . . . . . . . . . . . . . . . . . . . 3

Table C-2 RS–232 Interface Signal Wiring for Colored-Wire Pair Cable. . . . . . . . . . . . . . . . . . . . 5

xxi

Encompass 4 Reader System Guide

Table C-3 RS–232 Interface Signal Wiring for Alternate Wire Cable. . . . . . . . . . . . . . . . . . . . . . . 5

Table C-4 RS–422 Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . . . . . 6

Table C-5 RS–422 Interface Signal Wiring for Alternate Wire Cable. . . . . . . . . . . . . . . . . . . . . . . 6

Table C-6 Wiegand Interface Signal Wiring for Colored-Wire Pair Cable . . . . . . . . . . . . . . . . . . . 7

Table C-7 Wiegand Interface Signal Wiring for Alte rn at e Wire Cable . . . . . . . . . . . . . . . . . . . . . . 7

Table C-8 AC Transformer Connections for Colored-Wire Pair Cable. . . . . . . . . . . . . . . . . . . . . . 7

Table C-9 AC Transformer Connections for Alternate Wire Cable. . . . . . . . . . . . . . . . . . . . . . . . . 9

Table C-10 Low Voltage DC Cable Connections for Colored-Wire Pair Cable . . . . . . . . . . . . . . . 9

Table C-11 Low Voltage DC Cable Connections for Alternate Wire Cable . . . . . . . . . . . . . . . . . . 9

Table C-12 Sense Input/Output Cabling Assignments for Colored-Wire Pair Cable . . . . . . . . . . 10

Table C-13 Sense Input/Output Cabling Assignments for Alternate Wire Cable . . . . . . . . . . . . . 12

Table C-14 All Cabling Assignments for Colored-Wire Pair Cable or Alternate Wire Cable. . . . . 14

Table D-1 Encompass 4 Reader Default Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table D-2 Encompass 4 Reader Commands Listed Numerically . . . . . . . . . . . . . . . . . . . . . . . . . 5

Table D-3 Encompass 4 Reader Commands Listed Alphabetically. . . . . . . . . . . . . . . . . . . . . . . 17

Table E-1 SeGo Protocol Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table E-2 eGo Protocol Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Table E-3 ATA Protocol Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

xxii

Introduction

-1

Encompass 4 Reader System Guide

-2

Purpose

Introduction

Chapter 1

Introduction

This chapter is the introduction to this manual and provides information pertaining to the audience, organization, document conventions, system

description, and license information for the Encompass System.

This guide provides site planning and testing, installing, and operating instructions for TransCore ’ s Encomp ass 4 Reader System , a dual-protocol reader that reads T ransCore

Super eGo International Organization for Standardization (ISO), and Inter-Agency Group (IAG) tag protocols. Before you begin installing the Encompass 4 Reader System, T ransCore recommends that you read this entire manual.

(SeGo), Intellitag®-based eGo, American Trucking Associations (A TA)/

4 Reader

Audience

This document is intended to be used by authorized TransCore Encompass 4 Reader System dealers, installers, and service personnel. Because the Encompass 4 Reader System has no operator- or end-user serviceable components or features, no end-user manual or operator guide exists. Once the system is set up and tested by the authorized installer, Encompass 4 Reader System opera intervention.

System Guide Organization

Note: TransCore offers the Encompass 4 Reader in two models: one with an integrated antenna and one that r equir es connection to an external antenna. In this system guide, information sented. Where separate instructions dictate, a section detailing one Encompass 4 Reader model is In this system guide, the reader with an integrated antenna is listed first. In cases where the information does not warrant a separate section, the addition of "...or antenna" distinguishes between the Encompass 4 Reader models.

The chapters of this guide and a description of

and instructions for both Encompass 4 Reader models are pre-

followed immediately with a section detailing the other reader model.

tion requires no end-user

the contents are listed here.

• Chapter 1, “Introduction,” explains the purpose and describes the audience for the

guide, outlines the manual’s organization, provides a brief descri

ption of the

1-3

Encompass 4 Reader System Guide

Encompass 4 Reader system, and discus sion (FCC) licensing requirements.

ses Federal Communications Commis-

• Chapter 2, “Developing the Site Plan,” discusses factors to be considered when

oping the site plan and before ordering equipment and installing the Encom-

devel pass 4 Reader System. These considerations inc alignment, si ments.

te layout and traffic flow, and electrical and communications require-

lude reader or antenna and tag

• Chapter 3, “Choosing, Installing, and Removing Tags,” contains information on

compatib removing t System is installed.

le tag models and provides procedures for installing tags onto,

ags from, vehicles that use the facility where the Encompass 4 Reader

and

• Chapter 4, “Installing the Encompass 4 Reader System,” lists the materials needed

and provides procedures to install the E

• Pre-testing

• Installing the Encompass 4 Reader System on

• Connecting power and communications

• Marking the read zone.

ncompass 4 Reader System. Steps include:

a round pole or flat surface

• Chapter 5, “General Software Information,” and Chapter 6, “Communications

Protocols,” provide reference information on various software-related topics co

mmunications protocols.

and

• Chapter 7, “Commands,” discusses the host-transmitted commands that are used

to control Encompass

4 Reader System configuration and operation.

• Chapter 8, “Configuring the Encompass 4 Reader System,” provides procedures

for configuring and fine-tuning the Encompass 4 Reader System after in at the

site.

stalling it

• Chapter 9, “Troubleshooting and Maintenance,” answers the most commonly

asked questions about inst tem.

alling and maintaining the Encompass 4 Reader Sys-

• Appendix A, “Glossary,” contains frequently used terms.

• Appendix B, “Technical Specifications,” provides the Encompass 4 Reader Sys-

tem specifications.

• Appendix C, “Wiring Tables,” shows the wiring connections for the communica-

tions interfaces, electrical cable connections, ing.

and the external interface signal wir-

• Appendix D, “Command Quick Reference,” lists the Encompass 4 Reader System

factory default configuration settings and nume

rical and alphabetical order.

provides host software commands

• Appendix E, “Compatible Tag Information,” provides helpful information about

1-4

tags that are compatible with the Encompass 4 Reader System.

• Index provides an alphabetical listing of guide topics.

Typographical Conventions

The conventions listed in Table 1-1 are used in this manual:

Table 1-1 Typographical Conventions

Convention Indication

Concerns about a procedure.

Introduction

Code

Dialog Box Title Menu Item

Note

NUL Zero-value ASCII character or a zero-value byte. NULL Zero-value pointers. Null-terminated string refers to strings

System Description

Code, including keywords and variables within text and as separate paragraphs, and user-defined program elements within text appear in courier typeface.

Title of a dialog box as it appears on screen. Appears on a menu. Capitalization follows the interface. Auxiliary information that further clarifies the current

discussion. These important points require the user’s attention. The paragraph is in italics and the word Note is bold.

of pr

intable ASCII characters with a zero-value byte placed in memory directly after the last printable charac te r of th e string.

This procedure might cause harm to the equipment and/or the user.

The Encompass 4 Reader System is a dual-protocol reader supporting the low-cost, high-performance SeGo radio frequency identification (RFID) technology . SeGo tech nology provides the capability to r

ead miniature RFID tags in a myriad of options including rugged, durable, or thin flexible forms such as the eGo Plus Sticker Tag. The Encompass 4 Reader System also supports legacy transportation applications such as

1-5

Encompass 4 Reader System Guide

gated toll, parking, or security gate access and is

ing TransCore SmartPass use. The Encompass 4 Reader System also supports the TransCore eGo and T ransCore ATA/ISO tag types, as well as the IAG tag protocol.

The Encompass 4 Reader System is a high-power unit that can read both half-frame and full-frame tags.

parking access control applications certified for licensed

The reader output power can be adjusted using reader commands.

designed to be compatible with exist-

Reader

The Encompass 4 Reader System consists of an input/output (I/O) module, a power supply, a reader logic board (also called a tag decoder), a radio frequency (RF) transmitter/receiver (called the RF module), and a patch

A second version of the Encompass 4 Reader is designe formance external antenna. tained in a highly reliable, compact, and easy-t package. Figure 1-1 shows the front and side views of an Enc tem.

These Encompass 4 Reader System components are con-

antenna.

d to be used with a high-per-

o-install environmentally-sealed

ompass 4 Reader Sys-

1-6

Figure 1-1 Encompass 4 Reader System Front and Side Views

How It Works

The Encompass 4 Reader System directs the RF module to generate an RF signal, which is broadcast through the integrated or external antenna. Entering the Encompass 4 Reader System’s reading range, a T ransCore RFID tag installed on a vehicle or other

object to be tracked adds its programmed identification information to the signal and reflects the signal back to the Encompass 4 Reader System. The Encompass 4 Reader System receives this modified, or modulated signal, and decodes the tag data carried by the reflected signal and transmits this data to a local host computer for processing.

Licensing Requirements

An FCC license provides the user with the legal authorization to operate the Encompass 4 on the licensed frequencies at the site specified in the license. Only an authorized installer or service technician can set the RF frequency of the Encompass 4 Reader System to the frequency specified in the FCC site license.

The FCC license may provide the user with protection and authorization to maintain the system should any other RFID product be used in the licensed area after the Encompass 4 equipment is installed.

Users of the Encompass 4 Reader System in the United States must obtain a license from the FCC. In the United States, the authorized modulated frequency band for this product is 911.75 to 91 9.75 MHz and the authorized continuous wave frequency band is 902.25 to 903.75 MHz and 910.00 to 921.50 MHz.

Introduction

The user is responsible for filing the FCC license according to FCC regulations, but the TransCore dealer will provide assistance and support as necessary to complete these forms. Forms are available online at the FCC internet site www.fcc.gov/Forms/

Form601/601.html or you can file online at wireless.fcc.gov/index.htm?job=online_ filing. For further information on obtaining the license contact TransCore.

T echnical Support

Authorized dealers and distributors are responsible for the direct support of all customers. Authorized dealers and distributors needing technical support can contact:

Technical Support Phone: (505) 856-8007 Web: transcore.com/rfidsupport Please be prepared to answer a series of questions that are designed to direct you to the

best support resource available.

1-7

Encompass 4 Reader System Guide

1-8

Developing the Site Plan

-1

Encompass 4 Reader System Guide

-2

Overview

Developing the Site Plan

Chapter 2

Developing the Site Plan

This chapter discusses site plan development for installing the

Encompass

Note: In this section, unless specifically stated, "Encompass 4 Reader" applies both to the Encompass 4 Reader with integrated antenna and Encomp ass 4 Reader with external antenna.

Developing a site plan provides the foundation for the site’s system design and establishes the following system configuration parameters:

4 Reader System.

• Number and general location of primary components

• Number of different radio frequencies required

Gathering relevant site information is crucial before applying for Federal Communications Commission (FCC) approval and ordering and installing Encompass 4 Reader(s) and tags.

Also, consider the following factors when developing a site plan:

• Type of tags used in the facility

• Reader and/or antenna and tag alignment

• Site layout and traffic flow

• Encompass 4 Reader and/or antenna mounting requirements

• Encompass 4 Reader electrical requirements

• Encompass 4 Reader communications requirements

These factors provide relevant information regarding each site’s physical and electromagnetic environment and the conditions under which the system must perform.

Reading of Mixed Population T ags

The Encompass 4 Reader reads TransCore’s Super eGo® (SeGo) protocol tags, the American Trucking Association (ATA) and International Organization for Standard ization (ISO) read-only tags, whether powered by battery or beam, application-specific integrated circuit (ASIC)-based tags with Intellitag technology, or Inter-Agency

2-3

Encompass 4 Reader System Guide

Group (IAG) tags. The reader can read the A of Intellitag-based tags; however, attempting to read an Intellitag-based tag in the presence of an ATA or ISO read-only tag is not recommended.

Caution

Attempting to read an Intellitag-based tag in the presence of an ATA or ISO read-only

tag may

The factors that influence the readability include, but are not limited t tation and configuration, type of read-only tag, ratio of tags, and whether the tag is battery- or beam-powered.

provide unreliable results.

Reader and Tag Alignment

The position of the Encompass 4 Reader and placement of the tag on the vehicle must be compatible. Also, consider any existing tagged vehicles now using the facility to determine the optimal Encompass 4 Reader location and orientation at the site.

Note: If any of in toll applications, contact TransCore for information about mixed-tag installations before you plan tag type, location, and programming.

Three primary criteria must be satisfied to

the vehicles using your facility already have tags, such as those used

TA or ISO read-only tags in the presence

o physical orien-

backscatter cross-section of the

achieve the highest read reliability:

• Polarization of the tag and the Encompass 4 Reader must be aligned in the same

direction

— both horizontal.

• The installed tag must be in a direct, unobstructed line of sight to the Encompass 4

Reader.

• T ags desig ned to be moun ted in a vehicle wind shield must be moun ted in the vehi -

cle’s windshield, and tags designed to be mounted on the exterior surface of the

hicle must be mounted on the exterior surface of the vehicle.

Caution

A tag may not be reliably read unless the preceding criteria are met.

2-4

Developing the Site Plan

Polarization

The polarization of the tag must be aligned in the same direction as the Encompass 4 Reader, as shown in Figure 2-1.

Note: Matchi performance

ng the tag and antenna polarization is critical to obtain optimal system

Figure 2-1 Tag and Reader Orientation

2-5

Encompass 4 Reader System Guide

Unobstructed Line of Sight

For optimum readability, install the Encompass 4 Reader and the vehicle’s tag so that when the vehicle approaches the Encompass 4 Reader, the tag is directly facing the reader and the line of sight is clear between the Encompass 4 Reader and the tag. If a fence or barrier is between the tag and the reader, the Encompass 4 Reader cannot reliably read the tags. Figure 2-2 illustrates possible installation locations of an Encom-

pass 4 Reader in relation to a in the recommended location, reliable optimum operation requires lower vehicle speeds.

tag’s mounting location on a vehicle. If the tags are not

2-6

Figure 2-2 Encompass 4 Reader Location Relative to Tag Position

Developing the Site Plan

If the Encompass 4 Reader is installed

mal tag position is on the left side of the vehicle as

Figure 2-3 Typical Tag Positions for U.S. Driver’s Side Reader

on a pole or wall to the left of the vehicle, opti-

illustrated in Figure 2-3.

If an Encompass 4 Reader is installed on a pole or wall to the right of the vehicle, optimal tag position is on the right side of the

vehicle as illustrated in Figure 2-4.

Figure 2-4 Typical Tag Positions for U.S. Passenger’s Side Reader

2-7

Encompass 4 Reader System Guide

If the Encompass 4 Reader is installed in an overhead location, optimal tag pos in the top center of the windshield in the area behind the rear view mirror or on the vehicle’s front license plate or center bumper as illustrated in Figure 2-5.

Figure 2-5 Typical Tag Positions Used with Overhead Reader

ition is

Note: Metallized coatings on some vehicle windshields and windows shield the RF

energy emitted by the Encompass 4 Reader and may cause tags to be misread. Many

metallized windshields have areas that are not metallized in which the tag can be

placed and reasonable results achieved. If there are no openings in the metallized

coating in which to install an interior tag, install exterior-type tags on the exterior of

the vehicle.

Refer to Chapter Chapter 3, ”Choosing, Install detailed information on

Antenna Selection

This section contains guidelines that assist in antenna selection for an Encompass 4 Reader installation that uses an external antenna patible with the Encompass 4 Re

AA3100 Yagi (without radome)

Appropriate for installations with the following requirements and conditions:

• 902 to 928 MHz operation

• Non-icing environments

ing, and Removing Tags” for more

tag positioning.

. The following antennas are com-

ader installation.

2-8

Developing the Site Plan

• Relatively symmetrical reading range

• Antenna profile not a major consideration

AA3101 Yagi (with radome)

Appropriate for installations with the following requirements and conditions:

• 902 to 928 MHz operation

• Exposure to harsh environments

• Relatively symmetrical reading range

• Antenna profile not a major consideration

AA3110 Parapanel

Appropriate for installations with the following requirements and conditions:

• 902 to 928 MHz operation

• Exposure to harsh environments

• Broad radiation pattern in one dimension, narrow in the other

• Low antenna profile

• Horizontal polarization

AA3140 PCB Log Periodic

Appropriate for installations with the following requirements and conditions:

• 845 to 950 MHz operation

• Exposure to harsh environments

• Maximum coverage at close range (<20 ft [6.1 m])

• Vertical or horizontal polarization

AA3152 Universal Toll Antenna

Appropriate for installations with the following requirements and conditions:

• 902 to 928 MHz operation

• Exposure to harsh environments

• Broadcast pattern of similar size and shape in both horizontal and vertical planes

2-9

Encompass 4 Reader System Guide

• Low antenna profile

Note: D

o not use an AA3152 Universal Toll Antenna for side-fire application.

AA3153 Toll Antenna

Appropriate for installations with the following requirements and conditions:

• 902 to 928 MHz operation

• Exposure to harsh environments

• Broadcast pattern with virtually no side or back lobes, which helps confine cover-

age to a single lane width

• Low antenna profile

Antenna and Tag Alignment

The position of the antenna connected to the Encompass 4 Reader and placement of the tag on the vehicle must be compatible. Also, cons ider any existing tagged vehicles now using the facility to determine the optimal Encompass 4 Reader antenna location and orientation at the site.

Note: If any of in toll applications, contact TransCore for information about mixed-tag installations before you plan tag type, location, and programming.

the vehicles using your facility already have tags, such as those used

Three primary criteria must be satisfied to

achieve the highest read reliability:

• Polarization of the tag and the Encompass 4 Reader antenna must be aligned hori-

zontally.

• The installed tag must be in a direct, unobstructed line of sight to the Encompass 4

Reader antenna.

• T ags desig ned to be moun ted in a vehicle wind shield must be moun ted in the vehi -

cle’s windshield, and tags designed to be mounted on the exterior surface of the ve

hicle must be mounted on the exterior surface of the vehicle.

Caution

A tag may not be reliably read unless the preceding criteria are met.

Polarization

The polarization of the tag must be aligned in the same direction as the antenna connected to the Encompass 4 Reader.

Note:

Matching the tag and antenna polarization is critical to obtain optimal system

2-10

performance.

Developing the Site Plan

2-11

Encompass 4 Reader System Guide

Unobstructed Line of Sight

For optimum readability , install the Encompass 4 Reader antenna and the vehicle’s tag so that when the vehicle approaches the antenna, the tag is directly facing the antenna and the line of sight is clear between the antenna and the tag. If a fence or barrier is between the tag and the antenna, the antenna cannot reliably read the tags. illustrates possible installation locations of an Encompass 4 Reader antenna in relation to a tag’s mounting location on a vehicle. If the tags are not in the recommended loca tion, reliable optimum operation requires lower vehicle speeds.

Site Layout and Traffic Flow

The following site layout and traffic flow considerations are critical when determining Encompass 4 Reader installation locations:

• The Encompass 4 Reader read zone

• Other Encompass 4 Reader units and antennas in the area

Figure 2-2

• Lane configurations

• Reflection, refraction, and diffraction of RF signals

• Existing signal interference at the site

The Encompass 4 Reader Read Zone

The Encompass 4 Reader must be able to read the tag data properly within a specified area, called the read zone, without reading other nearby tags or interfering with other Encompass 4 Readers at the site. The following are some of the factors that affect the size and shape of the read zone:

• Mounting method used (pole or wall mount)

• Mounting location (overhead or side mount)

• Height from the ground and mounting angle

• Mounting method used (pole or wall mount) of the antenna

• Mounting location (overhead or side mount) of the antenna

• Height from the ground and mounting angle of the antenna

2-12

• Indoor or outdoor location

• RF output attenuation

• Range discrimination setting

• Other sources of interference and reflection

Developing the Site Plan

The Encompass 4 Reader must be positioned to allow the RF return from the tags within the designated range and be placed in an area where it is not likely to be bumped out of alignment. If the antenna becomes misaligned or some nearby structure is added or removed, system operation can be seriously affected.

The external antenna must be positioned to allow the RF from the tags within the designated range and be placed in an area where it is not likely to be bumped out of alignment. If the antenna becomes misaligned or some nearby structure is added or removed, system operation can be seriously affected.

For instructions on setting

Zone” on page 8-19.

the read zone, see “Fine-Tuning and Verifying the Read

signal to travel to and

signal to travel to and return

Lane Configurations

TransCore recommends that traffic be guided through a controlled lane to consistently obtain accurate tag readings and to prevent physical damage to the Encompass 4 Reader. The following subsections describe some common lane configurations and offer suggestions for positioning the Encompass 4 Reader within the controlled traffic flow.

2-13

Encompass 4 Reader System Guide

Gate with Center Island Configuration

Figure 2-6 illustrates a typical gate application with the Encompass 4 Reader units

positioned on a center island to read tags mounted on driver’s side (United States). The readers are placed to allow time for the gate to open so the vehicle can roll through without stopping while not allowing room for an untagged vehicle to be between the vehicle being read and the gate.

the inside windshield on the

2-14

Figure 2-6 Gate Application with Center Island

Developing the Site Plan

Parking Garage with Ticket Island Configuration

Figure 2-7 illustrates a parking garage application with each Encompass 4 Reader

mounted on the ticket island to read tags mounted on the center front vehicle bumper. The Encompass 4 Reader placement may require the vehicle to stop before the gate opens.

on the inside center windshield or

Figure 2-7 Parking Garage Application

Overhead Reader Installation Configuration

Another option for Encompass 4 Reader placement is to mount it overhead in each lane as illustrated in Figure 2-8. This illustration assumes that tags are mounted on the inside center windshield or center bumper of the vehicle.

2-15

Encompass 4 Reader System Guide

Figure 2-8 Overhead Installation

Lane Configurations for Encompass 4 Readers Using an External Antenna

TransCore recommends that traffic be guided through a controlled lane to consistently obtain accurate tag readings and to prevent physical damage to the Encompass 4 Reader and antenna.

Reflection, Refraction, and Diffraction of RF Signals

RF signals can be reflected, refracted, or diffracted by metal objects, walls, and even wet pavement or ice. Any of these factors can alter or degrade system performance. When designing your site plan, you must consider permanent structures and transient factors in the vicinity that may affect RF signals being generated by the Encompass 4 Reader. Permanent structures include buildings, chain link fences, guard shacks, and gates. Transient factors include passing tr affic and local weather conditions, such as rain or snow. Symptoms of reflection, refraction, and diffraction include reading tags that are out of the desired read zone or tags being read from another lane.

The most common RF reflectors are tially reflected by nonconducting materials suc crete. When nonconducting materials in the system increase reflection of RF signals.

metallic surfaces. RF signals may also be par-

h as dirt, wood, ice, asphalt, and con-

environment become wet, they

2-16

The Encompass 4 Reader and/or antenna mounting loca

trol adjustment, and use of presence detectors can reduce tions. When these actions cannot

adequately control reflections, other techniques such

tion, aiming, and range con-

interference from RF reflec-

Developing the Site Plan

as shielding, absorbing, range sensitivity adjustment, or barriers can also be used. See

Chapter 9, ”Troubleshooting and Maintenance” for more information.

Existing Interference

Interference from RF and electrical sources can degrade system performance and must also be considered in the site design. Fluorescent lights, neon signs, nearby radio sta tions, or power lines can interfere with the optimal operation of the system. The mag netic impulse noise from relays that control gate opening and closing can also disrupt the RF signal.

Interference may degrade both reader and tag performance. Existing interference at the site may be shielded, removed, or positioned further from the Encompass 4 Reader and/or antenna. In some cases, changing the operating frequency of the Encompass 4 Reader may provide a simple solution. Readers in proximity should have at least a 2 MHz frequency separation. See

13.

Strong RF sources of any frequency, in proximity to the tag, can preclude the tag

receiving the reader interrogation (see Chapter 9, ”Troubleshooting and Maintenance” ).

“Other Encompass 4 Readers in the Area” on page 2-

Electrical and Communications Requirements

All construction work at the site must be completed before installing the Encompass 4 Reader. Electrical and communications cables should be installed according to all applicable local and federal building code requirements. Specific instructions for posi tioning and installing the Encompass 4 Reader are discussed in Chapter 4, ”Installing

the Encompass 4 Reader”

Junction Box

Use a watertight junction box that meets applicable local and national building codes for connecting power and communications wiring. The junction box houses the termi nal strip for power and communications connections. TransCore recommends a NEMA Type-4 junction box with a back mounting panel.

Power and Communications Cables

Cable length for power and communications depends on the physical characteristics of the Encompass 4 Reader installation site. cabling options based on your site’s requirements.

Table 2-2 Connector Cabling Accessory Kits

T able 2-2 lists accessory kits available for

Part Number Description

58-1620-001 5-ft connector cable harness

2-17

Encompass 4 Reader System Guide

Table 2-2 Connector Cabling Accessory Kits (continued)

Part Num

58-1620-002 20-ft connector cable harness 58-1620-006 35-ft connector cable harness 58-1620-007 45-ft connector cable harness 20-1620-003 Connector kit only 56-1620-004 13-pair cable (sold by the foot) 76-1620-005 110V AC to 18V AC Class C transformer 76-1620-006 12V AC to 18V AC step-up transformer

ber Description

Electrical Power

A dedicated electrical power supply must be present at the site and available to the Encompass 4 Reader at all times. The power must be 16-20V AC or 16-28V DC. A step-down transformer is available (North America only) to convert a 120V AC duplex wall outlet with ground to 18V AC, as is a step-up transformer to convert a low-voltage 12V AC outlet to 18V AC. Consult your local and national electrical codes for installation and safety requirements.

Note: Encompass 4 Re plied transformer.

aders installed outside North America require a locally sup-

If 18V AC or 18V DC power is available, the transformer option is unneces TransCore offers a Class C transformer acces

sory kit (part number 76-1620-005) for

sary.

sites where 110V AC is available. It is the installer’s responsibility to supply conver-

sion equipment and wiring for other voltages. T able 2-3 contains p ower supply current

requirements.

Table 2-3 Power Supply Requirements

(RF On)

Supply

16 to 20V AC 20 watts (W) 14 W 16 to 28V DC 20 W 14 W

1700 milliamp (mA) initial rush-in current at startup

Maximum Power at

68°F (20°C)

(RF Off)

Standby Operating

Power at 68°F (20°C)

Power circuits are protected internally against power surges.

Power Extension

Use Table 2-4 to determine the correct cable size acc

ording to the American Wire

2-18

Developing the Site Plan

Gauge (AWG) standard for the necessary length of

extension cable. The numbers in

the first row of the table indicate cable size for the approximate cable length .

Note: If

the cable is close to the maximu m len gth, measure voltage at the Encompass 4 Reader with RF ON to ensure voltage does not drop below 16V. A drop in voltage below 16V causes a reduction in read range and possible damage to internal electronics as well as unreliable operation.

Table 2-4 Recommended Cable Length from Transformer to the Encompass 4 Reader

Cable Size (AWG)

Maximum DCR (Ohms pe

r foot at 68°F)

TransCore 5-ft cable (P/N 58-1620-001)

TransCore 20-ft cable (P/N 58-1620-002)

TransCore 35-ft cable (P/N 58-1620-006)

TransCore 45-ft cable (P/N 58-1620-007)

24 22 20 18 16 14 12

0.0270 0.0175 0.0109 0.0069 0.0044 0.0027 0.0017

23 ft 36 ft 58 ft 92 ft 144 ft 235 ft 373 ft

15 ft 23 ft 38 ft 60 ft 93 ft 152 ft 242 ft

7 ft 11 ft 17 ft 27 ft 43 ft 70 ft 110 ft

1 ft 2 ft 4 ft 6 ft 9 ft 14 ft 23 ft

a. Use two pair (two conductors for power and two for return). TransCore cable is 22 AWG. b. Direct current resistance (DCR) information is from the Belden catalog. c. Based on a 1.0V drop at 1200 mA (RF ON) with 15% margin.

Host Communications

Your site design must include communications between the Encompass 4 Reader and a host computer. The Encompass 4 Reader communicates with the host computer through an asynchronous serial line or through a Wiegand interface. This serial line can be an RS to accept one of the interfaces shown in Table 2-5.

Table 2-5 Communications Interfaces and Conductor Requirements

–232 3

RS RS

–232 with RTS and CTS hardware and handshake

signals RS

–422 4

–232 interface or an RS–422 interface. The host computer must be able

Interface

Number of

nductors

2-19

Encompass 4 Reader System Guide

Table 2-5 Communications Inte rfaces and Conductor Requirements

Interface

Wiegand 3

Number of

Conductors

2-20

Developing the Site Plan

RS–232 Interface

Use an RS–232 interface if one or more of the following conditions apply to your site:

• The host computer system is 50 ft (15.2 m) or less from the Encompass 4 Reader.

• The host computer system is more than 50 ft (15.2 m) from the Encompass 4

Reader and a pair of RF modems or limited distance modem/l ine drivers over copper wire are used for communications between the Encompass 4 Reader and the host. The distance from the RF modem to the Encompass 4 Reader should not exceed 50 ft (15.2 m).

• Other common communications devices that can extend the RS–232 distance,

such as fiber optic modems, have been selected.

The standard RS–232 connection maximum distance depends on the baud rate, cab le type, and the RS

Note: When extending the RS-232 interface, use a three-pair cable such as Belden

2919. Use a twisted pair for the black (RxD) with ground (black of the black/yellow pair), and a twisted pair for red (TxD) with ground (black of the black/yellow pair). The third pair of the three-pair cable can be used for a spare in the event either of the other two pair are damaged or fail. The cable shield should be tied to a single-point earth ground on the controller end of the cable.

–232 device at the other end.

RS–422 Interface

Use an RS–422 interface if one or more of the following conditions apply to your site:

• The host computer is more than 50 ft (15.2 m) from the Encompass 4 Reader.

• The host computer has an external limited-distance modem.

The standard RS–422 connection maximum distance depends on the baud rate, cab le type, and the RS

Wiegand Interface

The Encompass 4 Reader can interface with equipment requiring the Wiegand +5V

DC data0-data1-ground interface. The reader uses the Wiegand interface

included with the RS

Note: The Encompass 4 Reader comes from the factory with either RS–232 and Wie- gand or RS–422 and Wiegand. If you want to use Wiegand, you must first connect the Encompass 4 Reader using the RS ing parameters in the reader, then set the Encompass 4 Reader’s configuration to Wie-

gand, and then connect the Encompass 4 Reader to the Wiegand interface. Note: You mu st order tags programmed with Wiegand-formatted data when using a

Wiegand-compatible reader.

–422 device at the other end.

–232 or RS–422 option.

–232 or RS–422 interface, set all necessary operat-

Note: When extending the Wiegand interface, use a three-pair cable such as Belden

2-21

Encompass 4 Reader System Guide

2919. Use a twisted pair for the red (Data1) with ground (yellow of the black/yellow pair), and a twisted pair for blue (Data0) with ground (yellow of the black/yellow pair). The third pair of the three-pair cabl e can be used for a spare in the event either of the other two pair are damaged or fail. The cable shield should be tied to a singlepoint earth ground on the controller end of the cable.

Input/Output Circuits

To connect the Encompass 4 Reader to external equipment such as a treadle or traffic control light, install wires from these devices at the junction box. The Encompass 4 Reader input circuit is designed to connect to a dry contact closure. The Encompass 4 Reader output circuits are single-pole, double-throw relays providing dry contact clo sures. These contacts are rated at 42.2V AC peak (30V

mum with noninductive load. Output circuits are not intended for the direct control of electromechanical devices

such as motorized gates and barrier arms. For such applications, the Encompass 4 Reader output circuits should be used to drive a secondary, appropriately rated high-power relay.

) or 60V DC, at 1 A maxi-

rms

External Antenna Interface

For sites using an Encompass 4 Reader with external antenna, the design must include an interface cable between the Encompass 4 Reader and the compatible antenna cho sen for the site. The antenna interface is RF coaxial cable with male Type N sockets on each end.

Table 2-6 is a summary of coaxial cable performance. Figures indicate maximum

lengths of cable in feet.

Table 2-6 Reader to Antenna Cable Performance

Cable Type

RG–223 0.216 6 18 RG–214 0.425 12 37 FHJ1–50 0.250 16 48 FSJ1–50 0.250 15 45 LDF2–50 0.375 28 85 FSJ4–50B 0.500 27 83

Overall

Diameter (in.)

915MHz

Low Medium

Loss

2-22

LDF4–50A 0.500 42 128 LDF5–50A 0.875 76 229

Developing the Site Plan

Table 2-6 Reader to Antenna Cable Performance (continued)

915MHz

Low Medium

Loss

Cable Type

Overall

Diameter (in.)

LDF6–50 1.125 103 310 LDF7–50A 1.625 122 366

a. Suffixes 50, 50A, and 50B indicate 50-ohm cables available from the 

Andrew Corporation. b. These cable lengths ensure optimal system performance (1 dB loss). c. These cable lengths ensure adequate, but not optimal, system performance (3 dB

loss).

2-23

Encompass 4 Reader System Guide

2-24

Choosing, Installing, and Removing

Choosing, Installing, and Removing Tags

This chapter describes the various tag types compatible with the Encompass

compatible internal and external tags.

Compatible Tag Types

The Encompass 4 Reader provides the capability to read the various TransCore eGo® Plus-type tags employing Super eGo (SeGo) protocol and eGo-style tags and other American National Standards Institute (ANSI) ANS INCITS 256-2001-compliant tags with Intellitag technology. Depending on options ordered, the Encompass 4 Reader can read eGo Plus and eGo tags as well as TransCore IT2000 (in optional ATA/ISO mode), ATA-protocol, ISO-compliant tags, and Inter-Agency (IAG) tags. It can also read tags formatted to a wide range of industry-standard proprietary formats, including SIA Wiegand 26-bit standard format.

4 Reader and the procedures for installing and removing

Choosing, Installing, and Removing Tags

Chapter 3

See Appendix E for information about the n

Reader and Tag Model Interoperability

Table 3-1 lists the tags tha t are read by the Encompass 4 Reader. See www.transcore.com/pdf/T

cerning readers and supported tag protocols.

Table 3-1 Tags Read by the Encompass 4 Reader

Reader Beam Tags Battery Tags

Encompass 4 Reader eGo Plus Sticker Tag*; eGo Plus

Security Sticker T License Plate Tag*

eGo Windshield Sticker Tag; eGo Ta License Plate Tag

other ANS INCITS 256-2001compliant tags with Intell technology

AT5100; AT5102; AT5110; AT5

112; AT5125; AT5145;

AT5146; AT5715

ag-Reader-Matrix.pdf for most current information con-

ag*, eGo Plus

mper Resistant Tag; eGo

itag

umerous tag models.

AT5105; AT5114; AT5140;

47; AT5510; AT5540;

AT51 AT5541; AT5542; AT5543; AT5544; AT5545; AT5547; AT5704; AT5707; IT2221**; IT2235**

* in SeGo, eGo, and/or ATA mo

des

** When used in optional ATA/ISO mode

3-3

Encompass 4 Reader System Guide

TransCore’s eGo Plus Tags

TransCore’s eGo Plus tags are offered to complete your Encompass 4 Reader System.

Table 3-2 lists some of the features of the TransCore eGo Plus tags.

Table 3-2

Sticker Tag

Security Sticker T

License Pla (LPT)

the first "x" in the sticker tag listing defines which protocol is dominant (e.g., ATA or eGo/SeGo) in the tag; the second "x" further defines other active protocol configurations; and "nnn" is a unique identifier that differentiates between tags that are programmed similarly but that have different graphics or labels).

the "x" in the security sticker tag listing defines which protocol is dominant (e.g., ATA or eGo/SeGo) in the tag; the "y" further defines other active protocol configurations; and "zzz" is a unique identifier that differentiates between tags that are programmed similarly but that have different graphics or labels)

###

version.

eGo Plus Tag Features

Number

Tag

te Tag

the "x" in the LPT listing determines whether the LPT is a standard eGo Plus LPT or a motorcycle

Part

Number

13-07xx-

13-07xy-

zzz

13-0700-

###

Used For

Toll, Electronic vehicle registration (EVR), Parking, Security access

Special

atures

Very thin, flexible, multi-lay lamination

Very thin, flexible, multi-layer lamination, tamper detection

Waterresistant, exteriormounted

Power

Source

Beam

6-bit

ASCII

Characters

20 1 N/A

10 1/2 26 to 54

20 1 N/A

10 1/2 26 to 54

20 1 N/A

10 1/2 26 to 54

Number

of 128-

Bit

Frames

Wiegand

Number

Bits

3-4

eGo Plus Sticker Tag

The Encompass 4 Reader reads the eGo Plus Sticker Tag (Figure 3-1) configured to support SeGo mode.

Choosing, Installing, and Removing Tags

Figure 3-1 eGo Plus Windshield Sticker Tag

eGo Plus Security Sticker Tag

The Encompass 4 Reader reads the eGo Plus Security Sticker Tag (Figure 3-2) configured to support SeGo mode.

Figure 3-2 eGo Plus Security Sticker Tag

eGo Plus License Plate Tag

The eGo Plus LPT (Figure 3-3) is a water-resistant tag used in applications requiring an exterior-mounted tag.

3-5

Encompass 4 Reader System Guide

Figure 3-3 eGo Plus License Plate Tag

TransCore’s eGo Tags

TransCore’s various eGo tags are offered to complete your Encompass 4 Reader System. Table 3-3 lists some of the features of the TransCore eGo tags.

Table 3-3

Tag

Windshield Sticker T

License Plate T

eGo Tag Features

Part

Number

13-0510-

004

13-0510900

eGo Windshield Sticker Tag

The TransCore eGo WST (Figure 3-4) is offered to complete your Encompass 4 Reader System. It is a flexible sticker much

Used For

Toll, Electronic vehicle registration (EVR), Parking, Security access

Special

Features

Very thin, flexible, multi-lay lamination

Waterresistant, exteriormounted

Power

Source

Beam

Number

of 6-bit

ASCII

Characters

20 1 NA 10 1/2 26 to 54

Number

of 128-

Bit

Frames

like a vehicle registration sticker.

Number

Wiegand

Bits

3-6

Figure 3-4 eGo Windshield Sticker Tag

Choosing, Installing, and Removing Tags

eGo License Plate Tag

The eGo LPT (Figure 3-5) is a water-resistant tag used in applications requiring an exterior-mounted tag.

Figure 3-5 eGo License Plate Tag

Installing eGo Plus Sticker Tags

eGo Plus Sticker Tags are designed to be attached by a semi-permanent adhesive to the interior surface of nonmetallic windshields 0.190 to 0.230 inches (4.82 to 5.84 mm) in thickness. For optimum performance, you must install the tag at least 2 inches (5 cm) from the metal in the windshie view mirror support post. Detailed instructions for installing t

Tag are found in the pocket guide “Quick and Easy Installation Instructions for the

Plus Sticker Tag.”

eGo

ld frame and 0.75 inch (1.9 cm) from the rear-

he eGo

Plus Sticker

Some vehicles have a tinted area across the top of the windshield. If t tive, it can interfere with reading the tag must be installed at least 2 inches (5 cm) below this tinted area.

tag. If a windshield has this conductive tint, the

he tint is conduc-

3-7

Encompass 4 Reader System Guide

Some vehicle windshields contain a metallic treatment that could windshield-mounted tag from being read. However, many of these metallized windshields have areas that are not allized windshield, you might need to insta on the vehicle. See the section “Installing eGo Plus License Plate T ags” on page 3-13. Contact TransCore for more information. See the section “Technical Support” on page

9-7.

metallized. On a vehicle without open areas in its met-

ll an Encompass 4 Reader-compatible LPT

prevent an interior

Required Materials

You need the following supplies to install an eGo Plus Sticker Tag:

• Glass cleaner, mild detergent and water, or any cleaning solution appropriate for

your windshield

• Clean, dry cloth

• eGo Plus Sticker Tag

Positioning eGo Plus Sticker Tags

TransCore designed the eGo Plus Sticker Tag to be installed on the upper center or upper corner portion of the windshield. Figure 3-6, Figure 3-7, and Figure 3-8 illus-

trate possible upper center tag

windshield is tinted with an aftermarket conductive tint, use placement shown in

Figure 3-7.

placement locations. If the upper portion of the

Mirror Post Attached on Windshield

Choose this placement option as shown in Figure 3-6 if the mirror post is attached on the windshield.

Figure 3-6 eGo Plus Sticker Tag Placement

Mirror Post Attached on Header

Choose this placement option if the mirror post is attached on the header as shown in

Figure 3-7 or if the upper portion of the windshi

eld is tinted with a conductive tint.

3-8

Choosing, Installing, and Removing Tags

Figure 3-7 eGo Plus Sticker Tag Placement

Large Truck with No Inside Mirror

Choose this option for a large truck that uses exterior mirrors only (Figure 3-8).

Figure 3-8 eGo Plus Sticker Tag Placement in Large Truck

eGo Plus Sticker Tag Installation Procedures

Caution

Confirm that the outside temperature is above 50°F adhere correctly if the temperature is below this temperature.

To install the eGo Plus Sticker Tag

1. Determine the tag installation location for guidelines in the section “Positioning eGo Plus Sticker Tags” on page 3-8.

2. Thoroughly clean the interior surface of th rearview mirror where the tag will be located.

3. Dry the tag location area thoroughly using a clean, dry cloth.

4. Remove the backing from the ta

g to expose the adhesive.

(10°C). The sticker tag may not

the vehicle using the placement

e windshield behind and around the

3-9

Encompass 4 Reader System Guide

Caution

Ensure that the tag is correctly located before touch sticker tag is applied to the glass, it cannot be moved without damage to the tag.

5. Holding the sticker tag by its ed ges (Figure 3-9), position the tag in the correct area of the windshield (determined in Step 1), making sure the tag is oriented horizontally and is at inch (1.9 cm) from the mirror post.

ing it to the glass. Once the

least two inches (5 cm) from the windshield frame and 0.75

Figure 3-9 Applying eGo Plus Sticker Tag to W indshield

6. Press the sticker tag firmly against the glass and gently rub over the entire tag surface. Ensure that no air bubbles remain between the sticker tag and the windshield (Figure 3-10).

Figure 3-10 Second Step of eGo Plus Sticker Tag Application

Removing eGo Plus Sticker Tags

3-10

Peel the eGo Plus Sticker Tags from the windshield and clean any reside using isopropyl alcohol or commercial glass cleaner.

The tag is inoperable once removed.

Choosing, Installing, and Removing Tags

Installing eGo Plus Security Sticker Tags

An eGo Plus Security Sticker Tag is located in the same area on the windshield as the eGo Plus Sticker Tags. See “Positioning eGo Plus Sticker Tags” on page 3-8 for this information. The eGo Plus Security Plus Sticker Tag so the installation instructions differ. Detailed instructions for installing the eGo

Installation Instructions for the eGo

Plus Security Sticker T ag are found in the pock et guide “Quick and Easy

eGo Plus Security Sticker Tag Installation Procedures

Caution

Confirm that the outside temperature is above may not adhere correctly if the temperature is below this temperature.

To install the eGo Plus Security Sticker Tag

1. Determine the tag installation location for guidelines in the section “Positioning eGo Plus Sticker Tags” on page 3-8.

Sticker Tag is slightly less flexible than the eGo

Plus Security Sticker Tag.”

50°F (10°C). The security sticker tag

the vehicle using the placement

2. Thoroughly clean the interior surface of th rearview mirror where the tag will be located.

3. Dry the tag location area thoroughly using a clean, dry cloth.

4. Remove the backing from the ta

Caution

Ensure that the tag is correctly located before touch security sticker tag is applied to the glass, it cannot be moved without damage to the tag.

5. Holding the sticker tag by its edges (Figure 3-11), position the tag in the area of the windshield (determined in Step 1), making sure the tag is oriented horizonta inch (1.9 cm) from the mirror post.

lly and is at least two inches (5 cm) from the windshield frame and 0.75

g to expose the adhesive.

e windshield behind and around the

ing it to the glass. Once the

correct

3-11

Encompass 4 Reader System Guide

Figure 3-11 Applying eGo Plus Security Sticker Tag to Windshield

6. Press the security sticker tag firmly against the glass. Gently rub over the entire tag surface removing as much air from underneath the tag (Figure 3-12). The security sticker tag’s rigid case may prevent you from forcing trapped between the tag and windshield. A minimal amount of air will not affect tag performance.

out all of the air

Figure 3-12 Second Step of eGo Plus Security Sticker Tag Application

Removing eGo Plus Security Sticker Tags

Locate the tapered edge under the lower right corner of the eGo Plus Security Sticker Tags and carefully pull the tag from the windshield. If you cannot lift the tag using your fingers, insert a plastic scraper underneath the corner and lift the tag. Once you have removed the tag from the windshield, clean any reside using isopropyl alcohol or commercial glass cleaner. The tag is destroyed upon removal and cannot be reused.

3-12

Choosing, Installing, and Removing Tags

Installing eGo Plus License Plate Tags

Metallized coatings on some vehicle windshields and windows absorb the RF energy emitted by the Encompass 4 Reader, thus causing tags to be misread. You must use exterior LPT s on vehicles with metallized coatings on their windshields and windows.

Use license plate installation techniques to install tags on the exterior of vehicles that have this type of window coating.

Note: The read zone of an overhead Encompass 4 Reader should be adjusted accordingly when an exterior tag is installed on a license plate, or the read zone will be reduced.

Required Materials

• Screwdriver (flat-blade or Phillips depending on the vehicle’s license plate

mounting screws)

• Optional TransCore Exterior T ag Accessory Kit (19077-01). This kit contains

tamper-resistant mounting screws and wrench.

• eGo Plus LPT

Positioning eGo Plus License Plate Tags

The eGo Plus LPT is installed over the license plate at the upper part of the vehicle’s front license plate area.

Note: If your state does not require a front license plate, install the LPT in the area where the license plate would normally be mounted. If your vehicle does not have a front license plate area, contact your tag agency for other tag options.

The orientation of the tag is important. The tag must be mounted so that the holes on the tag base plate are on the top edge.

eGo Plus LPT Installation Procedures

To mount the eGo Plus LPT

1. Remove the screws from the license plate area of your front bumper (Figure 3-

13). If your vehicle does not have mounting screws you will need two self-

tapping threaded screws. You can also contact the tag agency to inquire about the optional TransCore Exterior Tag Accessory Kit.

Note: You may need to us e longer screws to fasten the LPT over the top area of your license plate.

3-13

Encompass 4 Reader System Guide

Figure 3-13 Correct Mounting Location for LPT

2. Position the LPT so that it is within 18 inches (46 cm) of the center of the front bumper as shown by the shaded area in Figure 3-13. If your vehicle’s license plate mounting area is more than 18 inches (46 cm) from the center, you may

ed to select an alternate location to mount the tag. Contact your tag agency if

ne your vehicle requires an alternate mounting location for the LPT.

3. Hold the LPT so that the etched lettering is facing

you with the mounting holes to

the top as shown in Figure 3-14.

Figure 3-14 Correct Tag Orientation

4. Fasten the LPT to the bumper using the license plate mounting screws  (Figure 3-15). Install the LPT over the top area of the vehicle’s license plate if your vehicle has a front license plate. If your state

does not require a front license plate, install the LPT in the area where a license plate would normally be mounted.

3-14

Choosing, Installing, and Removing Tags

Figure 3-15 Upper Placement Over the T op Area of the License Plate

Installing eGo Windshield Sticker Tags

eGo WSTs are designed to be attached by a semi-permanent adhesive to the interior surface of nonmetallic windshields 0.190 to 0.230 inches (4.82 to 5.84 mm) in thickness. For optimum performance, you must install the tag at lea the metal in the windshield frame and 0.75 inch (1.9 cm) from the rearview mirror support post. Detailed instructions are found in the pocket guide “Quick and Easy Installation Instructions for Windshield Sticker Tag.”

Some vehicles have a tinted area across the top of the windshield. If t tive, it can interfere with reading the tag must be installed at least 2 inches (5 cm) below this tinted area.

Some vehicle windshields contain a metallic treatment windshield-mounted tag from being read. However, many of these metallized windshields have areas that are not allized windshield, you might need to insta on the vehicle. See the section “Installing eGo Plus License Plate Tags” on page 3-13 and the section “Installing ATA License Plate Tags” on page 3-21. Contact TransCore for more information.

See the section “Technical Support” on page 9-7.

tag. If a windshield has this conductive tint, the

metallized. On a vehicle without open areas in its met-

ll an Encompass 4 Reader-compatible LPT

st 2 inches (5 cm) from

he tint is conduc-

that could prevent an interior

3-15

Encompass 4 Reader System Guide

Required Materials

You need the following supplies to install an eGo WSTs:

• Glass cleaner, mild detergent and water, or any cleaning solution appropriate for

your windshield

• Clean, dry cloth

• eGo WST

Positioning eGo Windshield Sticker Tags

TransCore designed the eGo WST to be installed on the upper center or upper corner portion of the windshield. Figure 3-16, Figure 3-17, and Figure 3-18 illustrate possible

upper center tag placement locations. If the uppe

tinted with an aftermarket conductive tint, use placement Option B as shown in

Figure 3-17.

Mirror Post Attached Low On Windshield

Choose placement Option A shown in Figure 3-16 if the mirror post is attached low on the windshield.

r portion of the windshield is

3-16

Figure 3-16 eGo Windshield Sticker Tag Placement Option A

Mirror Post Attached High on Windshield

Choose placement Option B if the mirror post is attached high on the windshield as shown in Figure 3-17 or if the upper portion of the windshield is tinted with tive tint.

a conduc-

Choosing, Installing, and Removing Tags

Figure 3-17 eGo Windshield Sticker Tag Placement Option B

Mirror Post Attached to Headliner

Choose placement Option C if the mirror post is attached to the headliner as shown in

Figure 3-18. If the up

conductive tint, place the tag two inches (5 cm) below the tinte

per portion of the windshield is tinted with an aftermarket

d area.

Figure 3-18 eGo Windshield Sticker Tag Placement Option C

Mounting the eGo Windshield Sticker Tag

Caution

Confirm that the outside temperature is above 50°F adhere correctly if the temperature is below this temperature.

To install the eGo WST

1. Determine the tag installation location for guidelines in the section “Positioning eGo Windshield Sticker Tags” on page 3-

16.

(10°C). The sticker tag may not

the vehicle using the placement

3-17

Encompass 4 Reader System Guide

2. Thoroughly clean the interior surface of th rearview mirror where the tag will be located.

3. Dry the tag location area thoroughly using a clean, dry cloth.

4. Remove the paper backing from the tag to expose the adhesive.

Caution

Ensure that the tag is correctly located before touch sticker tag is applied to the glass, it cannot be moved without damage to the tag.

5. Holding the sticker tag by its edges, position the tag in windshield (determined in Step 1), making sure the tag is oriented horizontally and is at least two inches (5 cm) from the windshield frame and 0.75 inch (1.9 cm) from the mirror post.

6. Press the sticker tag firmly against the gla surface. Ensure that no air bubbles remain between the sticker tag and the windshield.

e windshield behind and around the

ss and gently rub over the entire tag

Removing eGo Windshield Sticker Tags

Removing eGo WSTs requires the use of a plastic scraper or equivalent tool. The tag is inoperable once removed.

ing it to the glass. Once the

the correct area of the

Installing eGo LPT

Follow the instructions presented in “eGo Plus License Plate Tag” on page 3-5 when installing an eGo LPT.

Installing Interior ATA Tags

Interior ATA-protocol tags are installed using hook-and-loop material or double-sided tape attached to the tag and to the windshield. When using hook-and-loop material, the loop material should be applied to the back of the tag and the hook material should be applied to the windshield. After the tag is installed, it can be removed easily and used in any vehicle that has corresponding hook material affixed to the windshield.

Note: Instal attachment; the tag will be more difficult to remove than one installed using hook and loop material.

Interior ATA-protocol tags may be ordered from material or double-sided tape already applied to the tag. The adhesive on this material is specially formulated for temperature extremes inside vehicles.

ling interior tags using double-sided tape results in a semipermanent

the factory with hook-and-loop

3-18

Choosing, Installing, and Removing Tags

Required Materials

You will need the following materials to install interior tags:

• Rubbing alcohol or 50/50 isopropyl alcohol and water

• Sponge and dry cloth

• Interior tags with two strips of factory-installed hook-and-loop material or fac-

tory-installed double-sided tape attached

Positioning A TA Tags

Interior ATA-protocol tags can be installed on the driver’s side, passenger’s side, or upper center of the vehicle’s windshield, depending on the Encompass 4 Reader’s position. See “Reader and Tag Alignment” on page 2-4.

Tags should be mounted consistently in all vehic Reader facility.

les using a particular Encompass 4

Interior Driver’s or Passenger’s Side

TransCore designed interior ATA-protocol tags for installation inside the vehicle, typically on the driver’s side of the windshield. two inches (5 cm) from the metal window post, as shown in Figure 3-19.

Figure 3-19 Driver’s or Passenger’s Side (U.S.) Interior Windshield Tag Location

Install the tag in the upper corner, at least

Interior Center Windshield

You may also install ATA tags on the upper center portion of the windshield. Position the tag as closely as possible to the windshield’s upper center, behind the rearview mirror. The top edge of the tag should be approximately one inch (2.5 cm) below the base of the mirror, or above the base if enough room is available for the tag to be two inches (five cm) from metal around the windshield, as shown in Figure 3-20.

3-19

Encompass 4 Reader System Guide

Figure 3-20 Upper Center Interior Windshield Tag Location

ATA Interior Tag Installation Procedures

Perform the following steps to install interior tags:

1. Clean the tag installation area on the interior surface of rubbing alcohol.

2. Dry the area thoroughly using a clean, dry cloth.

3. Remove the clear backing from the two strips of hook-and-loop material on the ck of the tag (Figure 3-21) or from the double-sided tape.

the windshield with

3-20

Figure 3-21 Hook-and-Loop Material on Interior Tag

4. Position the tag over the correct area of the windshield, making sure that the tag and reader orientation are the same (horizontal or vertical).

5. Press the tag firmly against the glass.

Removing Interior ATA Tags

To remove an interior ATA-protocol tag installed using hook-and-loop material, simply pull the tag away from the windshield.

To remove an interior ATA-protocol tag installed using double-sided tape, slowly pry off the tag with a thin tool, such as a putty knife.

Installing ATA License Plate Tags

Metallized coatings on some vehicle windshields and windows absorb the RF energy emitted by the Encompass 4 Reader, thus causing tags to be misread. Use exterior LPTs on vehicles with metallized coatings on windshields and windows.

Choosing, Installing, and Removing Tags

Use license plate installation techniques to install tags on the exterior of vehicles that have this type of window coating.

Note: The read zone of an overhead Encompass 4 Reader should be adjusted accordingly when an exterior tag is installed on a license plate, or the read zone will be reduced.

Exterior tags may be installed on metal or plastic bumpers using the existing license plate bracket and hardware.

The tag can be mounted on the front bumper where the license plate is normally located or mounted directly to the front license plate or license plate bracket. Once installed, the face of the tag should be pointing directly forward or slightly upward. If the bumper, license plate, or license plate bracket has any material that overhangs the tag, the tag will not function properly.

Required Materials

You need the following supplies to install license-plate mounted tags:

• Exterior LPT

• Two 0.25-inch (.63 cm) bolts and nuts (user-supplied). Length of the bolts can

vary depending on vehicle model.

• Screwdriver and wrench (user-supplied)

• 0.25-inch (.63 cm) spacers or washers (if needed). Thickness of spacers can vary

depending on vehicle model.

3-21

Encompass 4 Reader System Guide

Positioning ATA License Plate Tags

The orientation of the tag is important. The tag must be mounted so that the holes on

the tag base plate are on the bottom edge. See Figure 3-22.

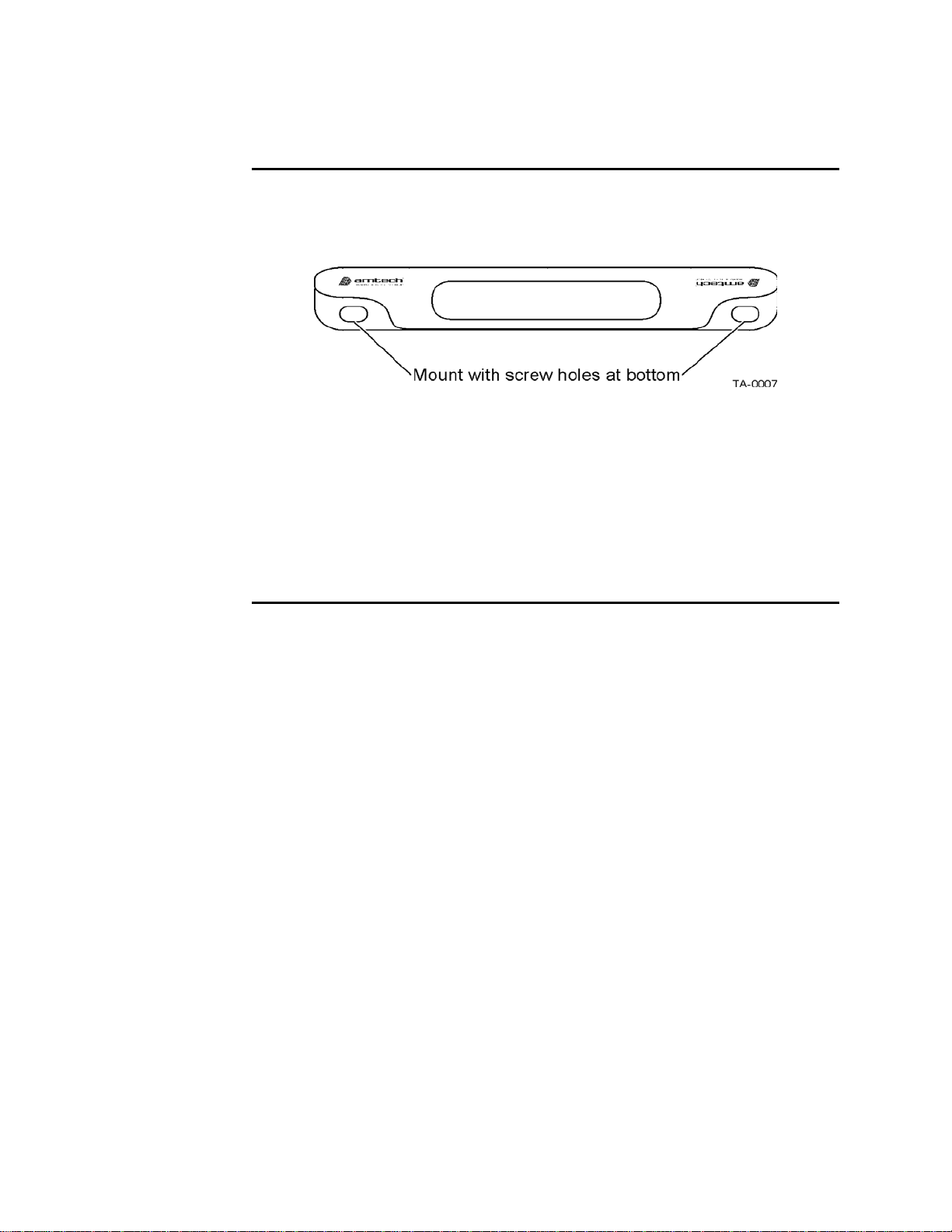

Figure 3-22 Proper Tag Orientation

When positioning the tag, observe the following guidelines:

• The tag should be horizontal and parallel to the ground.

• The tag face should be perpendicular or tilted slightly upward.

• The tag may lean to the rear a maximum of 30 degrees.

• The tag may lean to the front a maximum of 10 degrees.

ATA License Plate Tag Installation Procedures

To mount the LPT

1. Position the tag so that the holes in within 18 inches (.45 m) of the center of the front bumper as illustrated by the shaded area in Figure 3-23.

Note: W be mounted within 1.5 inches (3.81 cm) of the top of the bumper.

hen mounting an exterior tag on heavy trucks or tractors, the tag must

the tag are on the bottom edge and the tag is

3-22

Choosing, Installing, and Removing Tags

Figure 3-23 Correct Exterior Tag Placement

2. Line up the holes in the tag as follows:

• If mounting the tag to a license plate or lice

nse plate bracket, line up the holes in the tag to the upper holes of the license plate or license plate bracket.

Note: Do not mount t

he tag to the bottom holes of the license plate or license plate bracket. The reflective material on the license plate may interfere with the proper functioning of the tag.

• If mounting the tag to the bumper, line up the

holes in the tag with the holes in the front bumper where the license plate would normally be located. See Figure 3-23.

3. Insert bolts through the tag base plate holes

and the holes in the bumper or the

holes in the upper portion of the license plate area. See Figure 3-24.

3-23

Encompass 4 Reader System Guide

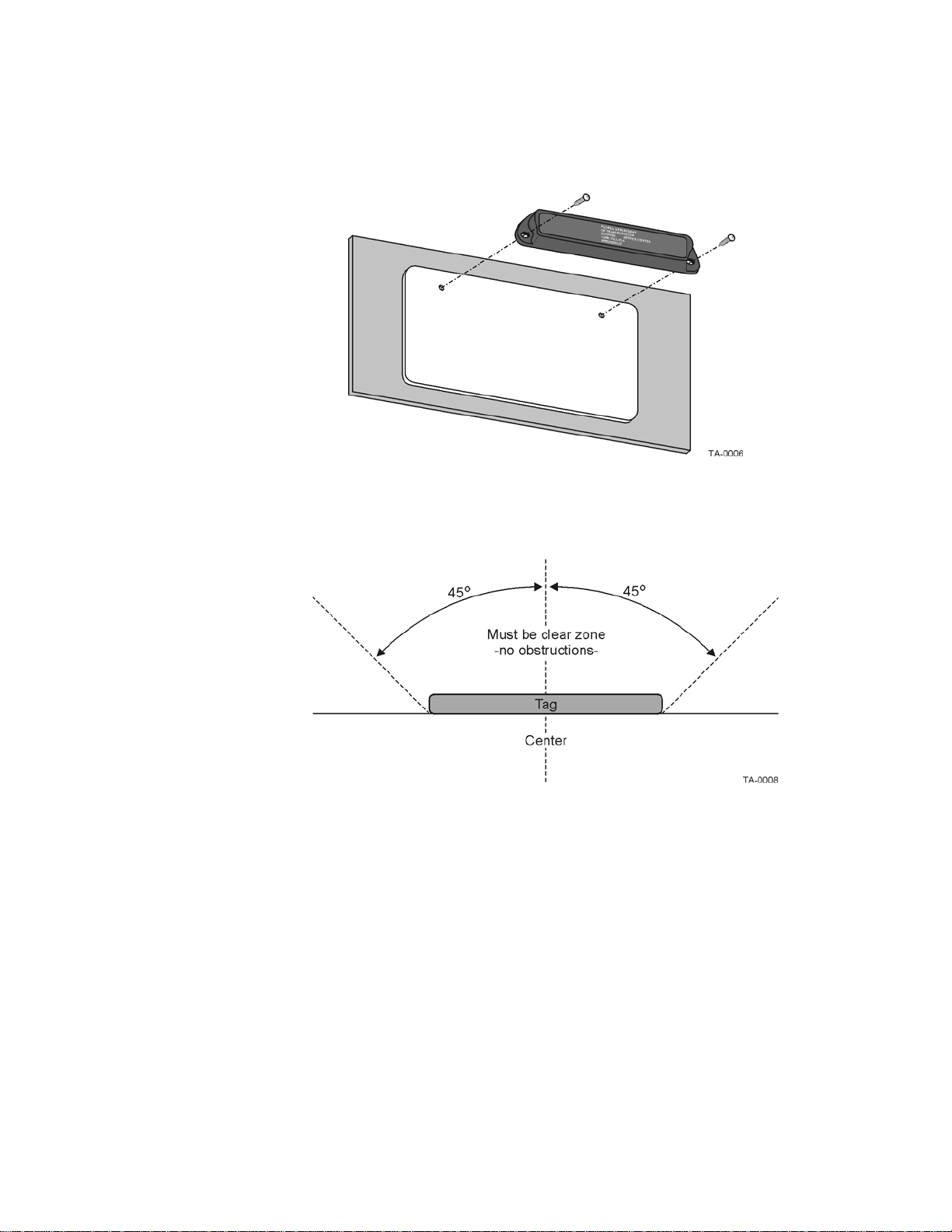

Figure 3-24 Upper Placement In License Plate Area

4. Make sure the area within 45 degrees of the center of the tag is free of obstructions. See Figure 3-25.

3-24

Figure 3-25 Obstruction-Free Area

5. Make sure that no material overhangs the tag. If overhang is more than ½ inch (1.27 cm), insert spacers or washers directly behind the tag so that the tag is clear of any overhanging obstruction. Secure the bolts with a nut. See Figure 3-26.

Choosing, Installing, and Removing Tags

Figure 3-26 Spacer Positioned Behind Tag

6. Tighten the bolts and nuts with a screwdriver and wrench to secure the tag to the vehicle.

Types of Bumpers

When mounting tags directly to a bumper, consider the following factors:

• Tags can be mounted on any metal or non-metallic surface; composition of

bumper does not matter.

• Tags can be mounted to plastic bumpers using self-threading screws.

• Metal bumpers should be pre-drilled; self-threading screws may be used.

Alternate Mounting Locations

If the exterior type tag cannot be mounted on the license plate bracket or directly on the bumper, it may be mounted on a relatively vertical front surface of the vehicle. The exterior tag should be mounted as close to the bumper as possible, following all guidelines regarding orientation, obstruction, and overhang given fo r bumper mounting. For applications where the exterior tag can be mounted on a smooth flat surface using double-sided tape.

Required Materials

Exterior tags need to be installed on a relatively flat surface. You need the following materials to install exterior tags:

integrity of the mounting surface cannot be compromised, the

• Rubbing alcohol, 50/50 isopropyl alcohol and water, or solvent/cleaner for metal

• Sponge and dry cloth

3-25

Encompass 4 Reader System Guide

• Exterior tag with the double-sided adhesive tape attached

Installation Procedures Using Tape

To install the tag on a metal or plastic bumper

1. Clean and degrease the tag installation are cleaner.

2. Dry the area thoroughly using a clean, dry cloth.

a of the vehicle bumper with solvent/

3. Remove the backing from the double-sided tape in Figure 3-27.

Figure 3-27 Exterior Tag with Double-Sided Tape

4. Position the tag over the installation area, making sure that the tag and Encompass 4 Reader are horizontally polarized.

5. Press the tag firmly against the bumper.

on the back of the tag, as shown

Installation Procedures Using Blind Rivets

To install an exterior tag using blind rivets through the tag’s installation tabs

1. Position the tag on the bumper in the installation area and mark the hol of the tag’s installation tabs on the bumper.

e positions

2. Follow the rivet manufacturer’s instructions to dri rivets.

3. If the rivet head is smaller than the through the holes, use a small washer to secure the rivet through the tag.

Removing Exterior Tags

To remove an exterior tag installed with rivets, follow the rivet manufacturer’s instructions to remove the rivets.

3-26

ll holes in the bumper for

tag installation holes and can be pulled

Installing the Encompass 4 Reader

-1

Encompass 4 Reader System Guide

-2

Installing the Encompass 4 Reader

This chapter lists the materials needed and presents the procedures to pre-test and install the Encompass

Installation Process

Note: In this section, unless specifically stated, “Encompass 4 Reader” applies both to the Encompass 4 Reader with integrated antenna and Encompass 4 Reader with external antenna.

After you have developed the site plan and identified the location to install the Encompass 4 Reader and antenna

Installation involves the following tasks:

Installing the Encompass 4 Reader

Chapter 4

4 Reader.

, if required, you are ready to install the equipment.

• Pre-installation testing of Encompass 4 Reader power and tag read capability

• Mounting the Encompass 4 Reader, and antenna if required, on a pole, ceiling, or

wall

• Discharging voltage from an external antenna

• Connecting the antenna

• Connecting the Encompass 4 Reader power

• Marking the read zone

• Connecting the Encompass 4 host and sense input/sense output and communica-

tions

Materials Supplied by TransCore

You need the following materials to pre-test and install the Encompass 4 Reader. TransCore supplies some of the materials; other materials must be obtained from other sources.

Contents of Shipping Carton

Ensure that you have received all parts before beginning your pre-installation Encom-

1. The Encompass 4 Reader is designed with an integrated patch antenna or with a RF cable connector for use with an external antenna. Unless noted in the text, “antenna” refers to an “external antenna.”

4-3

Encompass 4 Reader System Guide

pass 4 Reader tests. Your Encompass 4 Reader is als:

packaged with the following materi-

• One Encompass 4 Reader

• One mounting bracket and the mounting hardware

• One Encompass 4 Reader Quick Start Guide

• Any accessories ordered as options as shown in Table 4-1

Required accessories are a power/co mm un ic atio ns ca b l e h arn es s an d a 110V AC wall transformer or a 12V with the Encompass 4, you also require an Encompass 4 Reader-compatible antenna and an antenna RF interface. These may be ordered as accessories from TransCore or obtained from other sources.

Installation Accessory Options

Table 4-1 lists optional TransCore Encompass 4 Reader installation accessory items.

Table 4-1 Installation Accessories

Part No. Description

54-1620-001 Wall or ceiling mount kit

AC to 18V AC step-up transformer. If you are using an antenna

58-1620-001 5-ft connector cabl e harness 58-1620-002 20-ft connector cable harness 20-1620-003 Connector kit only 56-1620-004 13-pair cable (sold by the foot) 76-1620-005 110V AC to 18V AC Class C transformer 76-1620-006 12V AC to 18V AC step-up transformer 16-4000-002 Encompass 4 Reader System Guide (this man

Note: The Enc number 58-1620-001 or 58-1620-002 in Table 4-1) as a separate accessory. One end has a waterproof connector for the Encompass 4 Reader, and the other end has 13 pairs of color-coded wires.

ompass 4 Reader may be ordered with a multwire cable harness (part

ual)

Additional Materials Needed for Testing

You need these additiona l materials to perform the pre-tests on the Encompass 4 Reader:

• Test tags, supplied by the TransCore dealer or distributor

4-4

Installing the Encompass 4 Reader

• Suitable 18V AC or 18V DC power wiring for the Encompass 4 Reader

• Audible circuit tester and 9V DC battery for circuit tester power

• Wire stripper

• One Encompass 4 Reader-compatible antenna (if required)

• Suitable RF interface coaxial cable (if using antenna)

Pre-installation Testing of the Encompass 4 Reader

Before installing the Encompass 4 Reader permanently at the site, you should use an audible circuit tester to confirm that the Encompass 4 Reader has power and can read a tag presented in the tag read zone.

You also need to ensure that the Encompass voltage properly discharged prior to connecting it to the reader.

4 Reader-compatible antenna has had any

Testing the Encompass 4 Reader Using an Audible Circuit Tester

An audible circuit tester is also called a buzz box. These boxes are available at some electronic parts supply stores, or you can make a buzz box, as shown in Figure 4-1. The buzz box is powered leads. When you touch the leads together, the box makes an audible sound.

by a 9V DC battery and is equipped with two alligator-clip

Figure 4-1 Wiring for Audib le Circuit Tester

To test the Encompass 4 Reader that uses an integrated antenna, connect the power supply as described in the appropriate section below, and then test as described in the section “Bench Testing the Encompass 4 Reader Before Installation” on page 4-13.

4-5

Encompass 4 Reader System Guide

Caution

During shipping and installation, an external age charge. The voltage needs to be discharged be the reader.

antenna can build up a very high volt-

fore connecting the antenna to

T o test the Encompass 4 Reader that uses an e power supply as described in the appropriate section below, and then test as described in the section “Bench Testing the Encompass 4 Reader Before Installation” on

13.

xternal antenna, connect the antenna and

page 4-

Discharging Voltage from the External Antenna

Use these instructions to discharge high voltage from the external antenna before proceeding with further pre-installation testing of antenna.

Required Equipment

This procedure requires the following equipment.

• TransCore Encompass 4 Reader (external antenna models only)

• External antenna

• RF cable

• N-type load (e.g., 50 ) or RF attenuator (e.g., 20 dB)

Discharging the Voltage

the reader connected to an external

4-6

Installing the Encompass 4 Reader

1. Terminate the reader end of the RF cable with

any N-type load or RF attenuator

(Figure 4-2).

Figure 4-2 Connect RF N-type Load or Attenuator to Reader Cable End

2. Connect the RF cable to the antenna (see item 1 in Figure 4-3).

Figure 4-3 Short Load to Earth Ground

4-7

Encompass 4 Reader System Guide

3. Short the outer metal case of the load or atten

uator to Earth Ground for approximately 10 seconds (see item 2 in Figure 4-3). In this example, the operator is using the mounting screw of the electrical

outlet faceplate for Earth

Ground.

4. Remove the load or attenuator from the RF ca Once the antenna is discharged and properly connec

ble and connect cable to reader.

ted to the reader, the reader circuitry provides a DC path to keep any further charge from building up in the antenna.

Caution

TransCore does not recommend using a screwdriv

er or other tool to short the RF cable center conductor to the outer ground of the cable. This grounding method can damage the center pin or the threads of the connector.

TransCore

strongly advises that you use adequate Earth Ground for this voltage discharge procedure in accordance with the National Electric Code for the locale where you are installing the Encompass 4 Reader.

4-8

Installing the Encompass 4 Reader

Connecting the External Antenna

Use these instructions to connect the Encompass 4 Reader and external antenna.

Figure 4-4 Back of Encompass 4 Reader Showing Antenna Connector

To connect the reader and antenna

1. Ensure the reader is turned off and unplugged.

2. Connect one end of the RF interface cable to the antenna.

3. Connect the other end of the RF interface cable to the antenna connector on the ba

ck of the Encompass 4 Reader. See Figure 4-4.

Connecting the AC Power Supply

Caution

If you are using an external antenna, to avoid damage to the Encompass 4 Reader,

must connect the antenna before applying power to the reader.

you

To connect the Encompass 4 Reader to a low-voltage AC power supply

1. Connect the Encompass 4 power wires from the cable to the transformer usi the color coding as described in Table 4-2.

Table 4-2 AC Transformer Connections for Colored-Wire Pair Cable

Colored-Wire Pair Cable

Signal from

Encomp

Main power input Brown/Red and 

ass 4

Wire Pair from

Encomp

4 Reader

Orange/Red

ass

Cable

Color Used

Orange and Brown

Connect to

ransformer

Terminal Strip

L1 (16 to 20V AC)

Main power return Red and Red L2

2. Complete the power connections at the power supply.

(16 to 20V AC)

4-9

Encompass 4 Reader System Guide

Connecting the DC Power Supply

To connect the Encompass 4 Reader to a low-voltage DC power supply Caution

If you are using an external antenna, to avoid damage to the Encompass 4 Reader,

must connect the antenna before applying power to the reader.

you

1. Connect the Encompass 4 Reader power w terminals using the connection designations shown in Table 4-3.

Table 4-3 Low Voltage DC Cable Connections for the Colored-Wire Pair Cable

Colored-Wire Pair Cable

Signal from

ncompass 4

Main power input Brown/Red and 

Main power return Red and red 16 to 28V DC- terminal

Wire Pair from

ompass 4

Enc Reader Cable

Orange/Red

ires from the cable to the low-voltage

Connection Use

Color Used

Orange and

own

16 to 28V DC+ terminal

Connecting Communications for Bench Testing

TransCore offers reader models that communicate through RS–232, RS–422, and Wiegand interface protocols. This section describes the procedures and materials required for connecting the communications to perform pre-installation bench testing of the Encompass 4 Reader.

Required Materials

You need the following materials to connect the communications cable to the PC:

4-10

• PC or laptop

• Any terminal emulation program such as Procomm Plus™ or Hyper Terminal™

running on a PC

• Communications cable to connect to the COM1 port on your PC

Encompass 4 Reader communications and customer inte from the Encompass 4 Reader to the host through a multiwire cable, which is a 13-pair pigtail. The connector for this cable is located on the back of the Encompass 4 Reader . Refer t the cable to the PC.

These sections contain instructio tions between the Encompass 4 Reader and the

o the following sections to connect the appropriate communications wires from

ns for connecting RS–232 and RS–422 communica-

PC for bench testing purposes. Each

rface signals are supplied

Installing the Encompass 4 Reader

section contains wiring instructions and pin ass

ignments followed by step-by-step

connection procedures. The Encompass 4 Reader can remain powered up while connec

ting reader-to-host PC

communications.

Connecting for Bench Testing with RS–232 Interface

RS–232 interface signals are supplied by three or five wires from the Encompass 4 communications cable. The pin assignments for the signal to the host male DB9 and DB25 connectors are shown in boldface in Figure 4-5.

Figure 4-5 Pin Assignments for Signal to Host Connectors

Note: In Figure 4-5 supported pin assignments are in boldface.

4-11

Encompass 4 Reader System Guide

Connecting the Encompass 4 Reader Colored-Wire Pair Cable

Table 4-4 shows the RS

Table 4-4 RS–232 Interface Signal Wiring for Colored-Wire Pair Cable

Signal from

Enco

mpass

4 Reader

–232 colored wire assignments.

Colored-Wire Pair Cable

Wire Pair

from

compass 4

Reader

Color Used

Connect

Wire to

Host DB9

Connect

Wire to

Host DB25

TxD — Encompass 4

der output,

Rea host input

RxD — Encompass 4 Rea

der input, host

output Signal ground Yellow/Black Yellow or

RTS — Encompass 4

der output,

Rea host input

CTS — Encompass 4 Rea

der input, host

output

Red/Black Black Pin 2 Pin 3

Red Pin 3 Pin 2

Pin 5 Pin 7

Black

Optional for hardware handshaking

Yellow/Red Yellow Pin 8 Pin 5

Red Pin 7 Pin 4

To connect the colored-wire cable using RS–232 interface

1. Connect the black wire (transmit data) from the red and black wire pair to pin 2 of the DB9 connector or pin 3 of the DB25 connector.

4-12

2. Connect the red wire (receive data) from the red and black wire pair to pin 3 of th

e DB9 connector or pin 2 of the DB25 connector.

3. Connect either the yellow or black wire

(signal ground) from the yellow and

black wire pair to pin 5 of the DB9 connector or pin 7 of the DB25 connector.

4. Plug the DB9 connector or DB25 connector into t

he PC.

If the host is set up for hardware handshaking, use the following procedures:

1. Connect the yellow wire (RTS) from the yellow and red wire pair to pin 8 of the DB9 co

nnector or pin 5 of the DB25 connector.

Installing the Encompass 4 Reader

2. Connect the red wire (CTS) from the yellow and red wire pair to pin 7 of the DB9 nector or pin 4 of the DB25 connector.

con

Connecting for Bench Testing with RS–422 Interface

RS–422 interface signals are supplied by four wires from the Encompass 4 Reader communications cable. Your host must have an RS nal or external converter.

–422 interface with either an inter-

Note: Fo 422 interface signal wires by following the pin-outs of your interface device. For permanent installations, follow the RS–422 connection ins

r temporary bench testing purposes only, you will need to connect the RS–

tructions on page 4-32.

Bench Testing the Encompass 4 Reader Before Installation

The Encompass 4 Reader is set to read the tag protocol(s) programmed into your reader.

Note: T be ATA-protocol, ISO-compliant tags, or Inter-Agency Group tags affixed to a plastic or wooden yardstick, or eGo Plus Sticker Tag or eGo Windshield Sticker Tags (WSTs) affixed to a piece of nonmetallic windshield-type glass 0.190 to 0.230 in (4.82 to 5.84 mm) in thickness. The eGo and eGo Plus sticker tags have a reduced read range when not attached to glass.

To test that the Encompass 4 Reader has power and can read a tag presented in the read zone

1. Confirm that the Encompass 4 Reader colored-wire pair cable is corre

est tags should match the protocol(s) selected for your reader. These tags can

ctly connected to a suitable AC or DC low-voltage power supply as discussed on page 4-9 and page 4-10 and that the transformer is connect

If you are using an external antenna, confirm that the Encompass 4 Reader.

ed to a power outlet. antenna is connected to the

Caution

To avoid damage to the Encompass 4 Reader applying power to the reader.

2. Confirm that the Encompass 4 Reader colored-wire pair cable communications are connec

for Bench Testing” on page 4-10.

3. Connect the two leads from the audible circuit tester to pair (pair #8, lock/lock return) from the Encompass 4 Reader power/ communications cable.

4. Start the terminal emulation applicatio

Programs>Accessories>Communications>HyperTerminal and press ENTER.

ted correctly as described in the section “Connecting Communications

, you must connect the antenna before

the white and red wire

n Microsoft HyperTerminal by selecting

4-13

Encompass 4 Reader System Guide

5. In the HyperTerminal dialog boxes choose the com port to which the communications interface

• Bits per second: 9600 baud

• Data bits: 8

• Parity: none

• Stop bits: 1

• Flow control: none

6. Cycle the power on the Encompass 4 Reade displays.

is attached and set the properties as:

r and ensure that the sign-on message

7. Input the following commands in the order provided i include those to switch to command mode, set

radio frequency (RF), turn on RF ,

n Table 4-5. Commands

and return the reader to data mode.

Table 4-5 Commands for Bench Testing

Entry Reader Response Notes

#01 <CR> #Done <CR/LF> Switches Encompass 4

Reader to command

mode. #647XXX #Done <CR/LF> Sets frequency #6401 #Done <CR/LF> Turns on RF. #00 <CR> #Done <CR/LF> Returns Encompass 4

Read

er to data mode.

8. Pass the correct test tag for your reader application in front of the Encompass 4 Reader or antenna. The audible circuit tester should sound a tone when the tag is read. If no tone sounds, ensure that steps 1, through 5 were performed correctly and that you are using a compatible tag. Repeat steps 6 and 7. If no tone sounds, contact TransCore (see “Technical Support” on page 9-7).

4-14

9. Disconnect the circuit tester from the

Encompass 4 Reader power/

communications cable.

10. Disconnect the power and communications connections made testing.

Note: Y

ou will need the audible circuit tester again to determine the read zone when

installing the Encompass 4 Reader at the site.

for pre-installation

TransCore 0596465PT90 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Summary of Revisions to Encompass 4 Reader System Guide

Purpose

Introduction

Audience

System Guide Organization

Typographical Conventions

System Description

Reader

Tags

How It Works

Licensing Requirements

T echnical Support

Overview

Developing the Site Plan

Reading of Mixed Population T ags

Reader and Tag Alignment

Polarization

Unobstructed Line of Sight

Antenna Selection

AA3100 Yagi (without radome)

AA3101 Yagi (with radome)

AA3110 Parapanel

AA3140 PCB Log Periodic

AA3152 Universal Toll Antenna

AA3153 Toll Antenna

Antenna and Tag Alignment

Polarization

Unobstructed Line of Sight

Site Layout and Traffic Flow

The Encompass 4 Reader Read Zone

Other Encompass 4 Readers in the Area

Lane Configurations

Gate with Center Island Configuration

Parking Garage with Ticket Island Configuration

Overhead Reader Installation Configuration

Lane Configurations for Encompass 4 Readers Using an External Antenna

Reflection, Refraction, and Diffraction of RF Signals

Existing Interference

Electrical and Communications Requirements

Junction Box

Power and Communications Cables

Electrical Power

Host Communications

RS–232 Interface

RS–422 Interface

Wiegand Interface

Input/Output Circuits

External Antenna Interface

Choosing, Installing, and Removing Tags

Compatible Tag Types

Reader and Tag Model Interoperability

TransCore’s eGo Plus Tags

eGo Plus Sticker Tag

eGo Plus Security Sticker Tag

eGo Plus License Plate Tag

TransCore’s eGo Tags

eGo Windshield Sticker Tag

eGo License Plate Tag

Installing eGo Plus Sticker Tags

Required Materials

Positioning eGo Plus Sticker Tags

Mirror Post Attached on Windshield

Mirror Post Attached on Header

Large Truck with No Inside Mirror

eGo Plus Sticker Tag Installation Procedures

Removing eGo Plus Sticker Tags

Installing eGo Plus Security Sticker Tags

eGo Plus Security Sticker Tag Installation Procedures

Removing eGo Plus Security Sticker Tags

Installing eGo Plus License Plate Tags

Required Materials

Positioning eGo Plus License Plate Tags

eGo Plus LPT Installation Procedures

Installing eGo Windshield Sticker Tags

Required Materials

Positioning eGo Windshield Sticker Tags
