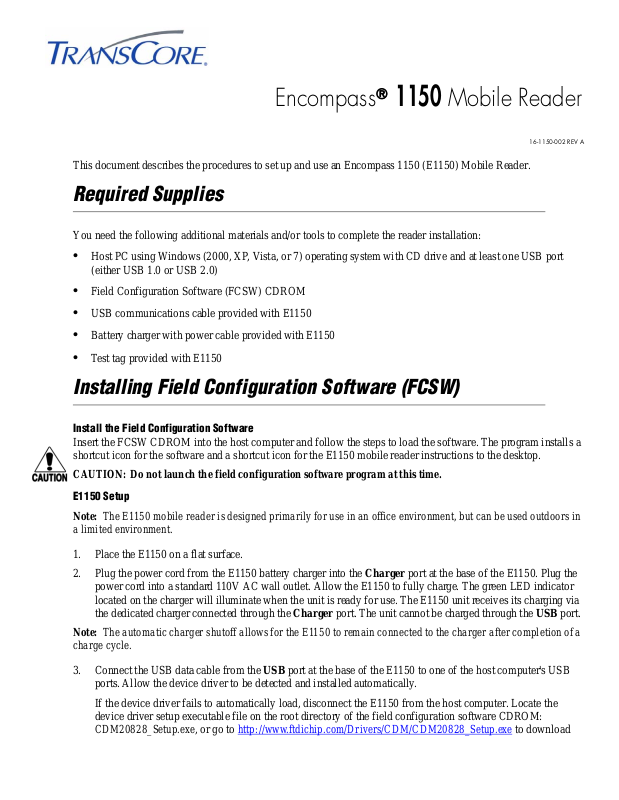

Encompass
This document describes the procedures to set up and use an Encompass 1150 (E1150) Mobile Reader.
®
1150
Mobile Reader
16-1150-002 REV A
Required Supplies
You need the following additional materials and/or tools to complete the reader installation:
• Host PC using Windows (2000, XP, Vista, or 7) operating system with CD drive and at least one USB port
(either USB 1.0 or USB 2.0)
• Field Configuration Software (FCSW) CDROM
• USB communications cable provided with E1150
• Battery charger with power cable provided with E1150
• Test tag provided with E1150
Installing Field Configuration Software (FCSW)
Install the Field Configuration Software
Insert the FCSW CDROM into the host computer and follow the steps to load the software. The program installs a
shortcut icon for the software and a shortcut icon for the E1150 mobile reader instructions to the desktop.
CAUTION: Do not launch the field configuration software program at this time.
E1150 Setup
Note: The E1 150 mobile r eader is designed primarily for use in an office enviro nment, but can be used outdoors in
a limited environment.
1. Place the E1150 on a flat surface.
2. Plug the power cord from the E1150 battery charger into the Charger port at the base of the E1150. Plug the
power cord into a standard 110V AC wall outlet. Allow the E1150 to fully charge. The green LED indicator
located on the charger will illuminate when the unit is ready for use. The E1150 unit receives its charging via
the dedicated charger connected through the Charger port. The unit cannot be charged through the USB port.
Note: The automatic charger shutoff allows for the E1150 to remain connected to the char ger after completion of a
charge cycle.
3. Connect the USB data cable from the USB port at the base of the E1150 to one of the host computer's USB
ports. Allow the device driver to be detected and installed automatically.
If the device driver fails to automatically load, disconnect the E1150 from the host computer. Locate the
device driver setup executable file on the root directory of the field configuration software CDROM:
CDM20828_Setup.exe, or go to http://www.ftdichip.com/Drivers/CDM/CDM20828_Setup.exe
to download
the driver from the FTDIchip website. Launch the CDM20828_Setup.exe file and allow it to automatically
install the necessary device driver. Reconnect the E1150 and allow it to be detected by the operating system.
Start the E1150 Field Configuration Software
1. Launch the field configuration software via the deskto p shortcut icon.
2. The E1150 FCSW startup window will open (
Figure 1
). Click Connect. Click COM Port.
Figure 1 E1150 Field Configuration Software Startup Window
3. Select the associated COM port from the COMSelect window (
the connect status in the lower left corner of the window reads Connected.
Figure 2
). Click CONNECT. Observe that
Figure 2 COM Port Selection Window
4. To view the FCSW and E1150 Version information, click on Help and then About (
Note: The firmware version shown in
Figure 3
is for example only. Your version information may be different.
2

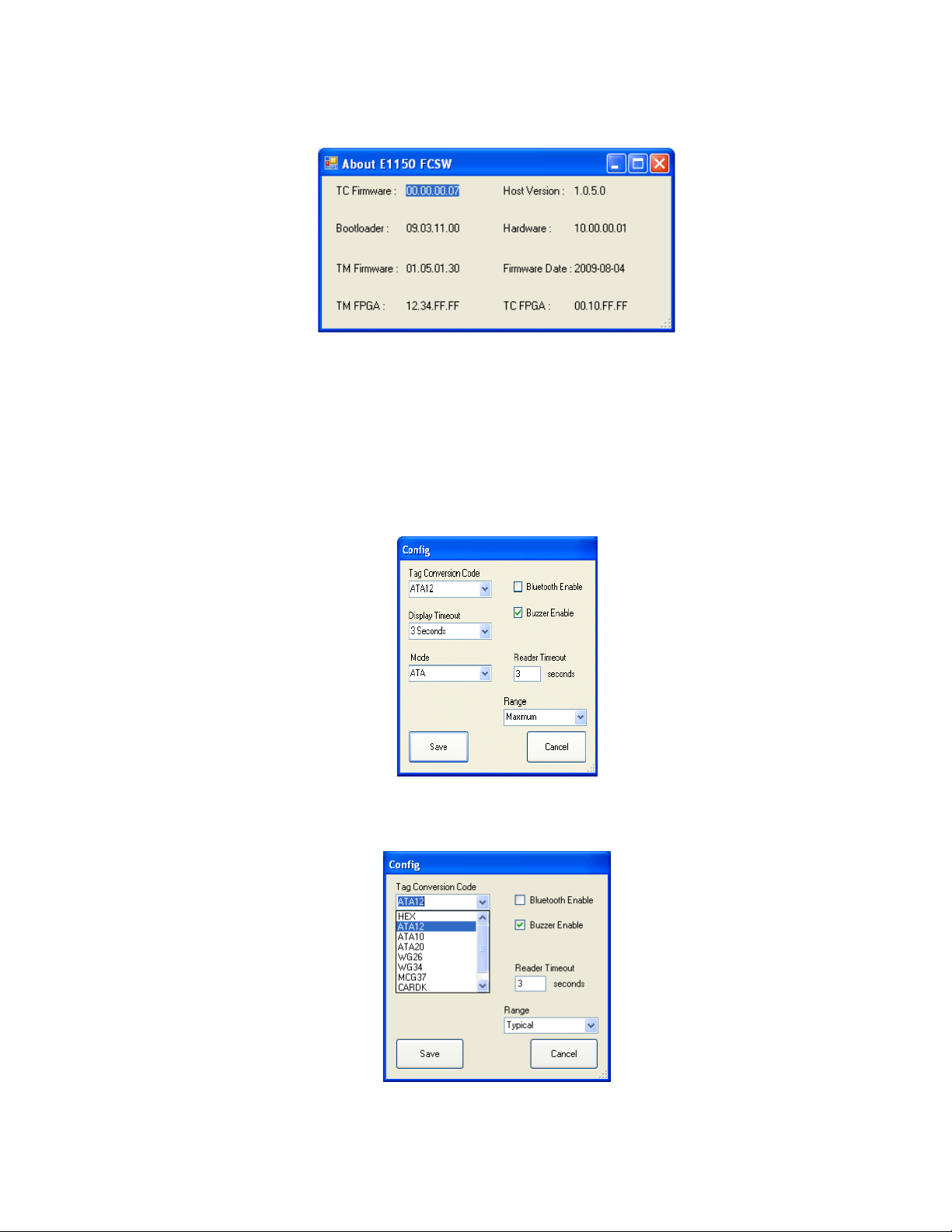

Figure 3
).
Figure 3 E1150 FCSW About Window
Configure the E1150 for Operation
Select the Configuration option in the FCSW window. Operation configuration parameters can be changed via
the Config window as shown in
drop down menu as shown in
Figure 5
Figure 4
Figure 4 FCSW Default Configuration Window
. The configuration parameters are listed in the Tag Conversion Code
. Click Save after setting your options.
.
Figure 5 FCSW Configuration Tag Conversion Code Choices
3
Here is a detailed description of the operational configuration parameters used in the Config window.
• The Tag Conversion Code is used to define how the E1150 will display the retrieved tag data. The default
parameter is ata12.
• The Display Timeout controls the amount of time available for displaying data. The default is 3 seconds.
Other times may be selected, but operational time will be significantly affected when the unit is running on
battery power.
• The Mode parameter is used to select the RFID protocol being used to read tags.
drop down menu. The default is ATA Mode.
.

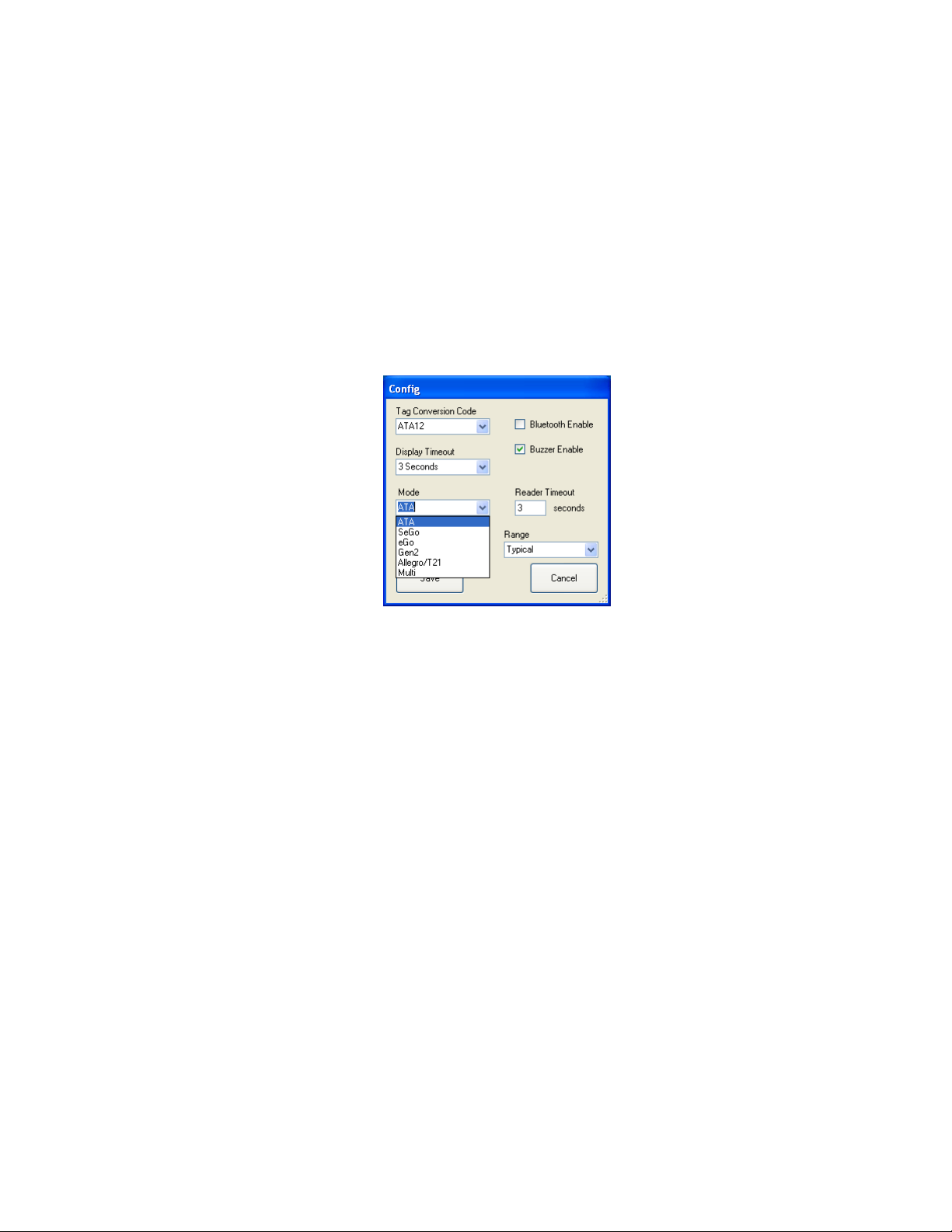

Figure 6 FCSW Configuration Mode Choices
Figure 6
shows the Mode
• Multi Mode is used for reading tags from mixed tag populations such as FDOT. The Multi-Pro tocol Pair is
fixed to SeGo & Allegro/T21 and cann ot be changed.
• Select Bluetooth Enable when tethering the reader to a Bluetooth connected device running a host
application. The default option is off.
• Select Buzzer Enable if you want to hear an audible signal on completion of a successful read. The default
option is on.
• The Reader Timeout configuration parameter should be set to 3 seconds for proper operation.
• The Range configuration parameter may be changed to conserve battery charge or optimize the read range
and will significantly affect operational time when battery powered. The default is Maximum. Select the
lowest possible range setting that works reliably with your tags and environment.
Reading Tags with the E1150
Place the T est Tag in front of the E1150 and push the Scan button located on the unit. Alternatively from the host
computer, click the Read Tag button on the E1150 FCSW window (
display window will show the decoded tag data based on the protocol and tag conversion code configured in the
unit. If you prefer a more detailed representation of the tag data, select the Detail Display tab on the FCSW as
shown in
4
Figure 8
.
Figure 7
). Both the E1150 and the FCSW

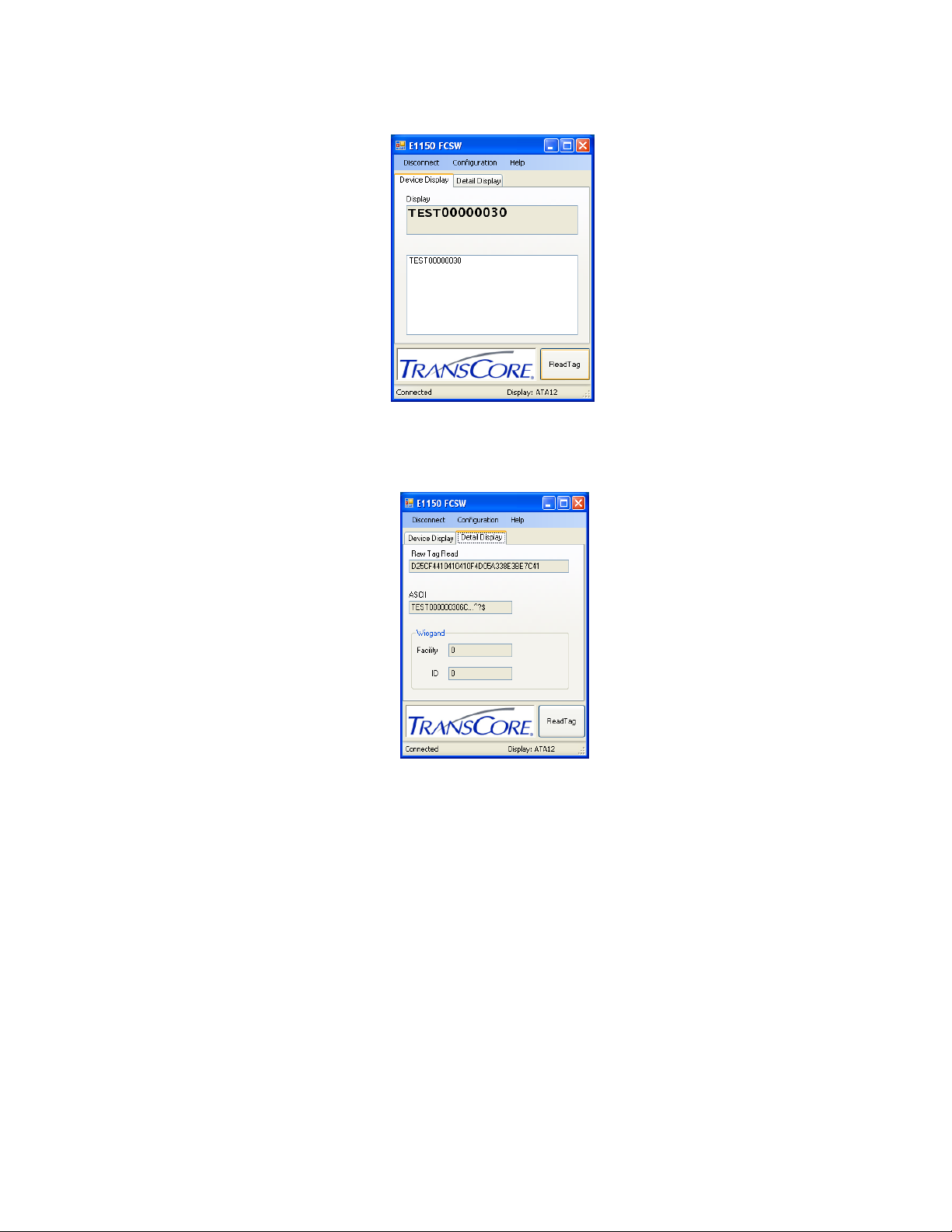

Figure 7 FCSW Read Tag Results - Device Display
Figure 8 FCSW ReadTag Results - Detail Display
Bluetooth Operation
With a user supplied USB Bluetooth
®
Adapter, a wireless Virtual COM port connection can be established with
the E1150. Follow the manufacturer’s instructions for installation of a Virtual COM port connection to the host
computer. Once a Bluetooth Virtual COM port connection is established with the Bluetooth dongle, the field
configuration software can be launched and used as before. The Bluetooth pairing number required for the
E1150 is 1234.
Note: The connection to the E1150 is established using a virtual COM port. It is necessary to ensure that only
one E1 150 is enabled and within range of the host computer at any one time. Multiple Bluetooth connections ar e
not supported through the virtual COM port.
Disconnect the E1150
Note: It is important to exit the software on the host computer before disconnecting the reader from the system.
1. Exit the software on the host computer before you disconnect the reader. Click Disconnect in the E1150
FCSW Window. Observe that the status on the lower left corner of the window reads Not Connected.
5
2. Click the red X on the upper left corner of the window to exit the software.
SPECIFICATIONS
3. Disconnect the E1150 reader from the host PC.
Firmware Update
Do not attempt to update the firmware unless you have obtained an official firmware upload file from Transcore.
Save this firmware download file to a known location on your computer such as the Windows desktop.
Firmware is updated via the Option tab under Firmware Upload.
Select Option > Firmware Upload.

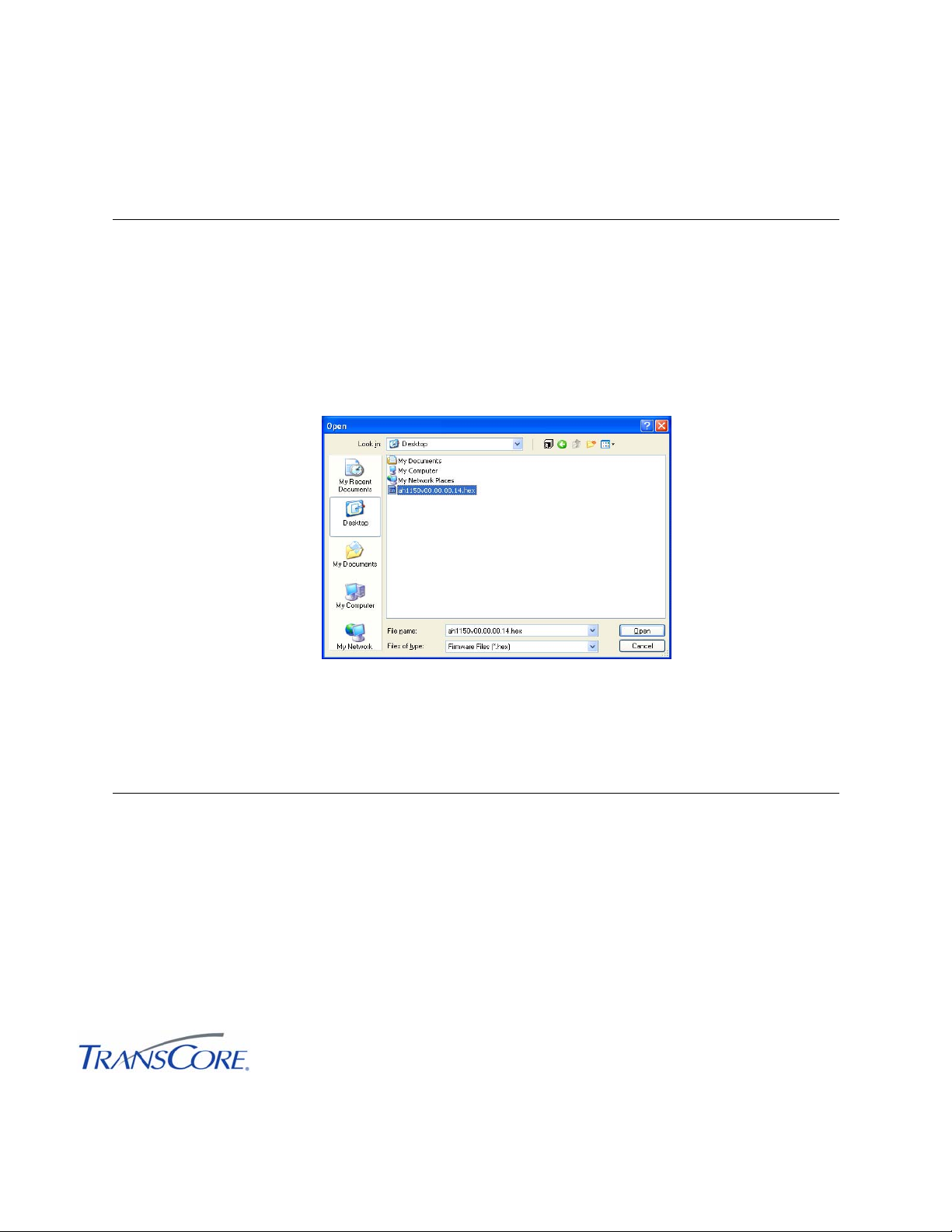

A file explorer window will open. Navigate to the location of the firmware *.hex file (
Figure 9 Updating Firmware
Allow the process to complete. Exit the program.
Diagnostics
Figure 9
).
Should you encounter trouble when using the E1150 Mobile Reader, perform the following diagnostic steps.
1. Ensure that the unit is adequately charged or fully charge the unit.
2. Reposition the tag closer to the front area of the unit and try reading again.
3. Isolate the tag from other tags which might be interfering and try reading again.
If steps 1 and 2 do not correct the problem, uninstall then reinstall the host software on the host computer.
If steps 1 through 3 do not correct the problem, contact TransCore for further assistance.
