Transcend Information USB JetFlash User Manual

USB

128MB–512MB JetFlash™

User’s Manual

Table of Contents

Introduction

Package Contents.................................................................................... 1

Features .................................................................................................... 1

System Requirements ............................................................................. 2

Before Use ................................................................................................ 2

Driver Installation

Driver Installation for Windows 98SE..................................................... 3

Driver Installation for Windows Me, 2000, and XP ................................ 4

Driver Installation for Mac OS 9.0 or Later............................................. 4

Driver Installation for Linux Kernel 2.4 or Later .................................... 5

Data Storage...................................................................................... 5

Uninstall

................................................................................................. 6

How to Unplug JetFlash Safely

To Remove JetFlash in Windows 98SE.................................................. 7

To Remove JetFlash in Windows Me, 2000, and XP ............................. 7

To Remove JetFlash in Mac OS.............................................................. 7

To Remove JetFlash in Linux ................................................................. 7

Product Overview.......................................................................... 8

Basic Operation

Enter MP3 Mode ....................................................................................... 8

Enter Record Mode .................................................................................. 8

Play a Track .............................................................................................. 9

Pause a Track........................................................................................... 9

Advance to Next Track ............................................................................ 9

Reverse to Previous Track ...................................................................... 9

Fast Forward ............................................................................................ 9

Fast Reverse............................................................................................. 9

Increase Volume ...................................................................................... 9

Decrease Volume ..................................................................................... 9

Repeat a Track ......................................................................................... 9

Repeat All Tracks................................................................................... 10

Repeat a Portion of One Track (AB Repeat) ........................................ 10

Hold......................................................................................................... 10

MP3 Function

To Download or Upload MP3/WMA files .............................................. 10

To Play MP3 Music................................................................................. 11

AB Repeat Function .................................................................. 11

Voice Recording Function

To Record Voice..................................................................................... 11

To Play the Recorded Files ................................................................... 12

LED Indication ................................................................................ 13

Recover JetFlash

To Recover JetFlash in Windows 98SE ............................................... 13

To Recover JetFlash in Windows Me, 2000, and XP ........................... 17

Troubleshooting............................................................................ 23

Specifications................................................................................. 26

Ordering Information................................................................ 26

Warranty

Introduction

Thank you very much for purchasing Transcend’s JetFlash™. This small device is more

than a USB Flash Drive. It combines a USB Flash Drive with MP3, AB repeat, and voice

recording functions. With a USB connector, it can expedite exchanging huge amounts of

data between any desktop or laptop computers with a USB port. With the MP3 function,

you can upload or download music files to or from a PC and use JetFlash as an MP3

player. With the AB repeat function, you can continuously replay a designated section of a

track. With the voice recording function, you can also use JetFlash as a digital recorder. In

addition, JetFlash’s mobility, strong data retention ability, and impressive appearance will

provide you with a brand-new data storage experience.

Package Contents

The JetFlash package includes the following items:

• JetFlash

• AAA battery

• Earphone with neck strap

• Driver CD

• USB extension cable

• Quick Installation Guide

Features

• USB 1.1 compliant and USB 2.0 compatible;

• Expedited Data Transfer: Maximum transfer rate up to 12Mbit/sec at full speed;

• Power Supply: For data transfer, JetFlash is powered directly via the USB port,

and no external power or battery is needed. To use it as an MP3 player or digital

recorder, one AAA battery is necessary. (One AAA alkaline battery can support

up to 12 hours of operation);

• Operating Systems Supported: Windows

Windows® XP, Mac™ OS 9.0 or later, and Linux™ kernel 2.4 or later. Only

98SE, Windows® Me, Windows® 2000,

Windows® 98SE needs the enclosed driver;

• MP3 Function: Supports MP3 and WMA formats and so can be used as an MP3

player;

• Supports AB repeat, enabling JetFlash to continuously replay a designated

section of a track;

• Voice Recording Function: Supports WAV format, thus making JetFlash a digital

recorder;

• Power Saving Function: Auto-powers off after two minutes without use.

• LEDs indicate the usage status of JetFlash.

System Requirements

Desktop or notebook computer with USB port

One of following operating systems:

• Windows

• Mac OS 9.0 or later

• Linux kernel 2.4 or later

98SE

2000

Before Use

1. Keep JetFlash away from heat, direct sunlight, and moisture. Do not bend, flex, or

drop JetFlash.

2. Make sure the HOLD switch is set to the “OFF” position.

3. Plug or unplug JetFlash by grasping the sides.

4. Never use the “Quick Format” or “Full Format” of Windows to format your

JetFlash.

5. Follow the procedures in “How to Unplug JetFlash Safely” to remove JetFlash from

the system.

Driver Installation

Driver Installation for Windows 98SE

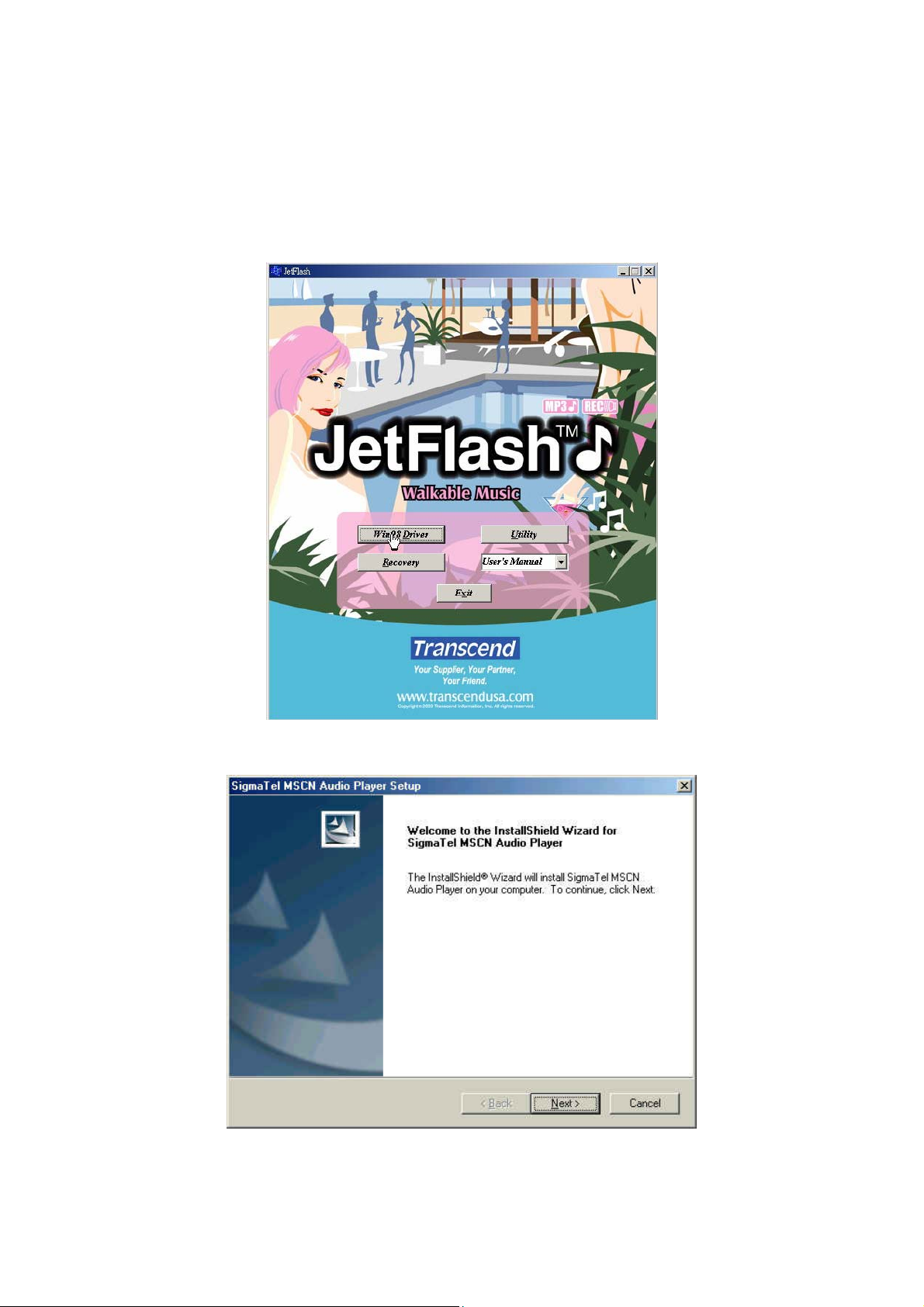

1. Put the Driver CD into the CD-ROM (Auto-Run supported). Click Win98 Driver button.

2. Click Next to continue.

3. The Install Shield Wizard guides you through the installation process.

4. Plug JetFlash into an available USB port. Your computer automatically detects this

new device. A new Removable Disk drive with a newly assigned drive letter appears

in the My Computer window.

Driver Installation for Windows Me, 2000, and XP

No driver is required. These Windows operating systems have built-in drivers to support

JetFlash. Simply plug JetFlash into an available USB port, and Windows installs the files

needed to use it. A new Removable Disk drive with a newly assigned drive letter appears

in the My Computer window.

Driver Installation for Mac OS 9.0 or Later

No driver is required. Just plug JetFlash into an available USB port and your computer

automatically detects it.

Driver Installation for Linux Kernel 2.4 or Later

No driver is required. Just plug JetFlash into the USB port and mount it.

Example: 1. Create directory of /mnt/JetFlash first:

mkdir /mnt/JetFlash

2. mount JetFlash:

mount –a –t msdos /dev/sda1 /mnt/JetFlash

Data Storage

After installing the driver, simply plug JetFlash into an available USB port and you can use

it like a hard drive or other data storage device.

WARNING: To prevent loss of data and/or damage to JetFlash, never remove a

JetFlash from a device while LED is flashing.

WARNING: To prevent the malfunction of JetFlash, never press the PLAY/PAUSE

button while JetFlash is connected with a USB Port.

Uninstall

1. Put the Driver CD into the CD-ROM (Auto-Run supported). Click Win98 Driver

button.

2. Click OK to continue.

How to Unplug JetFlash Safely

Before removing JetFlash, please make sure the LED is not flashing! If you

remove JetFlash while the LED is flashing, unpredictable damage to the files or

JetFlash may occur.

When JetFlash is unplugged, it automatically enters MP3 mode. To exit MP3

mode, press and hold the PLAY/PAUSE button until the Power/Play

LED turns off.

+ 21 hidden pages
