Motorcycle Dashcam
DrivePro 20
Transcend's DrivePro 20 is tailor-made for motorcycle/scooter riders. Its simple and compact design gives you solid
security on the road. Embedded with a STARVIS™ image sensor, the dashcam offers Full HD 1080P recording at
60fps for crystal clear sharpness and night images even in low light. IP68 rated, it is designed to withstand various
weather conditions, and resistant to water, dust, heat, and shocks, suitable for outdoor recording. The built-in Wi-Fi
connectivity allows live streaming of footage on mobile devices via the free DrivePro App. Its small and portable size
makes it easy to carry around. If you ride a scooter for commute, or you are a delivery man, DrivePro 20 is the ideal
dashcam for you.

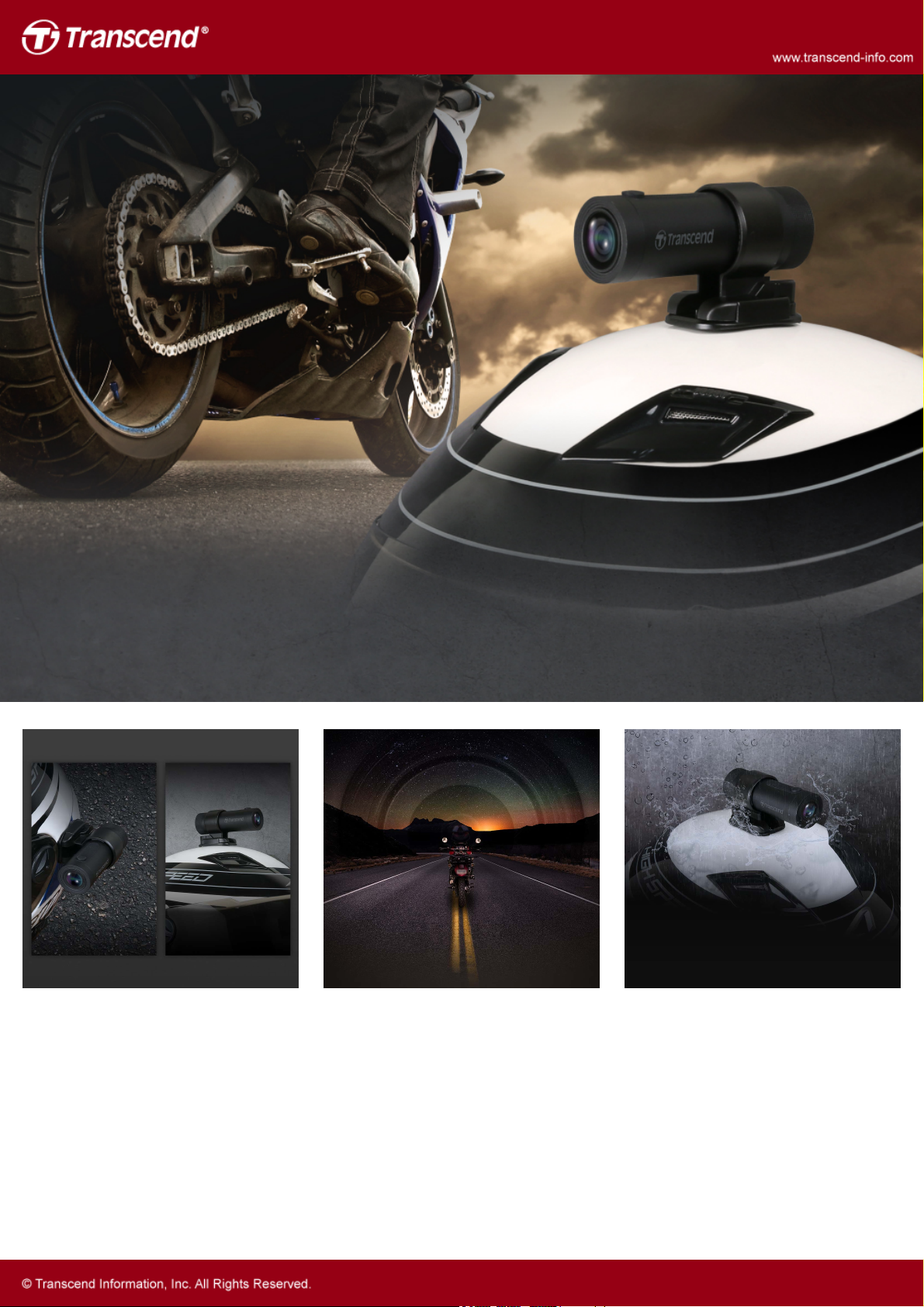

Small, portable, and easy to carry
Transcend's DrivePro 20 dashcam is designed for
motorcycles and scooters. Its compact size makes it
easy to install on a helmet. By pressing the power
button for 3 seconds, the DrivePro 20 is ready to hitch
a ride with you!
STARVIS™ high-sensitivity image
sensors
The DrivePro 20's 140° wide-angle lens is made with a
STARVIS™ image sensor and Wide Dynamic Range
(WDR) technology to capture high-resolution images
with superb, rich color even in low light. Supporting Full
HD 1080P recording at 60fps, the camera captures
every important detail, including license plates.
Note: STARVIS™ is a trademark of Sony Corporation.
Rugged and durable design
The DrivePro 20 is designed with an aluminum exterior
to withstand harsh weather conditions, making it ideal
for outdoor recording. It is IP68 rated, offering full
protection against dust and water. It also meets
rigorous US military drop-test standards for shock
resistance.
Note: The DrivePro 20 was tested under controlled
laboratory conditions and given a rating of IP68 under
IEC standard 60529. Splash, water, and dust resistance
are not permanent conditions and resistance may
decrease as a result of normal wear. Product must be
clean and dry before use. Liquid damage is not covered
under warranty.
Page 2
Motorcycle Dashcam
DrivePro 20
Features
STARVIS™ high-sensitivity image sensor
1080P Full HD recording at 60 fps
Built-in Wi-Fi function for mobile live streaming
Emergency recording prevents overwriting of the
current recorded file
IP68 rated, resistant to dust, water, and shock
DrivePro Toolbox
DrivePro Toolbox helps you play and
manage videos recorded on your DrivePro
dashcam without installing any separate
codecs.
DrivePro App
DrivePro App is designed for use with
DrivePro dashcams featuring Wi-Fi
connectivity. Stream videos and adjust
settings from your mobile device, and
download footage for on-the-go!
Specifications
Appearance
Dimensions 90.2 mm x 30 mm x 30 mm (3.55" x 1.18" x 1.18")
Camera Weight 74 g (2.6 oz)
Camera Holder Weight 20 g (0.7 oz)
Interface
USB Type micro USB to USB Type A
Connection Interface USB 2.0
Wi-Fi Protocol 802.11b/g/n
Storage
Capacity 32GB microSD card included
Hardware
Viewing Angle 140° (diagonal)
Aperture F/2.8
Operating Environment
Operating Temperature -10°C (14°F) ~ 60°C (140°F)
IP Rating IP68
Format
Resolution Full HD 1080P
Frame Rate 60/30 fps
Video Format MP4 (H.264)
Power
Battery Life (Max.) 2.5 hour(s)
Warranty
Certificate CE / FCC / BSMI / NCC / MIC / KC / RCM / EAC
Warranty Two-year Limited Warranty
Package
Package Contents Full unit / 32GB microSD memory card / Adhesive mounting base
/ Quick Start Guide / Camera holder / micro-USB to USB Type-A
cable
Ordering Information
32GB TS-DP20A-32G
Product specifications are subject to change without notice. Pictures shown may differ from actual products. Total accessible capacity varies depending on operating environment.
