User’s Manual
Body Camera
DrivePro™ Body 52
(Version 1.1)
Table of Contents
1. Introduction .................................................................................................................................... 2
2. System Requirements .................................................................................................................. 3
3. Getting Started............................................................................................................................... 4
3-1 Function Buttons ................................................................................................................. 4
3-2 Charging the DrivePro™ Body 52 ................................................................................... 5
3-3 LED Indicator Table ............................................................................................................ 5
4. Recording Videos .......................................................................................................................... 6
4-1 Normal Recording............................................................................................................... 6
4-2 Event Recording ................................................................................................................. 7
5. Taking Photos ................................................................................................................................ 7
6. Using the DrivePro™ Body App ................................................................................................. 8
6-1 Downloading and Installing the App ................................................................................ 8
6-2 Connecting to the DrivePro™ Body App ........................................................................ 8
6-3 Playing Videos and Browsing Photos ........................................................................... 10
6-4 Settings .............................................................................................................................. 11
7. Using the DrivePro™ Body Toolbox Software ........................................................................ 12
7-1 Status ................................................................................................................................. 13
7-2 Settings .............................................................................................................................. 14
7-3 Tools ................................................................................................................................... 15
7-4 File Manager ..................................................................................................................... 17
7-5 Preference ......................................................................................................................... 17
8. Docking Station (Optional) ......................................................................................................... 18
9. Cautions ....................................................................................................................................... 19
10. IPX4 Water Resistant ............................................................................................................... 20
11. Package Contents ..................................................................................................................... 21
12. Specifications ............................................................................................................................ 23
13. Frequently Asked Questions ................................................................................................... 24
14. Recycling and Environmental Protection .............................................................................. 25
15. Two-year Limited Warranty ..................................................................................................... 26
16. GNU General Public License (GPL) Disclosure .................................................................. 27
17. End-User License Agreement (EULA) .................................................................................. 27
18. Federal Communications Commission (FCC) Statement .................................................. 30
1
1. Introduction
Transcend’s DriveProTM Body 52 is an easy-to-operate wearable video camera that is tailor-made for
police officers, security guards and other professionals to capture real time videos and photos of
events. The Wi-Fi network allows live streaming to your smartphone and adjusting the function
settings using the DrivePro™ Body App.
DrivePro™ Body 52 features a compact camera unit attached via a flexible 1.2 meter cable to the
main unit, allowing for a wide variety of wearing options. In addition, the DrivePro™ Body 52 boasts
a 130° wide angle lens for the best field of view and records videos in crystal clear Full HD 1080P (30
FPS) with a F1.8 aperture to ensure both the important details of your actions and those in the
camera’s field are clearly recorded. The handy snapshot function allows you to take photos while
recording. Transcend’s DrivePro™ Body 52 has a built-in Li-Polymer battery that can record up to
3.5 hours and only takes approximately 1.5 hours to be fully recharged.
The DrivePro™ Body 52 has an internal 32GB storage, allowing users to record up to 3.5 hours of
footage. In addition, the camera is rugged and IPX4 water resistant, providing extra protection and
durability. The DrivePro™ Body Toolbox provides secure data protection mechanism to protect the
recorded data. For enterprises or departments that purchase multiple DrivePro™ Body cameras,
Transcend’s optional 6-port Docking Station offers the best solution as each port can simultaneously
charge and upload the recorded data to your database.
Features
Smooth and detailed Full HD 1080P recording at 30fps resolution.
Handy snapshot button to take photos while recording (2 million pixels camera).
F1.8 aperture with 130° wide angle lens.
Built-in Wi-Fi to allow live streaming to your smartphone app and adjust the function settings.
32GB internal storage.
Record videos in .MOV file format with 12Mbps high video bit rate.
Meets U.S. military drop-test standards and IPX4 water resistant (non-submersible).
Bundled camera clip and Velcro for easy operation.
Built-in microphone.
Built-in 1530mAh Li-Polymer battery to record up to 3.5 hours of footage.
2
2. System Requirements
System requirements for connecting the DrivePro™ Body 52 to a computer and for using the
DrivePro™ Body Toolbox:
A desktop or a laptop with a working USB port
Windows® 7
Windows® 8
Windows® 8.1
Windows® 10
3
3. Getting Started
Reset Button
Snapshot / Wi-Fi Button
Connection Socket
Power / Event Recording
Button
Buzzer
Lens
Camera Connector
Built-in Microphone
Recording / Wi-Fi Indicator
Warning Indicator
Lanyard Loop
Camera Socket
3-1 Function Buttons
Front View
Press + buttons at the same time for 20 seconds to format and reset the device.
Warning! All data will be permanently removed.
Top View
4
WARNING:
1. The DrivePro™ Body 52 only supports FAT32 file format.
2. Do not use the 3.5mm to USB cable on other devices.
LED
Status
Definition
Flashing
Memory almost full
Flashing
Low battery
LED
Status
Camera Clip Holder
Camera Velcro Holder
Back View
3-2 Charging the DrivePro™ Body 52
Before use, please ensure that the battery is fully charged. Charge the DrivePro™ Body 52 via the
bundled 3.5mm to USB cable. A solid orange LED light is visible while charging; the orange LED light
will turn off when fully charged.
To charge the DrivePro™ Body 52, you can either:
1. Connect the bundled 3.5mm to USB cable to a wall outlet with the included adapter
2. Connect the bundled 3.5mm to USB cable to a computer
3. Connect the DrivePro™ Body 52 to Transcend’s Docking Station (Optional)
3-3 LED Indicator Table
Recording
Connected to computer/power
5
Flashing
Transferring data
Solid
Waiting for backup
Solid
Charging
LED
Status
Definition
Flashing
Normal Recording
Flashing
Quickly
Event Recording
Flashing
Recording with Wi-Fi on
Solid
Browse / Settings
Front View
4. Recording Videos
4-1 Normal Recording
To start recording, long press the button; you will hear 1 beep, and the red LED light of the
recording indicator will flash during recording. To activate Wi-Fi, long press the button while
recording, and the LED light will flash from red to blue. To stop recording, long press the button
again; you will hear 1 beep. The red LED light will then turn off. One video file is saved for every 3
minutes of recording.
6
Note: The DrivePro™ Body 52 stops recording when tapping Browse/Settings using the App; the
front LED turns solid blue.
4-2 Event Recording
To start event recording, short press the button once while recording; you will hear 2 beeps (1
short beep and 1 long beep), and the red LED light of the recording indicator will flash faster than in
normal recording. The mode will automatically switch back to normal recording after the file finishes
recording (depending on the video length set). Video files recorded in event recording are saved in
the “Event” folder and are protected from being overwritten.
5. Taking Photos
To take photos while recording, quickly press the button, you will hear 1 beep.
7
6. Using the DrivePro™ Body App
Developed for iOS and Android devices, the free DrivePro™ Body App allows you to wirelessly
adjust the settings of the camera and to live-stream video on your smart device.
6-1 Downloading and Installing the App
1. Search and download DrivePro™ Body on your App Store or Google Play.
2. Download and install the DrivePro™ Body App .
Once the installation is complete, the App will be displayed on the home screen of your device.

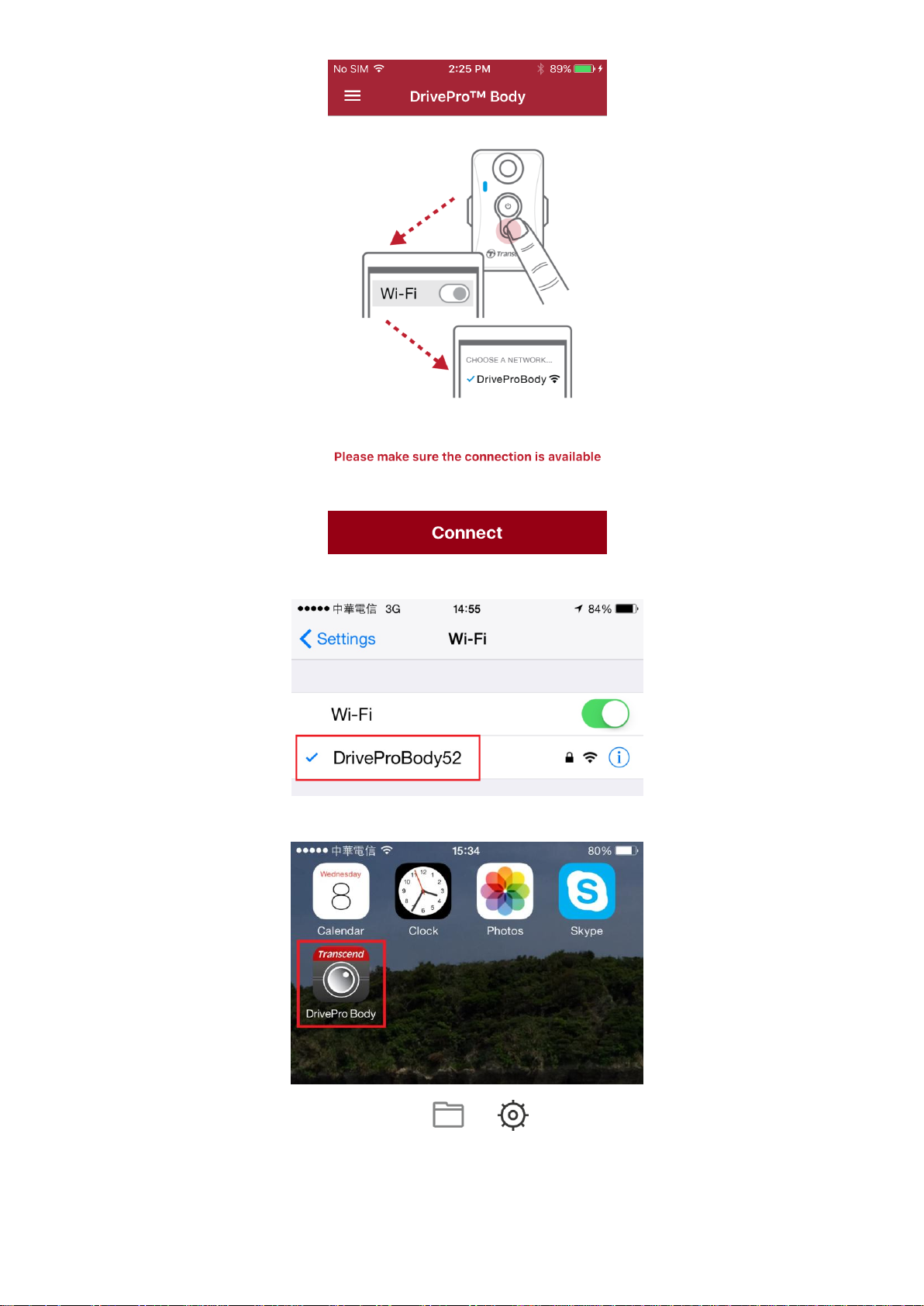

6-2 Connecting to the DrivePro™ Body App
1. Turn on the Wi-Fi by long pressing the button while recording, the front LED will turn
flashing blue. Tap the DrivePro™ Body icon on your device.
2. Tap “Connect”. Please wait for a few seconds for the network to appear.
8
3. Select the “DrivePro™Body52” Wi-Fi link (default password is 12345678).
4. Tap the DrivePro™ Body icon on the home screen of your device to use the App.
Note: The camera stops recording when you tap or using the App, the front LED turns solid blue.
