PF830
Transcend Information Inc.
1

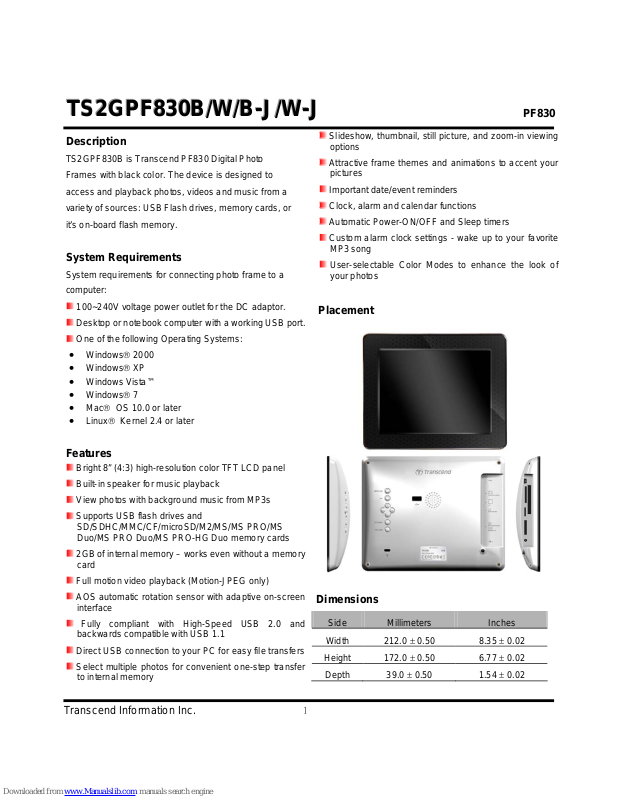

Description
TS2GPF830B is Transcend PF830 Digital Photo
Frames with black color. The device is designed to
access and playback photos, videos and music from a
variety of sources: USB Flash drives, memory cards, or
it’s on-board flash memory.
System Requirements
System requirements for connecting photo frame to a
computer:
100~240V voltage power outlet for the DC adaptor.
Desktop or notebook computer with a working USB port.
One of the following Operating Syste ms :
• Windows® 2000
• Windows® XP
• Windows Vista™
• Windows® 7
• Mac® OS 10.0 or later
• Linux® Kernel 2.4 or later
Features
Bright 8” (4:3) high-resolution color TFT LCD panel
Built-in speaker for music playback
View photos with background music from MP3s
Supports USB flash drives and
SD/SDHC/MMC/CF/microSD/M2/MS/MS PRO/MS
Duo/MS PRO Duo/MS PRO-HG Duo memory cards
2GB of internal memory – works even without a memory
card
Full motion video playback (Motion-JPEG only)
AOS automatic rotation sensor with adaptive on-screen
interface
Fully compliant with High-Speed USB 2.0 and
backwards compatible with USB 1.1
Direct USB connection to your PC for easy file transfers
Select multiple photos for convenient one-step transfer
to internal memory
Slideshow, thumbnail, still picture, and zoom-in viewing
options
Attractive frame themes and animations to accent your
pictures
Important date/event reminders
Clock, alarm and calendar functions
Automatic Power-ON/OFF and Sleep timers
Custom alarm clock settings - wa ke up to your favorite
MP3 song
User-selectable Color Modes to enhance the look of
your photos
Placement
Dimensions
Side Millimeters Inches
Width 212.0 ± 0.50 8.35 ± 0.02
Height 172.0 ± 0.50 6.77 ± 0.02
Depth 39.0 ± 0.50 1.54 ± 0.02
Page 2
T
T
T
S
S
S
2
2
2
G
G
G
P
P
P
F
F
F
8
8
8
3
3
3
0
0
0
B
B
B
/
/
/
W
W
W
/
/
/
B
B
B
-
-
-
J
J
J
/
/
/
W
W
W
-
-
-
J
J
J
PF830
Transcend Information Inc.
2
Specifications
Panel
8” 4:3 TFT LCD, 800x600 pixels
Speaker
Single 0.5w speaker
USB Interface
1x standard A-Type, 1x mini B-Type
Internal Storage
2GB NAND Flash
Data Retention
Up to 10 years
Navigation
8 rear-mounted buttons and remote control
Remote Control
Infrared, NEC protocol
Dimensions
212mm × 172mm × 39mm
Power Supply
Input: 100V~ 240V 0.3A, Output: 5V DC 2.0A
Operating Temperature
0ºC (32ºF) ~ 40ºC (104ºF)
Image Formats
DSC JPEG (up to 9000 x 6750),
Video Formats
Motion JPEG.
(AVI & MOV; up to 720x480 @ 30FPS)
Music Formats
MP3, WMA (Non-DRM), WAV
Supported Music Bit Rates
32Kbps–320Kbps (MP3)
32Kbps–192Kbps (WMA)
Certificates
CE, FCC, BSMI
Warranty
Panel: 1-year, (maximum 4 defective pixels)
Device: 2-years
Ordering Information
Transcend P/N Memory Size Device Description
TS2GPF830K 2GB PF830 Black
TS2GPF830W 2GB PF830 White
TS2GPF830K-J 2GB
PF830 Black
(Japan version)
TS2GPF830W-J 2GB
PF830 White
(Japan version)
