Transcend TS120GSJ25T, TS80GSJ25S, StoreJet 2.5 IDE Series, TS0GSJ25S, TS0GSJ25B Specifications
...Page 1
S
S
S
t
t
t
o
o
o
r
r
r
e
e
e
J
J
J
e
e
e
t
t
t
T
T
T
M
M
M
2
2
2
.
.
.
5
5
5
I
I
I
D
D
D
E
E
E
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s

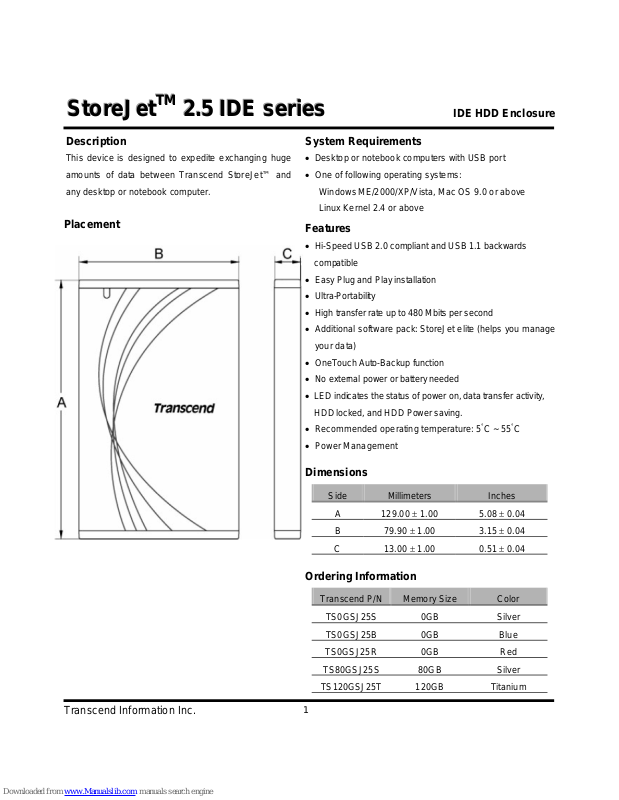

IDE HDD Enclosure
Transcend Information Inc.
1
Description
This device is designed to expedite exch anging huge
amounts of data between Transcend StoreJet™ and
any desktop or notebook computer.
Placement
System Requirements
• Desktop or notebook computers with USB port
•
One of following operating systems:
Windows
ME/2000/XP/Vista, Mac OS 9.0 or above
Linux Kernel 2.4 or above
Features
•
Hi-Speed USB 2.0 compliant and USB 1.1 backwards
compatible
• Easy Plug and Play installation
• Ultra-Portability
•
High transfer rate up to 480 Mbits per second
•
Additional software pack: StoreJet elite (helps you manage
your data)
• OneTouch Auto-Backup function
•
No external power or battery needed
•
LED indicates the status of power on, data transfer activity,
HDD locked, and HDD Power savin g.
• Recommended operating temperature: 5
°
C ~ 55°C
•
Power Management
Dimensions
Side Millimeters Inches
A 129.00 ± 1.00 5.08 ± 0.04
B 79.90 ± 1.00 3.15 ± 0.04
C 13.00
±
1.00 0.51 ± 0.04
Ordering Information
Transcend P/N Memory Size
Color
TS0GSJ25S 0GB Silver
TS0GSJ25B 0GB Blue
TS0GSJ25R 0GB Red
TS80GSJ25S 80GB Silver
TS120GSJ25T 120GB Titanium
Page 2
S
S
S
t
t
t
o
o
o
r
r
r
e
e
e
J
J
J
e
e
e
t
t
t
T
T
T
M
M
M
2
2
2
.
.
.
5
5
5
I
I
I
D
D
D
E
E
E
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
IDE HDD Enclosure
Transcend Information Inc.
2

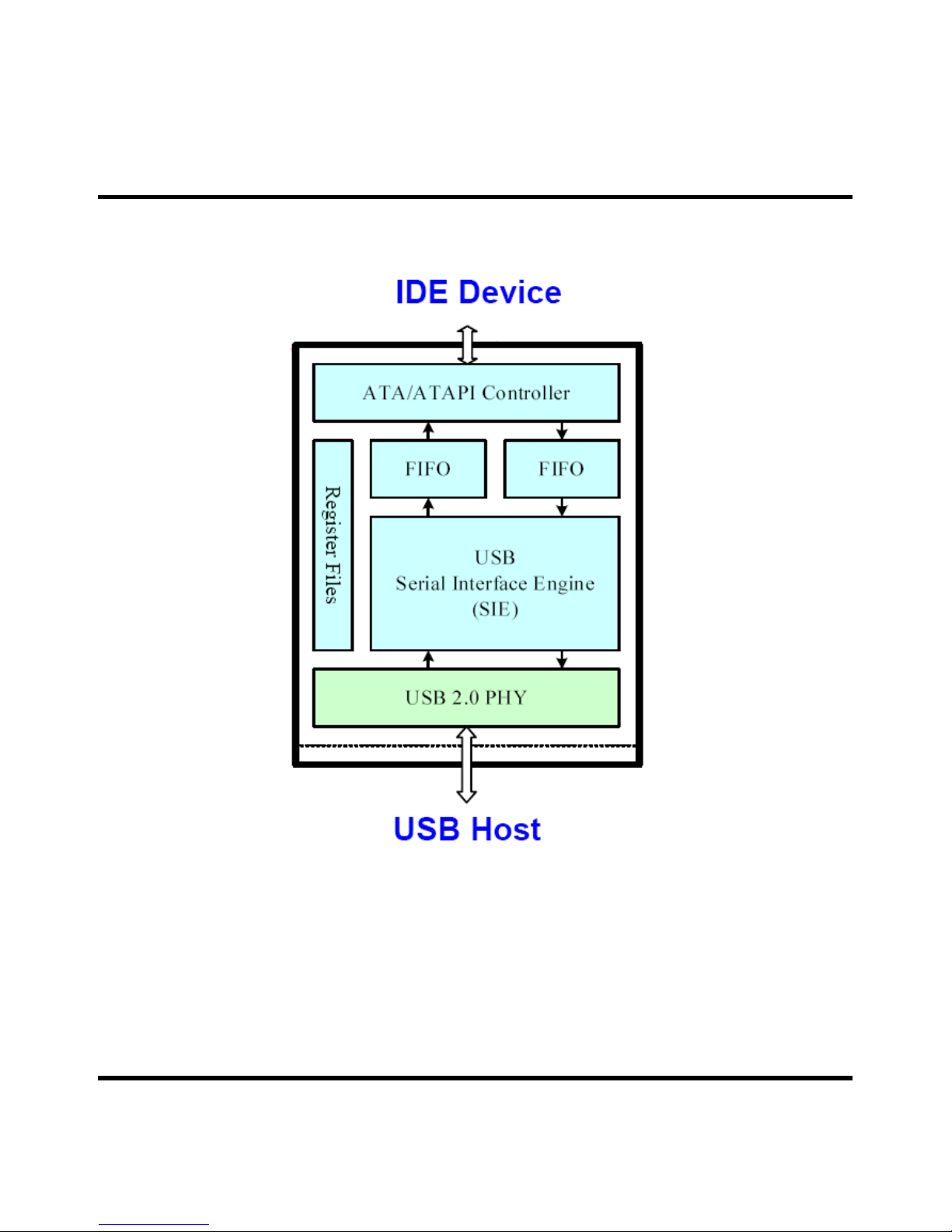

Block Diagram
Page 3
S
S
S
t
t
t
o
o
o
r
r
r
e
e
e
J
J
J
e
e
e
t
t
t
T
T
T
M
M
M
2
2
2
.
.
.
5
5
5
I
I
I
D
D
D
E
E
E
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
IDE HDD Enclosure
Transcend Information Inc.
3
Pinouts
Pin No. Pin Name
01 VCC
02 USB03 USB+
04 VSS
Pin Identification
Symbol Function
USB-
USB+
USB differential signal
The pairs are used to transmit
Data/Address/Command
VCC USB Cable Power Detector
VSS Ground
Specifications
Environment
Storage Media
2.5 inch IDE Hard Disk
Temperature
Operation
5 ℃ to 55 ℃
Storage
-40 ℃ to 70 ℃
System Performance
Read Speed 30 MB/sec (Max.)
Write Speed 26 MB/sec (Max.)
Power Supply
USB DC 5 Volt
Size (L x W x H)
129mmx79.9mmx13mm
Weight
Without Hard Drive Max. 88g
Humidity
8% to 90% RH
Certificates
CE, FCC, BSMI
Page 4
S
S
S
t
t
t
o
o
o
r
r
r
e
e
e
J
J
J
e
e
e
t
t
t
T
T
T
M
M
M
2
2
2
.
.
.
5
5
5
I
I
I
D
D
D
E
E
E
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
IDE HDD Enclosure
Transcend Information Inc.
4
Absolute Maximum Ratings
Parameter Description Min. Max. Unit
AVDDH Analog power supply -0.5 6 V
DVDD Digital I/O power supply -0.5 6 V
V
I(D)
Digital I/O input voltage -0.4 DVDD+0.4 V
T
STORAGE
Storage temperature -55 85
℃
Recommended Power Supply Operation Conditions
Parameter Description Min. Typ. Max. Unit
DVDD Operation digital power supply 3.0 3.3 3.6 V
AVDDH Operation analog power supply 3.0 3.3 3.6 V
TA Ambient operation temperature -10 70
℃
TJ Junction temperature 0 125
℃
Recommended External Clock Source Conditions
Parameter Description Min. Typ. Max. Unit
External reference clock 12 MHz
Clock Duty Cycle 45 50 55 %
Power Supply DC Characteristics
Parameter Description Min. Typ. Max. Unit
I
DVDD
Digital I/O power sup ply 10 mA
I
AVDDH_VR
Internal voltage regulator 100 mA
I
AVDDH_USB
USB Analog Power Supply 30 mA
I
AVDDH_SATA
SATA Analog Power Supply 20 mA
Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes
no warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this
product. Transcend reserves the right to make changes in specifications at any time without prior notice.
