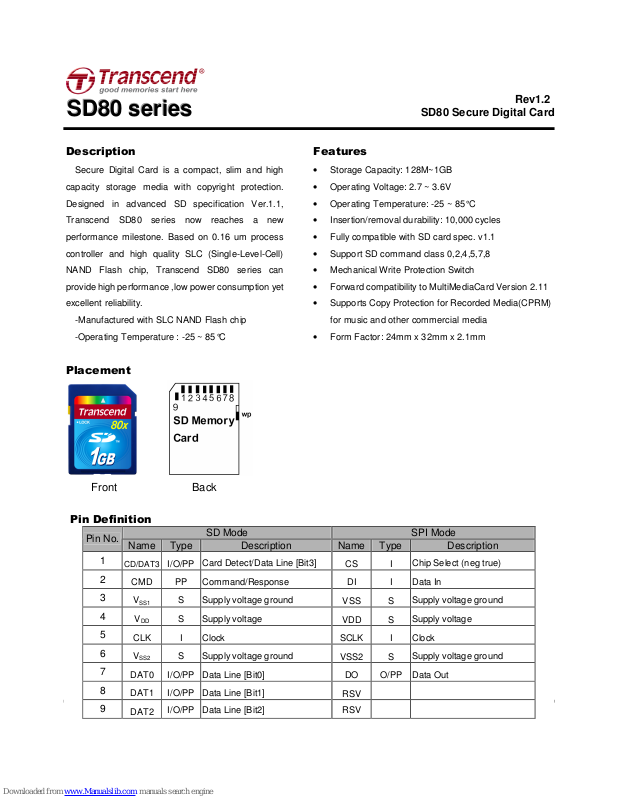

Transcend Secure Digital Card SD80, SD80 Series Specification Sheet

S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
1
Description
Secure Digital Card is a compact, slim and high
capacity storage media with copyright protection.
Designed in advanced SD specification Ver.1.1,
Transcend SD80 series now reaches a new
performance milestone. Based on 0.16 um process
controller and high quality SLC (Single-Level-Cell)
NAND Flash chip, Transcend SD80 series can
provide high performance ,low power consumption yet
excellent reliability.
-Manufactured with SLC NAND Flash chip
-Operating Temperature : -25 ~ 85°C
Placement
Front Back
Features
• Storage Capacity: 128M~1GB
• Operating Voltage: 2.7 ~ 3.6V
• Operating Temperature: -25 ~ 85°C
• Insertion/removal durability: 10,000 cycles
• Fully compatible with SD card spec. v1.1
• Support SD command class 0,2,4,5,7,8
• Mechanical Write Protection Switch
• Forward compatibility to MultiMediaCard Version 2.11
• Supports Copy Protection for Recorded Media(CPRM)
for music and other commercial media
• Form Factor: 24mm x 32mm x 2.1mm
Pin Definition
SD Mode SPI Mode
Pin No.
Name Type
Description Name Type
Description
1
CD/DAT3
I/O/PP
Card Detect/Data Line [Bit3]
CS I
Chip Select (neg true)
2
CMD PP Command/Response
DI I
Data In
3
V
SS1
S Supply voltage ground
VSS S
Supply voltage ground
4
V
DD
S Supply voltage
VDD S
Supply voltage
5
CLK I Clock
SCLK
I
Clock
6
V
SS2
S Supply voltage ground
VSS2
S
Supply voltage ground
7
DAT0 I/O/PP Data Line [Bit0]
DO O/PP
Data Out
8
DAT1 I/O/PP Data Line [Bit1]
RSV
9
DAT2
I/O/PP Data Line [Bit2] RSV
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
2
Architecture
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
3
Bus Operating Conditions
• General
Parameter Symbol
Min. Max. Unit Remark
Peak voltage on all lines -0.3 VDD+0.3
V
All Inputs
Input Leakage Current -10 10 µA
All Outputs
Output Leakage Current -10 10 µA
• Power Supply Voltage
Parameter Symbol
Min. Max. Unit Remark
Supply voltage V
DD
2.0 3.6 V CMD0, 15,55,ACMD41
commands
Supply voltage specified in OCR register 2.7 3.6 V Except CMD0, 15,55,
ACMD41 commands
Supply voltage differentials (V
SS1
, V
SS2
) -0.3 0.3 V
Power up time 250 ms From 0v to VDD Min.
•
Bus Signal Line Load
The total capacitance CL the CLK line of the SD Memory Card bus is the sum of the bus master capacitance C
HOST
, the bus
capacitance C
BUS
itself and the capacitance C
CARD
of each card connected to this line:
CL = C
HOST
+ C
BUS
+ Ν*C
CARD
Parameter Symbol
Min. Max. Unit Remark
Bus signal line capacitance CL 100 pF fPP ≤ 20 MHz, 7 cards
Single card capacitance C
CARD
10 pF
Maximum signal line inductance 16 nH fPP ≤ 20 MHz
Pull-up resistance inside card (pin1) R
DAT3
10 90 kΩ May be used for card
detection
Note that the total capacitance of CMD and DAT lines will be consist of C
HOST
, C
BUS
and one C
CARD
only since they are
connected separately to the SD Memory Card host.
Parameter Symbol
Min. Max. Unit Remark
Pull-up resistance R
CMD
, R
DAT
10 100 kΩ To prevent bus floating
Bus signal line capacitance CL 250 pF fPP ≤ 5 MHz, 21 cards
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
4
•
Bus Signal Levels
As the bus can be supplied with a variable supply voltage, all signal levels are related to the supply voltage.
To meet the requirements of the JEDEC specification JESD8-1A, the card input and output voltages shall be within the following specified ranges for any VDD of the allowed voltage range:
Parameter Symbol Min. Max. Unit Remark
Output HIGH voltage V
OH
0.75* VDD V I
OH
= -100 µA @VDD min
Output LOW voltage V
OL
0.125* VDD V I
OL
= -100 µA @VDD min
Input HIGH voltage V
IH
0.625* VDD V
DD
+ 0.3 V
Input LOW voltage V
IL
VSS – 0.3 0.25* VDD V
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
5
•
Bus Timing (Default)
Parameter Symbol Min Max. Unit Remark
Clock CLK (All values are referred to min (VIH) and max (VIL)
Clock frequency Data Transfer Mode f
PP
0 25 MHz CL ≤ 100 pF, (7 cards)
Clock frequency Identification Mode
(The low freq. is required for MultiMediaCard
compatibility.)
f
OD
0 400 KHz CL ≤ 250 pF, (21 cards)
t
WL
10 ns CL ≤ 100 pF, (7 cards) Clock low time
50 ns CL ≤ 250 pF, (21 cards)
t
WH
10 ns CL ≤ 100 pF, (7 cards) Clock high time
50 ns CL ≤ 250 pF, (21 cards)
Clock rise time t
TLH
10 ns CL ≤ 100 pF, (7 cards)
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
6
50 ns CL ≤ 250 pF, (21 cards)
t
THL
10 ns CL ≤ 100 pF, (7 cards) Clock fall time
50 ns CL ≤ 250 pF, (21 cards)
Inputs CMD, DAT (referenced to CLK)
Input set-up time t
ISU
5 ns CL ≤ 25 pF, (1 cards)
Input hold time t
IH
5 ns CL ≤ 25 pF, (1 cards)
Outputs CMD, DAT (referenced to CLK)
Output Delay time during Data Transfer Mode t
ODLY
0 14 ns CL ≤ 25 pF, (1 cards)
Output Delay time during Identification Mode t
ODLY
0 50 ns CL ≤ 25 pF, (1 cards)
S
S
S
D
D
D
8
8
8
0
0
0
s
s
s
e
e
e
r
r
r
i
i
i
e
e
e
s
s
s
Transcend Information Inc.
7
•
Bus Timing (High Speed Mode)
Parameter Symbol Min Max. Unit Remark
Clock CLK (All values are referred to min (VIH) and max (VIL)
Clock frequency Data Transfer Mode f
PP
0 50 MHz
Clock low time t
WL
7 ns
Clock high time t
WH
7 ns
Clock rise time t
TLH
3 ns
Clock fall time t
THL
3 ns
Inputs CMD, DAT (referenced to CLK)
Input set-up time t
ISU
6 ns
Input hold time t
IH
2 ns
Outputs CMD, DAT (referenced to CLK)
