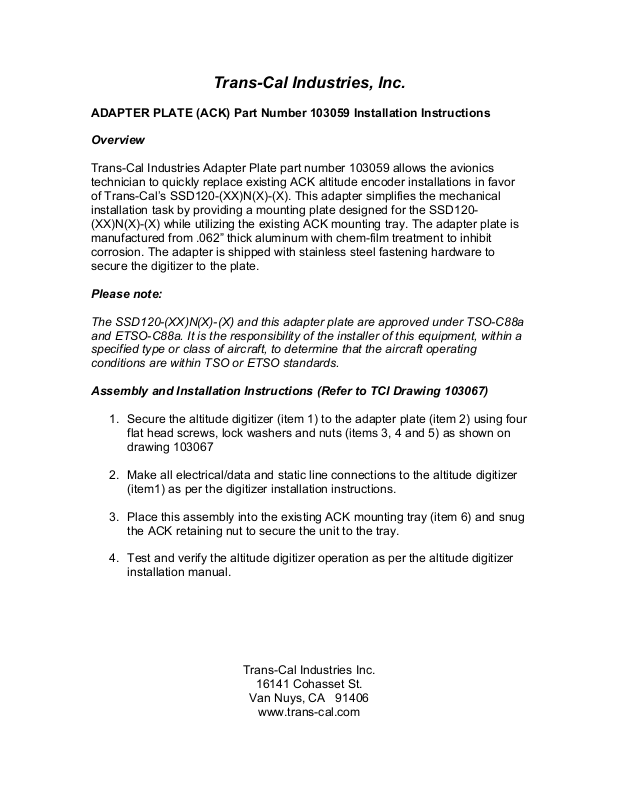

Trans-Cal Industries, Inc.
ADAPTER PLATE (ACK) Part Number 103059 Installation Instructions
Overview
Trans-Cal Industries Adapter Plate part number 103059 allows the avionics
technician to quickly replace existing ACK altitude encoder installations in favor
of Trans-Cal’s SSD120-(XX)N(X)-(X). This adapter simplifies the mechanical
installation task by providing a mounting plate designed for the SSD120(XX)N(X)-(X) while utilizing the existing ACK mounting tray. The adapter plate is
manufactured from .062” thick aluminum with chem-film treatment to inhibit
corrosion. The adapter is shipped with stainless steel fastening hardware to
secure the digitizer to the plate.
Please note:
The SSD120-(XX)N(X)-(X) and this adapter plate are approved under TSO-C88a
and ETSO-C88a. It is the responsibility of the installer of this equipment, within a
specified type or class of aircraft, to determine that the aircraft operating
conditions are within TSO or ETSO standards.

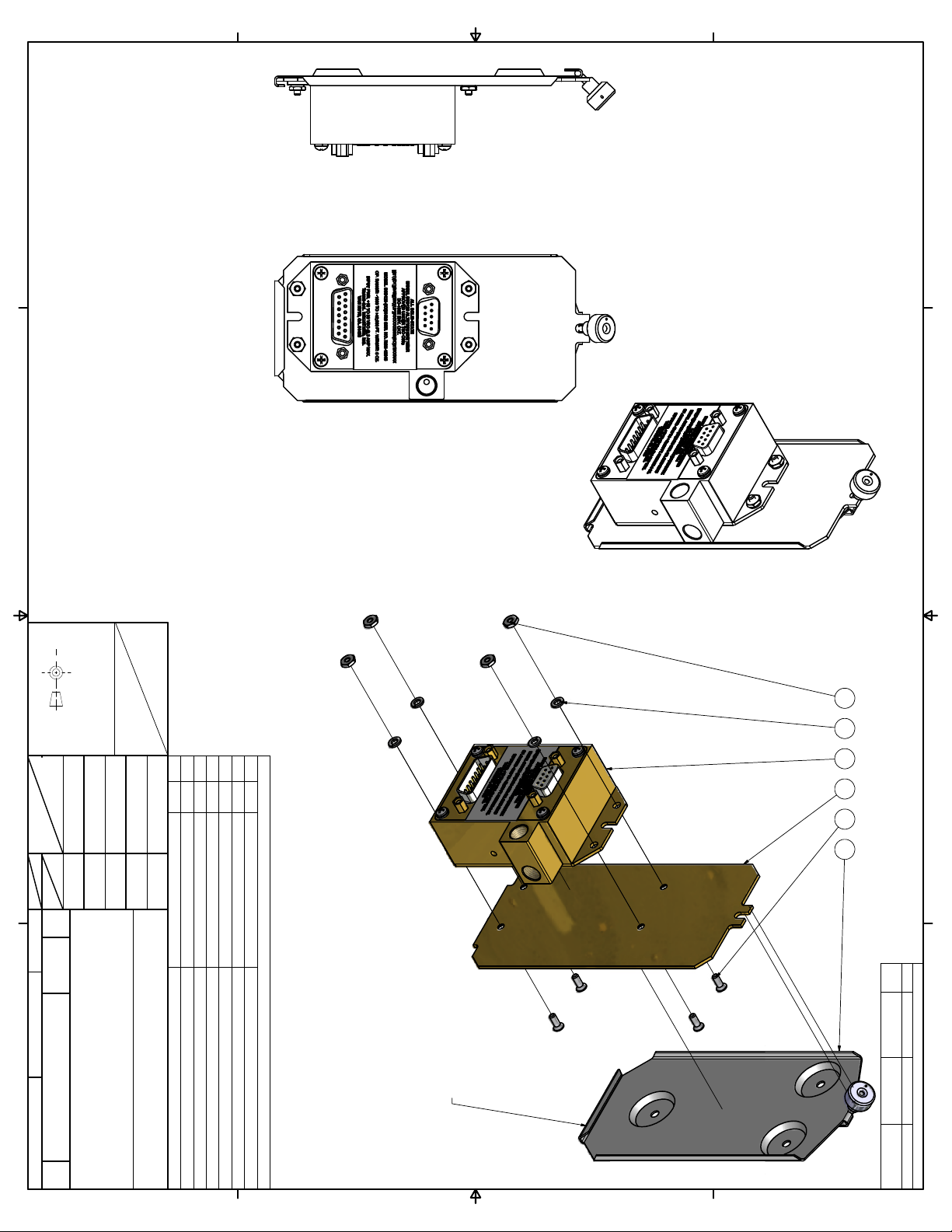

Assembly and Installation Instructions (Refer to TCI Drawing 103067)
1. Secure the altitude digitizer (item 1) to the adapter plate (item 2) using four
flat head screws, lock washers and nuts (items 3, 4 and 5) as shown on
drawing 103067
2. Make all electrical/data and static line connections to the altitude digitizer
(item1) as per the digitizer installation instructions.
3. Place this assembly into the existing ACK mounting tray (item 6) and snug
the ACK retaining nut to secure the unit to the tray.
4. Test and verify the altitude digitizer operation as per the altitude digitizer
installation manual.
Trans-Cal Industries Inc.
16141 Cohasset St.
Van Nuys, CA 91406
www.trans-cal.com
Page 2
A A
B B
C C
D D
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TRANS-CAL
INDUSTRIES, INC. ANY REPRODUCTION, USE OR DISCLOSURE OF THIS
DOCUMENT WITHOUT THE WRITTEN PERMISSION OF TRANS-CAL INDUSTRIES,
INC. IS EXPRESS LY PROHIBIT ED.
4
3
4
3
TOLERNCES,
UNLESS OTHERWISE NOTED
.XX±.010
.XXX±.005
Decimals:
.X
`.03
THIRD ANGLE PROJECTION
Angles ±1°0'
MTRL./FINISH
5 4 1
DRAWN
CHECKED
QA
MFG
APPROVED
J. Ferrero
103067
C. Herrera
7/8/2008
7/8/2008
SIZE
C
DO NOT SCALE
DRAWING
DWG NO
2
SCALE 1:1
UNITS: INCH
(ACK)
J. Ferrero
7/8/2008
Assembly, SSD120-(XX)N Adapter Plate
M. Remenih
7/8/2008
TITLE
H. Smith
7/8/2008
Trans-Cal Industries, Inc.
Van Nuys, CA 91406
6
45
1
#4-40 Hex Machine Screw Nut600025-4
ACK MOUNTING TRAY ASSEMBLYACK Tray
600006-444
Lock Washer #4 Regular Helical Spring
600011-343
#4-40 X .375" Flat Head Phillips Screw
2
1
103059
Altitude DigitizerSSD120-(XX)N(X)-(X)11Adapter Plate (ACK)
2
2 3
6
Parts List
REV DESCRIPTION DATE APPROVED
ACK LEGACY INSTALLATION
MOUNTING TRAY
A
PRODUCTION
RELEASE
REVISION HISTORY
DESCRIPTIONPART NUMBERQTYITEM
7/8/2008
1
SHEET 1 OF 1
1
J. Ferrero
REV
A
