Page 1
Trans-Cal Industries, Inc.

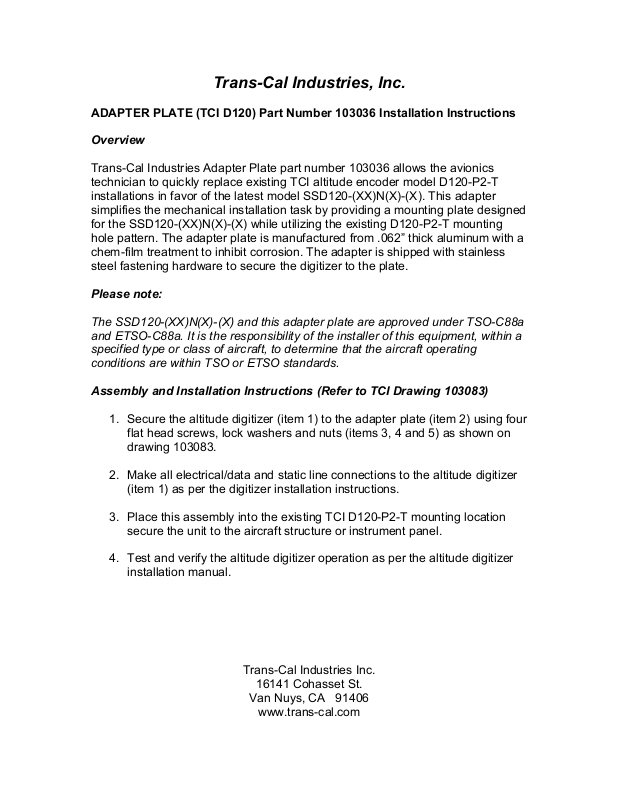

ADAPTER PLATE (TCI D120) Part Number 103036 Installation Instructions
Overview
Trans-Cal Industries Adapter Plate part number 103036 allows the avionics
technician to quickly replace existing TCI altitude encoder model D120-P2-T
installations in favor of the latest model SSD120-(XX)N(X)-(X). This adapter
simplifies the mechanical installation task by providing a mounting plate designed
for the SSD120-(XX)N(X)-(X) while utilizing the existing D120-P2-T mounting
hole pattern. The adapter plate is manufactured from .062” thick aluminum with a
chem-film treatment to inhibit corrosion. The adapter is shipped with stainless
steel fastening hardware to secure the digitizer to the plate.
Please note:
The SSD120-(XX)N(X)-(X) and this adapter plate are approved under TSO-C88a
and ETSO-C88a. It is the responsibility of the installer of this equipment, within a
specified type or class of aircraft, to determine that the aircraft operating
conditions are within TSO or ETSO standards.
Assembly and Installation Instructions (Refer to TCI Drawing 103083)
1. Secure the altitude digitizer (item 1) to the adapter plate (item 2) using four
flat head screws, lock washers and nuts (items 3, 4 and 5) as shown on
drawing 103083.
2. Make all electrical/data and static line connections to the altitude digitizer
(item 1) as per the digitizer installation instructions.
3. Place this assembly into the existing TCI D120-P2-T mounting location
secure the unit to the aircraft structure or instrument panel.
4. Test and verify the altitude digitizer operation as per the altitude digitizer
installation manual.
Trans-Cal Industries Inc.
16141 Cohasset St.
Van Nuys, CA 91406
www.trans-cal.com
Page 2
A A
B B
C C
D D
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TRANS-CAL
INDUSTRIES, INC. ANY REPRODUCTION, USE OR DISCLOSURE OF THIS
DOCUMENT WITHOUT THE WRITTEN PERMISSION OF TRANS-CAL INDUSTRIES,
INC. IS EXPRESS LY PROHIBITED .
4
3
4
3
TOLERNCES,
UNLESS OTHERWISE NOTED
.XX±.010
.XXX±.005
Decimals:
.X
`.03
THIRD ANGLE PROJECTION
Angles ±1°0'
MFG
APPROVED
J. Ferrero
C. Herrera
2
J. Ferrero
MTRL./FINISH
44
45
DRAWN
CHECKED
QA
H. Smith
M. Remenih
ITEM
QTY
11
SSD120-(XX)N(X)-(X)
600011-343
PART NUMBER
2
5 4 1 2 3
05/23/2008
5/22/2008
5/22/2008
5/22/2008
5/22/2008
ALTITUDE DIGITIZER
ADAPTER PLATE TCI D12010303612
#4-40 X .375" FLAT HEAD SCREW
#4 LOCK WASHER600006-4
#4-40 HEX MACHINE SCREW NUT600025-4

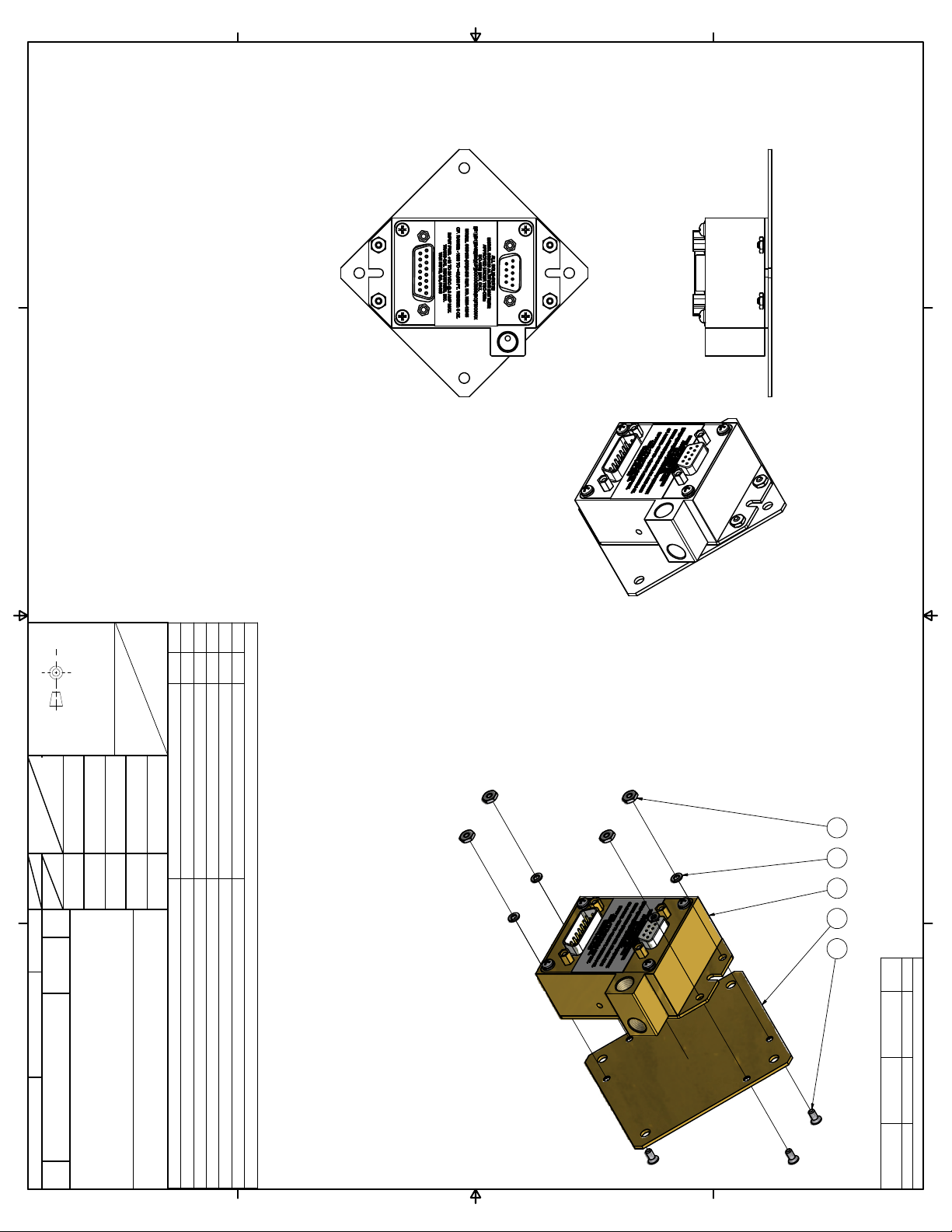

Adapter Plate (TCI D120) Installation
TITLE
Trans-Cal Industries, Inc.
Van Nuys, CA 91406
SCALE 1:1
SIZE
C
DO NOT SCALE
DRAWING
UNITS: INCH
DWG NO
103083
Drawing
1
SHEET 1 OF 1
Parts List
REV DESCRIPTION DATE APPROVED
A
PRODUCTION
DESCRIPTION
APPROVAL
REVISION HISTORY
5/22/2008
1
J. Ferrero
REV
A
