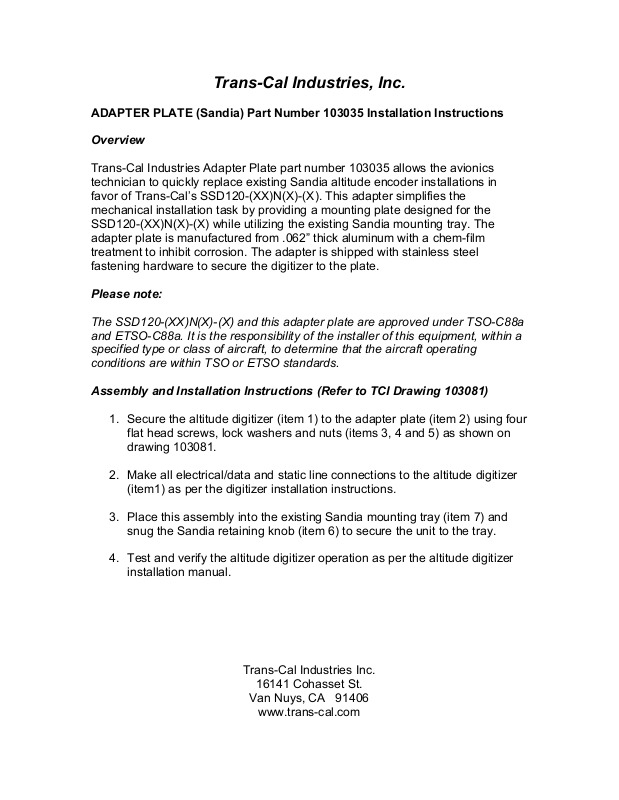

Trans-Cal Industries, Inc.
ADAPTER PLATE (Sandia) Part Number 103035 Installation Instructions
Overview
Trans-Cal Industries Adapter Plate part number 103035 allows the avionics
technician to quickly replace existing Sandia altitude encoder installations in
favor of Trans-Cal’s SSD120-(XX)N(X)-(X). This adapter simplifies the
mechanical installation task by providing a mounting plate designed for the
SSD120-(XX)N(X)-(X) while utilizing the existing Sandia mounting tray. The
adapter plate is manufactured from .062” thick aluminum with a chem-film
treatment to inhibit corrosion. The adapter is shipped with stainless steel
fastening hardware to secure the digitizer to the plate.
Please note:
The SSD120-(XX)N(X)-(X) and this adapter plate are approved under TSO-C88a
and ETSO-C88a. It is the responsibility of the installer of this equipment, within a
specified type or class of aircraft, to determine that the aircraft operating
conditions are within TSO or ETSO standards.
Assembly and Installation Instructions (Refer to TCI Drawing 103081)
1. Secure the altitude digitizer (item 1) to the adapter plate (item 2) using four
flat head screws, lock washers and nuts (items 3, 4 and 5) as shown on
drawing 103081.
2. Make all electrical/data and static line connections to the altitude digitizer
(item1) as per the digitizer installation instructions.
3. Place this assembly into the existing Sandia mounting tray (item 7) and
snug the Sandia retaining knob (item 6) to secure the unit to the tray.
4. Test and verify the altitude digitizer operation as per the altitude digitizer
installation manual.
Trans-Cal Industries Inc.
16141 Cohasset St.
Van Nuys, CA 91406
www.trans-cal.com
Page 2
A A
B B
C C
D D
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TRANS-CAL
INDUSTRIES, INC. ANY REPRODUCTION, USE OR DISCLOSURE OF THIS
DOCUMENT WITHOUT THE WRITTEN PERMISSION OF TRANS-CAL INDUSTRIES,
INC. IS EXPRESS LY PROHIBIT ED.
4
3
4
3
TOLERNCES,
UNLESS OTHERWISE NOTED
.XX±.010
.XXX±.005
Decimals:
.X
`.03
THIRD ANGLE PROJECTION
Angles ±1°0'
MFG
APPROVED
J. Ferrero
C. Herrera
2
J. Ferrero
MTRL./FINISH
6
1
TRAY17
DRAWN
CHECKED
QA
H. Smith
M. Remenih
3
4
600011-3
600006-444
2
11
1
SSD120-(XX)N(X)-(X)
5 1
2
3
5/22/2008
5/22/2008
05/23/2008
5/22/2008
5/22/2008
MOUNTING TRAY (SANDIA PART)
ALTITUDE DIGITIZER
ADAPTER PLATE (SANDIA)103035
#4-40 X .375" FLAT HEAD SCREW
#4 Lock Washer
#4-40 HEX MACHNINE SCREW NUT600025-445
RETAINING KNOB (SANDIA PART)KNOB
Parts List
SCALE 1:1
SIZE
C
DO NOT SCALE
DRAWING
UNITS: INCH
DWG NO
103081

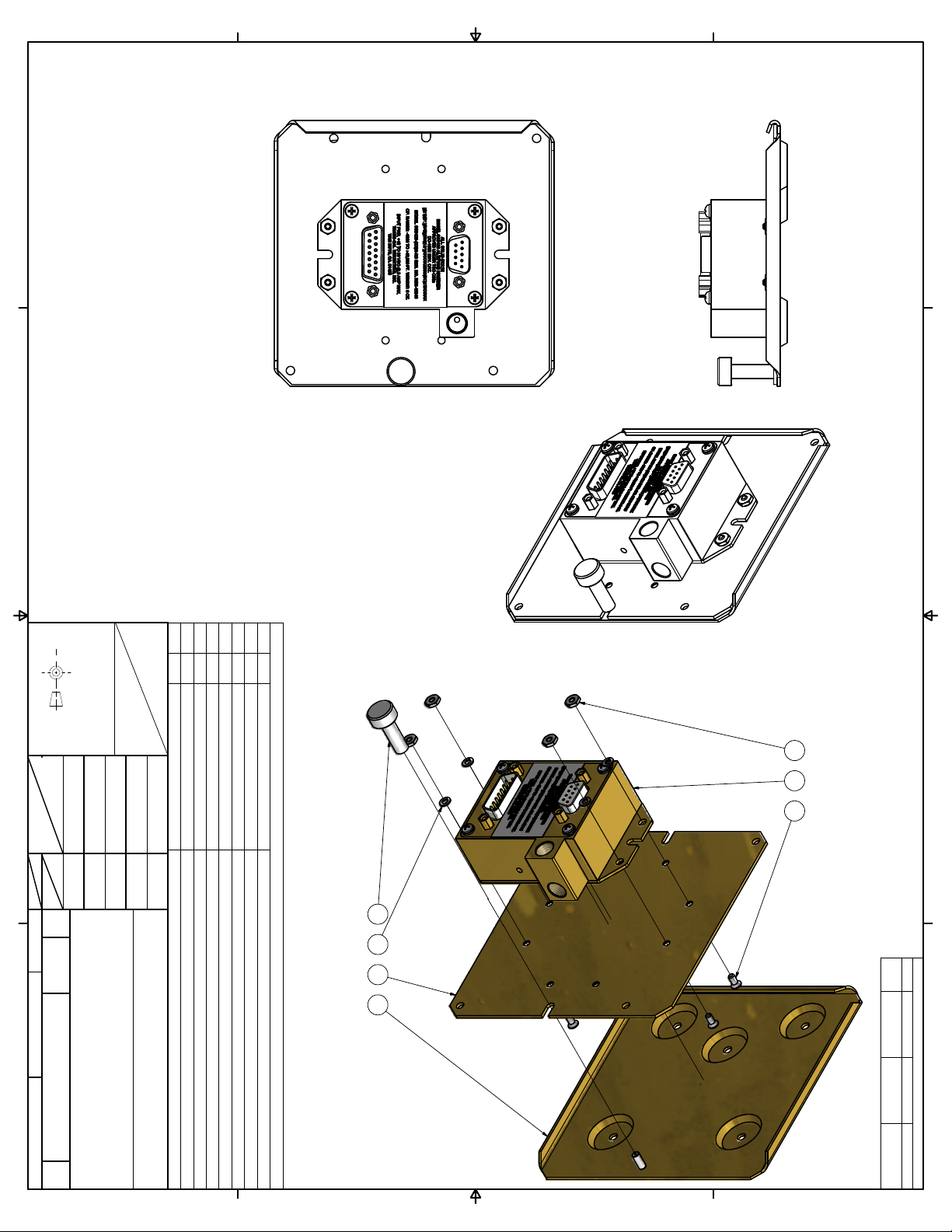

TITLE
Adapter Plate (Sandia) Installation Drawing
Van Nuys, CA 91406
Trans-Cal Industries, Inc.
DESCRIPTIONPART NUMBERQTYITEM
6
4
REV DESCRIPTION DATE APPROVED
2
7
A
PRODUCTION
APPROVAL
REVISION HISTORY
5/22/2008
1
SHEET 1 OF 1
1
J. Ferrero
REV
A
