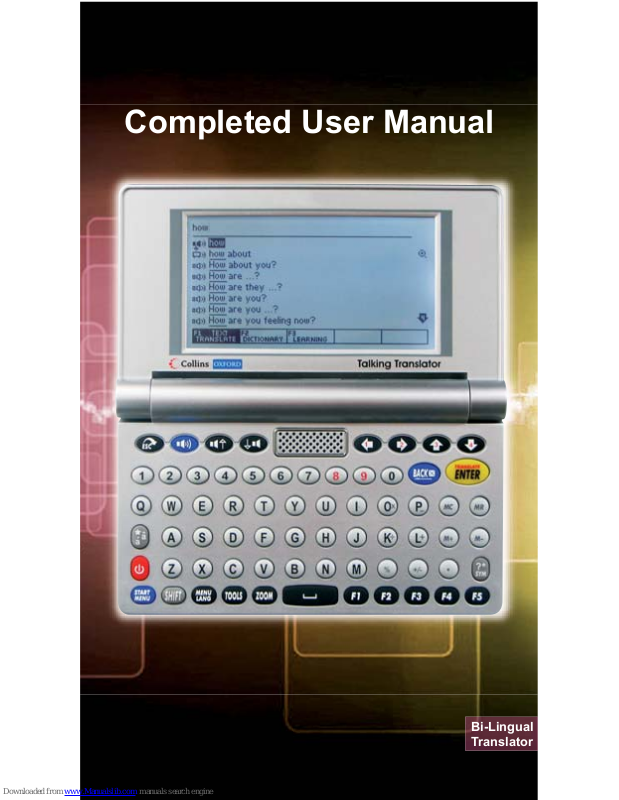

Trano T-9 Completed User Manual
Completed User Manual
Bi-Lingual
Translator
1
Power Source
• The translator is powered by 2 AAA Alkaline
(non-rechargeable) batteries (included).
• The translator can also operate via USB,
connected to PC/laptop. Note batteries will not
be charged via USB.
• It can be operated via mini USB adapter (not
included), compatible with the cell phone
devices in market, e.g. Blackberry, Nokia,
Samsung etc.
• When batteries power is low, appear on
display. If this happens, replace batteries.
• Turn off the translator before replacing batteries.
• Do not use different types of batteries or used
batteries.
• Make sure batteries make good contact with the
metal plates.
• Always remove a weak or dead battery from the
device.
• To avoid damage caused by leakage of battery
uid, replace batteries once every 6 months.
• Do not expose batteries to direct heat.
Micro-SD Reader
Micro-SD cartridge is provided on the side of
translator. Micro-SD card (not included) could be
used to download les to the translator. Micro-SD
reader accepts card up to 8GB.
2
“.txt les” le
1. Insert your Micro SD card.
2. Press to switch the unit on and press .
Use down keys to select Text Reader, followed
by .
3. Use ( / ) keys to select SD Card and
press .
4. Use arrow keys to select the text le and press
to read.
3
“MP3” le
1. Insert your Micro SD card.
2. Press to switch the unit on and press .
Use down keys to select MP3, followed by
.
3. Press once to return to E:/, Press
again to return to File Manager. Use ( /
) keys to select MP3 and press to
go to your MP3 folder les. Press again.
Track listing will appear on the screen.
4. Use arrow keys to select the song and press
or to listen.
USB
The translator can be connected to a computer
via USB cable to download les as necessary. Note
USB download works with Windows system only.
4
USB driver will automatically install rst time you
plug in the USB cable. You can copy text les and
MP3 les to Removable Disk.
Disconnecting USB cable un-mounts Removable
Disk and resets the translator.
1. Connect translator to a computer via USB cable.
2. The following message will pop up. Press
key to highlight YES and press to
conrm.
5
Reading “.txt les” in your Translator
1. Press TOOLS and select Text Reader.
2. Highlight Disk E and press ENTER to see your
folder list.
3. Use arrow keys to select your desired le and
press ENTER to read.
Reading “MP3 les” in your Translator
1. Press TOOLS and select MP3 Player.
2. Press to return to E:/. Use ( / )
keys to select MP3 and press to conrm.
3. Use arrow keys to select the song and press
ENTER or F1 key to listen.
6
Resetting the Translator
If the keyboard fails to respond, or if the screen
performs erratically, you should reset the
translator.
Remove the batteries. Put the batteries back after
~1 minute.
7
Key Functions
1. : On/Off button. Translator has auto
turn off function (3, 5, or 10 minutes).
You can set the time under Tool
Shut Off Time. Factory default is set to
3 minutes.
2. : Main Language Menu.
3. : Menu language, select your language.
4. : System Setup, Calculator,
Conversions, My Record, Games,
Science/Formula, Text Reader, User
Manual, Copyright, Version.
5. : Zoom. To view bigger font size.
6. : Space.
7. : Text Translate menu, F1 function key.
Or Common Phrases menu (for some
models)

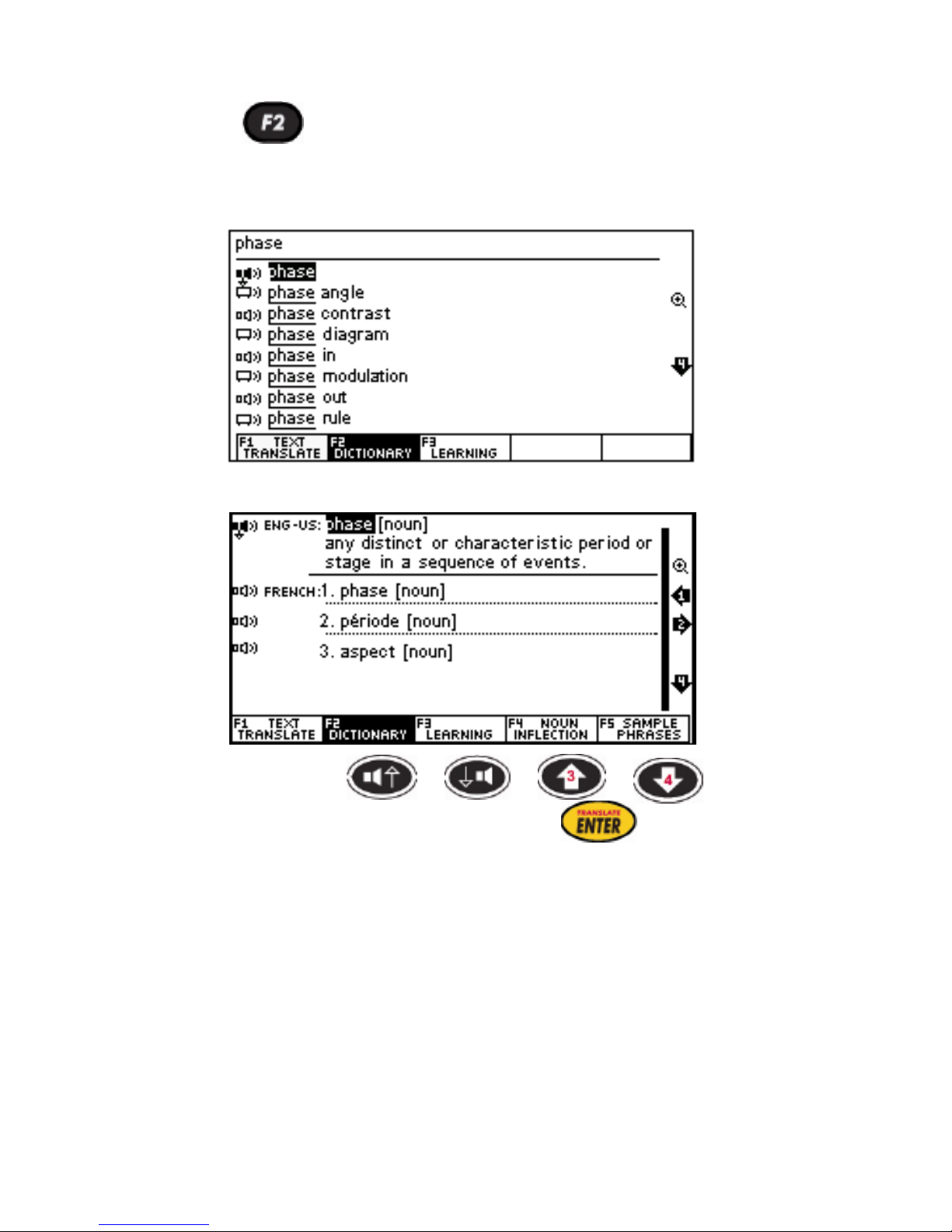

8. : Dictionary menu, F2 function key.

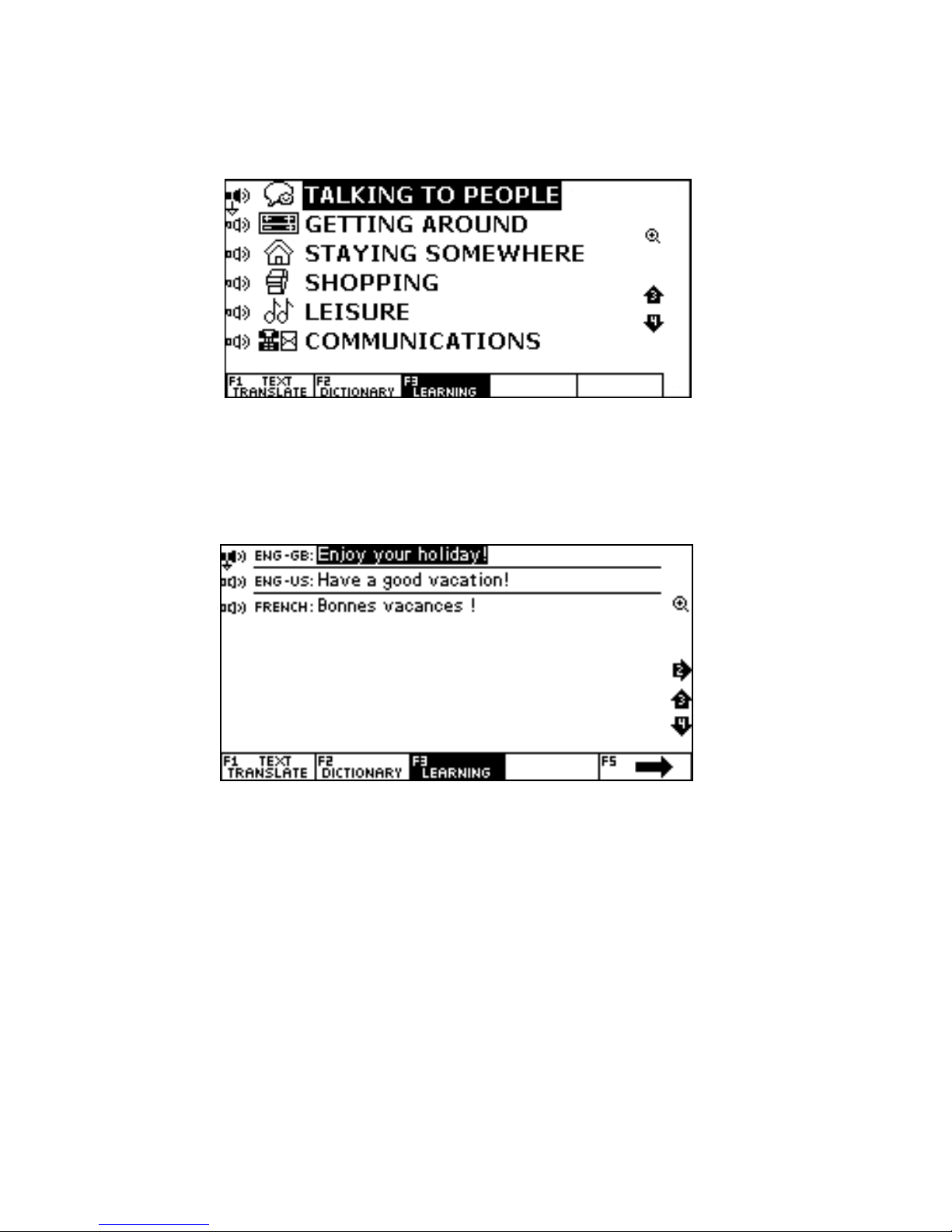

9. : Learning menu, F3 function key.
10. :

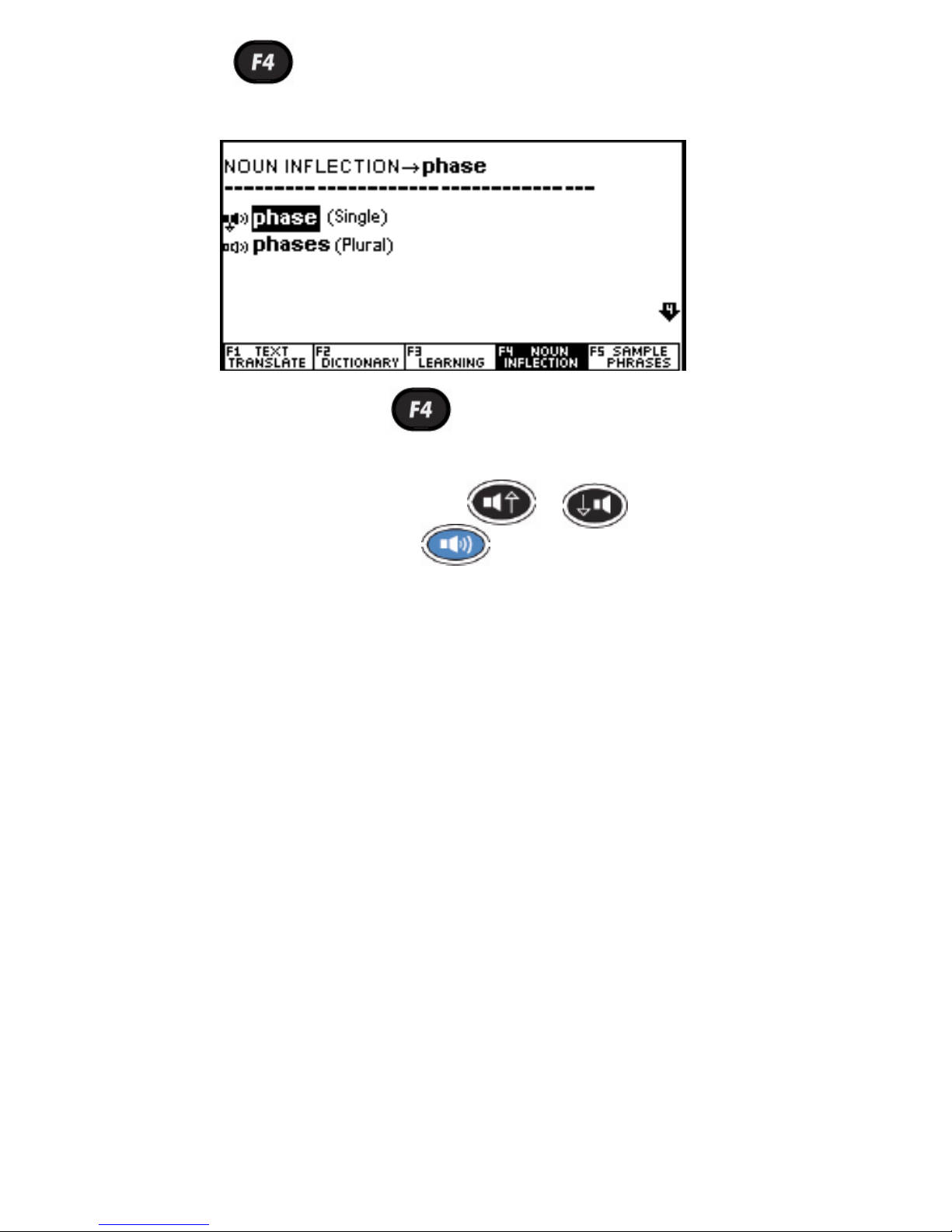

Conjugation/Inection, F4 function key.
11. : Sample phrases, F5 function key.
8
12. : a) Capital letter. If Shift key is pressed
twice, CAPS sign will appear on top
right corner of screen.
b) In cross word translation, press shift
key, then press right arrow key
to highlight two or more words.
Tips: While typing letters with the shift key on a
PC, the shift key + the letter key are pressed
simultaneously, in the translator you have to
press shift key once followed by the letter key.
For instance in TAMIL model:
On the PC keyboard:
Press & hold key and press letter (D) to get
“அ”
On the TRANSLATOR keyboard:
Press key once (do not hold it down) then
press letter (D) to get “அ ”.
13. : âá - Accent key(Vowel). Press target
alphabet, and then press the Accent
key to get available characters. E.g.
Press ‘o’, then press the Accent key to
get [ò, ó, ô, õ, ö] etc.
★ - Favorites. In Translate or
Dictionary mode, press this key to copy
screen to your favorite list.
9
Tips: While typing letters with the key on
translator keyboard, you have to press the letter
key once followed by the key.
For instance in French model, on the translator
keyboard press letter (A) once (do not hold it
down) then press key to get “á”.
14. Symbol. Type punctuation, ./… ?* Wildcard. More powerful searches can
be done using placeholder symbols
(?)(*) to search your unknown letter,
e.g. ‘AMA?ING’to nd ‘amazing’;
‘AMAZ*’ to nd ‘amaze’ or ‘amazing’.
15. : Escape. Return to previous screen.
16. : Backspace. Delete the last input.
17. : Speaker. Press to hear voice.
18. / : up/down and move to
available voice option.
19. / : up/Down and Page up/Page
Down.
20. / : Left/ Right.
21. : Enter key. Type something, press this
key to get translation.
10
Alphabet with Accent (Vowel)
(Available in some European model)
Some languages have their own alphabet with accent. Simply press the original key and key, to
get the available characters.
E.g. English-French
In the home language of French.
Type in “e”, display shows: “e”
Press once, display shows: “è”
Press twice, display shows: “é”
Press three times, display shows: “ê”
Press four times, display shows: “ë”
