Trane XT500C User Manual

XT500C Deluxe Programmable

Heat Pump Thermostat

OWNER’S GUIDE

	Pub. No. 22-5128-02
	Pub. No. 22-5128-02
1	69--1216

TABLE OF CONTENTS

CUSTOMIZING YOUR THERMOSTAT .............................................................................................................	5
Program Options Set-Up by Your Trane Dealer ............................................................................................	5-6
GETTING AROUND THE KEYBOARD .............................................................................................................	7-8
Emergency Heat ...........................................................................................................................................	9
Auxiliary Heat ................................................................................................................................................	9
FEATURES ........................................................................................................................................................	10
FEATURES YOU’LL WANT TO KNOW MORE ABOUT ...................................................................................	11
Comfort-R Comfort Enhancement System ....................................................................................................	11
Adaptive Intelligent Recovery Control ...........................................................................................................	12
The Optimum Comfort and Energy Savings Solution ...............................................................................	13
NEAT STUFF YOU’LL BE USING OFTEN .......................................................................................................	15
Setting Temporary Temperatures ..................................................................................................................	15
Changing Temperature Setting Until the Next Schedule Period....................................................................	15
Changing Temperature Setting Indefinitely ...................................................................................................	17
Vacation Mode...............................................................................................................................................	20

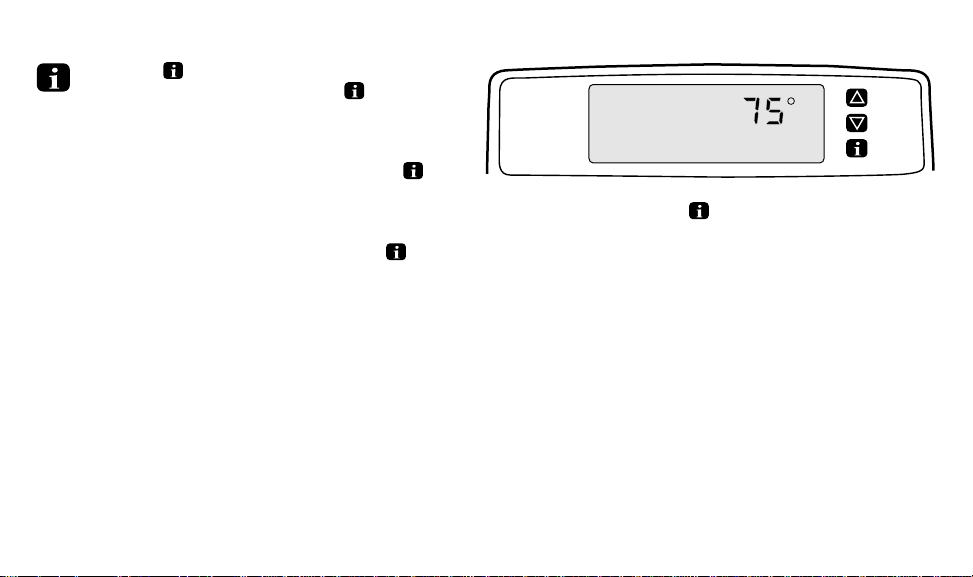

Information Key .............................................................................................................................................	24
	Pub. No. 22-5128-02
2	69-1216

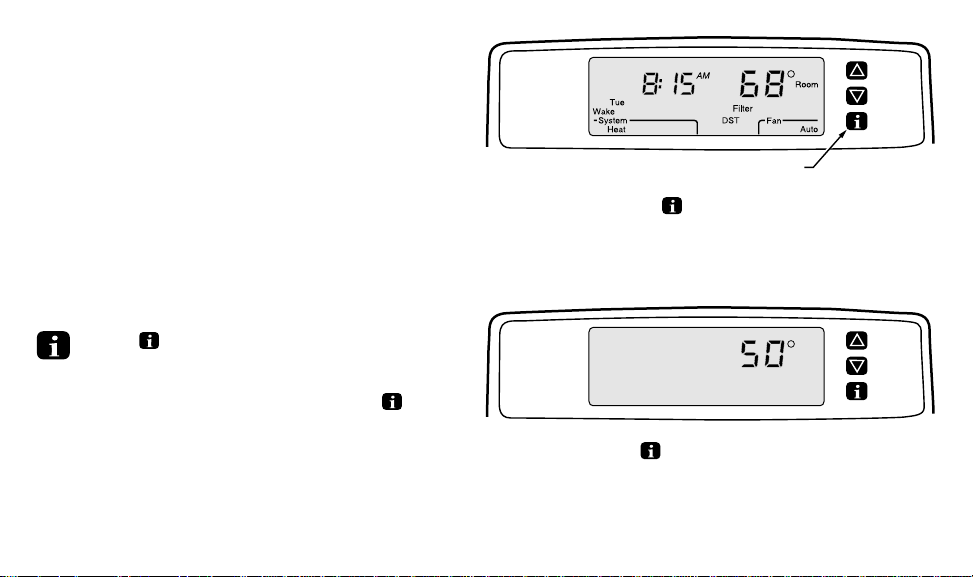

Displaying Outdoor Temperature ...................................................................................................................	24
Displaying Current Settings ...........................................................................................................................	25

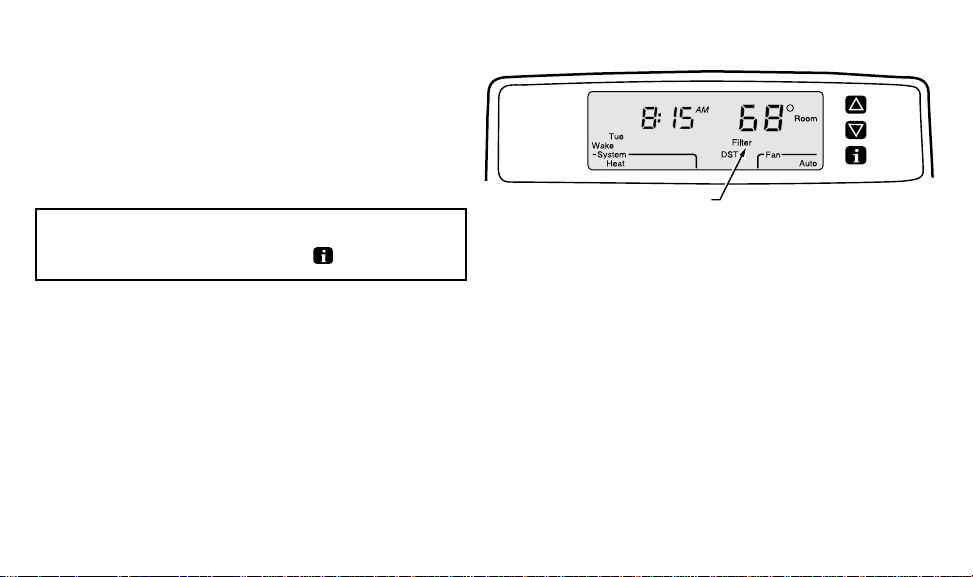

Filter Indication ..............................................................................................................................................	26

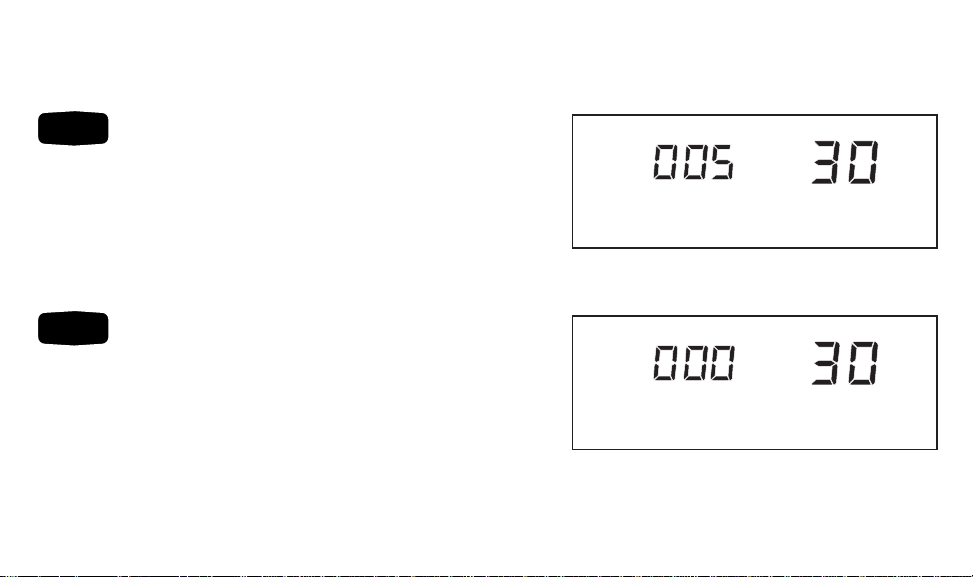

Setting or Resetting Filter Indication Timer ...................................................................................................	26
PROGRAMMING YOUR THERMOSTAT ..........................................................................................................	29
Clock .............................................................................................................................................................	29
Setting Current Day and Time .......................................................................................................................	29
Setting System and Fan ................................................................................................................................	32
Set System ....................................................................................................................................................	32
Set Fan ..........................................................................................................................................................	32
7-Day Program and Operation ......................................................................................................................	33
7-Day Preprogrammed Schedule ..................................................................................................................	33
Customizing Your Own 7-Day Schedule .......................................................................................................	35
Programming the First Day ...........................................................................................................................	39

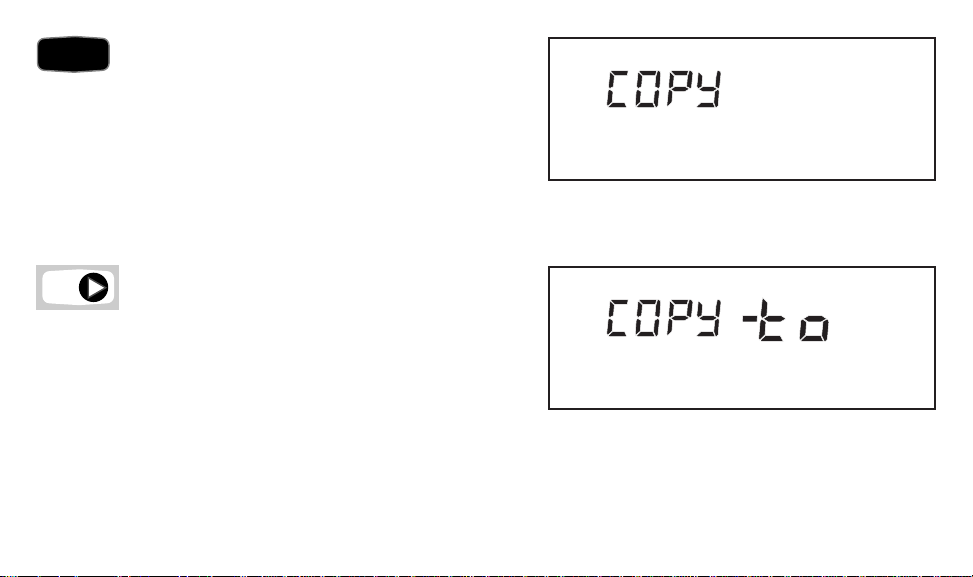

Copying a Day ...............................................................................................................................................	44
Clearing Schedule Period .............................................................................................................................	47
24-Hour Program and Operation ...................................................................................................................	50
24-Hour Preprogrammed Schedule ..............................................................................................................	50
Customizing Your Own 24-Hour Schedule ....................................................................................................	51
Programming Your 24-Hour Schedule ..........................................................................................................	52
Constant Temperature Setpoint Programming ..............................................................................................	57
Setting Temperature and Fan Operation .......................................................................................................	57
	Pub. No. 22-5128-02
3	69-1216

TROUBLESHOOTING.......................................................................................................................................	60
DEFINITIONS ....................................................................................................................................................	63
INDEX ................................................................................................................................................................	66
LIMITED WARRANTY .......................................................................................................................................	67
CUSTOMER ASSISTANCE ...............................................................................................................................	68

	Pub. No. 22-5128-02
4	69-1216

CUSTOMIZING YOUR THERMOSTAT

Program Options Set-Up by Your Trane Dealer

Your Trane dealer has programmed your thermostat using the options checked below. For example, your thermostat displays temperatures in degrees Fahrenheit if the checkbox next to Fahrenheit (°F) is checked. Contact your Trane dealer to reprogram any of the options listed.

NOTE: If no options are checked, those listed in the first column are the factory settings on your thermostat.

Refer to the Definitions section for a description and comparison of Adaptive Intelligent Recovery™ Control (a Honeywell trademark) to Conventional recovery.

	Pub. No. 22-5128-02
5	69-1216

Comfort-R™ Control		Off		On
Adaptive Intelligent		On		Off (Conventional recovery)
Recovery™ Control
Cooling Droop		On		Off
Temperature Display		Fahrenheit (°F)		Centigrade (°C)
Clock Format		12-Hour Clock Format		24-Hour Clock Format
System Setting		Auto/Manual (System		Manual Only (You		Auto only (System
(Heating and Cooling		automatically selects		select Em. Heat, Heat,		automatically
Setting)		Heat or Cool; You can		Cool or Off.)		selects Heating or
		select Em. Heat, Heat,				Cooling.)
		Cool or Off.)
Outdoor Temperature		No outdoor		Outdoor temperature
Display		temperature is		is displayed (requires
		displayed		an outdoor sensor).
Programming		7-Day Programming		24-Hour Programming		Constant Temp-
						erature Setpoint
						Programming

NOTE: The XT500C thermostat is manufactured for the Trane Company by Honeywell Inc. Specific features are unique to Trane and are only available on Trane models.

	Pub. No. 22-5128-02
6	69-1216

GETTING AROUND THE KEYBOARD

The keyboard is located behind the thermostat cover. Three frequently used keys are located next to the display (Increase temperature setting, Decrease temperature setting, and Information key). The thermostat displays important information such as day, time, schedule period, temperature, filter indicator, system and fan operation.

WHAT TIME IS IT?
DISPLAY IS BACKLIT
FOR EASY READABILITY
WHEN A KEY IS PRESSED.
WHAT DAY IS IT?
CURRENT PROGRAMMING
PERIOD (EXAMPLE
DISPLAY SHOWS "WAKE")
CURRENT SYSTEM	DAYLIGHT	FILTER
SETTING (EXAMPLE	SAVINGS TIME	EXPIRATION
DISPLAY SHOWS "HEAT")	INDICATOR	INDICATOR

WHAT'S THE ROOM TEMPERATURE?

INCREASE TEMPERATURE SETTING.

CURRENT FAN SETTING (EXAMPLE

DISPLAY SHOWS "AUTO")

DECREASE TEMPERATURE SETTING.

INFORMATION AT YOUR FINGERTIPS! DISPLAY THE OUTDOOR TEMPERATURE (ON SOME MODELS), CHECK YOUR CURRENT TEMPERATURE SETTINGS, OR DISPLAY FILTER USE

IN NUMBER OF DAYS.

	Pub. No. 22-5128-02
7	69-1216

NO NEED TO WORRY ABOUT PRESSING THE WRONG KEY! RUN PROGRAM, RETURN

TO NORMAL OPERATIONS, OR UNDO LAST ACTION.

HOLD MODE: OVERRIDE

NORMAL PROGRAMMING OPERATION, OR GO INTO VACATION MODE!

SET CURRENT OR

PROGRAM DAY

EASILY CHANGE BETWEEN STANDARD AND DAYLIGHT SAVINGS TIME

SET CURRENT DAY AND TIME (INITIALLY

AND AFTER EXTENDED POWER OUTAGES).

	Run	Set Current	Wake	Leave	Return	Sleep
	Program	Day/Time
			Time	Set Program
	Hold Temp	Day	Heat/Cool	Filter	System	Fan
			Settings

	Daylight	Copy
	Time

EASY PROGRAMMING!	TIME KEYS
COPY ONE	INCREASE OR
PROGRAMMED DAY	DECREASE TIME	Time
TO ANOTHER DAY	SETTING FOR
	CURRENT OR
	PROGRAMMED
	TIMES.

PROGRAM SCHEDULING KEYS

PROGRAM UP TO FOUR TIME PERIODS AND TEMPERATURES FOR EACH DAY OF THE WEEK.

SELECT SYSTEM OPERATION

(EM. HEAT, HEAT, COOL, OFF, AUTO).

CHOOSE FAN OPERATION (ON OR AUTO), OR CHOOSE FAN OPERATION FOR EACH PROGRAM PERIOD OF THE DAY ON SELECT MODELS.

NO MORE GUESSING! SELECT FILTER EXPIRATION TO REMIND YOU TO CHANGE THE FILTER.

SWITCH BETWEEN

HEATING AND COOLING

TEMPERATURE SETTINGS

M13301

SET WAKE TIMES		SET SLEEP TIMES
AND TEMPERATURES		AND TEMPERATURES
Wake	Leave	Return	Sleep
	Set Program
SET LEAVE TIMES		SET RETURN TIMES
AND TEMPERATURES		AND TEMPERATURES
			M17032

	Pub. No. 22-5128-02
8	69-1216

Emergency Heat

The Emergency Heat feature allows you to “turn on” the electric heat section of the system by moving the system switch to the Em. Ht. position. The LED lights and the thermostat displays “Em. Ht.” when the system calls for emergency heating. The thermostat may also display “Aux. Ht.” if the system calls for additional back-up heating (see figure to right).

When the heat pump requires servicing, the LED lights and the system automatically activates emergency heat. After contacting your service technician, clear the LED signal by moving the system switch to Em. Ht. then back to Heat or Auto.

EM HT DISPLAYS WHEN SYSTEM CALLS FOR

HEAT IN EMERGENCY HEAT MODE.

AUX HT DISPLAYS WHEN SYSTEM CALLS FOR Em Ht ADDITIONAL BACK-UP HEATING DURING NORMAL

Aux Ht

CONDITIONS OR IN EMERGENCY HEAT MODE.

System

Em Heat FLAME DISPLAYS DURING CALL FOR HEAT.

EM HT DISPLAYS WHEN SYSTEM SWITCH
IS IN EMERGENCY HEAT POSITION.	M13302

Auxiliary Heat

The auxiliary heaters assist the heat pump under normal conditions when low outdoor temperature occurs. The auxiliary heaters may also operate while in the recovery mode to maintain comfort level. The thermostat displays “Aux. Ht. ” (see figure above) when the auxiliary heating equipment operates.

	Pub. No. 22-5128-02
9	69-1216

FEATURES

•Worry-free programming.

•Comfort-R Comfort Enhancement Process—a unique Trane feature.

•Adaptive Intelligent Recovery Control for comfort and energy savings.

•Wake, Leave, Return and Sleep at the comfort level you select.

•Customize the program schedule—program your own schedule to fit your needs.

•Continuous comfort and energy savings— adjust the schedule as often as you like.

•Temporary schedule override—set the thermostat higher or lower for the current program schedule.

•Vacation mode (1 to 255 days) for added comfort and energy savings. Set the temperature higher or lower for energy savings

while on vacation. At the same time, set the comfort level you want when you return.

•Permanent schedule override—set the thermostat higher or lower indefinitely.

•Set the filter indicator (0, 7, 14, 21, 30, 45, 60, 90, 120, 180, 270, or 360 days) to remind you to change the filter.

•Information at the press of a button—use the Information Key to find out the outdoor temperature (optional accessory), the current setpoints, or the filter status.

•No batteries needed—your thermostat retains the schedule for the life of the product. You never have to reprogram the schedule even after a power outage. (The day and time may need to be reset after an extended power outage.)

•Set or reset the day and time as needed—you can even set Daylight Savings Time.

	Pub. No. 22-5128-02
10	69-1216

FEATURES YOU’LL WANT TO KNOW MORE ABOUT

Comfort-R Comfort Enhancement System

Comfort can best be described as the proper balance of temperature and relative humidity, also known as “your comfort index.” The greatest level of comfort is achieved when the temperature and relative humidity are in balance with your body. When the relative humidity is low, you feel comfortable at a higher temperature. Likewise, when the relative humidity is high, you feel comfortable only at a lower temperature. However, if the relative humidity becomes too high, then true comfort cannot be achieved at any temperature.

The Comfort-R™ system is specifically designed to enhance the moisture removal process of your air conditioning system and to make the air drier. This system is so unique, it received a patent from the U.S. Patent Office. During times of high relative humidity, as well as during mild weather, the Comfort-R system increases the moisture removal ability of your airconditioning system. This results in a lower relative humidity inside your home, which in turn, allows you to feel more comfortable. The resulting lower relative humidity also allows you to maintain the temperature setting on your thermostat at a higher temperature.

	Pub. No. 22-5128-02
11	69-1216

Adaptive Intelligent Recovery Control

Your Thermostat Senses Temperature More Like You Do

Your new thermostat is so smart, it’s almost human. You perceive temperature from a variety of sources, not only from the air in the room, but also from your surrounding walls, windows and furnishings. Humans feel differences in temperature as slight as two degrees Fahrenheit. Common household thermometers and standard thermostats sense only air temperature, which may not reflect how hot or cold the room actually feels to you. Your new thermostat reads both the temperature of the wall and the air, and responds to temperature changes as little as one degree Fahrenheit, so room temperature is more likely to feel right to you and your family.

The Deluxe Programmable Heat Pump Thermostat acts like a computer. When calculating the time to turn on your heating or cooling system, it considers (1) air temperature, (2) wall temperature, and (3) the time you want to reach the comfort temperature. After considering

these three things, Adaptive Intelligent Recovery™ control gradually changes the temperature from the energy savings setting to the comfort setting (for example, from a heating temperature of 62° at night to 70° in the morning).

The system runs continuously until the comfort temperature you choose is reached without overshooting the setting. This saves energy. How do you know when the system is in recovery? The thermostat displays In Recovery whenever the thermostat activates Adaptive Intelligent Recovery Control. So, In Recovery displays during the recovery time from Sleep to Wake and from Leave to Return.

	AM
	Room
Mon	In Recovery
Sleep
System	Fan
Heat	Auto
	M10344

In Recovery indication shown in example above.

	Pub. No. 22-5128-02
12	69-1216

After installation or new schedule programming, your thermostat learns from experience. How? Each day it checks how closely it hit the recovery target (for example, 70° at 6:00 AM) and adjusts the next day’s recovery start time accordingly. After four to eight days, the thermostat has adjusted to local weather, your lifestyle, the construction of your home, and your heating and cooling system.

The Optimum Comfort and

Energy Savings Solution

In this example, Adaptive Intelligent Recovery Control starts to recover at 4:00 AM and reaches the comfort temperature of 68° at 7:00 AM. Recovery time varies with the starting temperature and the comfort temperature you choose.

Your new thermostat saves energy and keeps you comfortable at the same time. By now you may be wondering how to program your thermostat and how to use some more time and energy-saving features.

First, let’s look at features you’ll be using often, like how to override the current programming mode or hold the thermostat at a specific temperature while you go on vacation. You can even program the thermostat to return to normal scheduled programming on your last day of vacation so you don’t have to worry about energy saving while you are gone or not being comfortable when you return.

	Pub. No. 22-5128-02
13	69-1216

						At 7:00 AM System
						Operating in Comfort Mode
							AM	SET
				At 6:00 AM			PM	PT
						SUN MON TUE	WED THU FRI SAT COOL ON HEAT ON
				Recovery		MORNING LEAVE	RETURN SLEEP TEMPORARY UNOCCUIPIED
				Continues
TEMPERATURE					AM	SET
					PM	PT
		At 5:00 AM		SUN MON TUE WED THU	FRI SAT COOL ON HEAT ON
				WAKE LEAVE RETURN NIGHT TEMPORARY UNOCCUIPIED
		Recovery
		Continues
			AM	SET
			PM	PT
		SUN MON TUE WED THU	FRI SAT COOL ON HEAT ON
	At 4:00 AM	WAKE LEAVE RETURN NIGHT TEMPORARY UNOCCUIPIED
	Recovery Begins
	AM	SET
	PM	PT
	SUN MON TUE WED THU FRI SAT COOL	ON HEAT ON
	WAKE LEAVE RETURN NIGHT TEMPORARY	UNOCCUIPIED
	ENERGY	RECOVERY FROM ENERGY SAVINGS						COMFORT
	SAVINGS
								PERIOD
	PERIOD
				TIME

THE THERMOSTAT USES THE SAME SCHEME TO RETURN GRADUALLY	M17033
TO LOWER COMFORT TEMPERATURE DURING THE COOLING SEASON.

Pub. No. 22-5128-02

14

69-1216

NEAT STUFF YOU’LL BE USING OFTEN

Setting Temporary Temperatures

If your thermostat is set for 7-Day or 24-Hour Operation, you can override the current schedule period and change the temperature setting until the next schedule period, or change the temperature setting while you are on vacation. You can also change the temperature setting indefinitely.

Changing Temperature Setting Until the Next Schedule Period

NOTE: This feature does not apply to Constant Temperature Setpoint Programming.

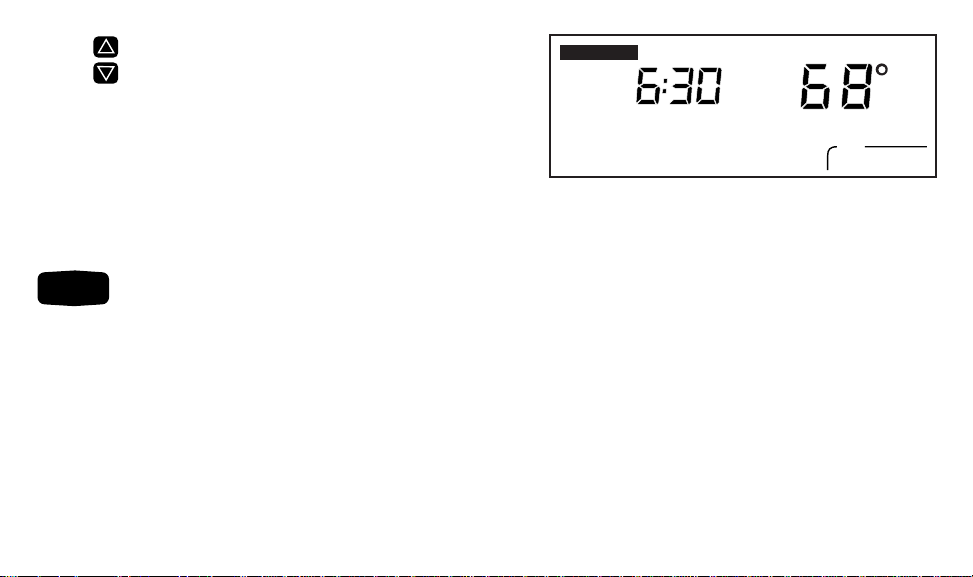

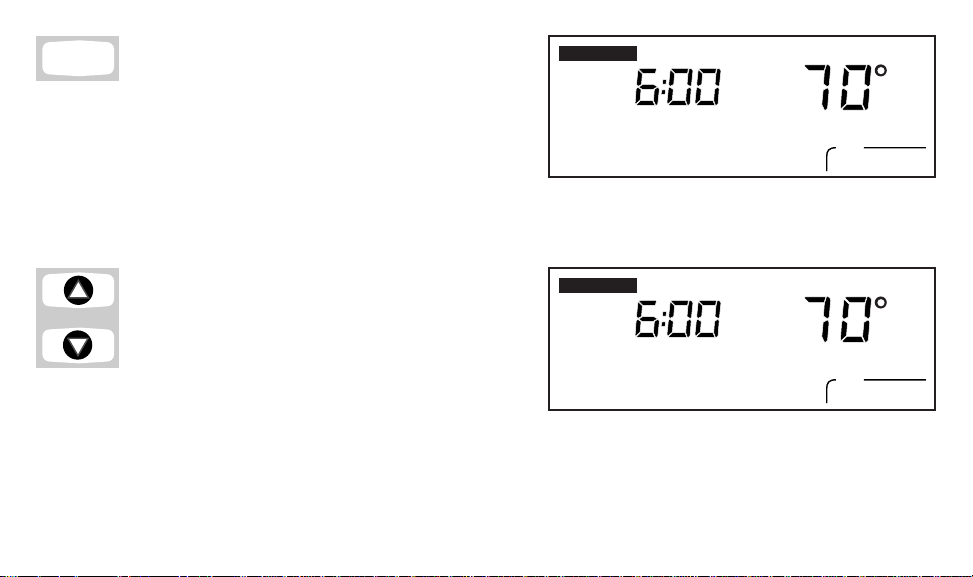

	Press Increase ▲ or Decrease ▼ until the desired
		Temporary Setting
	temperature setpoint displays.

M17035

While selecting a temporary setting, only the setpoint displays.

	Pub. No. 22-5128-02
15	69-1216

The temporary temperature setting you select displays for approximately 3 seconds. The display reads Temporary until the next period begins, or you cancel the Hold.

Run

Program

IMPORTANT

To cancel the Hold before the designated time, press Run Program.

	Temporary
	AM
Mon	Heat
System	Fan
Heat	Auto
	M12984

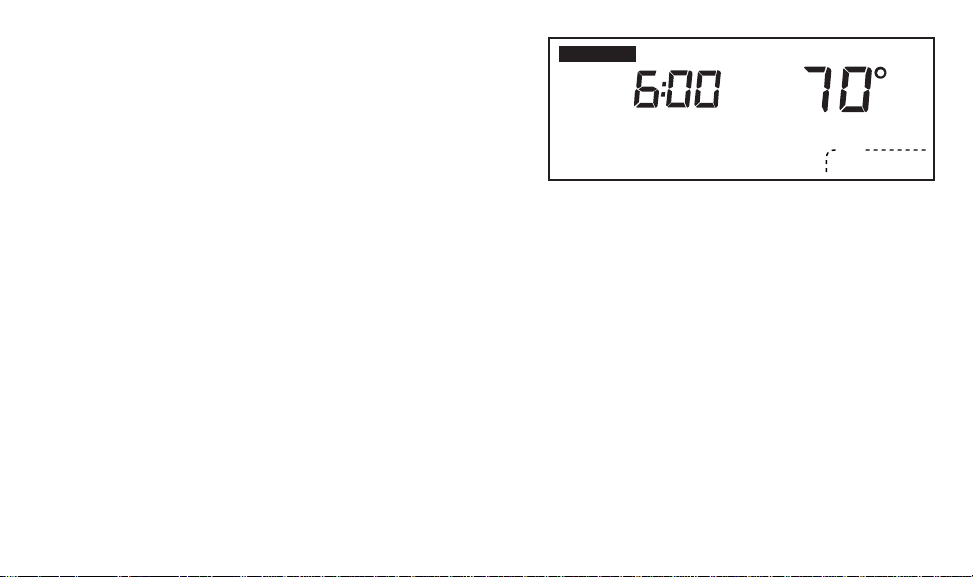

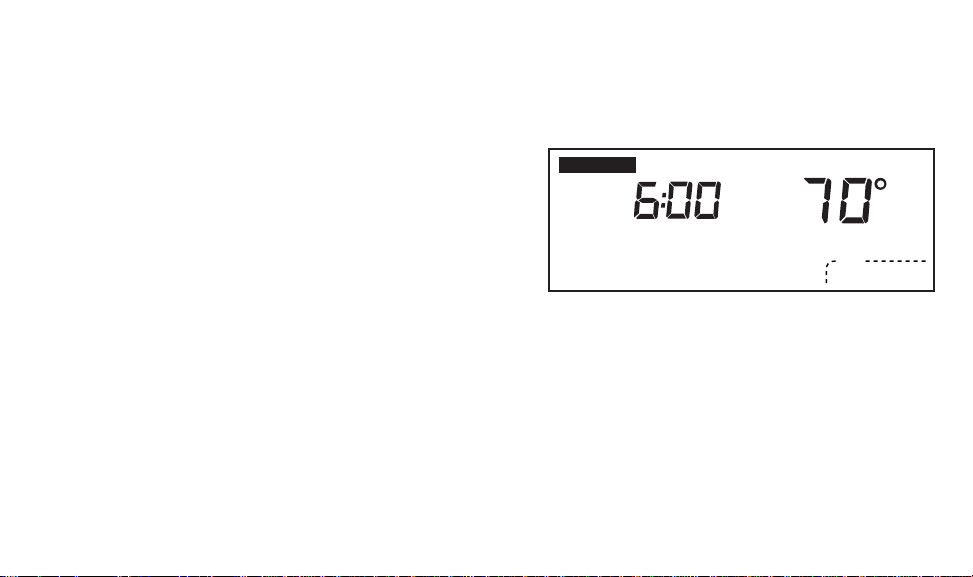

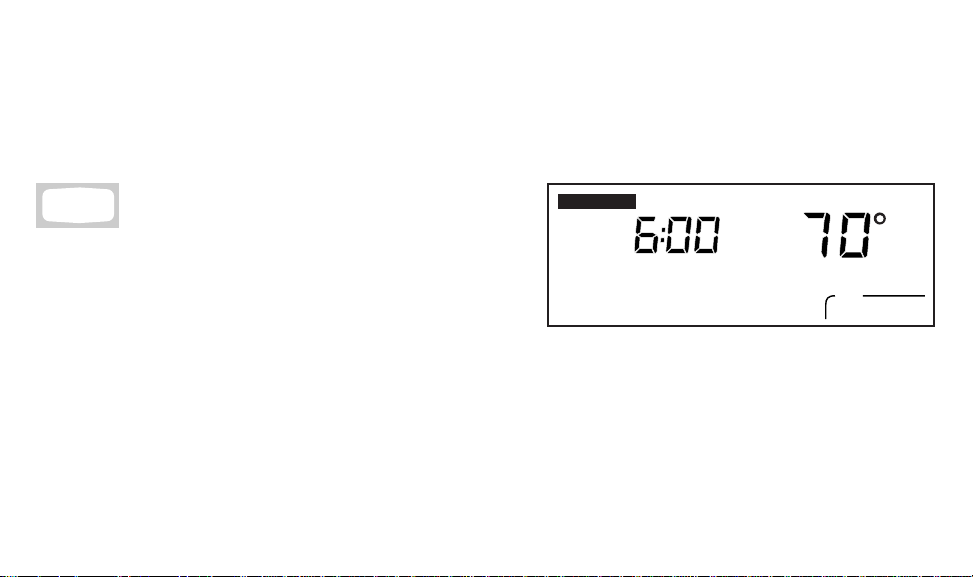

After selecting a temporary setting, display reads Temporary until canceled.

Example displays shows temporary heat setting of 70° at 6:00 AM.

NOTE: If “▲” or “▼” appears under the temperature display, it means that both the heating and cooling setpoints are being adjusted. Tapping the key changes both the heat and cool setpoints by one degree. Press after the desired setpoint is reached to verify the setpoints.

NOTE: While in temporary operation, the thermostat uses conventional recovery for that period only. The thermostat assumes you desire to maintain the temporary setting until the end of the period.

	Pub. No. 22-5128-02
16	69-1216

Changing Temperature Setting Indefinitely

NOTE:

NOTE:

Hold Temp

This feature does not apply to Constant Temperature Setpoint Programming.

The current time does not display while in this mode.

1. Press Hold Temp once.		Setting
		Heat
	System	Fan
	Heat	Auto

M17040

Pressing Hold Temp once displays the thermostat in Hold mode. Example display shows temporary heat setting of 60°.

	Pub. No. 22-5128-02
17	69-1216

Heat/Cool

Settings

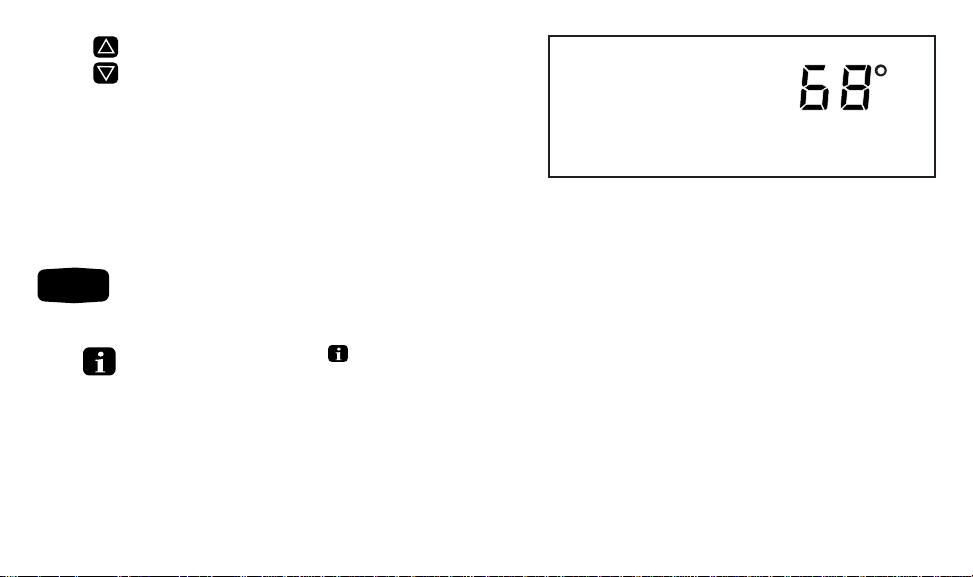

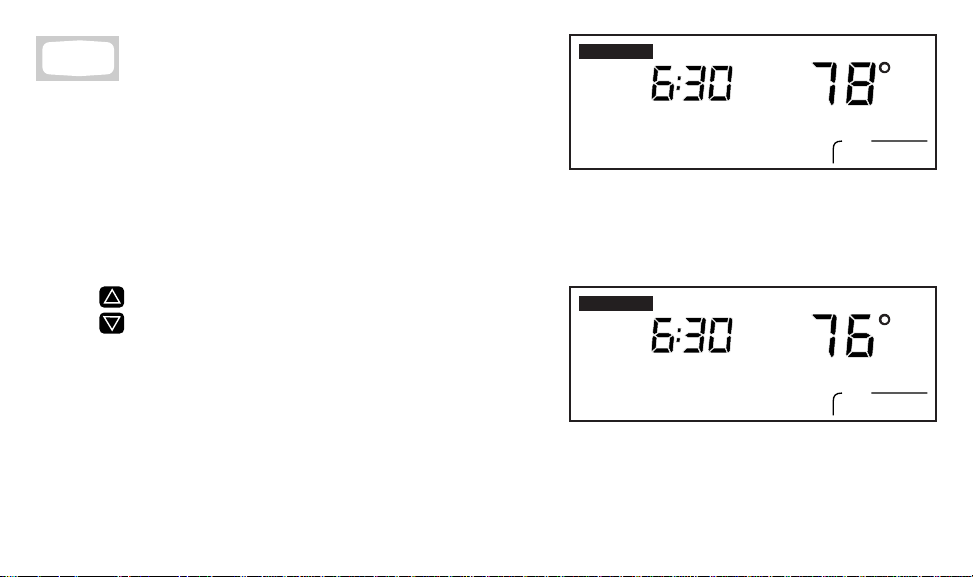

2.Press Increase ▲ or Decrease ▼ to change the temperature setpoint, if desired.

	Setting
	Heat
System	Fan
Heat	Auto

3.Press Heat/Cool Settings to change between heat and cool settings.

M17041

By pressing the Temperature keys, you can select a temporary temperature. This temperature setting remains until the hold is canceled.

Example displays shows heat set to 61°.

	Setting
	Cool
System	Fan
Heat	Auto

	M17042
	Pressing Heat/Cool Settings displays the other temperature setpoint.
	Example displays shows temporary cooling setting of 78°.
	Pub. No. 22-5128-02
18	69-1216

4.Press Increase ▲ or Decrease ▼ to adjust temperature settings.

	Setting
	Cool
System	Fan
Heat	Auto

M17043

Pressing the Temperature keys changes the temporary temperature.

Example displays shows temporary cooling setting of 80°.

NOTE: The display changes from the setpoint to the room temperature after approximately 3 seconds.

Run

Program

IMPORTANT

To cancel the Hold, press Run Program.

	Pub. No. 22-5128-02
19	69-1216

Vacation Mode

NOTE:

Hold Temp

This feature does not apply to Constant Temperature Setpoint Programming.

1. Press Hold Temp twice.

		Setting
Hold for
Mon	Days	Heat
Wake
System		Fan
Heat		Auto
		M17036

Pressing Hold Temp twice displays the thermostat in Vacation mode.

Example displays shows temporary heat setting of 60°.

	Pub. No. 22-5128-02
20	69-1216

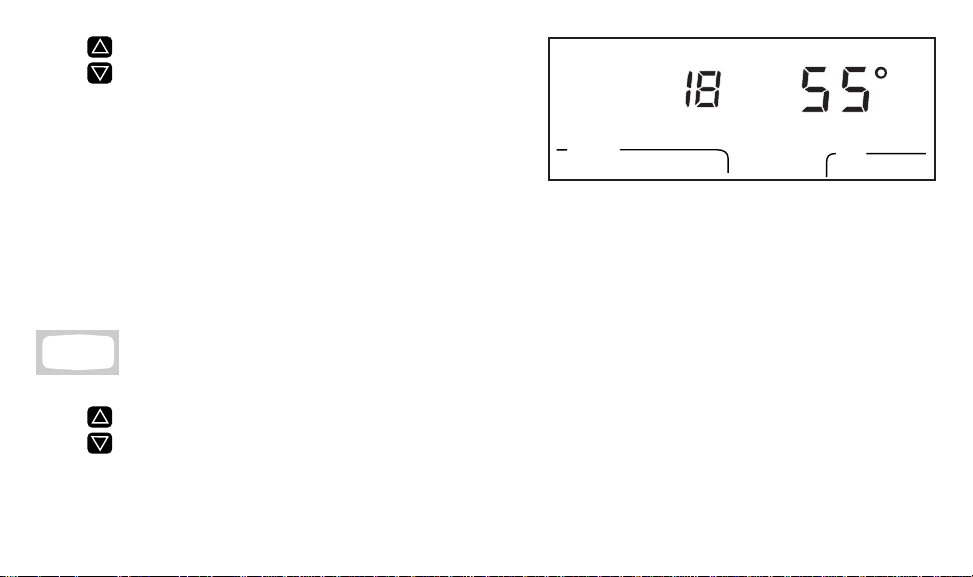

2.Press Time ▲ or Time ▼ until the desired number of days displays (1 to 255 days).

Time

		Setting
Hold for
Fri	Days	Heat
Wake
System		Fan
Heat		Auto
		M17037

By pressing the Time keys, the number of vacation days is selected. Example displays shows 18 vacation days.

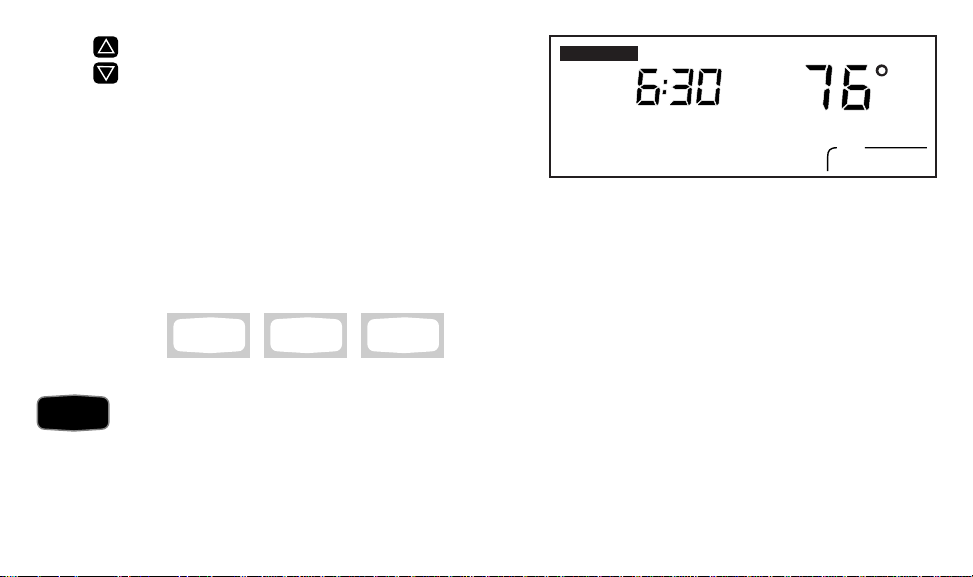

3. Press Wake, Leave, Return or Sleep to select the						Setting
period the Hold will stop.
				Hold for
Wake	Leave	Return	Sleep
				Fri	Days	Heat
				Return
				System		Fan
				Heat		Auto
						M17038
				In this example, the Hold will stop after the 18th day
					at the beginning of the Return period.
						Pub. No. 22-5128-02
			21			69-1216
