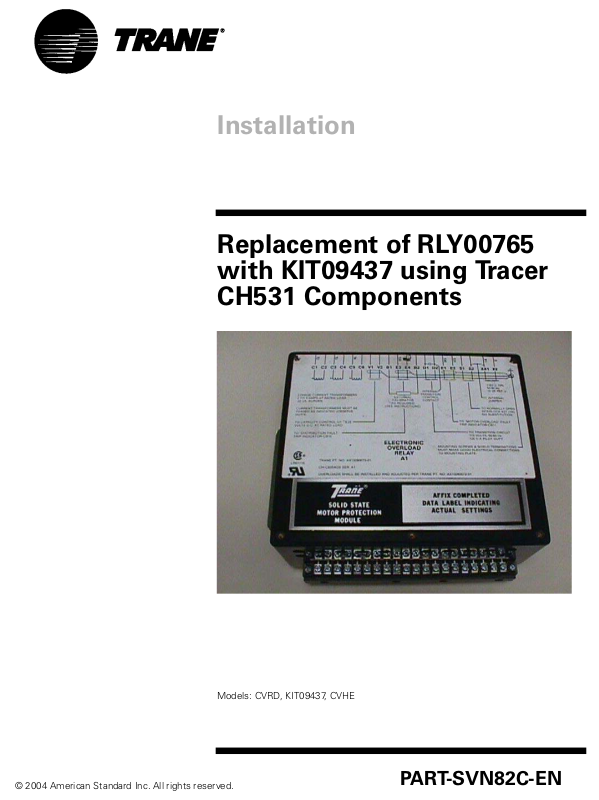

Trane CVRD, KIT09437, CVHE Replacement of RLY00765 with KIT09437 using Tracer CH531 Components

Installation

Replacement of RLY00765
with KIT09437 using Tracer
CH531 Components

Models: CVRD, KIT09437, CVHE

© 2004 American Standard Inc. All rights reserved.

PART-SVN82C-EN

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warnings and Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Literature change history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Main components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Field provided material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Removal of existing components . . . . . . . . . . . . . . . . . . . . . . . . 5

Mounting and wiring of LLIDs on backpanel . . . . . . . . . . . . . . . 6

Wiring from backpanel components to starter components . . . 9

Mounting the DynaView human interface . . . . . . . . . . . . . . . . 12

Connecting LLIDs to the inter-processor communication bus . 13

Current transformer (CT) work . . . . . . . . . . . . . . . . . . . . . . . . . 13

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Typical original wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . 15

Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

New control system wiring diagrams. . . . . . . . . . . . . . . . . . . . 18

Appendix C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Configuration view options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Appendix D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Binding view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Appendix E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Setpoint view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2 PART-SVN82C-EN

General Information

Warnings and Cautions

NOTICE: Warnings and Cautions appear at appropriate sections through-

out this literature. Read these carefully.

 WARNING: Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

 CAUTION: Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.

CAUTION: Indicates a situation that may result in equipment or property­damage only accidents.

Literature Change History

PART-SVN82A-EN (March 2004)

Original issue of manual. Describes the installation procedures required to replace
Trane motor protection module, RLY00765. This new KIT09437 uses a portion of the
Tracer™ CH530 controls system.

PART-SVN82B-EN (July 2004)

Revisions to original issue of manual. Updated wiring diagrams and detailed wiring
instructions. Updated to improve layout, content and diagrams.

PART-SVN82C-EN (September 2004)

Minor revisions to manual. Updated ship with list in Table 1 and wiring instructions
found in Table 2. Added information in removal of components.

About this manual

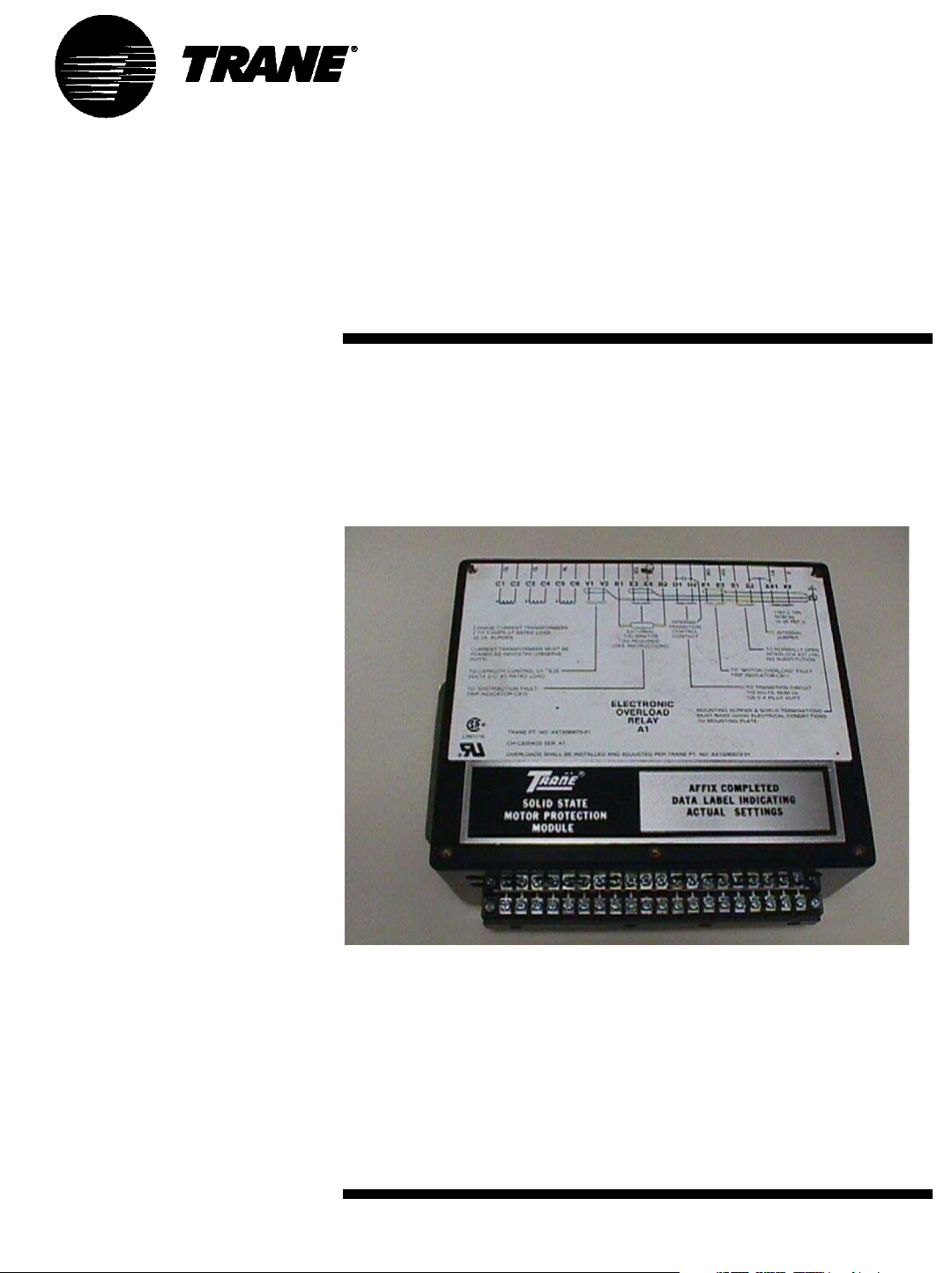

RLY00765, the Trane Motor Protection Module (also called the Electronic Overload,
A1), is no longer available.

KIT09437 is a functional replacement utilizing components used with Tracer CH531
control systems. It is not a complete CH531 controls package installation. It does not
provide distribution fault protection. As configured this kit does not provide
momentary power loss. It can provide phase loss and phase rotation protection along
with standard motor protection features relating to currents and load. This kit will
measure motor currents and provide an analog output to be used as input for existing
temperature control device like the MOD00182.

To properly install this replacement, the technician must have a good, working
knowledge of Tracer CH530 or CH531 control systems.

Three (3) new current transformers (CTs) are required to complete this installation.
They are not included in this kit. They must be ordered separately based on unit RLA.
See Table C4 or C5 in Appendix C for CT sizing details and part numbers.

PART-SVN82C-EN 3

General Information

Table 1. Main components of KIT09437

Qty PRIDE part # Description

1 TRR01701 2T5, 120 Vac to 27 Vac transformer

1 BRD02102 2A50, CH531 Power supply

1 BRD02945 2A54, Dual Analog Input/Output (DAIO) LLID

1 BRD02944 2A56, Dual Relay Output (DRO) LLID

1 BRD02942 2A53, Dual Binary Input (DBI) LLID

1 MOD01404 2A55, DynaView human interface

1 BRD02950 2A1, Starter Module

1 TRR01860 2K40, Signal Conditioner [2-10 Vdc to 0-(-8.25) Vdc]

1 BLK00855 8 pin mounting base for Signal Conditioner, TRR01860

2 RLY02547 2K12, Relay, SPDT, 10 amp rating

1 RLY01710 2K11, Relay, DPDT, 12 amp rating

1 no part number Terminal block on Din Rail

3 Not Included

(see note 1)

Current Transformers (CTs)-See note 1

Note 1: Three (3) new current transformers (CTs) are required to complete this
installation. They are not included in this KIT. They must be ordered separately based
on unit RLA. See Table C4 or C5 in Appendix C for CT sizing details and part
numbers.

Field provided material

Some field provided material will be required to perform the replacement. This is a
partial list in addition to normal tools and hardware.

• Wire-red #16 AWG control wire will be required to make the connections
between LLIDs and between LLIDs and existing components.

• Computer and cable for CH530 system programming.

• Wire markers, wire nuts, cable ties, and wire splicers-wire markers will be
required to identify field installed wiring. Wire nuts and splicers may be needed
to splice wires to complete wiring runs. Cable ties may be needed to “clean up”
wiring runs.

• Digital multi-meter, with phase detection capability.

4 PART-SVN82C-EN

Installation

Removal of Components

 WARNING
Hazardous Voltage!

Disconnect all electric power, including remote disconnects before
servicing. Follow proper lockout/tagout procedures to ensure the
power can not be inadvertently energized. Failure to disconnect power
before servicing could result in death or serious injury.

It is assumed that all work can be done inside the starter panel. No wiring should
have to be done in the control panel. However, access to the control panel to verify
wiring origins may be necessary.

Removal of Motor Protection Module (A1 or MPM), and Circuit Breakers CB11 and
CB15

1. Before removing the MPM, mark wires landing on V1, V2, D1 (wire #125B) & D2
(wire #127A). These wires will be re-landed on CH531 components.

2. Remove wires from CTs that land on C1-C6. The existing CTs can be removed
and discarded. New CTs will be used with CH531 components. The new CTs are
not included in this KIT. They must be ordered separately. See Table 1 in Appendix
C for details.

3. Remove wires (#130 and #131) for CB11 (Compressor Motor Current Overload)
from F1 and F2. Remove wires (#132 and #133) for CB15 (Distribution Fault) from
E3 and E4. These two circuit breakers, CB11 and CB15, in the starter panel door
will have to be removed as they will no longer be required, the functions will be
performed by the CH531 components.

See Appendix B for wiring details.

A sheet of black vinyl is included so that “patches” may be cut to fit and be placed
over the holes in the starter door where these breakers were mounted.

The Starter Circuit Fault Indicator (CB13) can remain as wired.

Remove the remaining wires from the MPM and remove the module.

When complete the bottom bracket should be left attached to the starter backpanel.
The new component sub-panel sent in this kit will attach to the tapped holes on the
flanges of the existing bottom bracket.

PART-SVN82C-EN 5

Installation

Mounting and wiring of LLIDs on backpanels

Install the LLIDs and components on the backpanels provided as shown in Figure 1.

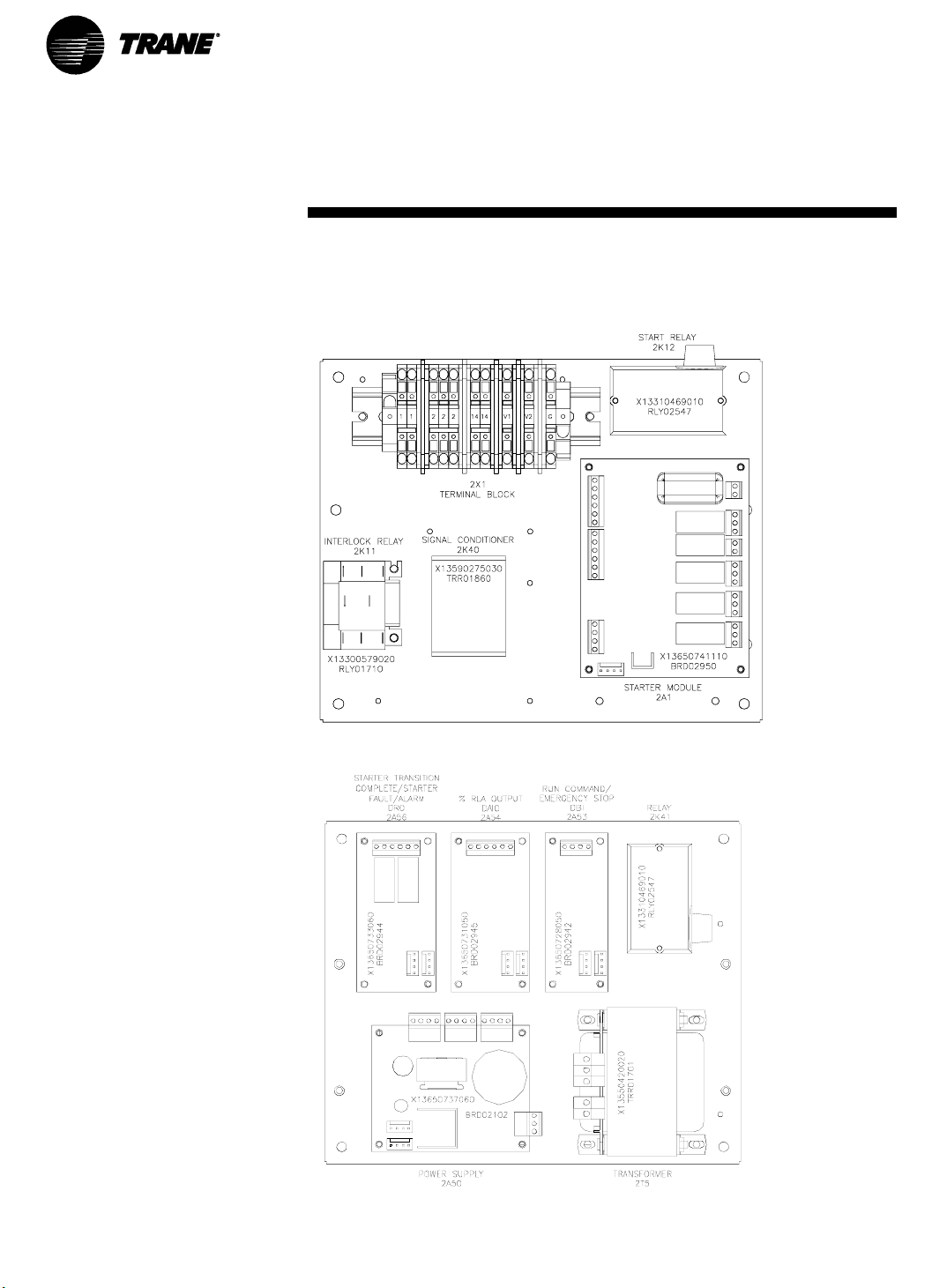

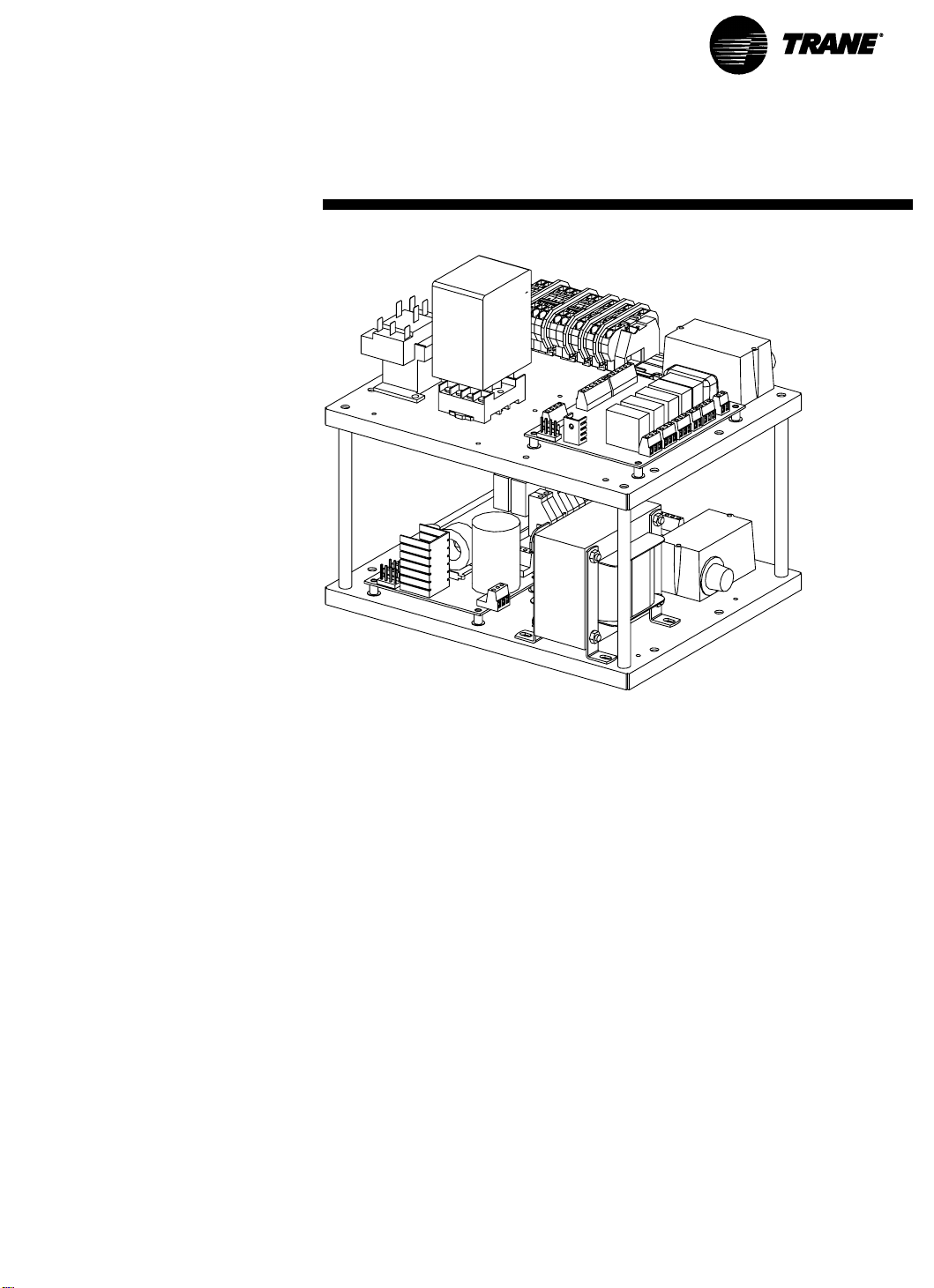

Figure 1. Component layout, top and bottom panels

6 PART-SVN82C-EN

Installation

Figure 2. Panel assembly detail

Assemble the two backpanels using the standoffs and screws provided. The
standoffs must be attached to the bottom panel before it can be mounted in the
starter panel.

First wire the connections between the LLIDs and components on the backpanels
and the terminal block, 2X1 according to the following table. Note this wiring could
be done prior to arrival on jobsite.

PART-SVN82C-EN 7

Installation

Table 1. Point to point wiring instructions for sub panel

From To

Wire
Number

711 Power supply, 2A50 J2-2 Transformer, 2T5 X1

712 Power supply, 2A50 J2-1 Transformer, 2T5 X2

710 Power supply, 2A50 J2-3 2X1, terminal block 2X1-G

713 Transformer, 2T5 H1 2X1, terminal block 2X1-1

714 Transformer, 2T5 H3 2X1, terminal block 2X1-2

708 Signal conditioner, 2K40 1 2X1, terminal block 2X1-1

709 Signal conditioner, 2K40 3 2X1, terminal block 2X1-2

704 Signal conditioner, 2K40 6 Dual Analog

705 Signal conditioner, 2K40 5 Dual Analog

706 Signal conditioner, 2K40 8 2X1, terminal block 2X1-V2

707 Signal conditioner, 2K40 7 2X1, terminal block 2X1-V1

Yellow Relay, 2K41 Yellow wire Dual Binary Input,

Orange Relay, 2K41 Orange wire Dual Binary Input,

White/
Yellow

White/
Black

W2 Dual Binary Input, 2A53 J2-3 Dual Binary Input,

700 Starter Module, 2A1 J12-2 2X1, terminal block 2X1-2

702 Starter Module, 2A1 J10-3 2X1, terminal block 2X1-14

none Starter Module, 2A1 J10-1 2K11 Interlock Relay 1

none 2K11 Interlock Relay 3 2K12 Start Relay Yellow

none 2K12 Start Relay Orange 2K11 Interlock Relay Coil

none 2K11 Interlock Relay Coil 2X1, terminal block 2X1-2

703 Starter Module, 2A1 J8-1 2K11 Interlock Relay 3

none Starter Module, 2A1 J8-1 2K12 Start Relay White/Black

none 2K12 Start Relay White/Yellow 2X1, terminal block 2X1-2

Component
Number

Relay, 2K41 White/Yellow wire 2X1, terminal block 2X1-2

Relay, 2K41 White/Black wire 2X1, terminal block 2X1-14

Terminal Number
(or Wire)

Component
Number

Input/Output, 2A54

Input/Output, 2A54

2A53

2A53

2A53

Terminal
Number
(or Wire)

J2-3

J2-1

J2-1

J2-2

J2-4
(See Note 1)

Note 1: Jumper wire W2 required if Emergency Stop feature not used.

8 PART-SVN82C-EN

Installation

Wiring from backpanel components to starter components

Wiring from the terminal block and starter module can be run to various existing
starter terminals. The terminal numbers used for the starter panel assume a Trane­provided, unit-mounted wye-delta starter. Other starter types may use different

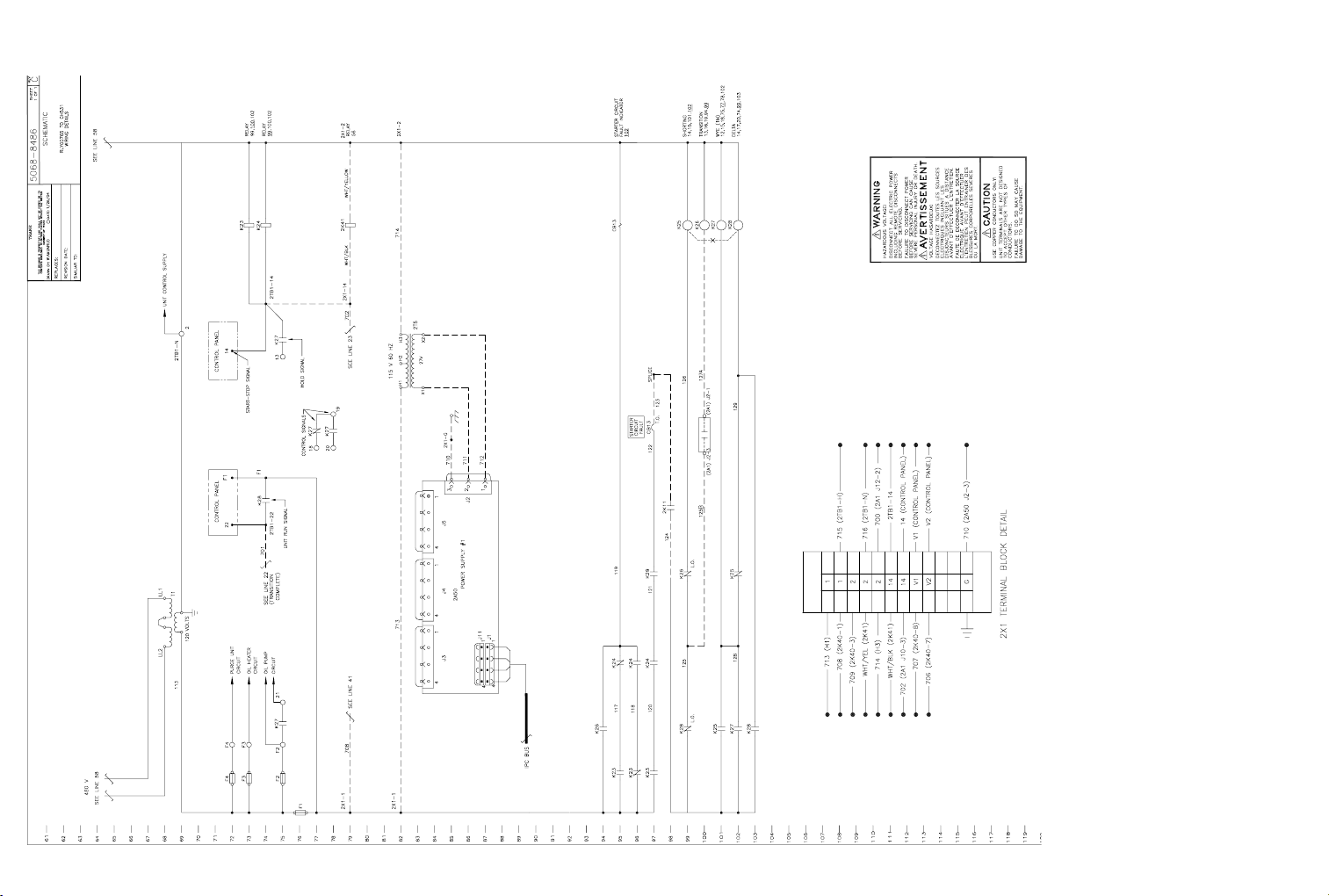

terminal numbering. See Appendix A for a copy of existing wiring diagrams used for
this replacement.

The Starter Module will not control the entire starting process. The original sequence
of events of the existing starter will be preserved. The starter module will initiate the
start signal, provide a transition signal (for wye-delta starters), and monitor motor
currents just as the MPM did. CH531 requires a “transition complete” signal back
from the starter, which the MPM did not.

Table 2. Point to point wiring for backpanel to starter components

From To

Wire # Component # Terminal #

715, 120 Vac “hot”
in starter

716, 120 Vac
“neutral” in starter

14 2X1,Terminal block 2X1-14 2TB1, T. block 2TB1-14

V1 2X1,Terminal block 2X1-V1 2TB1, T. block 2TB1-V1

V2 2X1,Terminal block 2X1-V2 2TB1, T. block 2TB1-V2

125B Starter Module, 2A1 J2-3 Wire #125B See note 3

127A Starter Module, 2A1 J2-1 Wire #127A See note 3

701 Starter Module, 2A1 J12-1 2TB1- 2TB1-22

101A-106A Starter Module, 2A1 J7-1…6 CTs See Appendix B

123 CB13 123 2K11 4

124 K28 contacts 124 2K11 6

2X1,Terminal block 2X1-1 2TB1, T. block 2TB1-H1 or F1

2X1,Terminal block 2X1-2 2TB1, T. block 2TB1-N or 2

(or Wire)

Component # Terminal #

(or Wire)

(see note 1)

(see note 2)

(see note 2)

(see note 4)

for wiring details.

Note 1: See Figure 3 for details

Note 2: The V1 and V2 terminals refer to the terminals on the U1 Capacity Control

Module located in the unit control panel. These wires were connected to the MPM
terminals V1 and V2. Re-land these wires on terminal block 2X1-V1 and -V2. See
Figure 4 for details.

Note 3: The J2-1 & -3 connections on the starter module are to initiate transition. This
function was performed by the D1 and D2 terminals on the MPM. Wire #125 was
previously connected to D1. Re-land this wire on J2-3. Wire #127 was previously
connected to D2. Re-land this wire on J2-1.

Note 4: The J12-1 input is indicating the starter has transitioned. It is wired on the
NO contacts for the K28 Delta (run) contactor. On some starters, this is listed as

PART-SVN82C-EN 9

Installation

terminal 2TB1-7. On other starters this is shown as the terminal where the wire from
the control panel terminal #22 is landed. It needs to be wired “downstream” of a set
of the NO contacts of K28.

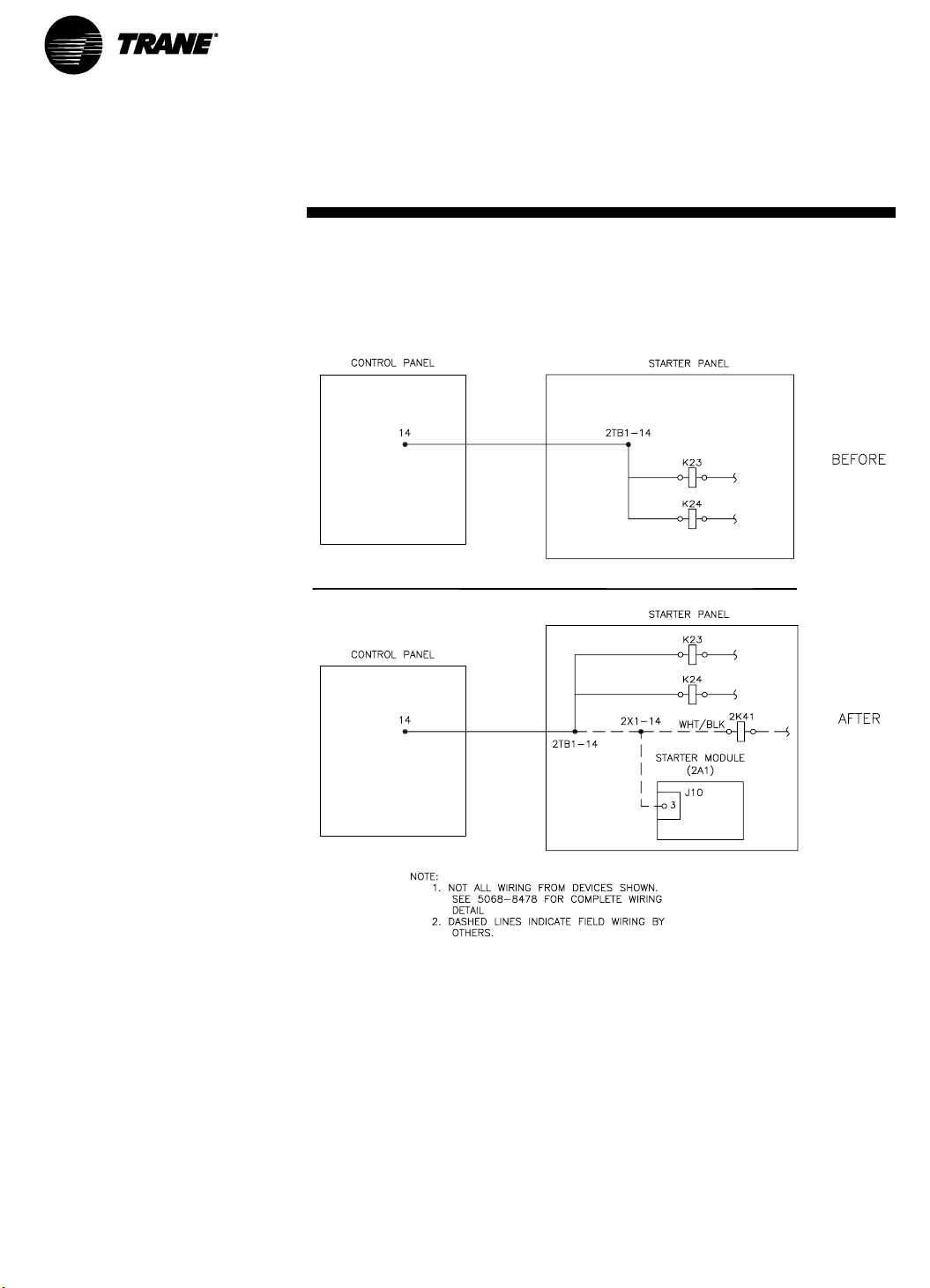

Figure 3. Wiring detail for start connection, 5068-8481, revision B

10 PART-SVN82C-EN

Installation

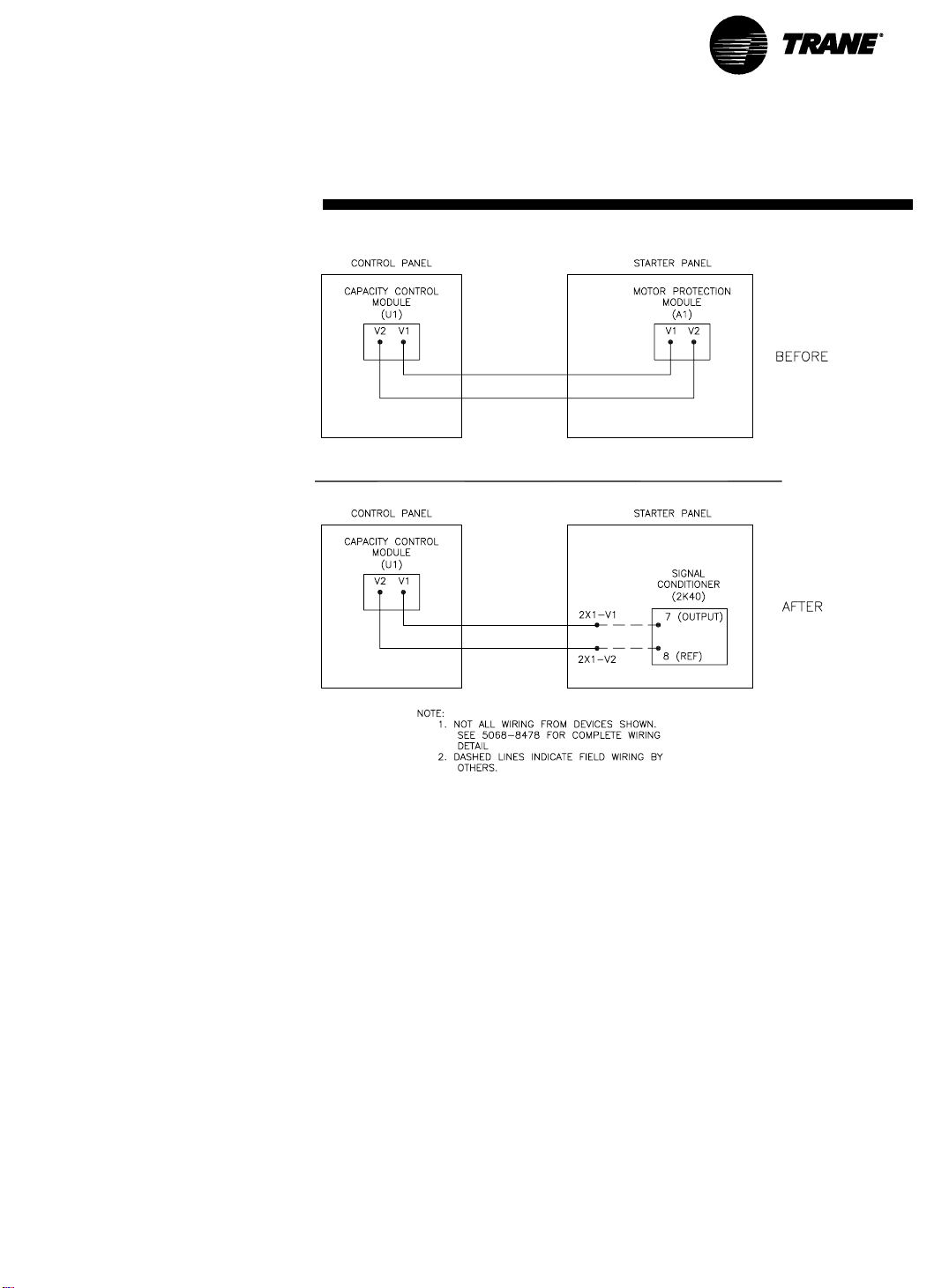

Figure 4. Wiring detail for 2X1-V1 and 2X1-V2 connections, 5068-8480, revision B

 WARNING
Live Electrical Components!

During installation, testing, servicing and troubleshooting of this product, it
may be necessary to work with live electrical components. Have a qualified
licensed electrician or other individual who has been properly trained in
handling live electrical components perform these tasks. Failure to follow all
electrical safety precautions when exposed to live electrical components may
result in death or serious injury.

PART-SVN82C-EN 11

Installation

Mounting the DynaView (2A55) human interface

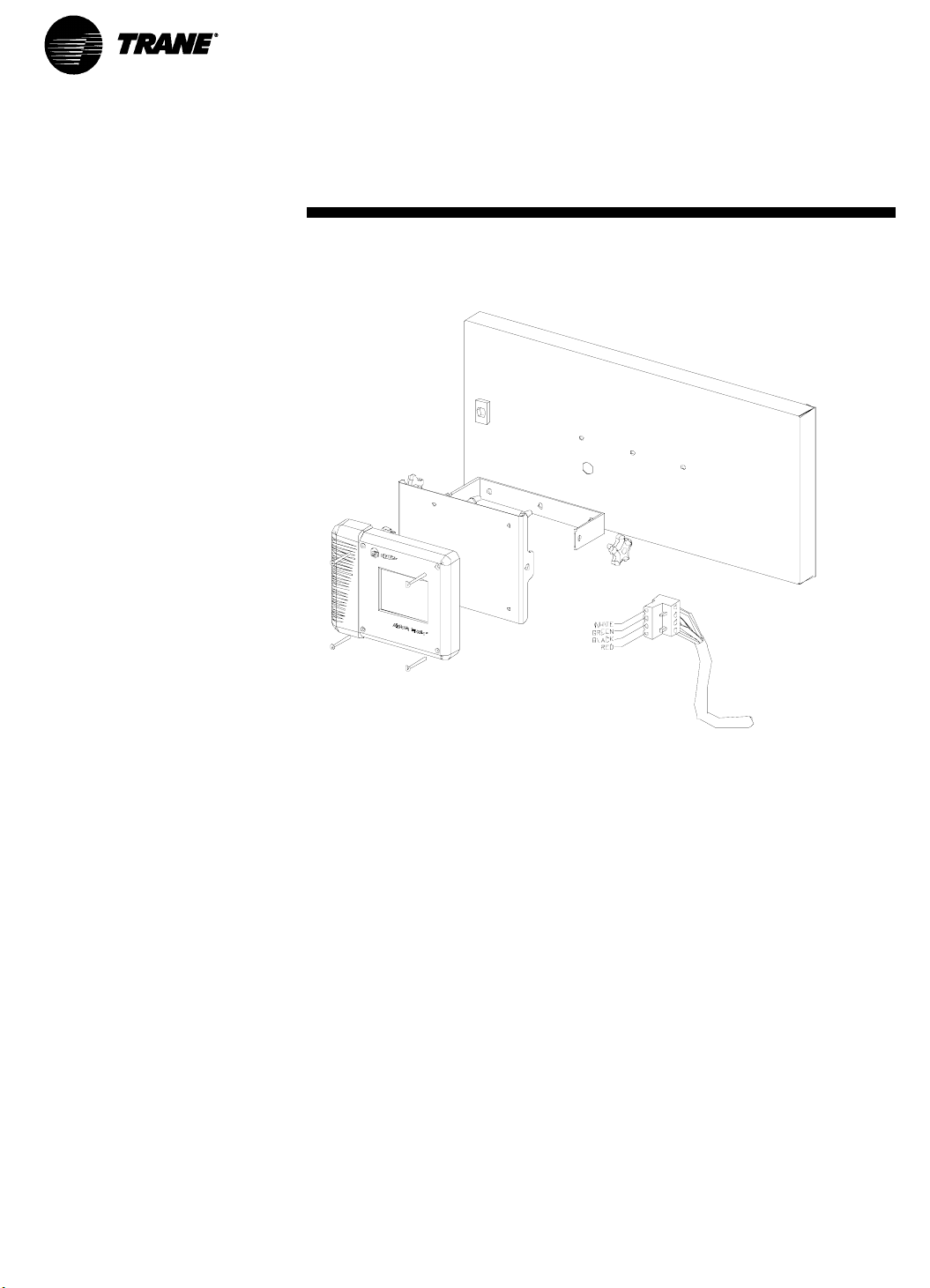

Figure 5. Installing the DynaView and tilt bracket

1. If the tilt bracket is not required (DynaView mounted directly to door) skip Steps
2, 3, 6, and 8.

2. Attach the grommet in the 1" hole in the flat mounting panel (tilt bracket).

3. Mount the tilt bracket base to the door using the two screws provided.

4. Attach the Phoenix connector to the three foot long DynaView cable.

5. Attach the Phoenix connector on the DynaView cable to the DynaView (red-1,
black-2, green-3, and white-4).

6. Thread the other end of the DynaView cable through the hole in tilt bracket flat
mounting panel.

7. Attach the DynaView to the flat panel using the four screws/nuts provided. Watch
that the cable does not become pinched between DynaView and the flat mount­ing panel. Only tighten enough to slightly compress the gasket. Be careful to
NOT bottom out the DynaView against the panel, only the gasket should touch
the panel.

8. Attach the flat mounting panel to the tilt bracket brace using the two threaded
adjustment wheels provided.

9. Thread the DynaView cable through the hole in door.

10. Attach the DynaView cable to the four pin connection on LLID 2A50, power sup-

ply. (Note: this cable can be attached to any LLID as all LLIDs will be connected
together on IPC bus.)

12 PART-SVN82C-EN

Startup

Connecting LLIDs onto the inter-processor communication
(IPC) bus

Starting at the power supply, connect all LLIDs together to form the IPC bus using
the IPC bus cable with connectors. Either the J1 or the J11 connection on each LLID
may be used. Cut off extra cable and seal ends using CAP00876 and ADH00023.

Current transformer (CT) work

Three new CTs must be installed to complete this installation. The new CTs are not
included in this KIT. They must be ordered separately. See Table 1 in Appendix C for
details.

Before installing these CTs use a digital multi-meter, with phase detection capability
to identify and mark incoming power, L1, L2 and L3 or phase A, B, and C.

Install the new CTs as shown on the wiring diagram in Appendix B. Pay careful
attention to the polarity dot and it's orientation.

Wire the leads from the spade connectors to the starter module as shown on the
wiring diagram.

Startup

The following table describes the steps to take the controls from “installed” to
“operational”. Specific details on certain steps (configuration, binding, etc.) are
contained in appendices referenced in the particular step.

 WARNING
Live Electrical Components!

During installation, testing, servicing and troubleshooting of this product, it
may be necessary to work with live electrical components. Have a qualified
licensed electrician or other individual who has been properly trained in
handling live electrical components perform these tasks. Failure to follow all
electrical safety precautions when exposed to live electrical components may
result in death or serious injury.

1. Obtain CH530 Software: From http://www.trane.com/commercial/software/
tracerch530/, download the latest Java™ runtime, TechView™, and MP software.
Select CVR software from drop-down list. After downloading be sure to install all
files in the proper order following instruction provided on this website.

2. Run TechView on laptop and connect RS232 cable from laptop to DynaView.

3. Unplug the IPC bus (including DynaView) from the power supply LLID: this will
isolate the power supply LLID.

4. “Power Up” the existing control panel using auxiliary power.

5. Re-connect IPC bus to power supply and DynaView.

6. From the Chiller Software tab in TechView, download “CVR” MP software onto
DynaView.

7. Configure the software in TechView using the “Unit Type”, “CH530”, and “Starter”

PART-SVN82C-EN 13

Startup

tabs in Configuration View: See Appendix C for details on configuration items.
Write the selected values in the table provided in Appendix C for future refer­ence.

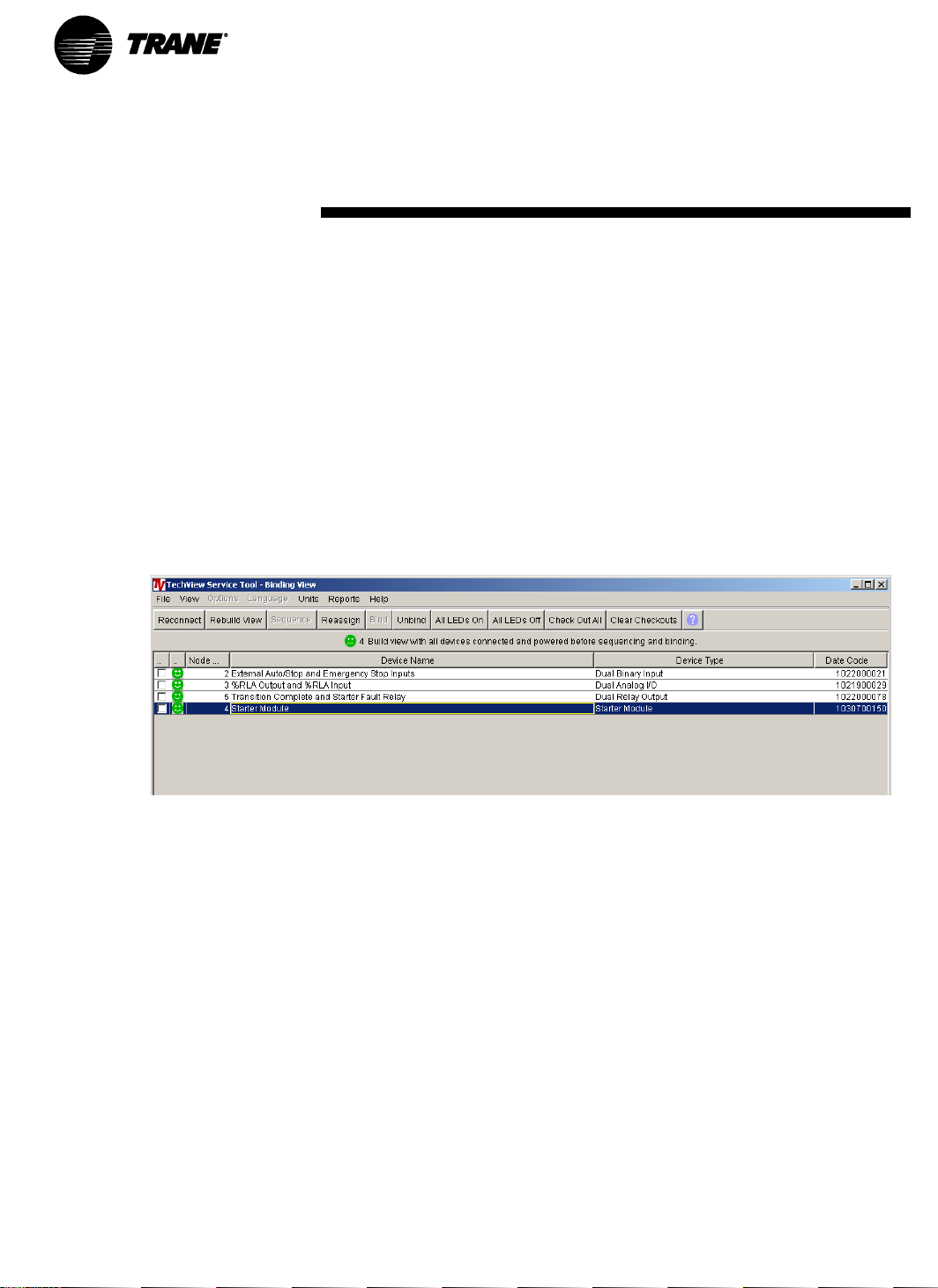

8. Bind the LLIDs using Binding View: See Appendix D for binding details.

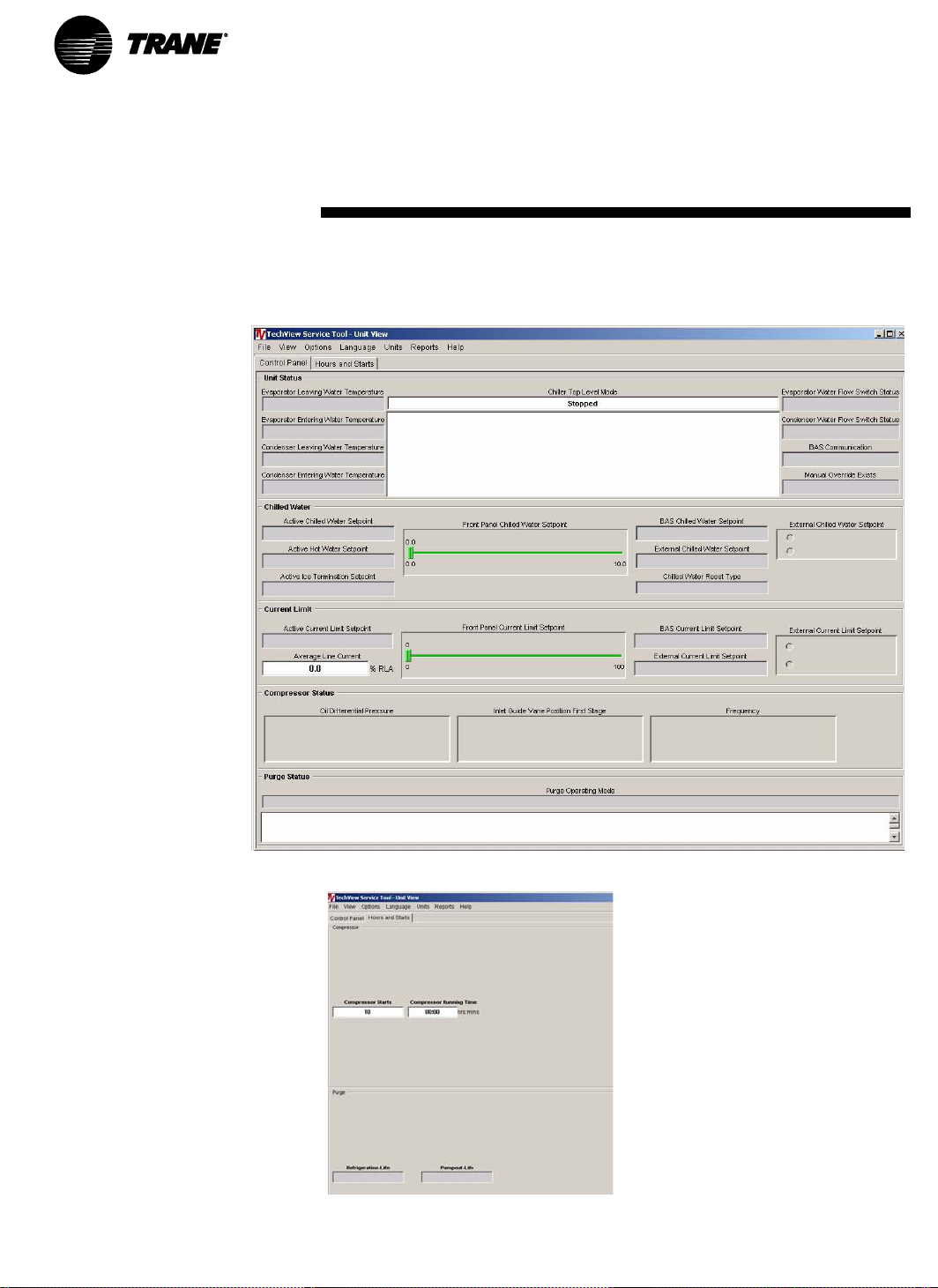

9. Adjust the setpoints using Setpoint view: See Appendix D for details on setpoint
items. Record the entered values in the table in Appendix E.

10. Dry run the starter:

• Make sure starter disconnect is locked open

• Use the manual override view to initiate starter test mode

• Observe correct operation of (if applicable for starter type present):

• Start relay

• Transition relay

• Disable starter test mode

11. Power up chiller:

• Remove 115 V temporary power from starter.

• Replace fuse in CPT.

• Energize starter panel with line voltage by re-closing starter disconnect.

12. Place clamp on ammeter on one of the L1, L2 or L3 legs.

13. Start chiller:
Note: it may be desirable to put the Current Limit Setpoint to 40% initially to
ensure items like CT Meter Scale are set correctly.

14. Observe startup:
Confirm that unit starts and loads as expected.

Note: If Contactor Integrity Test was enabled in Starter Configuration, contactors
may be heard prior to actual start sequence in starter cabinet.

15. Check current and voltage readings:
Verify that the current reading on the front panel matches that on the handheld
ammeter. If it does not, the CT meter scale may be set wrong.

16. Load Chiller:
Adjust Current Limit Setpoint to 80% and ensure that front panel readings match
handheld ammeter. Set final Current Limit Setpoint to desired operating level
(typically 100%)

17. Additional information is contained in Appendix F including the unit view screen.

14 PART-SVN82C-EN

Appendix A

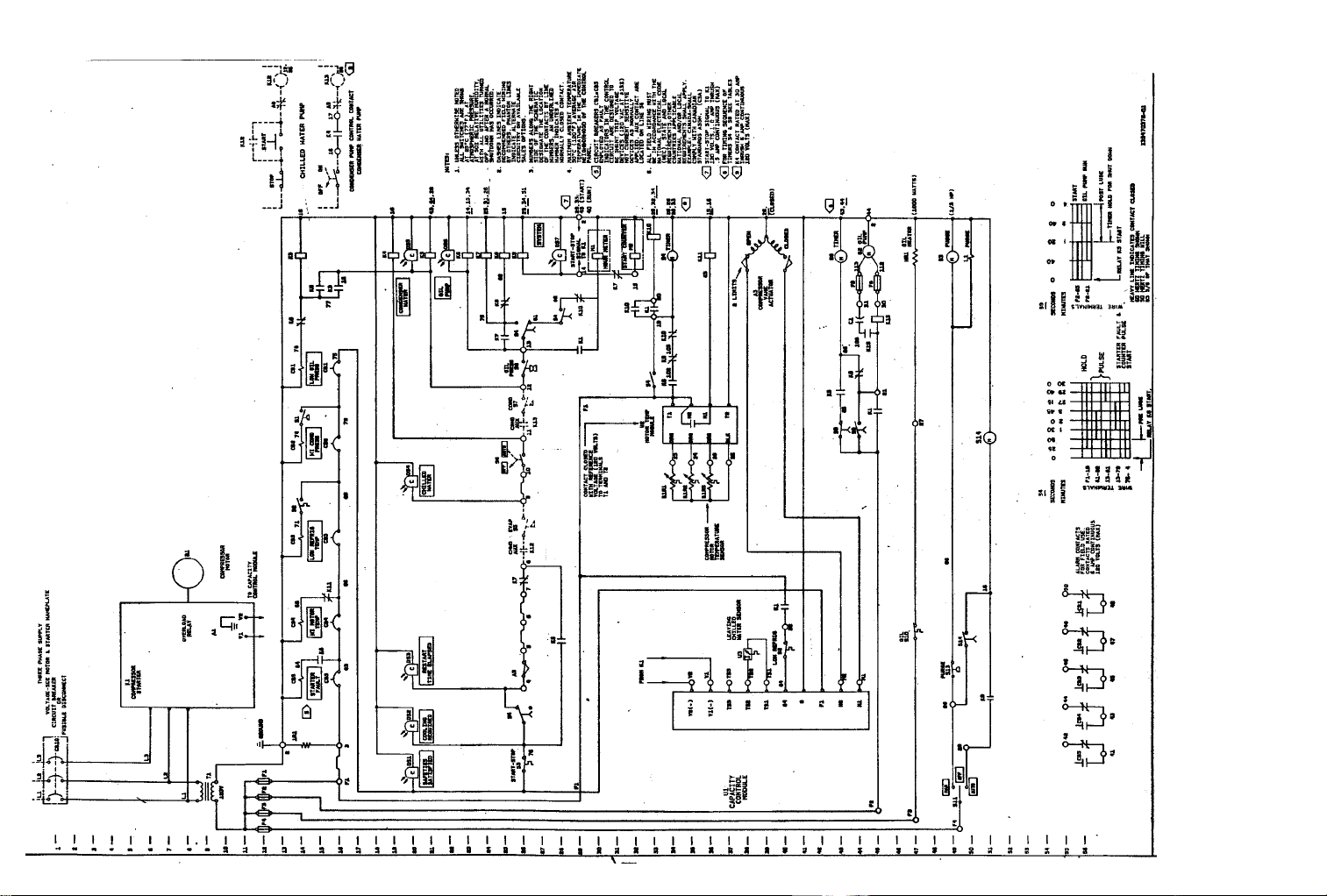

Figure A1. Original classic black wiring, X39470376 Rev. D

PART-SVN82C-EN 15

Appendix A

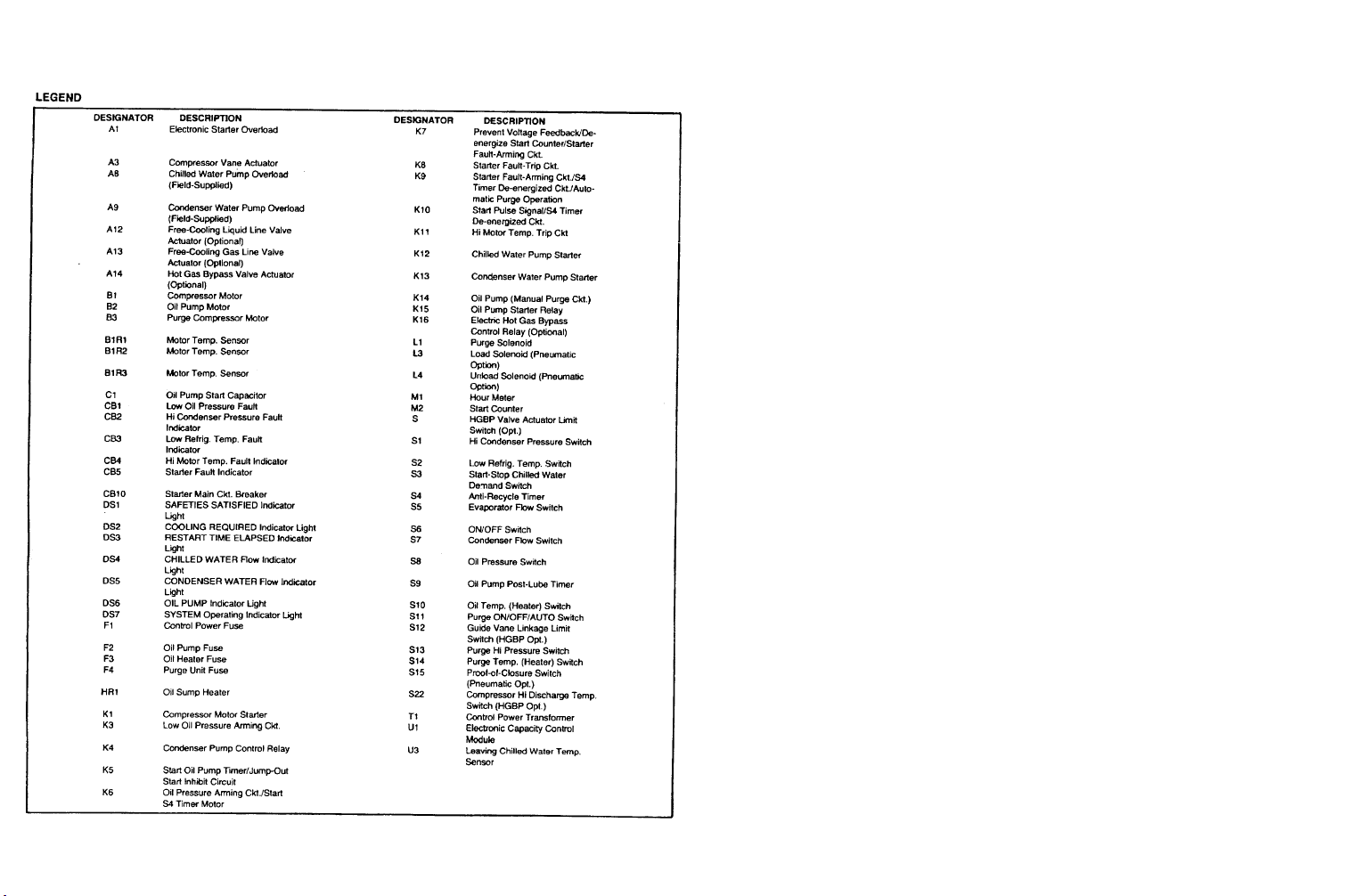

Figure A2. Wiring diagram legend

PART-SVN82C-EN 16

Appendix A

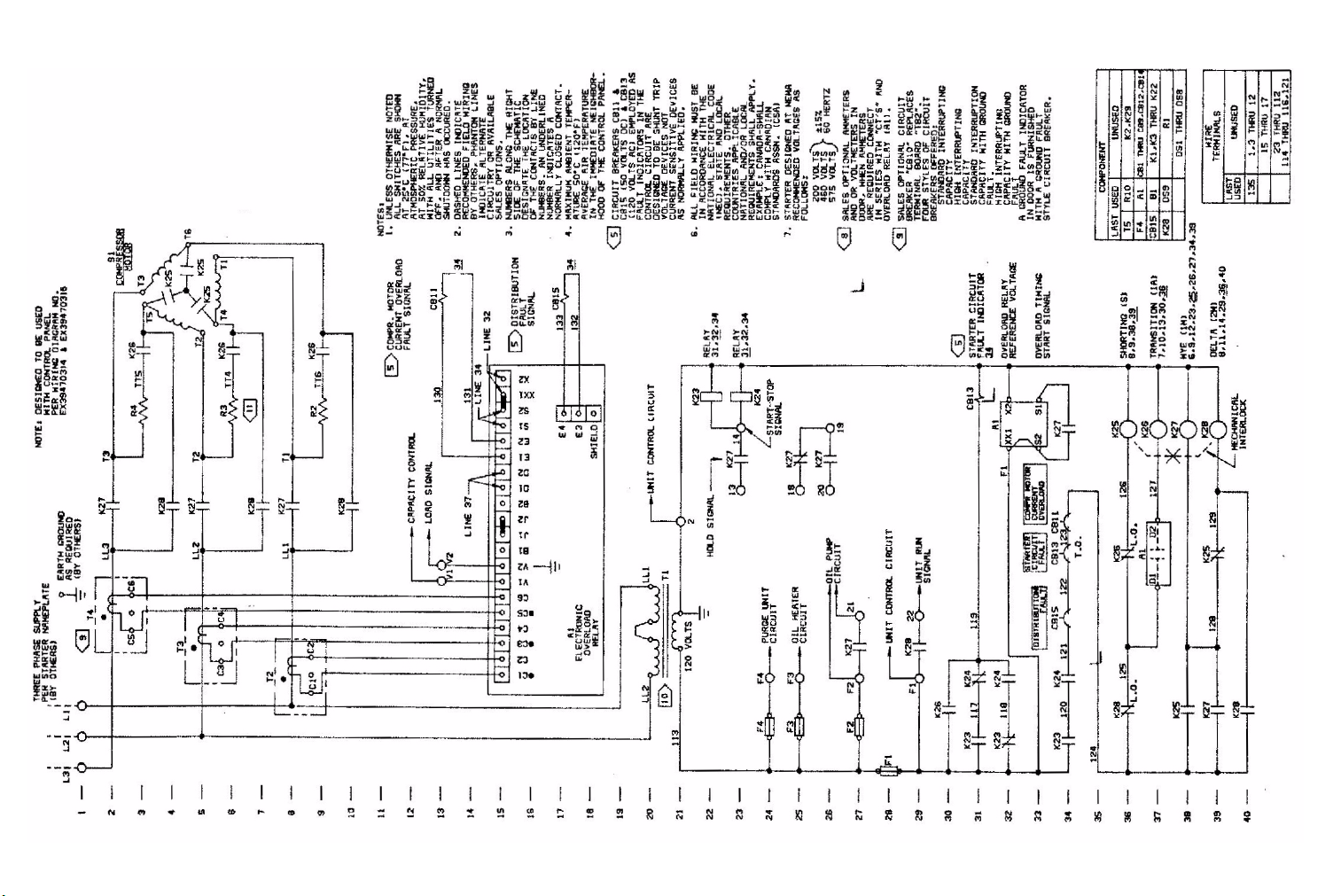

Figure A3. Typical unit mounted starter electrical diagram, X39470320

PART-SVN82C-EN 17

Appendix B

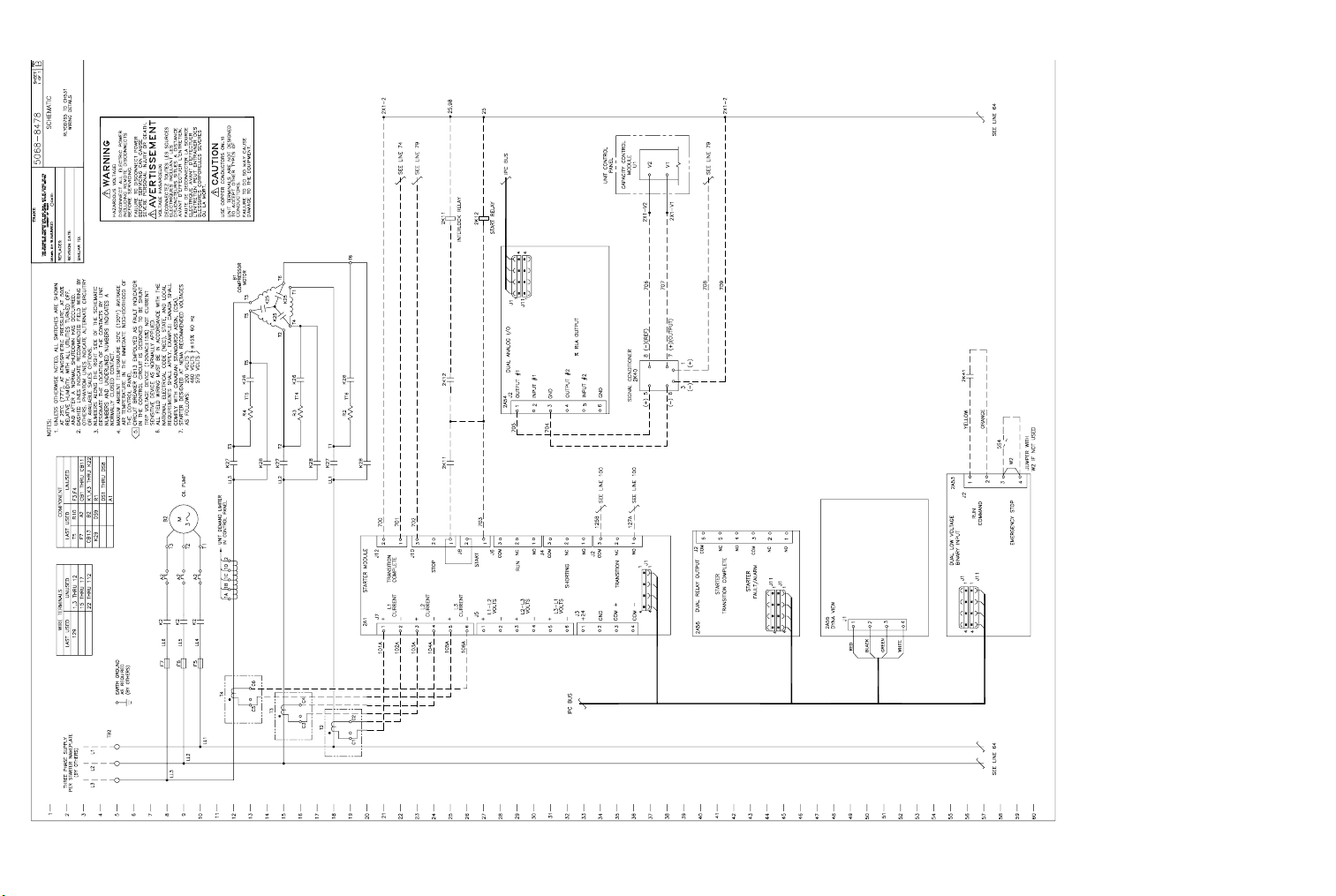

Figure B1. RLY00765 to CH531 wiring details, 5068-8478, Rev. B

C

ALL RIGHTS RESERVED

A DIVISION OF AMERICAN STANDARD INC.

PART-SVN82C-EN 18

Appendix B

Figure B2. RLY00765 to CH531 wiring details, 5068-8486, Rev. C

C

ALL RIGHTS RESERVED

A DIVISION OF AMERICAN STANDARD INC.

PART-SVN82C-EN 19

Appendix C

Configuration View Items

Unit type tab

The figure below shows the TechView™ screen for selecting unit type. Default
values for Starter Only control are shown in the accompanying table. Options for
other selections are also shown in the table. Stand Alone Starter should be selected.
Make note of selections in the space available here and in the following tables.

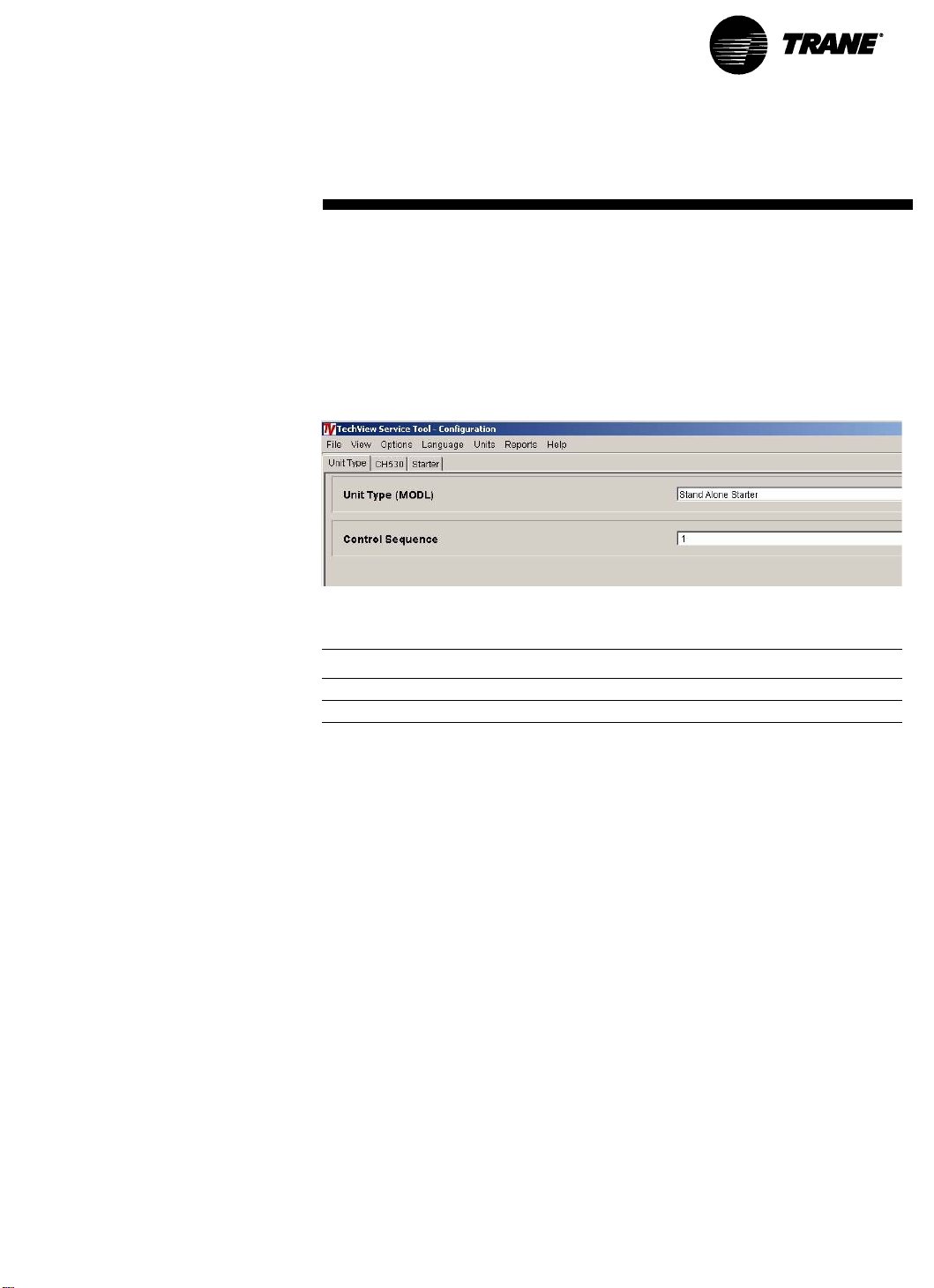

Figure C1. Unit type configuration tab screen

Table C1. Unit type configuration choices

Parameter Recommended value Other options Entered value

Unit Type (MODL) Stand Alone Starter CVRD

Control Sequence 1 none 1

Note: Entered values may differ from the recommended value depending on the
specific control scheme on your chiller. In most cases, the recommended value will
be adequate.

PART-SVN82C-EN 20

Appendix C

CH530 Tab

The following information describes setting choices for the CH530 configuration.

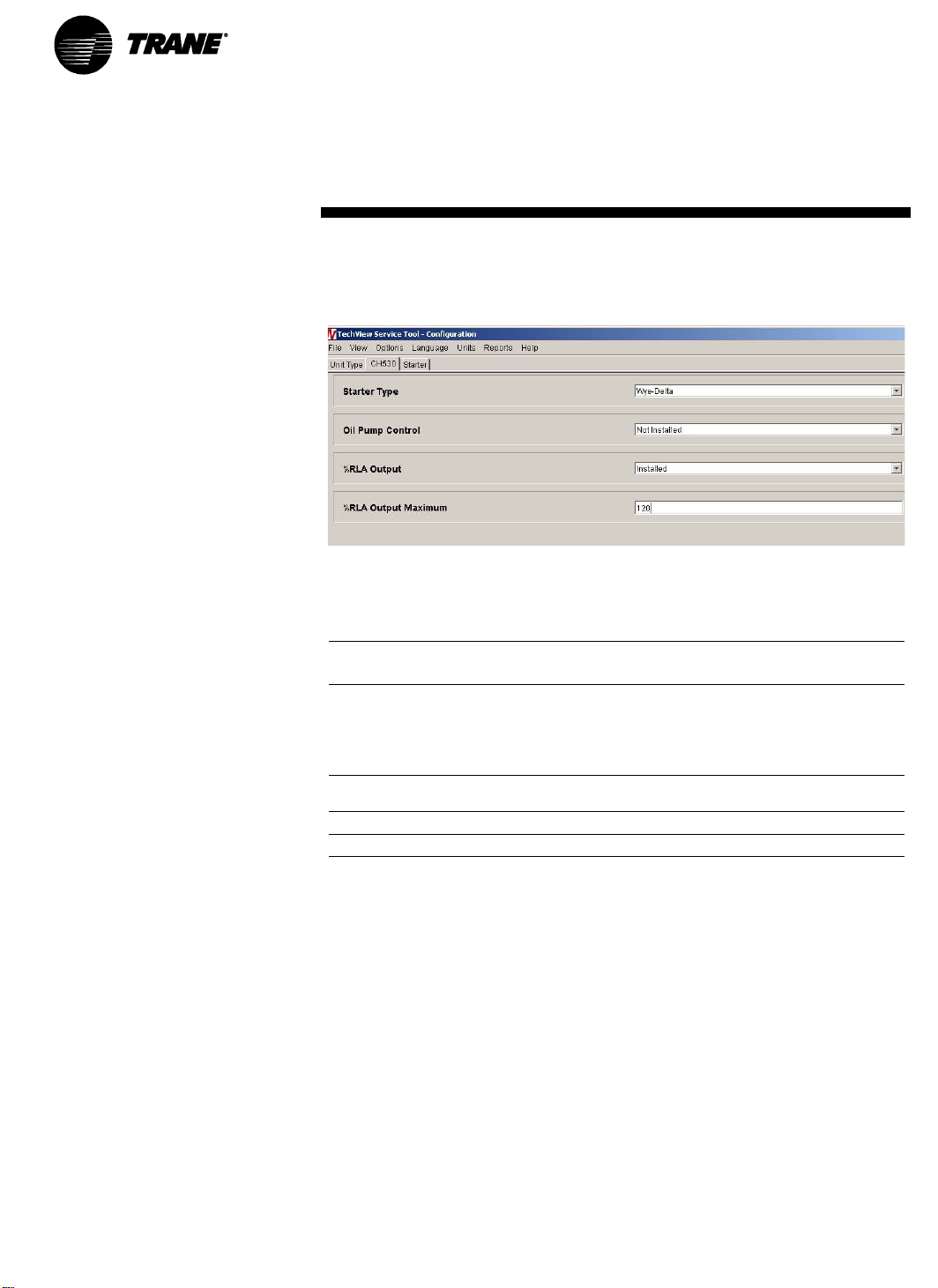

Figure C2. CH530 configuration tab screen

Note: Recommended values are in parenthesis.

Table C2. CH530 configuration tab choices

Parameter

Starter Type Wye-Delta Wye-Delta

Oil Pump
Control

%RLA Output Installed Not Installed

%RLA Output 120% 100 to 140

Recommended
value Other options Entered value

Across Line
Primary Reactor
Auto Transformer
Non-Communicating Solid
State

Not Installed Installed

21 PART-SVN82C-EN

Appendix C

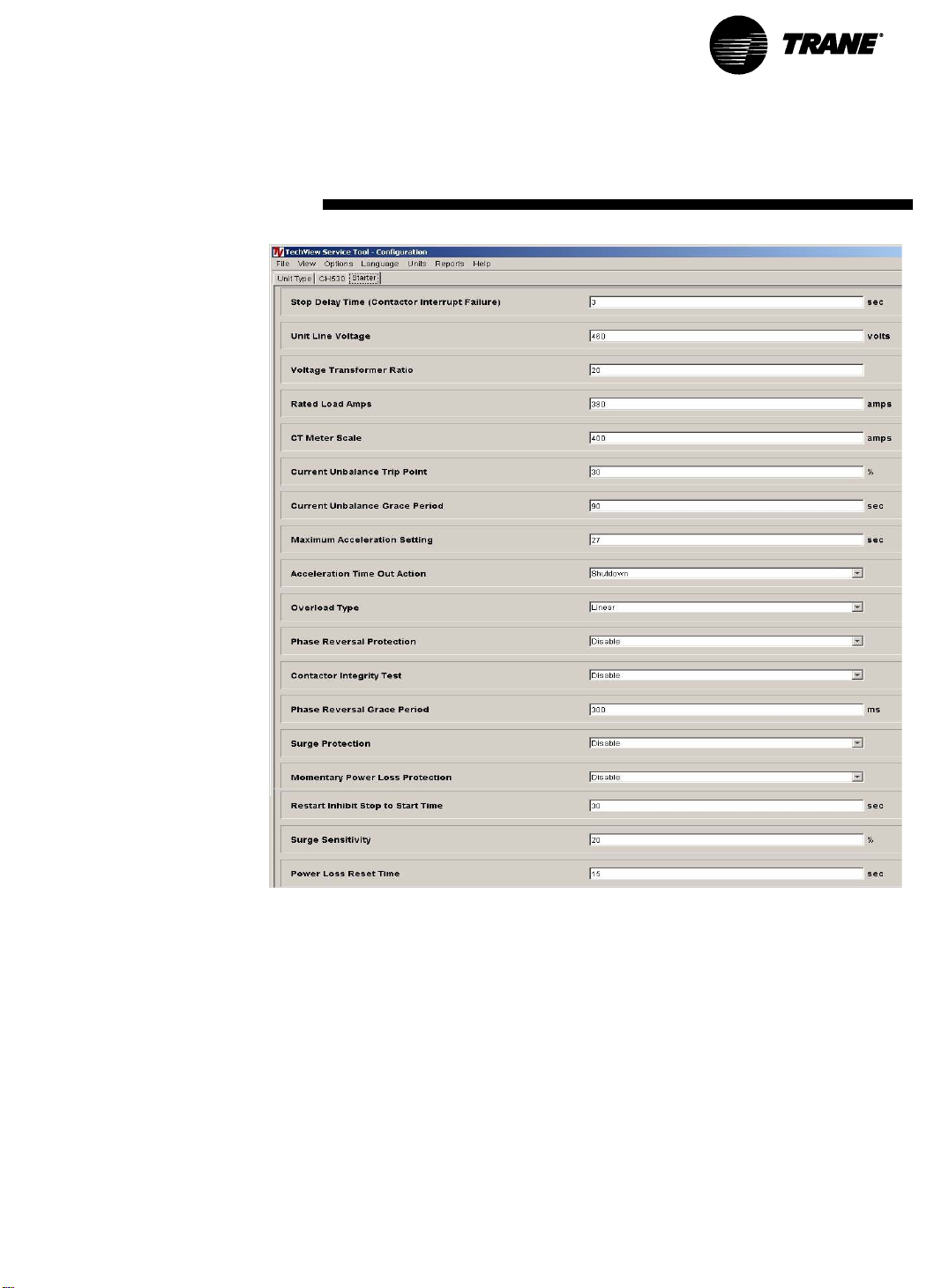

Figure C3. Starter tab configuration screen

The various parameter choices are shown in Table C3.

PART-SVN82C-EN 22

Appendix C

Table C3. Starter tab configuration choices

Parameter

Stop Delay Time 3 seconds 1 to 30 seconds

Unit Line Voltage unit voltage 180 to 6,600 volts

Voltage Transformer Ratio use one of the

Rated Load Amps unit design 0 to 2,500 amps

CT Meter Scale table C4 or C5 0 to 2,000 amps

Current Unbalance Trip Point 30% 15 to 1,000%

Current Unbalance Grace Period 90 seconds 15 to 225 seconds

Maximum Acceleration Setting choose from

Acceleration Time Out Action Shutdown Transition

Overload Type Linear Exponential

Phase Reversal Protection Enable Disable

Contactor Integrity Test Disable Enable

Phase Reversal Grace Period 300 msec 20 to 1000 milliseconds

Surge Protection Enable Disable

Momentary Power Loss Disable Enable

Restart Inhibit Stop to Start Time 30 seconds 0 to 255 seconds

Surge Sensitivity 20% 0 to 100%

Power Loss Reset Time 15 seconds 0 to 255 seconds

Recommended
value Other options Entered value

five values
shown, base on
unit voltage

choices at right
for starter type

0 to 700
20 for <600 Vac
80 for 2300/2400 Vac
110 for 3300 Vac
140 for 4160 Vac
240 for 6600 Vac

6 - Across line
11 - Primary reactor
16 - Auto transformer
27 - Wye delta

CT meter scale setting

The CT Meter Scale is an especially critical factor and must be calculated correctly.
One of two methods of calculation should be used. Typically applications of less than
600 Vac will have a single stage CT per phase connected to the starter module.
Likewise, medium voltage applications greater than 600 Vac have a two stage CT
per phase connection to the starter module. Select the correct method for this
application from the two choices that follow.

Method 1. Single stage CT calculations, less than 600 Vac only

Motor current sensing using the single stage CT per phase arrangement. In this case
only one CT is used per phase to achieve the necessary turn-down ratio of current
measurement. The CT consists of either the X13580253 or X13580269 part. This CT
reduces the 100% RLA signal input to a nominal 100 mA value for input to the
starter module.

CT Meter Scale = CT Rating / (Number of Primary Turns x 1.00)

CT Meter Scales with decimals need to be truncated as appropriate so that the
measured motor amps is less than the actual motor amps.

23 PART-SVN82C-EN

Appendix C

See Table C4 to select CT Rating and resulting CT meter scale. In many cases more
than one selection is possible.

Table C4. Current transformer data for single stage CT per phase

Actual motor
RLA (Amps) Part number Ext.

5.6 - 8.3 TRR00979 or TRR01272 -09 50:0.1 50 6 8.3

6.7 - 10.0 TRR00979 or TRR01272 -09 50:0.1 50 5 10.0

8.4 - 12.5 TRR00979 or TRR01272 -09 50:0.1 50 4 12.5

11.2 - 16.6 TRR00979 or TRR01272 -09 50:0.1 50 3 16.6

16.7 - 25.0 TRR00979 or TRR01272 -09 50:0.1 50 2 25

25.0 - 37.5 TRR00958 -10 75:0.1 75 2 37.5

33.4 - 50 TRR00979 or TRR01272 -09 50:0.1 50 1 50

50 - 75 TRR00958 -10 75:0.1 75 1 75

67 - 100 TRR00714 -01 100:0.1 100 1 100

100 - 150 TRR00715 -02 150:0.1 150 1 150

134 - 200 TRR00716 -03 200:0.1 200 1 200

184 - 275 TRR00717 -04 275:0.1 275 1 275

267 - 400 TRR00718 -05 400:0.1 400 1 400

334 - 500 TRR00982 or TRR01142 -06 500:0.1 500 1 500

467 - 700 TRR00981 or TRR01255 -07 700:0.1 700 1 700

667 - 1000 TRR00980 or TRR01405 -08 1000:0.1 1000 1 1000

934 - 1400 TRR01571 or TRR01579 -11 1400:0.1 1400 1 1400

1200 – 1800 TRR01572 or TRR01580 -12 1800:0.1 1800 1 1800

CT ratio
(Amps:Amps)

CT rating
(Amps)

Primary
turns

CT meter
scale

Method 2. Dual stage CT calculations, for greater than 600 Vac

Motor current sensing using the two CT per phase arrangement. In this case two
CT's are used per phase to either achieve the necessary turn-down or for metering
convenience. The first stage consists of either the X13580047 or X13580048 CT
(each of these CT's have a 5 amp secondary). The second stage consists of the
X13580266-01 CT (takes 3.6 amps down to 100 ma).

CT Meter Scale = CT Rating / (Number of Primary Turns x 1.3889)

CT Meter Scales with decimals need to be truncated as appropriate so that the
measured motor amps is less than the actual motor amps.

In this case the CT Rating should be picked to be in the range of 100% to 150% of
Actual Motor RLA x Number of Primary Turns x 1.3889. See Table C5 to select CT
Rating and resulting CT meter scale. In many cases more than one selection is
possible.

PART-SVN82C-EN 24

Appendix C

Table C5. Current transformers for dual stage CT per phase

Actual motor RLA
(Amps) Part number Ext.

8.0 – 12.0 X13580272 -01 50:5 50 3 12

12.0 – 18.0 X13580272 -01 50:5 50 2 18

18.0 - 27.0 X13580272 -02 75:5 75 2 27

24.0 - 36.0 X13580272 -01 50:5 50 1 36

36.0 - 54.0 X13580272 -02 75:5 75 1 54

48.0 - 72.0 X13580271 -01 100:5 100 1 72

24.0 - 36.0 X13580048 -01 150:5 150 3 36

28.8 - 43.2 X13580048 -01 180:5 180 3 43.2

36.0 - 54.0 X13580048 -01 150:5 150 2 54

43.2 - 64.8 X13580048 -01 180:5 180 2 64.8

48.0 - 72.0 X13580048 -01 200:5 200 2 72

60.0 - 90.0 X13580048 -02 250:5 250 2 90

72.0 - 108.0 X13580048 -01 150:5 150 1 108

86.4 - 129.6 X13580048 -01 180:5 180 1 129.6

96.0 - 144.0 X13580048 -01 200:5 200 1 144

120 - 180 X13580048 -02 250:5 250 1 180

144 - 216 X13580048 -02 300:5 300 1 216

168 - 252 X13580048 -02 350:5 350 1 252

192 - 288 X13580048 -03 400:5 400 1 288

240 - 360 X13580048 -03 500:5 500 1 360

288 - 432 X13580048 -03 600:5 600 1 432

CT ratio
(Amps:Amps)

CT rating
(Amps)

Primary
turns

CT meter
scale

When all the parameters are complete, click on the Load Configurations Button at
the bottom of the Screen.

Additional CT equations

There are a number of equations and constraints that are used with CT selection.
This section addresses these and their definitions.

First the definitions:

1. On a dual stage CT system, CT1 is the primary winding rating of the first stage
(or line) CT with respect to the 5 amp secondary. For example, a first stage CT
rating of 500:5 has a CT1 of 500.

2. On a dual stage CT system, CT2 is the primary winding rating of the second
stage CT with respect to a 100 mA secondary. For example, a second stage CT
of rating 3.6:0.1 has a CT2 of 3.6.

3. TVCTMS is the CT Meter Scale entered into TechView

4. TVRLA is the RLA entered into TV in amps.

5. Act %RLA is the actual %RLA the motor is drawing

6. Act RLA is the actual Running Load Amperage of the motor

25 PART-SVN82C-EN

Appendix C

7. NT1 is the number of primary turns on CT1

8. The current as displayed in TechView and DynaView is determined by the follow­ing equation:

TVCTMS

RLAMeasured

9. The ratio of CTMS/RLA must meet the following:

If CTMS/Motor Rated Load Amps is not in this range, then the ratio CTMS/Motor
Rated Load Amps = 1.5 shall be used. Note that the limits on CTMS/RLA is 0.8 and

1.5 in the TechView product data base. However the Starter module limits this ratio

to the 0.87 and 1.63.

10. To ensure that the proper current overload is in place, CT1 should be

chosen such that:

for a two stage CT system:



=



TVRLA






≤










*%









()

AmpsCTMS

LoadAmpsMotorRated

ActRLARLAAct

*%












CTNTCT

2*5*1/1



5.187.0 ≤

RLACT *%1401 ≥

for a single CT system:

RLACT ≥1

PART-SVN82C-EN 26

Appendix D

Binding view

The following figure shows the binding view screen for this installation. Note that
the LLIDs that show up on this list are dependent on selections made in previously
in Configuration View.

Initially, the LLIDs will show up as Red frowning faces indicating they are unbound.
Binding is a process by which a particular LLID is assigned to monitor or control a
particular function or item.

Select the LLID to be bound, click on the Bind button in the task bar. A window will
pop up asking “Particular LLID. Is the desired device alone selected?” Locate the
LLID in the control panel or starter and place the Trane provided magnetic
screwdriver near the LED under the SW1 arrow. The green LED will turn on. Click
“YES” on the pop up window. The smile face will turn green next to that LLID on the
binding view menu.

Continue for all LLIDs in the list.

Figure D4. Binding view screen

27 PART-SVN82C-EN

Appendix E

Setpoint view

The following information shows the selections available in setpoint view.

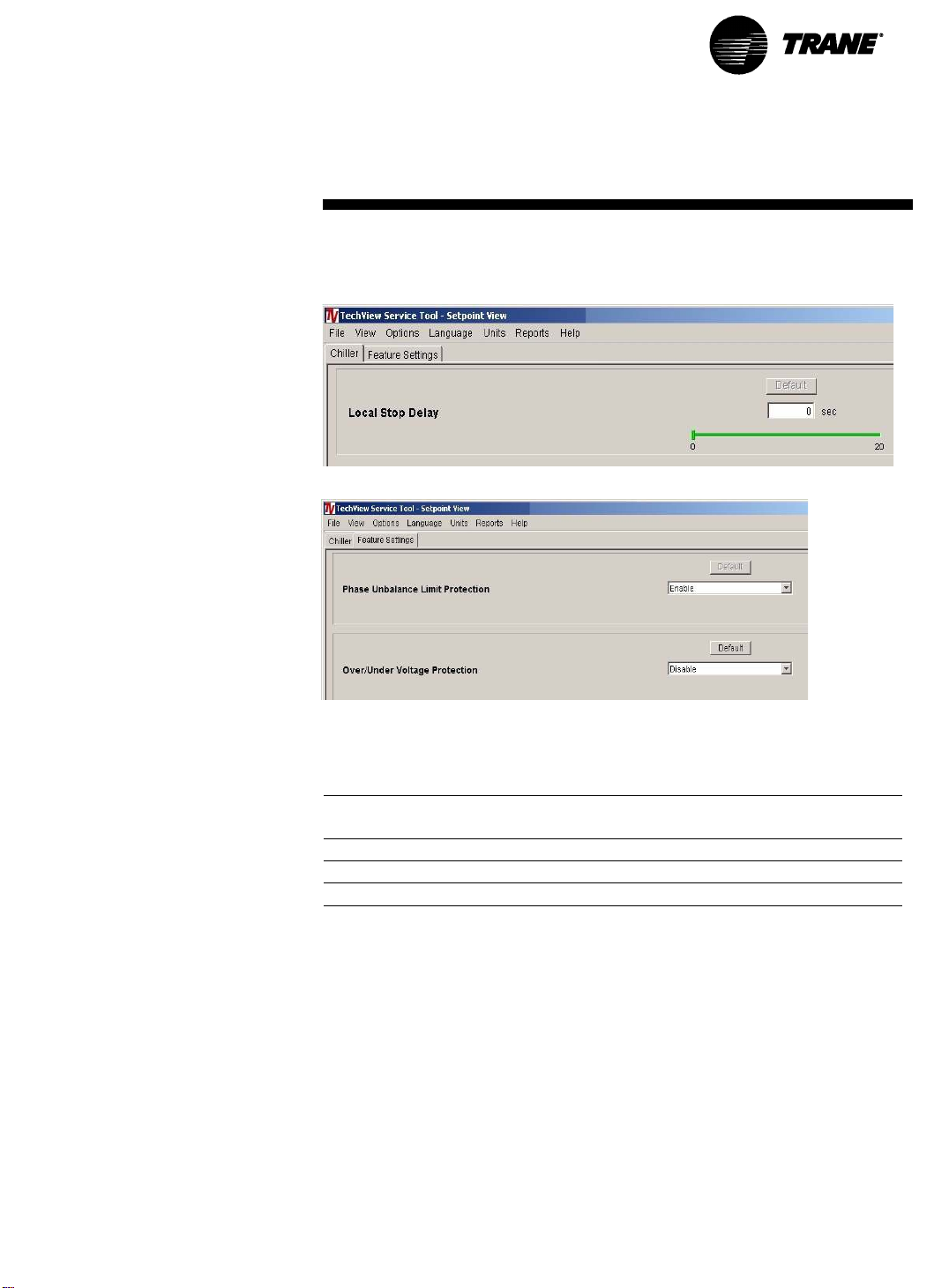

Figure E1. Settings view screen - chiller tab

Figure E2. Settings view screen - feature settings tab

Table E1. Settings view choices

Setting

Local Stop 0 0 to 20 seconds

Phase Unbalance Enable Disable

Over/under Voltage Disable Enable

PART-SVN82C-EN 28

Recommended
values Other options Entered value

Appendix F

Unit view

The following screens shows the available unit views.

Figure F1. Unit view - control panel tab

Figure F2. Unit view - hours and starts tab

29 PART-SVN82C-EN

Trane
A business of American Standard Compaies
www.trane.com

Literature Order Number PART-SVN82C-EN

File Number SV-Controls-PART-SVN82C-EN-0904

Supersedes SV-Controls-PART-SVN82B-EN-0704

Stocking Location Electronic Only

For more information, contact your local district
office or e-mail us at [e-mail].

Trane has a policy of continuous product data and product improvement and reserves
the right to change design and specifications without notice. Only qualified technicians
should perform the installation and servicing of equipment referred to in this bulletin.
