Trane DELUXE programable XT302C, XT300C Owner's Manual

1

Pub. No. 22-5127-04

69-1214

OWNER’S GUIDE

(XT300C shown)

XT300C, XT302C Deluxe

Programmable Heat-Cool Thermostats

69-1214

Pub. No. 22-5127-04

2

Pub. No. 22-5127-04

69-1214

TABLE OF CONTENTS

CUSTOMIZING YOUR THERMOSTAT ............................................................................................................. 5

Program Options Set-Up by Your Trane Dealer ................................................................................................. 5-6

GETTING AROUND THE KEYBOARD............................................................................................................. 7-8

FEATURES ........................................................................................................................................................ 9

FEATURES YOU’LL WANT TO KNOW MORE ABOUT................................................................................... 10

Comfort-R Comfort Enhancement System ........................................................................................................ 10

Adaptive Intelligent Recovery Control ................................................................................................................ 11

The Optimum Comfort and Energy Savings Solution .................................................................................... 12-13

NEAT STUFF YOU’LL BE USING OFTEN ....................................................................................................... 14

Setting Temporary Temperatures ....................................................................................................................... 14

Changing Temperature Setting Until the Next Schedule Period ........................................................................ 14

Changing Temperature Setting Indefinitely ........................................................................................................ 16

Vacation Mode ................................................................................................................................................... 19

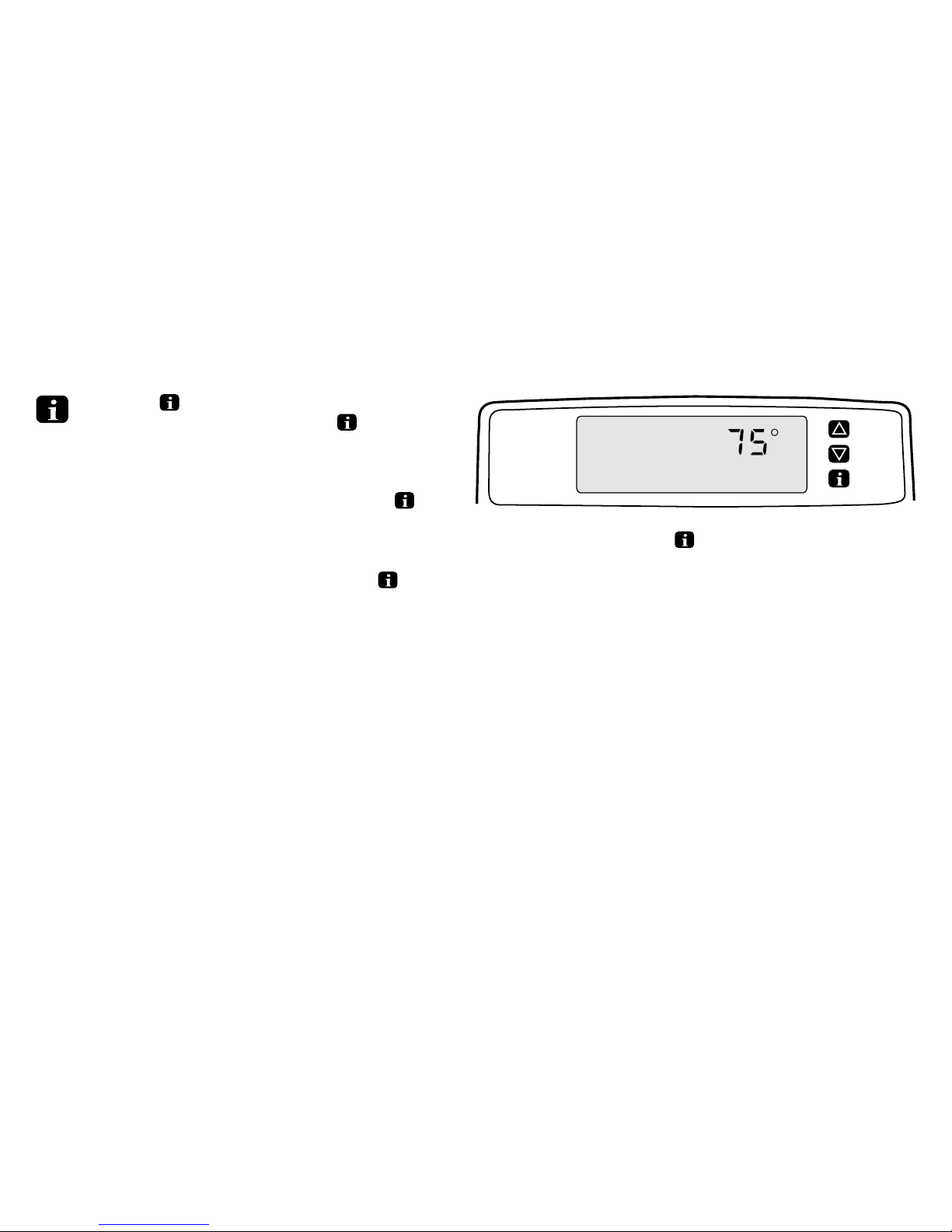

Information Key .................................................................................................................................................. 23

Displaying Outdoor Temperature ....................................................................................................................... 24

Displaying Current Settings........................................................................................................................... 23

3

Pub. No. 22-5127-04

69-1214

Filter Indication .............................................................................................................................................. 25

Setting or Resetting Filter Indication Timer ................................................................................................... 26

PROGRAMMING YOUR THERMOSTAT .......................................................................................................... 28

Clock ............................................................................................................................................................. 28

Setting Current Day and Time ....................................................................................................................... 28

Setting System and Fan ................................................................................................................................ 31

Set System .................................................................................................................................................... 31

Set Fan .......................................................................................................................................................... 31

7-Day Program and Operation ...................................................................................................................... 32

7-Day Preprogrammed Schedule.................................................................................................................. 32

Customizing Your Own 7-Day Schedule ....................................................................................................... 34

Programming the First Day ........................................................................................................................... 38

Copying a Day............................................................................................................................................... 43

Clearing Schedule Period ............................................................................................................................. 46

24-Hour Program and Operation................................................................................................................... 49

24-Hour Preprogrammed Schedule .............................................................................................................. 49

Customizing Your Own 24-Hour Schedule .................................................................................................... 50

Programming Your 24-Hour Schedule .......................................................................................................... 51

Constant Temperature Setpoint Programming .............................................................................................. 56

Setting Temperature and Fan Operation ....................................................................................................... 56

4

Pub. No. 22-5127-04

69-1214

TROUBLESHOOTING....................................................................................................................................... 59

DEFINITIONS .................................................................................................................................................... 62

INDEX ................................................................................................................................................................ 66

LIMITED WARRANTY ....................................................................................................................................... 67

CUSTOMER ASSISTANCE ............................................................................................................................... 68

5

Pub. No. 22-5127-04

69-1214

CUSTOMIZING YOUR THERMOSTAT

Program Options Set-Up by Your Trane Dealer

Your Trane dealer has programmed your thermostat using the options checked below. For example, your
thermostat displays temperatures in degrees Fahrenheit if the checkbox next to Fahrenheit (

°

F) is checked.

Contact your Trane dealer to reprogram any of the options listed.

NOTE: If no options are checked, those listed in the first column are the factory settings on your thermostat.

Refer to the Definitions section for a description and comparison of Adaptive Intelligent Recovery™ Control (a
Honeywell trademark) to Conventional recovery.

6

Pub. No. 22-5127-04

69-1214

NOTE: The XT300C, XT302C thermostats are manufactured for the Trane Company by Honeywell Inc. Specific

features are unique to Trane and are only available on Trane models.

Comfort-R™ Control

❑

Off

❑

On

Adaptive Intelligent
Recovery™ Control

❑

On

❑

Off (Conventional recovery)

Cooling Droop

❑

On

❑

Off

Temperature Display

❑

Fahrenheit (°F)

❑

Centigrade (°C)

Clock Format

❑

12-Hour Clock Format

❑

24-Hour Clock Format

System Setting
(Heating and Cooling
Setting)

❑

Auto/Manual (System
automatically selects
Heat or Cool; You can
select Heat, Cool or
Off.)

❑

Manual Only (You
select Heat, Cool or
Off.)

❑

Auto only (System
automatically
selects Heat or
Cool.)

Outdoor Temperature
Display

❑

No outdoor
temperature is
displayed

❑

Outdoor temperature
is displayed (requires
an outdoor sensor).

Programming

❑

7-Day Programming

❑

24-Hour Programming

❑

Constant Temp­erature Setpoint
Programming

7

Pub. No. 22-5127-04

69-1214

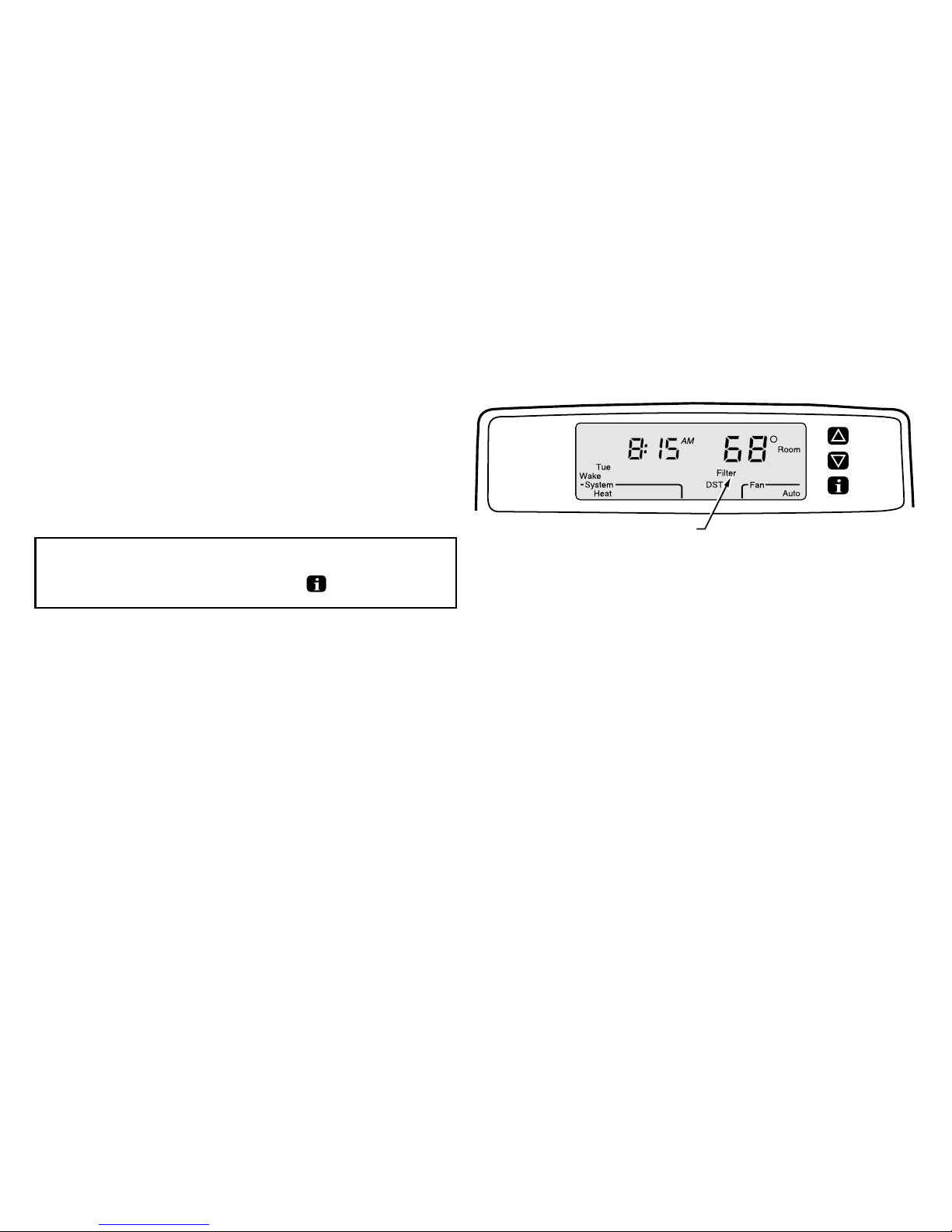

GETTING AROUND THE KEYBOARD

The keyboard is located behind the thermostat cover. Three frequently used keys are located next to the display
(Increase temperature setting, Decrease temperature setting, and Information key). The thermostat displays
important information such as day, time, schedule period, temperature, filter indicator, system and fan operation.

WHAT'S THE ROOM TEMPERATURE?

WHAT TIME IS IT?

WHAT DAY IS IT?

CURRENT PROGRAMMING
PERIOD (EXAMPLE
DISPLAY SHOWS "WAKE")

CURRENT SYSTEM
SETTING (EXAMPLE
DISPLAY SHOWS "HEAT")

CURRENT FAN
SETTING (EXAMPLE
DISPLAY SHOWS "AUTO")

DISPLAY IS BACKLIT
FOR EASY READABILITY
WHEN A KEY IS PRESSED.

DECREASE TEMPERATURE SETTING.

INCREASE TEMPERATURE SETTING.

INFORMATION AT YOUR FINGERTIPS!
DISPLAY THE OUTDOOR
TEMPERATURE (ON SOME MODELS),
CHECK YOUR CURRENT TEMPERATURE
SETTINGS, OR DISPLAY FILTER USE
IN NUMBER OF DAYS.

DAYLIGHT
SAVINGS TIME
INDICATOR

FILTER
EXPIRATION
INDICATOR

8

Pub. No. 22-5127-04

69-1214

M17031A

Time

Set Program

SystemFilter Fan

Run

Program

Hold Temp

Set Current

Day/Time

Wake

Leave

Return Sleep

Day

Heat/Cool

Settings

Daylight

Time

Copy

NO NEED TO WORRY ABOUT
PRESSING THE WRONG KEY!
RUN PROGRAM, RETURN
TO NORMAL OPERATIONS,
OR UNDO LAST ACTION.

HOLD MODE: OVERRIDE
NORMAL PROGRAMMING
OPERATION, OR GO
INTO VACATION MODE!

SET CURRENT DAY AND TIME (INITIALLY
AND AFTER EXTENDED POWER OUTAGES).

SET CURRENT OR
PROGRAM DAY

EASILY CHANGE
BETWEEN STANDARD AND
DAYLIGHT SAVINGS TIME

EASY PROGRAMMING!
COPY ONE
PROGRAMMED DAY
TO ANOTHER DAY

SWITCH BETWEEN
HEATING AND COOLING
TEMPERATURE SETTINGS

PROGRAM SCHEDULING KEYS

PROGRAM UP TO FOUR TIME
PERIODS AND TEMPERATURES
FOR EACH DAY OF THE WEEK.

TIME KEYS

INCREASE OR
DECREASE TIME
SETTING FOR
CURRENT OR
PROGRAMMED
TIMES.

SELECT SYSTEM OPERATION
(HEAT, COOL, OFF, AUTO).

NO MORE GUESSING! SELECT
FILTER EXPIRATION TO REMIND
YOU TO CHANGE THE FILTER.

CHOOSE FAN OPERATION (ON OR
AUTO), OR CHOOSE FAN OPERATION
FOR EACH PROGRAM PERIOD OF
THE DAY ON SELECT MODELS.

Time

M17032

Set Program

Wake

Leave

Return Sleep

SET WAKE TIMES
AND TEMPERATURES

SET LEAVE TIMES
AND TEMPERATURES

SET RETURN TIMES
AND TEMPERATURES

SET SLEEP TIMES
AND TEMPERATURES

9

Pub. No. 22-5127-04

69-1214

FEATURES

• Worry-free programming.

• Comfort-R Comfort Enhancement Process—a
unique Trane feature.

• Adaptive Intelligent Recovery Control for
comfort and energy savings.

• Wake, Leave, Return and Sleep at the comfort
level you select.

• Customize the program schedule—program
your own schedule to fit your needs.

• Continuous comfort and energy savings—
adjust the schedule as often as you like.

• Temporary schedule override—set the
thermostat higher or lower for the current
program schedule.

• Vacation mode (1 to 255 days) for added
comfort and energy savings. Set the
temperature higher or lower for energy savings

while on vacation. At the same time, set the
comfort level you want when you return.

• Permanent schedule override—set the
thermostat higher or lower indefinitely.

• Set the filter indicator (0, 7, 14, 21, 30, 45, 60,
90, 120, 180, 270, or 360 days) to remind you to
change the filter.

• Information at the press of a button—use the
Information Key to find out the outdoor
temperature (optional accessory), the current
setpoints, or the filter status.

• No batteries needed—your thermostat retains
the schedule for the life of the product. You
never have to reprogram the schedule even
after a power outage. (The day and time may
need to be reset after an extended power
outage.)

• Set or reset the day and time as needed—you
can even set Daylight Savings Time.

10

Pub. No. 22-5127-04

69-1214

FEATURES YOU’LL WANT TO
KNOW MORE ABOUT

Comfort-R Comfort Enhancement System

Comfort can best be described as the proper balance
of temperature and relative humidity, also known as
“your comfort index.” The greatest level of comfort is
achieved when the temperature and relative humidity
are in balance with your body. When the relative
humidity is low, you feel comfortable at a higher
temperature. Likewise, when the relative humidity is
high, you feel comfortable only at a lower tempera­ture. However, if the relative humidity becomes too
high, then true comfort cannot be achieved at any
temperature.

The Comfort-R™ system is specifically designed to
enhance the moisture removal process of your air
conditioning system and to make the air drier. This
system is so unique, it received a patent from the U.S.
Patent Office. During times of high relative humidity,
as well as during mild weather, the Comfort-R system
increases the moisture removal ability of your air­conditioning system. This results in a lower relative
humidity inside your home, which in turn, allows you
to feel more comfortable. The resulting lower relative
humidity also allows you to maintain the temperature
setting on your thermostat at a higher temperature.

11

Pub. No. 22-5127-04

69-1214

Adaptive Intelligent Recovery Control

Your Thermostat Senses Temperature
More Like You Do

Your new thermostat is so smart, it’s almost human. You
perceive temperature from a variety of sources, not only
from the air in the room, but also from your surrounding
walls, windows and furnishings. Humans feel differences
in temperature as slight as two degrees Fahrenheit.
Common household thermometers and standard
thermostats sense only air temperature, which may not
reflect how hot or cold the room actually feels to you.
Your new thermostat reads both the temperature of the
wall and the air, and responds to temperature changes
as little as one degree Fahrenheit, so room temperature
is more likely to feel right to you and your family.

The Deluxe Programmable Heat-Cool Thermostat acts
like a computer. When calculating the time to turn on
your heating or cooling system, it considers (1) air
temperature, (2) wall temperature, and (3) the time you
want to reach the comfort temperature. After considering

these three things, Adaptive Intelligent Recovery™
control gradually changes the temperature from the
energy savings setting to the comfort setting (for
example, from a heating temperature of 62° at night to
70° in the morning).

The system runs continuously until the comfort tempera­ture you choose is reached without overshooting the
setting. This saves energy. How do you know when the
system is in recovery? The thermostat displays In
Recovery whenever the thermostat activates Adaptive
Intelligent Recovery Control. So, In Recovery displays
during the recovery time from Sleep to Wake and from
Leave to Return.

M10344

Auto

System Fan

Mon

In

Room

AM

Recovery

Sleep

Heat

In Recovery indication shown in example above.

12

Pub. No. 22-5127-04

69-1214

After installation or new schedule programming, your
thermostat learns from experience. How? Each day it
checks how closely it hit the recovery target (for
example, 70° at 6:00 AM) and adjusts the next day’s
recovery start time accordingly. After four to eight
days, the thermostat has adjusted to local weather,
your lifestyle, the construction of your home, and your
heating and cooling system.

The Optimum Comfort and
Energy Savings Solution

In this example, Adaptive Intelligent Recovery Control
starts to recover at 4:00 AM and reaches the comfort
temperature of 68° at 7:00 AM. Recovery time varies
with the starting temperature and the comfort tem­perature you choose.

Your new thermostat saves energy and keeps you
comfortable at the same time. By now you may be
wondering how to program your thermostat and how
to use some more time and energy-saving features.

First, let’s look at features you’ll be using often, like
how to override the current programming mode or
hold the thermostat at a specific temperature while
you go on vacation. You can even program the
thermostat to return to normal scheduled program­ming on your last day of vacation so you don’t have to
worry about energy saving while you are gone or not
being comfortable when you return.

13

Pub. No. 22-5127-04

69-1214

AM
PM

SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN NIGHT TEMPORARY UNOCCUIPIED

SET
PT

AM
PM

SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN NIGHT TEMPORARY UNOCCUIPIED

SET
PT

AM
PM

SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN NIGHT TEMPORARY UNOCCUIPIED

SET
PT

AM
PM

SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
MORNING LEAVE RETURN SLEEP TEMPORARY UNOCCUIPIED

SET
PT

At 4:00 AM
Recovery Begins

At 5:00 AM
Recovery
Continues

At 6:00 AM
Recovery
Continues

At 7:00 AM System
Operating in Comfort Mode

ENERGY
SAVINGS
PERIOD

RECOVERY FROM ENERGY SAVINGS

COMFORT
PERIOD

TIME

TEMPERATURE

THE THERMOSTAT USES THE SAME SCHEME TO RETURN GRADUALLY
TO LOWER COMFORT TEMPERATURE DURING THE COOLING SEASON.

M17033

14

Pub. No. 22-5127-04

69-1214

NEAT STUFF YOU’LL BE USING OFTEN

Setting Temporary Temperatures

If your thermostat is set for 7-Day or 24-Hour Operation, you can override the current schedule period and
change the temperature setting until the next schedule period, or change the temperature setting while you are
on vacation. You can also change the temperature setting indefinitely.

Changing Temperature Setting Until the Next Schedule Period

NOTE: This feature does not apply to Constant Temperature Setpoint Programming.

M17035

Temporary Setting

Press Increase ▲ or Decrease ▼ until the desired
temperature setpoint displays.

While selecting a temporary setting, only the setpoint displays.

15

Pub. No. 22-5127-04

69-1214

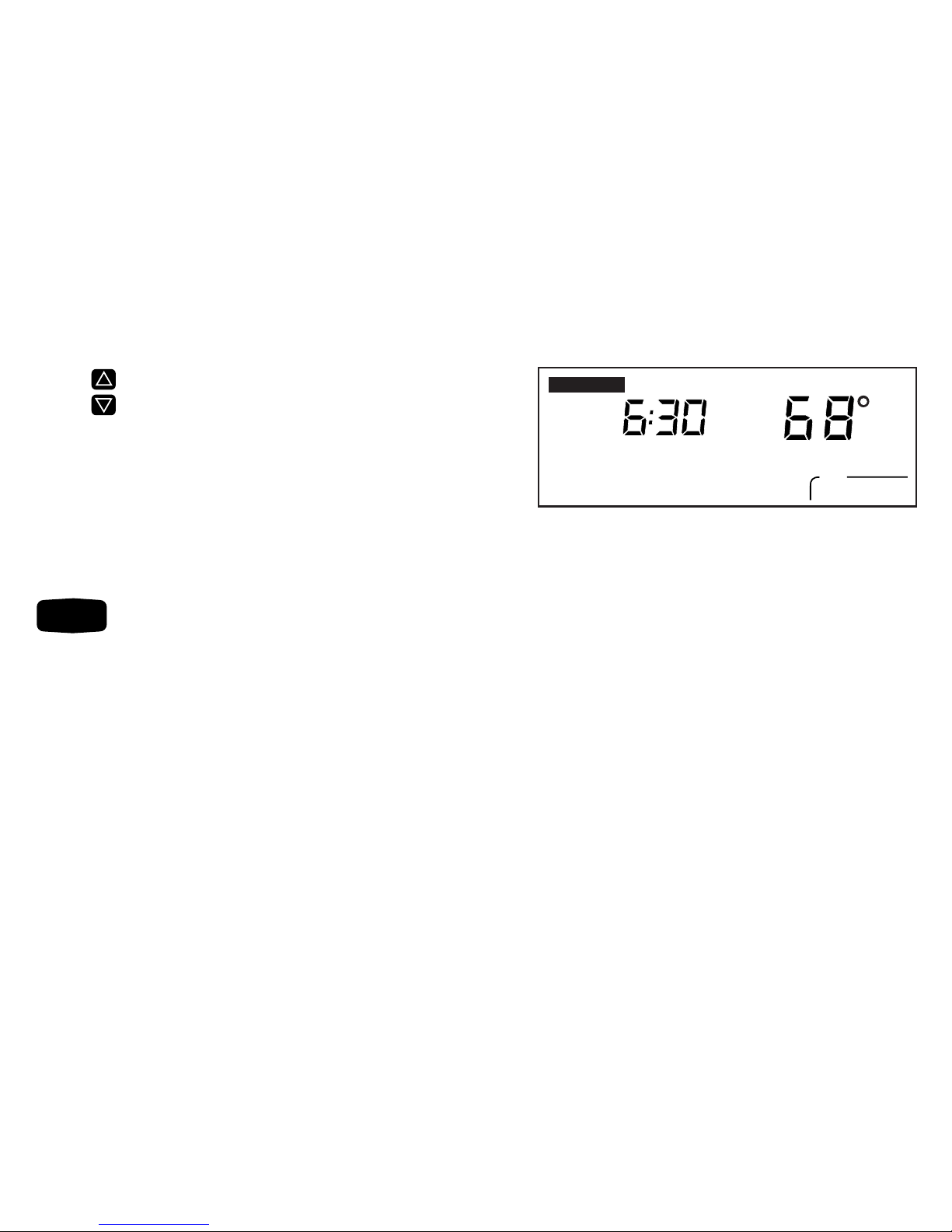

The temporary temperature setting you select displays for approximately 3 seconds. The display reads
Temporary until the next period begins, or you cancel the Hold.

IMPORTANT

To cancel the Hold before the designated
time, press Run Program.

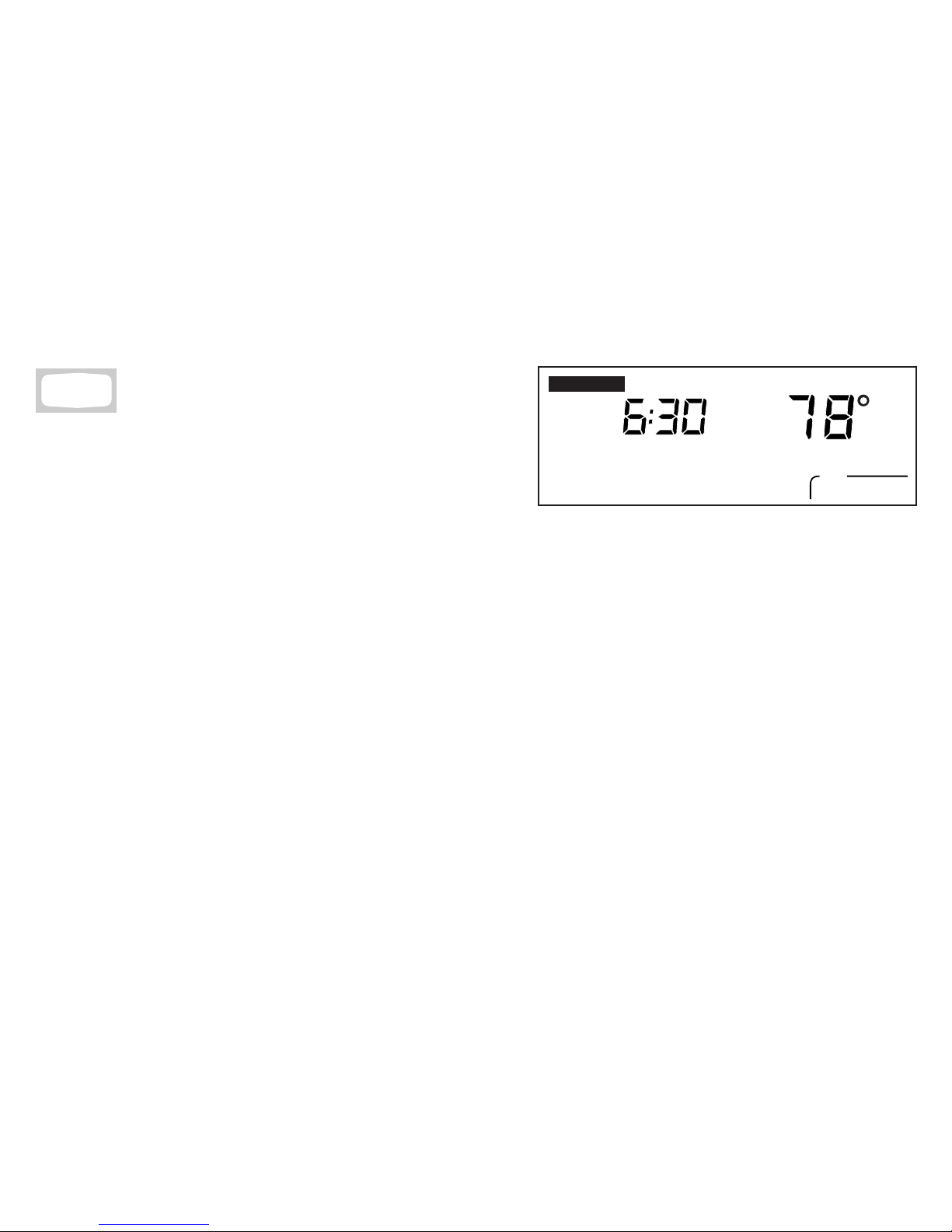

After selecting a temporary setting, display reads Temporary until canceled.

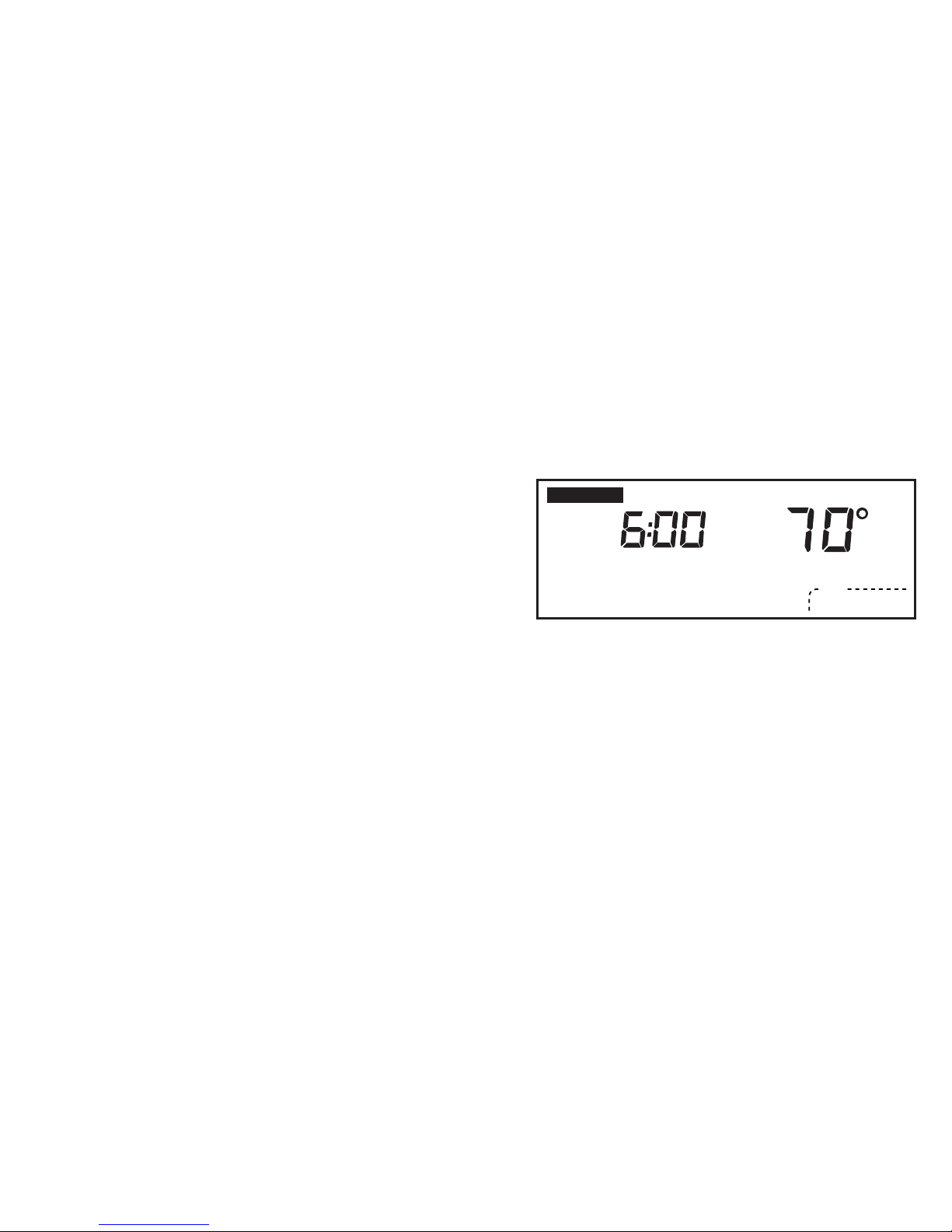

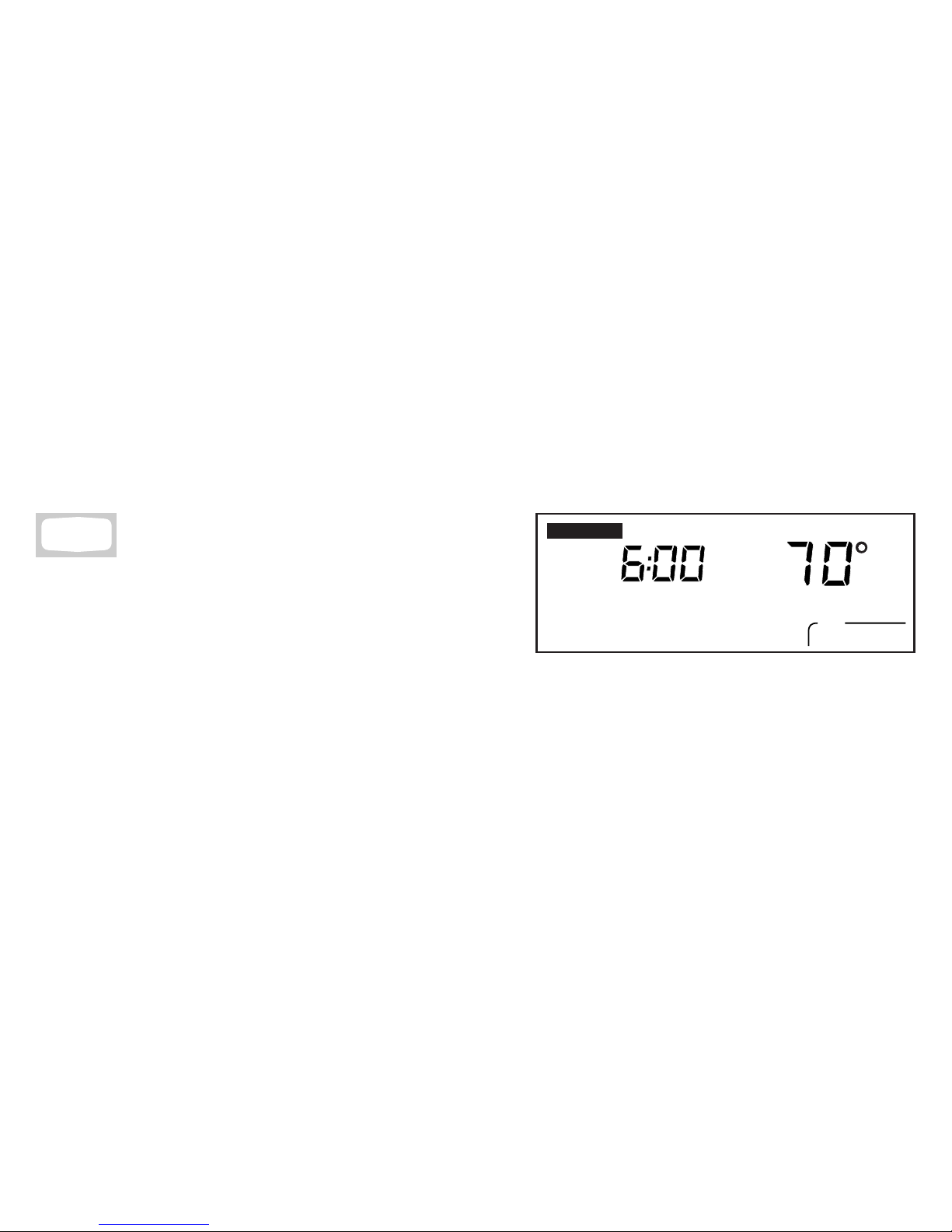

Example displays shows temporary heat setting of 70° at 6:00 AM.

Run

Program

M12984

Auto

Fan

Mon

AM

Temporary

Heat

System

Heat

NOTE: If “▲” or “▼” appears under the temperature display, it means that both the heating and cooling

setpoints are being adjusted. Tapping the key changes both the heat and cool setpoints by one degree.
Press after the desired setpoint is reached to verify the setpoints.

NOTE: While in temporary operation, the thermostat uses conventional recovery for that period only. The

thermostat assumes you desire to maintain the temporary setting until the end of the period.

16

Pub. No. 22-5127-04

69-1214

Changing Temperature Setting Indefinitely

NOTE: This feature does not apply to Constant Temperature Setpoint Programming.

NOTE: The current time does not display while in this mode.

Hold Temp

1. Press Hold Temp once.

Pressing Hold Temp once displays the thermostat in Hold mode.

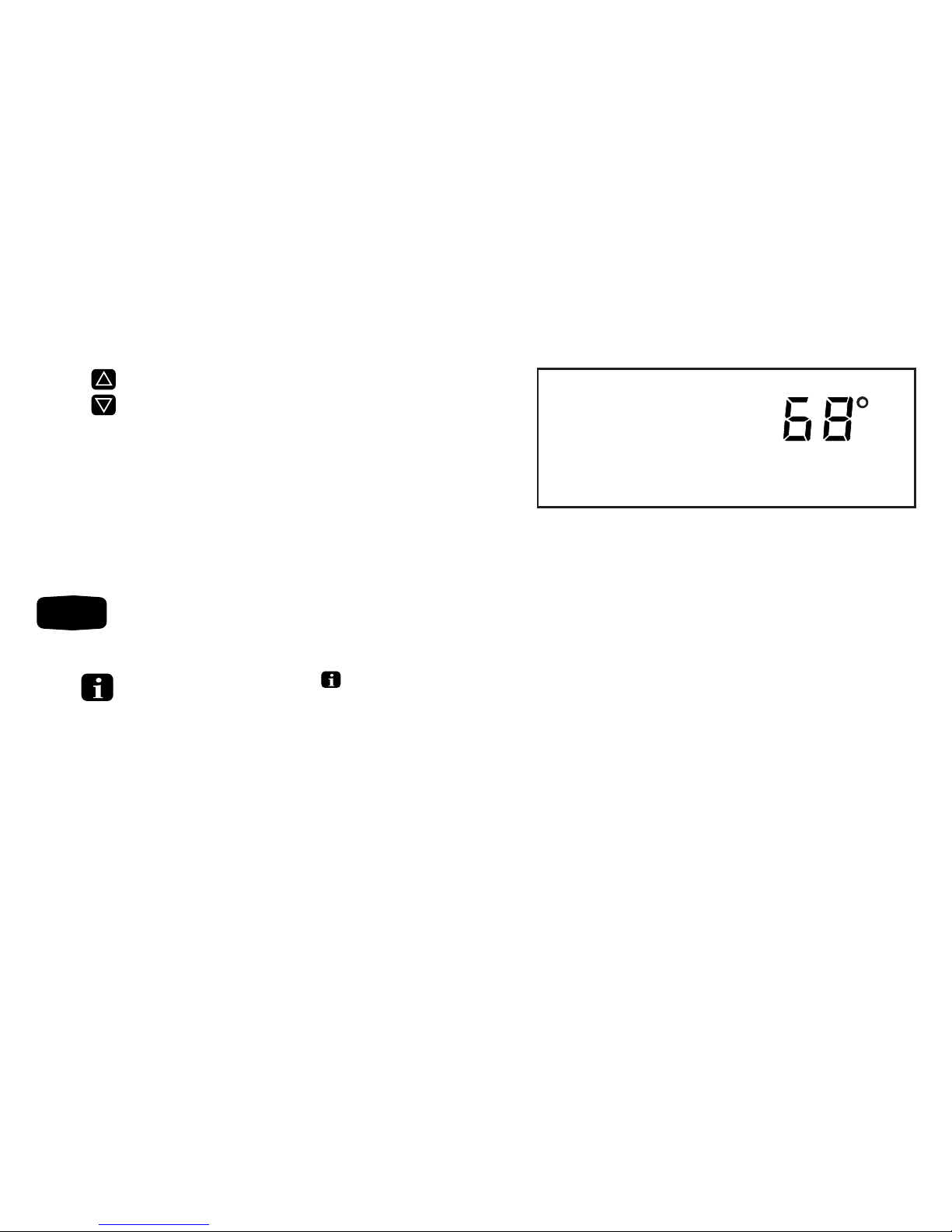

Example displays shows temporary heat setting of 60°.

M17040

Auto

Fan

Heat

Setting

System

Heat

17

Pub. No. 22-5127-04

69-1214

2. Press Increase ▲ or Decrease ▼ to

change the temperature setpoint, if desired.

M17041

Auto

Fan

Heat

Setting

System

Heat

By pressing the Temperature keys, you can select a temporary temperature.

This temperature setting remains until the hold is canceled.

Example displays shows heat set to 61°.

3. Press Heat/Cool Settings to change
between heat and cool settings.

Heat/Cool

Settings

M17042

Auto

Fan

Cool

Setting

System

Heat

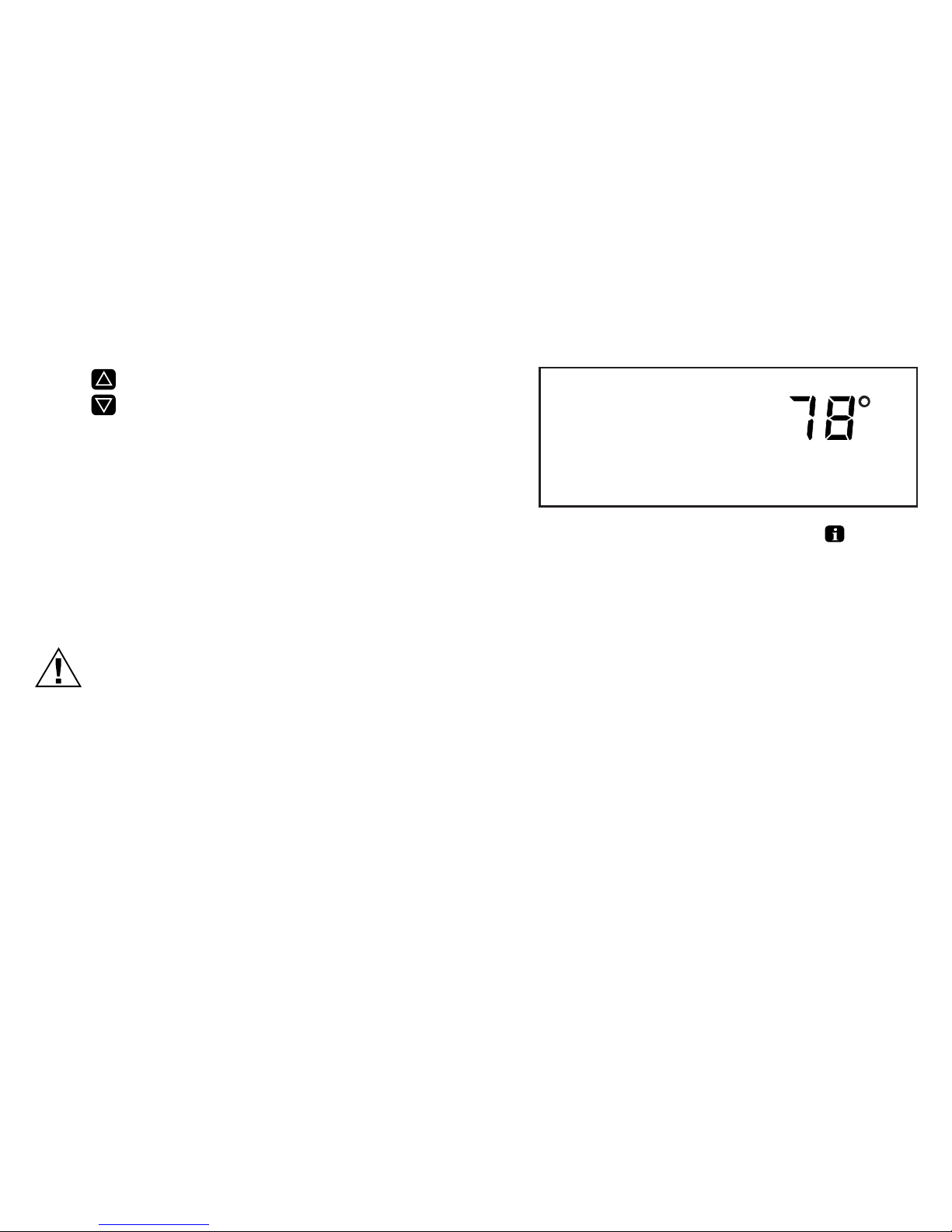

Pressing Heat/Cool Settings displays the other temperature setpoint.

Example displays shows temporary cooling setting of 78°.

18

Pub. No. 22-5127-04

69-1214

4. Press Increase ▲ or Decrease ▼ to adjust
temperature settings.

M17043

Auto

Fan

Cool

Setting

System

Heat

Pressing the Temperature keys changes the temporary temperature.

Example displays shows temporary cooling setting of 80°.

NOTE: The display changes from the setpoint to the room temperature after approximately 3 seconds.

IMPORTANT

To cancel the Hold, press Run Program.

Run

Program

19

Pub. No. 22-5127-04

69-1214

Vacation Mode

NOTE: This feature does not apply to Constant Temperature Setpoint Programming.

1. Press Hold Temp twice.

Pressing Hold Temp twice displays the thermostat in Vacation mode.

Example displays shows temporary heat setting of 60°.

M17036

Auto

Fan

HeatDaysMon

Wake

Hold for

Setting

System

Heat

Hold Temp

20

Pub. No. 22-5127-04

69-1214

Time

M17037

Auto

Fan

HeatFri Days

Wake

Hold for

Setting

System

Heat

LeaveWake Return Sleep

2. Press Time ▲ or Time ▼ until the desired
number of days displays (1 to 255 days).

By pressing the Time keys, the number of vacation days is selected.

Example displays shows 18 vacation days.

M17038

Auto

Fan

HeatDaysFri

Hold for

Setting

System

Heat

Return

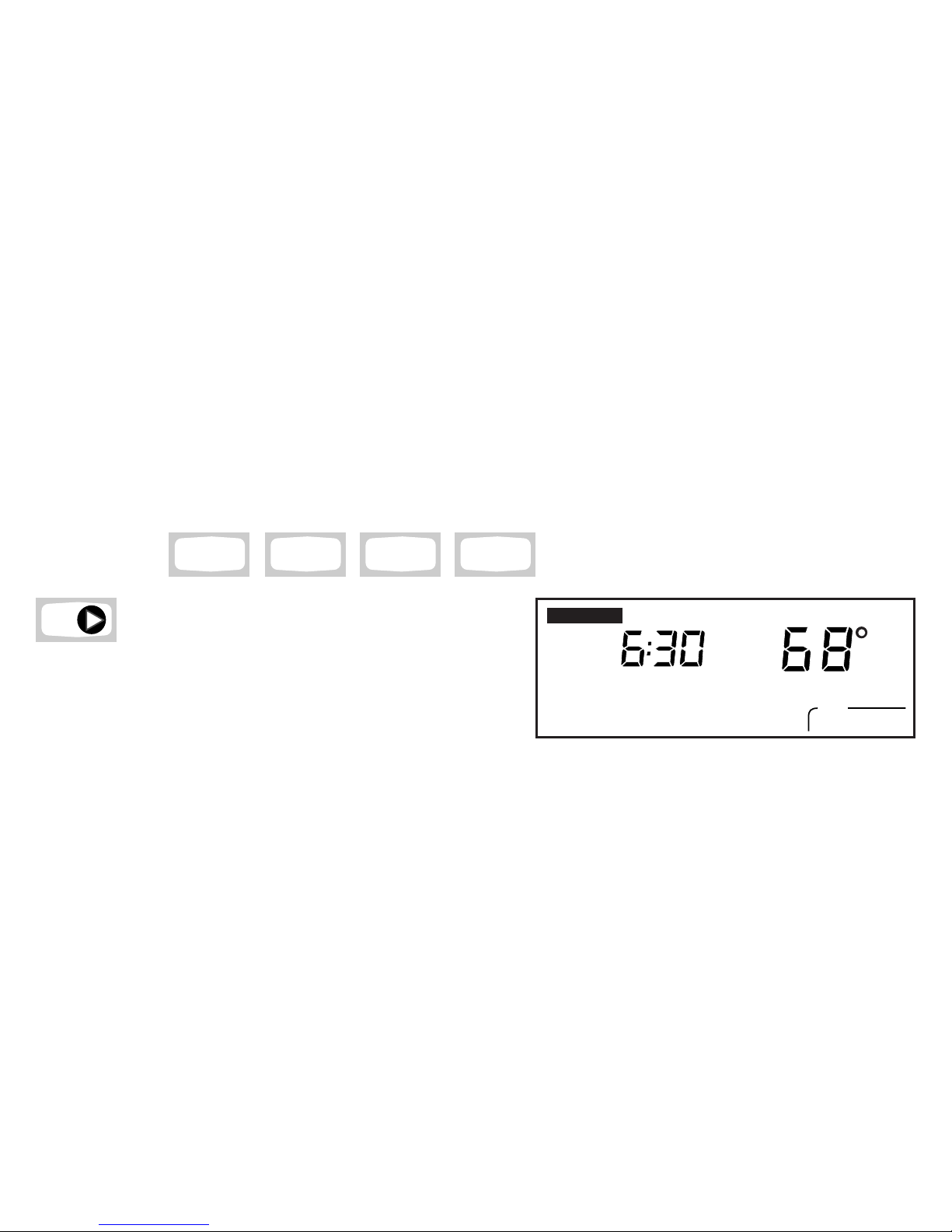

3. Press Wake, Leave, Return or Sleep to select the
period the Hold will stop.

In this example, the Hold will stop after the 18th day

at the beginning of the Return period.

21

Pub. No. 22-5127-04

69-1214

4. Press Increase ▲ or Decrease ▼ to adjust

the temperature setting, if desired.

M17039

Auto

Fan

HeatDaysFri

Hold for

Setting

System

Heat

Return

By pressing Temperature keys, a new hold temperature is selected.

Example display shows temporary heat setting of 55°.

NOTE: Only the heating temperature is used when the System is set to Heat. Similarly, only the cooling

temperature is used when the System is set to Cool. The thermostat uses both the heating and
cooling temperatures when the System is set to Auto.

5. Press Heat/Cool Settings to change between heat and cool settings.

6. Press Increase ▲ or Decrease ▼ to adjust the temperature setting, if desired.

(Example: Cool 84° = cooling equipment operates when the room temperature is
above 84°F)

Heat/Cool

Settings

22

Pub. No. 22-5127-04

69-1214

IMPORTANT

To cancel the Hold before the designated time, press Run Program.

Run

Program

Pressed the wrong key?
Want to start over?

Don’t worry! You can always press

to return display to normal.

Run

Program

23

Pub. No. 22-5127-04

69-1214

Information Key

The Information key provides information at your
fingertips. The sequence of key presses is as follows:

• Outdoor Temperature (if equipped)

• Current Setpoint of Mode in Use (Heat or Cool)

• Setpoint of Mode Not Currently in Use

• Filter Status

M17044

INFORMATION KEY

If the filter status is expired (refer to Filter Indication section), the sequence of key presses is as follows:

• Filter Status

• Outdoor Temperature (if equipped)

• Current Setpoint of Mode in Use (Heat or Cool)

• Setpoint of Mode Not Currently in Use

M17045

Outdoor

Displaying Outdoor Temperature

Press once to display the outdoor
temperature (if equipped).

NOTE: If the filter status is expired, press

twice to display outdoor temperature.

Pressing key once displays the outdoor temperature.

Example displays shows outdoor temperature at 50°.

24

Pub. No. 22-5127-04

69-1214

Displaying Current Settings

Press twice to check the current
temperature setpoint. Press three times
to check the temperature setpoint of the
mode not currently in use.

NOTE: Without outdoor temp. sensor, press once

to display current setpoint; twice for opposite
setpoint.

NOTE: If the filter status is expired, press three

times to check current temperature setpoint,
if equipped w/outdoor sensor.

M17046

Cool

Pressing key twice displays current setpoint.

Example displays shows cooling setpoint of 75°.

25

Pub. No. 22-5127-04

69-1214

M17047

FILTER EXPIRATION INDICATOR

Filter Indication

Your thermostat monitors the time the fan is running
and lets you know when to replace the filter, based on
the number of fan run-time days you select. Upon
expiration, the thermostat displays Filter and the
backlight flashes during the Wake and Return modes.

To temporarily cancel the flashing

display, press␣␣␣␣␣␣

26

Pub. No. 22-5127-04

69-1214

Setting or Resetting Filter Indication Timer

Your thermostat comes preset to the 30-day setting. To change this setting, or reset after filter expiration, follow
these instructions:

1. Press Filter to enter the Filter mode.

Filter

M17048

Filter

Days

Setting

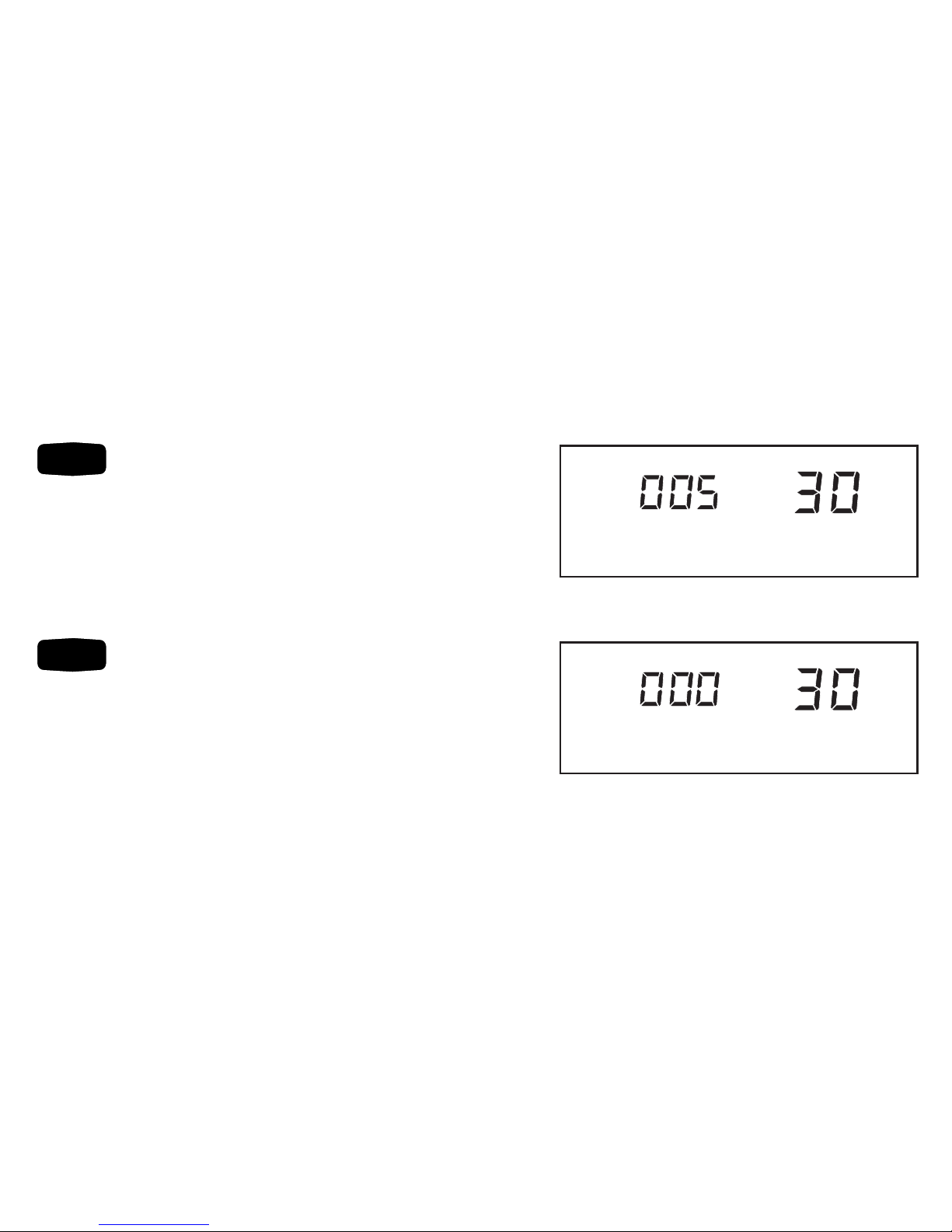

Pressing the Filter key displays filter information.

In this example, current fan run time is 5 days and the filter is set to expire in 30 days.

2. Press and hold Filter for at least
3 seconds to reset fan run time to
zero.

M17049

Filter

Days

Setting

Holding down the Filter key resets counter to “0” days.

Filter

27

Pub. No. 22-5127-04

69-1214

3. Press Time ▲ or Time ▼ until the desired number of days displays (0, 7, 14, 21, 30, 45, 60, 90,
120, 180, 270, or 360).

4. Press Run Program to return to normal operation.

IMPORTANT

To track the time the fan is running, you must select a setting other than 0. If the setting is
0 days, the display will always show “0 Days; 0 Setting” when Filter is pressed.

Run

Program

28

Pub. No. 22-5127-04

69-1214

PROGRAMMING YOUR THERMOSTAT

Clock

Setting Current Day and Time

IMPORTANT

Always press the keys with your fingertip or similar blunt tool. Sharp instruments like pens and pencil
points will damage the keyboard.

M12950

Mon

PM

Set Day/Time

Auto

System Fan

Auto Wait

Room

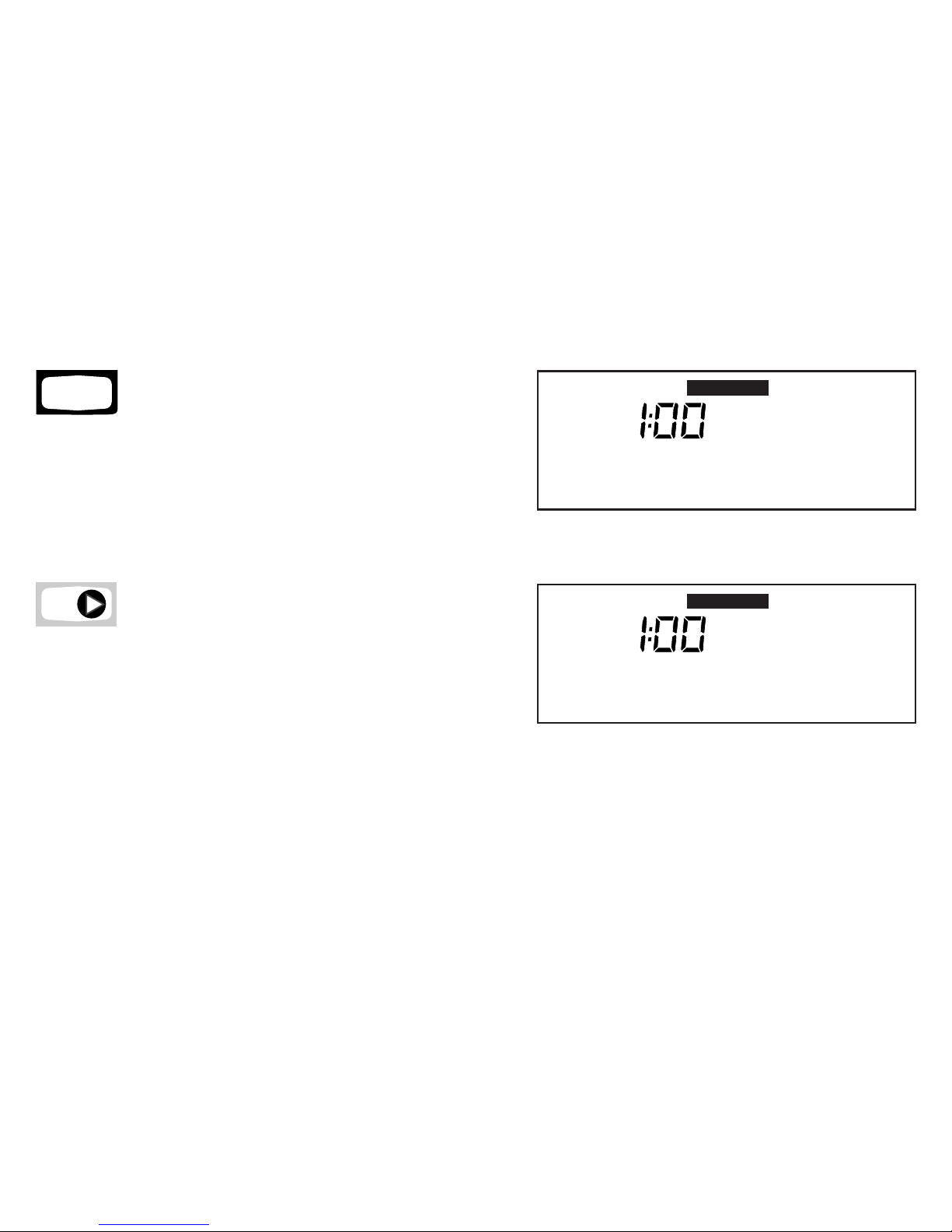

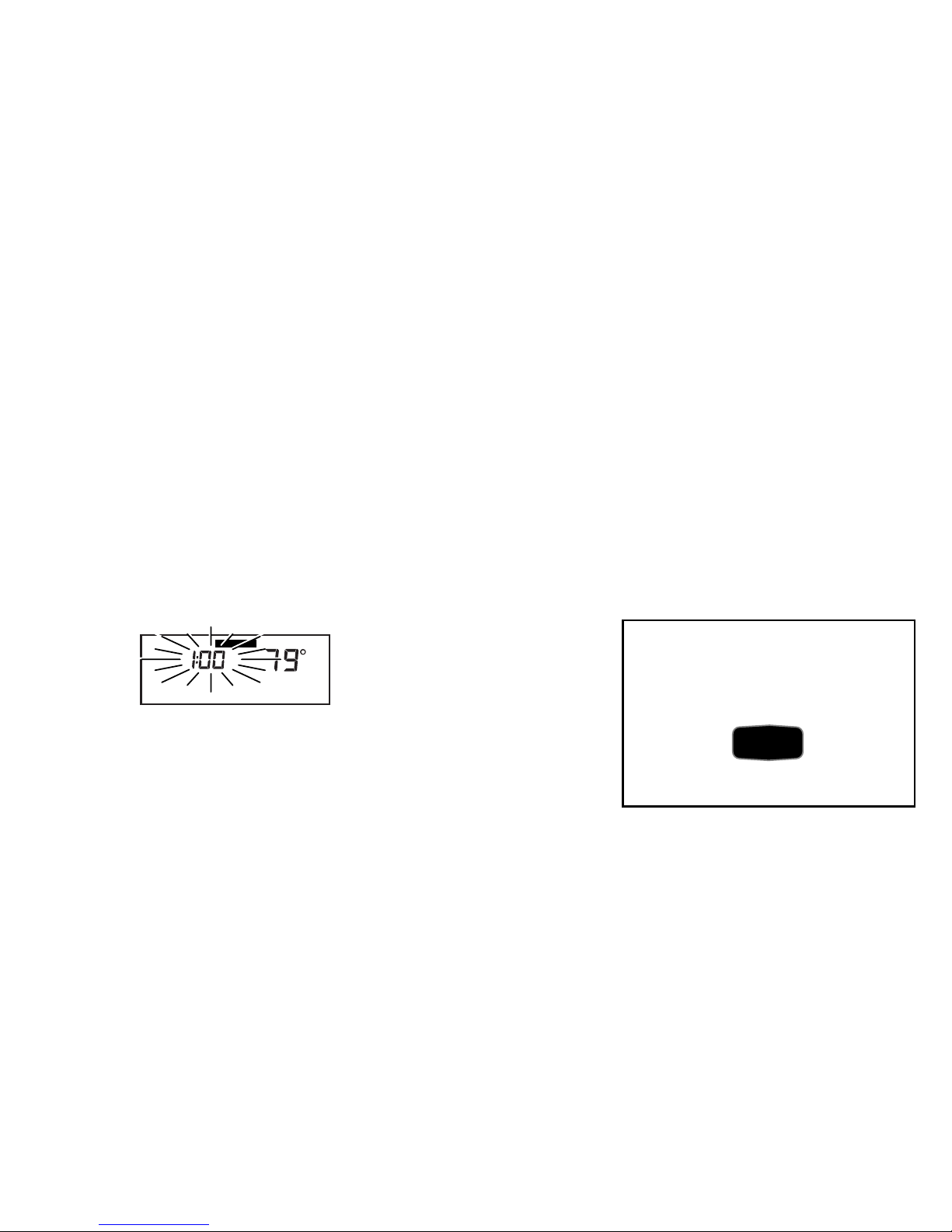

On initial power up or after an extended power loss,

1:00 PM flashes on the display until a key is pressed.

Pressed the wrong key?
Want to start over?

Don’t worry! You can always press

to return display to normal.

Run

Program

29

Pub. No. 22-5127-04

69-1214

1. Press Set Current Day/Time.

M17050

PM

Mon

Set Day/Time

Set Current

Day/Time

Pressing Set Current Day/Time displays the information shown.

2. Press Day until the current day displays.

NOTE: Mon = Monday, Tue = Tuesday,

Wed = Wednesday,
Thu = Thursday, Fri = Friday,
Sat = Saturday, Sun = Sunday.

M17051

PM

Tue

Set Day/Time

Day

By Pressing Day, you can set the current day.

Example display shows Tuesday.

30

Pub. No. 22-5127-04

69-1214

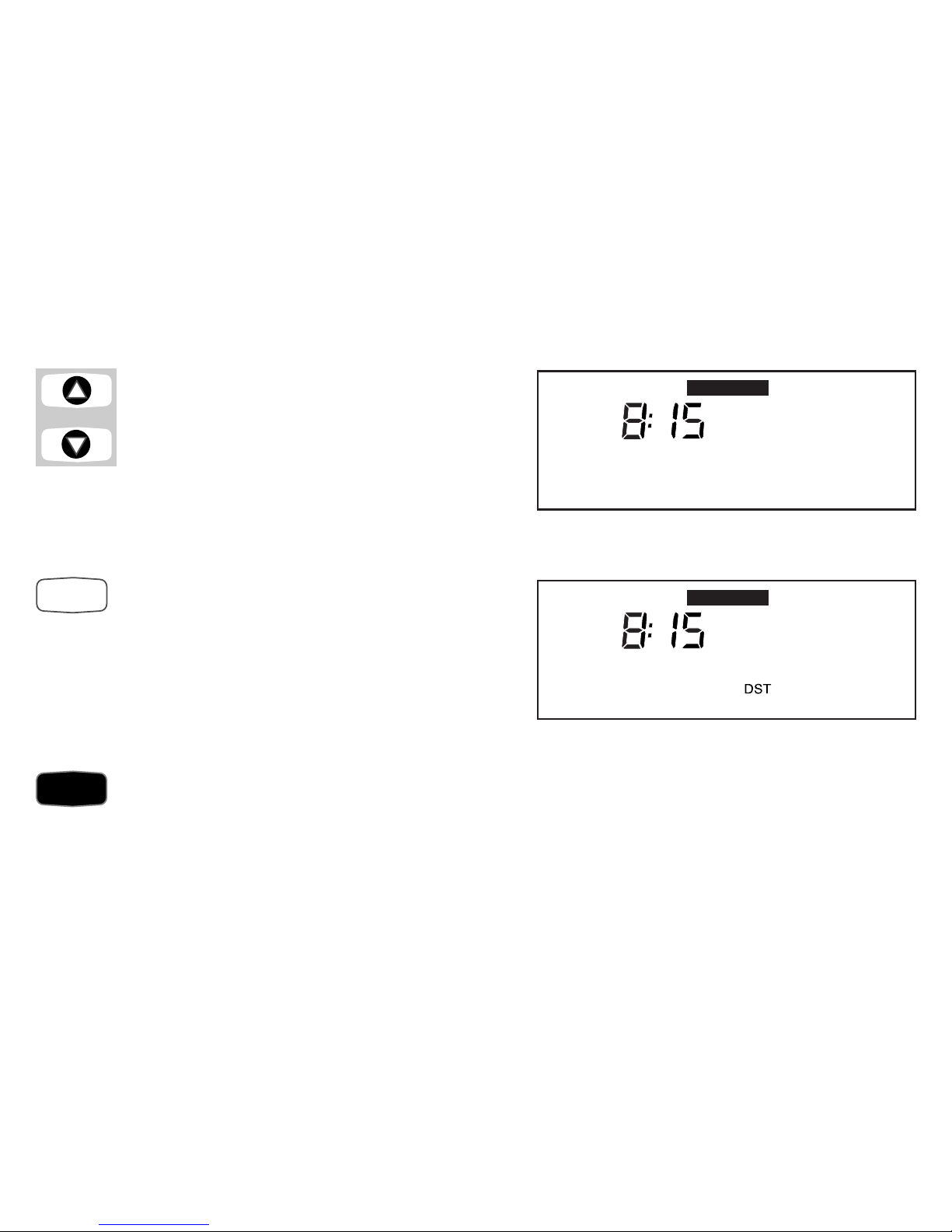

3. Press Time ▲ or Time ▼ until the
current time displays.

NOTE: Tapping Set Current Day/

Time advances the time in
one-hour increments.

M17052

AM

Tue

Set Day/Time

By Pressing Time, you can set the current time.

Example display shows 8:15 AM.

Time

NOTE: If the current time is Daylight

Savings Time, press
Daylight Time until DST
displays.

Run

Program

Daylight

Time

M17053

AM

Tue

Set Day/Time

By Pressing Daylight Time, you can set Daylight Savings Time.

4. Press Run Program to return to normal operation.

31

Pub. No. 22-5127-04

69-1214

Setting System and Fan

The system default setting is Heat and the fan default setting is Auto. Use the System and Fan keys to change
the settings. The fan settings can be set for each schedule period individually. The system selection is for all the
schedule periods.

Set System

Press System until the desired system displays
(Heat, Off, Cool, or Auto).

Heat: The thermostat controls the heating.
Off: Both the heating and cooling are off.
Cool: The thermostat controls the cooling.
Auto: The thermostat automatically changes

between heating and cooling operation,
depending on the indoor temperature.

M17054

System

Heat

Off

Auto

Cool

M17055

Auto

Fan

On

System

Fan

Set Fan

Press Fan until the desired mode displays
(On or Auto).

On: Fan operates continuously.
Auto: Fan operates only when heating

or cooling.

32

Pub. No. 22-5127-04

69-1214

7-Day Program and Operation

Your thermostat comes preset for 7-Day Operation unless otherwise noted on page 6. After reviewing the options
following this section, you may find that 24-Hour Operation or Constant Temperature Setpoint Programming is
better for you and your family. If so, please consult your Trane dealer or service technician.

M12958

Auto

Fan

Mon

AM

Wake

Set Program

Setting

Heat

During 7-Day Operation, one day of the week displays in program mode

(Monday is shown in the example).

7-Day Preprogrammed Schedule

If your thermostat is set for 7-Day Operation, follow the steps below. Otherwise, refer to 24-Hour Program and
Operation, or Constant Temperature Setpoint Programming.

The preprogrammed schedule is shown in Table 1 (same schedule for all days of the week). You may keep this
schedule or organize your own.

During 7-Day Operation, you can set your thermostat for
four periods (Wake, Leave, Return and Sleep) and up to
eight temperatures (four Heat and four Cool) for each day
of the week. Each day can be the same or different.

33

Pub. No. 22-5127-04

69-1214

Table 1. 7-Day Preprogrammed Schedule.

WAKE LEAVE RETURN SLEEP

SUNDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

MONDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

TUESDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

WEDNESDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

THURSDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

FRIDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

SATURDAY TIME 6:00 AM

FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

34

Pub. No. 22-5127-04

69-1214

Customizing Your Own 7-Day Schedule

Before starting the programming procedure, use Tables 2 and 3 to organize your schedule. The preprogrammed
schedule is shown in Table 1. Four time periods are available for each day of the week – WAKE, LEAVE,
RETURN, and SLEEP.

A Word About Power Outages

Don’t worry! Your thermostat retains the schedule (preprogrammed or your own) for the life of the product.
The clock and day information is retained for a minimum of ten minutes during a power outage. After a
longer power outage, the current time and day may need to be set (1:00 PM flashes on the display), but
the schedule is retained.

35

Pub. No. 22-5127-04

69-1214

Instructions

1. Write in the time you want each schedule period to begin.

2. Write in the heating temperature (H) and cooling temperature (C) you want for each period.

3. Circle the fan operation you desire for each period.

4. Begin with Programming the First Day!

Pressed the wrong key?
Want to start over?

Don’t worry! You can always press

to return display to normal.

Run

Program

36

Pub. No. 22-5127-04

69-1214

Table 2. Your 7-Day Schedule.

WAKE LEAVE RETURN SLEEP

SUNDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

MONDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TUESDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

WEDNESDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

THURSDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

FRIDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

SATURDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

37

Pub. No. 22-5127-04

69-1214

Table 3. An Extra 7-Day Schedule.

WAKE LEAVE RETURN SLEEP

SUNDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

MONDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TUESDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

WEDNESDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

THURSDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

FRIDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

SATURDAY TIME

FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

38

Pub. No. 22-5127-04

69-1214

Programming the First Day

To modify the preprogrammed schedule, start by programming the Wake time and temperature and fan operation
for any one day:

NOTE: This schedule follows the current day and time you set in the section Setting Current Day and Time and

the Heat or Cool setting and Fan setting you selected in the section Setting System and Fan.

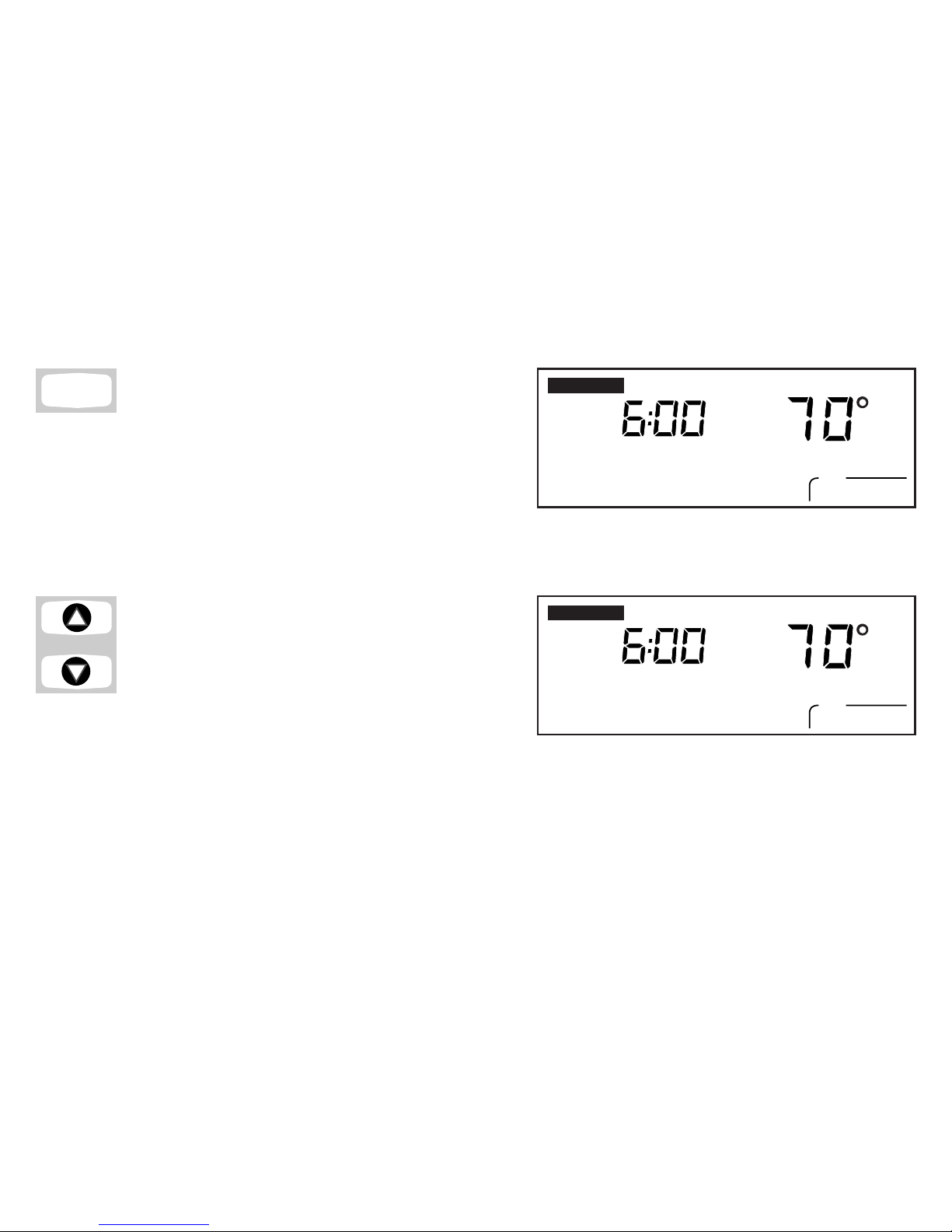

1. Press Wake.

Wake

By pressing Wake, you enter the program mode.

Example display shows 6:00 AM on Tuesday with Heat set to 70°F.

M17056

Heat

Auto

Fan

Wake

AM

Tue

Set Program

Setting

39

Pub. No. 22-5127-04

69-1214

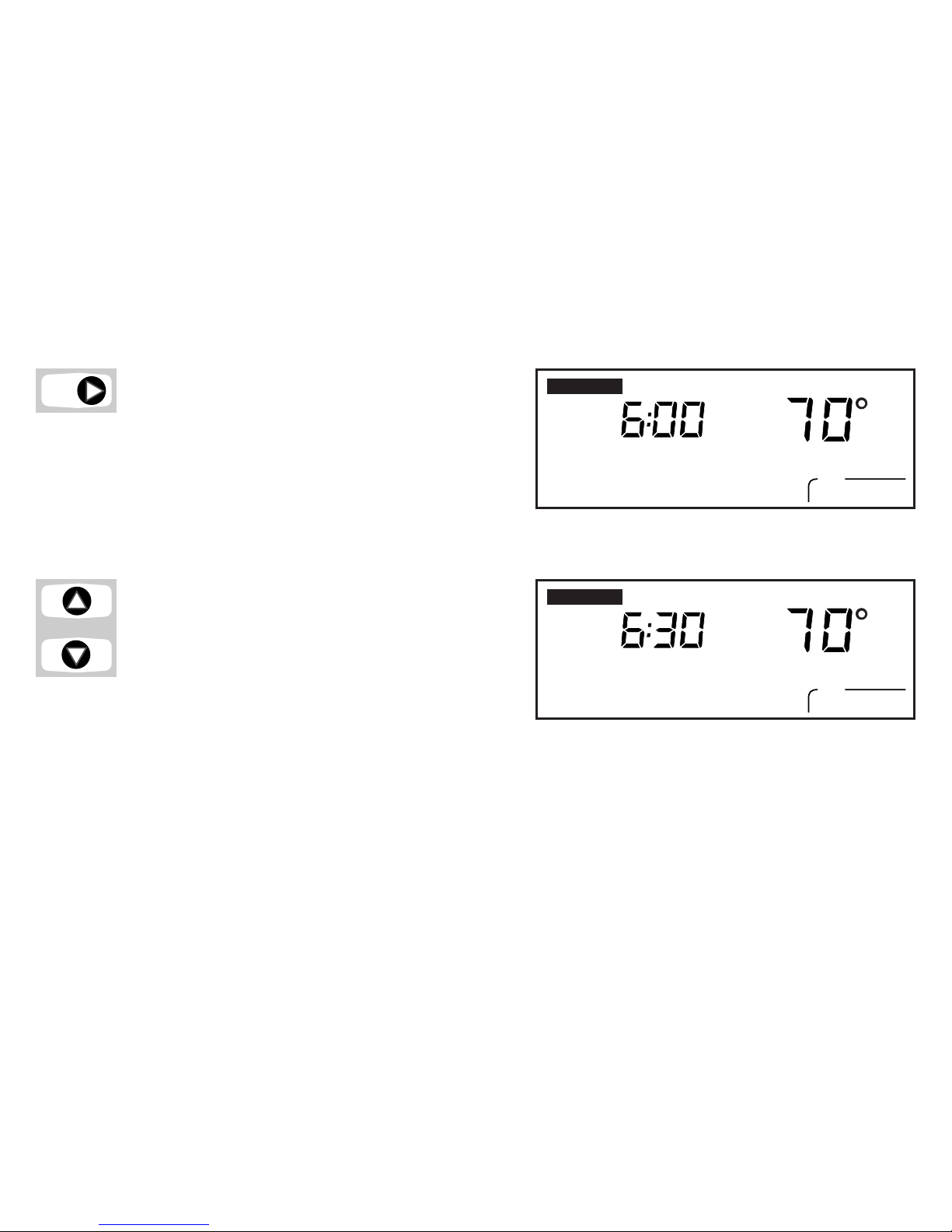

2. Press Day until the desired day
displays.

Day

M17057

Heat

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Day, you select the day to program.

Example display shows Monday is selected and ready to program.

3. Press Time ▲ or Time ▼ until the
desired Wake time displays.

NOTE: The program times are in

fifteen-minute intervals.
(Example: 8:00, 8:15, 8:30).

Time

M17058

Heat

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Time, you select the time the Wake period will begin.

Example display shows the Wake period will begin at 6:30 AM.

40

Pub. No. 22-5127-04

69-1214

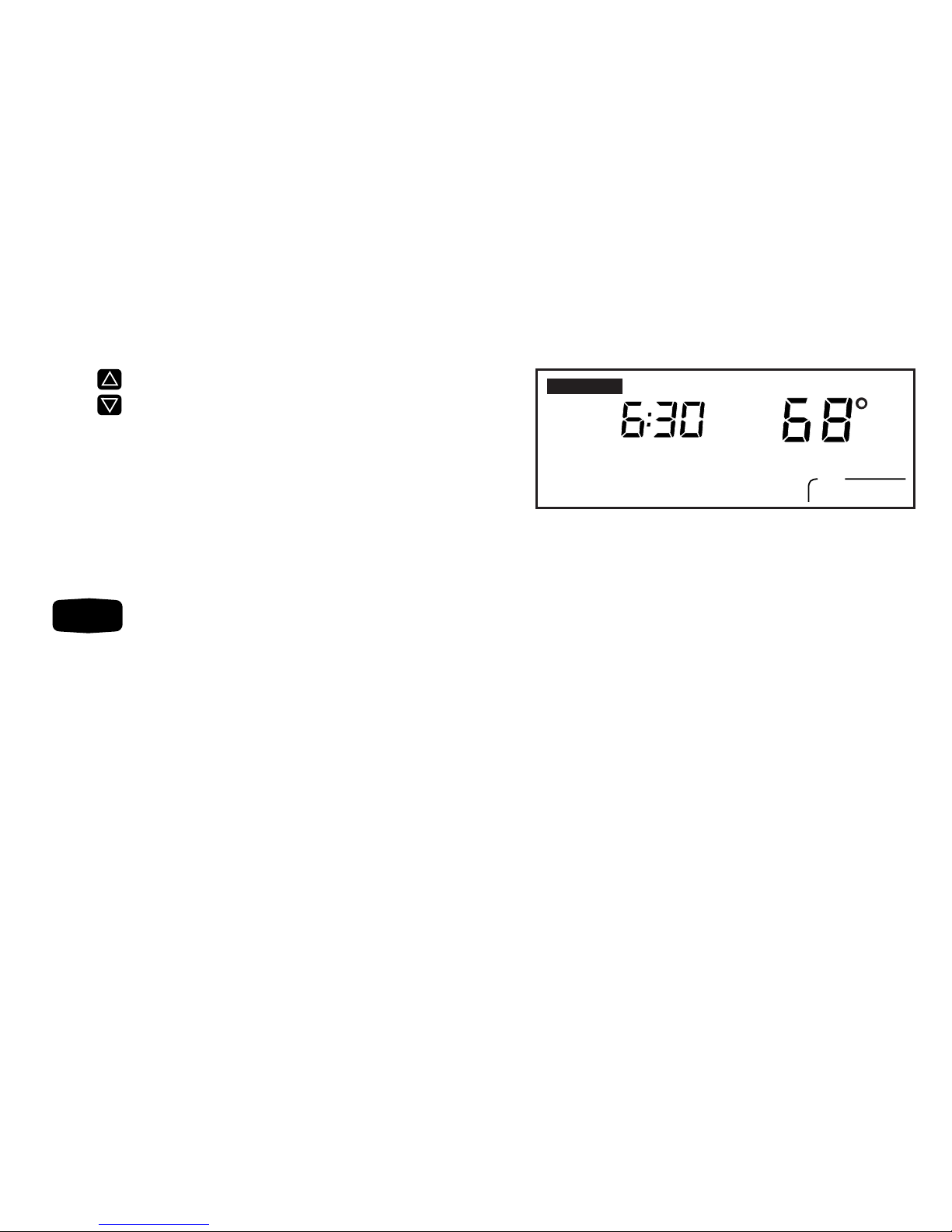

4. Press Increase ▲ or Decrease ▼ until
the desired Wake temperature displays.

NOTE: The setpoint temperature range

is 55 to 85°F (13 to 29°C) for
heating and 65 to 99°F (18 to
37°C) for cooling.

M17059

Heat

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Increase s or Decrease t, you select the temperature for the Wake period.

Example display shows the heating Wake period set for 68°.

NOTE: Press Fan to modify fan operation. Auto means the fan runs only when the heating or

cooling equipment is operating. On means the fan runs continuously for the entire
schedule period.

Fan

41

Pub. No. 22-5127-04

69-1214

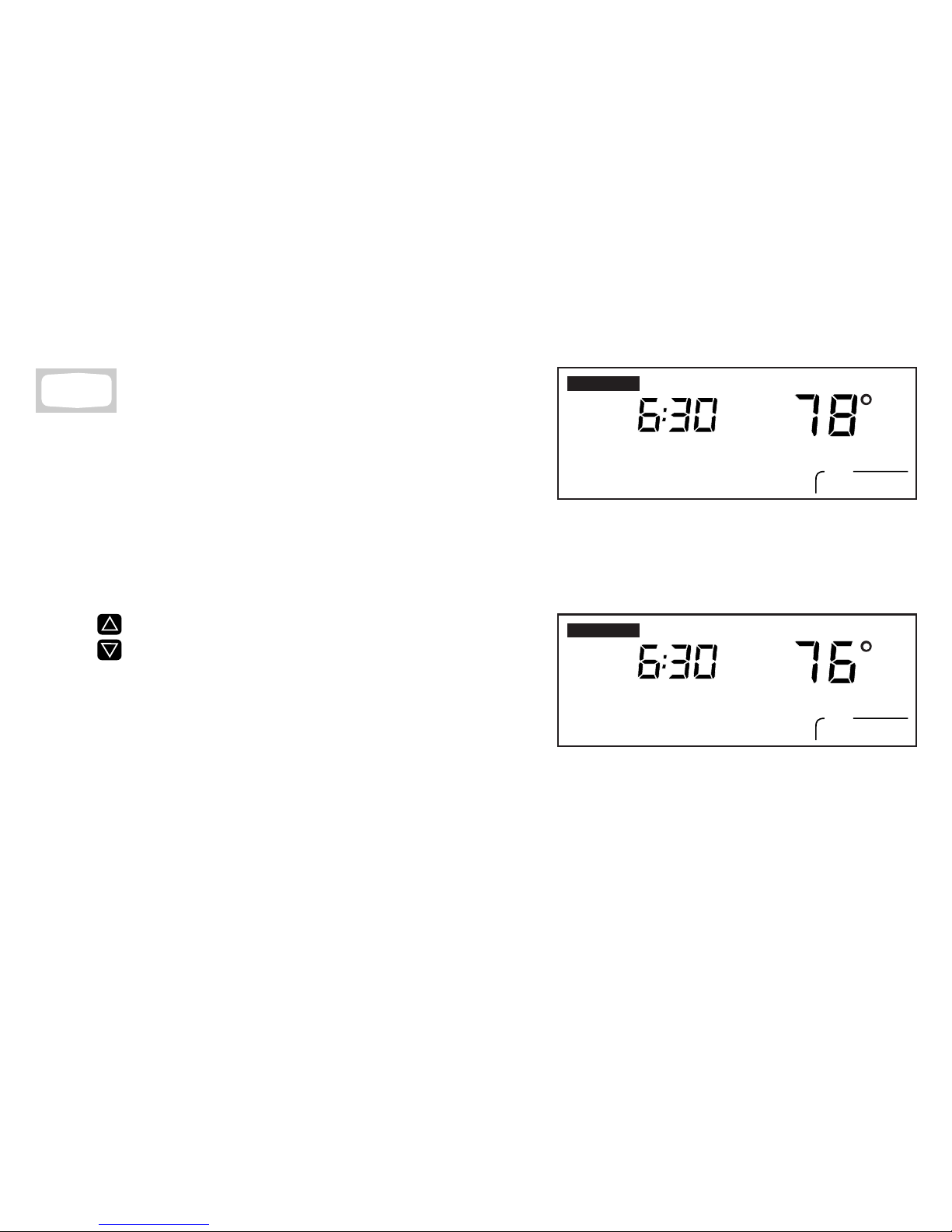

5. Press Heat/Cool Settings to make selec-
tions for the opposite system setting (either
Heat or Cool).

NOTE: If your system is set for Heat, only

the heating temperature will be used.
Similarly, if your system is set for
Cool, only the cooling temperature
will be used. If your system is set for
Auto, either the heating or cooling
temperature may be used depending
on the temperature of the room.

Heat/Cool

Settings

M17060

Cool

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Heat/Cool Settings, you select the cooling system

(if you already set the heating temperature). The current setting

displays. Example display shows the cooling system was

previously set for 78°.

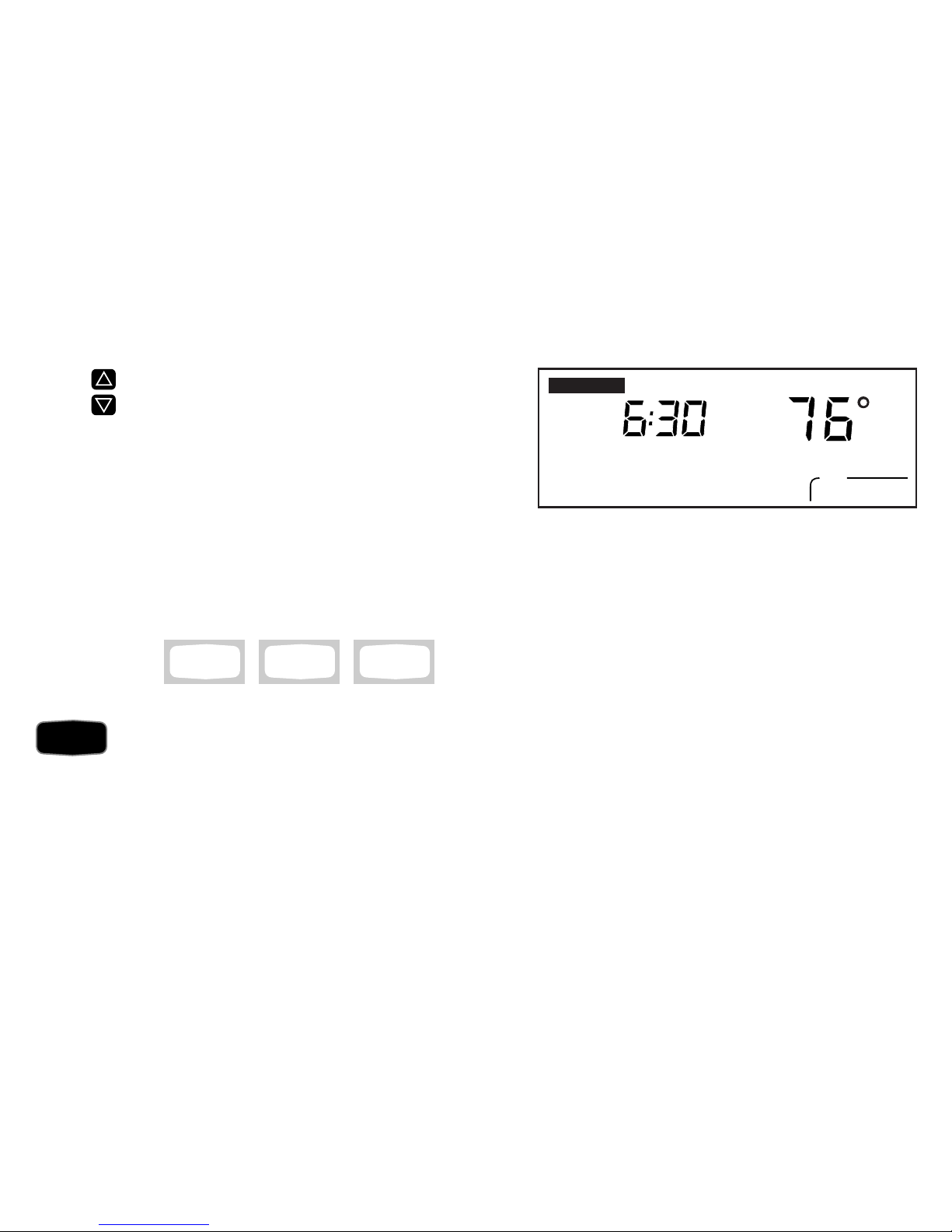

6. Press Increase ▲ or Decrease ▼ until
the desired temperature setpoint
displays.

M17061

Cool

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Increase ▲ or Decrease ▼, you select the

cooling Wake temperature.Example display shows the

cooling Wake period set for 76°.

42

Pub. No. 22-5127-04

69-1214

Leave Return Sleep

Run

Program

7. Press Leave, Return or Sleep and repeat steps 3, 4, 5 and 6 for programming the rest of the
day. The day is now programmed (first day of a seven-day schedule).

IMPORTANT

Repeat steps 1 through 7 for each day of the week that has a different schedule from the
first day. Or, refer to the section Copying a Day to copy any programmed day to another.

8. Press Run Program to return to normal operation.

Pressed the wrong key?
Want to start over?

Don’t worry! You can always press

to return display to normal.

Run

Program

43

Pub. No. 22-5127-04

69-1214

Copying a Day

NOTE: The copy feature applies only to 7-Day Operation. The thermostat must be in the program mode to use

the copy feature. Go to step 2 if the thermostat is already in the program mode (Set Program displays in
upper left corner).

1. Press Wake, Leave, Return or Sleep to enter
program mode.

Leave Return SleepWake

2. Press Day to select the day to copy from.

Day

M17062

Heat

Auto

Fan

Wake

AM

Mon

Set Program

Setting

By pressing Day, you select which day’s schedule to copy.

Example display shows the thermostat in program mode with

Monday ready to be copied.

44

Pub. No. 22-5127-04

69-1214

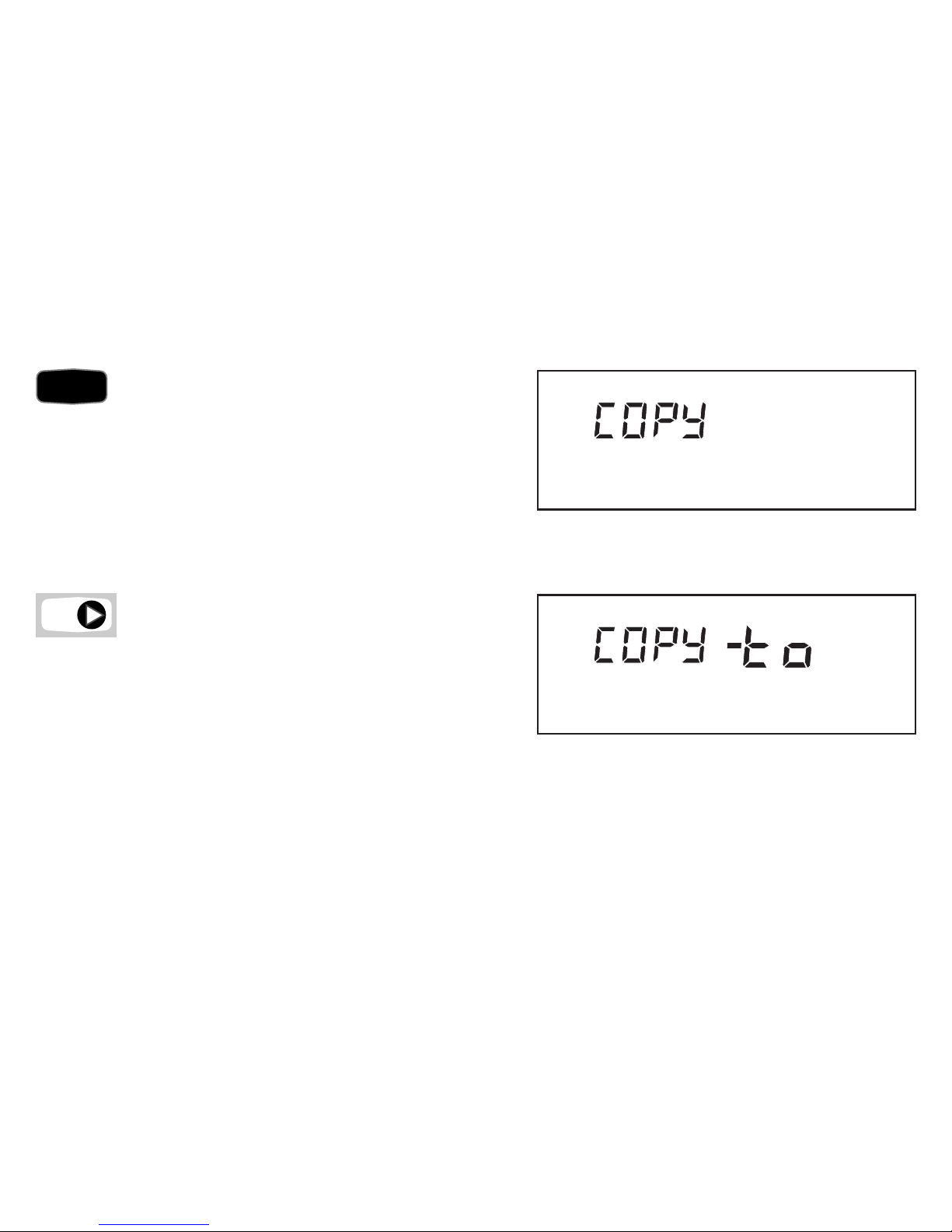

3. Press Copy.

Copy

M17063

Mon

By pressing Copy, you copy a day’s schedule into memory.

Example display shows Monday’s schedule has been copied into memory.

4. Press Day until the day to be copied to is
displayed.

Day

M17064

Mon

Wed

By pressing Day again, you select which day to copy to. Example display shows Monday and Wednesday.

Since Monday was already selected, Monday’s schedule will be copied to Wednesday.

45

Pub. No. 22-5127-04

69-1214

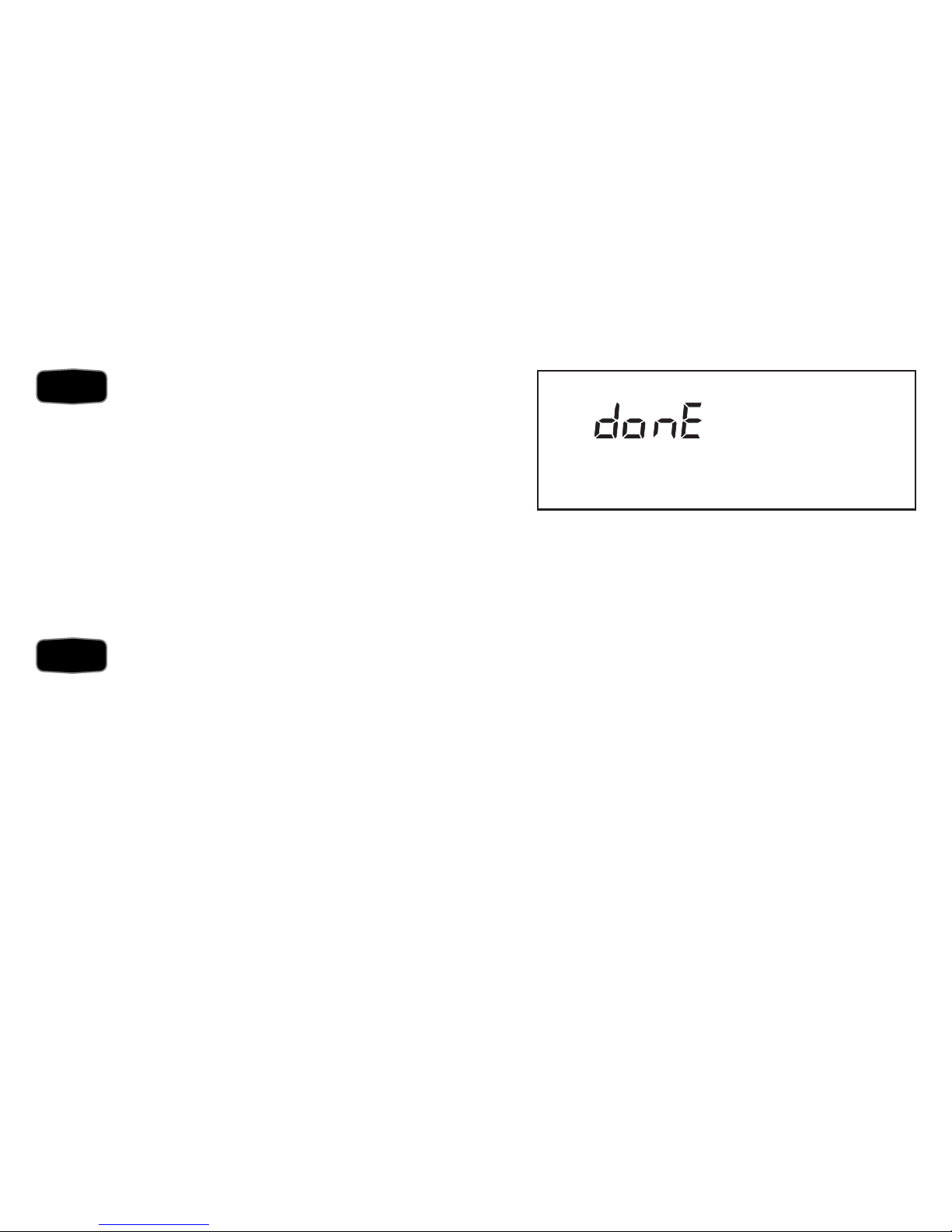

5. Press Copy.

NOTE: donE displays for two seconds

before the normal display
returns.

Run

Program

Copy

M17065

By pressing Copy again, you complete the copy command. Example display shows donE. Monday’s schedule

was successfully copied to Wednesday (Monday and Wednesday now have the same schedule).

6. Repeat steps as necessary for all the periods and days desired.

7. Press Run Program to return to normal operation.

46

Pub. No. 22-5127-04

69-1214

Clearing Schedule Period

Suppose you want to skip a schedule period or periods for a particular day because you don’t need them. For
example, if Saturday is a day you normally stay at home from school or work, you can clear the Leave and
Return periods for this day and keep the Wake and Sleep periods. You can always reprogram the periods later.

NOTE: The clear feature applies to 7-Day and 24-Hour Operation. The thermostat must be in the program

mode to use the clear feature. Go to step 2 if the thermostat is already in the program mode (Set
Program displays in upper left corner).

1. Press Leave, Return or Sleep to
enter program mode.

Leave Return Sleep

M17066

Heat

Auto

Fan

Leave

AM

Mon

Set Program

Setting

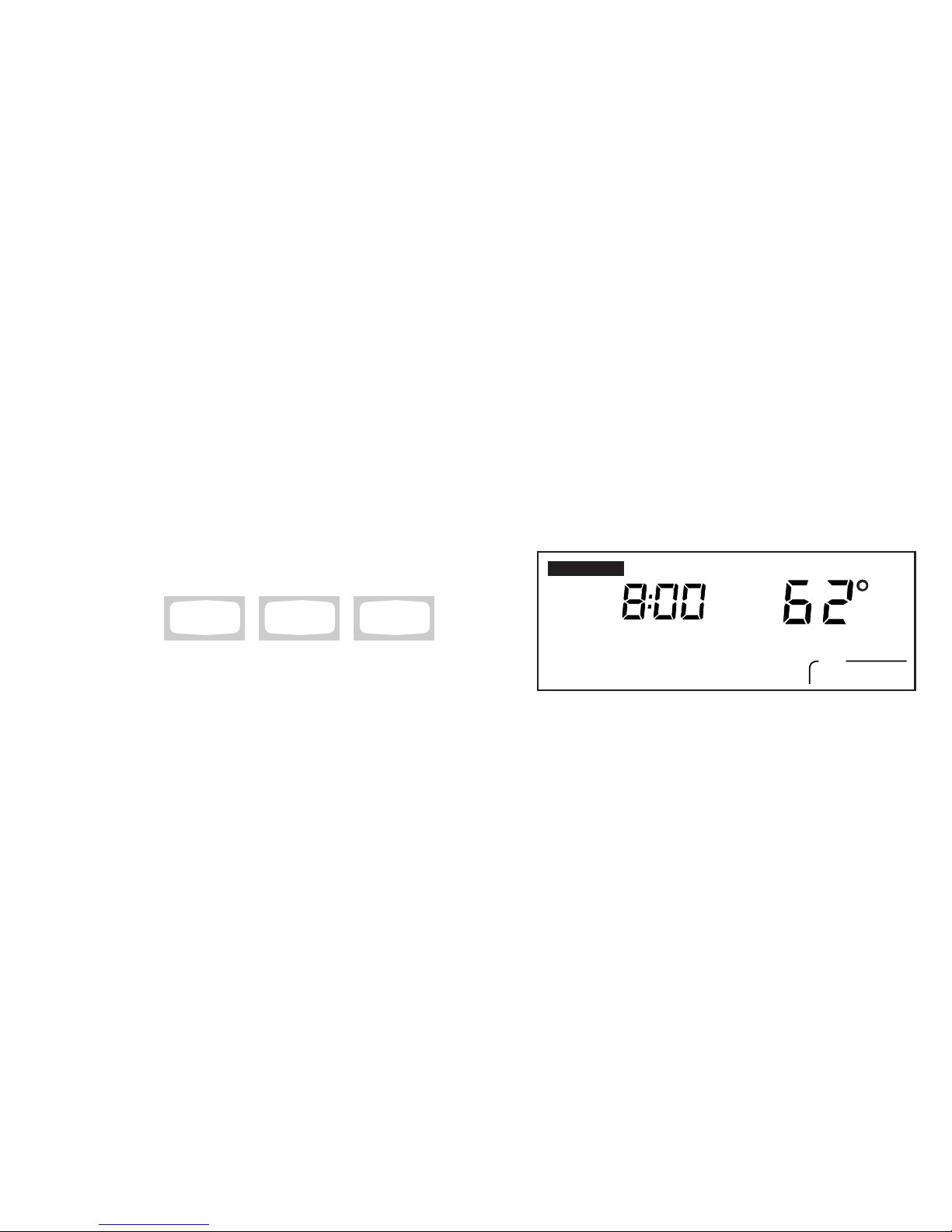

By pressing Leave, Return, or Sleep, you enter the program mode.

Example display shows 8:00 AM on Monday in the Leave period, with Heat set for 62°

47

Pub. No. 22-5127-04

69-1214

2. For 7-Day Operation, press Day until the
desired day displays. For 24-Hour
Operation, skip to step 3.

Day

M17067

Heat

Auto

Fan

Leave

AM

Sat

Set Program

Setting

Press Day to select which day to begin clearing periods.

Example display shows Saturday is selected

3. Press and hold Leave, Return or Sleep
until the start time and temperature
setting are cleared (approximately
3 seconds).

Leave Return Sleep

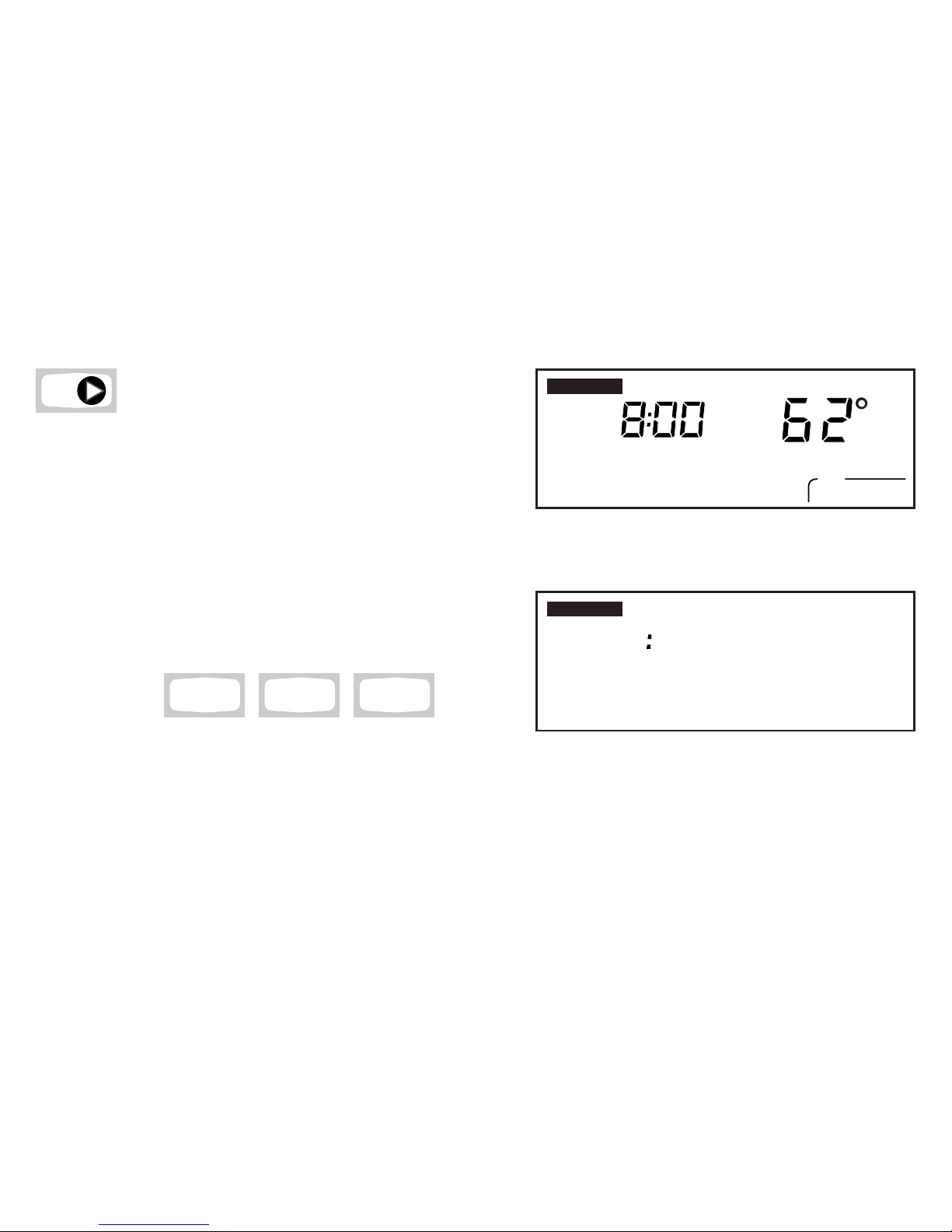

M17068

Leave

Sat

Set Program

NOTE: Wake cannot be cleared.

By pressing and holding Leave, Return or Sleep, the period for that

day is cleared. Example display shows Saturday’s Leave period has

been cleared.

48

Pub. No. 22-5127-04

69-1214

You do not have to program a replacement time for the remaining periods, for example Wake and Sleep. If you
cleared only the Leave and Return periods for Saturday (or any day), the thermostat remains in the Wake period
for all of Saturday until the Sleep period.

4. Repeat steps as necessary for all the periods to be cleared.

5. Press Run Program to return to normal operation.

Run

Program

49

Pub. No. 22-5127-04

69-1214

24-Hour Program and Operation

24-Hour Operation is the same as 7-Day Operation except
the same program repeats itself each day. Monday
through Sunday follows the same exact schedule
(four periods and up to eight temperatures).

M12959

Auto

Fan

Mon

AM

Wake

Set Program

Setting

Heat

TueWedThuFriSatSun

During 24-Hour Operation, all days of the week display in program mode.

24-Hour Preprogrammed Schedule

If your thermostat is set for 24-Hour Operation, follow the steps below. Otherwise, refer to 7-Day Program and
Operation, or Constant Temperature Setpoint Programming.

50

Pub. No. 22-5127-04

69-1214

The preprogrammed schedule is as follows (same schedule for all days of the week): You may keep this
schedule or organize your own.

Table 4. 24-Hour Preprogrammed Schedule.

Customizing Your Own 24-Hour Schedule

Before starting the programming procedure, use Tables 5 and 6 to organize your schedule. The preprogrammed
schedule is shown in Table 4. Four time periods are available—WAKE, LEAVE, RETURN, and SLEEP.

Table 5. Your 24-Hour Schedule.

WAKE LEAVE RETURN SLEEP

Program
Repeats
Every 24
Hours

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

WAKE LEAVE RETURN SLEEP

Program Repeats
Every 24 Hours

TIME 6:00 AM
FAN AUTO
H 70 C 78

TIME 8:00 AM
FAN AUTO
H 62 C 85

TIME 5:00 PM
FAN AUTO
H 70 C 78

TIME 10:00 PM
FAN AUTO
H 62 C 75

51

Pub. No. 22-5127-04

69-1214

Instructions

1. Write in the time you want each schedule period to begin.

2. Write in the heating temperature (H) and cooling temperature (C) you want for each period.

3. Circle the fan operation you desire for each period.

4. Begin programming.

Table 6. An Extra 24-Hour Schedule.

WAKE LEAVE RETURN SLEEP

Program
Repeats
Every 24
Hours

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

TIME
FAN AUTO ON
H C

Programming Your 24-Hour Schedule

To program the Wake time and temperature and fan operation:

NOTE: This schedule follows the current day and time you set in the section Setting Current Day and Time and

the Heat or Cool setting and Fan setting you selected in the section Setting System and Fan.

52

Pub. No. 22-5127-04

69-1214

1. Press Wake.

Time

Wake

M17069

Heat

Auto

Fan

Wake

AM

MonTueWedThuFriSat Sun

Set Program

Setting

By pressing Wake, you enter the program mode.

Example display shows 6:00 AM with Heat set to 70°F.

2. Press Time ▲ or Time ▼ until the
desired Wake time displays.

NOTE: The program times are in

fifteen minute intervals.
(Example: 8:00, 8:15, 8:30).

M17070

Heat

Auto

Fan

Wake

AM

MonTueWedThuFriSatSun

Set Program

Setting

By pressing Time, you select the time the Wake period will begin.

Example display shows the Wake period will begin at 6:30 AM.

53

Pub. No. 22-5127-04

69-1214

3. Press Increase ▲ or Decrease ▼ until
the desired Wake temperature displays.

NOTE: The setpoint temperature range

is 55 to 85°F (13 to 29°C) for
heating and 65 to 99°F (18 to
37°C) for cooling.

By pressing Increase ▲ or Decrease ▼, you select the temperature for the

Wake period. Example display shows the heating Wake period set for 68°.

NOTE: Press Fan to modify fan operation. Auto means the fan runs only when the heating or

cooling equipment is operating. On means the fan runs continuously for the entire
schedule period.

Fan

M17071

Heat

Auto

Fan

Wake

AM

MonTueWedThuFriSatSun

Set Program

Setting

54

Pub. No. 22-5127-04

69-1214

Heat/Cool

Settings

4. Press Heat/Cool Settings to make
selections for the opposite system
setting (either Heat or Cool).

NOTE: If your system is set for

Heat, only the heating
temperature will be used.
Similarly, if your system is
set for Cool, only the cooling
temperature will be used. If
your system is set for Auto,
either the heating or cooling
temperature may be used
depending on the tempera­ture of the room.

By pressing Heat/Cool Settings, you select the cooling system (if you

already set the heating temperature). The current setting displays.

Example display shows the cooling system was previously set for 78°.

M17072

Cool

Auto

Fan

Wake

AM

MonTueWedThuFriSatSun

Set Program

Setting

55

Pub. No. 22-5127-04

69-1214

5. Press Increase ▲or Decrease ▼
until the desired temperature setpoint
displays.

By pressing Increase ▲ or Decrease ▼, you select the cooling Wake temperature.

Example display shows the cooling Wake period set for 76°.

6. Press Leave, Return or Sleep and repeat steps 2, 3, 4, and 5 for programming the rest of the
day. The week is now programmed.

Leave Return Sleep

7. Press Run Program to return to normal operation.

Run

Program

M17073

Cool

Auto

Fan

Wake

AM

MonTueWedThuFriSatSun

Set Program

Setting

56

Pub. No. 22-5127-04

69-1214

Constant Temperature
Setpoint Programming

Unlike the first two options, Constant Temperature
Setpoint Programming does not have the Wake, Leave,
Return and Sleep periods. The temperature is set by
pressing the ▲ and ▼ keys.

M12960

Auto

Fan

Mon

AM

Set Program

Setting

Heat

System

Heat

The four periods (for example, Wake) are absent from the display in this mode.

Setting Temperature and Fan Operation

If your thermostat is set for Constant Temperature Setpoint Programming, follow the steps below. Otherwise,
refer to 7-Day Program and Operation, or 24-Hour Program and Operation.

To set the temperature and fan operation:

NOTE: Refer to the section Setting Current Day and Time to set the current day and time, and the section

Setting System and Fan to set the system and fan.

57

Pub. No. 22-5127-04

69-1214

1. Press Increase ▲ or Decrease ▼ until
the desired temperature displays.

NOTE: The setpoint temperature range

is 55 to 85°F (13 to 29°C) for
heating and 65 to 99°F (18 to
37°C) for cooling.

Fan

M17119

Heat

Setting

By pressing Increase ▲ or Decrease ▼, you select the heating

temperature. Example display shows Heat is set for 68°.

NOTE: Press Fan to modify fan operation. Auto means the fan runs only when the heating or

cooling equipment is operating. On means the fan runs continuously for the entire
schedule period.

2. Press Information key to make selections for the opposite system setting (works like the
Heat/Cool Settings key).

58

Pub. No. 22-5127-04

69-1214

3. Press Increase ▲ or Decrease ▼
until the desired temperature setpoint
displays.

By pressing Increase ▲ or Decrease ▼ after pressing , you select

the cooling temperature. Example display shows Cool is set for 75°.

NOTICE: This equipment is a Class B digital apparatus, which complies with Canadian Radio Interference

Regulations, CRC c. 1374.

CAUTION

Equipment Damage Hazard.
Can cause permanent damage to the compressor or other equipment.

To avoid possible equipment damage, do not operate cooling when outside temperature is below 50°F
(10°C). See equipment manufacturer instructions. To avoid possible compressor damage, allow the
compressor to remain off for five minutes before restarting.

M17075

Cool

Setting

59

Pub. No. 22-5127-04

69-1214

TROUBLESHOOTING GUIDE

(continued)

Symptom Possible Cause Action

Display does not come
on.

Thermostat is not being
powered.

Check if the thermostat is mounted and latched on the

wallplate—mount and latch the thermostat on the
wallplate.

Check if the circuit breaker is tripped—reset the circuit

breaker.
Check if the fuse is blown—replace the fuse.
Check if the system switch at the equipment is in the Off

position—set to the On position.
Check wiring between thermostat and HVAC equipment—

replace any broken wires.
If 24 Vac is present, proceed with troubleshooting.

Temperature setting
does not change
(Example: cannot set the
heating higher or the
cooling lower).

The upper or lower temperature
limits were reached.

Check that the temperature setpoints are:

Heating: 55 to 85°F (13 to 29°C)

Cooling: 65 to 99°F (18 to 37°C).

60

Pub. No. 22-5127-04

69-1214

Troubleshooting Guide (continued)

(continued)

Symptom Possible Cause Action

Heating does not come
on.

No power to the thermostat.
System selection is not set to Heat.
Heating setpoint is below room
temperature.

Check that setpoint is above room temperature.
Check if the circuit breaker is tripped—reset the circuit breaker.
Check if the fuse is blown—replace the fuse.
Check if the system switch at the equipment is in the Off

position—set to On position.
If 24 Vac is present, proceed with troubleshooting.
Wait five minutes for the system to respond (thermostat displays

Wait).
Set system selection to Heat.

Cooling does not come
on.

No power to the thermostat.
System selection is not set to Cool.
Cooling setpoint is above room
temperature.

Check that setpoint is below room temperature.
Check if the circuit breaker is tripped—reset the circuit breaker.
Check if the fuse is blown—replace the fuse.
Check if the system switch at the equipment is in the Off

position—set to On position.
If 24 Vac is present, proceed with troubleshooting.
Wait five minutes for the system to respond (thermostat displays

Wait).
Set system selection to Cool.

61

Pub. No. 22-5127-04

69-1214

Troubleshooting Guide (continued)

Symptom Possible Cause Action

System on indicator
(flame=heat,
snowflake=cool) is lit, but
no warm or cool air is
coming from the
registers.

Heating/cooling equipment turns on
the fan when the equipment has
reached the setpoint.

Wait a minute after seeing the flame or snowflake and then check

the registers.

System on indicator reads
Filter and backlight is
flashing.

Filter expired. Refer to the Filter Indication section.

Outdoor temperature not
displayed or is incorrect.

Filter expired. Press twice for outdoor temperature when filter expiration

shows on display.
Refer to the Filter Indication section.

Installer did not activate this option.
Outdoor sensor is connected
incorrectly.

Contact installer or service technician.

62

Pub. No. 22-5127-04

69-1214

DEFINITIONS

Adaptive Intelligent Recovery™ Control

Adaptive Intelligent Recovery™ Control is the factory default setting that allows you to choose the exact time the
room reaches your comfort temperature, as opposed to conventional recovery.

Adaptive Intelligent Recovery™ Modes

WAKE You choose the exact time the room reaches your comfort temperature after the SLEEP period.
LEAVE You choose the time you want your heating or cooling system to start an energy-savings mode while

you are away (lower temperature during heating season, and higher temperature during cooling
season) – follows WAKE period.

RETURN You choose the exact time the room reaches your comfort temperature after the energy-savings

LEAVE period.

SLEEP You choose the time you want your heating or cooling system to start an energy-savings mode while

you sleep-follows RETURN period.

Conventional Recovery

Conventional recovery is an optional setting allows you to choose the exact time your heating or cooling system
comes on to start recovery, as opposed to Adaptive Intelligent Recovery™ Control.

63

Pub. No. 22-5127-04

69-1214

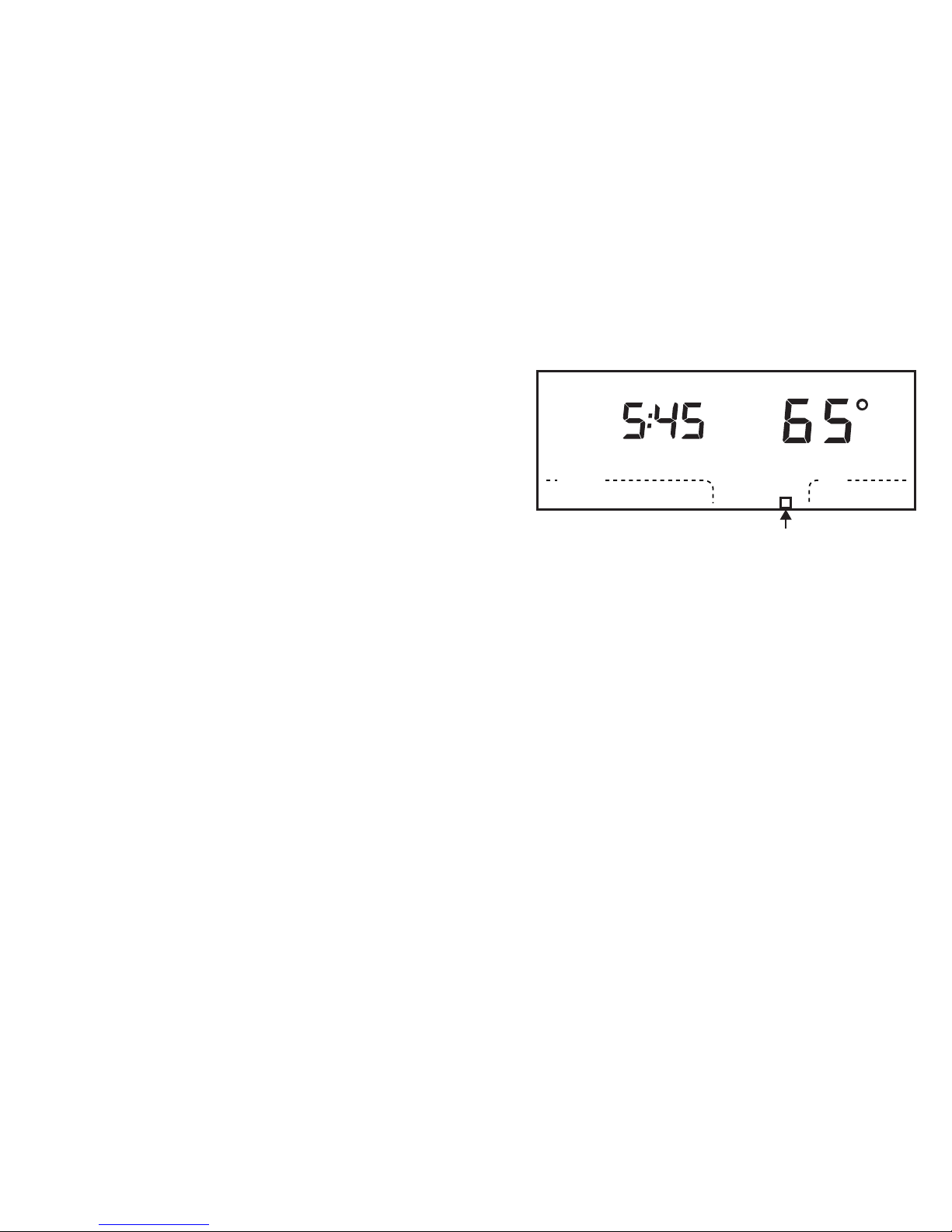

If your thermostat is set to conventional recovery, a ❑ indica­tion displays continuously, as shown on the example display.

M12949

Auto

System Fan

Mon

In

Room

AM

Recovery

Sleep

Heat

Conventional Recovery Modes

WAKE You choose the time you want your heating or cooling system to start to reach your comfort tempera-

ture after the SLEEP period. Adjust this time to earlier when you know it will take longer for the
system to reach your comfort temperature. Adjust this time to later when you know the SLEEP
temperature is closer to your WAKE temperature.

LEAVE You choose the time you want your heating or cooling system to start an energy-saving mode while

you are away (lower temperature during heating season, and higher temperature during cooling
season) – follows WAKE period.

RETURN You choose the time you want your heating or cooling system to start to reach your comfort tempera-

ture after the energy-savings LEAVE period.

SLEEP You choose the time you want your heating or cooling system to start an energy-savings mode while

you sleep-follows RETURN period.

64

Pub. No. 22-5127-04

69-1214

Preprogrammed Schedule

The preprogrammed schedule consists of the four periods (Wake, Leave, Return and Sleep) and accompanying
temperatures programmed into your thermostat at the factory. See Tables 1 and 4.

Period

One of the four times of the day (Wake, Leave, Return or Sleep) that you can program a setpoint or setpoints.

Setpoint

Setpoint is the temperature setting you select for a schedule or for a Hold. The setpoint can be either the heating
temperature you set or the cooling temperature. Setpoint does not refer to actual room temperature or outdoor
temperature.

System

System refers to either the heating and cooling mechanics. For example, when the System is set to Heat, the
heating mechanics operate according to the heating setpoint. The thermostat selects the System when set to
Auto. Some installations allow you to turn the System off (neither heating nor cooling will operate).

65

Pub. No. 22-5127-04

69-1214

INDEX

24-Hour Operation, 49
24-Hour Preprogrammed Schedule, 50
7-Day Operation, 32
7-Day Preprogrammed Schedule, 33
Adaptive Intelligent Recovery Control, 11
Changing Temperature Setting Indefinitely, 16
Changing Temperature Setting Until the Next

Schedule Period, 14
Clearing Schedule Period, 46
Clock, 28
Comfort-R Comfort Enhancement System, 10
Constant Temperature Setpoint Programming, 56
Conventional recovery, 62
Copying a Day, 43
Daylight Time, 30
DEFINITIONS, 62
Displaying Current Settings, 24
Energy Savings, 12

Filter Indication, 25
Information key, 23
keyboard, 7
LEAVE, 62, 63
options, 5
Outdoor Temperature, 23
Period, 64
Programming the First Day, 38
RETURN, 62, 63
Saturday, 19
Set Fan, 31
Set System, 31
Setpoint, 64
Setting Current Day and Time, 28
SLEEP, 62, 63
The Trane Company, 67
Thermostat Customer Assistance Helpline, 68
Troubleshooting, 59
Vacation, 19
WAKE, 62, 63
warranty, 67

66

Pub. No. 22-5127-04

69-1214

LIMITED WARRANTY

Low Voltage Room Thermostats

This warranty is extended by American Standard Inc., to the original purchaser and to any succeeding owner of the real property to which the
Thermostat is originally affixed, and applies to products purchased and retained for use within the U.S.A. and Canada.

If any part of your Thermostat fails because of a manufacturing defect within one year from the date of the original purchase, Warrantor will
furnish without charge a new thermostat. Any local transportation, related service labor and diagnosis calls are not included.

This warranty does not cover failure of your Thermostat if it is damaged while in your possession or if the failure is caused by unreasonable use.
In no event shall Warrantor be liable for incidental or consequential damages. In no event shall any implied warranty of merchandise or

fitness for use exceed the term of the limited warranty stated above.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequen­tial damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.

Parts will be provided by our factory organization or an authorized service organization in your area. All you need to do is look us up in the Yellow
Pages or write to the address given below. If you wish further help or information concerning this warranty, contact:

American Standard Inc.
Troup Highway
Tyler, TX 75711-9010
Attention: Manager, After Sales Support

67

Pub. No. 22-5127-04

69-1214

CUSTOMER ASSISTANCE

If, after reading this guide, you have any questions concerning the operation of your thermostat, please call the
Thermostat Customer Assistance Helpline at 1-877-880-3381, Monday-Friday, 7:00 am-5:30 pm, Central time.

For service, contact your local heating and cooling contractor.

68

Pub. No. 22-5127-04

69-1214

Pub. No. 22-5127-04
T8600, T8624

69-1214 1-99 T.C.

American Standard Inc.
Troup Highway
Tyler, TX 75711-9010

Printed in Taiwan R.O.C.
