Trane 4WCY4024A1000B, 4WCY4030A1000B, 4WCY4036C1000A, 4WCY4036B3000A, 4WCY4042B1000A Product Data
...
22-1789-19
Product Data
4WCY4024 through 4WCY4060
Single Packaged Convertible Heat Pump
14 SEER
2 - 5 Ton
R-410A
© 2013 Trane
Pub. No. 22-1789-19
It's Hard to Stop a Trane.
Single Packaged Electric Heat Pump System
Trane offers a complete family of electric heat pump heating and cooling systems, designed to keep you comfortable all year long, regardless of the weather, while keeping your operating costs as low as possible. A heat pump operates efficiently as both an air conditioner and a heater. In the summer, the heat
pump cools your home just like any other air conditioner by pulling the heat
from the inside and releasing it outdoors. In the winter, it captures the heat that
is always present in the outdoor air and transfers it indoors.
Introducing the new TRANE Single Packaged Electric Heat
Pump System.
Single Packaged Electric Heat Pump
Systems are easy and versatile to
install. Because cooling and heating
functions are all contained in a single
cabinet, a Trane packaged heat pump
system is easy to install and service. It
can be flush mounted beside your home
at ground level or placed on the roof for
horizontal or downflow installation. When
connected to an optional Trane thermostat control and air distribution ducts, you
have a highly efficient, total home comfort
system.
Single Packaged Electric Heat Pump
Systems are unmatched in quality
and reliability. All major components
on these products, including the compressor, have been designed and manufactured for maximum service. Every
Climatuff® compressor is designed and
manufactured to exacting specifications.
Each design is life tested in extreme environments to ensure reliable and long
lasting operation in normal applications.
Each compressor has internal motor
protection for added reliability.
2
Contents
Optional Equipment Listing 4
General Data 5
Heater Data 8
SPEK Data 9
Performance Data
Indoor Blower 12
Typical Wiring 16
Optional Equipment 18
Dimensional Data 23
Mechanical Specifications 29
3
Optional Equipment
OPTIONAL EQUIPMENT FOR PACKAGED UNITS (check mark [✓] indicates accessories included)
Hinged Filter Access Door (4WCY4024-036) .................................................................... BAYACCDOR1A[ ]
Hinged Filter Access Door (4WCY4042-060) .................................................................... BAYACCDOR2A[ ]
Roof Curb Full Perimeter (4WCY4024-36) 3 ....................................................................BAYCURB050A[ ]
Roof Curb Full Perimeter (4WCY4042-060) 3 ..................................................................BAYCURB051A[ ]
Roof Curb Utility Extension Kit (BAYCURB050A)....................................................................BAYUTIL101B[ ]
Roof Curb Utility Extension Kit (BAYCURB051A)....................................................................BAYUTIL102B[ ]
0-25% Manual Fresh Air Damper (4WCY4024-36) . ............................................................ BAYOSAH001A[ ]
0-25% Manual Fresh Air Damper (4WCY4042-060A) 1...................................................... BAYOSAH002A[ ]
Motorized Fresh Air Damper (4WCY4024-36) 1. .............................................................. BAYDMPR101A[ ]
Motorized Fresh Air Damper (4WCY4042-060) 1. ............................................................. BAYDMPR102A[ ]
16" Round Duct Adapter (2 per box) (4WCY4024-36) 6 ................................................... BAYSQRD001A[ ]
18" Round Duct Adapter (2 per box) (4WCY4024-060) 6 ................................................. BAYSQRD002A[ ]
0-100% Mod Economizer w/Baro. Relief (4WCY4024-36) 124 ...................................... BAYECON101B[ ]
0-100% Mod. Economizer w/Baro. Relief (4WCY4042-060) 124. ................................... BAYECON102B[ ]
0-100% Horizontal Economizer (4WCY4024-36) 12 . ...................................................... BAYECON200A[ ]
0-100% Horizontal Economizer (4WCY4042-060) 12 . .................................................... BAYECON201A[ ]
Enthalpy Control for Economizer (solid state). ...................................................................... BAYENTH001A[ ]
Remote Potentiometer (All-BAYECON***A) .............................................................................BAYSTAT023[ ]
1"-2" Filter Frame (4WCY4024-36) (20x25 filter not included) 1. ......................................... BAYFLTR101B[ ]
1"-2" Filter Frame (4WCY4042-060) (20x20 & 20x18 filter not included) 1. ......................... BAYFLTR201B[ ]
Head Pressure Control (Low Ambient Cool) (208/240v) Kit 5. ...........................................BAYLOAM105A[ ]
Quick Start Kit (4WCY4-‡1) ................................................................................................. BAYKSKT300A[ ]
Crankcase Heater Recip (4WCY4024 (230v) 5. .................................................................BAYCCHT101A[ ]
Crankcase Heater Scroll (4WCY4036-060‡1/3)(230v) 5. ...................................................BAYCCHT102A[ ]
Adapter Curb 4WCY4024-36 to BAYCURB030,38.............................................................. BAYADAP050A[ ]
Adapter Curb 4WCY4024-36 to BAYCURB033................................................................... BAYADAP051A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB030,38............................................................ BAYADAP052A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB033................................................................. BAYADAP053A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB034................................................................. BAYADAP054A[ ]
12" Duct Shroud Covers Horizontal 4WCY4024-0607. .......................................................BAYCOVR112A[ ]
18" Duct Shroud Covers Horizontal 4WCY4024-060 7. ......................................................BAYCOVR118A[ ]
Extreme Condition Mounting Kit - All BAYCURB & BAYADAP .............................................BAYEXMK001A[ ]
Extreme Condition Mounting Kit - All BAYUTIL ....................................................................BAYEXMK002B[ ]
Extreme Condition Mounting Kit - All Slab Mounts ...............................................................BAYEXMK003A[ ]
Lifting Lug Kit ...........................................................................................................................BAYLlFT002B[ ]
SUPPLEMENTARY HEATERS (1 PHASE)
3.76/5.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) .................................................. BAYHTRV105E[ ]
3.76/5.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) .................................................. BAYHTRV108E[ ]
7.50/10.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) ................................................ BAYHTRV110E[ ]
11.27/15.00 KW Heater (208/240V 1PH) (4WCY4030-060‡1) ............................................ BAYHTRV115E[ ]
15.0/20.0 KW Heater (208/240V 1PH) (*4WCY4042-060‡1) ............................................... BAYHTRV120E[ ]
18.78/25.0 KW Heater (208/240V 1PH) (4WCY4042-060‡1).... ..........................................BAYHTRV125E[ ]
SUPPLEMENTARY HEATERS (3 PHASE)
3.76/5.0 KW Heater (208/240V 3PH) (4WCY4036-060‡3) .................................................. BAYHTRV305E[ ]
3.76/5.0 KW Heater (208/240V 3PH) (4WCY4036-060‡3) .................................................. BAYHTRV308E[ ]
7.50/10.0 KW Heater (208/240V 3PH) (4WCY4024-48‡3) .................................................. BAYHTRV310E[ ]
11.27/15.00 KW Heater (208/240V 3PH) (4WCY4036-060‡3) ............................................ BAYHTRV315E[ ]
15.00/20.0 KW Heater (208/240V 3PH) (4WCY4048-060‡3) .............................................. BAYHTRV320E[ ]
18.78/25.0 KW Heater (208/240V 3PH) (4WCY4048-060‡3).... ..........................................BAYHTRV325E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK060F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK061E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK062F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK063F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK064E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK065E[ ]
NOTES: 1 Must use internal filter frame when economizer or fresh air kit is used.
2 Dry bulb control standard with economizer.
3 Ships knocked down.
4 Downflow only.
5 Low Ambient cooling requires crankcase heater (BAYCCHT----B).
6 It is the responsibility of the installing dealer to properly size the ductwork for each specific application.
7 BAYCOVR112,118A will not cover BAYSQRD002A applications.
8 See table on page 8 for matching kit with units and heaters.
‡ = A or B
4
General Data
MODEL
RATED Volts/PH/Hz
Performance Cooling BTUH
Indoor Airflow (CFM)
Power Input (KW)
EER/SEER (BTU/Watt-Hr.)
Sound Power Rating [dB(A)]
Performance Heating
(High Temp.)BTUH
Power Input (KW)
(Low Temp.) BTUH
Power Input (KW)
HSPF (BTU / Watt-Hr.)
POWER CONN.—V/Ph/Hz
Min. Brch. Cir. Ampacity
Fuse Size — Max. (amps)
Fuse Size — Recmd. (amps)
COMPRESSOR
Volts/Ph/Hz
R.L. Amps — L.R. Amps
OUTDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
INDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
Drain Conn. Size (in.)
OUTDOOR FAN — TYPE
Dia. (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
INDOOR FAN — TYPE
Dia x Width (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
FILTER / FURNISHED
Type Recommended
Recmd. Face Area (sq. ft.)
REFRIGERANT
Charge (lbs.)
DIMENSIONS
Crated (in.)
WEIGHT
Shipping (lbs.) / Net (lbs.)
4WCY4024A1000B
208-230/1/60
23600
750
2.00
12 / 14
68
22400
1.77
12100
1.25
8.0
208-230/1/60
16.1
25
25
RECIPROCATING
200-230/1/60
8.3 / 57.8
SPINE-FIN
2 / 24
13.32
3/8
EXPANSION VALVE
PLATE FIN
3 / 15
3.54
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
23.4
DIRECT / 1
2550
1/12 / 810
230/1/60
0.54 / 0.95
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1/2 / VARIABLE
200-230/1/60
4.3 / 4.3
NO
THROWAWAY
4.0
R410A
6.5
H X W X L
45.86 / 44.5 / 52.03
453 / 357
4WCY4030A1000B
208-230/1/60
30000
875
2.15
12.0 / 14.25
71
27600
2.15
15200
1.81
8.0
208-230/1/60
19.2
30
30
RECIPROCATING
200-230/1/60
11.1 / 63
SPINE-FIN
2 / 24
13.32
3/8
EXPANSION VALVE
PLATE FIN
4 / 15
3.54
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
23.4
DIRECT / 1
3270
1/6 / 830
208-230/1/60
0.9 / 1.7
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1/2 / VARIABLE
208-230/1/60
4.3 / 4.3
NO
THROWAWAY
4.0
R410A
6.5625
H X W X L
45.86 / 44.5 / 52.03
453 / 357
4WCY4036C1000A
208-230/1/60
37000
1150
3.11
12.0 / 14.25
69
33200/3.7
2.7
22400
2.5
8.0
208-230/1/60
26.2
40
40
SCROLL
208-230/1/60
16.7 / 79
SPINE-FIN
2 / 24
15.49
3/8
EXPANSION VALVE
PLATE FIN
4 / 15
3.54
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
23.4
DIRECT / 1
3290
1/5 / 830
230/1/60
1.1 / 1.9
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1/2 / VARIABLE
200-230/1/60
4.3 / 4.3
NO
THROWAWAY
4
R410A
7.5
H X W X L
47.86 / 44.5 / 52.03
468 / 372
1 Certified in accordance with the Unitary Air-Conditioner Equipment
certification program, which is based on AHRI Standard 210/240.
2 Sound Power values are not adjusted for AHRI 270-95 tonal corrections.
3 Calculated in accordance with currently prevailing Nat'l Electrical Code.
4 Standard Air — Dry Coil — Outdoor.
5 Standard Air — Wet Coil — Indoor.
6 Rated in accordance with D.O.E. test procedure.
7 Filters must be installed in return air system. Square footages listed are based on 300 f.p.m. face velocity. If permanent filters are
used size per manufacturer's recommendations with clean resistance of 0.05" W.C.
5
General Data
MODEL
RATED Volts/PH/Hz
Performance Cooling BTUH
Indoor Airflow (CFM)
Power Input (KW)
EER/SEER (BTU/Watt-Hr.)
Sound Power Rating [dB(A)]
Performance Heating
(High Temp.)BTUH
Power Input (KW)
(Low Temp.) BTUH
Power Input (KW)
HSPF (BTU / Watt-Hr.)
POWER CONN.—V/Ph/Hz
Min. Brch. Cir. Ampacity
Fuse Size — Max. (amps)
Fuse Size — Recmd. (amps)
COMPRESSOR
Volts/Ph/Hz
R.L. Amps — L.R. Amps
OUTDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
INDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
Drain Conn. Size (in.)
OUTDOOR FAN — TYPE
Dia. (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
INDOOR FAN — TYPE
Dia x Width (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
FILTER / FURNISHED
Type Recommended
Recmd. Face Area (sq. ft.)
REFRIGERANT
Charge (lbs.)
DIMENSIONS
Crated (in.)
WEIGHT
Shipping (lbs.) / Net (lbs.)
4WCY4036B3000A
208-230/3/60
36000
1200
3.15
11.75 / 14.0
69
32400
2.7
24800
2.6
8.0
208-230/3/60
18.4
25
25
SCROLL
208-230/3/60
10.4 / 73
SPINE-FIN
2 / 24
15.49
3/8
EXPANSION VALVE
PLATE FIN
4 / 15
3.54
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
23.4
DIRECT / 1
3250
1/5 / 830
230/1/60
1.1 / 1.9
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1/2 / VARIABLE
200-230/1/60
4.3 / 4.3
NO
THROWAWAY
4.0
R410A
7.4
H X W X L
47.86 / 44.5 / 52.03
468 / 372
4WCY4042B1000A
208-230/1/60
42000
1380
3.50
12.0 / 14.0
74
38000
3.23
23400
2.96
8.0
208-230/1/60
30.6
45
45
SCROLL
208-230/1/60
17.9 / 112
SPINE-FIN
2 / 24
18.01
3/8
EXPANSION VALVE
PLATE FIN
3 / 15
5
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
28.2
DIRECT / 1
4470
1/4 / 825
208-230/1/60
1.4 / 3.4
CENTRIFUGAL
11 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
3/4 / VARIABLE
208-230/1/60
6.8 / 6.8
NO
THROWAWAY
5.3
R410A
8.2
H X W X L
47.86 / 47.4 / 61.75
607 / 479
4WCY4048B1000B
208-230/1/60
47500
1400
3.96
12.0 / 14.0
73
45000
3.77
28400
3.44
8.0
208-230/1/60
33.9
50
50
SCROLL
208-230/1/60
20.5 / 109
SPINE-FIN
2 / 24
18.01
3/8
EXPANSION VALVE
PLATE FIN
3 / 15
5.0
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
28.2
DIRECT / 1
4440
1/4 / 825
230/1/60
1.4 / 3.37
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
3/4 / VARIABLE
200-230/1/60
6.8 / 6.8
NO
THROWAWAY
5.3
R410A
7.75
H X W X L
47.86 / 47.4 / 61.75
607 / 479
1 Certified in accordance with the Unitary Air-Conditioner Equipment
certification program, which is based on AHRI Standard 210/240.
2 Sound Power values are not adjusted for AHRI 270-95 tonal corrections.
3 Calculated in accordance with currently prevailing Nat'l Electrical Code.
4 Standard Air — Dry Coil — Outdoor.
5 Standard Air — Wet Coil — Indoor.
6 Rated in accordance with D.O.E. test procedure.
7 Filters must be installed in return air system. Square footages listed are based on 300 f.p.m. face velocity. If permanent filters are
used size per manufacturer's recommendations with clean resistance of 0.05" W.C.
6
MODEL
RATED Volts/PH/Hz
Performance Cooling BTUH
Indoor Airflow (CFM)
Power Input (KW)
EER/SEER (BTU/Watt-Hr.)
Sound Power Rating [dB(A)]
Performance Heating
(High Temp.)BTUH
Power Input (KW)
(Low Temp.) BTUH
Power Input (KW)
HSPF (BTU / Watt-Hr.)
POWER CONN.—V/Ph/Hz
Min. Brch. Cir. Ampacity
Fuse Size — Max. (amps)
Fuse Size — Recmd. (amps)
COMPRESSOR
Volts/Ph/Hz
R.L. Amps — L.R. Amps
OUTDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
INDOOR COIL — TYPE
Rows/F.P.I.
Face Area (sq.ft.)
Tube Size (in.)
Refrigerant Control
Drain Conn. Size (in.)
OUTDOOR FAN — TYPE
Dia. (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
INDOOR FAN — TYPE
Dia x Width (in.)
Drive/No. Speeds
CFM @ 0.0 in. w.g.
Motor — HP/R.P.M.
Volts/Ph/Hz
F.L. Amps/L.R. Amps
FILTER / FURNISHED
Type Recommended
Recmd. Face Area (sq. ft.)
REFRIGERANT
Charge (lbs.)
DIMENSIONS
Crated (in.)
WEIGHT
Shipping (lbs.) / Net (lbs.)
General Data
4WCY4048A3000C
208-230/3/60
47000
1400
3.97
11.75 / 14.0
73
42500
3.56
27200
3.44
8.0
208-230/3/60
25.3
35
35
SCROLL
208-230/3/60
13.7 / 83
SPINE-FIN
2 / 24
18.01
3/8
EXPANSION VALVE
PLATE FIN
3 / 15
5.0
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
28.2
DIRECT / 1
4440
1/4 / 825
230/1/60
1.4 / 3.37
CENTRIFUGAL
10 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
3/4 / VARIABLE
200-230/1/60
6.8 / 6.8
NO
THROWAWAY
5.3
R410A
7.75
H X W X L
47.86 / 47.4 / 61.75
607 / 479
4WCY4060B1000C
208-230/1/60
58000
1785
4.95
12.0 / 14.0
76
55000
4.48
35400
4.30
8.0
208-230/1/60
39.9
60
60
SCROLL
208-230/1/60
25 / 134
SPINE-FIN
2 / 24
23.07
3/8
EXPANSION VALVE
PLATE FIN
4 / 15
5.0
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
28.2
DIRECT / 1
5700
1/3 / 830
230/1/60
1.7 / 3.5
CENTRIFUGAL
11 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1 / VARIABLE
208-230/1/60
6.9 / 6.9
NO
THROWAWAY
5.3
R410A
11.94
H X W X L
51.86 / 47.4 / 61.75
623 / 495
4WCY4060A3000C
208-230/3/60
58000
1780
4.95
11.5 / 14.0
76
55000
4.60
37600
4.29
8.0
208-230/3/60
28.6
45
45
SCROLL
208-230/3/60
16.0 / 110
SPINE-FIN
2 / 24
23.57
3/8
EXPANSION VALVE
PLATE FIN
4 / 15
5.0
3/8
EXPANSION VALVE
3/4 FEMALE NPT
PROPELLER
28.2
DIRECT / 1
5700
1/3 / 830
230/1/60
1.7 / 3.5
CENTRIFUGAL
11 X 10
DIRECT / VARIABLE
SEE FAN PERFORMANCE TABLE
1 / VARIABLE
208-230/1/60
6.9 / 6.9
NO
THROWAWAY
5.3
R410A
10.125
H X W X L
51.86 / 47.4 / 61.75
623 / 495
1 Certified in accordance with the Unitary Air-Conditioner Equipment
certification program, which is based on AHRI Standard 210/240.
2 Sound Power values are not adjusted for AHRI 270-95 tonal corrections.
3 Calculated in accordance with currently prevailing Nat'l Electrical Code.
4 Standard Air — Dry Coil — Outdoor.
5 Standard Air — Wet Coil — Indoor.
6 Rated in accordance with D.O.E. test procedure.
7 Filters must be installed in return air system. Square footages listed are based on 300 f.p.m. face velocity. If permanent filters are
used size per manufacturer's recommendations with clean resistance of 0.05" W.C.
7
Heater Data
KW BTUH 1 2
^W/TC*3018-060
‡
1
^W/TCY4024-060
‡
1
^WCZ6036-060
‡
1
^W/TC*3018-060
‡
1
^W/TCY4024-060
‡
1
^WCZ6036-060
‡
1
BAYHTRV108E 208/240 1 29/33 6.0/8.0 20500/27300 1 6.0/8.0 36/41 40/45 40/45
^W/TC*3024-060
‡
1
^W/TCY4024-060
‡
1
^WCZ6036-060
‡
1
^W/TC*3030-060
‡
1
^W/TCY4030-060
‡
1
^WCZ6036-060
‡
1
^W/TC*3042-060
‡
1
^W/TCY4042-060
‡
1
^WCZ6048-060
‡
1
4WC*3042
‡
1
^W/TC*3060
‡
1
^W/TCY4042-060
‡
1
^WCZ6048-060
‡
1
^W/TC*3036-060
‡
3
^W/TCY4036-060
‡
3
^WCZ6036-060
‡
3
^W/TC*3036-060‡3
^W/TCY4036-060‡3
^WCZ6036-060‡3
BAYHTRV308E 208/240 3 17/19 6.0/8.0 20500/27300 1 6.0/8.0 21/24 25/25 25/25
^W/TC*3036-060‡3
^W/TCY4036-060‡3
^WCZ6036-060‡3
^W/TC*3036-060‡3
^W/TCY4036-060‡3
^WCZ6036-060‡3
^W/TC*3048-060‡3
^W/TCY4048-060‡3
^WCZ6048-060‡3
^W/TC*3036-060‡4
^WCZ6036-060‡4
BAYHTRV408E 480 3 10 8.0 27300 1 8.0 13 15 15
^WCZ6036-060‡4
^W/TC*3036-060‡4
^WCZ6036-060‡4
^W/TC*3048-060‡4
^WCZ6048-060‡4
^W/TC*3060‡4
^WCZ6048-060‡4
7.5/10.0
40/45 40/45
208/240 3 42/48 15.0/20.0 51200/68300 2 7.5/10.0
45/60
208/240 1 54/63 11.27/15.0 38500/51200 2 7.5/10.0
1 36/42 7.5/10.0 25600/34100
^W/TC*3036-060‡4
BAYHTRV115E#
BAYHTRV110E
BAYHTRV120E#
BAYHTRV305E
BAYHTRV310E
BAYHTRV315E
BAYHTRV320E
BAYHTRV325E#
MAX FUSE OR
HACR CKT
BKR SIZE (4)
CANADA ONLY
MAX. CKT BKR
SIZE (5)
MCA AMPS
NO. OF
STAGES
KW/STAGEHEATER CAPACITY
PHASE
ELECTRIC
HEATER MODEL
RATED
VOLTAGE
UNIT MODEL
3
3
3
BAYHTRV105E
480
208/240 3
208/240
480 24 20.0
90/104 18.78/25.0
3
480
31/36 11.27/15.0
68300
8530025.030
5120015.018
12 10.0 34100
2
2
2
1
10.0
38
30
235.010.0
10.0
10.0 040.51
25
30
40
25
30
15
52/60 60/60
65/75
8
15
08/072
15
5.0
1 10.0
11.26/15.0 7.5/10.0
2 7.5/10.0 3.76/5.0
7.5/10.0
39/45
26/30 30/30 30/30
10/12 3.76/5.0 12800/17100 1 3.76/5.0
21/24 7.5/10.0 25600/34100 1
90/110
3.76/5.0 68/78
64100/85300 2 11.26/15.0 7.5/10.0
70/80
113/130 125/150
7.5/10.0 90/104 90/110
3.76/5.0 12800/17100 1 3.76/5.0
1 7.5/10.0
25/3023/26
45/52 45/60
25/30
70/80
208/240 1 72/83 15.0/20.0 51200/68300 2 7.5/10.0
BAYHTRV420E
BAYHTRV425E
60/60
70/80
15 15BAYHTRV405E
BAYHTRV410E
480
480
208/240 1 18/21
BAYHTRV415E
208/240
208/240 3
208/240 3
3
^W/TC*3060‡3
^W/TCY4048-060‡3
^WCZ6048-060‡3
^W/TC*3036-060‡4
^WCZ6036-060‡4
BAYHTRV125E#
38500/51200
171006 5.0
52/60 18.78/25.0 64100/85300
125/150
208/240
3 13/15 15/15 15/15
1
Table 1. 4WCY4024 to 4WCY4060 Heater Data
NOTES:
1. Any power supply and circuits must be wired and protected in accordance with local electrical codes.
2. The MCA values listed are for electric heater only.
3. Field wire must be rated at least 75°C
4. The HACR circuit breaker is for U.S.A. installations only.
5. For Canada installation reference only.
# Heater uses fuses.
‡ = A or B
8
Single Power Entry Kit Data
Table 2. BAYSPEK060F Ampacity and Max Fusing/Circuit Breakers
9
Single Power Entry Kit Data
Table 3. BAYSPEK061 Ampacity and Max Fusing/Circuit Breakers
10
Single Power Entry Kit Data
Table 4. BAYSPEK062F,63F,64E & 65E Ampacity and Max Fusing/Circuit Breakers
11

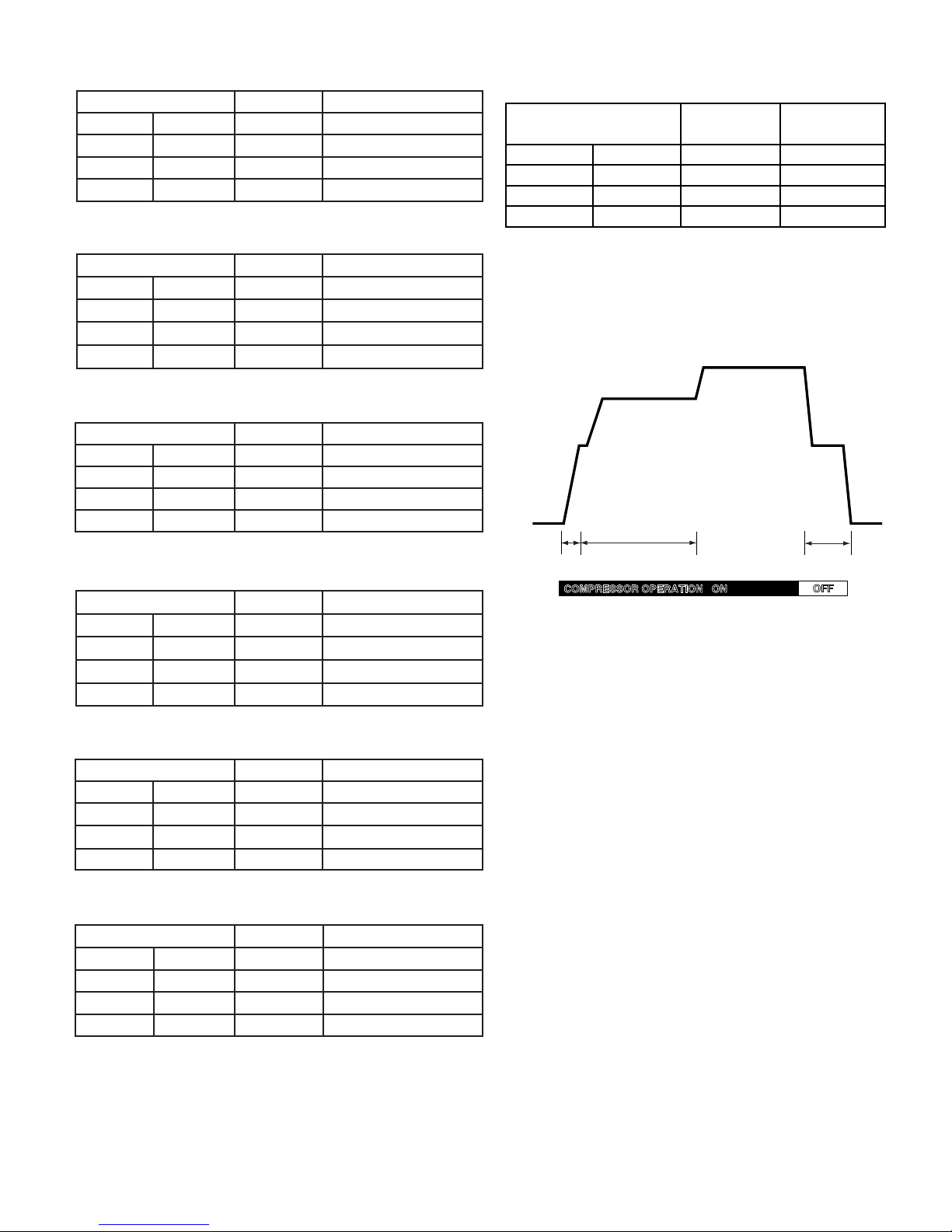

Indoor Blower Performance
Indoor Fan Performance 4WCY4024
Horizontal Airflow
4WCY4024A-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Down Airflow
4WCY4024-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts 52 66 89 115 140 164 186 206 229 259 -
CFM 706 716 727 733 731 719 700 679 662 659 -
Watts 72 94 120 148 177 207 233 254 267 290 -
CFM 786 793 805 813 813 806 793 780 778 799 -
Watts 80 99 125 153 182 211 243 284 342 - -
CFM 860 862 877 892 903 904 897 884 869 - -
Watts 35 70 90 108 131 160 188 204 225 250 -
CFM 695 729 734 728 721 715 705 679 680 685 -
Watts 79 87 105 129 155 180 206 232 264 306 -
CFM 846 807 802 810 816 813 803 794 800 846 -
Watts 86 102 127 156 185 213 242 275 319 - -
CFM 884 870 882 899 909 907 895 886 898 - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Indoor Fan Performance 4WCY4030
Horizontal Airflow
4WCY4030-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts - 110 148 176 203 232 264 293 311 - -
CFM - 870 898 908 911 914 916 906 868 - -
Watts - 147 190 217 241 270 305 337 353 - -
CFM - 980 1013 1013 1006 1005 1008 1002 957 - -
Watts - 205 247 276 305 339 375 403 - - -
CFM - 1121 1141 1139 1135 1138 1140 1122 - - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Down Airflow
4WCY4030-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts - 109 140 166 191 220 250 280 302 - -
CFM - 850 871 873 867 858 850 840 822 - -
Watts - 145 179 207 233 261 291 319 341 - -
CFM - 962 977 978 970 959 950 946 951 - -
Watts - 199 230 268 302 328 352 388 - - -
CFM - 1088 1096 1105 1107 1100 1089 1081 - - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
*Factory Default Setting
12
Indoor Blower Performance
Indoor Fan Performance 4WCY4036
Horizontal Airflow
4WCY4036-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Down Airflow
4WCY4036-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts 162 173 197 226 256 285 313 343 360 - -
CFM 1058 1062 1063 1063 1062 1060 1057 1053 1010 - -
Watts 179 230 265 296 329 366 403 431 436 - -
CFM 1179 1196 1204 1206 1205 1203 1199 1194 1185 - -
Watts 318 336 365 399 435 469 502 533 - - -
CFM 1390 1376 1370 1366 1361 1354 1349 1351 - - -
Watts 169 182 210 243 273 301 331 370 433 - -
Watts 225 253 283 315 348 381 414 449 484 - -
Watts 339 357 390 424 455 483 516 571 - - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM 1025 1062 1068 1063 1060 1061 1064 1055 1015 - -
CFM 1187 1201 1203 1201 1198 1197 1194 1184 1157 - -
CFM 1391 1377 1377 1375 1366 1352 1344 1360 - - -
Indoor Fan Performance 4WCY4042
Horizontal Airflow
4WCY4042-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts - 181 211 241 270 298 327 355 382 408 -
CFM - 1248 1250 1253 1254 1249 1240 1225 1209 1195 -
Watts - 261 296 325 352 380 411 444 477 509 -
CFM - 1444 1448 1441 1429 1417 1407 1400 1394 1386 -
Watts - 353 390 426 462 499 536 573 609 645 -
CFM - 1608 1611 1613 1613 1612 1608 1603 1597 1590 -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Down Airflow
4WCY4042-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts - 195 229 258 283 308 335 362 390 415 -
CFM - 1240 1244 1245 1243 1238 1229 1217 1203 1189 -
Watts - 289 312 341 371 402 432 461 491 523 -
CFM - 1433 1422 1415 1411 1405 1399 1392 1383 1377 -
Watts - 385 422 457 491 527 563 600 636 670 -
CFM - 1604 1602 1600 1598 1596 1593 1590 1585 1578 -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
*Factory Default Setting
13
Indoor Blower Performance
Indoor Fan Performance 4WCY4048
Horizontal Airflow
4WCY4048-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Down Airflow
4WCY4048-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
450 CFM/TON OFF OFF ON OFF
Watts 187 232 264 291 318 347 379 413 446 472 -
CFM 1355 1387 1396 1392 1382 1370 1360 1351 1341 1326 -
Watts 315 324 352 389 428 464 498 529 563 606 -
CFM 1603 1581 1577 1580 1583 1583 1577 1567 1558 1556 -
Watts 301 431 507 552 584 615 651 694 739 779 -
CFM 1752 1794 1812 1816 1812 1806 1800 1797 1793 1785 -
Watts 208 254 284 312 343 379 414 437 460 490 -
CFM 1337 1393 1398 1388 1383 1390 1399 1384 1380 1370 -
Watts 302 349 386 423 465 509 552 583 599 628 -
CFM 1574 1580 1585 1589 1594 1598 1601 1597 1584 1556 -
Watts 501 523 555 592 631 672 714 760 800 845 -
CFM 1847 1823 1817 1818 1820 1819 1817 1820 1815 1810 -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Indoor Fan Performance 4WCY4060
Horizontal Airflow
4WCY4060-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
Watts 394 427 464 504 548 591 633 668 - - -
CFM 1673 1772 1799 1793 1779 1771 1767 1756 - - -
Watts 695 642 660 710 764 811 849 893 966 - -
CFM 2054 2036 2031 2032 2033 2031 2023 2012 2002 - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Down Airflow
4WCY4060-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
350 CFM/TON OFF OFF OFF ON
400 CFM/TON* OFF OFF OFF OFF
*Factory Default Setting
Watts 443 461 493 532 571 607 642 680 - - -
CFM 1796 1741 1726 1725 1722 1712 1698 1692 - - -
Watts 740 697 715 763 819 866 892 894 872 - -
CFM 2012 1987 1979 1977 1976 1969 1950 1913 1852 - -
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
14
5-OFF 6-OFF NONE 100%
5-ON 6-OFF 45 SEC 100%
5-OFF 6-ON 90 SEC 50%
5-ON 6-ON ** 50-100%
** This ENHANCED MODE selection provides a
ramping up and ramping down of the indoor blower
speed to provide improved comfort, quietness, and
potential energy savings. The Graph below shows
the ramping process
COOLING FAN DELAY OPTIONS
SWITCH SETTINGS DELAY
NOMINAL
AIRFLOW
OFF OFF
50%
80%
100% if necessary
50%
Dehumidify
Fast Coil Cooling
Efficiency
7.5
minutes
3
minutes
1
minute
FAN OPERATION (CFM)
COMPRESSOR OPERATION ON
OFF
as required
Indoor Blower Performance
4WCY4024 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 700 CFM
7-ON 8-OFF HIGH 800 CFM
7-OFF 8-ON HIGH 800 CFM
7-ON 8-ON HIGH 800 CFM
4WCY4030 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 1050 CFM
7-ON 8-OFF HIGH 1200 CFM
7-OFF 8-ON HIGH 1200 CFM
7-ON 8-ON HIGH 1200 CFM
4WCY4036 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 1050 CFM
7-ON 8-OFF HIGH 1200 CFM
7-OFF 8-ON HIGH 1200 CFM
7-ON 8-ON HIGH 1200 CFM
4WCY4042 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 1400 CFM
7-ON 8-OFF HIGH 1600 CFM
7-OFF 8-ON HIGH 1600 CFM
7-ON 8-ON HIGH 1600 CFM
4WCY4048 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 1400 CFM
7-ON 8-OFF HIGH 1600 CFM
7-OFF 8-ON HIGH 1600 CFM
7-ON 8-ON HIGH 1600 CFM
4WCY4060 AIRFLOW WITH AUXILIARY HEAT (CFM)
SWITCH SETTINGS SELECTION NOMINAL AIRFLOW
7-OFF 8-OFF LOW 1400 CFM
7-ON 8-OFF HIGH 1600 CFM
7-OFF 8-ON HIGH 1600 CFM
7-ON 8-ON HIGH 1600 CFM
15
Typical Wiring
16
Typical Wiring
17
Optional Equipment
46 3/8
17 7/8
3
3 5/8
19 1/2
2 3/16
19 1/2
14
1 1/2
38 7/8
15
35 7/8
43 3/8
BAYCURB050A FULL PERIMETER ROOF MOUNTING CURB FOR *****024-036
The drawings on this page are prepared by the
manufacturer in order to provide detail regarding
job layout only. These drawings are not intended to
be used as a basis to construct, build or modify the
items depicted in the drawings. The manufacturer
is not responsible for the unauthorized use of these
drawings and expressly disclaims any liability for
damages resulting from such unauthorized use.
18
56 1/8
15 7/8
3
10 7/8
19 1/2
4 3/4
19 1/2
14
41 7/8
20
1 1/2
38 7/8
53 1/8
Optional Equipment
BAYCURB051A Full Perimeter Roof Mounting Curb for *****042-060
The drawings on this page are prepared by the
manufacturer in order to provide detail regarding
job layout only. These drawings are not intended to
be used as a basis to construct, build or modify the
items depicted in the drawings. The manufacturer
is not responsible for the unauthorized use of these
drawings and expressly disclaims any liability for
damages resulting from such unauthorized use.
19
Optional Equipment
BAYFLTR101, 201B, 1" - 2" Filter Rack
(Mounts in Filter/Coil Section)
Filter
BAYACCDOR1A & BAYACCDOR2A Hinged Filter Access Door
Replaces Filter/Coil Access Panel
The drawings on this page are prepared by the manufacturer in order to provide detail regarding job layout only. These drawings are
not intended to be used as a basis to construct, build or modify the items depicted in the drawings. The manufacturer is not responsible for the unauthorized use of these drawings and expressly disclaims any liability for damages resulting from such unauthorized
use.
20
A
B
C
D
E
A
Mist eliminator
Relief
damper
Economizer
rain hood
Roofcurb
Optional Equipment
BAYECON101,102A Down Discharge Economizer and Rain Hood
(Mounts Over Horizontal Return Air Opening)
HVAC Unit
Outside air
dampers
Return air
dampers
Required
lter kit, order
separately
Return
Duct
Economizer Unit Application Models A
BAYECON101A
BAYECON102A
4TC*,WC*,YC*,DC*
*018-036
4TC*,WC*,YC*, DC*
*042-060
20.125"
24.375"
BAYCON200,201A Horizontal Economizer and Rain Hood
The drawings on this page
are prepared by the manufacturer in order to provide
detail regarding job layout
only. These drawings are
not intended to be used as
a basis to construct, build or
modify the items depicted
in the drawings. The manufacturer is not responsible
for the unauthorized use of
these drawings and expressly
disclaims any liability for
damages resulting from such
unauthorized use.
Economizer
Duct
Gaskets (2)
Rain Hood
Mixed Air Sensor
Economizer A B C D E F
BAYECON200AA 22" 20" 16-7/8" 15-11/16" 11-11/16" 15"
BAYECON201AA 26" 22-21/32" 19" 17-11/16" 14-11/16" 21-3/8"
21
A
B
C
D
FULLY
OPEN
2/3
1/3
FULLY
CLOSED
BAYOSAH001,002A, 25% Outside Air Damper
D
C
B
A
E
The drawings on this page are prepared
by the manufacturer in order to provide
detail regarding job layout only. These
drawings are not intended to be used
as a basis to construct, build or modify
the items depicted in the drawings. The
manufacturer is not responsible for the
unauthorized use of these drawings and
expressly disclaims any liability for damages resulting from such unauthorized
use.
Optional Equipment
(Replaces Filter/Coil Access Panel)
Manual Fresh Air
Model
BAYOSAH001
BAYOSAH002
Unit Application
Models
4YC,WC3018-036
4TC*3018-036,
4W/T/Y/DCY4024-036,
4W/Y/DCZ6036
4YC,WC3042-060,
4TC*3042-060,
4W/T/Y/DCY4042-060,
4W/Y/DCZ6048-060
BAYDMPR101,102A, 25% Motorized Outside Air Damper
A B C D
22 7/16"" 20 11/16"" 12 3/8"" 9 3/16""
25 3/16"" 20 11/16"" 12 3/8"" 9 3/16""
(Mounts Over Horizontal Return AIr Opening)
Unit Application Models A B C D E
BAYDMPR101A
BAYDMPR102A
4YC,WC3018-036
4TC*3018-036,
4W/T/Y/DCY4024-036,
4W/Y/DCZ6036
4YC,WC3042-060,
4TC*3042-060,
4W/T/Y/DCY4042-060,
4W/Y/DCZ6048-060
15 13/16"" 11 13/16"" 10 1/4"" 11 1/2"" 12 1/4""
18 3/16"" 15 1/8"" 10 1/4"" 11 1/2"" 12 1/4""
22
Dimensional Data and Weights
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
4WCY4024 through 4WCY4036 (1 of 3)
23
Dimensional Data and Weights
4WCY4024 through 4WCY4036 (2 of 3)
24
Dimensional Data and Weights
4WCY4024 through 4WCY4036 (3 of 3)
25
Dimensional Data and Weights
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
4WCY4042 through 4WCY4060 (1 of 3)
26
Dimensional Data and Weights
4WCY4042 through 4WCY4060 (2 of 3)
27
Dimensional Data and Weights
4WCY4042 through 4WCY4060 (3 of 3)
28
Mechanical Specifications
General
The units shall be horizontal airflow as
shipped and convertible to downflow. All
units shall be factory assembled, piped,
internally wired and fully charged with
refrigerant. All units shall be factory run
tested to check cooling operation, fan and
blower rotation and control or TXV sequence. Units shall be designed to operate
at ambient temperatures between 115°F
and 55°F in cooling as manufactured.
Cooling performance shall be rated in accordance with A.H.R.I. standards.
Unit Casing
All components shall be mounted in a
weather-resistant steel cabinet with an
enamel finish. Access panels shall be provided for unit controls and indoor coil and
fans. Indoor air section compartment shall
be completely insulated with fireproof,
permanent, odorless glass fiber material.
Knockouts shall be provided for utility and
control connections. Drain connections
shall be provided to accommodate indoor
water runoff.
Compressor
The compressor shall be hermetically
sealed, high efficiency Climatuff® compressors. Internal overcurrent and over
temperature protection, internal pressure
relief shall be standard.
Refrigeration System
All units shall have TXV in cooling and TXV
in heating. Service pressure tap ports, and
a refrigerant line filter dryer shall be standard.
Indoor Coil
Coils shall be internally finned or smooth
bore 3/8" copper tubes mechanically
bonded to configured aluminum plate
fin as standard. Evaporator coil leak and
pressure tested to 200 psig; condenser
coil tested to 450 psig.
Condenser Coil —
The Spine Fin™condenser coil shall be
continuously wrapped, corrosion resistant all aluminum with minimum brazed
joints. This coil is 3/8 inch O.D. seamless
aluminum tubing glued to a continuous
aluminum fin. Coils are lab tested to
withstand 2,000 pounds of pressure per
square inch. The outdoor coil provides
low airflow resistance and efficient heat
transfer. The coil is protected on all four
sides by louvered panels.
Indoor Air Fan — Direct-drive, forwardcurved, centrifugal wheel in a Composite
Vortica® Blower housing. Motor shall
have thermal overload protection.
Permanently lubricated motor bearings.
Motor/blower assembly isolated from unit
with rubber mounts.
Condenser Fan — Direct-drive, draw
thru propeller type. Weather-proofed
permanent split capacitor fan motor shall
have built-in thermal overload and permanently lubricated motor bearings.
System Controls
System controls include condenser fan,
evaporator fan and compressor contactors.
Accessories
Roof Curb — The roof curb shall be de-
signed to mate with the unit and provide
support and complete weathertight installation when properly installed. Adhesive
back polyurethane sealing strips shall be
provided to ensure an airtight seal between supply and return openings of the
curb and unit. The roof curb design allows
field fabricated ductwork to be connected
directly to the curb. Curb ships knocked
down for field assembly, and includes
factory-installed wood nailer strips.
Electric Heaters — Each heater assembly shall include power supply fusing if
over 48 amps, automatic resetting limit
switches and heat limiters for thermal
protection. Heaters shall be provided with
polarized plugs for quick connection to
unit low voltage wiring. Electric heat modules shall be UL listed.
Single Source Power Entry — This accessory when used with electric heat
accessory shall allow single source power
connection to unit and heater combination. Single source power entry kits shall
have specific matching heater(s). Kit
shall include high voltage terminal blocks,
fuse blocks and fuses, cut-to-length interconnecting wiring, and junction box (if
required) to provide power sources with
fuse protection as required for both the
unit and accessory heater. Kit components shall install within the unit cabinet in
the heater access section. Single source
branch power circuit shall be protected and
wired in accordance with local codes.
Fully Modulating Economizer — This
accessory shall be field installed and be
composed of the following items: 0-100%
fresh air damper, damper drive motor, fixed
dry bulb enthalpy control, and low voltage
wiring plug for electrical connections. Solid
state enthalpy or differential enthalpy control is optional. Economizer operations
shall be controlled by the preset position
of the enthalpy control. A barometic relief
damper shall be standard with the economizer and provide a pressure operated
damper that shall be gravity closing and
prohibit entrance of outside air on equipment “off” cycle. Economizer requires
BAYRLAY004A relay kit to interface the
economizer to the heat pump.
Manual Outside Air Dampers — Rain
hood and screen shall be field installed.
Suitable for up to 25% outside air.
Start Kit — Extra compressor starting capacity for single phase equipment.
Control Options
Standard Indoor Thermostats — Tw o
stage heating/cooling or one stage heating/cooling thermostats shall be available
in either manual or automatic changeover.
Programmable Electronic Night Setback Thermostat — Programmable
electronic thermostat shall provide heating setback and cooling setup with 7-day,
programming capability. 1H/1C or 2H/2C
models available.
29
Trane
6200 Troup Highway
Tyler, TX 75707-9010
The manufacturer has a policy of continuous product and product data improvement and it reserves the right
to change design and specifications without notice.
30
Loading...
