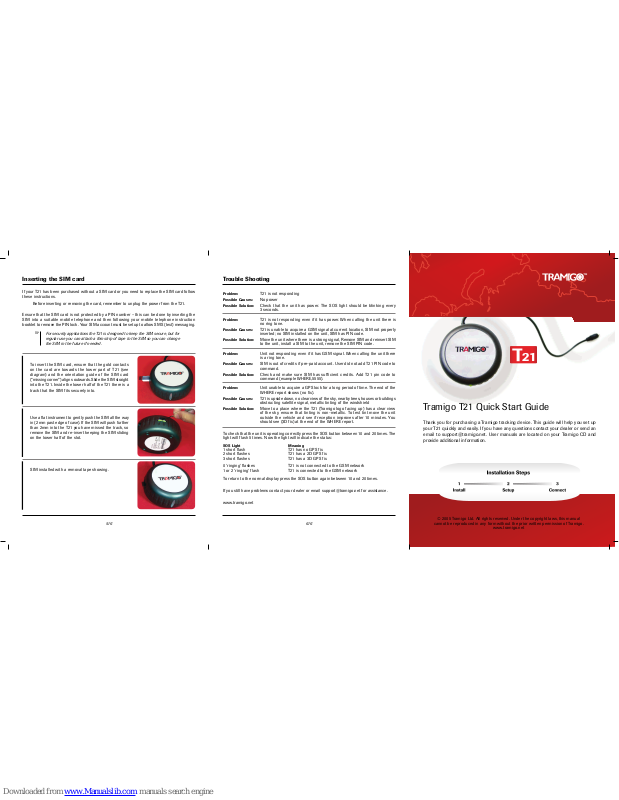

Tramigo T21 Quick Start Manual

Tramigo T21 Quick Start Guide

21

Thank you for purchasing a Tramigo tracking device. This guide will help you set up
your T21 quickly and easily. If you have any questions contact your dealer or send an
email to [e-mail]. User manuals are located on your Tramigo CD and
provide additional information.

© 2005 Tramigo Ltd. All rights reserved. Under the copyright laws, this manual

cannot be reproduced in any form without the prior written permission of Tramigo.

www.tramigo.net

Trouble Shooting

Problem: T21 is not responding
Possible Causes: No power
Possible Solution: Check that the unit has power. The SOS light should be blinking every

3 seconds.

Problem: T21 is not responding even if it has power. When calling the unit there is

no ring tone.

Possible Causes: T21 is unable to acquire a GSM signal at current location, SI M not properly

inserted; no SIM installed on the unit, SI M has PIN code.

Possible Solution: Move the unit where there is a strong signal, Remove SIM and reinsert SI M

to the unit, install a SIM to the unit, remove the SI M PIN code.

Problem: Unit not responding even if it has GSM signal. When calling the unit there

is a ring tone.

Possible Causes: SIM is out of credits if pre-paid account. User did not add T21 PIN code to

command.

Possible Solution: Check and make sure SIM has sufficient credits. Add T21 pin code to

command (example WHERE,5555).

Problem: Unit unable to acquire a GPS lock for a long period of time. The end of the

WHERE report shows (no fix).

Possible Causes: T21 is upside down, no clear view of the sky, nearby trees, houses or buildings

obstructing satellite signal, metallic tinting of the windshield

Possible Solution: Move to a place where the T21 (Tramigo logo facing up) has a clear view

of the sky, ensure that tinting is non-metallic. To test tint move the unit
outside the vehicle and see if reception improves after 10 minutes. You
should see (3D fix) at the end of the WHERE report.

To check that the unit is operating correctly press the SOS button between 10 and 20 times. The
light will flash 5 times. Now the light will indicate the status:

SOS Light Meaning

1 short flash T21 has no GPS fix
2 short flashes T21 has a 2D GPS fix
3 short flashes T21 has a 3D GPS fix

0 ‘ringing’ flashes T21 is not connected to the GSM network
1 or 2 ‘ringing’ flash T21 is connected to the GSM network

To return to the normal display press the SOS button again between 10 and 20 times.

If you still have problems contact your dealer or email [e-mail] for assistance.

www.tramigo.net

6/6

Inserting the SIM card

If your T21 has been purchased without a SIM card or you need to replace the SI M card follow
these instructions.

Before inserting or removing the card, remember to unplug the power from the T21.

Ensure that the SIM card is not protected by a PIN number – this c an be done by inserting the
SIM into a suitable mobile telephone and then following your mobile telephone instruction
booklet to remove the PIN lock. Your SIM account must be setup to allow SMS (text) messaging.

For security applications the T21 is designed to keep the SIM secure, but for
regular use you can attach a thin strip of tape to the SIM so you can change
the SIM in the future if needed.

TIP

5/6

To insert the SIM card, ensure that the gold contacts
on the card are towards the lower part of T21 (see
diagram) and the orientation guide of the SIM card
(“missing corner”) aligns outwards. Slide the SIM straight
into the T21. Inside the lower half of the T21 there is a
track that the SIM fits securely into.

Use a flat instrument to gently push the SIM all the way
in (2 mm past edge of case). If the SIM will push further
than 2mm into the T21 you have missed the track, so
remove the SIM and re-insert keeping the SI M sliding
on the lower half of the slot.

SIM installed with a removal tape showing.

Step 1. Install

SIM Card

If your T21 did not come with a pre-installed SIM card
follow the instructions located on page 5 of this guide
to install one or ask your dealer for assistance. T21
requires a working SIM card to function.

Mounting T21

You have 2 main options for installation, quick install
using the cigarette lighter adapter or full install that
connects to vehicle power and ignition.

Quick Install

The T21 has a SOS Button with an indicator light. The button is also used for controlling certain
modes of the T21 so it’s preferable to install the T21 so that this button is visible and accessible.

Your T21 must be placed with the Tramigo Logo on top facing to the sky. This is to allow
your T21 to determine its location from the signal made by GPS satellites orbiting the ear th.
Materials such as metal, metallic window tinting, and rear window defoggers must be avoided
because they can block these signals.

In general, you can expect that a mounting situation on the dashboard of your vehicle will
be satisfactory. You can use the Velcro fasteners to secure your T21 to the dashboard. In some
vehicles T21 will work in the glove box.

Your T21 will work with Ceramic tinting available from companies
such as 3M.

Power Connection

Plug the power cable into a cigarette lighter plug, preferably one that is also powered when the
ignition is turned off. You can also purchase the battery backup option if you can’t find a
permanent power source. Permanent power allows you to know the location of your vehicle even
when the ignition is turned off.

The SOS button should flash every 3 seconds to indicate your T21 has power, and will flash
twice every 3 seconds to indicate it has determined its location.

Full Installation

Your T21 can be installed directly to the vehicle power using the 3 wire cable option. This allows
your T21 to be completely hidden from view. Any car accessory dealer can install your T21 in
30 minutes or less. Have them follow the Installation Guide located on the Tramigo CD.

TIP

T21 SOS Button

2/6

Step 2: Setup

After T21 has been installed into the vehicle you are ready to become the ‘Owner’ of T21.

1) Call your T21 from your phone and hang up after 1 or 2 rings. If the T21 does not answer go
to the troubleshooting section.

2) After about 20 seconds the T21 unit will respond with a text message: “Initialization success,
<Your phone number> has been added to phone book entry 1, your PIN is 0000”

This means that you are now the Owner of T21 and it will accept any commands that you
send to it from your phone. After about 5-15 minutes your T21 will determine its position and
you are ready to track your vehicle. The SOS button will flash twice every 3 seconds to indicate
your T21 has determined it's position.

3) If you have a Nokia Series 60 Smart phone you
can install Tramigo M1 software that makes your T21
even easier to use. M1 is included on your Tramigo
CD and the M1 User Manual provides installation
instructions.

Step 3: Connect

Now your T21 is ready to use. From your mobile phone try sending a text message containing
WHERE to the phone number of your T21 to find the current location of your vehicle. Read the
T21 commands section of this guide to learn how to use your T21.

You should change your PIN number (default 0000) to prevent unauthorized access to your T21.
Send the command SETPIN,newpin to your T21. Your new PIN must be 4 digits long, numbers
only. Keep this PIN number private.

T21 Commands

This is a list of the most common commands that you will use. For a full list see the T21 User
Manual located on your Tramigo CD.

Note: The T21 owner has authority to send all commands but other users must add “,PIN” to
each command. Example assuming a PIN of 5555 the user would send the command WHER E,5555
to the T21.

Upper or lower case can be used in the commands.

3/6

Nokia Series 60 phone

4/6

SMS Command

Tracking

ADDPLACE,place, – Add your own location to the

Tramigo location directory that is displayed with the
WHERE command. You must have a GPS fix for this
command to work.

DELPLACE,place – Deletes the place from the unit
JOURNEY,ON – Sends a journey report after the car

has been stopped for 30 minutes.

JOURNEY,OFF – Turns off journey reporting

Example Report – Journey S:0.1 kms W of Glorietta 9:40

14/4/2005 E:0.2 kms N of RCBC Plaza 10:15 14/4/2005
T:0:35 D:2.2 kms S:15kmh I:0:11 Q:75

When in a Journey the SOS button will stop flashing and
be on until the journey ends.

WHERE – Shows the location of your car. The Owner
can also call the T21 and hang up after 1 or 3 rings

Safety and Security

IGN,ON – Will tell you when your car’s engine has started.
IGN,OFF– Turns off the monitor.

This feature requires the Full Installation option to function.
SOS – Pressing the SOS button for more than 2 seconds

will send a personal assistance report.

Performance

ACCEL,ON,<factor>

– Monitors acceleration and reports
when vehicle is accelerating too quickly. Factor can be between
1 for softest acceleration to 30 for hardest acceleration. If no
factor has been set then 5 will be used as a default.

ACCEL,OFF – Turns off the monitor
OVERSPEED,O N,x

Reports if car travels above x km/h.

OVERSPEED,O FF turns off reporting

Setup

NAME,name – Sets the name of your car (up to 15

characters)
TEXT,<entry 1 to 4>, <phone number> – Adds or

deletes an entry in the user text list. Phone numbers
entered here will receive all automatic text reports for
events such as Journey, SOS, Accel, Overspeed, etc.

Using phone number 0 deletes the current entry.
Entry 1 is for the owner of the T21.

CALL,<entry 1 to 4>, <phone number> – Adds or
deletes an entry in the caller list. Phone numbers entered
here can be called by pressing the SOS button. Press
the SOS button 1 time (less than 2 seconds to call the
number in entry 1, press 2 times for entry 2.

Using phone number 0 deletes the current entry.
This feature requires the hands free option to function.

Example Command/Report

ADDPLACE,Office

Name can be up to 15 digits.

DELPLACE,Office
JOURNEY,ON

Journey will detect the end after the car has been stopped
for 30 min.

JOURNEY,OFF
S: = Start. Shows location, time, date.

E: = End in same format as start.
T: = time in hours and minutes
D:= Distance traveled
S: = Maximum speed
I: = Idle time (car not moving ex: traffic, lights)
Q:= GP S position quality

WHERE

T21 is in transit 0.8 Km E of Central Mall at 13:45:53
29/4/2005 travelling S at 18 kph - 14.55244,121.01308 (3D)

IGN,ON

Note: The Tramigo must be attached to your ignition line
during installation.
T21: IGNITION ON: 0.4 km NW of Buendia-Filmore at
06:21:07 14/4/2005

T21: PERSONAL AS SISTANCE: 0.8 km E of Edison
Avenue/A at 20:14:17: 26/4/2005

ACCEL,ON

T21: EXCESSIVE AC CELERATION: 0.3 km W of Sunshine
Plz Ma at 06:09:20 14/4/2005

ACCEL,OFF
OVERSPEED,O N,100

T21: OVERSPEE D: 0.2 km NE of Buendia-Filmore at
06:21:07 14/4/2005

OVERSPEED,O FF

NAME,Gavin’s Car

TEXT,2,[phone]

Adds the number to entry 2

TEXT,2,0

Deletes the phone number in entry 2

TEXT

Reports all the numbers in the text list.

Never change or delete entry 1 unless the owner's
phone number has changed.

CALL,1,05551236000

Adds the number to entry 1

CALL,2,0

Deletes the phone number in entry 2

CALL

Reports all the numbers in the call list.
