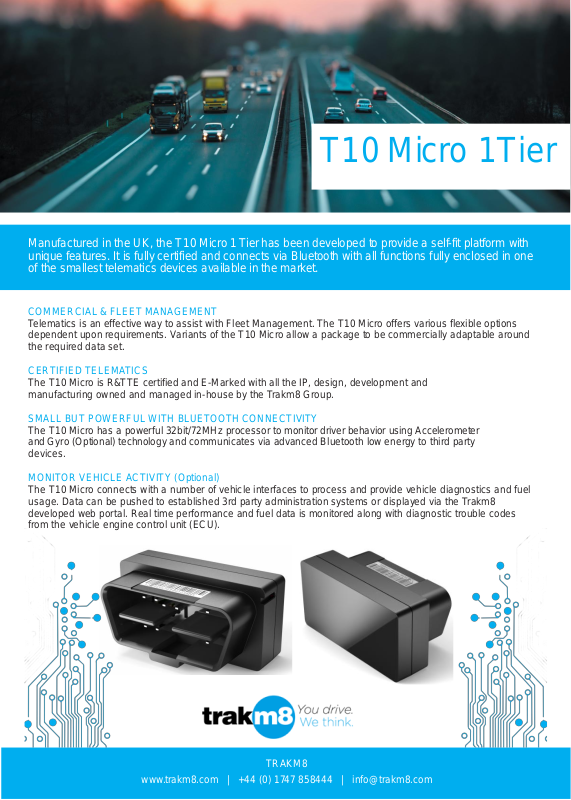

T10 Micro 1Tier
Manufactured in the UK, the T10 Micro 1 Tier has been developed to provide a self-fit platform with
unique features. It is fully certified and connects via Bluetooth with all functions fully enclosed in one
of the smallest telematics devices available in the market.
COMMERCIAL & FLEET MANAGEMENT
Telematics is an effective way to assist with Fleet Management. The T10 Micro offers various flexible options
dependent upon requirements. Variants of the T10 Micro allow a package to be commercially adaptable around
the required data set.
CERTIFIED TELEMATICS
The T10 Micro is R&TTE certified and E-Marked with all the IP, design, development and
manufacturing owned and managed in-house by the Trakm8 Group.
SMALL BUT POWERFUL WITH BLUETOOTH CONNECTIVITY
The T10 Micro has a powerful 32bit/72MHz processor to monitor driver behavior using Accelerometer
and Gyro (Optional) technology and communicates via advanced Bluetooth low energy to third party
devices.
MONITOR VEHICLE ACTIVITY (Optional)
The T10 Micro connects with a number of vehicle interfaces to process and provide vehicle diagnostics and fuel
usage. Data can be pushed to established 3rd party administration systems or displayed via the Trakm8
developed web portal. Real time performance and fuel data is monitored along with diagnostic trouble codes
from the vehicle engine control unit (ECU).
www.trakm8.com | +44 (0) 1747 858444 | info@trakm8.com
TRAKM8
T10 Micro 1Tier
D
escriptio
Full function BLE 4.1, CAN, K-line product, self-fit device
n
Firmware Protocols
Trakm8 TEDS
Bluetoot
ST NRG Solution
h
Supply Voltage
6 – 30V
Current
Running: 40mA
Sleep: 2mA @12V
Draw
Voltage Monit
Vehicle supply
Vehicle Interface (Optional)
CAN - ISO11898/ISO15765
K-Line - ISO9141/ISO14230
UDS - ISO14229
C
ertification
CE & RTT&E, E Mark
FCC (Federal Communications Commission)(USA)
IC (Industry Canada)
oring
www.trakm8.com | +44 (0) 1747 858444 | info@trakm8.com
Processor
32bit / 72MHz
Flash
64 Mbit
SRAM
32 Mbit
Accelerometer
tri-axis +/-8g / 14bit
Motion Ignition
Gyro (Optional)
tri-axis/14 bit
Main C
J1962 Diagnostic Automotive Connector
W
16g
Enclosure
PVC Black, flammability rating UL 94 V-0
Dimensions
W46mm x D23mm x H19mm (H24mm including connector)
Operating Tempera
-30°C to +85°C
TRAKM8
eight
onnector
ture
