TrakGPS FM2100 User Manual

FM2100

USER MANUAL

V1.0 DRAFT

3

4

5

5

1.2

5

1.3

5

6

7

8

8

9

4.2.1

9

4.2.2

9

4.2.3

10

11

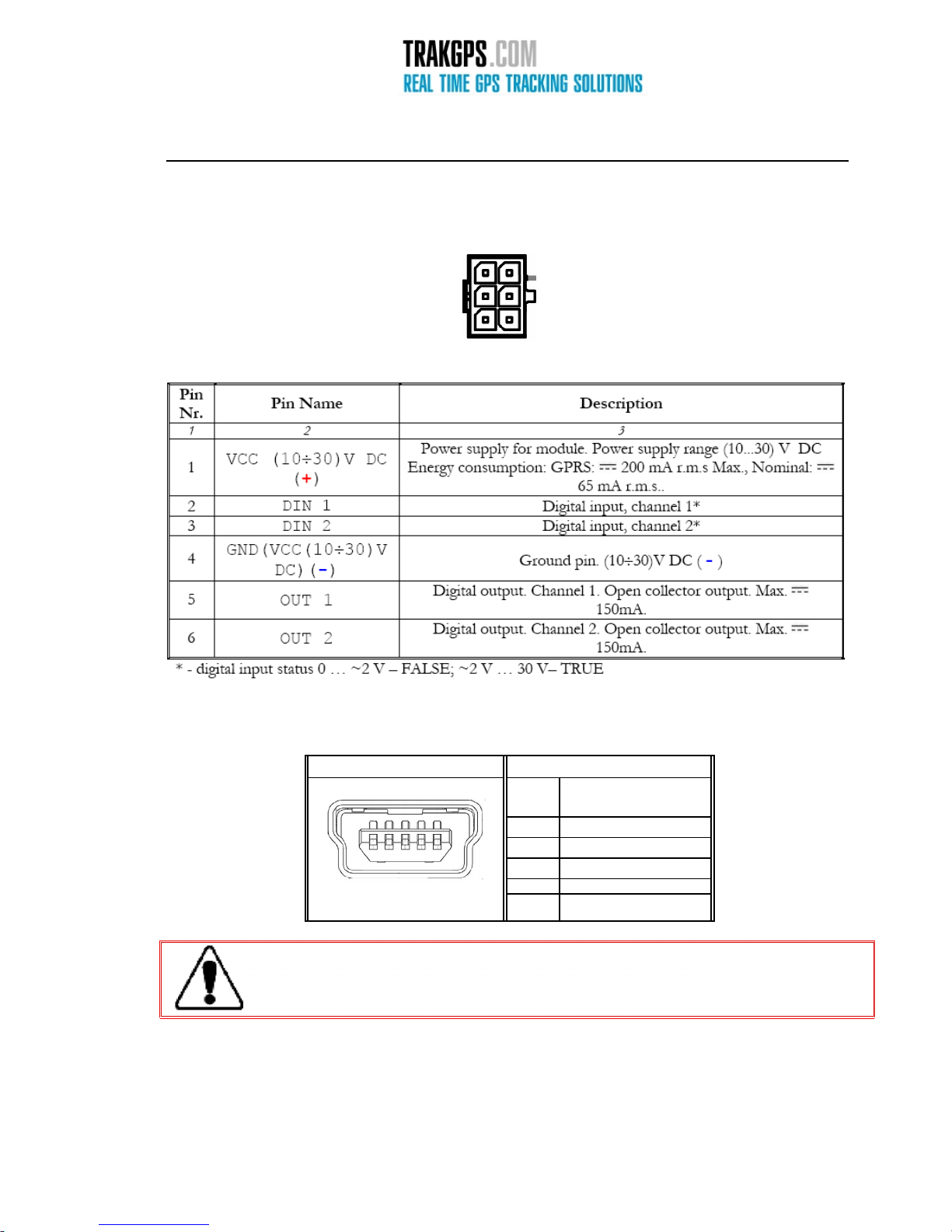

Connection &

pinout

12

12

12

Table of Contents

ATTENTION!
INSTRUCTIONS OF SAFETY
LEGAL NOTICE
Short description

1.1

About the document
Acronyms
Mounting guidelines

Package contents

2

Main Features

3

Mechanical features

4

4.1

4.2

4.3 SIM card insert scheme

5

5.1

5.2

6

Device connectors and dimensions
FM2100 technical specification

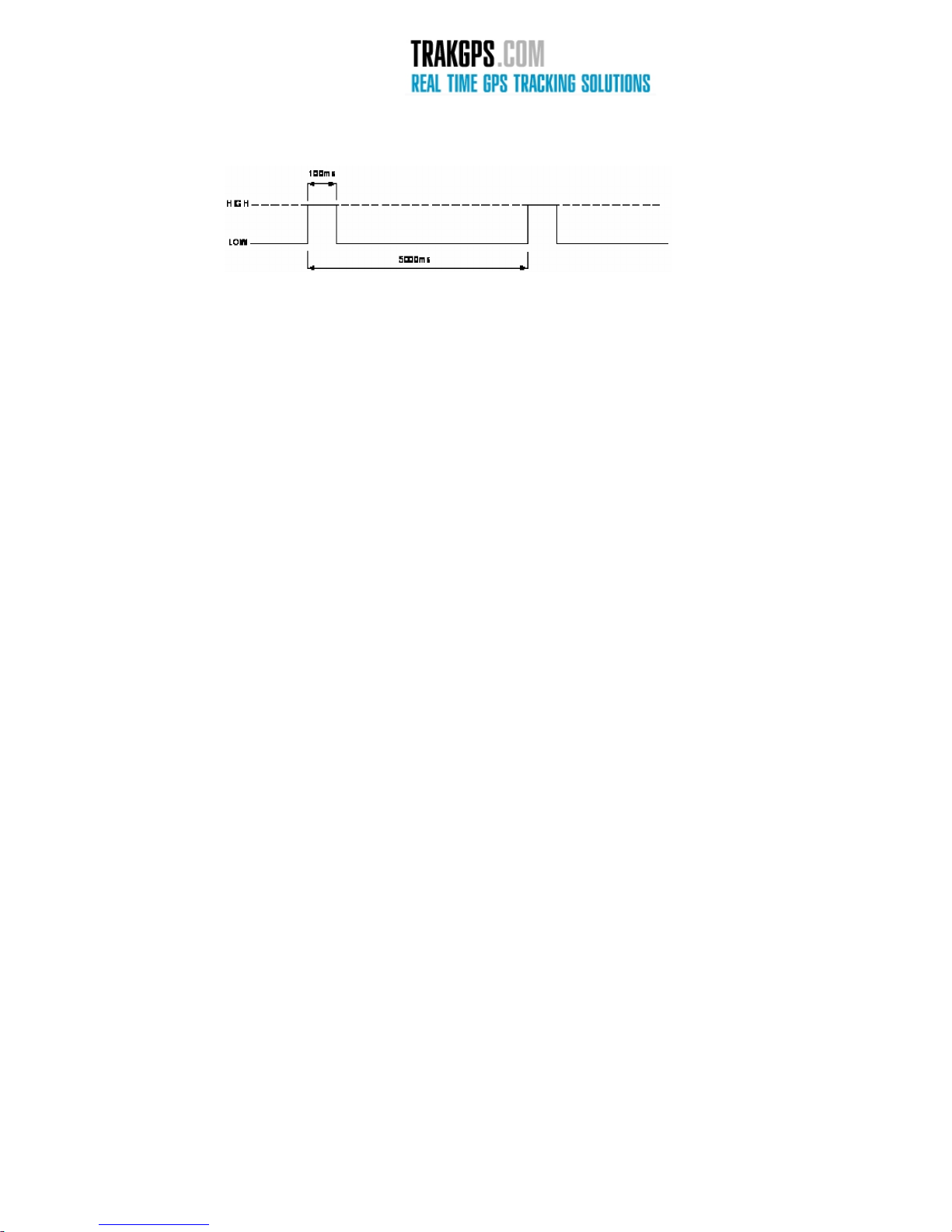

Navigation LED
Modem LED
Status LED

Socket 2×3
PORT 1/NMEA

Changes Log Sheet

2

13

1

ATTENTION!

Do not disassemble the device. Do not touch before unplugging
the power supply if the device is damaged, the power supply
cables are not isolated or the isolation is damaged.

All wireless data transferring devices produce interference that
may affect other devices witch are placed nearby.

The device may be connected only by qualified individuals.

The device must be firmly fastened in the predefined location.

The programming must be performed using a second class PC
(with autonomic power supply).

The device is susceptible to water and humidity.

Warning!! May explode, if a wrong accumulator is used.

Any installation and/or handling during a lightning storm is
prohibited.

FM2100 has not USB interface; it has Mini USB connector type
with physical RS232 interface.

Do not plug it to PC’s USB port.
Please use cables provided with FM2100 device.
TRAKGPS is not responsible for any harm caused by using
wrong cables for PC <-> FM2100 connection.

2

INSTRUCTIONS OF SAFETY

This chapter contains information on how to operate “FM2100” safely. BY following these

requirements and recommendations you will avoid dangerous situations. You must read these

instructions carefully and follow the strictly before operating the device!

The device uses a 10V...30V DC power supply. The nominal voltage is 24V DC. The allowed

range of voltage is 10V...30V DC, power – not more than 12 W.

To avoid mechanical damage, it is advised to transport the FM2100 device in an impact-proof

package. Before usage, the device should be placed so that its LED indicators are visible, which show

what status of operation the device is in.

When connecting the connection (2x3) cables to the vehicle, the appropriate jumpers of the

power supply of the vehicle should be disconnected.

Before dismounting the device from the vehicle, the (2x3) connection must be disconnected.

The device is designed to mount in a zone of limited access, which is

operator.

inaccessible for the

All related devices must meet the requirements of standard EN 60950-1.

The device FM2100 is not designed as a navigational device for boats and aircraft.

FM2100 has not USB interface; it has Mini USB connector type with physical RS232
interface. Do not plug it to PC’s USB port. Please use cables provided with FM2100
device. TRAKGPS is not responsible for any harm caused by using wrong cables for
PC <-> FM2100 connection.

3
