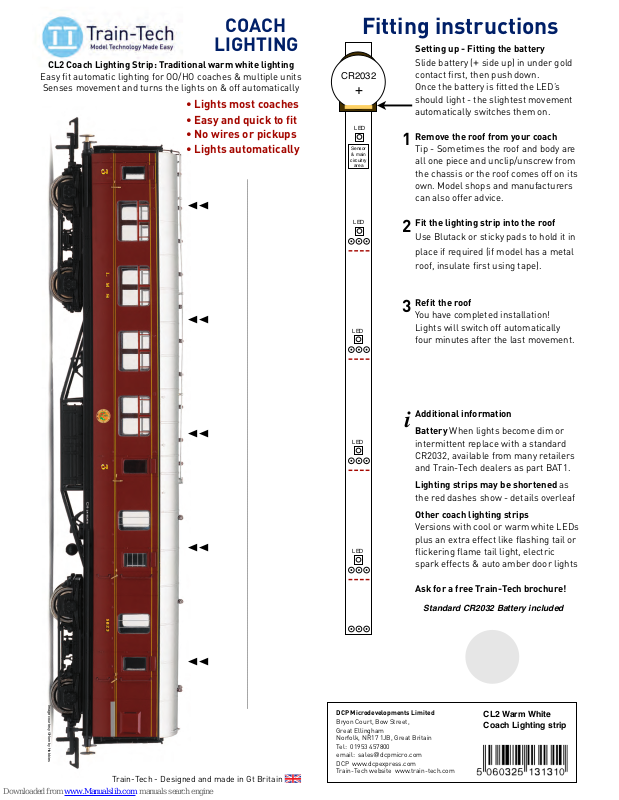

Train-Tech CL2 Fitting Instructions Manual

Train-Tech - Designed and made in Gt Britain

Standard CR2032 Battery included

Fitting instructions

1

2

Setting up - Fitting the battery

Slide battery (+ side up) in under gold
contact first, then push down.
Once the battery is fitted the LED’s
should light - the slightest movement
automatically switches them on.

Remove the roof from your coach

Tip - Sometimes the roof and body are
all one piece and unclip/unscrew from
the chassis or the roof comes off on its
own. Model shops and manufacturers
can also offer advice.

Fit the lighting strip into the roof

Use Blutack or sticky pads to hold it in
place if required (if model has a metal
roof, insulate first using tape).

Refit the roof

You have completed installation!
Lights will switch off automatically
four minutes after the last movement.

Additional information
Battery When lights become dim or

intermittent replace with a standard
CR2032, available from many retailers
and Train-Tech dealers as part BAT1.

Lighting strips may be shortened as
the red dashes show - details overleaf

Other coach lighting strips

Versions with cool or warm white LEDs
plus an extra effect like flashing tail or
flickering flame tail light, electric
spark effects & auto amber door lights

Ask for a free Train-Tech brochure!

3

CR2032

+

DCP Microdevelopments Limited

Bryon Court, Bow Street,
Great Ellingham
Norfolk, NR17 1JB, Great Britain
Tel: [phone]
email: [e-mail]
DCP www.dcpexpress.com
Train-Tech website www.train-tech.com

√√

√√

√√

√√

√√

•Lights most coaches

•Easy and quick to fit

•No wires or pickups

• Lights automatically

Image courtesy ©Hornby Hobbies

CL2 Warm White
Coach Lighting strip

COACH

LIGHTING

CL2 Coach Lighting Strip: Traditional warm white lighting

Easy fit automatic lighting for OO/HO coaches & multiple units

Senses movement and turns the lights on & off automatically

i

Sensor
& main
circuitry

area

LED

LED

LED

LED

LED

Track Tester

• Quickly tests track for power faults

• Low cost and easy to use

• Works on N, TT, OO or HO Track

• Indicates the DC polarity, or DCC, or a fault

• Small enough to check point frogs

TT1 Track Tester

One-Touch DCC™ Digital Signals

• Signal with DCC decoder built into base

• Can just plug direct into track – no wires!

• Easy to fit and use – no CV programming!

• Can sync to other signals & points

DS1 Home: Red

R

and Green

G

DS2 Distant: Yellow

Y

and Green

G

DS3 Home Distant:

R

Y

G

DS4 Distant: Y

G

Y

DS5 Outer Distant:

R

Y

G

Y

DS5HS Outer Dist:

R

Y

G

Y

(High Speed mainline)

DS6 Dual Head Home:

R

G

DS7 Dual Head Distant: Y

G

DS8 Stop-Caution: Red

R

and Yellow

Y

General purpose signal kit - no LEDs:
SK1 Basic kit 2/3/4 aspect & dual heads
Signal kits with LEDs and resistors
SK2 Home 2 aspect kit Red

R

Green

G

SK3 Distant 2 aspect kit

Y

G

SK4 Home Distant 3 aspect kit

R

Y

G

SK5 Distant 3 aspect kit

Y

G

Y

SK6 Outer Distant 4 aspect R

Y

G Y

SK7 Dual head Home 2 aspect

R

G

SK8 Dual head Distant 2 aspect

Y

G

Track not included

DS1/2

DS6/7

One-Touch DCC™ Point Controllers

DCC

N Z

• Control points and uncouplers using DCC

• Easy to use – No CV programming!

• Work with most solenoid point motors

• Just connect 2 wires to nearby DCC rails

• Easy screw terminals – no soldering

• Built in CDU for efficient operation

• Can sync to other points and signals

PC1 DCC Single Point Controller
PC2 DCC Quad Points Controller

PC1

PC2

One-Touch DCC™ Signal Controllers

• Control LED & Semaphore signals by DCC

• Easy to set up & use –No CV programming!

• Easy screw terminals – no soldering

• Can sync to other points & signals

DCC

ANY

GAUGE

SC1 Dual 2 aspect colour light signals controller

Controls one or two 2 aspect colour light signals.

SC2 3 or 4 aspect or 2 aspect + route signal control

Controls one 3 aspect or one 4 aspect or one 2 aspect + route.

SC3 Dual Dapol OO/N Sempahore signal controller

Controls one or two standard OO or N Dapol motorised
semaphore signals by DCC. Signals connect direct to the SC3 ­no modifications or power supply needed.

SC2

SC3

Signals not included

Buffer Lights

• Add realistic stop light to any siding

• Simply clips onto track – No wires!

• Fits next to most buffer stops & kits

• Or at platform end or free standing

• On DCC both lights are on constantly

• On DC one light is on & varies with speed

N

BL1 OO/HO gauge Buffer Light
BL2 N gauge Buffer Light

Track and buffer stop not included

HO

OO

N

N

Automatic Tail, Firebox & Loco Lights

• No switch - senses motion & turns on!

• Turns off automatically 4 minutes after stop

• No pickup, wires or soldering - LED plugs in

• Fit in brake vans, coaches, loco, wagons etc

• Runs for ages on small button battery

LFX Lighting Effect Controllers

LFX4 Log or Camp Fires

A realistic fire effect using amber, yellow, red LEDs
LFX5 Welding effects
Realistic electric arc welding effects with bright LEDs

LFX6 Quad LED Lighting Controller (DCC Only)

Controls 4 sets of LEDs on and off using separate DCC
addresses. Directly powers 4 LEDs per output

LFX7 Flashing effects

Simulates four flashing effects ; belisha beacons,
emergency services, camera flash, lightning, sparks

• Easily add lighting effects to your layout

• LEDs screw in – no resistors or soldering

• Powered by 9v battery, 12-16V DC or DCC

• On DC the effect is on when powered

• On DCC the effect can be controlled

• Effects LEDs are included

ANY

GAUGE

ANY

GAUGE

Self Assembly Colour Light Signal Kits

• Low cost – adapt to your own design

• Control by switches or a signal controller

• LEDs are prefitted to a narrow PCB

Single output modules:
AL1 Flashing Tail light
AL2 Flame Tail / Firebox
AL3 Constant lighting

LEDs & battery included

Dual output modules:
AL21 Flashing + constant
AL22 Flame + constant
AL23 Sparkarc + constant
AL24 Doors open + constant

Auto

SEE WWW.TRAIN-TECH.COM OR CONTACT DCP FOR FREE COLOUR BROCHURE

WIRE
FREE

WIRE
FREE

Rolling stock not included

Fits in
N scale
upwards

LFX1 Level Crossing Barrier

Lights a sequence of steady amber and
then flashing red LEDs as seen at crossings
LFX2 Home & Shop Lighting
Randomly controls lights in houses, shops,
stations, pubs
LFX3 Traffic Lights
Controls one pair of timed traffic lights
(TL1 Traffic light kit also available)

Every kit includes
the signal head,
aluminium post
and base plus
detailing kit inc
ladder, handrails

Point motor
and track
not included

0314

DC &

DCC

HOOON

Automatic Coach Lighting

• Easy to fit in seconds - no wiring!

• No switch - senses motion & turns on!

• Turns off automatically 4 minutes after stopping

• No pickups so works on regular DC & DCC

• Traditional warm white or modern cool white

• Also with tail light, sparks or door light effect

• Lights stay bright & constant with no flickering

• Fits most OO/HO coaches and maybe cut down

OO
HO

Coach Lighting Strips (including LEDs and battery):
CL1 : Cool white for modern coaches with fluorescent or LED lighting
CL2 : Warm white for traditional coaches simulating oil lamps or bulbs
CL21 : Cool white plus modern flashing lantern LED tail light
CL22 : Warm white plus flickering flame lantern LED tail light
CL23 : Cool white plus bright electric spark arc effect LEDs
CL24 : Cool white plus amber door lights which light after train stops

Auto

WIRE
FREE

Rolling stock not included

DC &
DCC

Track not included

Only

£5

DC &

DCC

DC &

DCC

DC &

DCC

DC &

DCC

OO

HO

OO

HO

OO
HO

OO
HO

OO

HO

WIRE
FREE

DCC

HOOON

SFX Sounds for Trains

• Easy low cost sound that works on

any

railway

• Easy to fit in seconds - no connections

• No switch - senses motion & turns on!

• No pickups so works on regular DC & DCC

• Self contained - built in speaker & battery

• Tiny capsule: 25mm x 20mm x 12mm approx

• Fit capsule into loco, tender, wagon, coach...

• Real recorded sounds - Steam & Diesel etc

Each Capsule is supplied with
battery, sound tube & fitting guide
SFX10: Steam Locomotive
SFX20: Diesel Locomotive
SFX30: Electric Power Locomotive

Auto

DC &

DCC

SFX50: Diesel Multiple Unit
SFX60: Electric Multiple Unit
SFX70: Shunting
SFX80: Passenger Coaches

See our website
for more info & to
hear the sounds

WIRE
FREE

Coach Lighting Strip - additional information

Cutting the lighting strip down

The strip may be cut down, either to fit it into a
shorter coach or to split lighting inside a
compartment to avoid obstacles such as a pillar,
wall or a motor in a multiple unit for example.
With care it may be cut at any of the four points
indicated by a dotted line as shown right & overleaf.
We suggest using fine sharp model or wire cutters
to make a clean cut without getting too close to any
silver circuit board ‘pads’ or twisting the strip.
Remove the battery before you cut and smooth the
edges with a fine file before using. If splitting the
lighting strip you can reconnect part strips using
wires to link any two rows of 3 silver pads together.

Moving Tail, Spark or Door effect LEDs

If your lighting strip also has tail, spark or door
light effects you can also move these either by
moving the fitted socket(s) or connecting the LED’s
directly to the silver pads (this requires soldering).
Note that all rows of the 2 and 3 silver pads on the
lighting strip are connected together so any can be
used either for effect LED’s or connecting split
strips together. The drawing on the right shows the
many possible positions for the effect LED’s.

Note that modifications made to the strip are at the owners risk

How the automatic coach lighting strip works

The strip incorporates a special microchip and
motion sensor which detects slight movement and
turns on the lights, then keeps them on until four
minutes after the last motion, so that the lights do
not go out as soon as it stops at a signal or station.

Battery

CR2032

+

DO NOT CUT INTO THIS SECTION

www.train-tech.com

shows the many possible
positions for effect LED’s
